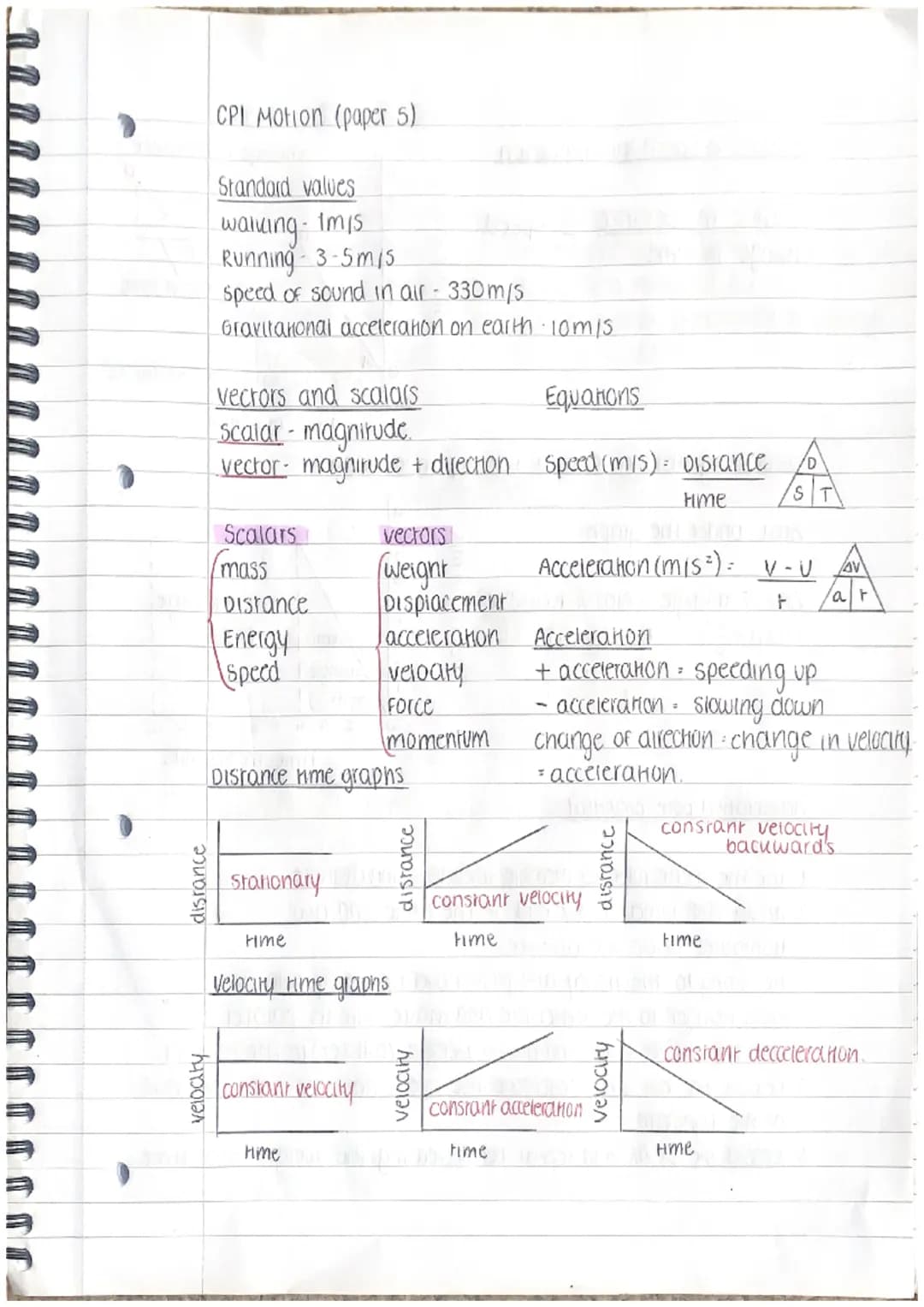

distance velbaty CPI Motion (paper 5) Standard values walking - Imis Running 3-5m/s speed of sound in air - 330m/s Gravitational acceleratio

View

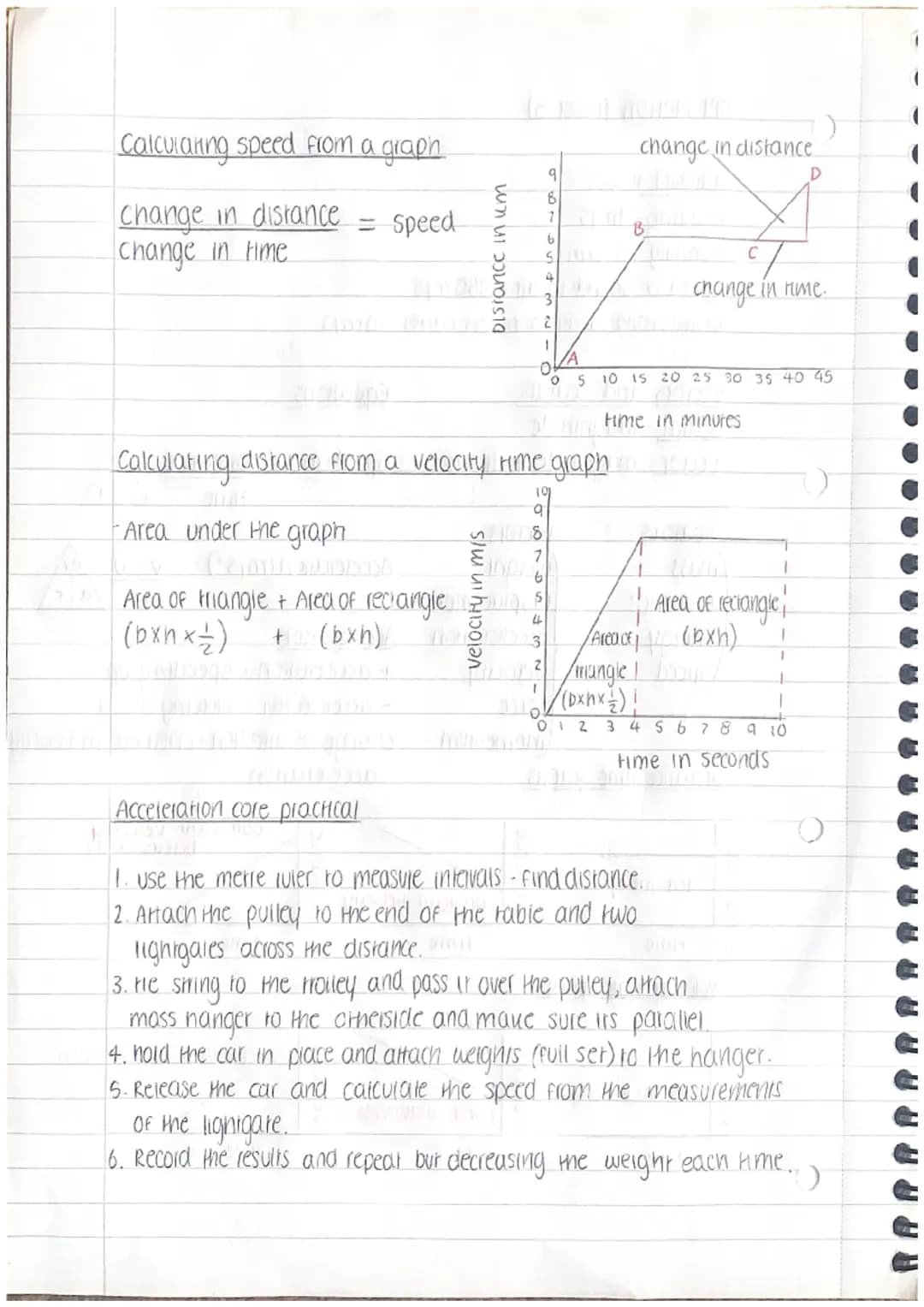

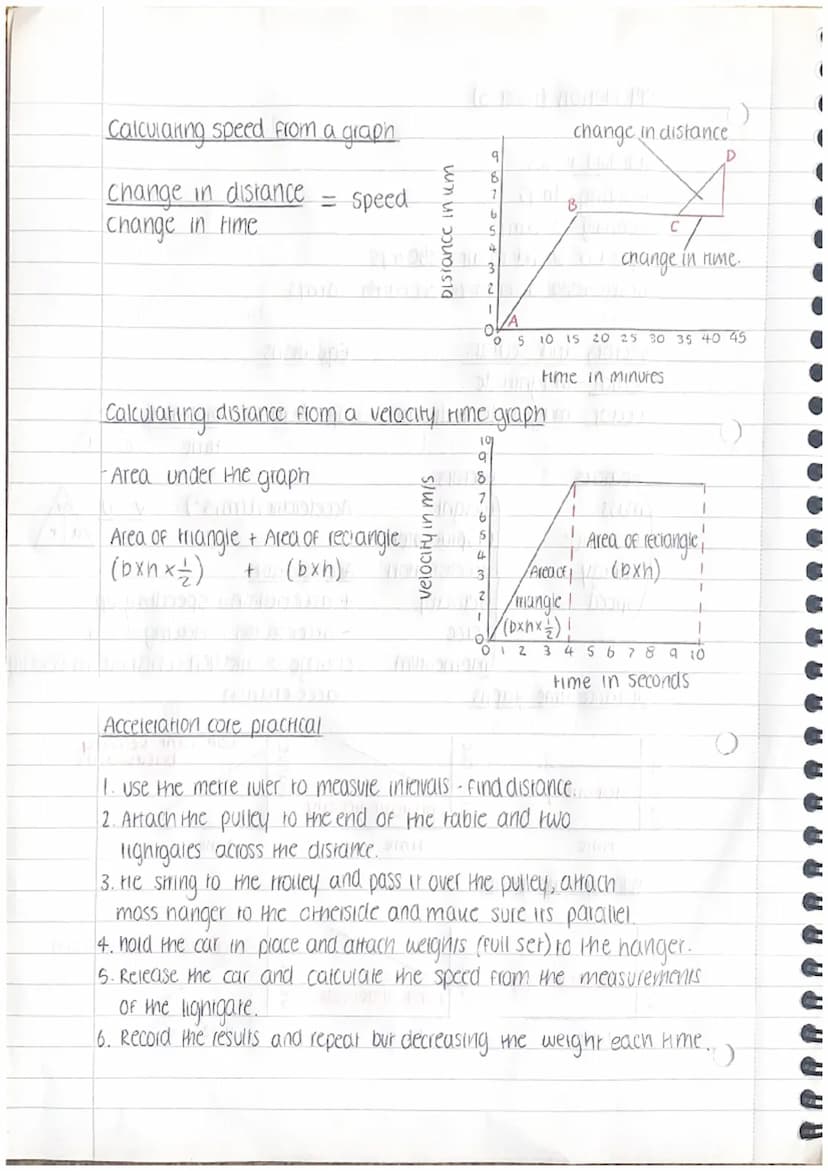

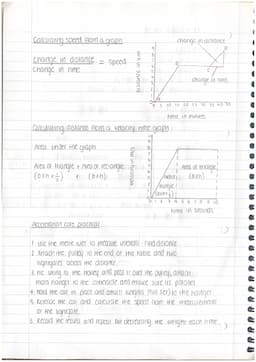

Calculating Speed and Distance from Graphs

This section delves deeper into calculating speed from graph physics and determining distance using velocity-time graphs. It provides step-by-step instructions for these calculations.

To calculate speed from a distance-time graph:

  1. Identify the change in distance
  2. Identify the change in time
  3. Divide the change in distance by the change in time

Definition: Speed is the rate of change of distance with respect to time.

For calculating distance from a velocity-time graph:

  1. Find the area under the graph
  2. If the graph shows a triangle and rectangle, calculate the area of each separately
  3. Add the areas together to get the total distance traveled

Example: Area of triangle = (base × height) / 2, Area of rectangle = base × height

The page also outlines an acceleration core practical experiment:

  1. Use a meter ruler to measure intervals and find distance
  2. Attach a pulley to the end of the table and set up two light gates
  3. Tie string to the trolley and pass it over the pulley
  4. Attach weights to the hanger
  5. Release the car and calculate speed using light gate measurements
  6. Record results and repeat with decreasing weights

This practical experiment helps students understand the relationship between force, mass, and acceleration in real-world scenarios.

distance velbaty CPI Motion (paper 5) Standard values walking - Imis Running 3-5m/s speed of sound in air - 330m/s Gravitational acceleratio

View

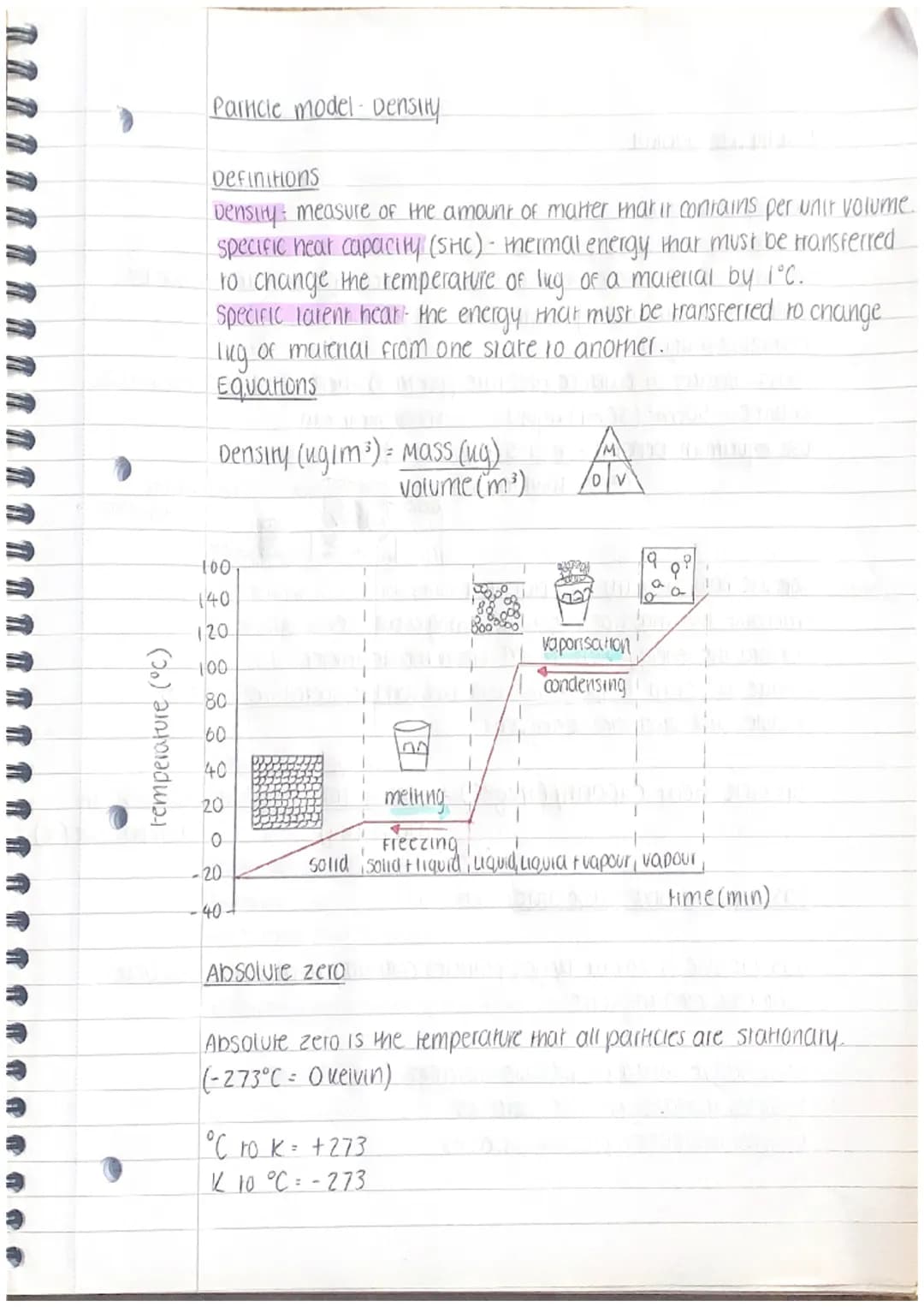

Particle Model and Density

This section introduces the particle model of matter and explores the concept of density. It covers important definitions and equations related to thermal properties of materials.

Definition: Density is a measure of the amount of matter contained per unit volume of a substance.

Key concepts introduced:

  • Specific heat capacity (SHC): The thermal energy required to change the temperature of 1kg of a material by 1°C
  • Specific latent heat: The energy required to change 1kg of material from one state to another

Vocabulary: Absolute zero is the temperature at which all particles are stationary (-273°C or 0 Kelvin).

The page presents the equation for density: Density (kg/m³) = Mass (kg) / Volume (m³)

A temperature-time graph is shown, illustrating the different states of matter and phase changes:

  • Melting and freezing points
  • Vaporization and condensation

Highlight: To convert from Celsius to Kelvin, add 273 to the Celsius temperature.

This section provides a comprehensive overview of the particle model, helping students understand the relationship between temperature, state changes, and the behavior of matter at the molecular level.

distance velbaty CPI Motion (paper 5) Standard values walking - Imis Running 3-5m/s speed of sound in air - 330m/s Gravitational acceleratio

View

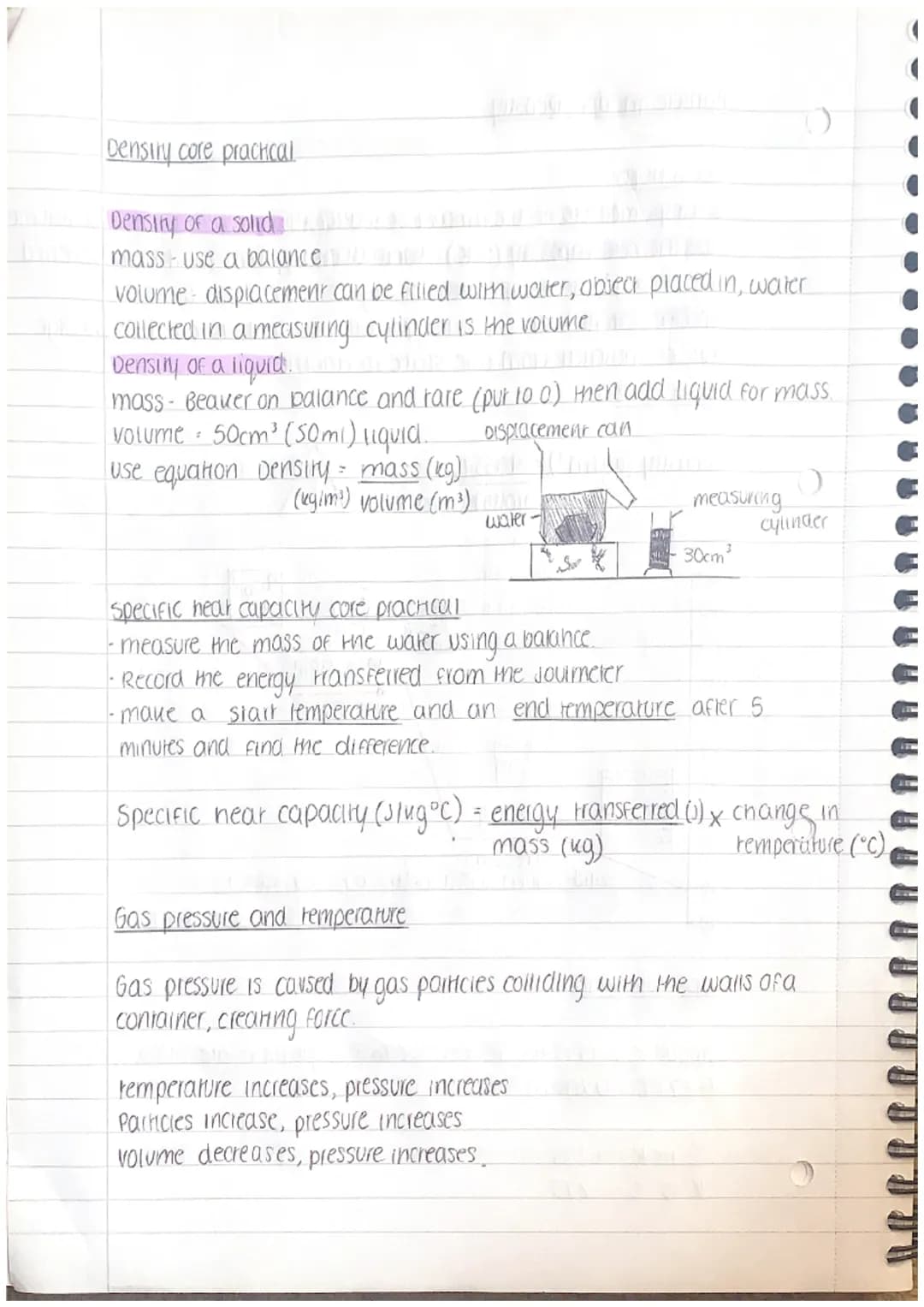

Density Core Practical and Gas Pressure

This section outlines the density core practical liquid experiment and introduces the concept of gas pressure. It provides step-by-step instructions for measuring the density of solids and liquids.

Density of a solid:

  1. Measure mass using a balance
  2. Determine volume through displacement method
  3. Calculate density using the equation: Density = Mass / Volume

Density of a liquid:

  1. Measure mass by weighing a beaker with and without the liquid
  2. Measure volume using a measuring cylinder
  3. Apply the density equation

Example: For water displacement, the volume of water displaced by an object equals the object's volume.

The section also covers gas pressure:

  • Gas pressure is caused by gas particles colliding with container walls
  • Pressure increases with temperature increase
  • Pressure increases as volume decreases

Specific heat capacity core practical:

  1. Measure the mass of water
  2. Record energy transferred from a Joulemeter
  3. Measure initial and final temperatures
  4. Calculate specific heat capacity using the equation: SHC = (Energy transferred × Change in temperature) / Mass

This practical work helps students understand the relationship between density, mass, and volume, as well as the factors affecting gas pressure.

distance velbaty CPI Motion (paper 5) Standard values walking - Imis Running 3-5m/s speed of sound in air - 330m/s Gravitational acceleratio

View

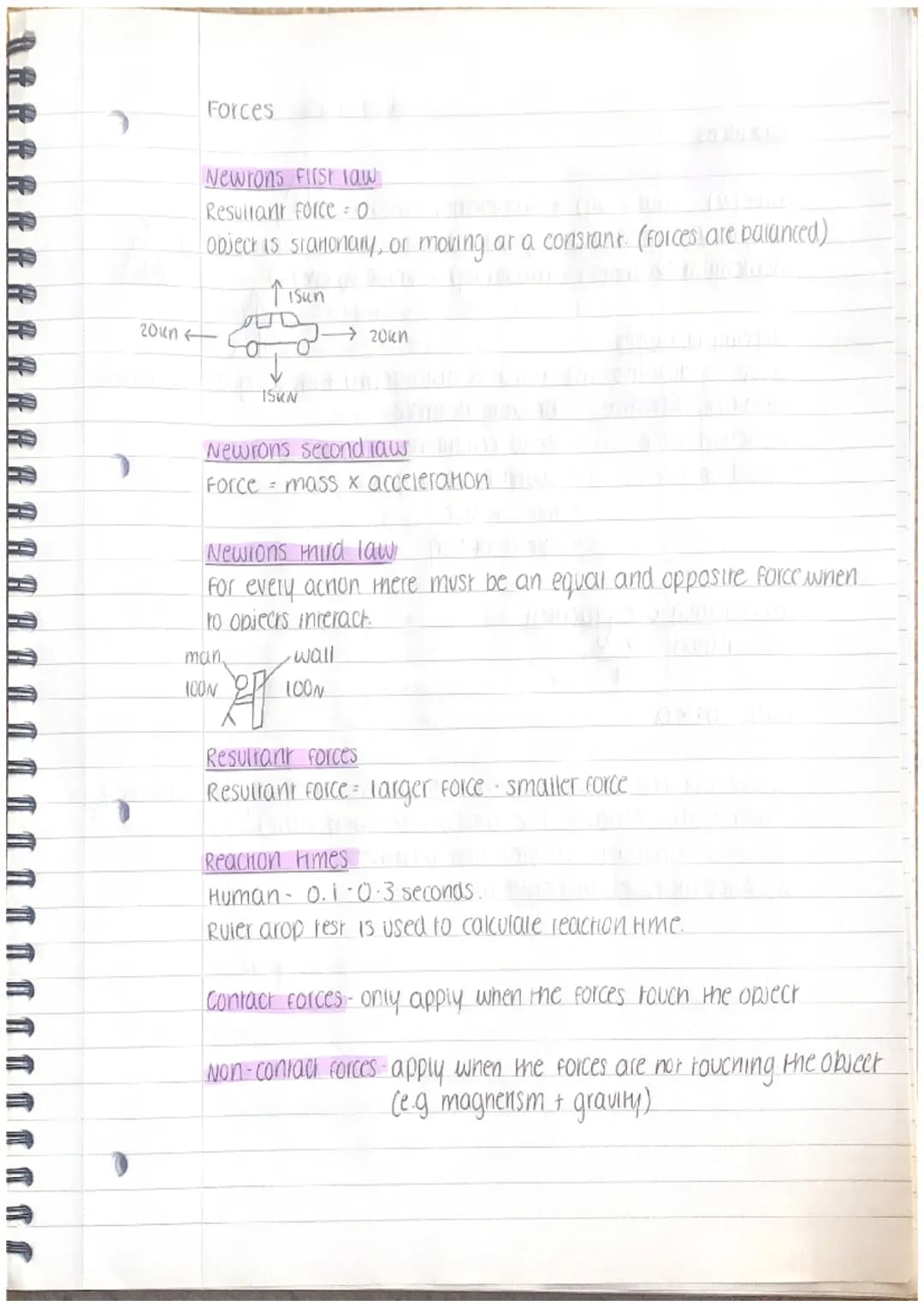

Forces and Newton's Laws

This section introduces the concept of forces and explains Newton's three laws of motion. It covers balanced and unbalanced forces, resultant forces, and reaction times.

Newton's First Law:

  • When the resultant force is zero, an object remains stationary or moves at constant velocity
  • Forces are balanced in this state

Definition: Resultant force is the overall force acting on an object when all individual forces are combined.

Newton's Second Law:

  • Force = Mass × Acceleration

Newton's Third Law:

  • For every action, there is an equal and opposite reaction when two objects interact

Example: When a person pushes against a wall, the wall pushes back with an equal force.

The page also covers:

  • Calculation of resultant forces
  • Reaction times (human reaction time: 0.1-0.3 seconds)
  • Contact forces vs. non-contact forces

Highlight: The ruler drop test is used to calculate reaction time in practical experiments.

This section provides a comprehensive overview of forces and their effects on objects, helping students understand the fundamental principles of motion in physics.

distance velbaty CPI Motion (paper 5) Standard values walking - Imis Running 3-5m/s speed of sound in air - 330m/s Gravitational acceleratio

View

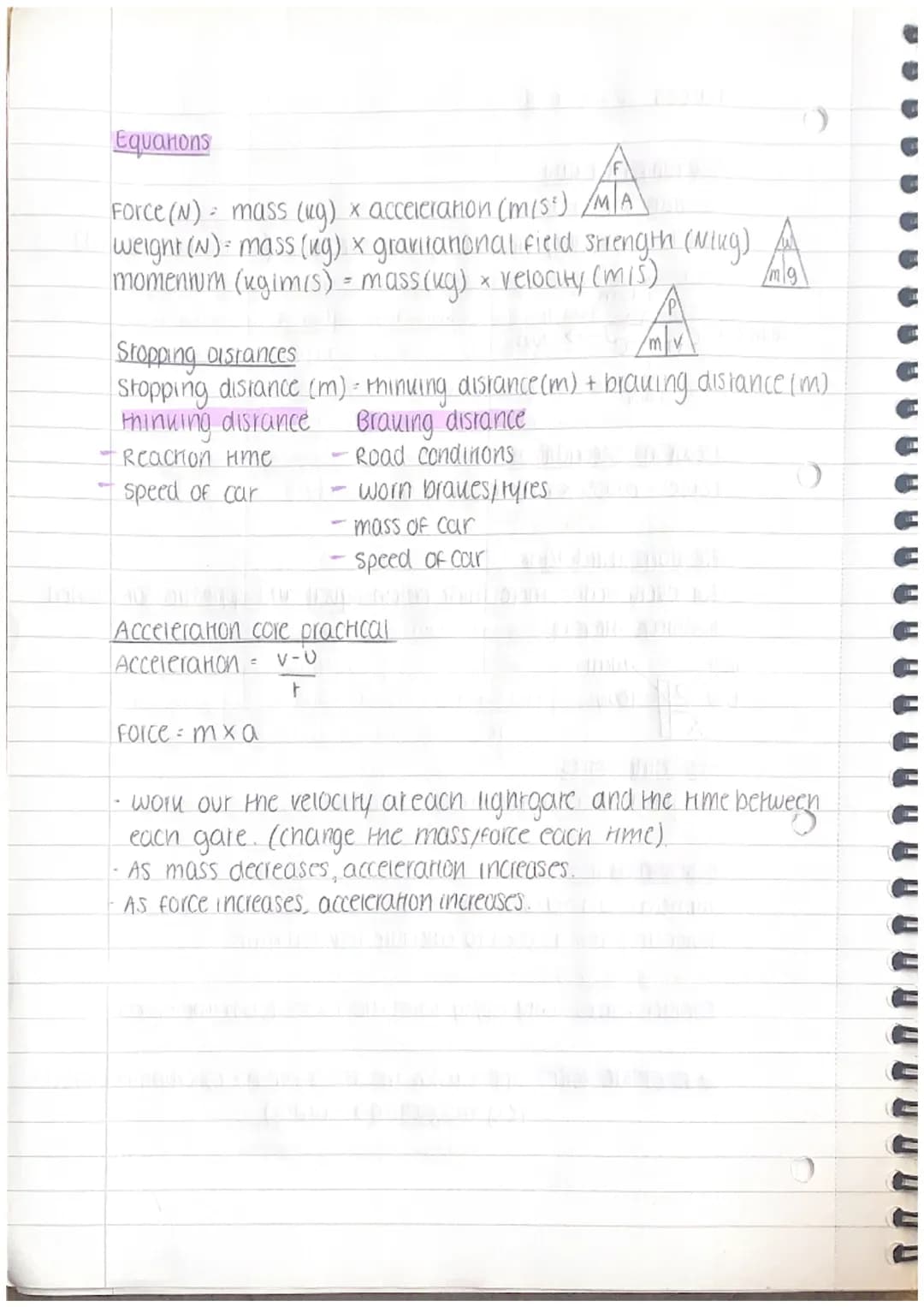

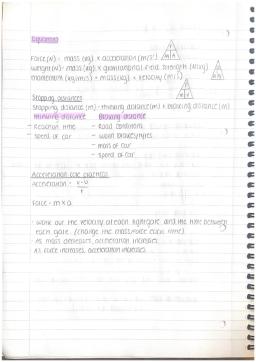

Force Equations and Stopping Distances

This section presents key equations related to forces and introduces the concept of stopping distances in the context of vehicle motion.

Important equations:

  1. Force (N) = Mass (kg) × Acceleration (m/s²)
  2. Weight (N) = Mass (kg) × Gravitational field strength (N/kg)
  3. Momentum (kg·m/s) = Mass (kg) × Velocity (m/s)

Definition: Stopping distance is the total distance a vehicle travels from the moment the driver perceives a need to stop until the vehicle comes to a complete halt.

Stopping distance components:

  1. Thinking distance: Distance traveled during the driver's reaction time
  2. Braking distance: Distance traveled while the brakes are applied

Factors affecting stopping distance:

  • Thinking distance is influenced by reaction time and vehicle speed
  • Braking distance is affected by road conditions, brake/tire condition, vehicle speed, and mass

The section also outlines an acceleration core practical:

  1. Measure velocity at each light gate
  2. Calculate time between gates
  3. Vary mass or force in each trial

Highlight: As mass decreases or force increases, acceleration increases, demonstrating the relationship F = m × a.

This practical experiment helps students understand the factors influencing acceleration and how they relate to Newton's Second Law of Motion.

distance velbaty CPI Motion (paper 5) Standard values walking - Imis Running 3-5m/s speed of sound in air - 330m/s Gravitational acceleratio

View

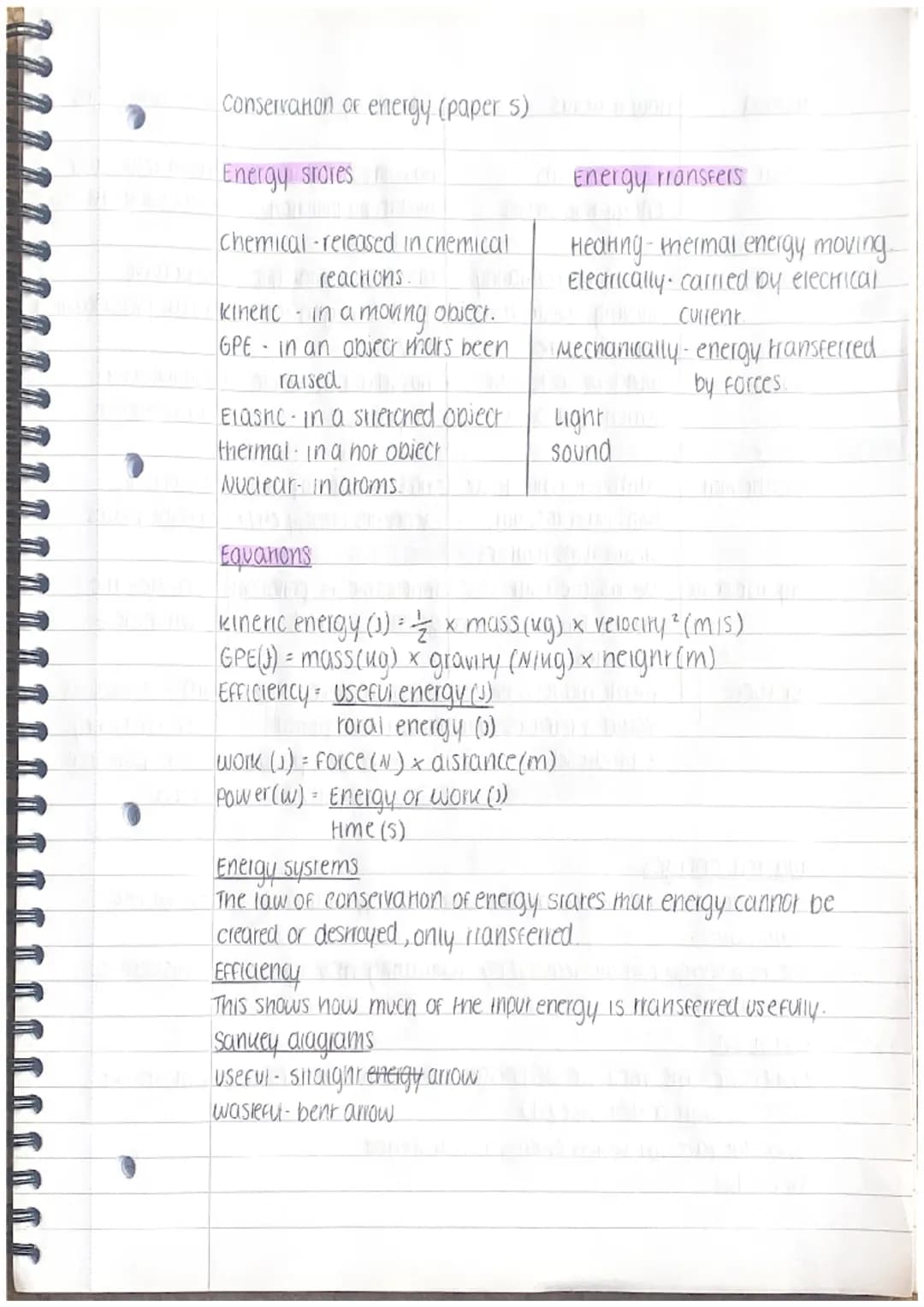

Conservation of Energy and Energy Stores

This page introduces the concept of energy conservation and different types of energy stores, providing a foundation for understanding energy transformations in physical systems.

The page begins by listing various types of energy stores:

  1. Chemical energy: Released in chemical reactions
  2. Kinetic energy: Present in moving objects
  3. Gravitational Potential Energy (GPE): Associated with objects that have been raised to a height
  4. Elastic energy: Stored in stretched or compressed objects
  5. Thermal energy: Present in hot objects

Highlight: Understanding these different energy stores is crucial for analyzing energy transfers and transformations in various physical processes.

The concept of conservation of energy is implicitly introduced through this list, as it sets the stage for discussing how energy can be transferred between these different stores while the total amount of energy remains constant.

Definition: The conservation of energy principle states that energy cannot be created or destroyed, only converted from one form to another.

While not explicitly stated on this page, the conservation of energy is a fundamental principle in physics that underlies many phenomena and is essential for solving energy-related problems.

The page appears to be the beginning of a larger discussion on energy, potentially leading into topics such as:

  • Energy transfers and transformations
  • Efficiency and energy losses
  • Calculations involving different forms of energy
  • Practical applications of energy conservation in real-world systems

By introducing these basic energy stores, the page prepares students to think about energy in a more systematic way, setting the foundation for more complex energy analyses in future lessons.
