Understanding the Basics of Conic Sections

Identifying Conic Sections

Ever wondered how to quickly identify different curves from their equations? The key is in how the variables are arranged! Let's decode them together.

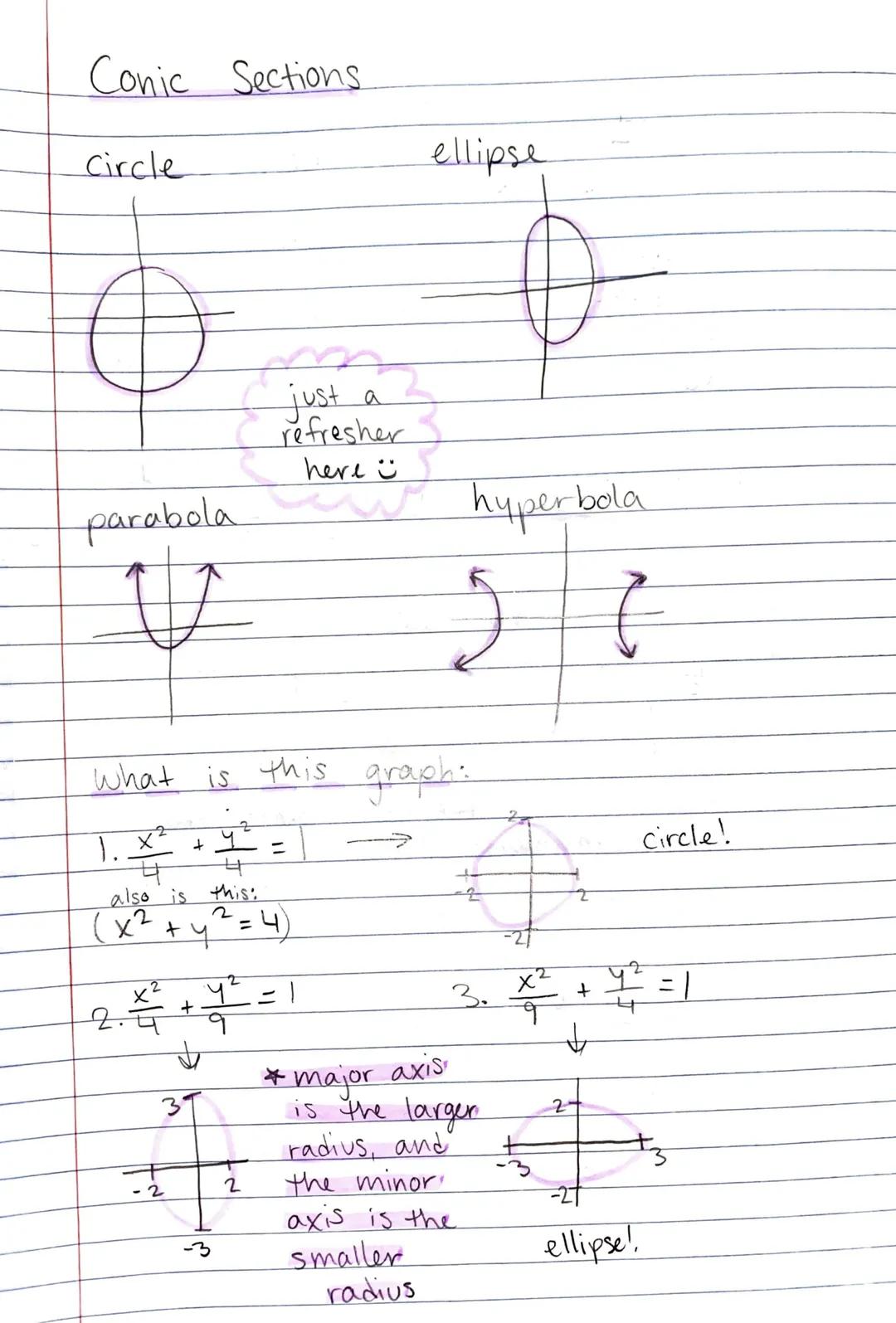

When you see an equation like $\frac{x^2}{4} + \frac{y^2}{4} = 1$, you're looking at a circle. This can also be written as $x^2 + y^2 = 4$, where 4 is the square of the radius (r²).

If the denominators are different, as in $\frac{x^2}{4} + \frac{y^2}{9} = 1$ or $\frac{x^2}{9} + \frac{y^2}{4} = 1$, you're dealing with an ellipse. The larger denominator corresponds to the major axis (the longer one), while the smaller denominator gives the minor axis (the shorter one).

Quick Tip: When both x² and y² terms are positive and equal, it's a circle. When they're positive but different, it's an ellipse!

Understanding Ellipses and Other Conics

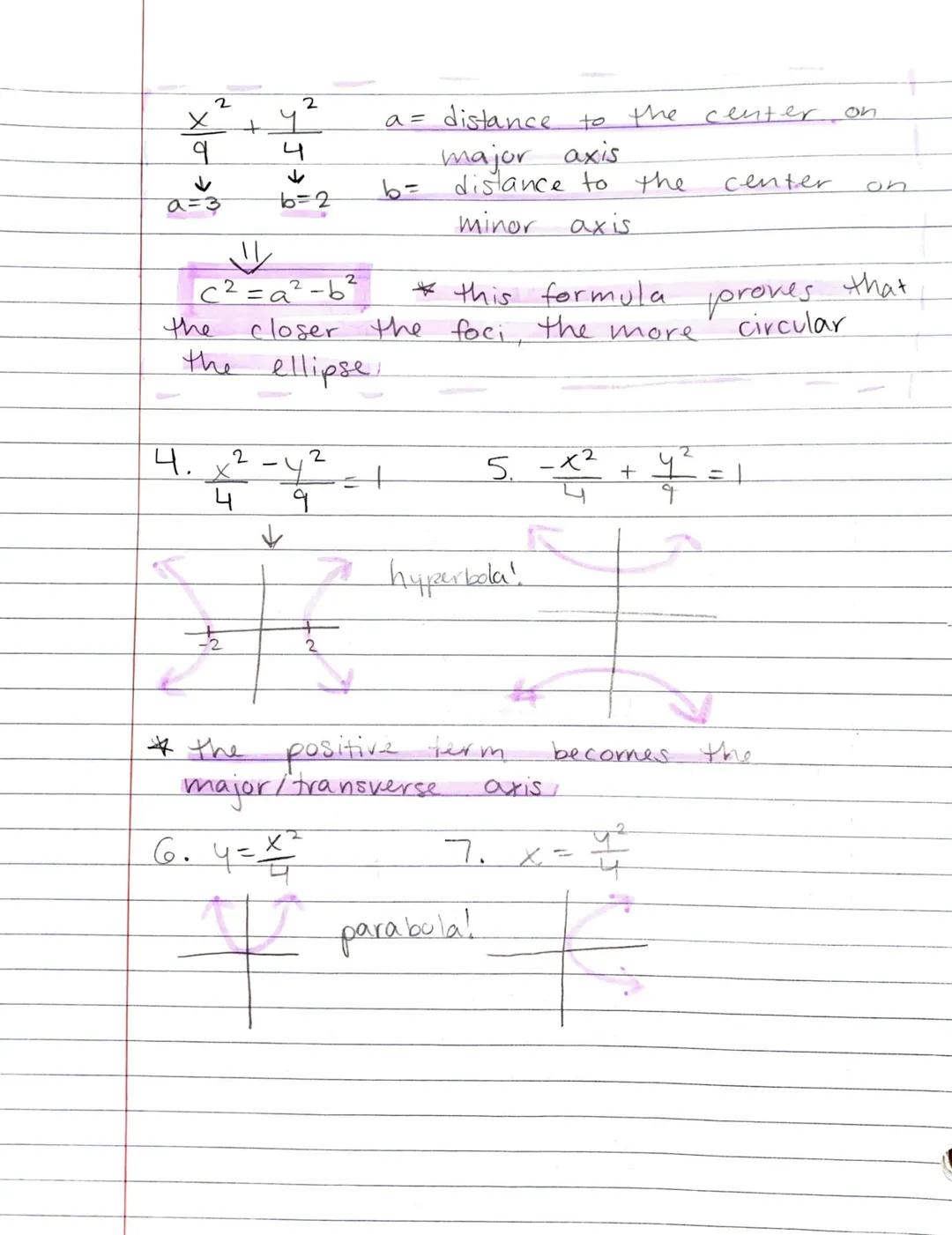

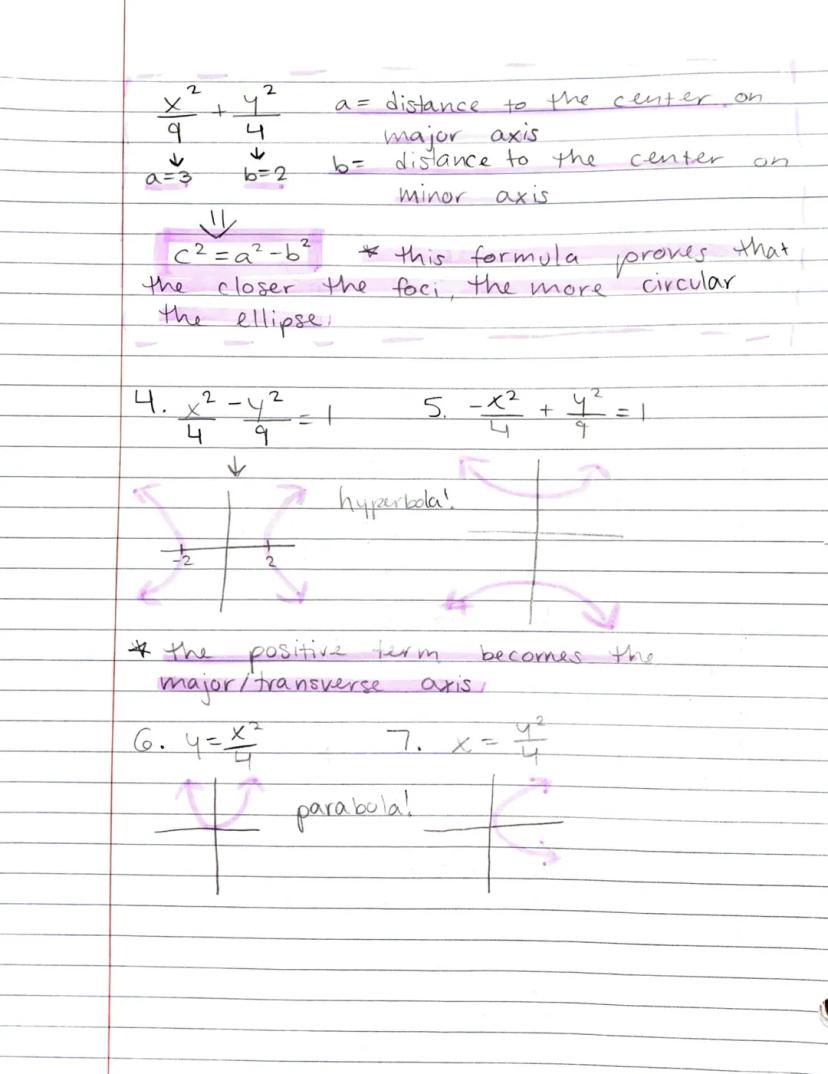

For an ellipse like $\frac{x^2}{9} + \frac{y^2}{4} = 1$, we can identify that $a=3$ and $b=2$. The relationship $c^2 = a^2 - b^2$ helps us locate the foci of the ellipse. The closer these foci are to each other, the more circular the ellipse appears.

When you see a minus sign between terms like in $\frac{x^2}{4} - \frac{y^2}{9} = 1$ or $-\frac{x^2}{4} + \frac{y^2}{9} = 1$, you're looking at a hyperbola. The positive term indicates the direction of the transverse axis (the axis that actually crosses the hyperbola).

If only one variable is squared, such as $y = \frac{x^2}{4}$ or $x = -\frac{y^2}{4}$, you've got a parabola. You've likely seen these before in quadratic functions!

Remember: In hyperbolas, look for the minus sign between terms - that's your clue!

Standard Forms of Conic Sections

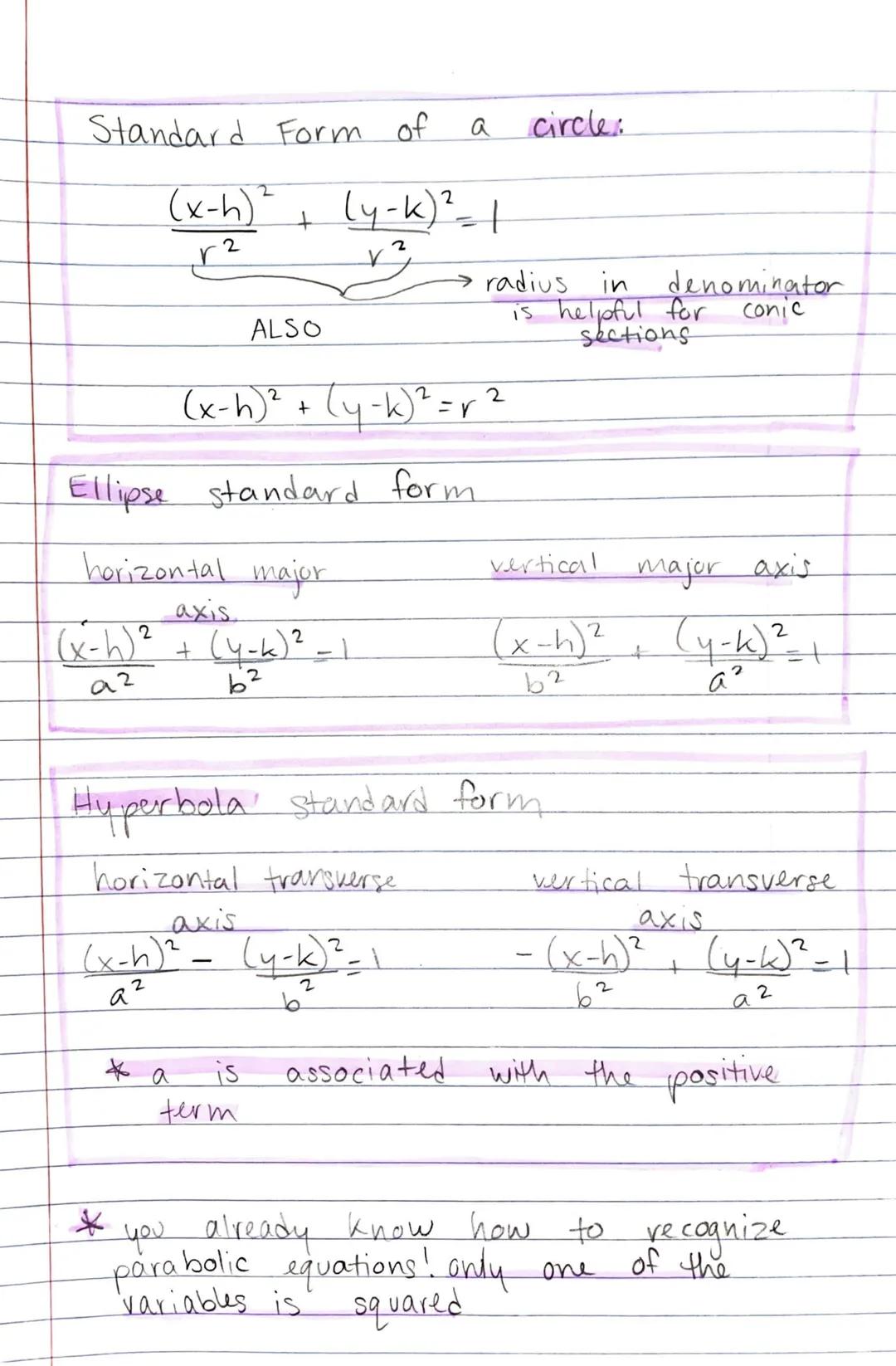

The standard form of a circle is $(x-h)^2 + (y-k)^2 = r^2$ or $\frac{(x-h)^2}{r^2} + \frac{(y-k)^2}{r^2} = 1$, where (h,k) is the center and r is the radius.

For an ellipse, the standard form depends on its orientation:

• Horizontal major axis: $\frac{(x-h)^2}{a^2} + \frac{(y-k)^2}{b^2} = 1$
• Vertical major axis: $\frac{(x-h)^2}{b^2} + \frac{(y-k)^2}{a^2} = 1$

Hyperbolas also have standard forms based on their orientation:

• Horizontal transverse axis: $\frac{(x-h)^2}{a^2} - \frac{(y-k)^2}{b^2} = 1$
• Vertical transverse axis: $-\frac{(x-h)^2}{b^2} + \frac{(y-k)^2}{a^2} = 1$

Pro Tip: In hyperbolas, the variable with the positive coefficient indicates the direction of the transverse axis!

For parabolas, you already know the form - they're equations where only one variable is squared, like y = ax² + bx + c.
