Lewis dot structures are diagrams that show how atoms bond...
Chemistry47 views·Updated Aug 2, 2026·2 pagesUnderstanding Lewis Dot Structures
will corley@willcorley
1
of 2

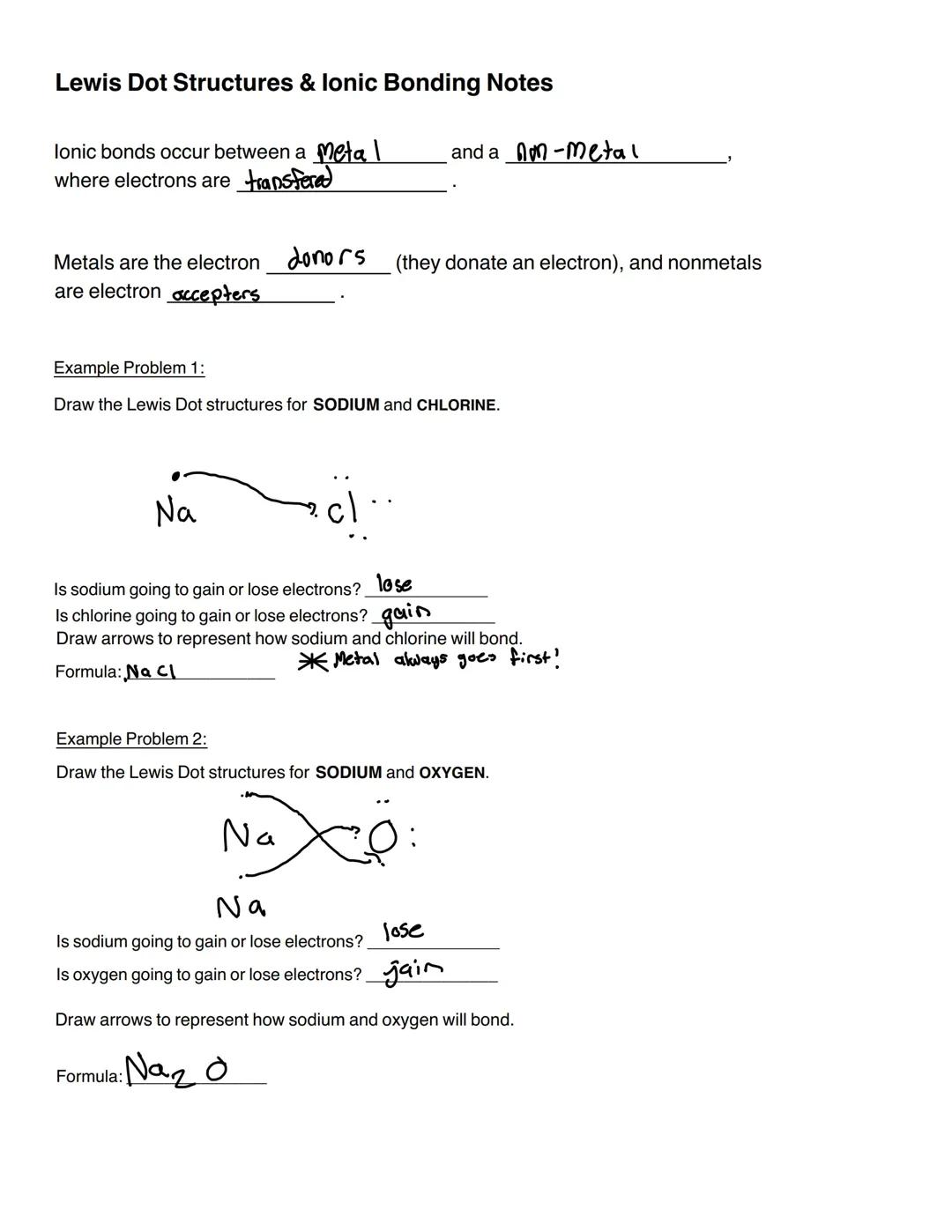

Lewis Dot Structures & Ionic Bonding Basics
When metals and nonmetals come together, they form ionic bonds through electron transfer. Metals always act as electron donors, giving away their valence electrons to achieve stability. Nonmetals act as electron acceptors, taking those electrons to fill their outer shells.
Let's look at sodium (Na) and chlorine (Cl) as an example. Sodium, a metal, has one valence electron that it wants to lose. Chlorine, a nonmetal, has seven valence electrons and needs one more to complete its octet. When they interact, sodium donates its electron to chlorine, forming Na+ and Cl- ions that attract each other.
Another example is sodium and oxygen. Oxygen needs two electrons to complete its octet, but each sodium can only donate one electron. Therefore, two sodium atoms must bond with one oxygen atom to form Na₂O. This illustrates an important concept: the formula must balance the total charge.
Remember This: In chemical formulas for ionic compounds, the metal always comes first! This is why we write NaCl and Na₂O, not ClNa or ONa₂.
2
of 2

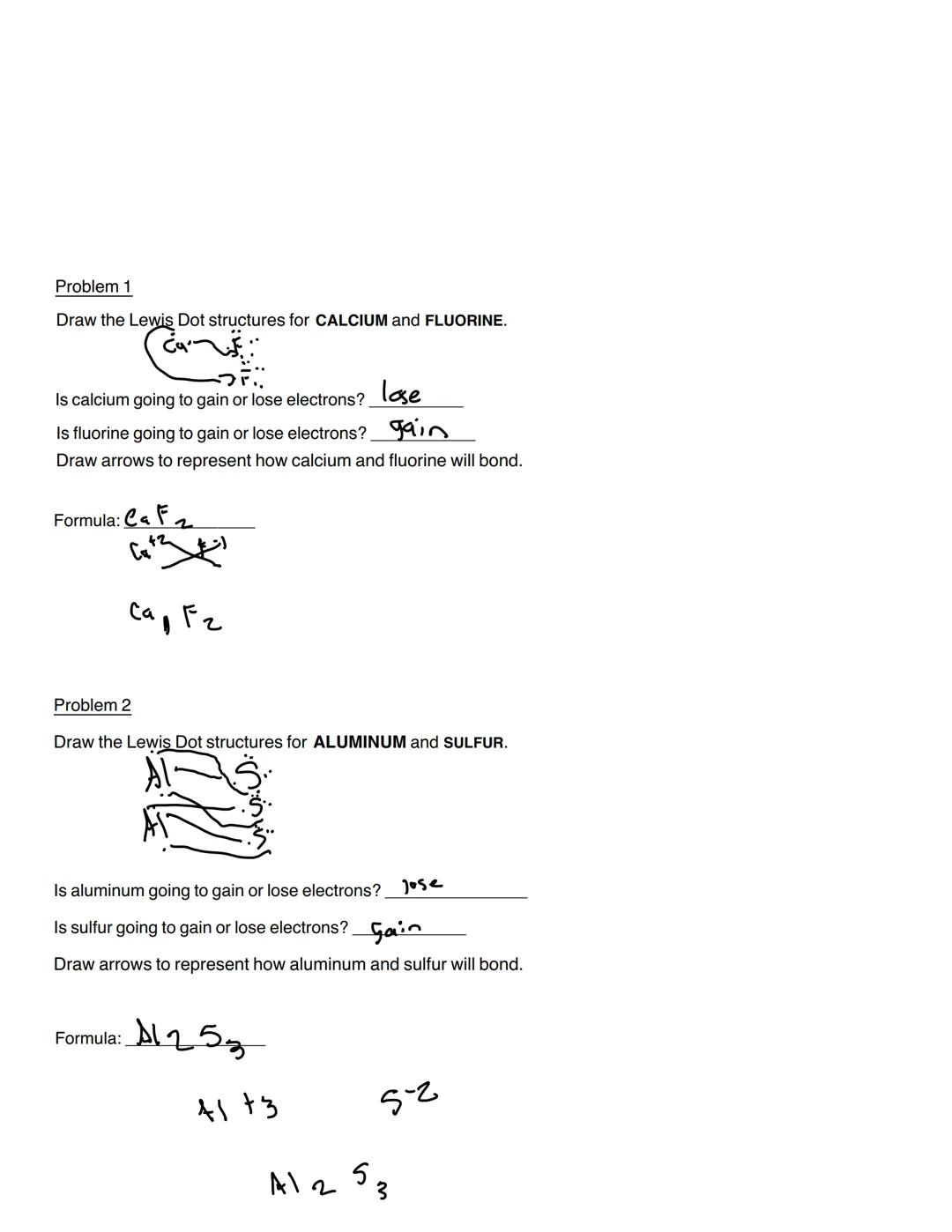

Drawing Lewis Dot Structures for Ionic Compounds
When calcium (Ca) and fluorine (F) interact, we need to consider their valence electrons. Calcium, a metal, loses two electrons to achieve stability. Fluorine, a nonmetal, gains one electron to complete its octet. Since calcium donates two electrons but each fluorine only needs one, two fluorine atoms are required to balance the equation, giving us CaF₂.
For aluminum (Al) and sulfur (S), the process works similarly but with different numbers. Aluminum, a metal, loses three electrons (becoming Al³⁺). Sulfur, a nonmetal, gains two electrons (becoming S²⁻). To balance these charges, we need two aluminum atoms (+6 total charge) and three sulfur atoms (-6 total charge), resulting in Al₂S₃.
When drawing Lewis dot structures for ionic compounds, start by placing the correct number of valence electrons around each atom. Then draw arrows showing electron transfer from metal to nonmetal. Finally, determine how many of each atom is needed to create a neutral compound.
Quick Tip: To find the formula for ionic compounds, cross over the charges! If one atom has a +3 charge and the other has a -2 charge, you'll need 2 of the first atom and 3 of the second (Al₂S₃).
