Learn Binary Numbers: Converting to Denary, Hex Tricks, and Two's Complement

Understanding Digital Number Systems and Representations

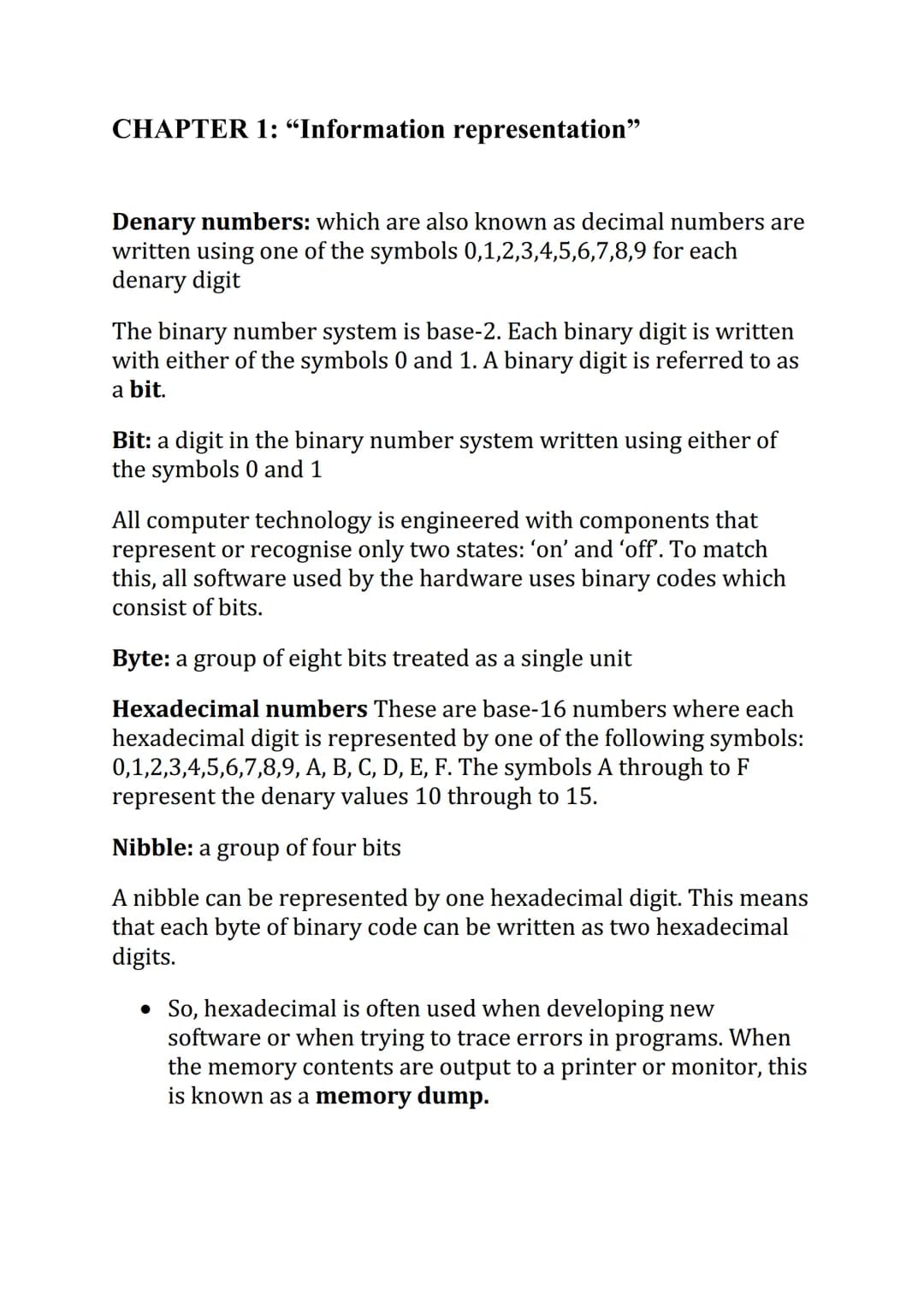

The binary number system and denary conversion forms the foundation of how computers process and store information. Every piece of data in a computer is ultimately represented using binary - a base-2 number system that uses only 0s and 1s.

Definition: A bit (binary digit) is the smallest unit of data in computing, represented by either 0 or 1, corresponding to the physical states of 'off' and 'on' in computer hardware.

Computer systems group 8 bits together to form a byte, which is the basic unit of storage. This grouping allows for more efficient data handling and storage. A nibble, consisting of 4 bits, can represent a single hexadecimal digit, making it useful for compact representation of binary data.

The hexadecimal error tracing in software development provides developers with a more manageable way to examine and debug computer memory contents. When analyzing memory dumps, hexadecimal representation makes it easier to spot patterns and identify issues compared to long strings of binary digits.

Example: A single byte (8 bits) like 11110000 can be represented as F0 in hexadecimal, making it much more readable and manageable.

Binary Number Representation and Memory Units

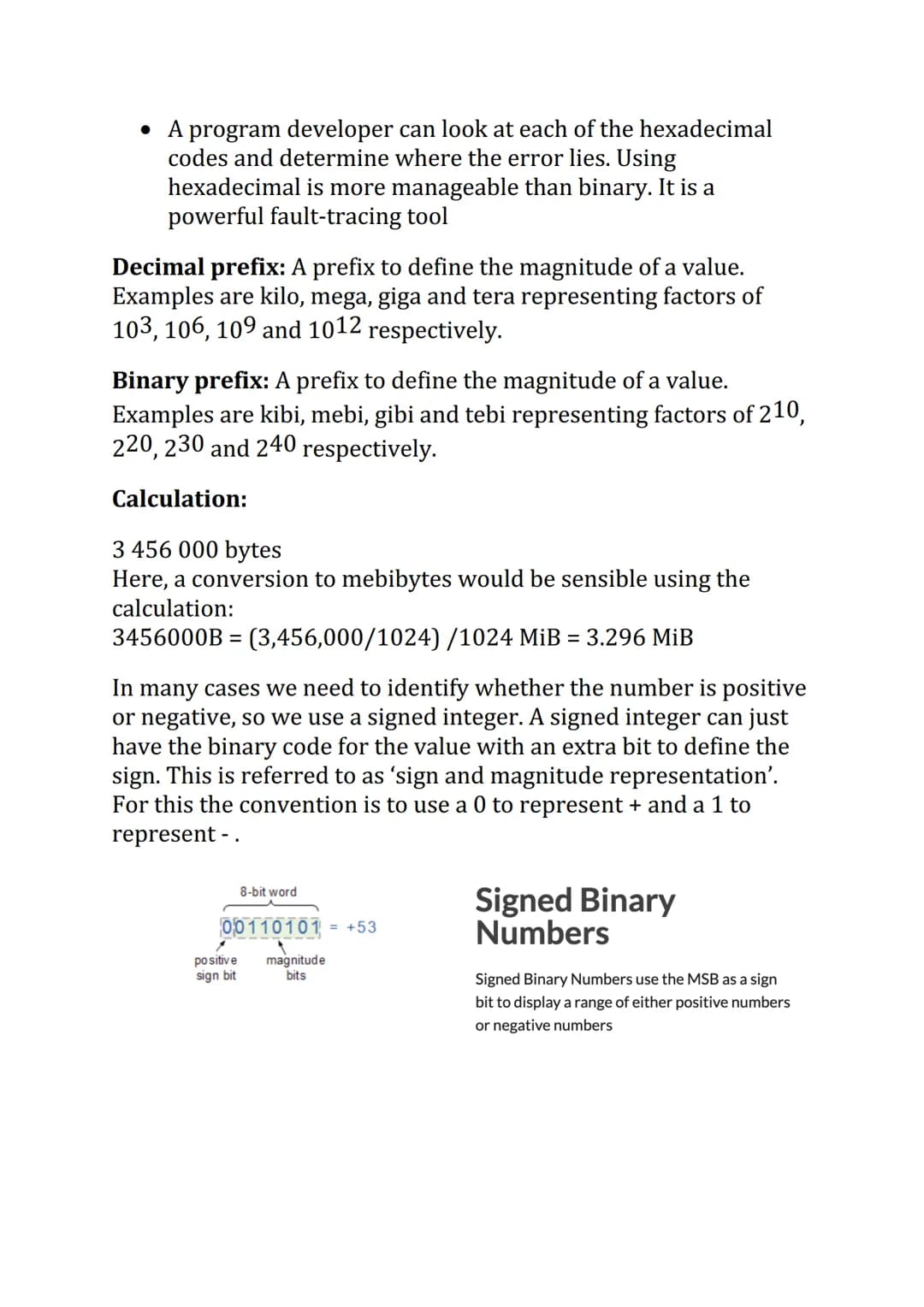

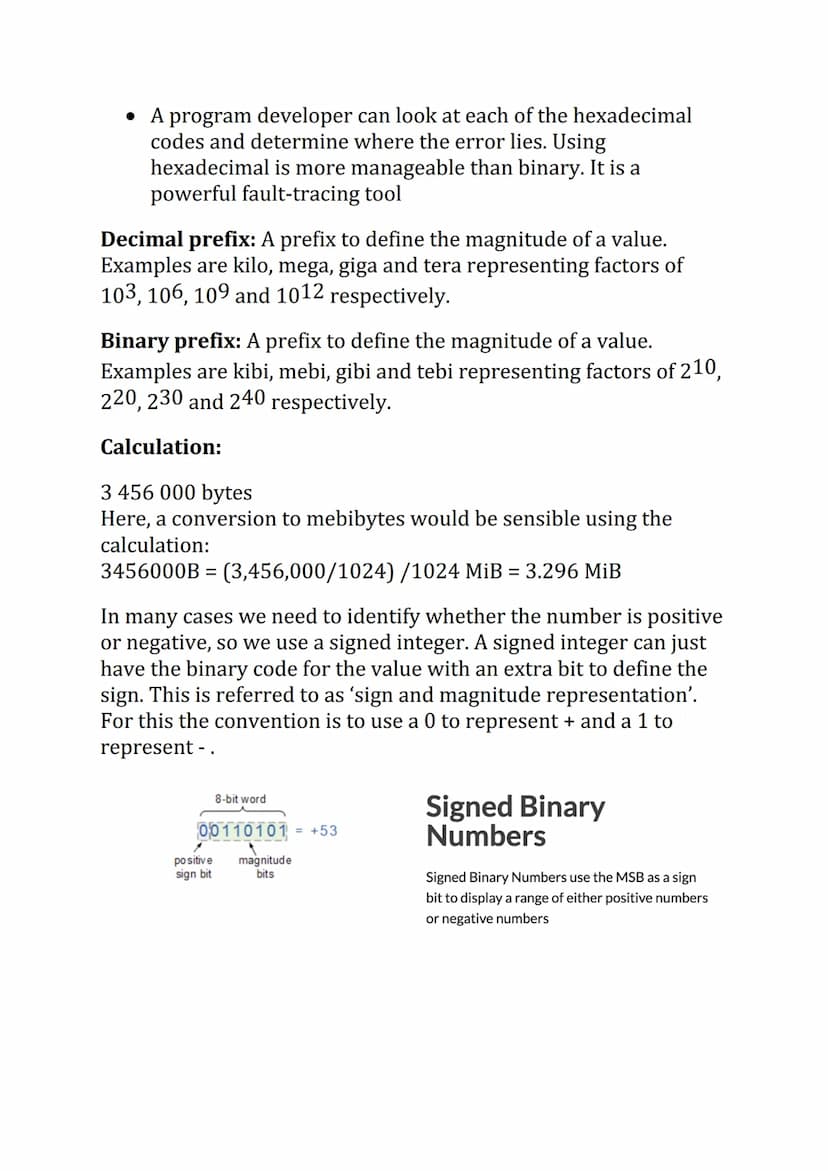

When working with computer memory, understanding binary prefixes is crucial. While decimal prefixes like kilo (103) and mega (106) are commonly used, binary prefixes such as kibi (210) and mebi (220) more accurately represent computer memory sizes.

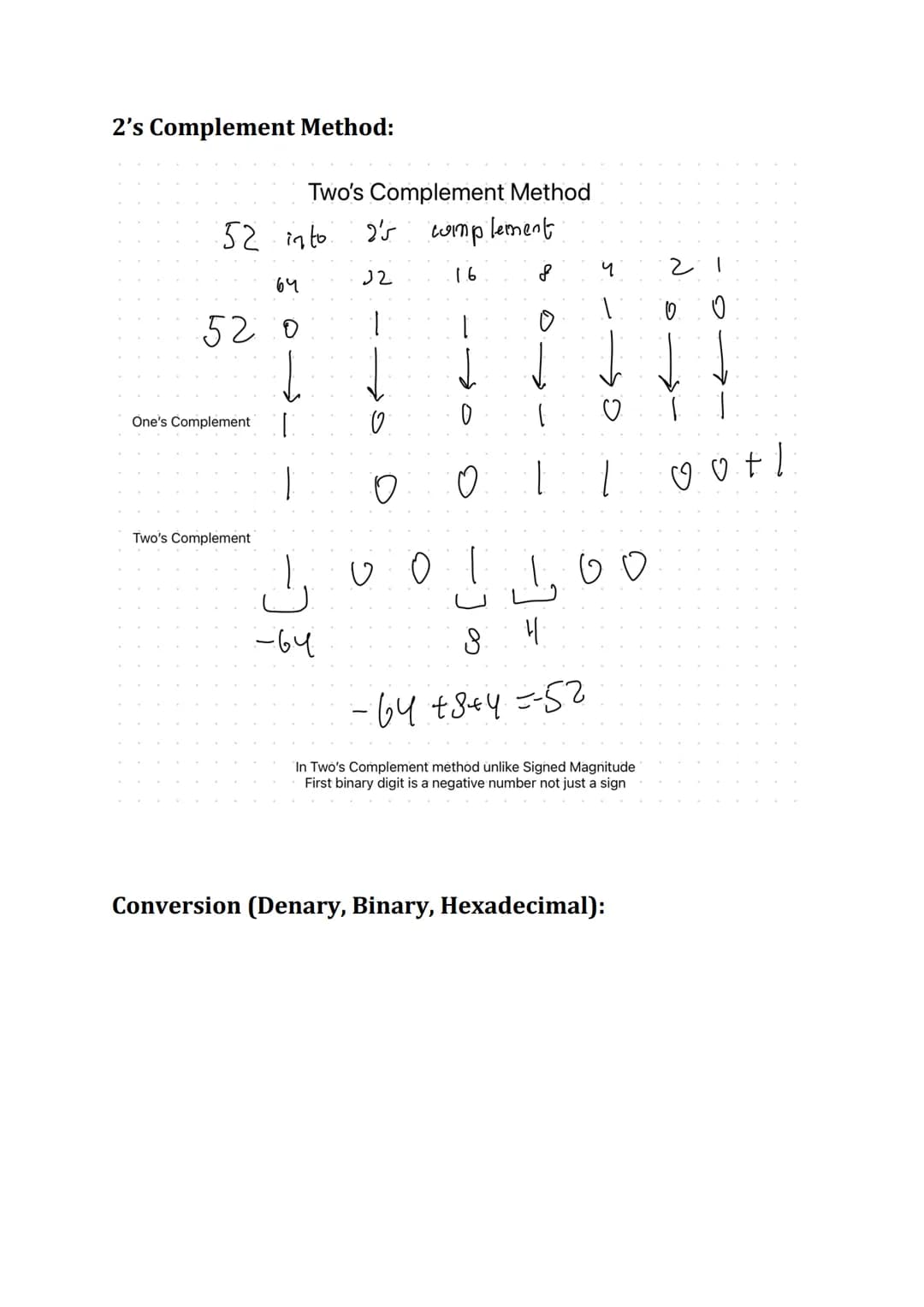

The two's complement method for negative binary numbers is the standard way computers represent negative numbers. Unlike simple signed magnitude representation, two's complement allows for more efficient arithmetic operations and eliminates the possibility of having two different representations for zero.

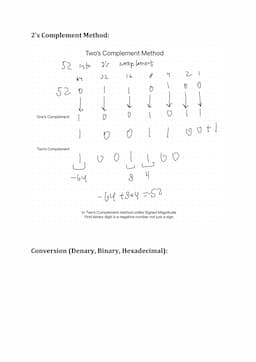

Highlight: Two's complement is calculated by inverting all bits in a binary number (one's complement) and adding 1 to the result.

Advanced Binary Operations and Number Systems

When converting between number systems, it's essential to understand the relationship between binary, denary (decimal), and hexadecimal. Each system has its advantages: binary matches computer hardware, decimal is natural for human counting, and hexadecimal provides a compact way to represent binary data.

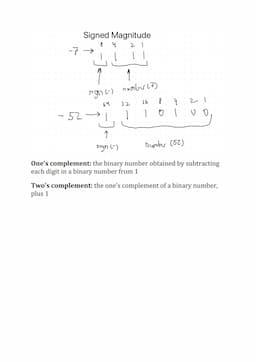

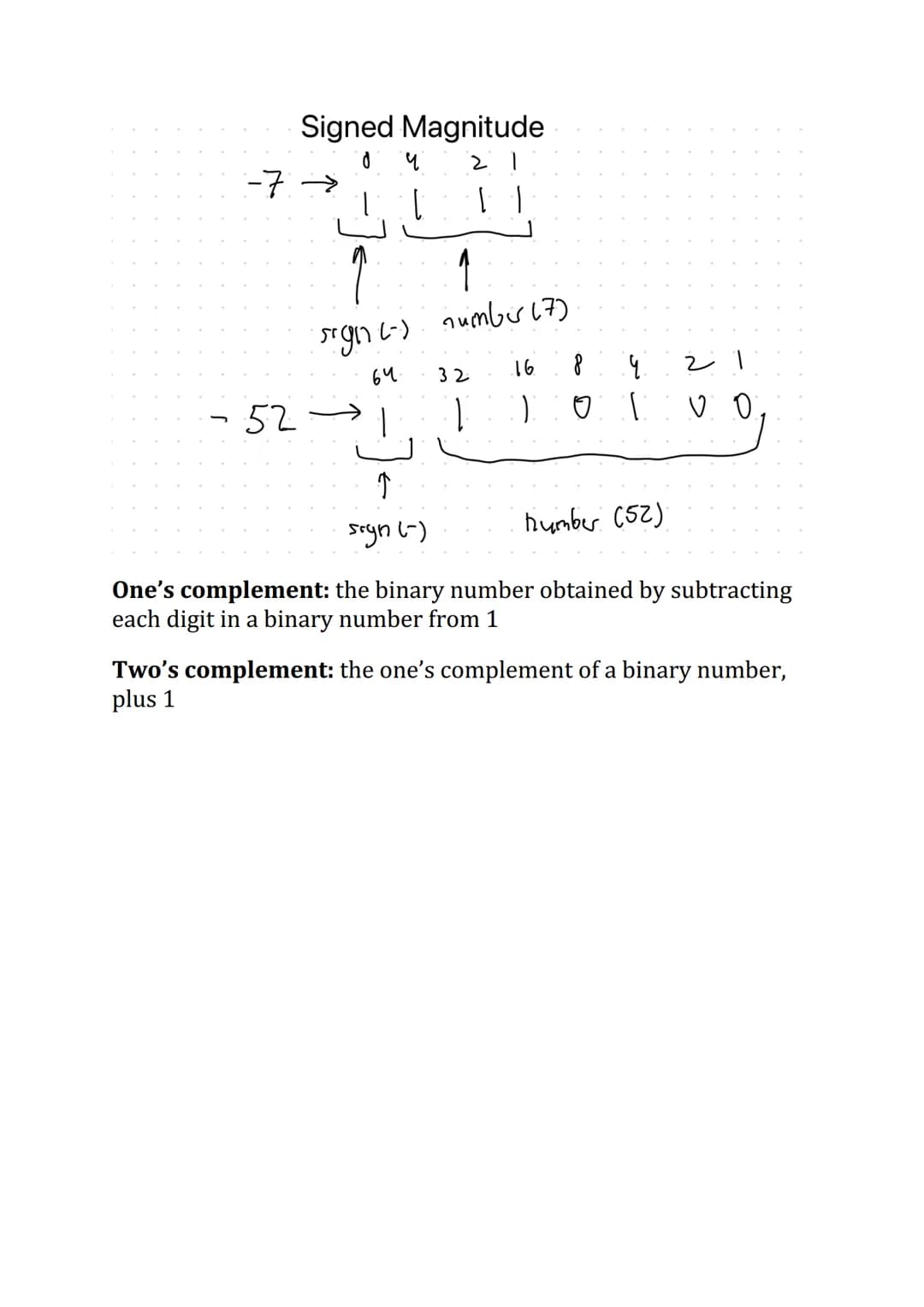

Vocabulary: Signed integers use a dedicated bit (usually the leftmost) to indicate whether a number is positive or negative, with the remaining bits representing the magnitude.

The process of converting negative numbers using two's complement involves specific steps that ensure consistent arithmetic operations. This method is particularly important in computer systems as it simplifies subtraction operations.

Practical Applications in Computing

Memory management and software debugging rely heavily on understanding these number systems and their interconversion. Developers regularly use hexadecimal representation when examining memory dumps or debugging low-level code.

Example: Converting 3,456,000 bytes to mebibytes: 3,456,000 ÷ 1024 ÷ 1024 = 3.296 MiB

The relationship between these number systems is fundamental to computer science and software development. Understanding how to convert between them and represent negative numbers is crucial for anyone working with computer systems at a low level.

Understanding Binary and Hexadecimal Number Systems

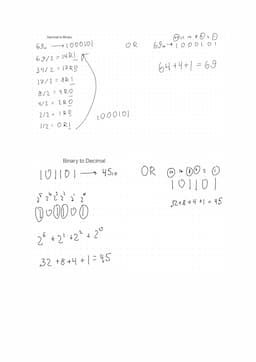

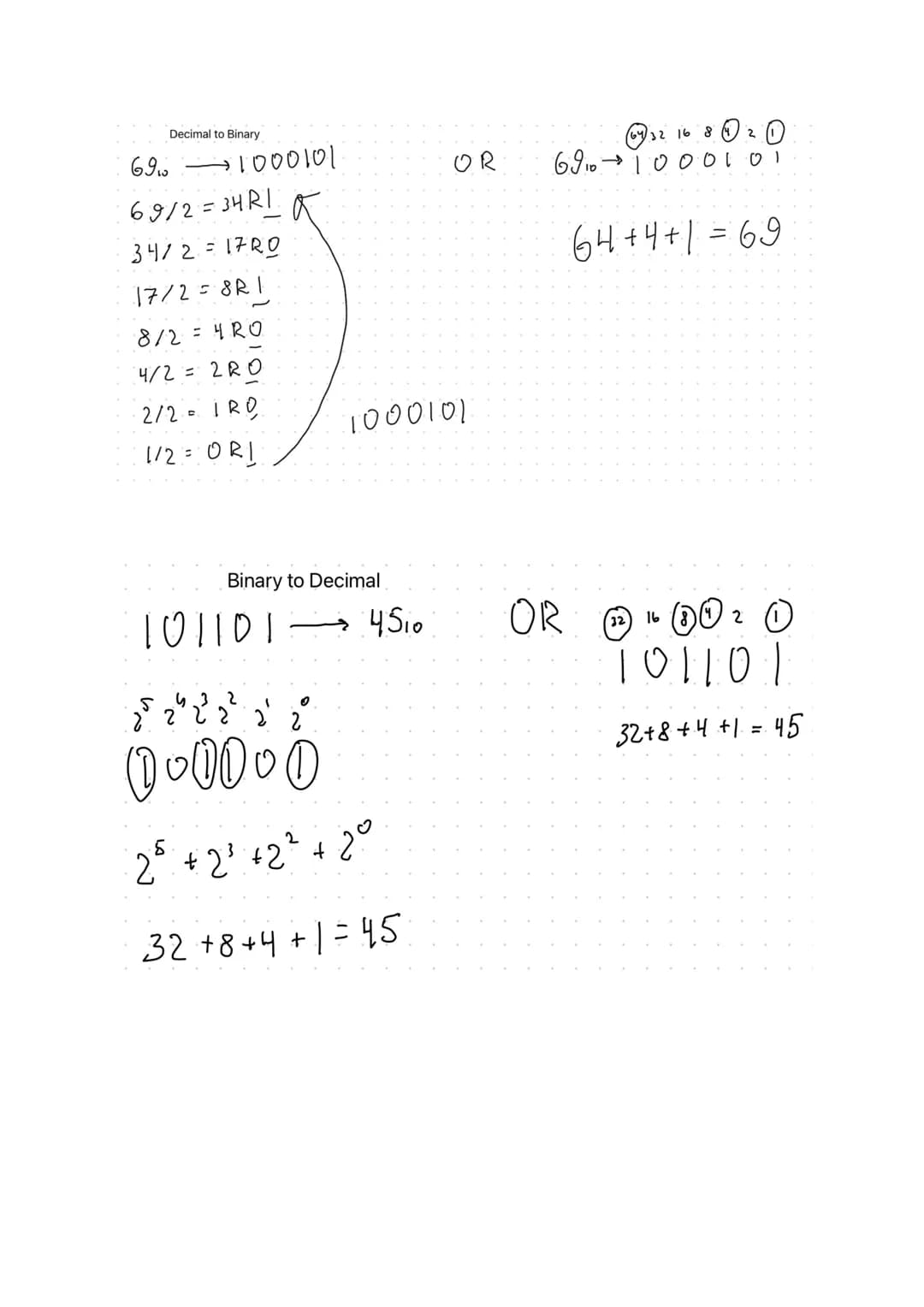

The Binary number system and denary conversion forms the foundation of how computers process and store information. When converting decimal numbers to binary, we divide the decimal number repeatedly by 2 and track the remainders. For example, converting 69.5 to binary involves dividing 69 by 2 until reaching 0, then reading the remainders from bottom to top: 1000101.

Example: Converting 69 to binary 69 ÷ 2 = 34 remainder 1 34 ÷ 2 = 17 remainder 0 17 ÷ 2 = 8 remainder 1 8 ÷ 2 = 4 remainder 0 4 ÷ 2 = 2 remainder 0 2 ÷ 2 = 1 remainder 0 1 ÷ 2 = 0 remainder 1 Result: 1000101

Converting binary back to decimal involves multiplying each digit by its corresponding power of 2. For instance, 101101 converts to decimal by calculating: (1×2⁵) + (0×2⁴) + (1×2³) + (1×2²) + (0×2¹) + (1×2⁰) = 32 + 0 + 8 + 4 + 0 + 1 = 45.

Hexadecimal Conversions and Applications

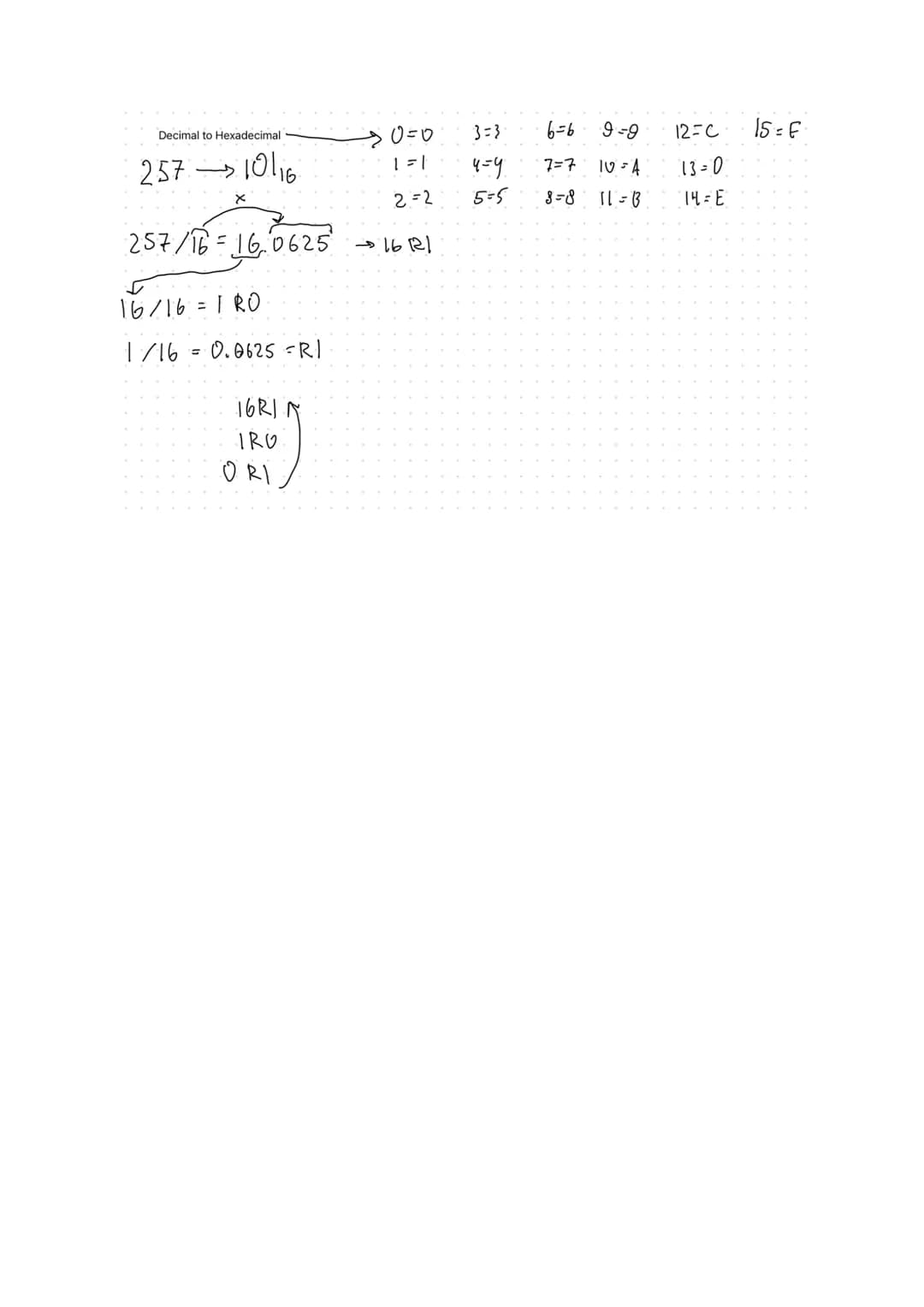

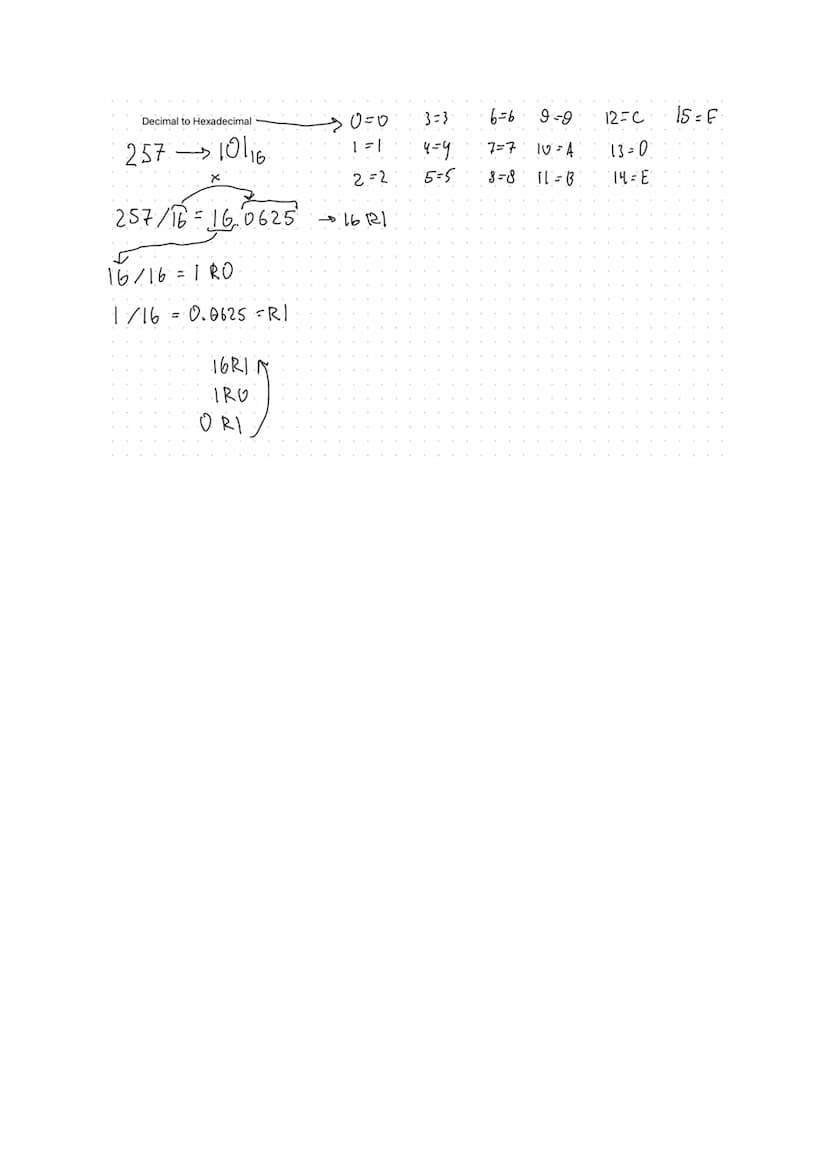

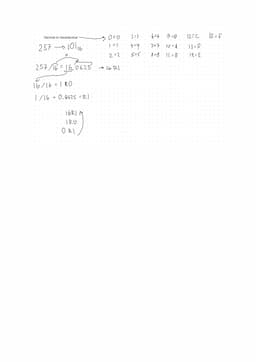

Hexadecimal error tracing in software development is crucial for debugging and memory analysis. Converting decimal to hexadecimal involves dividing by 16 and using letters A-F to represent values 10-15. For example, converting 257 to hexadecimal:

Definition: Hexadecimal uses base-16 numbering with digits 0-9 and letters A-F representing values 10-15.

The process requires dividing 257 by 16: 257 ÷ 16 = 16 remainder 1 16 ÷ 16 = 1 remainder 0 1 ÷ 16 = 0 remainder 1 Reading from bottom up: 101₁₆

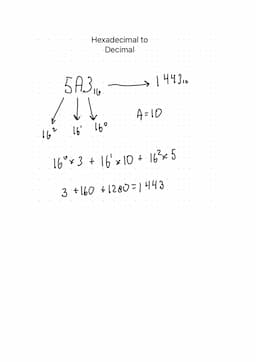

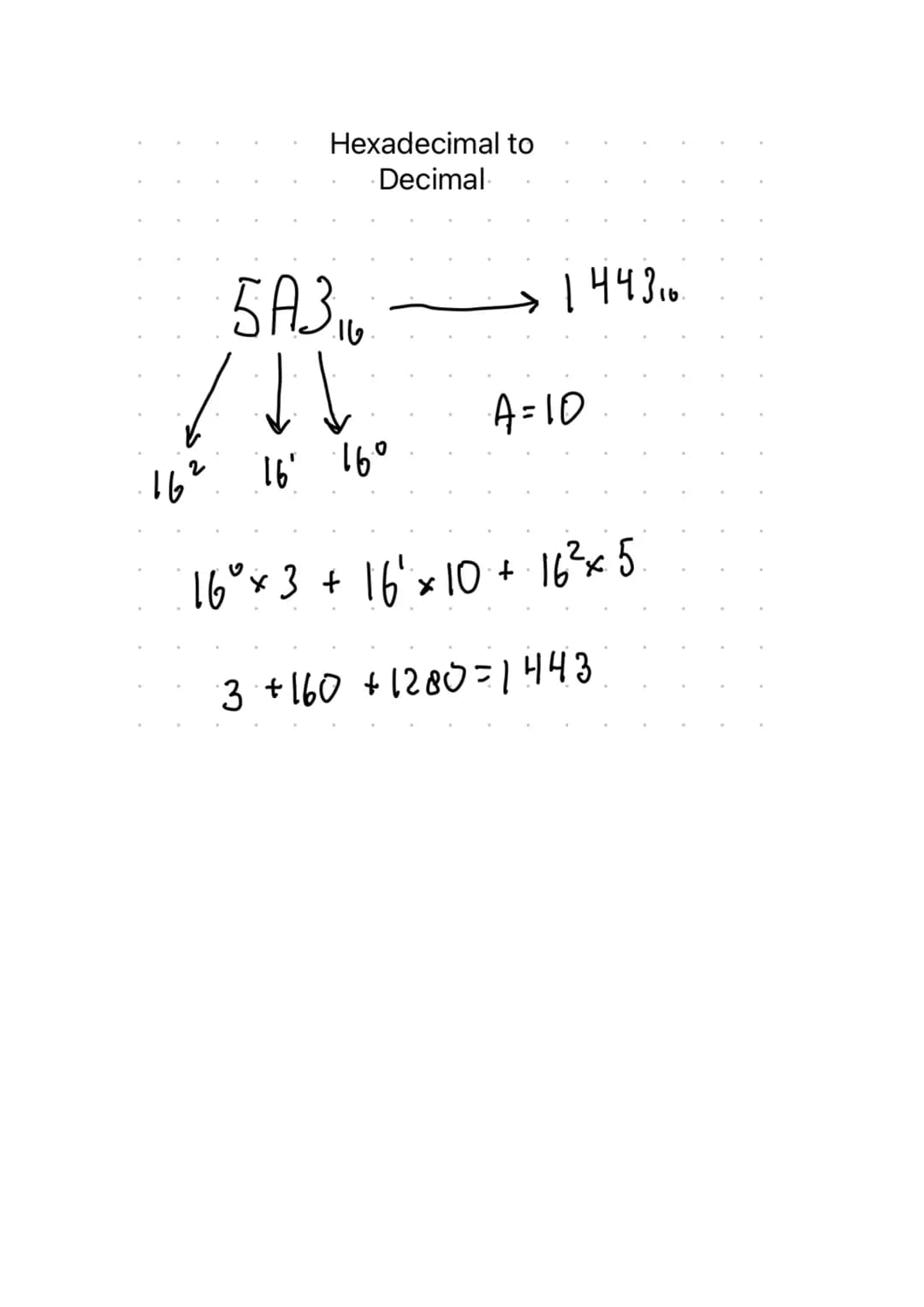

Converting hexadecimal to decimal involves multiplying each digit by powers of 16. For example, 5A3.6₁₆ converts to decimal as: 3×16⁰ + 10×16¹ + 5×16² = 3 + 160 + 1280 = 1443₁₀

Binary-Hexadecimal Conversions

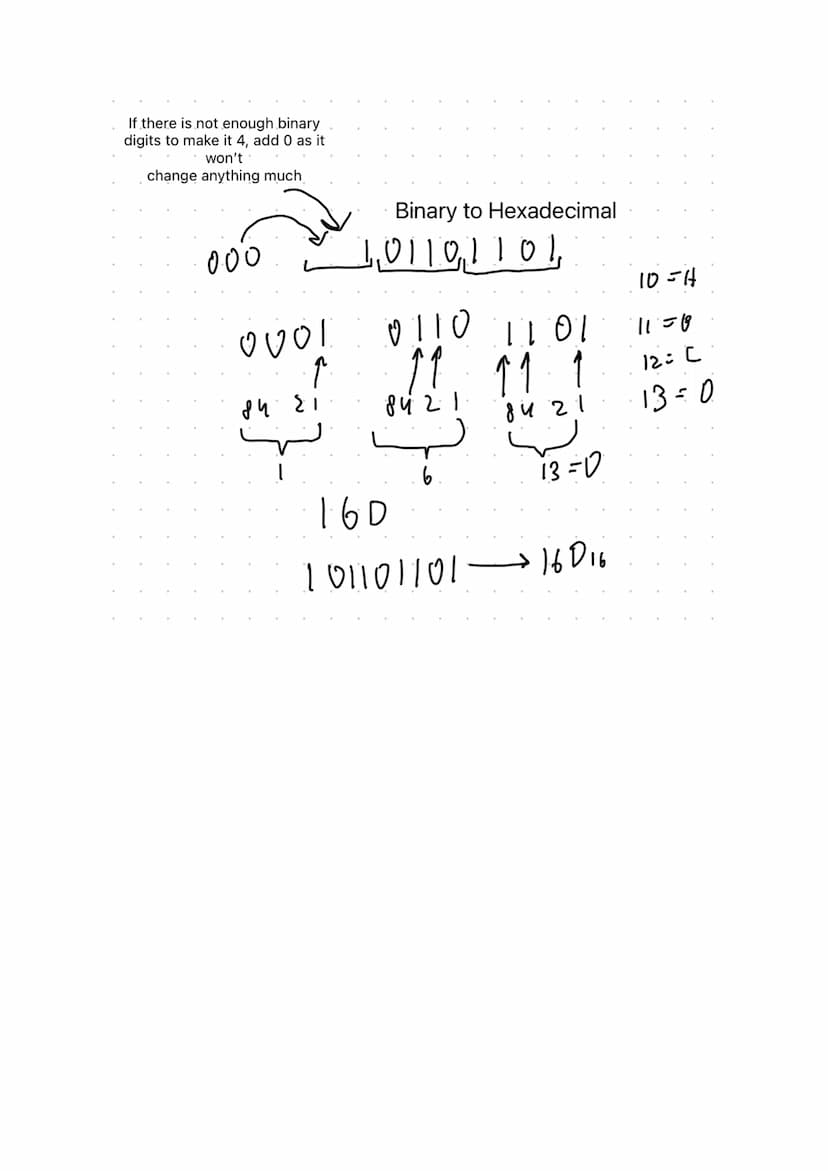

Converting between binary and hexadecimal is essential in computer architecture. To convert binary to hexadecimal, group binary digits into sets of four from right to left. Each group converts to one hexadecimal digit.

Highlight: When grouping binary digits, add leading zeros if needed to complete groups of four. This doesn't change the value.

For example, converting 101101101₂ to hexadecimal: 0001 0110 1101 = 16D₁₆

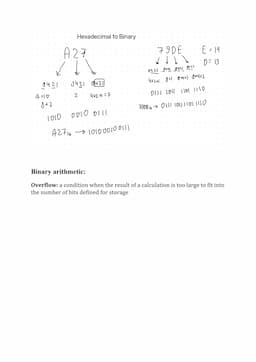

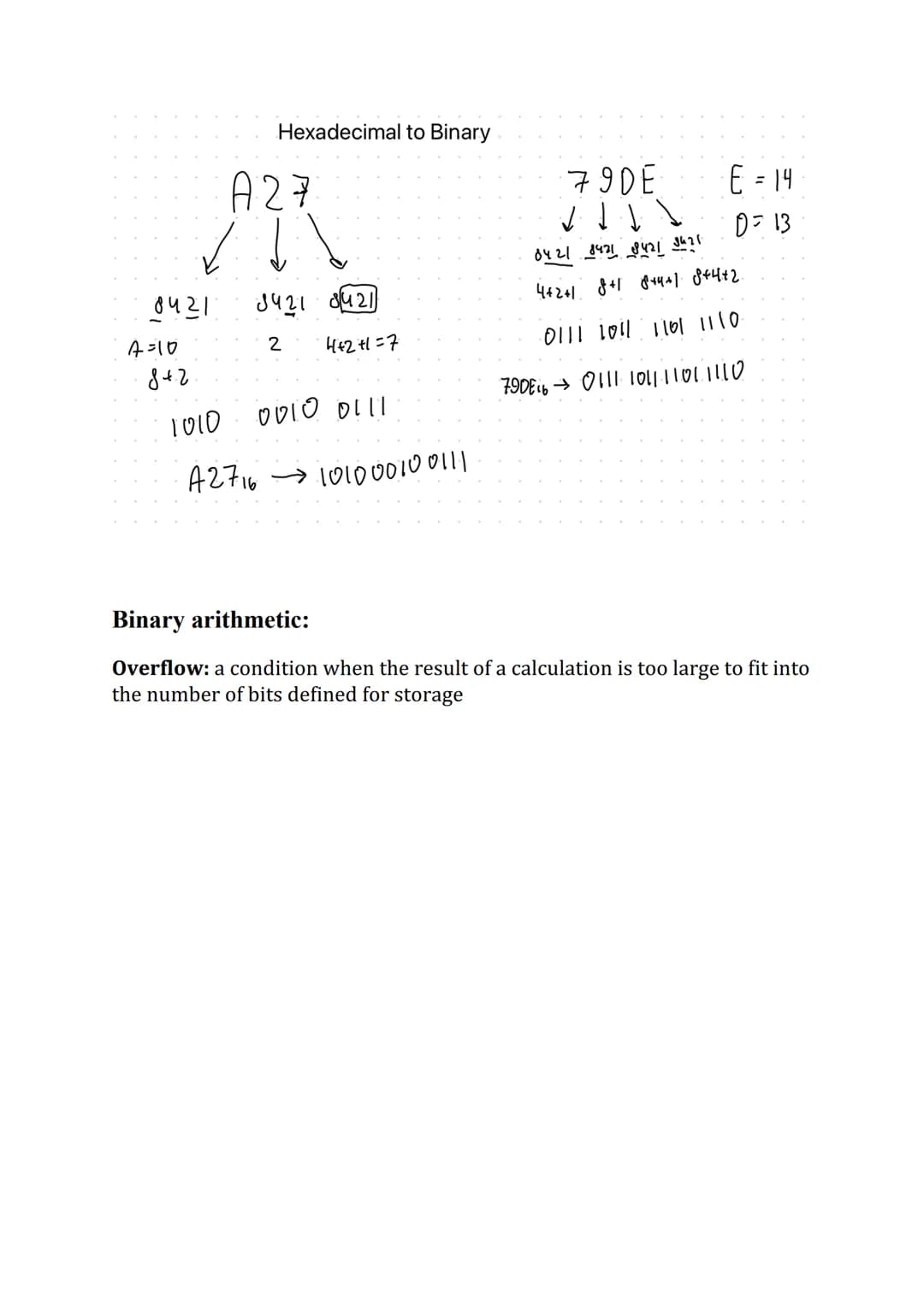

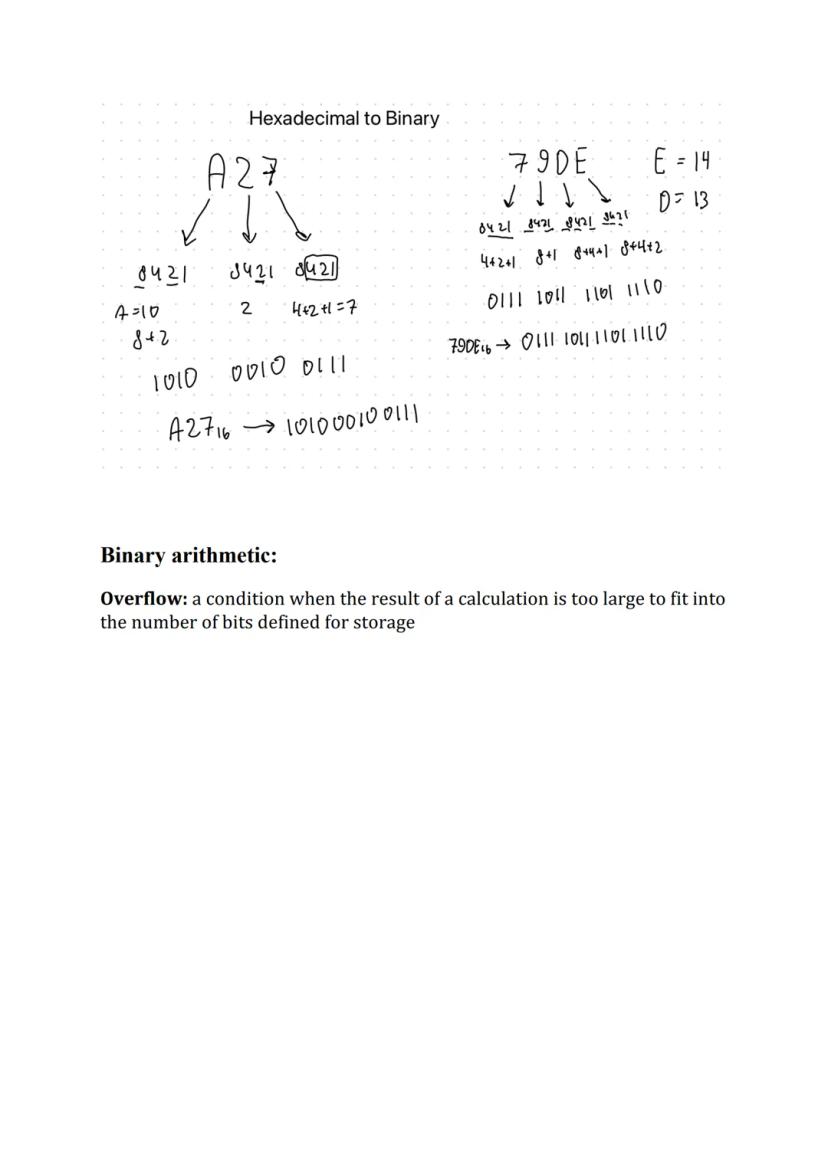

Converting hexadecimal to binary involves converting each hexadecimal digit to its 4-bit binary equivalent. For instance, A27₁₆ converts to: A (1010) 2 (0010) 7 (0111) = 101000100111₂

Advanced Binary Operations and Two's Complement

Two's complement method for negative binary numbers enables computers to represent and perform calculations with negative numbers. This system eliminates the need for separate addition and subtraction circuits in computer hardware.

Vocabulary: Overflow occurs when an arithmetic result exceeds the available bits for storage.

Binary arithmetic must account for overflow conditions, which happen when results are too large for the allocated storage space. This is particularly important in systems programming and embedded systems where memory is limited.

Understanding binary overflow helps prevent data corruption and system crashes. When performing binary addition, if the result requires more bits than available, the overflow condition must be detected and handled appropriately by the software.

Understanding Binary Addition, Subtraction, and BCD Systems

The Binary number system and denary conversion forms the foundation of digital computing, particularly in arithmetic operations. Binary addition follows similar principles to decimal addition, but uses only 0s and 1s. When performing binary addition, we work from right to left, carrying over values when the sum exceeds 1.

Definition: Binary Coded Decimal (BCD) is a specialized encoding system where each decimal digit is represented by a four-bit binary sequence (nibble), allowing for more intuitive conversion between binary and decimal numbers.

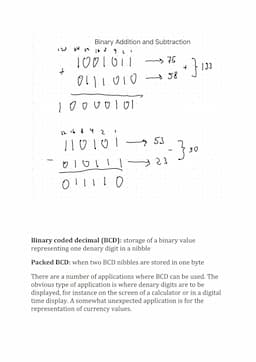

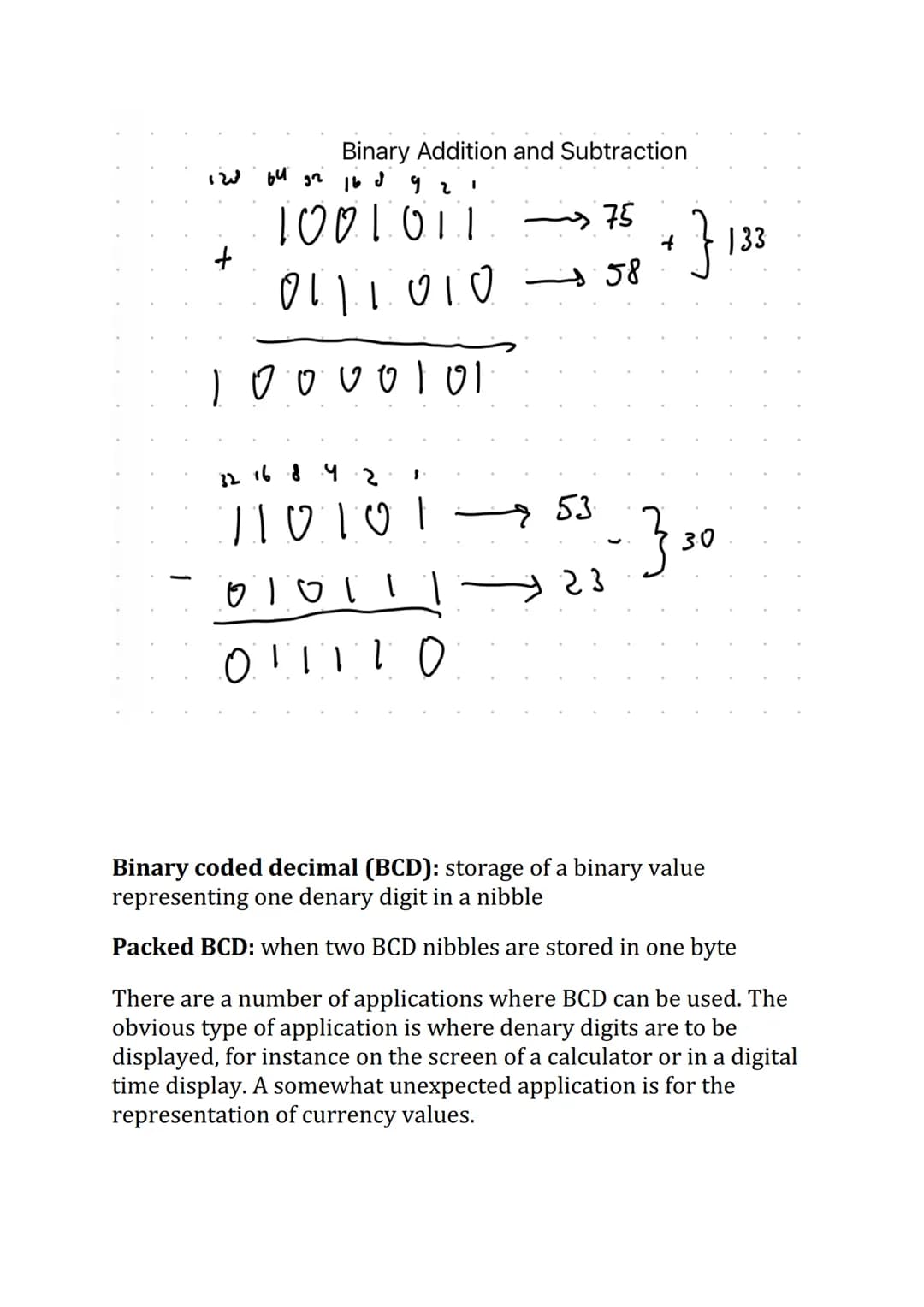

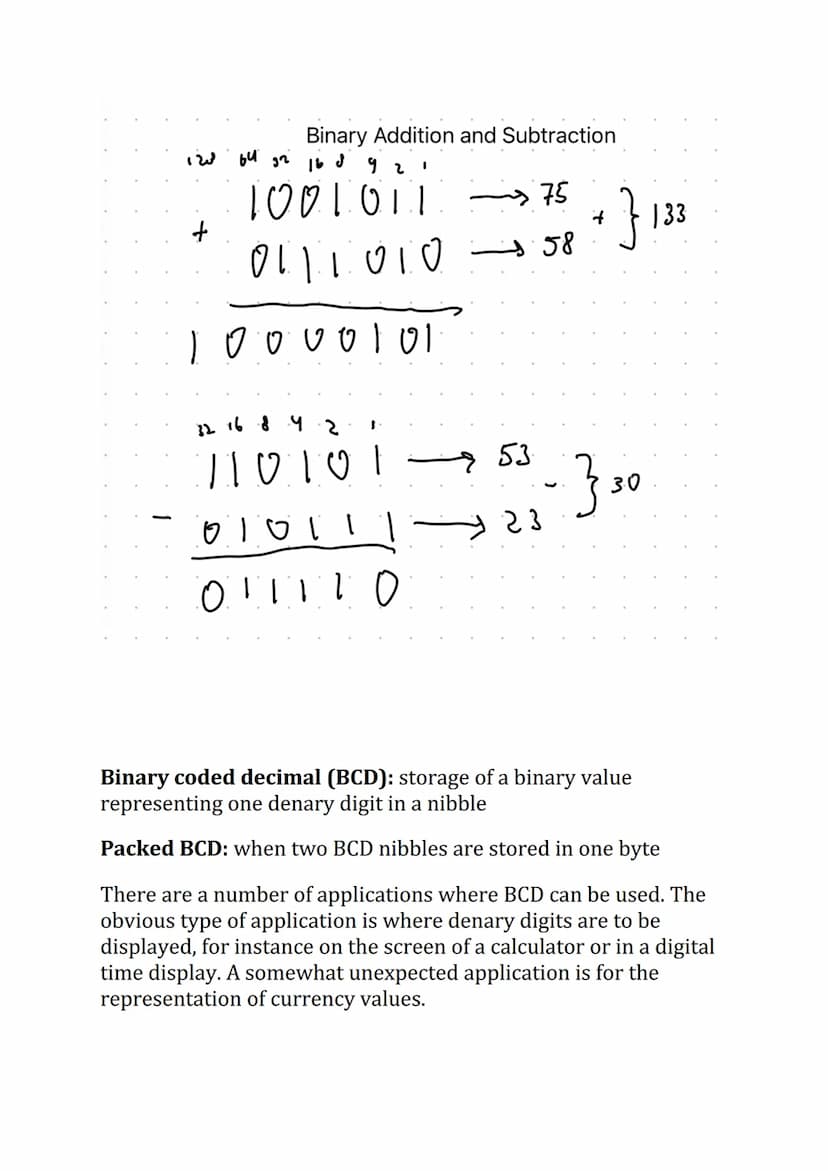

Binary arithmetic plays a crucial role in computer operations, especially when dealing with calculations and data processing. For example, adding binary numbers 1001011 (75 in decimal) and 0111010 (58 in decimal) results in 10000101 (133 in decimal). This process demonstrates how computers handle mathematical operations at their most fundamental level.

Example: In Packed BCD format, two decimal digits are stored in a single byte:

• Decimal number 53 would be stored as: 0101 0011
• First nibble (0101) represents 5
• Second nibble (0011) represents 3

BCD finds practical applications in various real-world scenarios. Digital displays, calculators, and financial systems frequently use BCD because it simplifies the conversion between binary and decimal representations. This is particularly valuable in financial applications where exact decimal precision is required for currency calculations.

Advanced Binary Operations and Error Handling

The Two's complement method for negative binary numbers provides an elegant solution for representing and manipulating negative numbers in digital systems. This method eliminates the need for separate addition and subtraction circuits in computers, as subtraction can be performed through addition of the two's complement.

Highlight: Hexadecimal error tracing in software development becomes essential when debugging binary operations, as it provides a more compact and readable representation of binary values.

When working with binary arithmetic in practical applications, understanding overflow conditions becomes crucial. An overflow occurs when the result of an operation exceeds the available bit width. For instance, adding two 8-bit numbers might produce a 9-bit result, leading to potential data loss if not properly handled.

Vocabulary: Overflow - A condition that occurs when the result of an arithmetic operation exceeds the designated bit width of the system.

Financial systems particularly benefit from BCD representation as it eliminates rounding errors that can occur with standard binary floating-point representations. This makes BCD ideal for applications where precise decimal calculations are required, such as banking systems and point-of-sale terminals.
