Gauss' Law and Its Applications

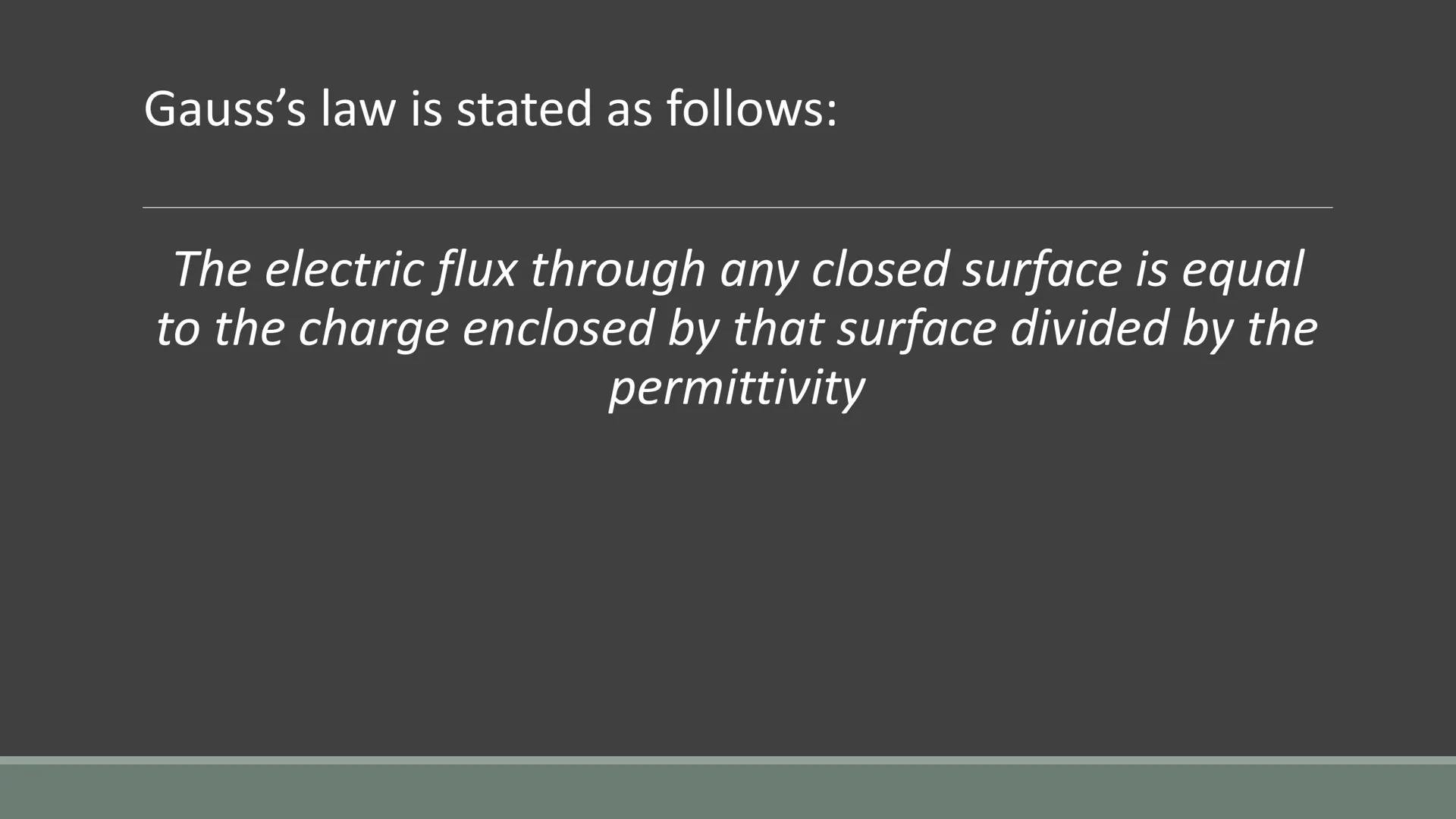

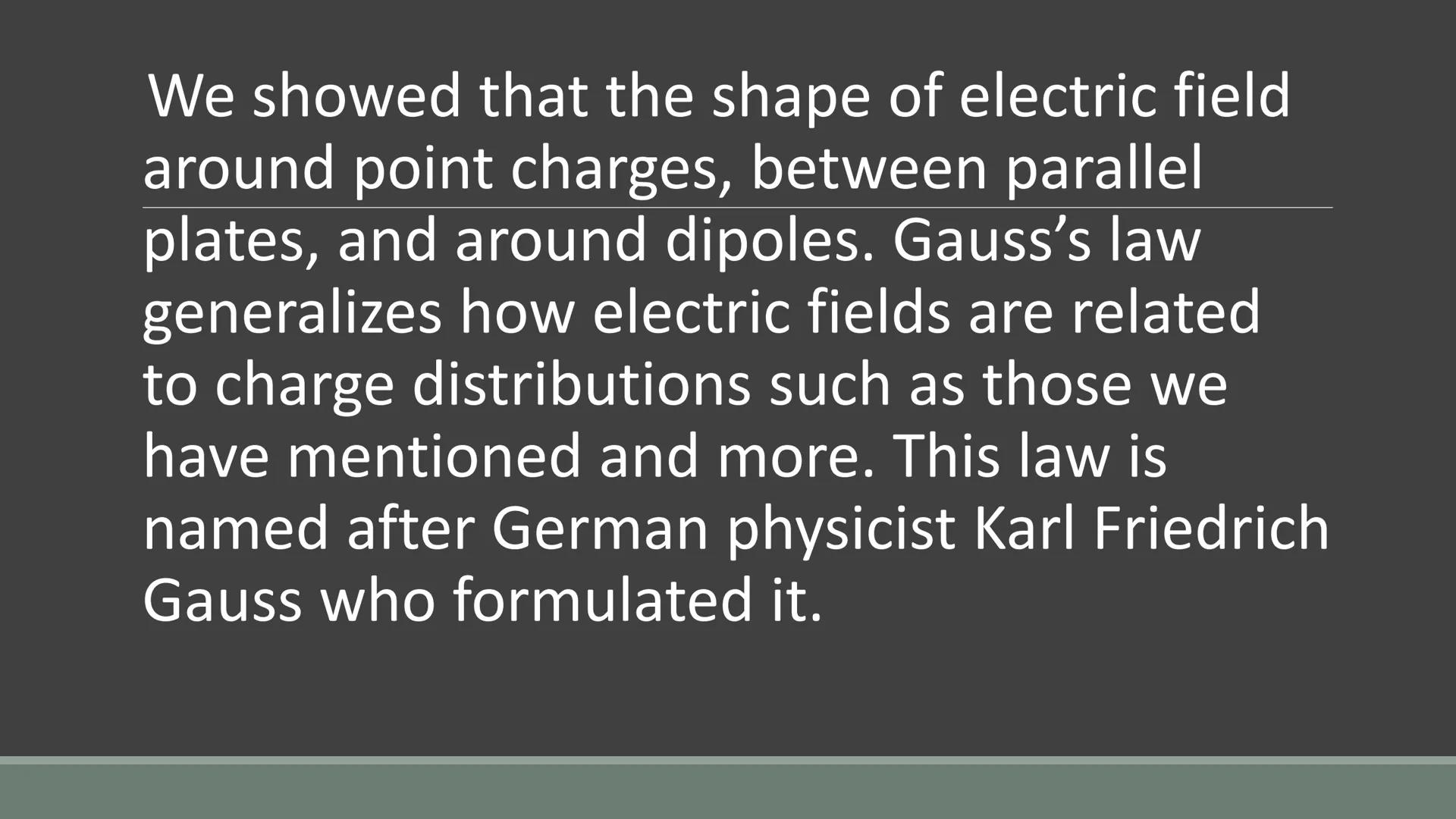

Gauss's Law connects the electric flux through a closed surface to the charge enclosed within that surface. Named after German mathematician Karl Friedrich Gauss $1777-1855$, this principle goes beyond Coulomb's Law by providing a more elegant approach to understanding electric fields.

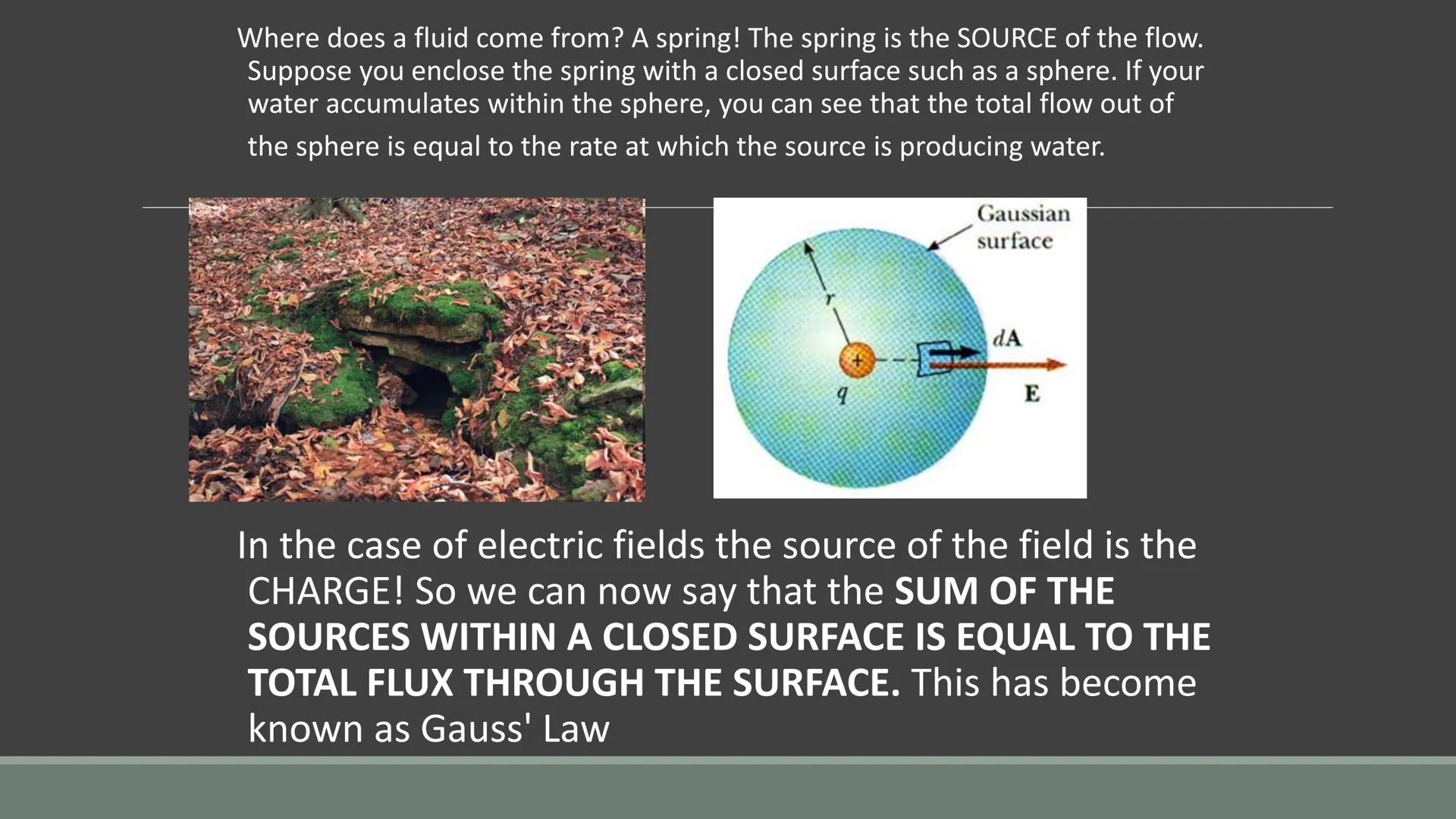

Think of electric fields like water flowing from a source. Just as water flows from a spring, electric fields "flow" from electric charges. When you enclose a charge with an imaginary surface, the total electric flux through that surface equals the enclosed charge divided by a constant.

Key Insight: Gauss's Law is one of the four fundamental equations of electromagnetism (Maxwell's equations) and works whether charges are static or moving, making it incredibly versatile for solving real-world problems.

Mathematical Form of Gauss's Law

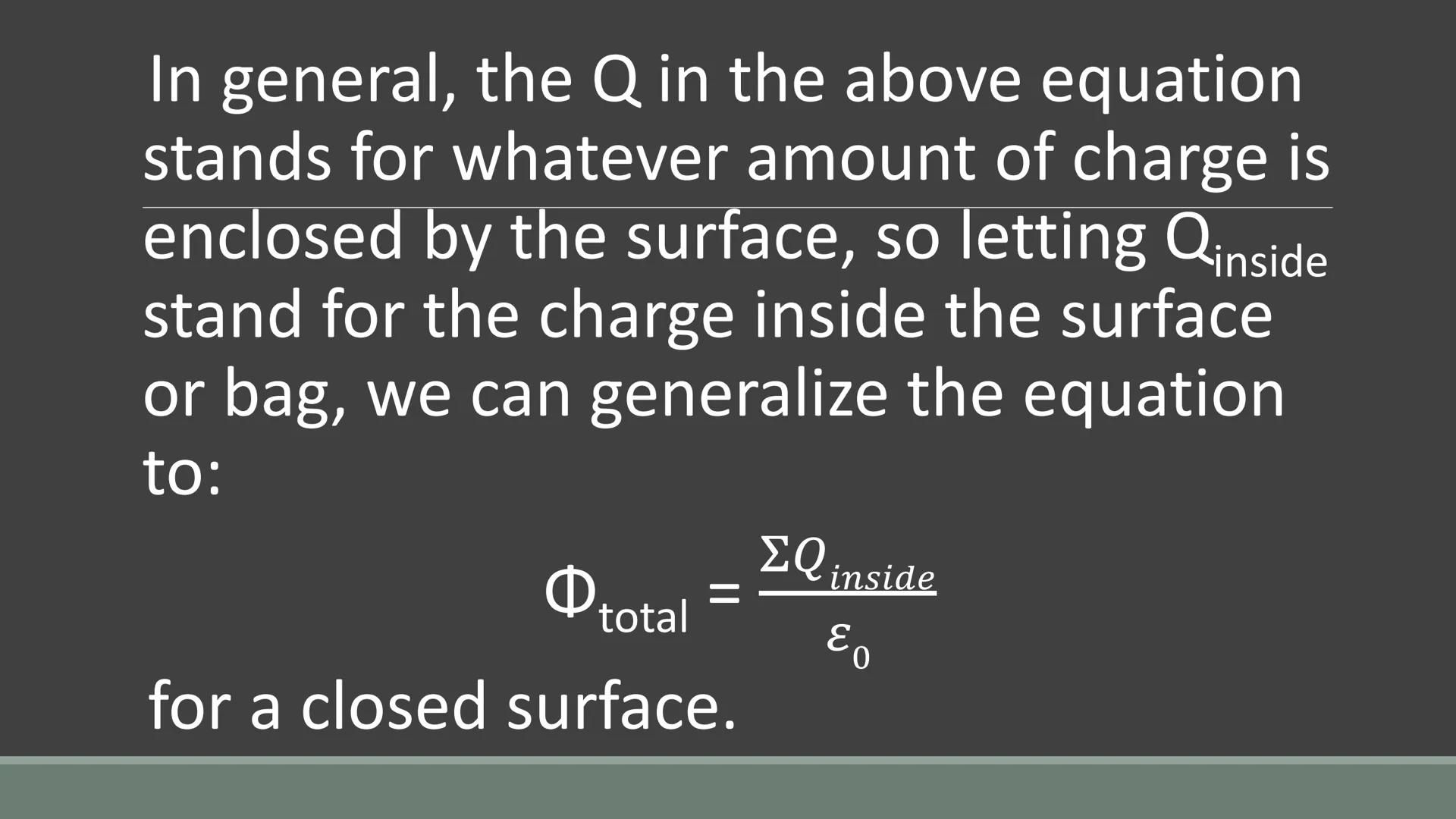

Gauss's Law is mathematically expressed as: $\Phi_{total} = \frac{\Sigma Q_{inside}}{\epsilon_0}$, where $\Phi_{total}$ is the total electric flux, $Q_{inside}$ is the charge enclosed, and $\epsilon_0$ is the permittivity of free space.

This elegant formula tells us something remarkable - the total electric flux through any closed surface depends only on the charge inside, not on the surface's size or shape. If there's no net charge inside, the flux equals zero.

The electric flux can be positive (flowing outward) or negative (flowing inward), corresponding to positive or negative charges inside your Gaussian surface.

Remember: The beauty of Gauss's Law is its simplicity - regardless of how complicated the charge distribution might be, the relationship between enclosed charge and total flux remains the same!

Applying Gauss's Law to Different Symmetries

Gauss's Law becomes especially powerful when dealing with charge distributions that have symmetry. There are three main symmetrical cases where it shines:

1. Spherical symmetry - like charges on a spherical shell
2. Cylindrical symmetry - like charges along a wire
3. Planar symmetry - like charges on a flat surface

The key to applying Gauss's Law is choosing the right Gaussian surface - an imaginary surface that takes advantage of the symmetry. The surface doesn't have to be real; you place it where it's most useful for your calculations.

Pro Tip: When choosing a Gaussian surface, make sure it has the same symmetry as your charge distribution. This makes the math much simpler because the electric field will be constant over portions of your surface!

Spherical Symmetry: Fields Around Charged Spheres

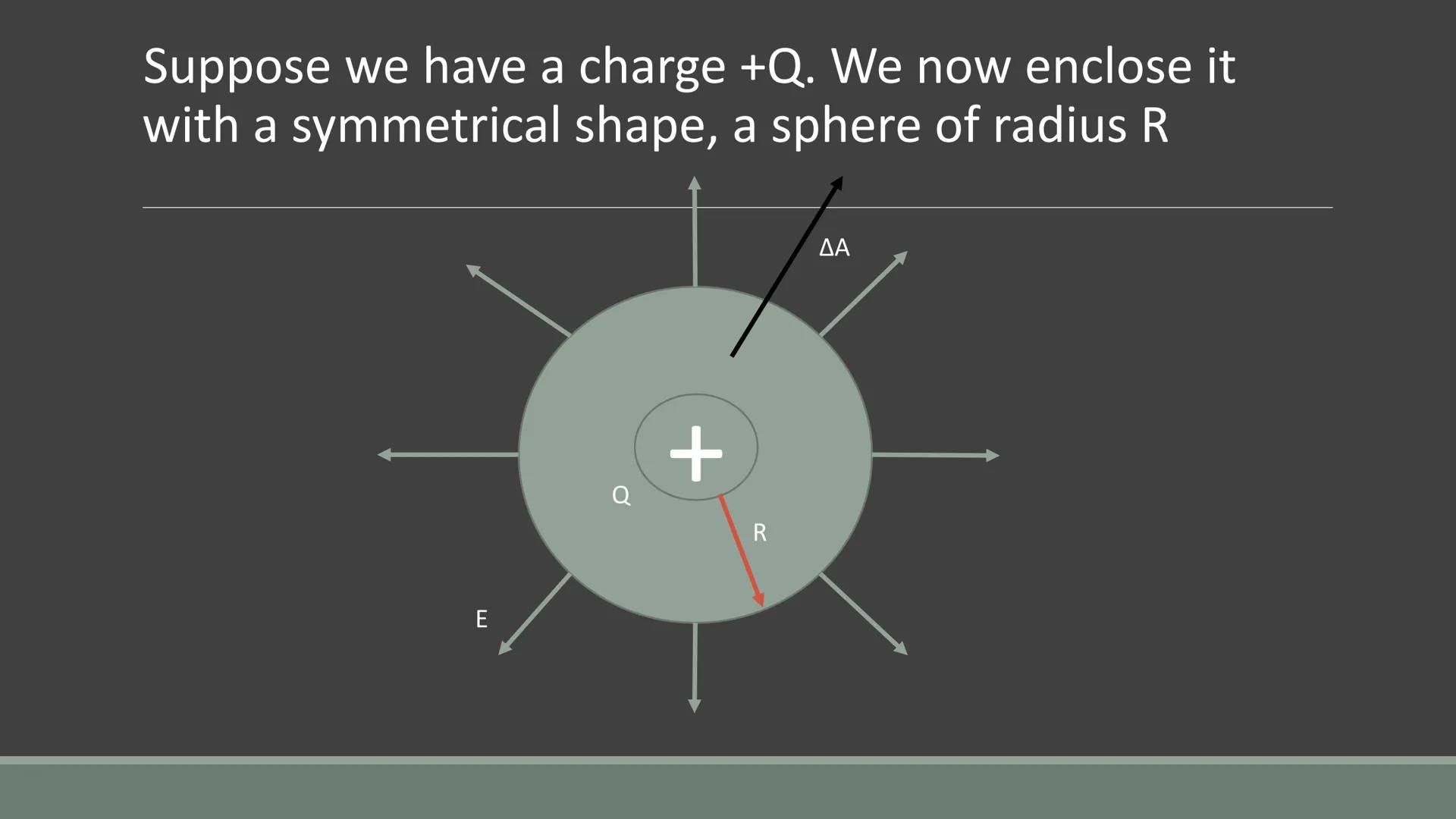

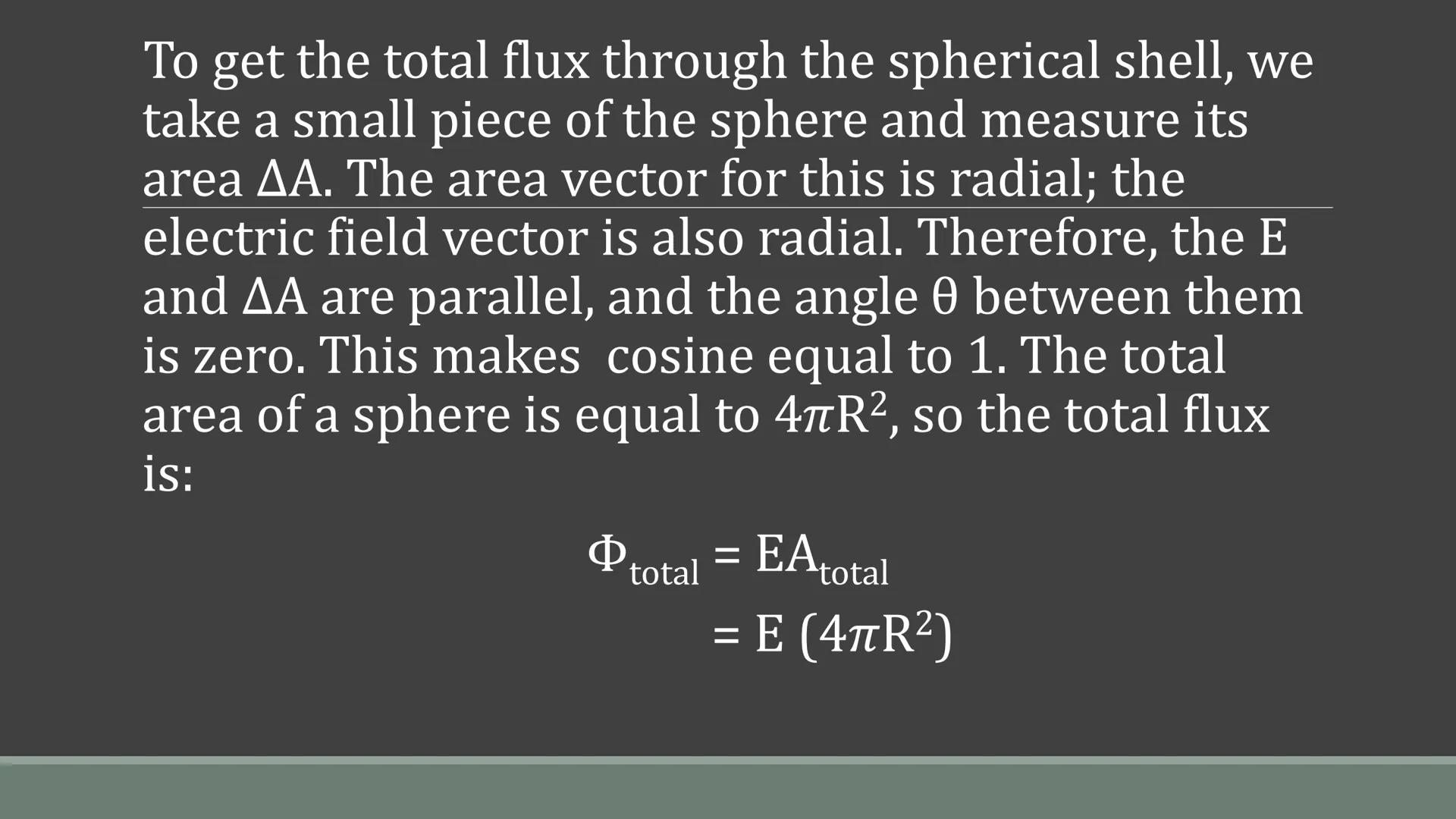

When charges are distributed on a spherical shell with radius R, we can use Gauss's Law to find the electric field both inside and outside the sphere.

For points inside the conducting sphere (r < R), the electric field is zero. This might seem surprising, but it's because all the charges reside on the surface, with none inside. Applying Gauss's Law with an inner spherical Gaussian surface confirms this: $E = \frac{\Sigma Q_{inside}}{4\pi r^2 \epsilon_0} = \frac{0}{4\pi r^2 \epsilon_0} = 0$.

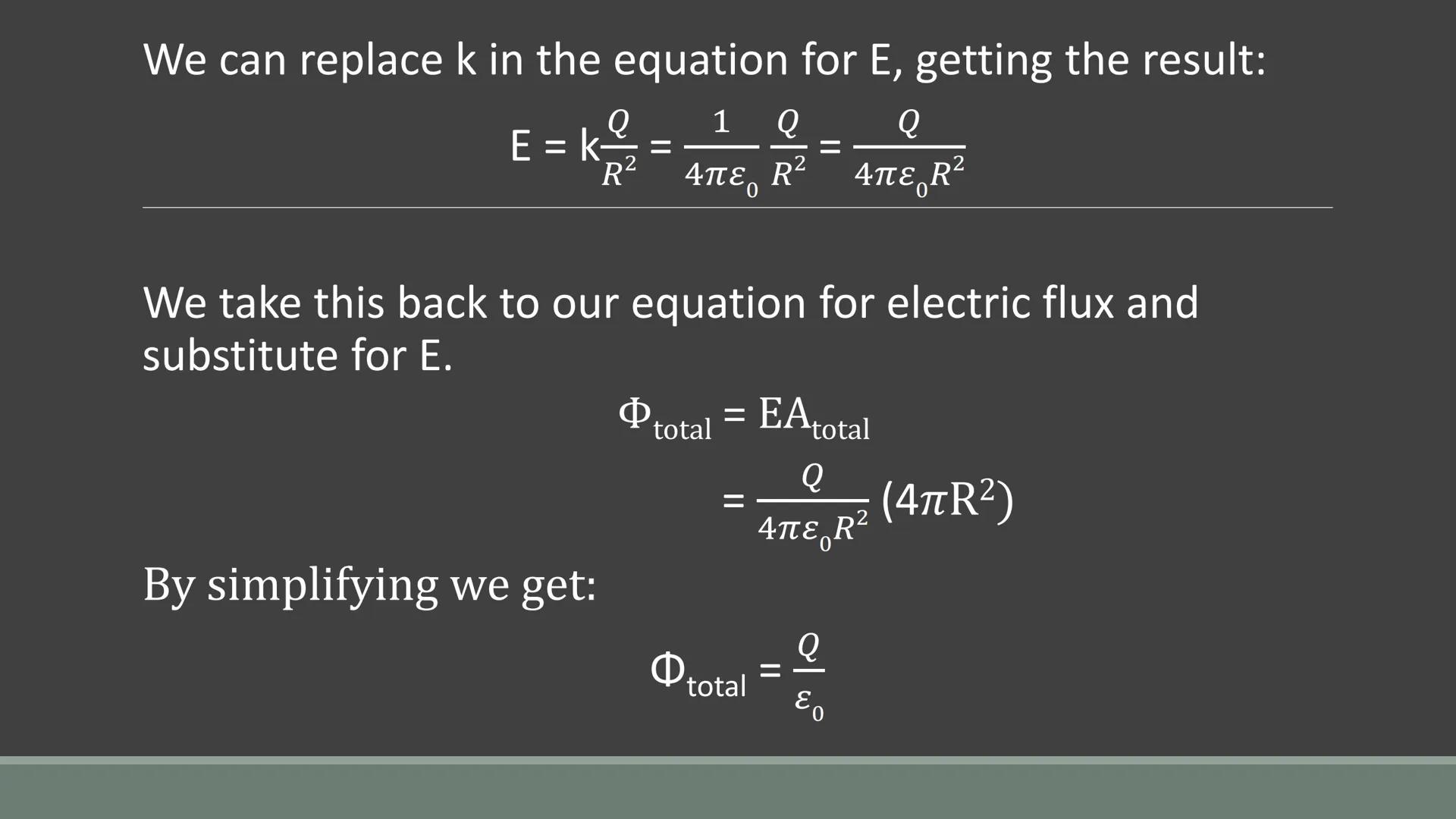

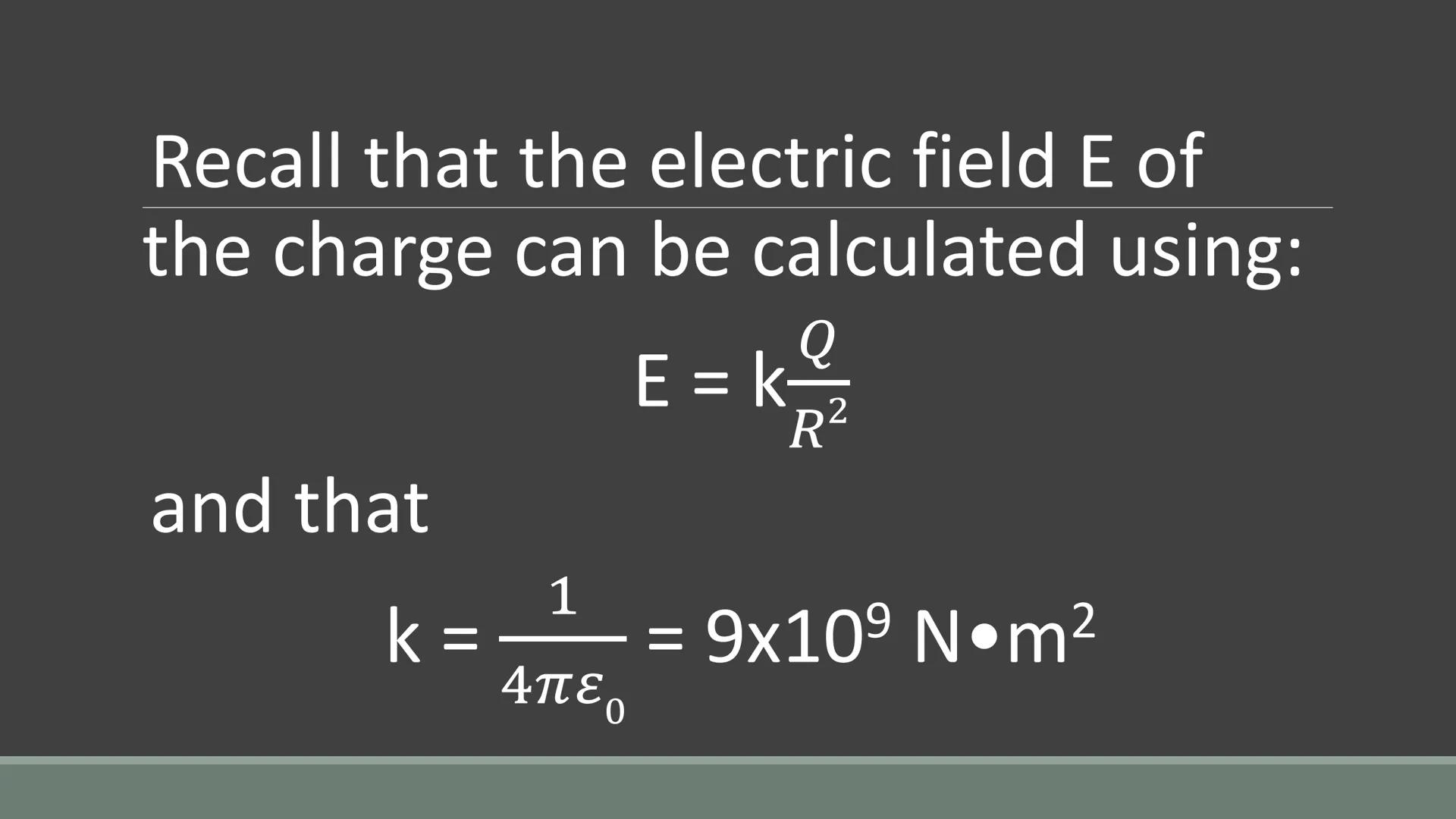

For points outside the sphere (r > R), the electric field acts as if all the charge were concentrated at the center: $E = \frac{Q}{4\pi r^2 \epsilon_0}$, which is identical to the field of a point charge.

Fascinating Fact: This explains why we can treat planets and stars as point charges when calculating gravitational forces from far away, despite their enormous size!

Cylindrical Symmetry: Fields Around Long Charged Wires

For a long, uniformly charged wire with charge per unit length λ (measured in coulombs/meter), we can find the electric field by using a cylindrical Gaussian surface.

The electric field at distance r from the wire is given by: $E = \frac{\lambda}{2\pi r \epsilon_0}$

Notice that the field decreases with distance, but not as quickly as for a point charge (which decreases with r²). This means that electric fields from power lines extend farther than you might expect!

The cylindrical symmetry means the field points radially outward from the wire (for positive charges) and has the same magnitude at all points equidistant from the wire.

Real-World Connection: This is why birds can sit on power lines safely - the electric field is perpendicular to the wire, not along it, so current doesn't flow through their bodies.

Planar Symmetry: Fields Around Charged Sheets

For an infinitely large, uniformly charged sheet with charge per unit area σ (measured in coulombs/meter²), the electric field is:

$E = \frac{\sigma}{2\epsilon_0}$

Surprisingly, this field is constant regardless of distance from the sheet! The field lines extend perpendicularly from the sheet in both directions.

When two oppositely charged parallel plates are placed near each other (like in a capacitor), the fields between the plates add together: $E_{TOTAL} = \frac{\sigma}{\epsilon_0}$

This uniform electric field between parallel plates has many practical applications, from touch screens to particle accelerators.

Think About It: Your smartphone's touch screen uses capacitive technology based on this principle - when your finger touches the screen, it changes the electric field between charged plates!

The Power of Symmetry in Electrostatics

Gauss's Law provides a shortcut for solving complex electric field problems when symmetry is present. The key is matching your Gaussian surface to the symmetry of your charge distribution:

• Spherical charges → Use a spherical Gaussian surface
• Linear charges → Use a cylindrical Gaussian surface
• Planar charges → Use a "pillbox" Gaussian surface

The superposition principle also applies to electric fields - the total electric field at any point is the vector sum of fields created by individual charges.

This powerful approach allows us to solve problems that would be extremely difficult using Coulomb's Law directly, especially when dealing with continuous charge distributions.

Success Strategy: When approaching electrostatics problems, always look for symmetry first! It can transform a seemingly complex problem into a straightforward application of Gauss's Law.
