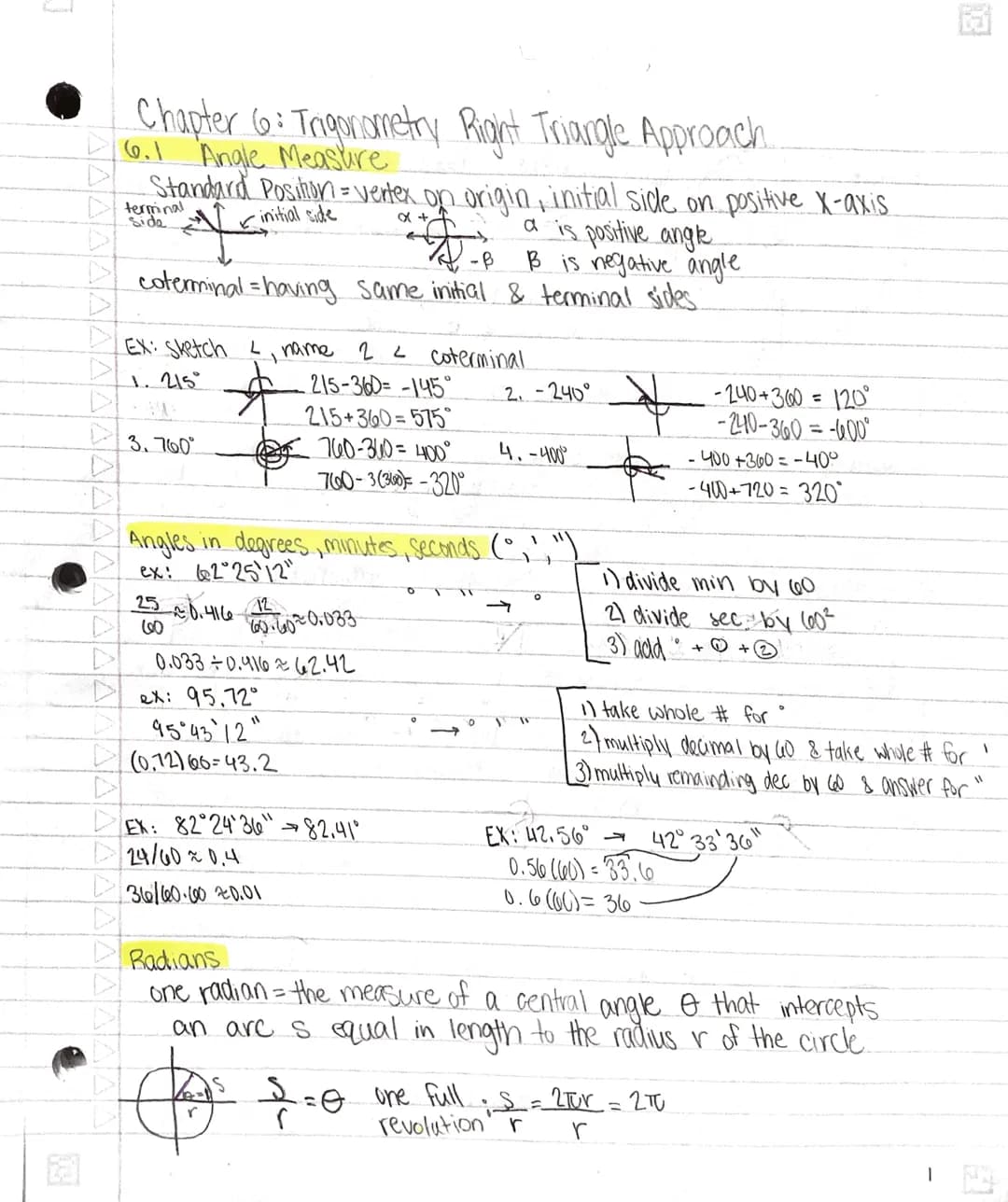

Understanding Angle Measurements and Trigonometric Relationships

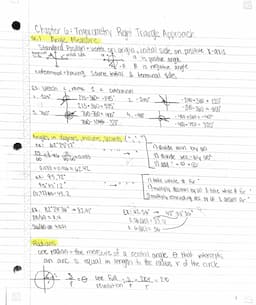

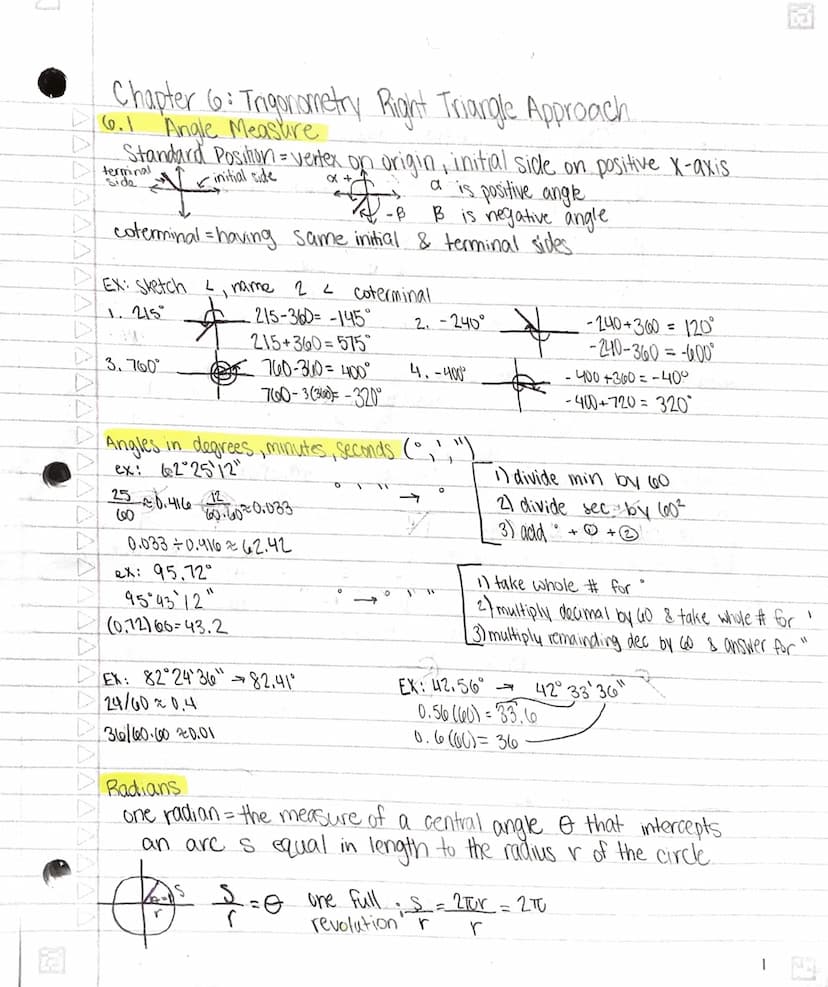

When studying trigonometry, understanding how angles are measured and related is fundamental. In standard position, angles are placed with their vertex at the origin and their initial side along the positive x-axis. This standardization helps us analyze angles consistently and understand their relationships.

Definition: Coterminal angles are angles that share the same initial and terminal sides, regardless of how many complete rotations they make. For example, 215° and 575° are coterminal because they have the same terminal side position after different numbers of rotations.

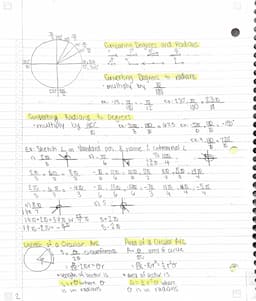

One crucial concept in trigonometry is the measurement of angles in different units. While degrees are common $like 62°25'12"$, we also use radians for many calculations. The converting degrees to radians formula involves multiplying by π/180°. This conversion is essential because many mathematical formulas require angles in radian measure.

When working with examples of coterminal angles in trigonometry, we can find them by adding or subtracting 360° from any angle. For instance, -240° and 120° are coterminal angles because -240° + 360° = 120°. This relationship helps us understand how angles relate to each other in a circular system.

Angular and Linear Motion in Circular Paths

Understanding how to calculate angular speed of rotating object is crucial in physics and engineering applications. Angular speed measures how quickly an angle changes with respect to time, typically measured in radians per second or degrees per second.

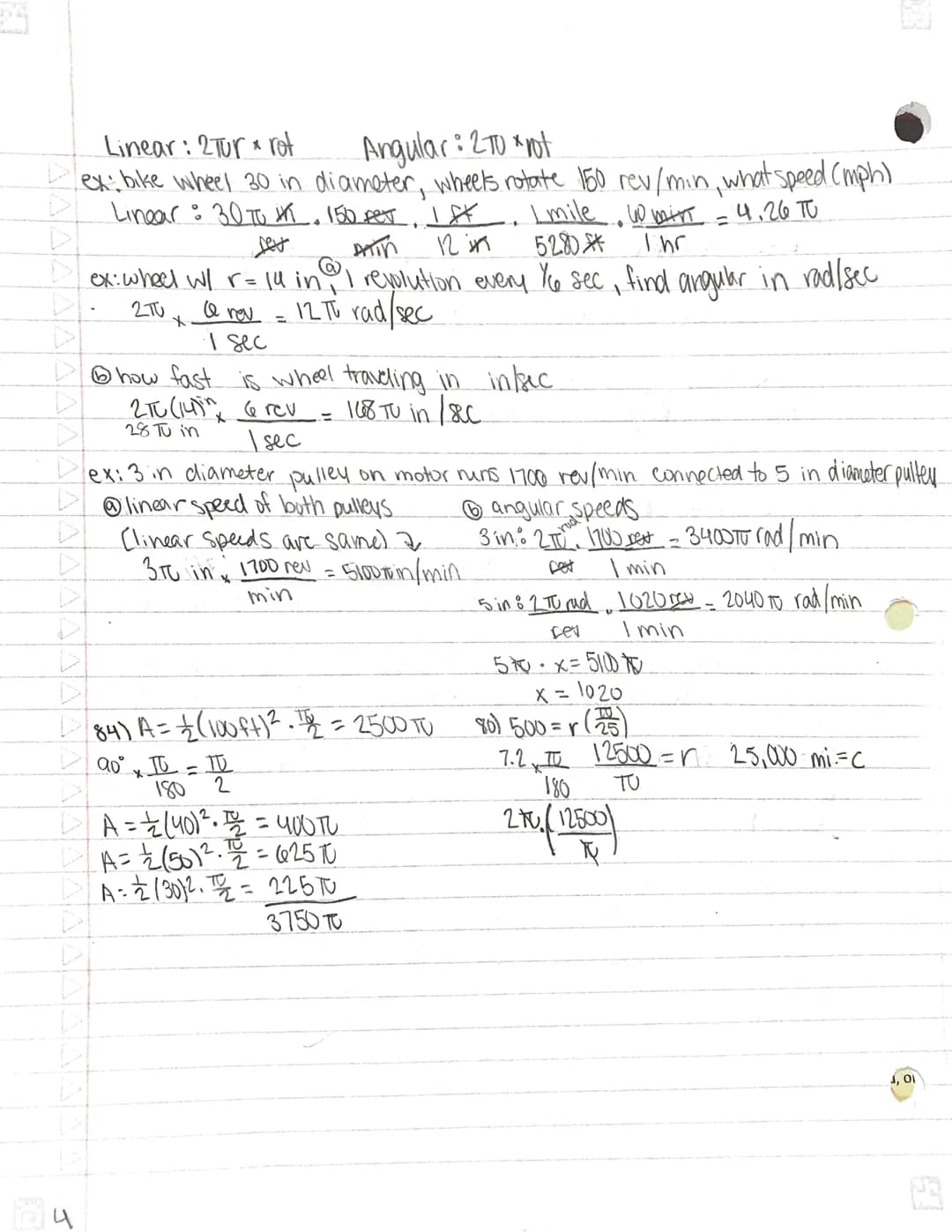

Example: If a wheel makes one complete revolution every 16 seconds, its angular speed would be 2π radians/16 seconds = π/8 radians per second. The linear speed of a point on the wheel's rim can then be calculated by multiplying this angular speed by the radius.

Linear speed in circular motion depends on both the angular speed and the radius of rotation. For instance, when calculating the speed of a bicycle wheel, we must consider both its diameter and how many revolutions it makes per minute. This relationship shows how angular and linear motion are interconnected.

The relationship between linear and angular speed is particularly important in mechanical systems like pulleys and gears. When two pulleys are connected, their linear speeds at the point of contact must be equal, even though their angular speeds may differ due to different diameters.

Applications of Circular Motion and Arc Measurements

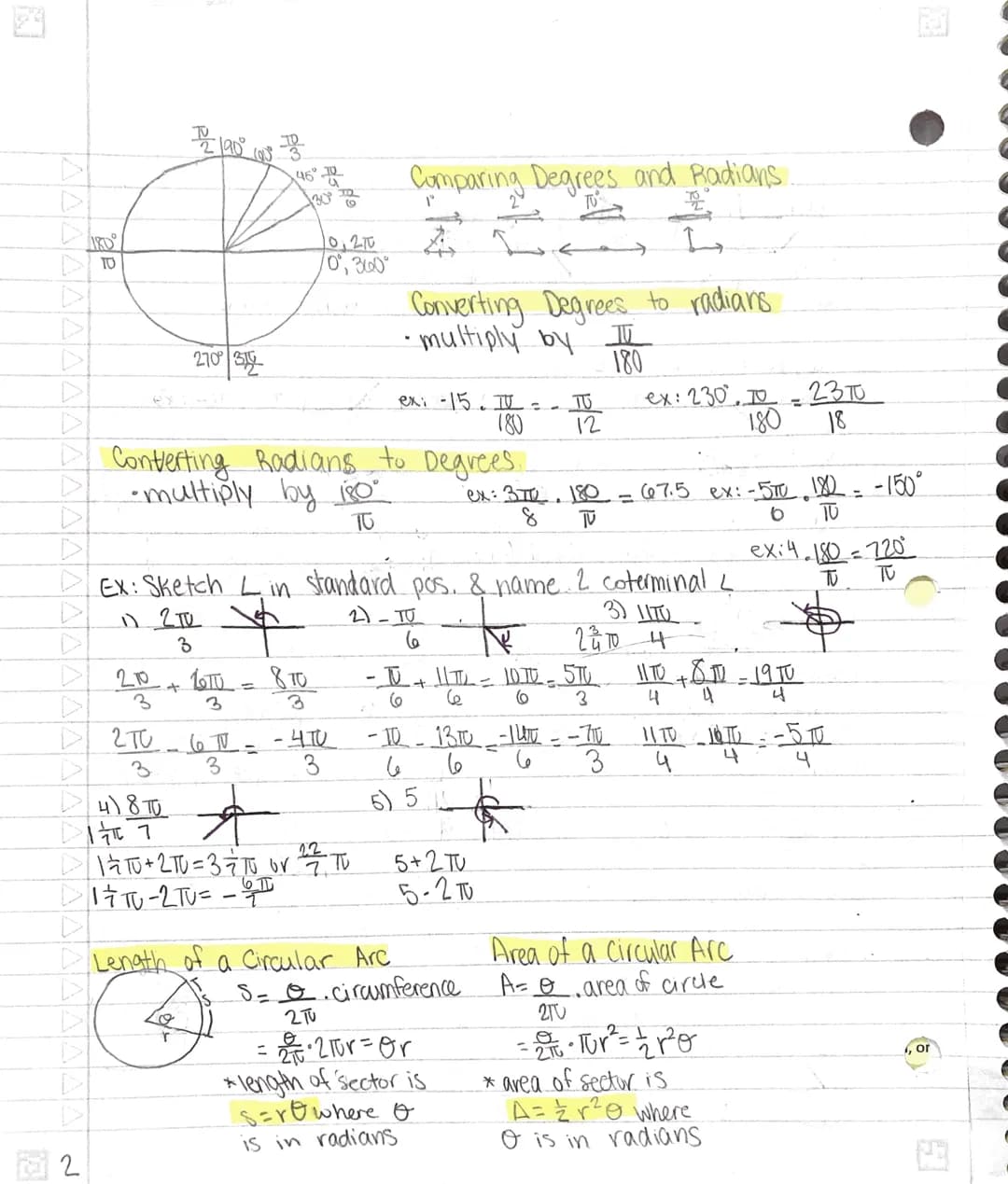

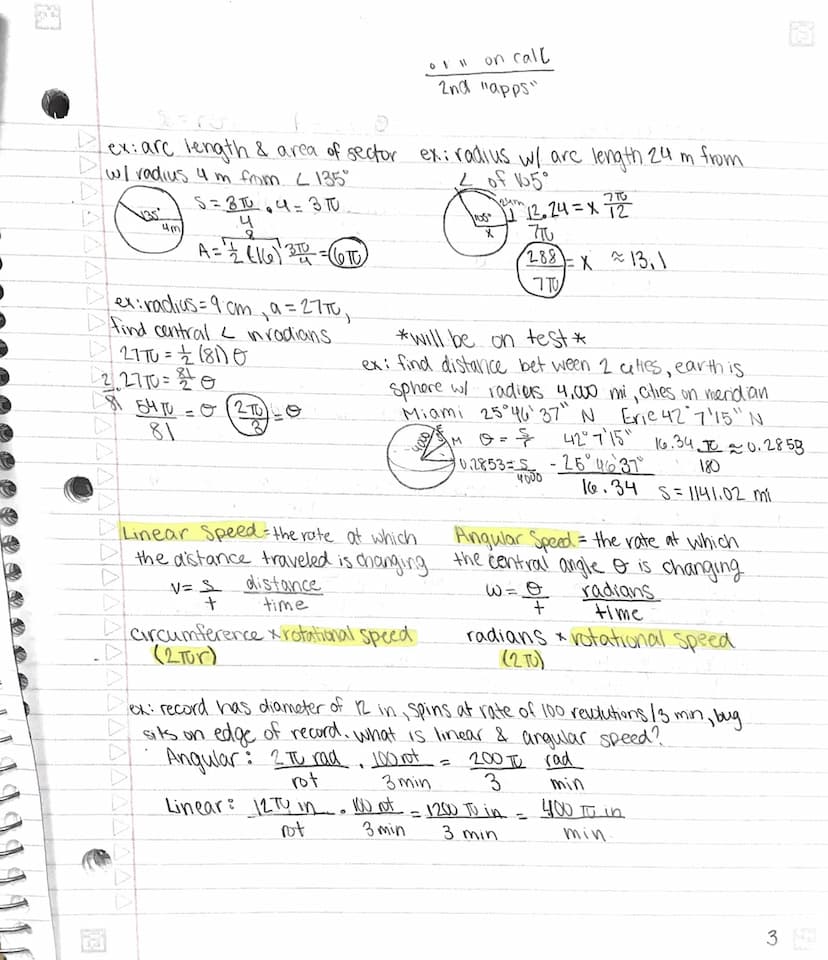

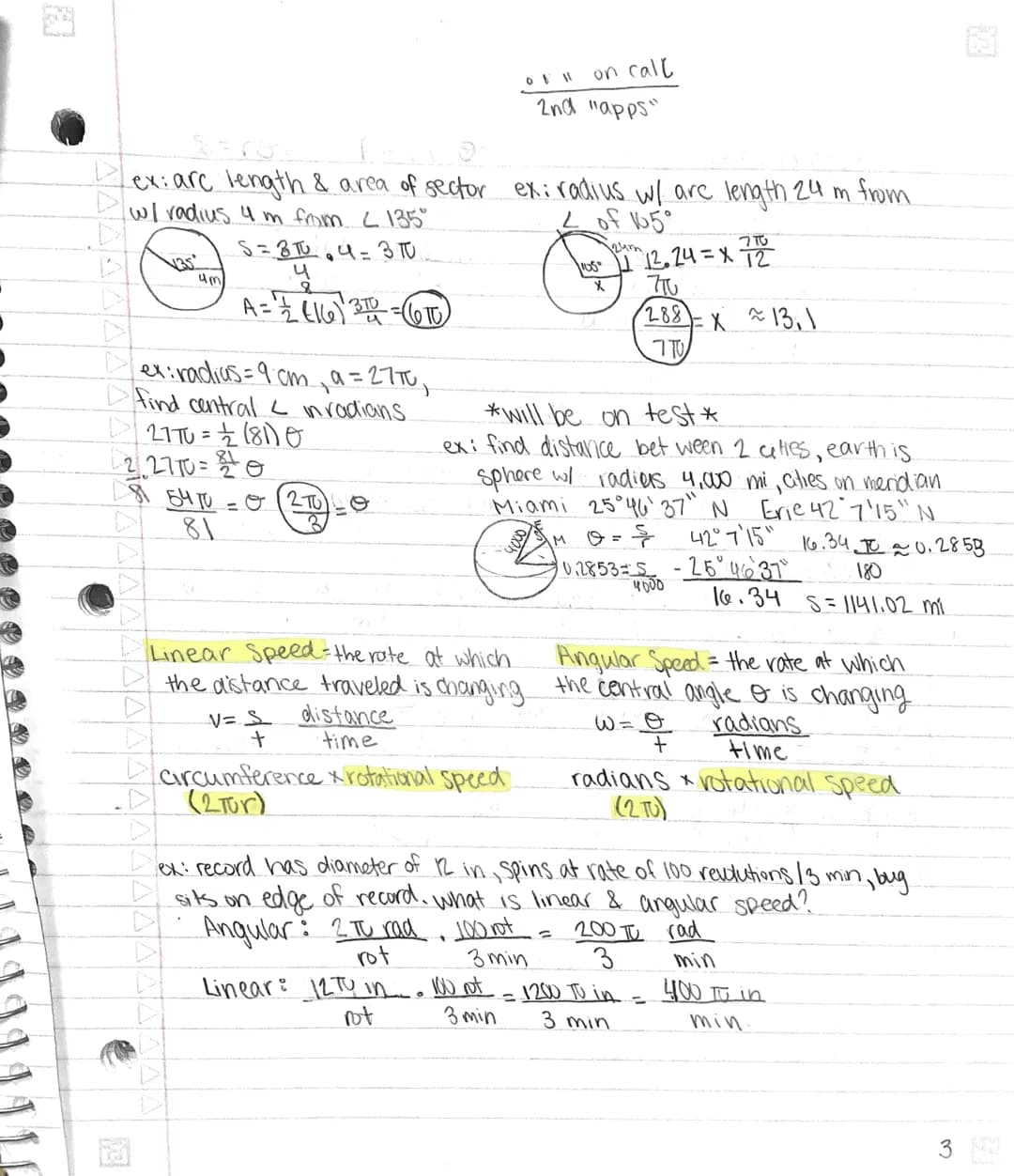

Arc length and sector area calculations are essential applications of angle measurement. The length of an arc depends on both the radius of the circle and the central angle that subtends it. When the angle is measured in radians, the arc length formula simplifies to s = rθ.

Highlight: The area of a sector is given by A = ½r²θ $where θ is in radians$. This formula is derived from the fact that the sector's area is a fraction of the total circle area, determined by the fraction of the full angle $2π$ that θ represents.

These concepts have practical applications in various fields. For example, when calculating distances between cities on Earth's surface, we treat Earth as a sphere and use arc length formulas with the Earth's radius. This demonstrates how trigonometric principles apply to real-world problems.

Advanced Applications in Rotational Systems

Complex mechanical systems often involve multiple rotating components working together. Understanding both linear and angular relationships becomes crucial when analyzing these systems. For example, in a system of connected pulleys, the relationship between their speeds depends on their relative sizes.

Vocabulary: Angular velocity $ω$ represents the rate of angular displacement over time, while linear velocity $v$ represents the actual speed of a point on the rotating object. These are related by the formula v = rω, where r is the radius.

When solving problems involving rotating objects, it's important to consider both the angular and linear aspects of motion. For instance, a record player's turntable might rotate at 33⅓ RPM, but the linear speed of a point on the record varies depending on its distance from the center. This illustrates how angular speed remains constant while linear speed varies with radius.

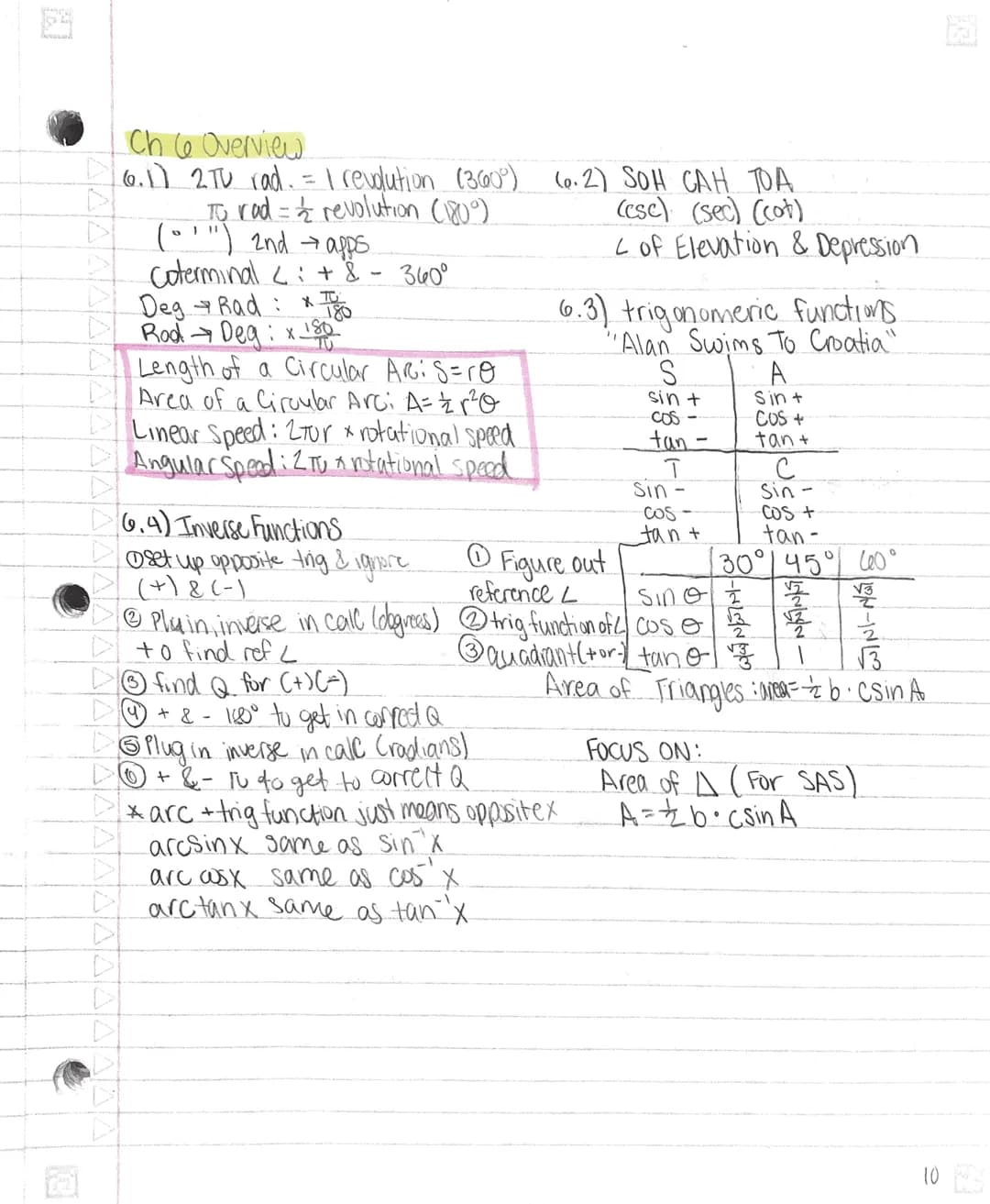

Understanding Trigonometric Functions and Angles

The foundation of trigonometry lies in understanding how angles relate to ratios and measurements. When calculating angular speed of rotating objects, we must first grasp the relationship between degrees and radians. The converting degrees to radians formula is essential - multiply degrees by π/180° to convert to radians. This conversion is crucial because many real-world applications use radian measurements.

Definition: Angular speed measures how quickly an object rotates around a fixed point, typically measured in radians per second. Linear speed = angular speed × radius.

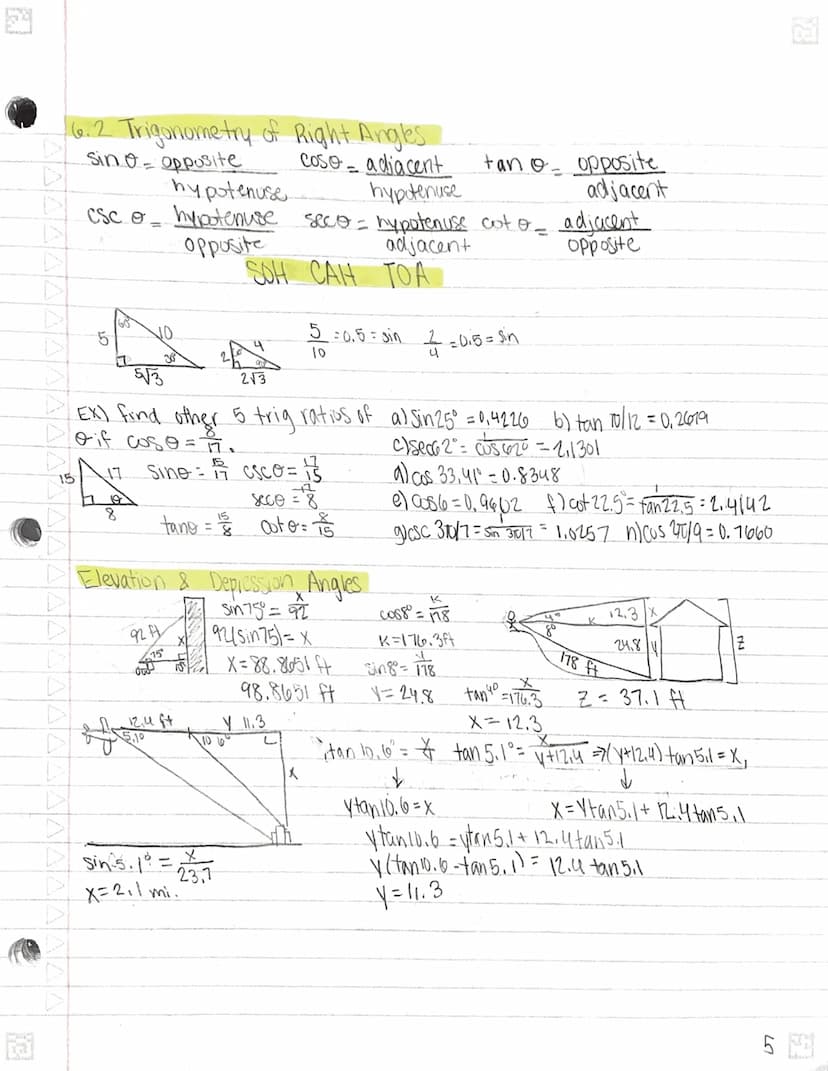

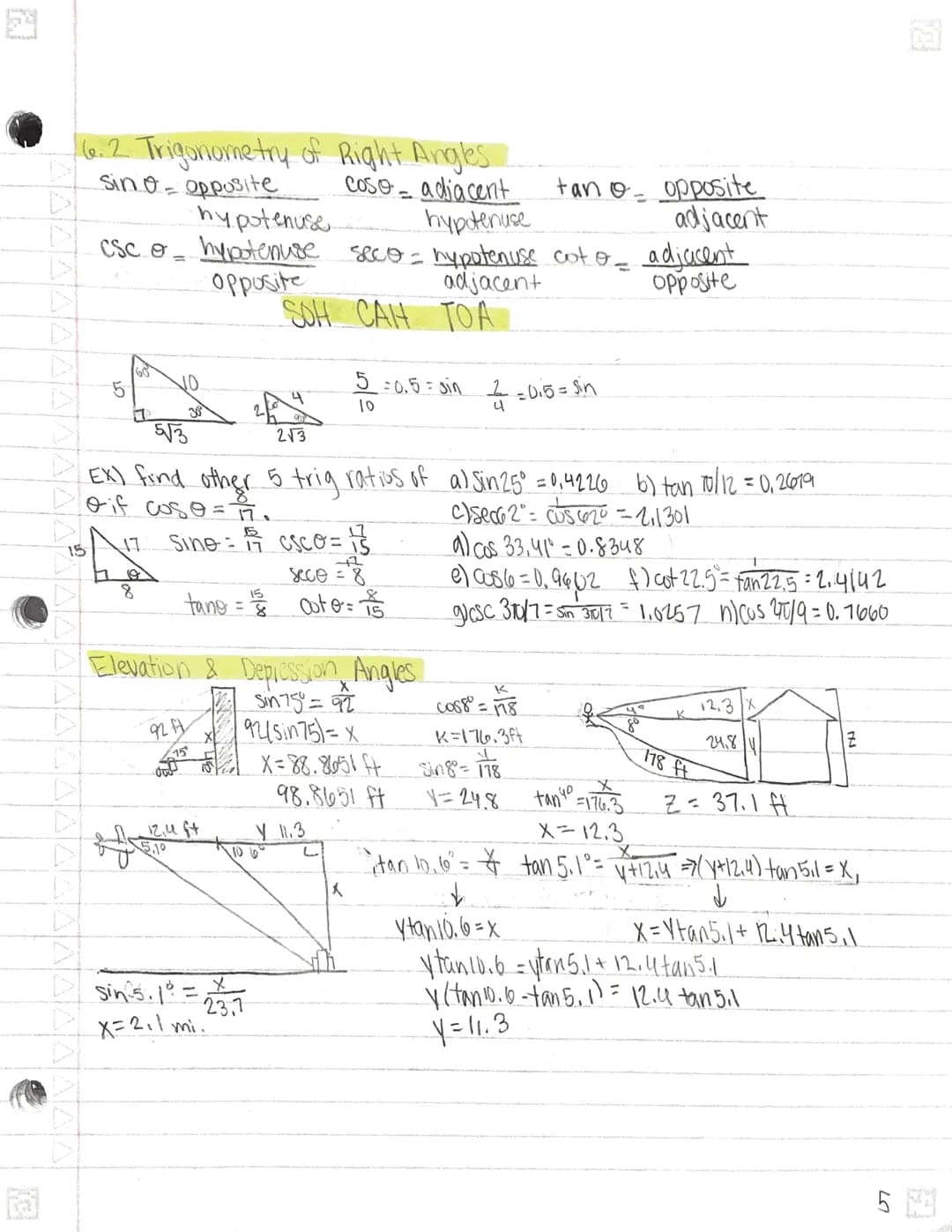

In right triangles, the fundamental trigonometric ratios $sine, cosine, tangent$ connect side lengths to angles. SOH CAH TOA helps remember these relationships: Sine equals opposite over hypotenuse, Cosine equals adjacent over hypotenuse, and Tangent equals opposite over adjacent. These ratios form the basis for solving real-world problems involving angles and distances.

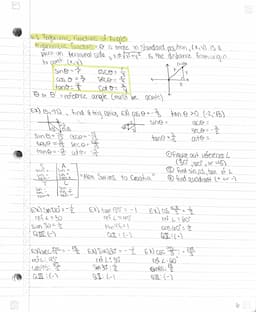

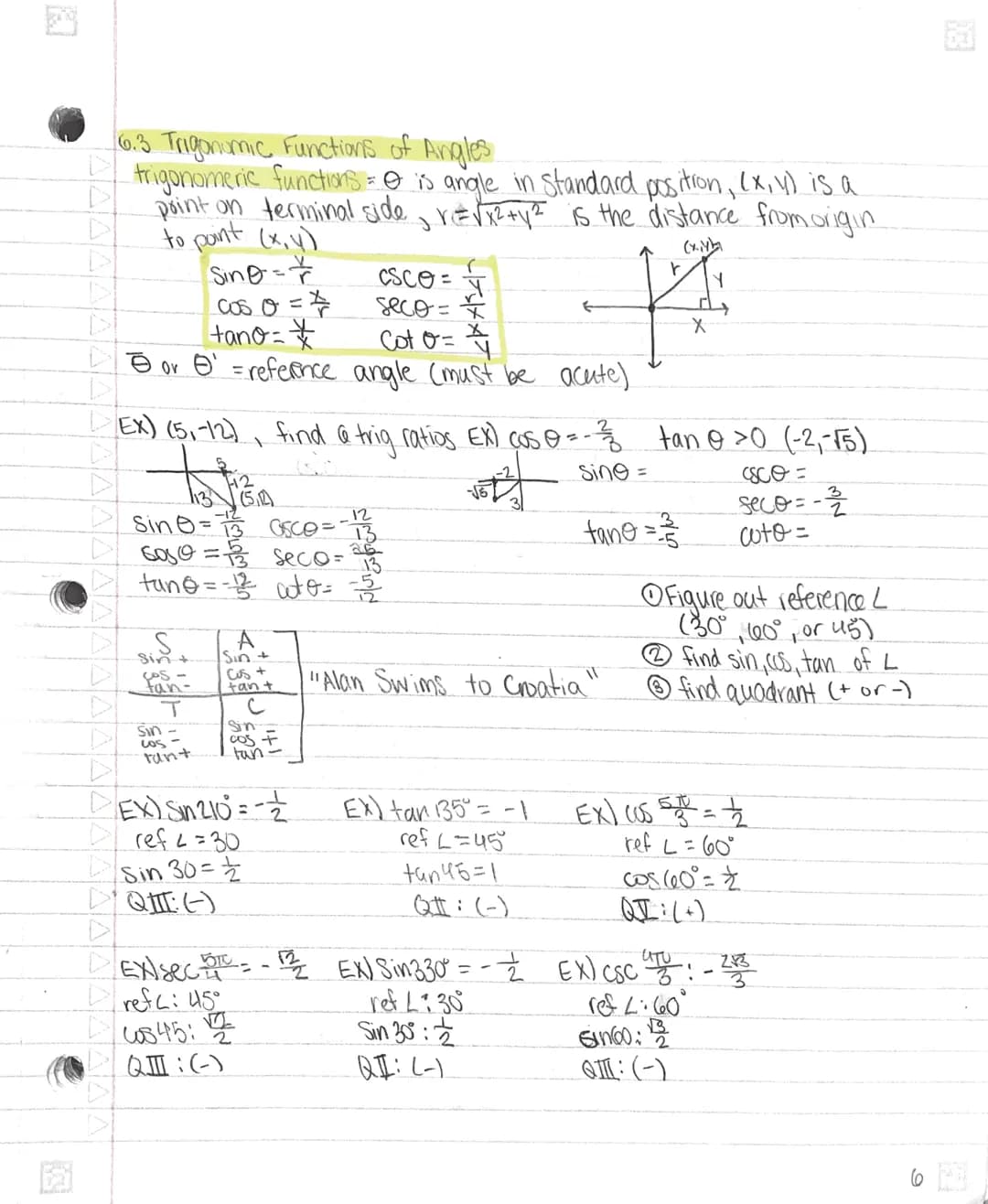

When working with angles in standard position, understanding quadrants becomes crucial. Each quadrant has specific sign patterns for trigonometric functions. The ASTC rule $All Students Take Calculus$ helps remember where functions are positive: All in QI, Sine in QII, Tangent in QIII, Cosine in QIV.

Advanced Trigonometric Concepts

Examples of coterminal angles in trigonometry demonstrate how different angles can share the same terminal side. To find coterminal angles, add or subtract 360° from any given angle. This concept is particularly important when working with periodic functions and real-world applications like rotating machinery.

Example: If an angle measures 45°, its coterminal angles include 405° $45° + 360°$ and -315° $45° - 360°$.

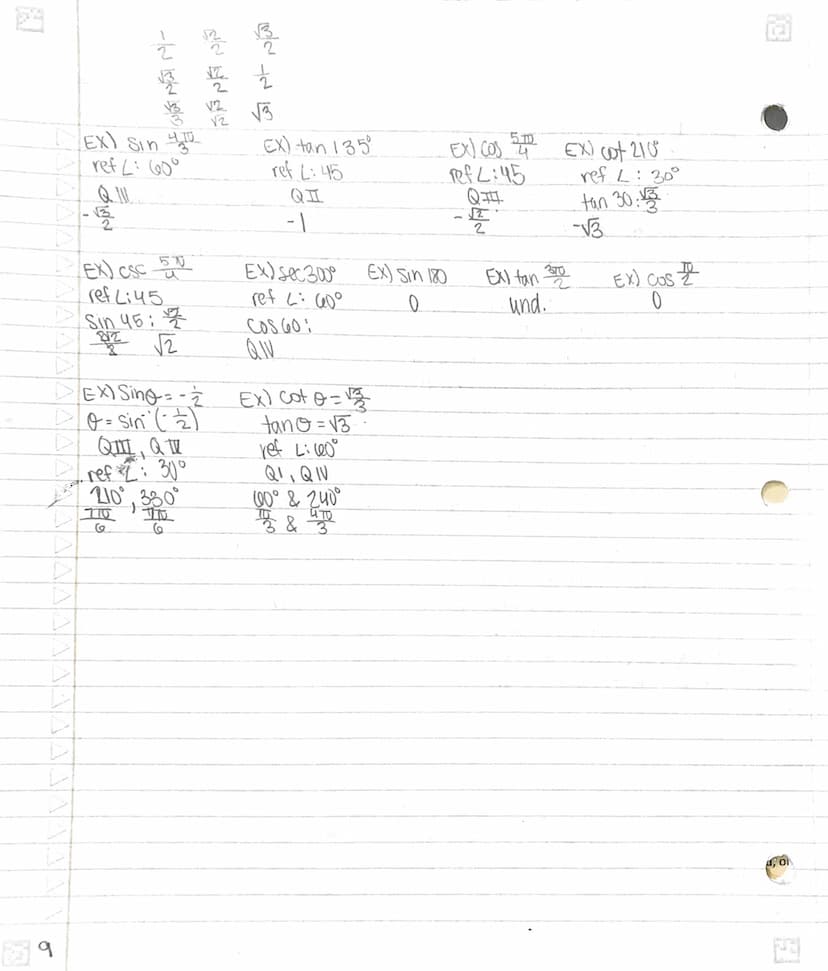

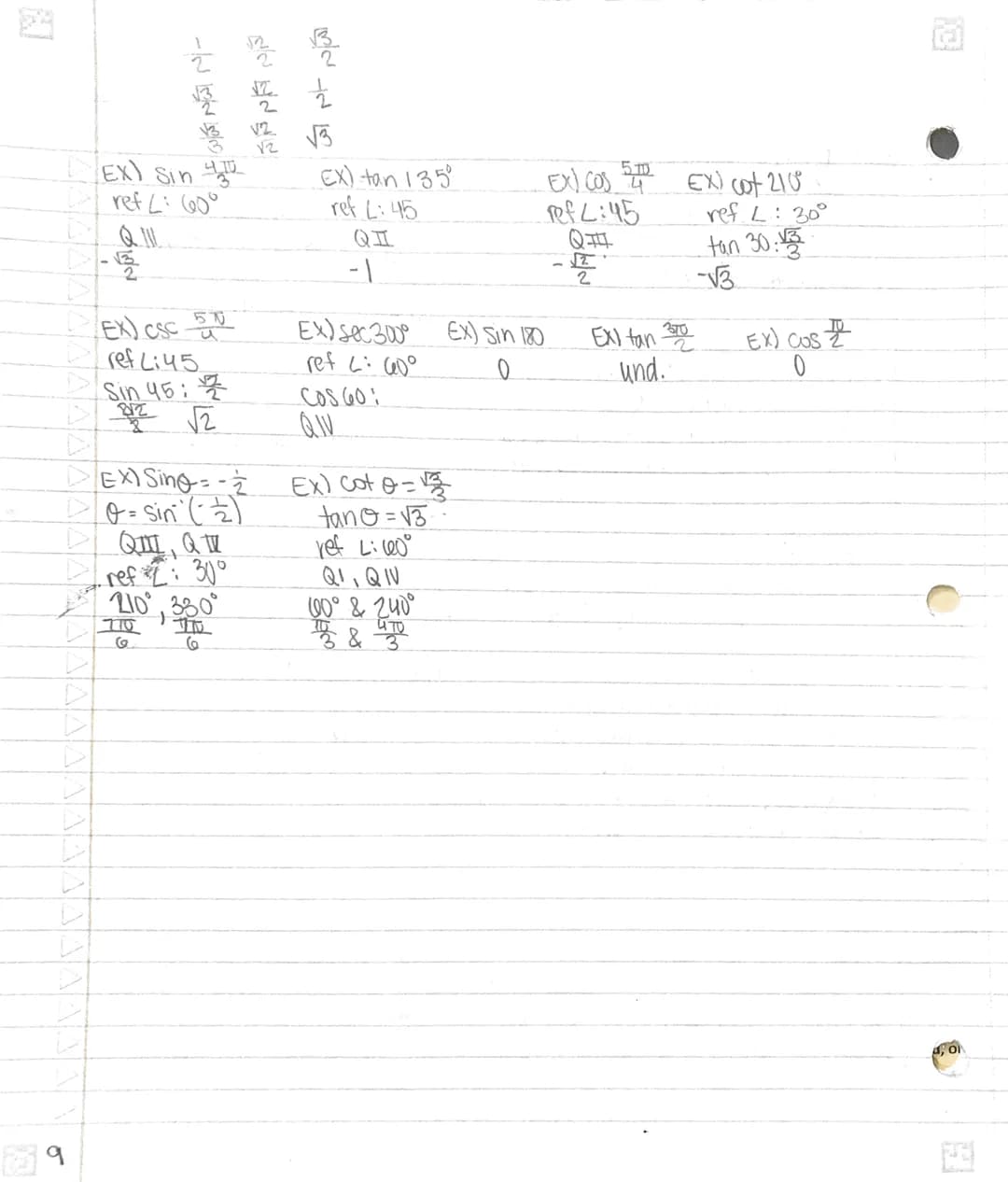

Reference angles play a crucial role in evaluating trigonometric functions. A reference angle is the acute angle formed between the terminal side of an angle and the x-axis. This concept helps simplify calculations by relating any angle to an acute angle in the first quadrant.

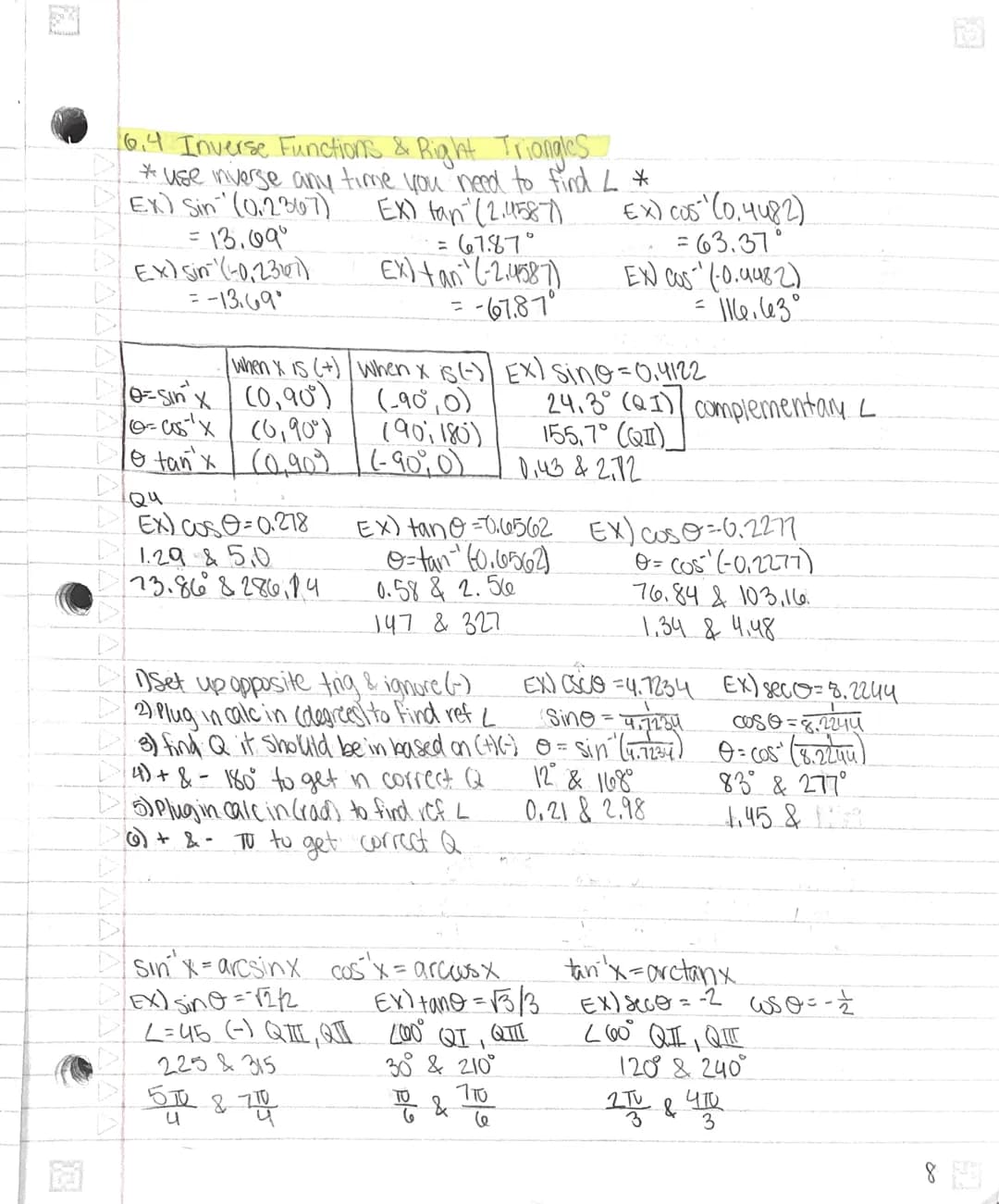

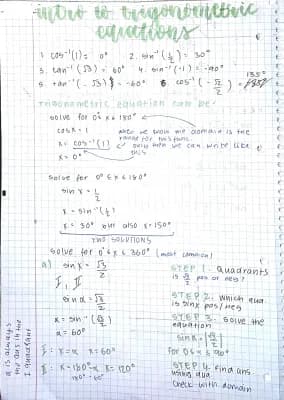

The inverse trigonometric functions $arcsin, arccos, arctan$ allow us to find angles when given trigonometric ratios. These functions are particularly useful in navigation, engineering, and physics applications where determining angles from known ratios is essential.

Applications of Trigonometric Functions

Angles of elevation and depression demonstrate practical applications of trigonometry. These concepts are widely used in surveying, architecture, and navigation. When solving these problems, it's crucial to draw clear diagrams and identify the given information correctly.

Highlight: In elevation/depression problems, the angle of elevation is measured upward from the horizontal, while the angle of depression is measured downward from the horizontal.

The area of triangles using trigonometry introduces the formula A = ½bc×sin$A$, which is particularly useful when we know two sides and the included angle $SAS$. This formula extends trigonometry's applications to land surveying, construction, and engineering design.

Linear and angular speeds are interconnected through the relationship v = rω, where v is linear speed, r is radius, and ω is angular speed. This relationship is fundamental in understanding rotating objects, from car wheels to planetary motion.

Special Angles and Unit Circle

Understanding special angles $30°, 45°, 60°$ and their trigonometric values is essential for solving problems without a calculator. These angles frequently appear in real-world applications and form the backbone of trigonometric calculations.

Vocabulary: The unit circle is a circle with radius 1 centered at the origin, used to define trigonometric functions for any angle.

The unit circle provides a visual representation of how trigonometric functions relate to angles in standard position. Points on the unit circle correspond to cosine and sine values, making it an invaluable tool for understanding periodic behavior and function values.

Radian measure becomes particularly important when working with the unit circle, as it simplifies many calculations and is the preferred measure in calculus and higher mathematics. One complete revolution equals 2π radians, providing a natural way to measure angles.

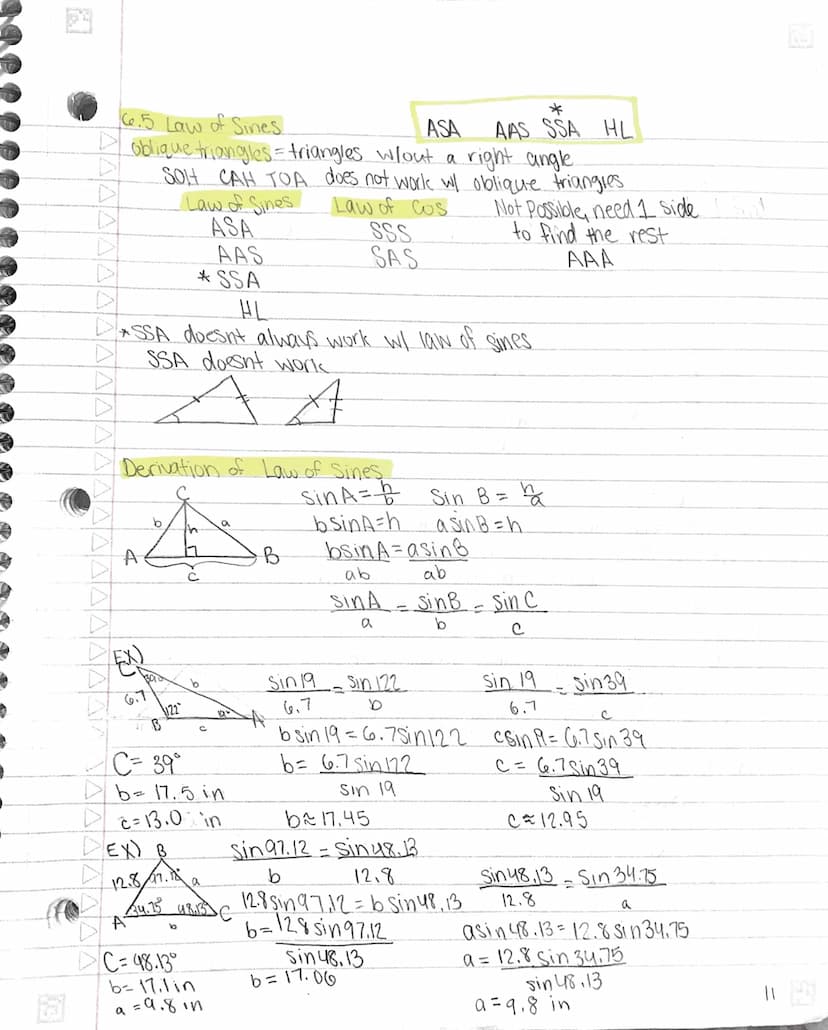

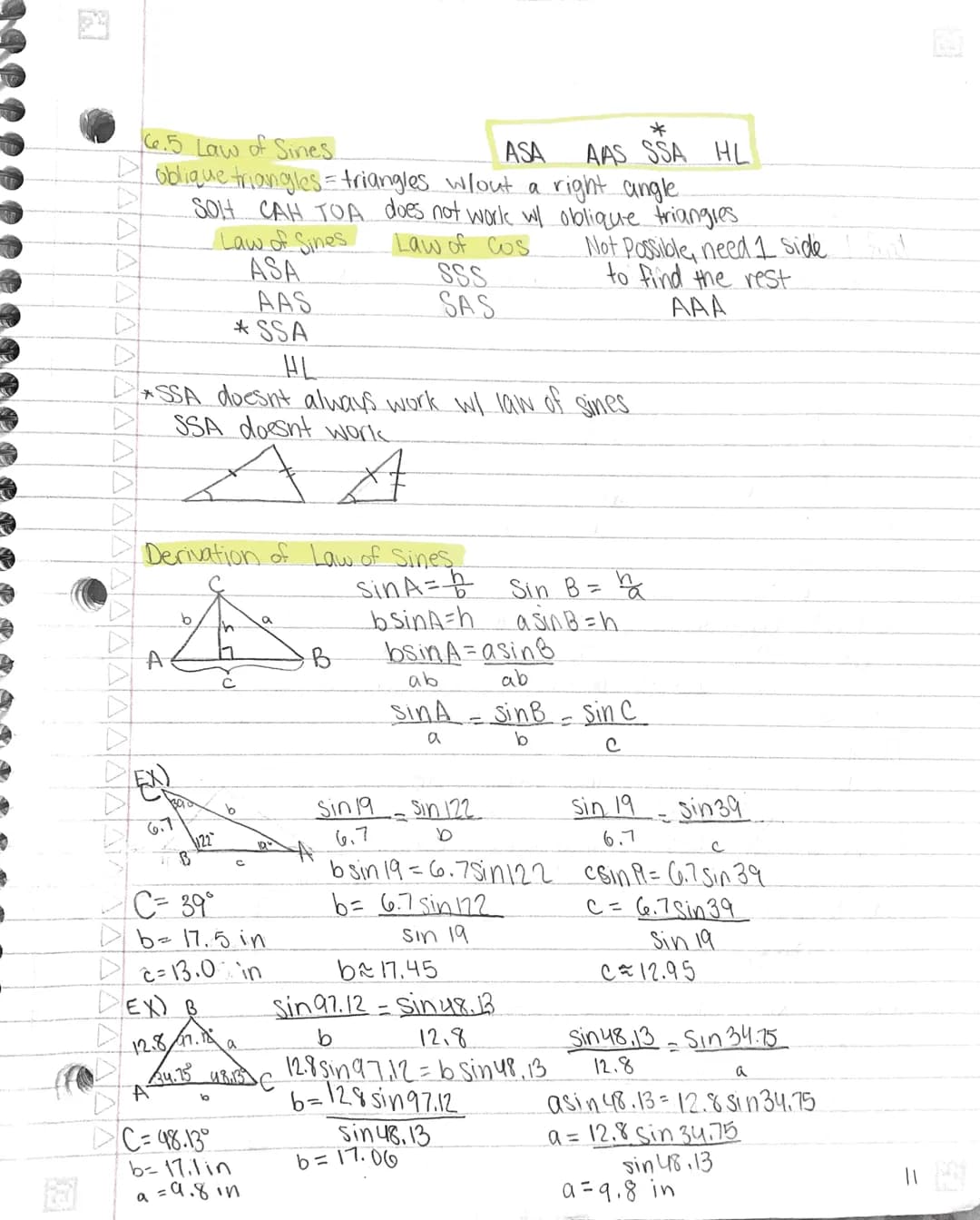

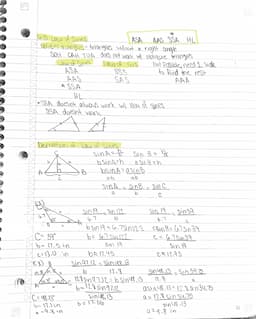

Understanding the Law of Sines in Trigonometry

The Law of Sines is a fundamental principle in trigonometry that helps solve oblique triangles - triangles that don't contain a right angle. Unlike the familiar SOH CAH TOA rules that work exclusively with right triangles, the Law of Sines provides a powerful method for solving more complex triangular problems.

Definition: The Law of Sines states that the ratio of the sine of an angle to the length of the opposite side is constant for all three angles and sides of a triangle. Mathematically written as: sin$A$/a = sin$B$/b = sin$C$/c

Understanding when and how to apply the Law of Sines requires careful consideration of the given information. The law works reliably with ASA $Angle-Side-Angle$ and AAS $Angle-Angle-Side$ configurations. However, when dealing with SSA $Side-Side-Angle$ cases, special attention is needed as this combination may result in zero, one, or two possible solutions - a situation known as the ambiguous case.

Let's examine a practical example: Consider a triangle with angle A = 48.13°, side b = 17.5 inches, and angle C = 39°. Using the Law of Sines, we can find the remaining parts of the triangle. First, we establish the proportion: sin$48.13°$/a = sin$39°$/17.5. Through cross multiplication and algebraic manipulation, we can solve for side a, which equals approximately 9.8 inches.

Highlight: When applying the Law of Sines, always verify that you have the correct combination of sides and angles. The ASA and AAS combinations will always yield a unique solution, while SSA may lead to ambiguous results.

Advanced Applications of the Law of Sines

The Law of Sines extends beyond basic triangle solving to real-world applications in surveying, navigation, and engineering. Understanding how to apply this principle effectively requires recognizing patterns and potential pitfalls in different scenarios.

Example: In surveying, the Law of Sines helps determine distances that cannot be measured directly. For instance, if you need to calculate the width of a river, you can measure angles from two points on one bank to a target on the opposite bank, along with the distance between your observation points.

When working with the Law of Sines, it's crucial to understand the relationship between sides and angles. The largest angle in a triangle always corresponds to the largest side, and the smallest angle corresponds to the smallest side. This relationship helps verify solutions and catch potential errors in calculations.

Consider a more complex example involving multiple calculations: Given a triangle with side a = 12.8 units, angle B = 97.12°, and angle C = 48.13°. To find side b, we use the proportion: 12.8/sin$34.75°$ = b/sin$97.12°$. This yields b ≈ 17.45 units. The systematic approach of the Law of Sines allows us to solve such problems step by step, ensuring accuracy in our results.

Vocabulary: Oblique triangles are triangles that don't contain a 90-degree angle. These triangles require special techniques like the Law of Sines for solution, as standard right triangle trigonometry methods don't apply.
