What Are the Stages of Cellular Respiration? - Easy Steps and Diagrams
Salina
@alinahrestha_xngi
Stages of Cellular Respiration

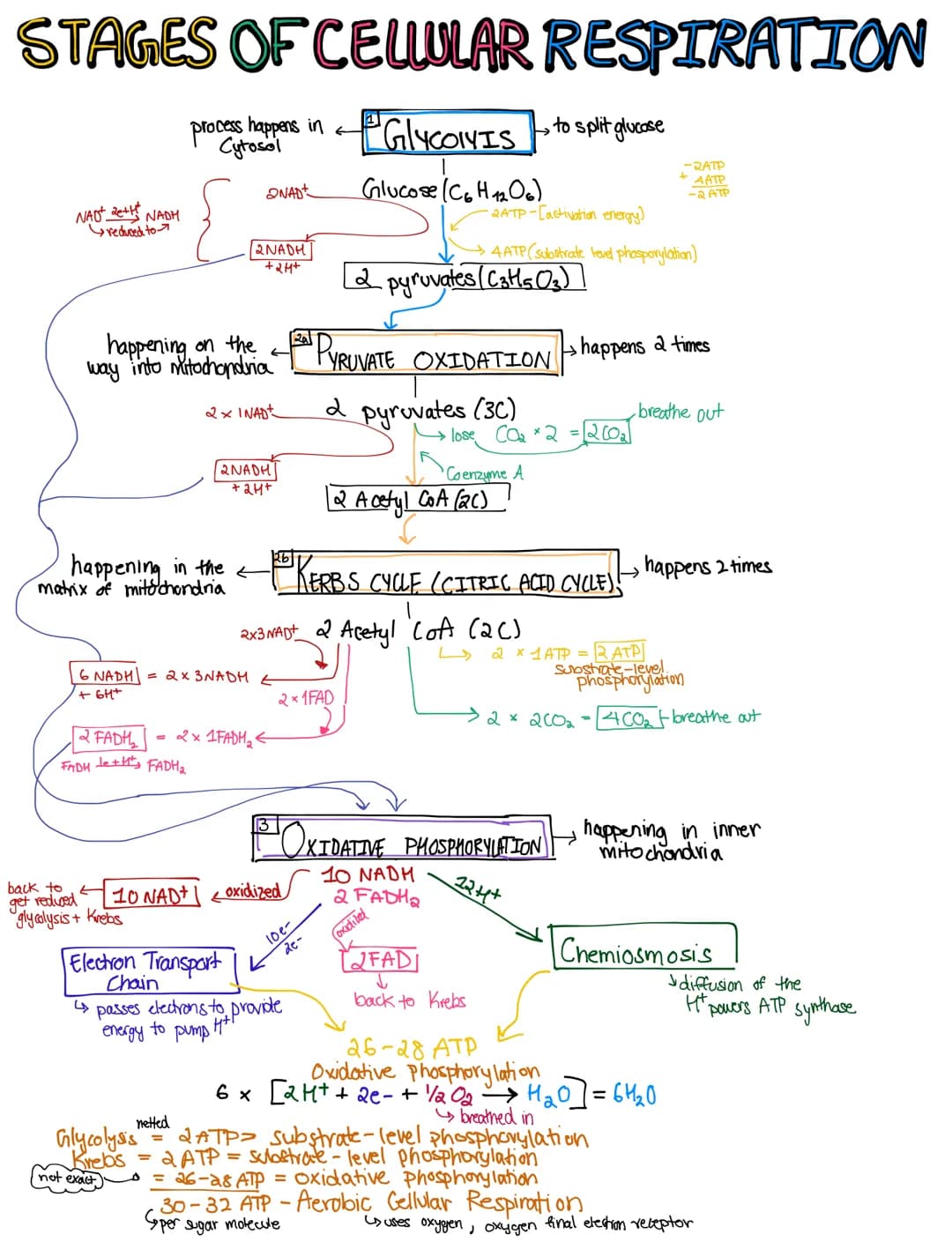

The diagram illustrates the steps of cellular respiration in mitochondria, providing a comprehensive cellular respiration diagram. It shows where cellular respiration takes place and outlines the three stages of cellular respiration.
Definition: Cellular respiration is the process by which cells break down glucose to produce energy in the form of ATP.
The process begins with glycolysis in the cytosol, followed by pyruvate oxidation and the Krebs cycle in the mitochondrial matrix, and concludes with the electron transport chain and oxidative phosphorylation in the inner mitochondrial membrane.
Vocabulary: Glycolysis literally means "to split glucose" and occurs in the cytosol.
Glycolysis breaks down one glucose molecule (C₆H₁₂O₆) into two pyruvate molecules (C₃H₃O₃), producing a net gain of 2 ATP through substrate-level phosphorylation and reducing NAD+ to NADH.
Example: The cellular respiration equation for glycolysis can be summarized as: Glucose + 2 NAD⁺ + 2 ADP + 2 Pi → 2 Pyruvate + 2 NADH + 2 ATP + 2 H⁺ + 2 H₂O
Pyruvate oxidation occurs as the pyruvate molecules enter the mitochondria. This step produces Acetyl-CoA, NADH, and CO₂. The Krebs cycle, also known as the citric acid cycle, then further breaks down the Acetyl-CoA, producing more NADH, FADH₂, and CO₂.
Highlight: The Krebs cycle is a crucial part of cellular respiration, producing electron carriers (NADH and FADH₂) that will be used in the electron transport chain.
The electron transport chain and oxidative phosphorylation represent the final stage of cellular respiration. This process uses the electron carriers produced in earlier stages to create a proton gradient across the inner mitochondrial membrane. This gradient drives ATP synthesis through chemiosmosis.
Vocabulary: Chemiosmosis is the process by which ATP is produced using the energy from the proton gradient.
Oxygen serves as the final electron acceptor in this process, combining with hydrogen ions to form water. This is why cellular respiration is important in aerobic organisms, as it allows for the most efficient extraction of energy from glucose.
Quote: "26-28 ATP = Oxidative phosphorylation"
The diagram shows that the total ATP yield from one glucose molecule through aerobic cellular respiration is 30-32 ATP. This includes 2 ATP from glycolysis, 2 ATP from the Krebs cycle , and 26-28 ATP from oxidative phosphorylation.
Understanding these stages of cellular respiration and the cellular respiration diagram is crucial for grasping how cells produce energy efficiently. This process demonstrates the intricate mechanisms that allow organisms to utilize the energy stored in glucose molecules to power various cellular functions.
We thought you’d never ask...
What is the Knowunity AI companion?
Our AI companion is specifically built for the needs of students. Based on the millions of content pieces we have on the platform we can provide truly meaningful and relevant answers to students. But its not only about answers, the companion is even more about guiding students through their daily learning challenges, with personalised study plans, quizzes or content pieces in the chat and 100% personalisation based on the students skills and developments.
Where can I download the Knowunity app?
You can download the app in the Google Play Store and in the Apple App Store.
Is Knowunity really free of charge?
That's right! Enjoy free access to study content, connect with fellow students, and get instant help – all at your fingertips.
Most popular content: Glycolysis
Most popular content in AP Biology
Most popular content
Can't find what you're looking for? Explore other subjects.
Students love us — and so will you.
4.6/5
App Store
4.7/5
Google Play
The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.
Stefan S
iOS user
This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.
Samantha Klich
Android user
Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.
Anna
iOS user
I think it’s very much worth it and you’ll end up using it a lot once you get the hang of it and even after looking at others notes you can still ask your Artificial intelligence buddy the question and ask to simplify it if you still don’t get it!!! In the end I think it’s worth it 😊👍 ⚠️Also DID I MENTION ITS FREEE YOU DON’T HAVE TO PAY FOR ANYTHING AND STILL GET YOUR GRADES IN PERFECTLY❗️❗️⚠️
Thomas R
iOS user
Knowunity is the BEST app I’ve used in a minute. This is not an ai review or anything this is genuinely coming from a 7th grade student (I know 2011 im young) but dude this app is a 10/10 i have maintained a 3.8 gpa and have plenty of time for gaming. I love it and my mom is just happy I got good grades
Brad T
Android user
Not only did it help me find the answer but it also showed me alternative ways to solve it. I was horrible in math and science but now I have an a in both subjects. Thanks for the help🤍🤍
David K
iOS user
The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!
Sudenaz Ocak
Android user
In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.
Greenlight Bonnie
Android user
I found this app a couple years ago and it has only gotten better since then. I really love it because it can help with written questions and photo questions. Also, it can find study guides that other people have made as well as flashcard sets and practice tests. The free version is also amazing for students who might not be able to afford it. Would 100% recommend
Aubrey
iOS user
Best app if you're in Highschool or Junior high. I have been using this app for 2 school years and it's the best, it's good if you don't have anyone to help you with school work.😋🩷🎀
Marco B
iOS user
THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE Knowunity AI. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH 😍😁😲🤑💗✨🎀😮
Elisha
iOS user
This app is phenomenal down to the correct info and the various topics you can study! I greatly recommend it for people who struggle with procrastination and those who need homework help. It has been perfectly accurate for world 1 history as far as I’ve seen! Geometry too!
Paul T
iOS user
The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.
Stefan S
iOS user
This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.
Samantha Klich
Android user
Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.
Anna
iOS user
I think it’s very much worth it and you’ll end up using it a lot once you get the hang of it and even after looking at others notes you can still ask your Artificial intelligence buddy the question and ask to simplify it if you still don’t get it!!! In the end I think it’s worth it 😊👍 ⚠️Also DID I MENTION ITS FREEE YOU DON’T HAVE TO PAY FOR ANYTHING AND STILL GET YOUR GRADES IN PERFECTLY❗️❗️⚠️
Thomas R
iOS user
Knowunity is the BEST app I’ve used in a minute. This is not an ai review or anything this is genuinely coming from a 7th grade student (I know 2011 im young) but dude this app is a 10/10 i have maintained a 3.8 gpa and have plenty of time for gaming. I love it and my mom is just happy I got good grades
Brad T
Android user
Not only did it help me find the answer but it also showed me alternative ways to solve it. I was horrible in math and science but now I have an a in both subjects. Thanks for the help🤍🤍
David K
iOS user
The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!
Sudenaz Ocak
Android user
In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.
Greenlight Bonnie
Android user
I found this app a couple years ago and it has only gotten better since then. I really love it because it can help with written questions and photo questions. Also, it can find study guides that other people have made as well as flashcard sets and practice tests. The free version is also amazing for students who might not be able to afford it. Would 100% recommend
Aubrey
iOS user
Best app if you're in Highschool or Junior high. I have been using this app for 2 school years and it's the best, it's good if you don't have anyone to help you with school work.😋🩷🎀
Marco B
iOS user
THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE Knowunity AI. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH 😍😁😲🤑💗✨🎀😮
Elisha
iOS user
This app is phenomenal down to the correct info and the various topics you can study! I greatly recommend it for people who struggle with procrastination and those who need homework help. It has been perfectly accurate for world 1 history as far as I’ve seen! Geometry too!
Paul T
iOS user
What Are the Stages of Cellular Respiration? - Easy Steps and Diagrams
Salina
@alinahrestha_xngi
Cellular respiration is a complex process that breaks down glucose to produce energy in the form of ATP. It involves three main stages: glycolysis, the Krebs cycle, and oxidative phosphorylation. This process occurs in the cytosol and... Show more
Stages of Cellular Respiration

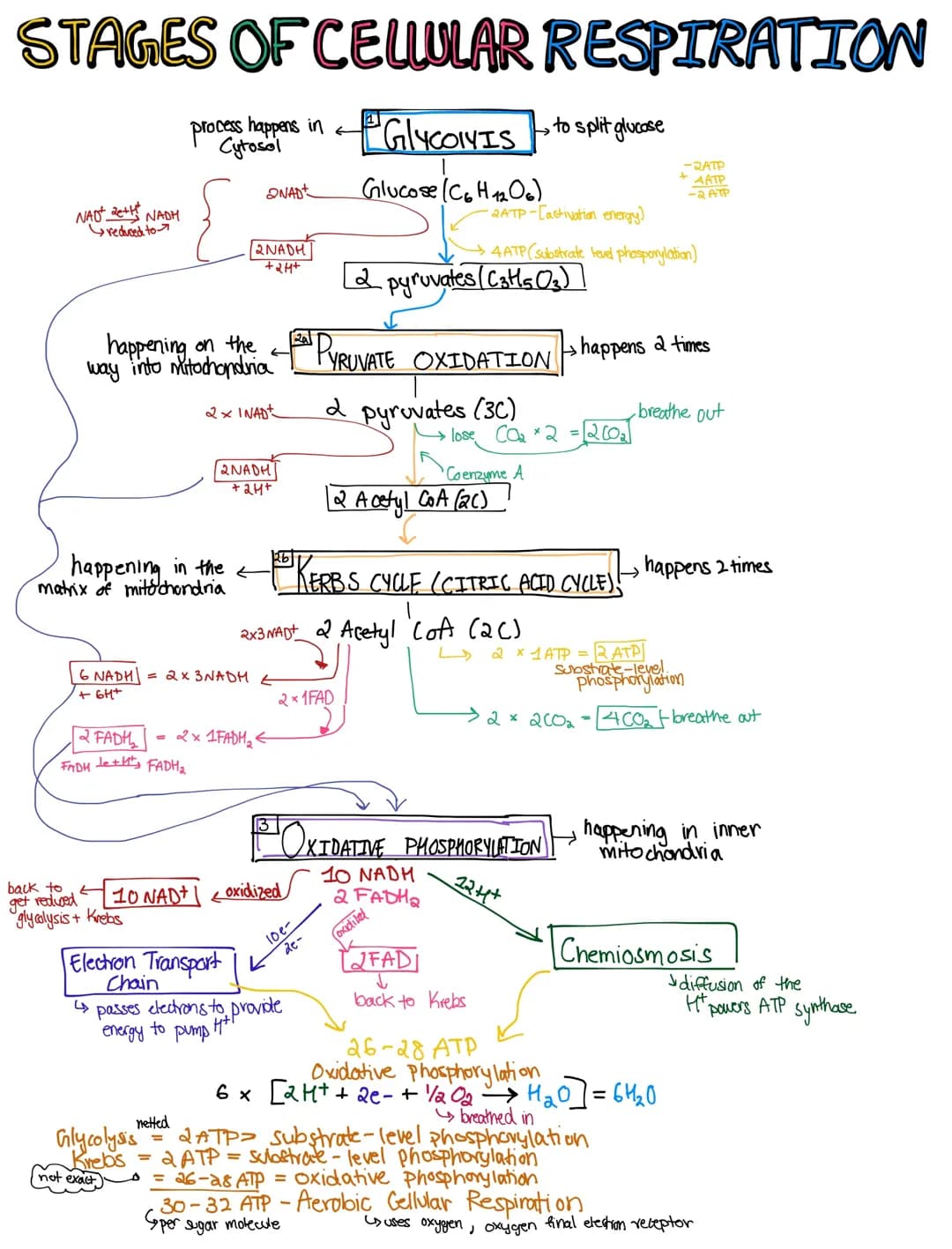

The diagram illustrates the steps of cellular respiration in mitochondria, providing a comprehensive cellular respiration diagram. It shows where cellular respiration takes place and outlines the three stages of cellular respiration.
