Understanding Ratio Tables and Graphing Ordered Pairs

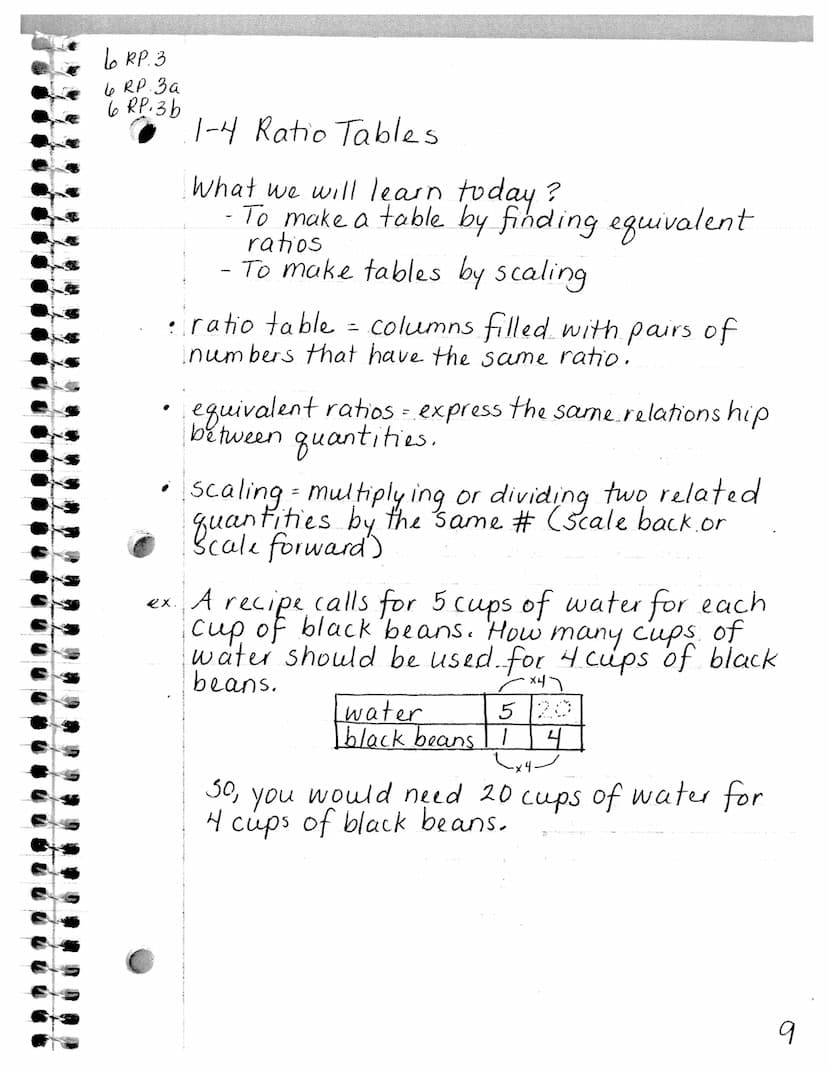

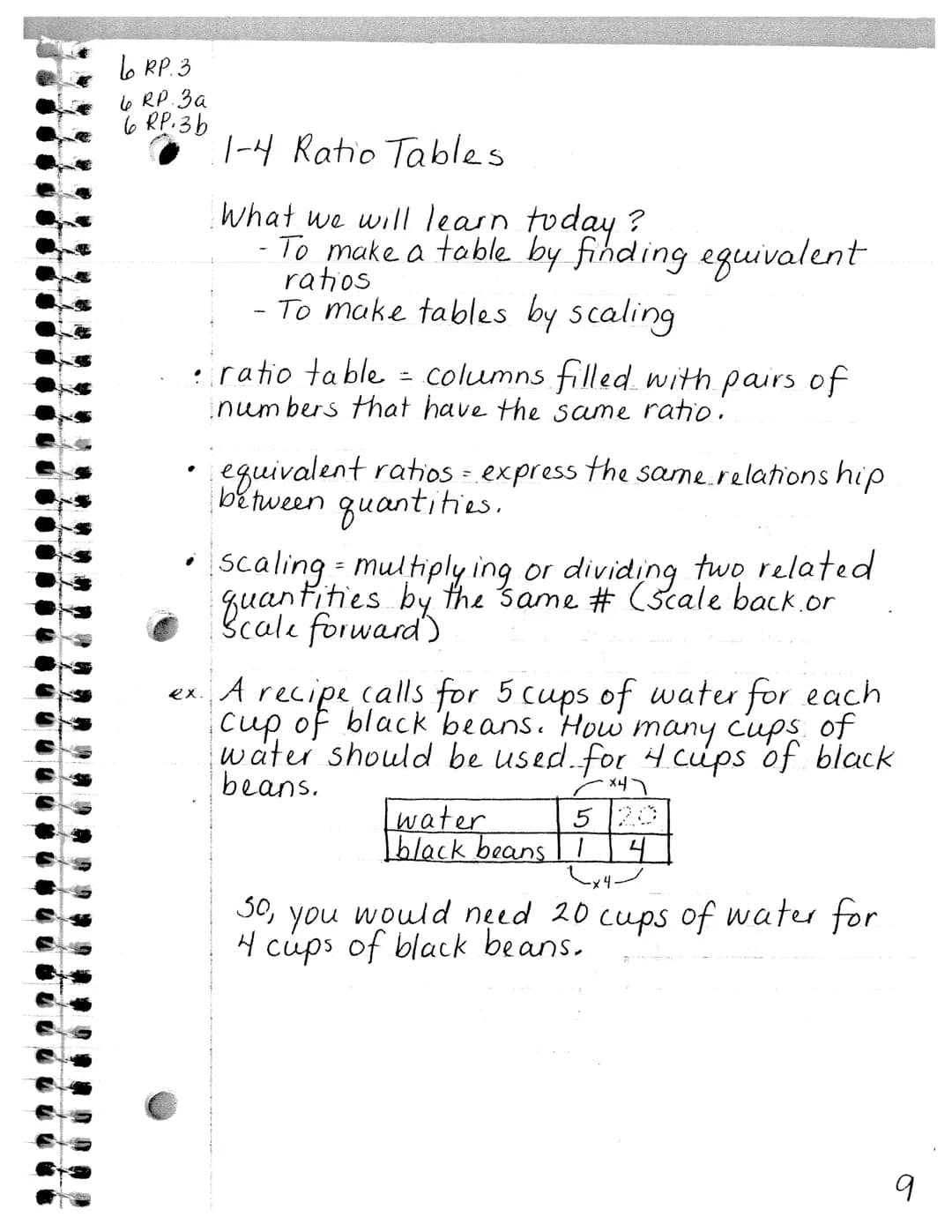

When working with ratios and proportional relationships, graphing ordered pairs helps visualize how quantities change together. A ratio table shows corresponding values that maintain the same relationship, which can then be plotted on a coordinate plane to reveal patterns.
Definition: A coordinate plane consists of two perpendicular number lines - the horizontal x-axis and vertical y-axis - that intersect at the origin 0,0. Points are located using ordered pairs x,y where x represents the horizontal position and y represents the vertical position.

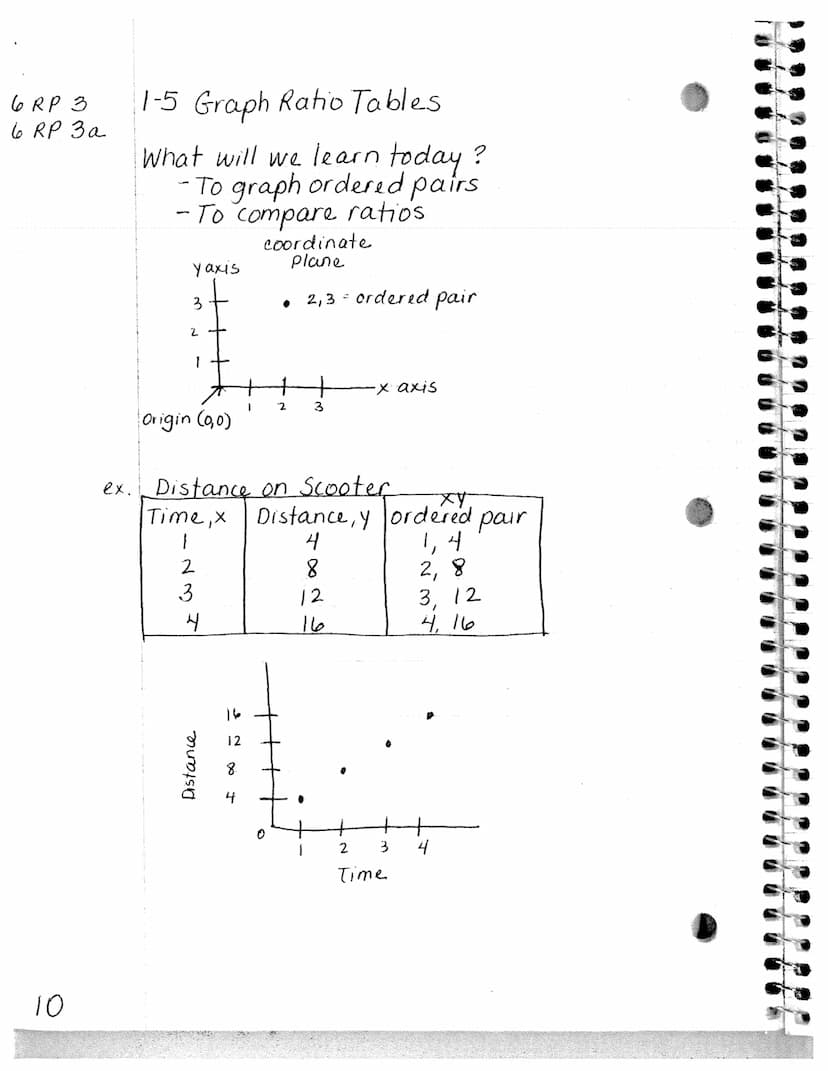

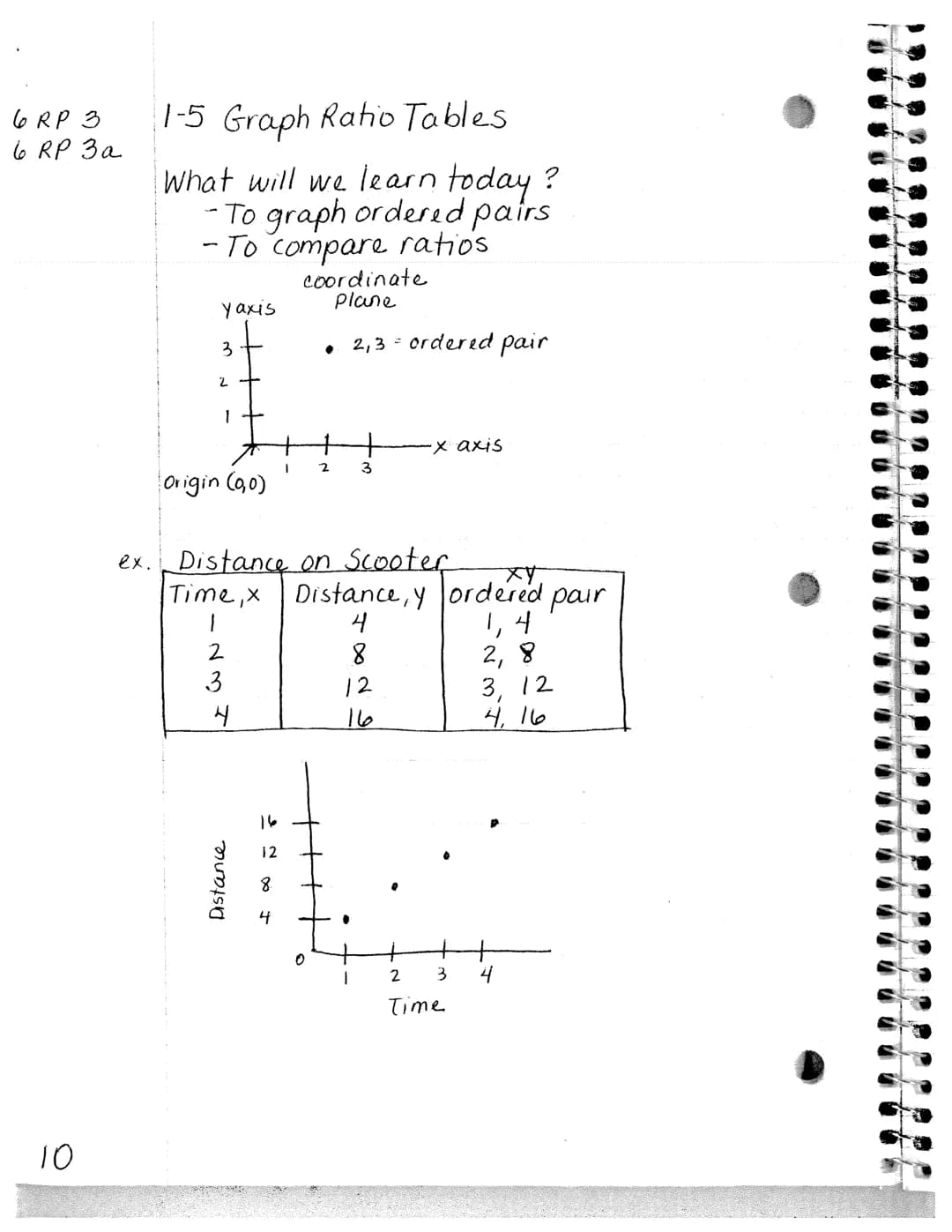

Let's explore this through a practical example of tracking distance traveled on a scooter over time. The ratio table shows time inhours in the first column and distance inmiles in the second column. For instance, after 1 hour, the scooter travels 4 miles, giving us the ordered pair 1,4. After 2 hours, it travels 8 miles, giving us 2,8, and so on. When we plot these points, they form a straight line, indicating a constant rate of speed.
The relationship between time and distance in this case is proportional - as time doubles, distance doubles as well. We can see this pattern both in the ratio table and in the resulting graph. Each point represents a time-distance pair that maintains this 4:1 ratio. For example, in 3 hours the scooter travels 12 miles 3,12, and in 4 hours it travels 16 miles 4,16.
Example:
Time x | Distance y | Ordered Pair
1 | 4 | 1,4
2 | 8 | 2,8
3 | 12 | 3,12
4 | 16 | 4,16
