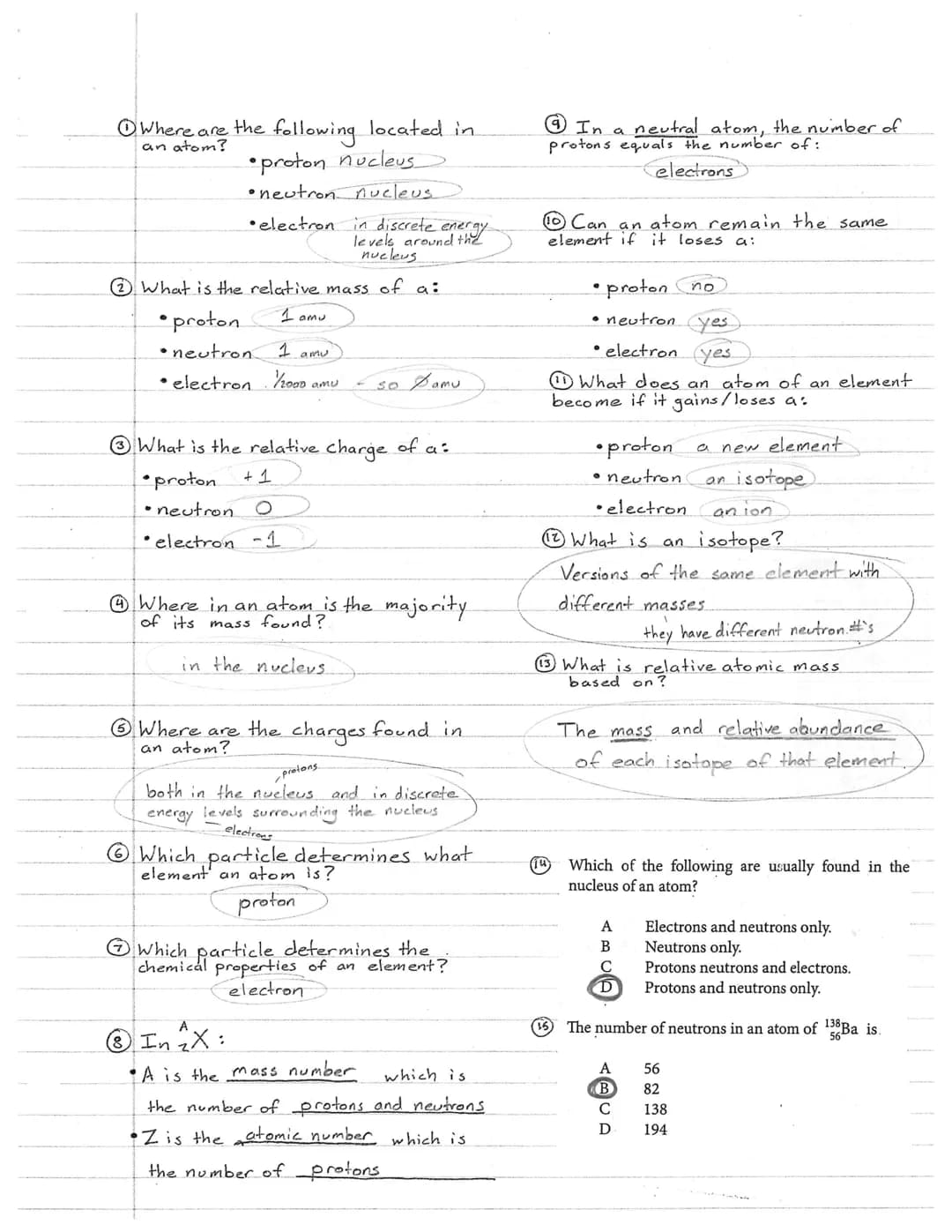

Understanding Atomic Structure and Subatomic Particles

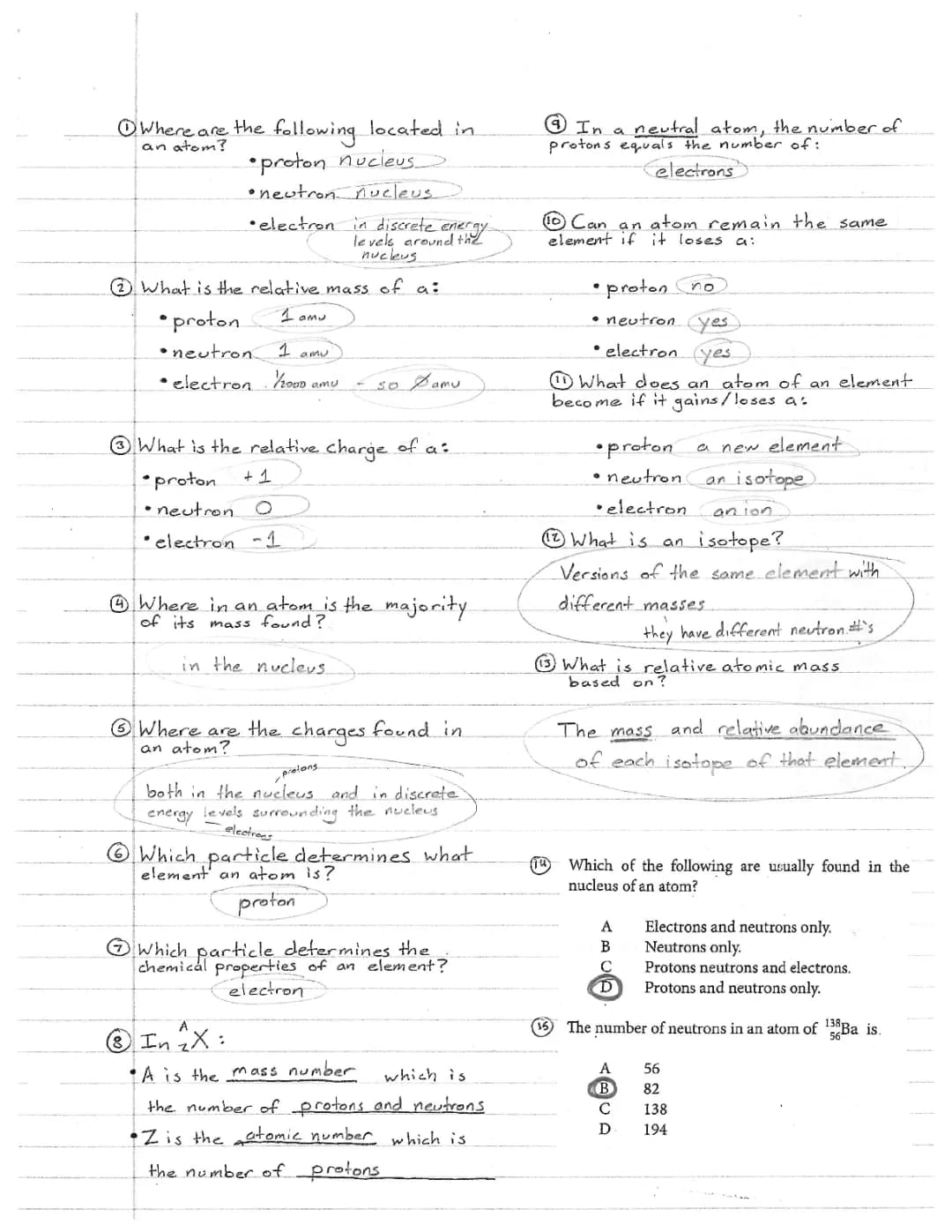

The structure of an atom consists of three main particles that determine its properties and behavior. These subatomic particles - protons, neutrons, and electrons - each play crucial roles in atomic structure and chemical behavior.

In the nucleus, protons carry a positive charge $+1$ and neutrons have no charge (0), while electrons carry a negative charge $-1$ and orbit the nucleus in energy levels. The nucleus contains most of the atom's mass, as protons and neutrons each have a relative mass of 1 atomic mass unit (amu), while electrons have only 1/2000 amu.

Definition: The atomic number (Z) represents the number of protons in an atom's nucleus and determines which element it is. In neutral atoms, the number of protons equals the number of electrons.

The arrangement of these particles is fundamental to understanding atomic behavior. Electrons occupy discrete energy levels around the nucleus, determining chemical properties and bonding behavior. While losing or gaining electrons changes an atom's charge (forming ions), it remains the same element. However, losing or gaining protons creates a different element entirely.

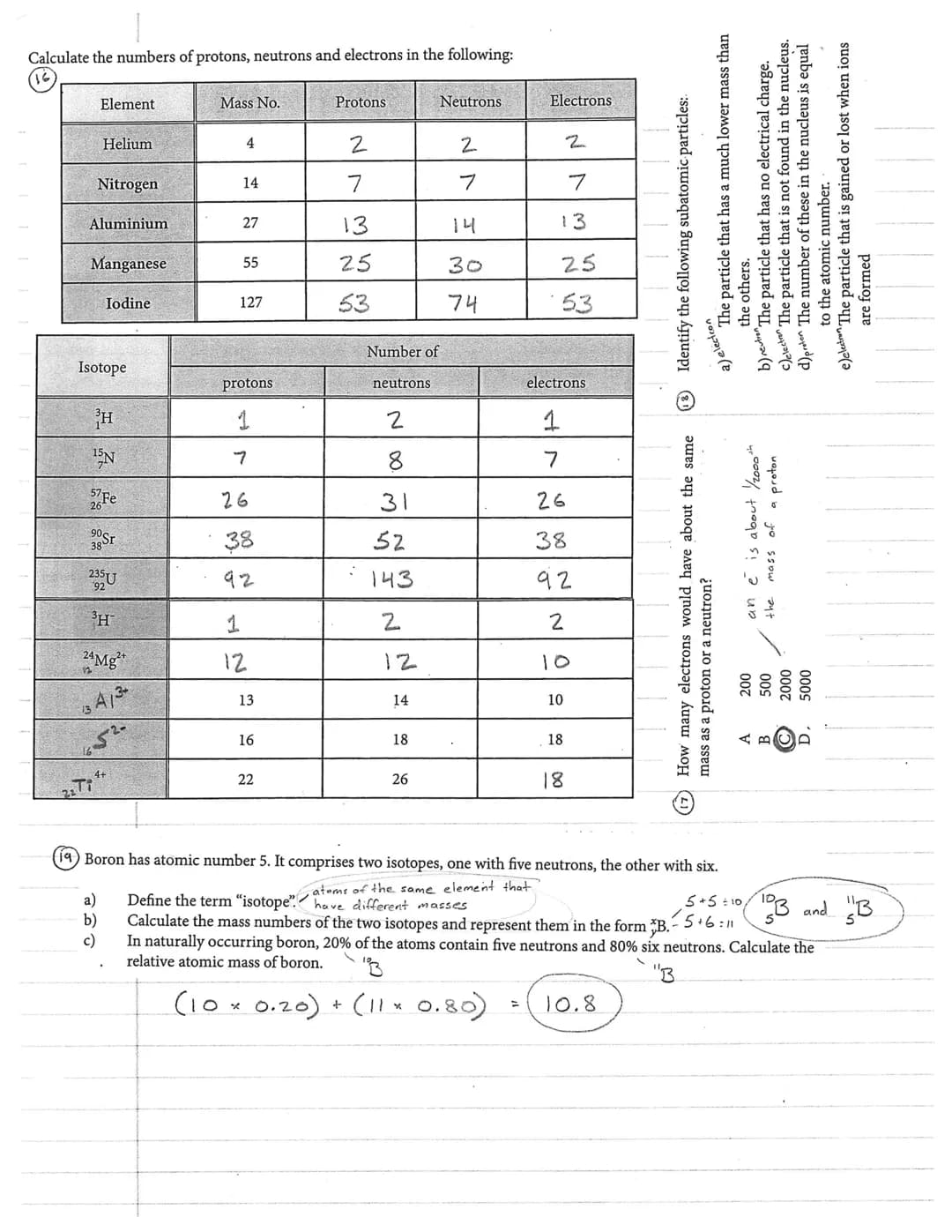

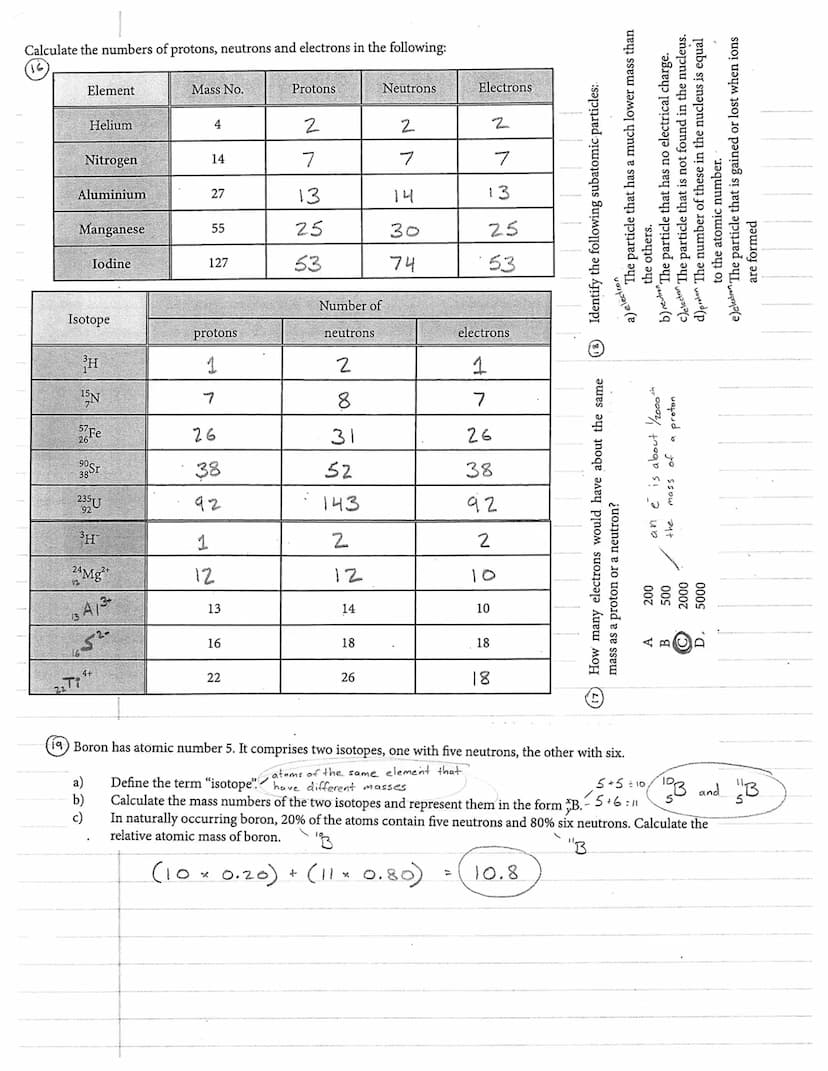

Calculating Atomic Structure and Isotopes

How to calculate protons, neutrons in isotopes requires understanding mass number and atomic number relationships. The mass number (A) equals the total number of protons plus neutrons, while the atomic number (Z) represents only protons.

Example: For an isotope of Uranium-235 (²³⁵U):

• Atomic number (Z) = 92 protons
• Mass number (A) = 235
• Neutrons = Mass number - Atomic number = 235 - 92 = 143 neutrons

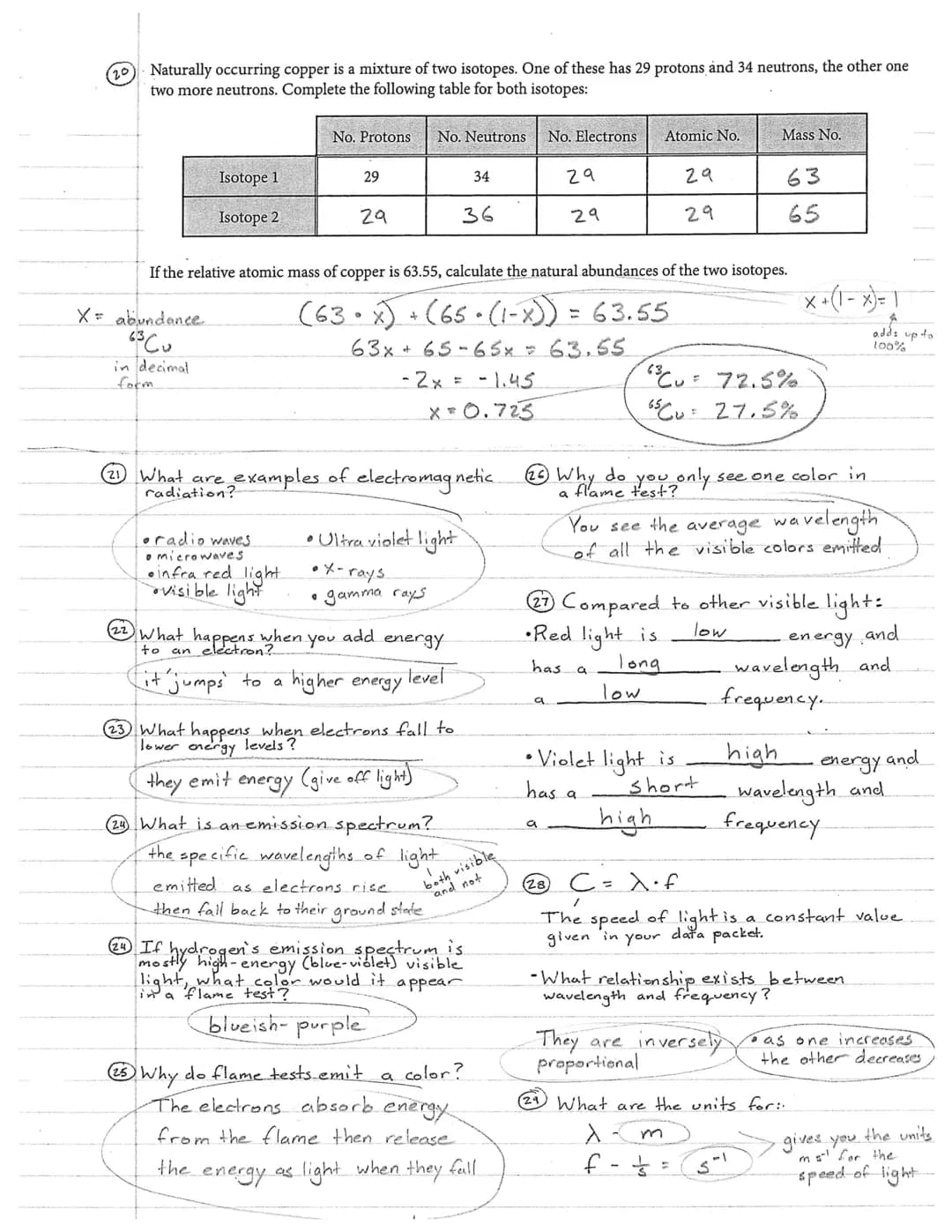

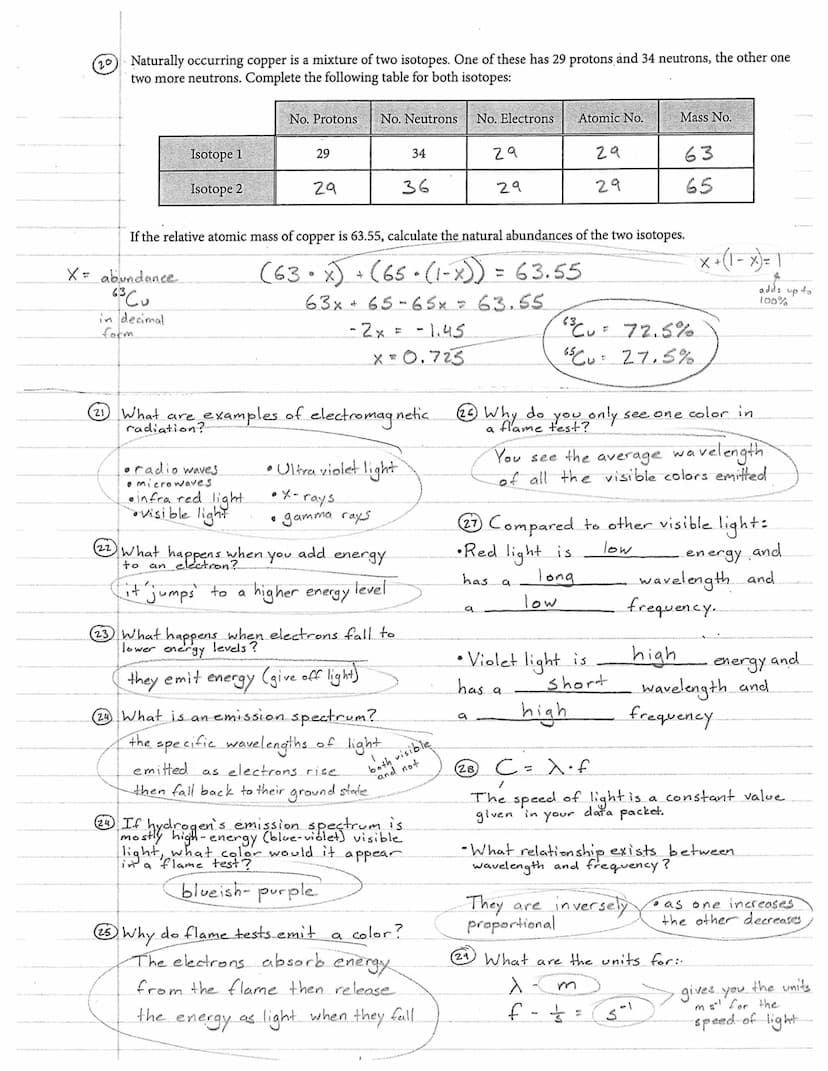

Isotopes affect atomic mass significantly because they have different numbers of neutrons while maintaining the same number of protons. The relative atomic mass of an element is calculated using both the mass and abundance of each isotope in nature.

Highlight: Isotopes are atoms of the same element with different numbers of neutrons, resulting in different mass numbers but identical chemical properties.

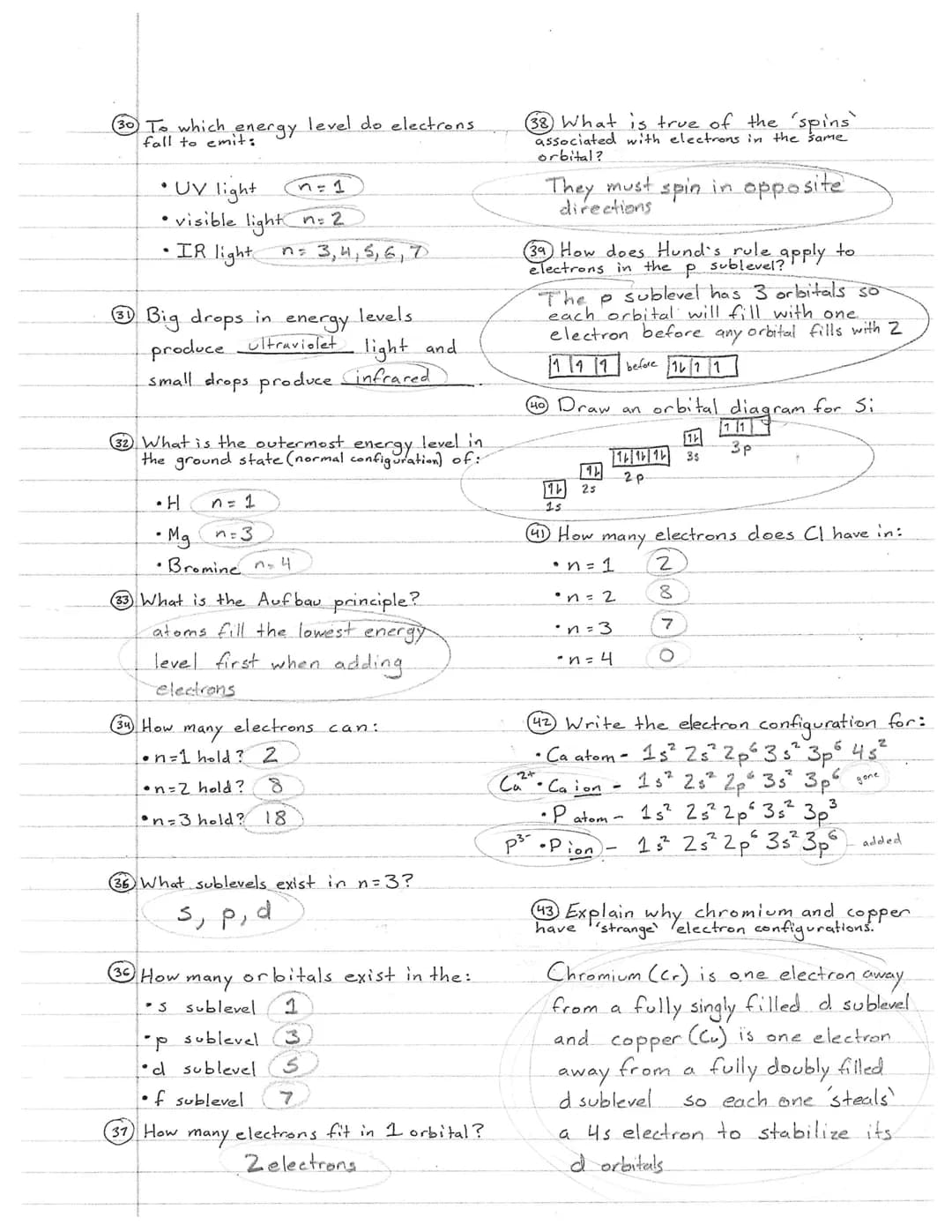

Understanding Electron Configuration and Energy Levels

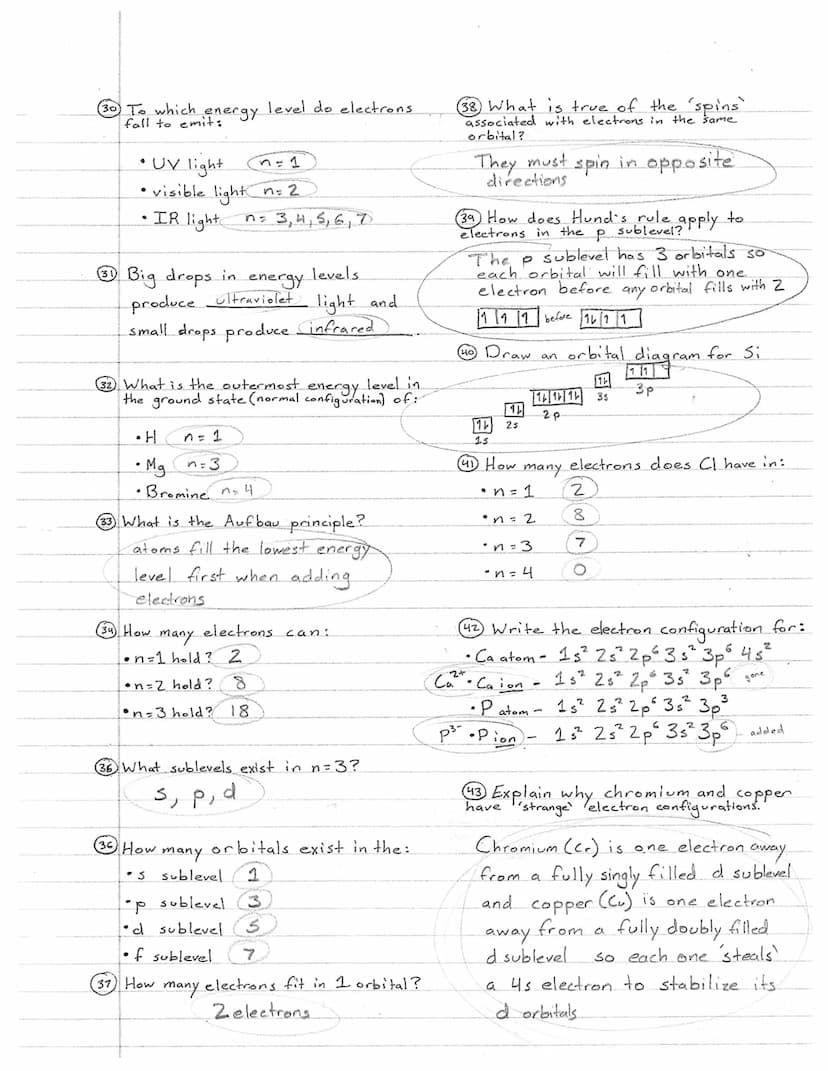

Electrons occupy specific energy levels following the Aufbau principle, which states that electrons fill the lowest available energy levels first. Each energy level $n$ can hold a specific maximum number of electrons:

• n=1: 2 electrons
• n=2: 8 electrons
• n=3: 18 electrons

Vocabulary: Sublevels (s, p, d, f) exist within each main energy level, each containing different numbers of orbitals. Each orbital can hold a maximum of two electrons with opposite spins.

The arrangement of electrons in these levels and sublevels determines an atom's chemical properties and bonding behavior. When electrons absorb energy, they jump to higher energy levels. When they return to lower levels, they emit energy in the form of electromagnetic radiation.

Electron Configuration and Chemical Properties

The electron configuration of atoms follows specific patterns that determine their chemical properties. Each element's unique electron arrangement affects its reactivity and bonding capabilities.

Example: The electron configuration for calcium (Ca): 1s² 2s² 2p⁶ 3s² 3p⁶ 4s²

Some elements, like chromium and copper, show unusual electron configurations due to the stability gained by having either half-filled or fully filled d-sublevels. This phenomenon occurs when an electron from the 4s orbital moves to the 3d sublevel.

Understanding electron configuration helps predict:

• Chemical bonding behavior
• Formation of ions
• Spectroscopic properties
• Chemical reactivity patterns

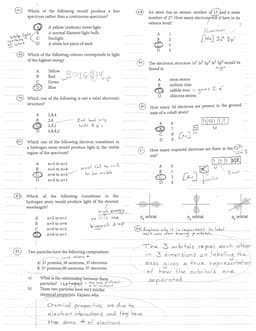

Understanding Atomic Spectra and Electronic Structure

The structure of an atom involves complex relationships between energy levels and electron behavior that determine how atoms interact with light and form chemical bonds. When electrons move between different energy levels, they produce distinctive spectral lines that scientists can use to identify elements.

Definition: Line spectra are unique patterns of light produced when electrons in excited atoms return to lower energy states, emitting specific wavelengths of light characteristic to each element.

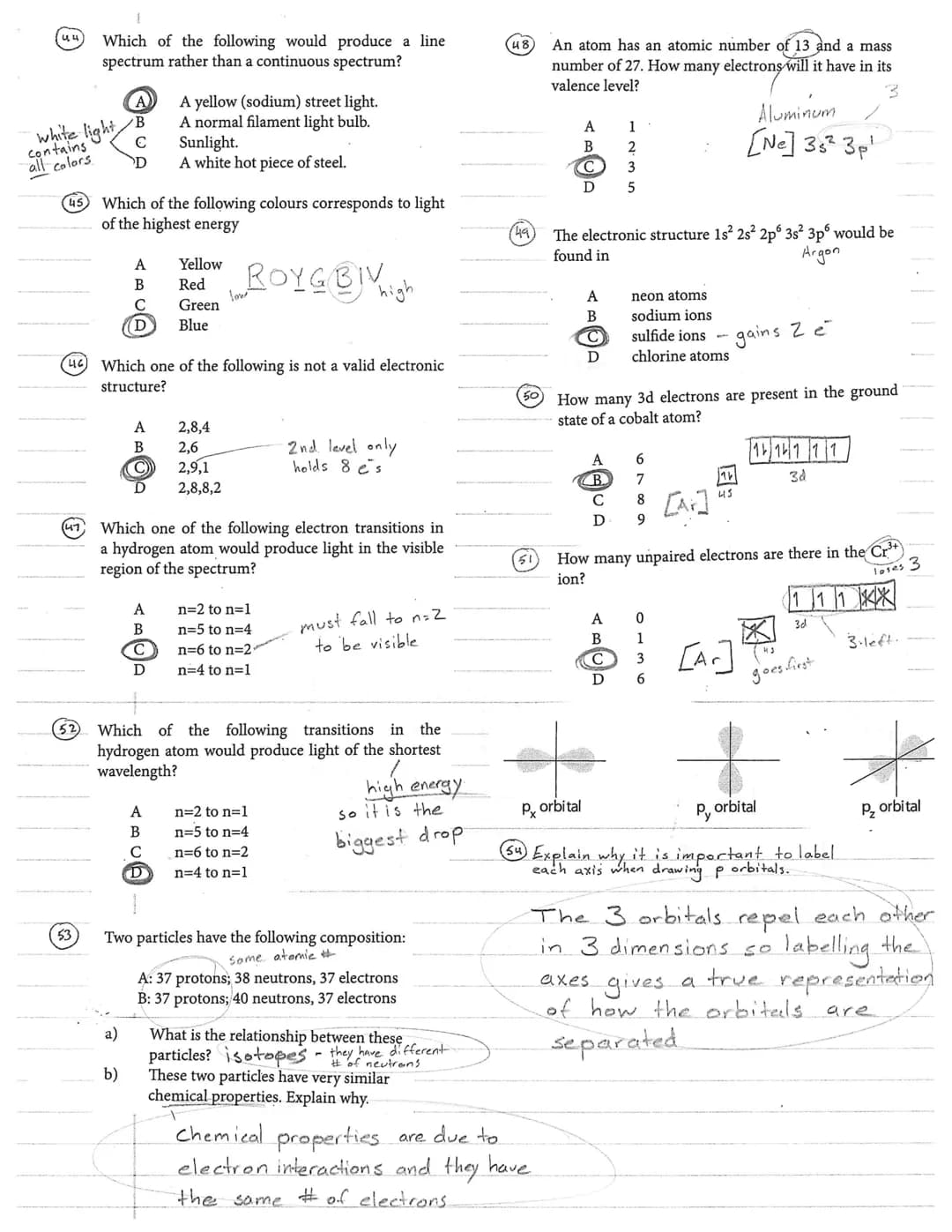

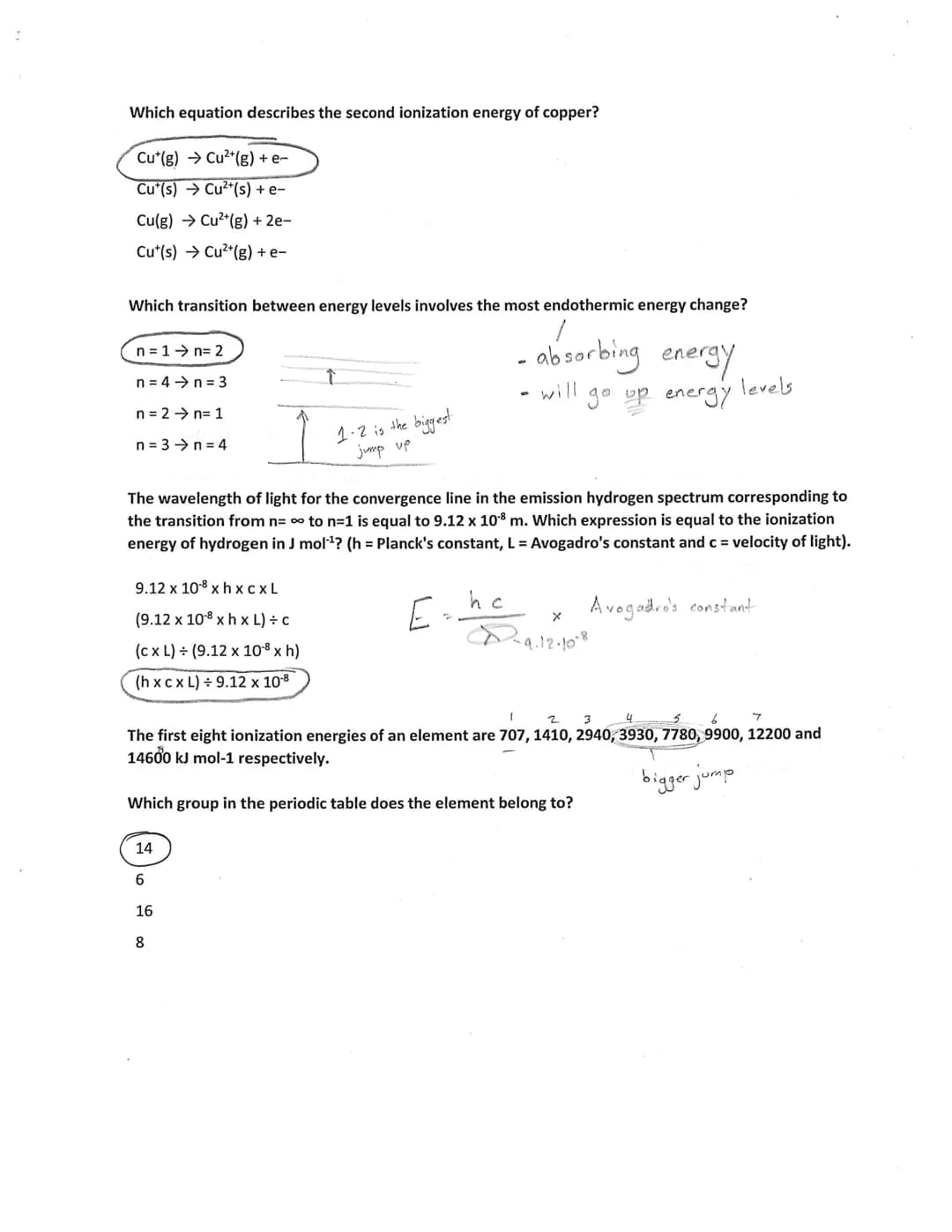

The visible spectrum represents only a small portion of possible electron transitions. Transitions to the n=2 energy level produce visible light, while transitions to n=1 produce ultraviolet light and other transitions produce infrared radiation. The energy difference between levels determines the wavelength of light produced - larger energy gaps create shorter wavelengths.

Example: In hydrogen atoms, an electron moving from n=3 to n=2 produces visible light, while n=2 to n=1 produces ultraviolet light due to the larger energy difference.

Understanding electronic structure helps explain chemical properties and bonding behavior. Valid electron configurations follow specific rules about how electrons fill orbitals. The ground state configuration determines an element's position in the periodic table and its chemical reactivity. For instance, elements in the same group share similar outer electron configurations and therefore similar chemical properties.

Isotopes and Nuclear Structure

When studying how isotopes affect atomic mass and nuclear stability, we must examine the relationship between protons and neutrons. Isotopes of an element have the same number of protons but different numbers of neutrons, leading to different mass numbers while maintaining identical chemical properties.

Highlight: To calculate protons neutrons in isotopes, subtract the atomic number (protons) from the mass number (protons + neutrons) to find the number of neutrons.

The nuclear composition directly impacts an atom's mass and stability. For example, an atom with 37 protons and 38 neutrons would be an isotope of the same element as one with 37 protons and 40 neutrons. Both would have identical chemical properties due to having the same number of electrons, but different physical properties due to their different masses.

Vocabulary: The atomic number determines the element's identity and equals the number of protons, while the mass number is the total number of protons plus neutrons.

Understanding isotopes is crucial for applications in nuclear chemistry, radioactive dating, and nuclear medicine. The ratio of protons to neutrons affects nuclear stability, with certain combinations being more stable than others.

Electronic Configuration and Orbital Theory

The arrangement of electrons in atomic orbitals follows specific patterns that determine chemical behavior. Each orbital can hold a maximum number of electrons based on quantum mechanical principles - s orbitals hold 2 electrons, p orbitals hold 6, and d orbitals hold 10.

Definition: Valence electrons are the outermost electrons that participate in chemical bonding and determine an element's chemical properties.

The Aufbau principle guides how electrons fill orbitals, starting with the lowest energy levels first. This creates predictable electron configurations that explain periodic trends and chemical reactivity. For example, transition metals have partially filled d orbitals that give them unique properties like variable oxidation states and colored compounds.

Understanding p orbitals requires visualizing their three-dimensional shape and orientation along the x, y, and z axes. Proper labeling of these axes is essential for representing how the orbitals are separated in space and how they interact with other atoms during bonding.

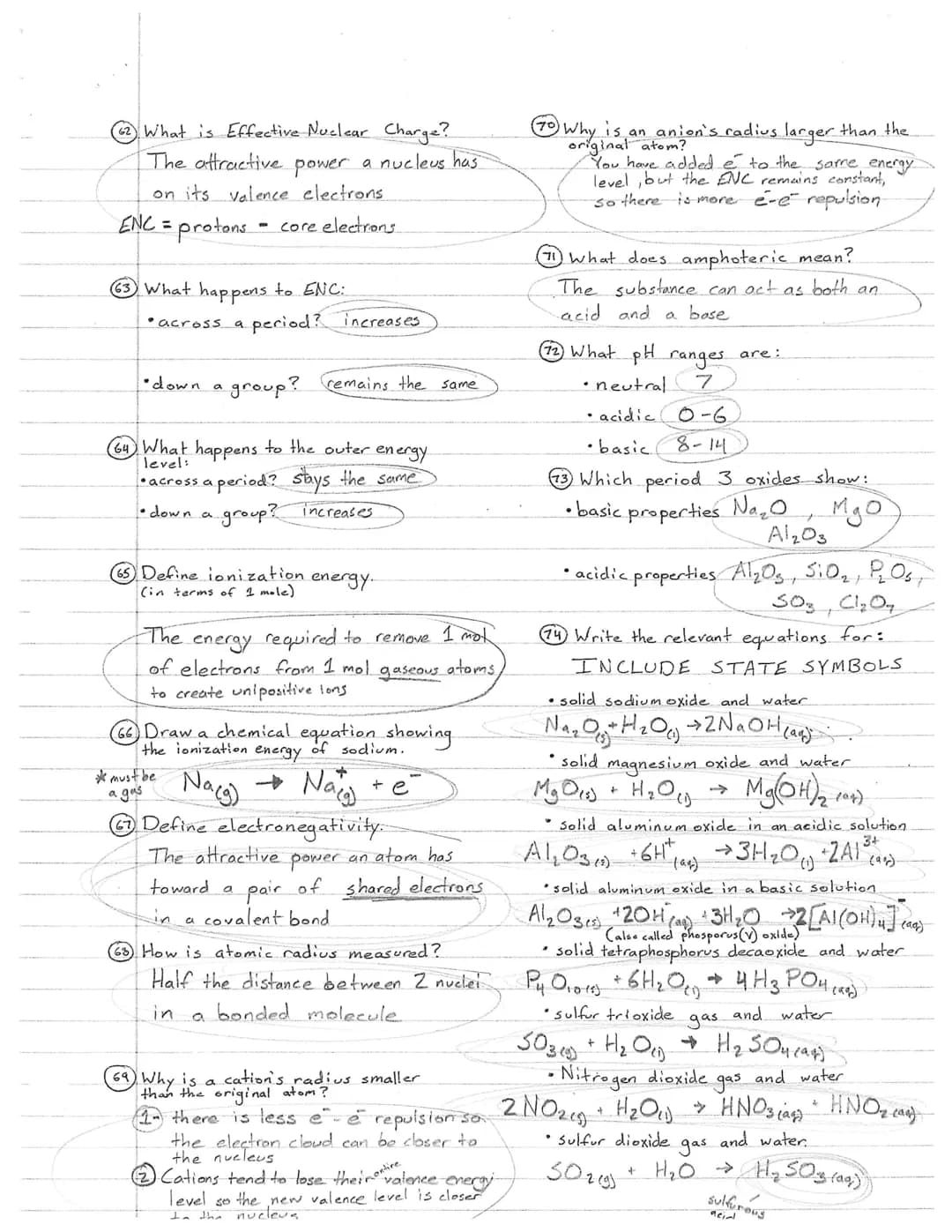

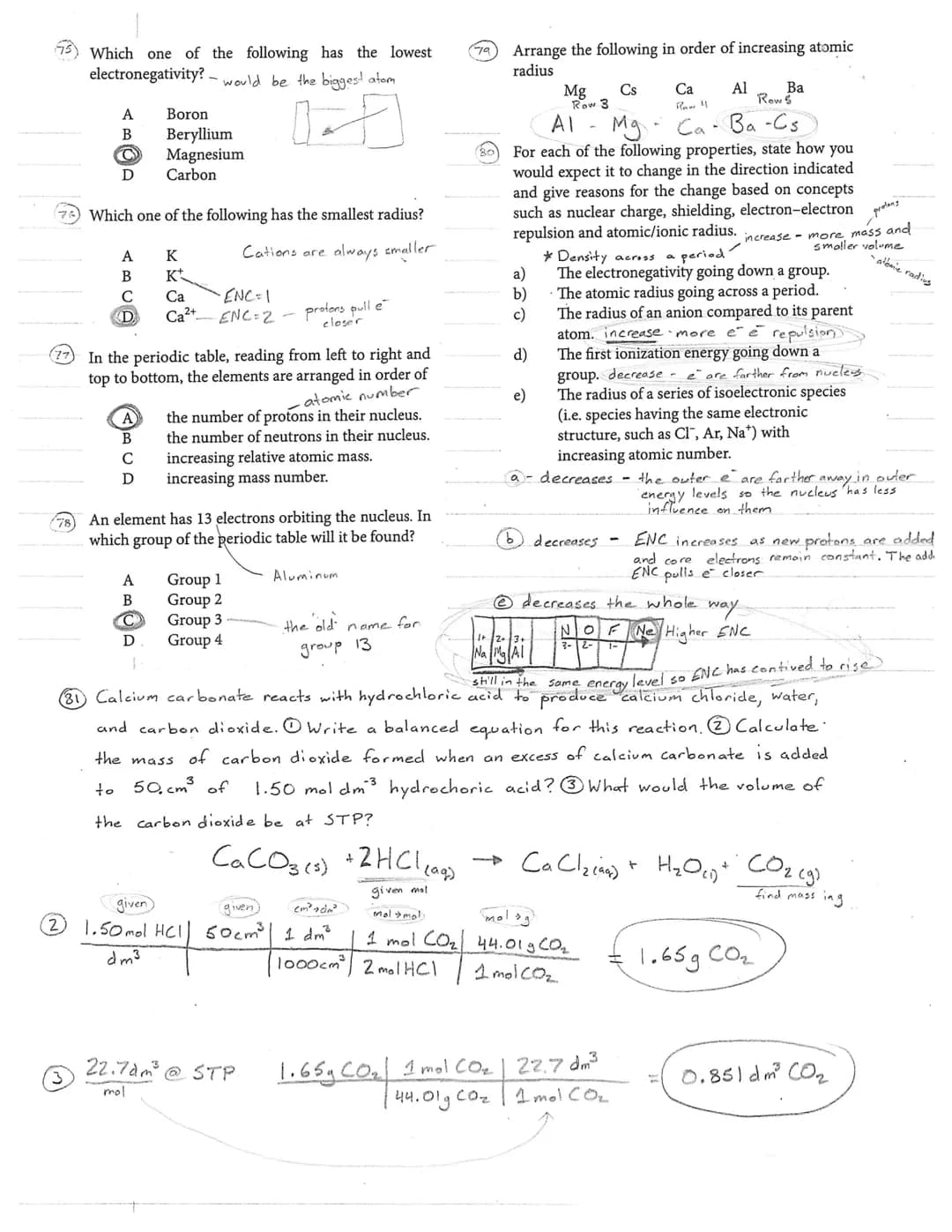

Periodic Trends and Chemical Properties

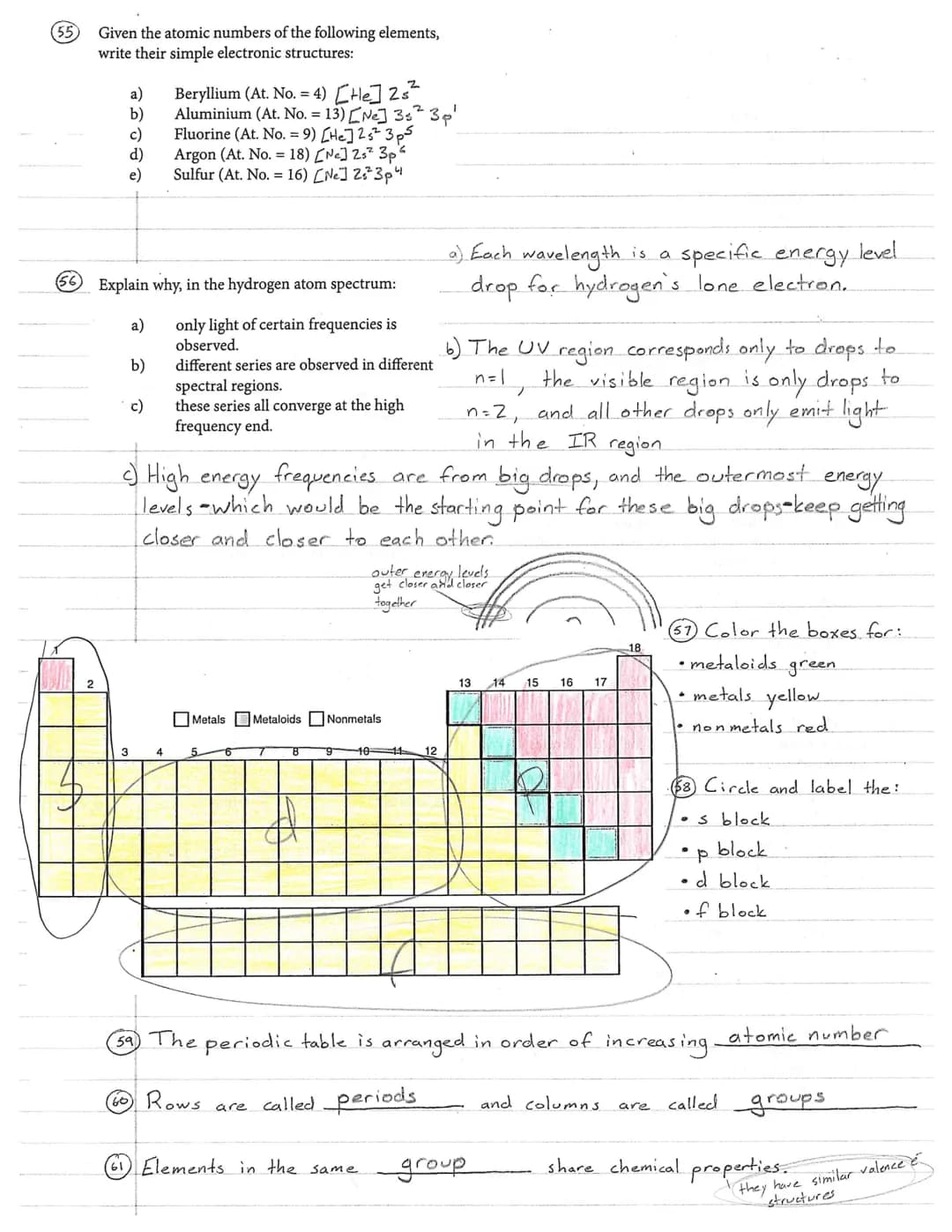

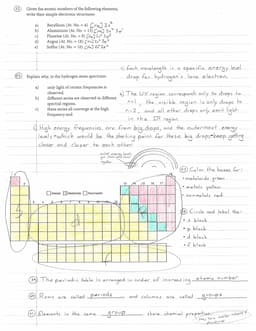

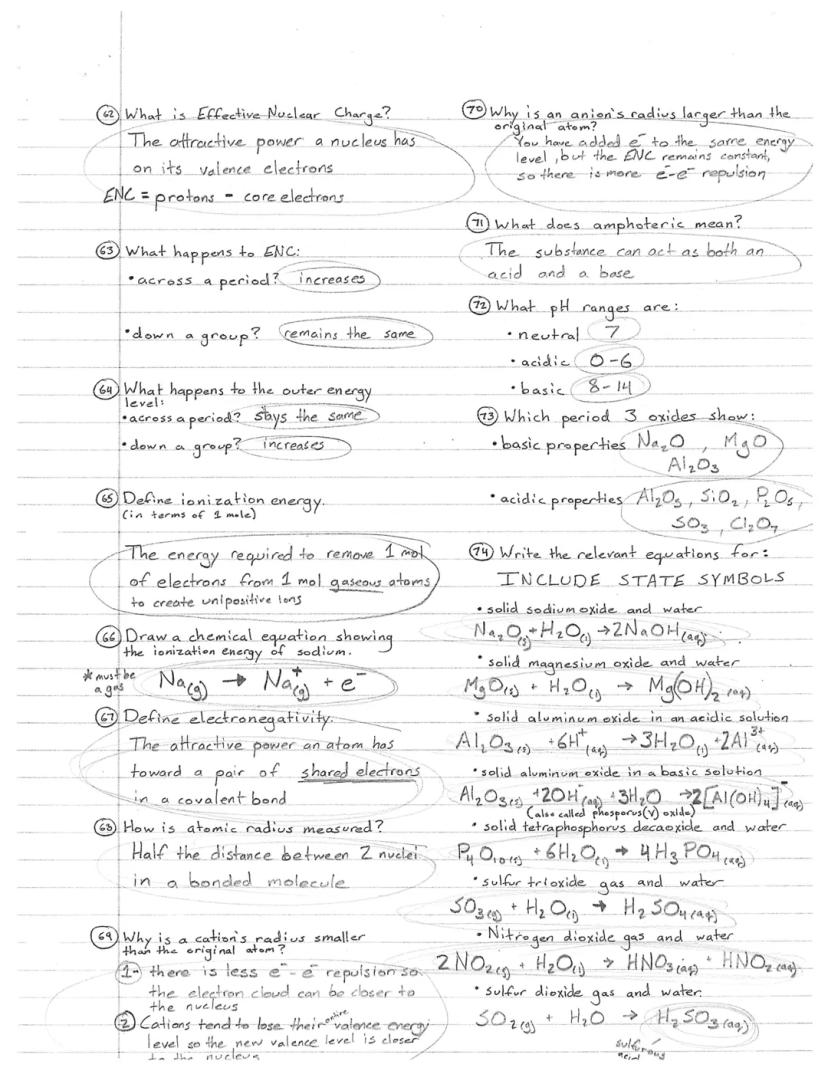

The periodic table organizes elements based on their electronic structure, creating patterns in properties like atomic size, ionization energy, and electronegativity. These trends can be explained by examining the effective nuclear charge and electron shielding effects.

Example: Atomic radius generally decreases across a period due to increasing nuclear charge pulling electrons closer, while it increases down a group as new electron shells are added.

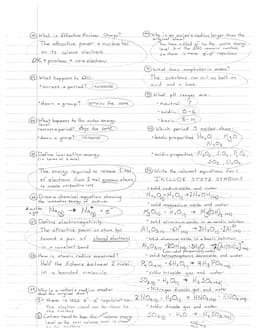

Ionization energy - the energy required to remove an electron - follows predictable patterns based on atomic structure. It generally increases across periods and decreases down groups. This relates directly to the strength of attraction between the nucleus and outer electrons.

Elements can be classified as metals, nonmetals, or metalloids based on their electronic structure and chemical behavior. Metals tend to form cations by losing electrons, while nonmetals tend to form anions by gaining electrons. These tendencies explain fundamental chemical properties and bonding behavior.

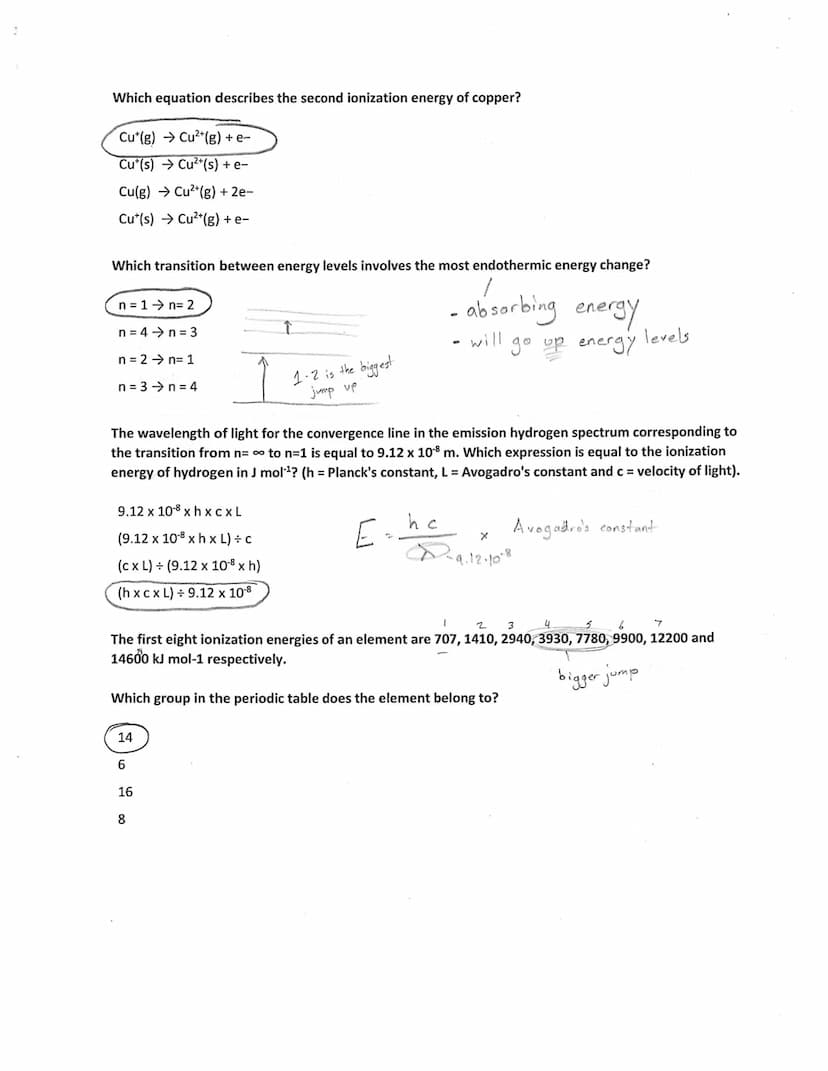

Understanding Ionization Energy Trends Across Elements

The relationship between atomic structure and ionization energy reveals fundamental patterns in the periodic table. When examining the first ionization energies of elements 1-20, several key trends emerge that help explain atomic behavior and electron configurations.

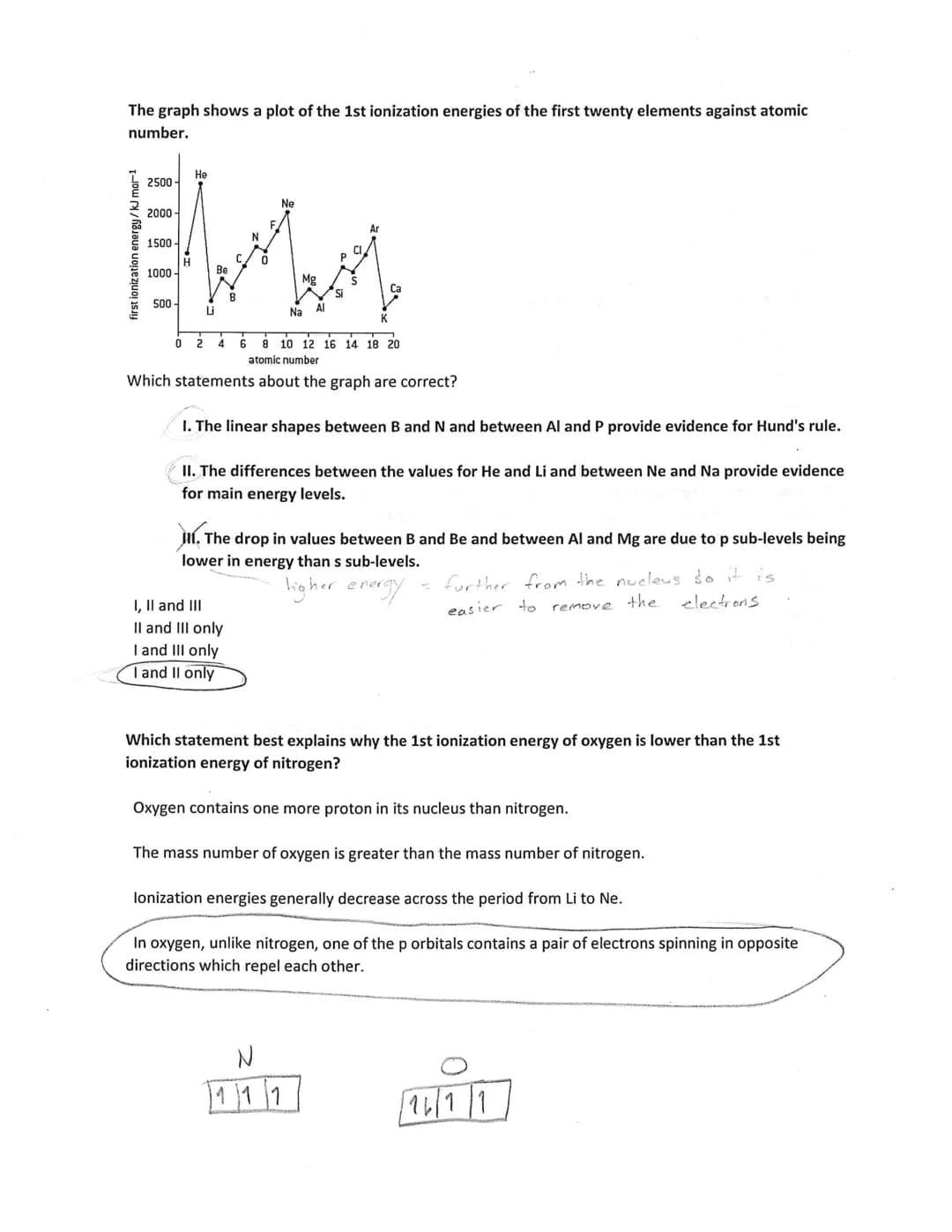

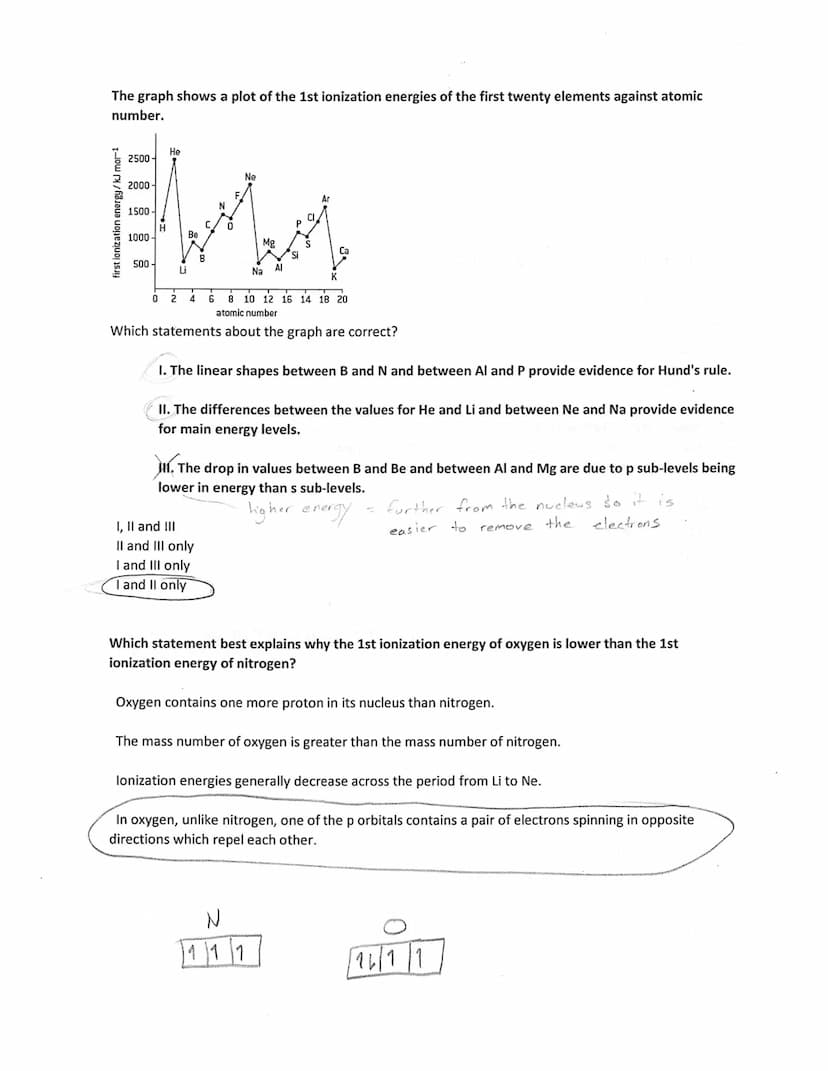

The graph of first ionization energies shows distinctive peaks at noble gases (He, Ne) and dramatic drops after each noble gas to the next alkali metal (Li, Na). This pattern directly reflects the structure of an atom and how electrons are arranged in energy levels. Noble gases have completely filled outer shells, making their electrons extremely difficult to remove. This results in very high ionization energies.

Definition: First ionization energy is the energy required to remove one electron from a neutral atom in its gaseous state.

The zigzag pattern observed between elements like boron (B) and nitrogen (N) provides evidence for Hund's rule, which states that electrons in orbitals of the same energy will occupy separate orbitals before pairing up. This explains why nitrogen, with its half-filled p-orbital, has higher ionization energy than oxygen, despite oxygen having more protons. The paired electrons in oxygen's p-orbital experience electron-electron repulsion, making one electron easier to remove.

The significant drops in ionization energy between beryllium (Be) and boron (B), as well as between magnesium (Mg) and aluminum (Al), demonstrate the energy difference between s and p sublevels. This pattern shows how electron configuration influences ionization energy, with p-orbital electrons generally being easier to remove than s-orbital electrons at the same energy level.

Electron Configuration and Energy Level Effects

The dramatic differences in ionization energy between consecutive elements provide crucial insights into atomic structure and electron behavior. The large gaps between helium and lithium, and between neon and sodium, demonstrate the significant energy difference between main energy levels. When electrons occupy a new principal energy level, they are much farther from the nucleus and therefore easier to remove.

Highlight: The periodic trend in ionization energy is primarily determined by two factors: nuclear charge (number of protons) and electron shielding.

Understanding these patterns helps explain how isotopes affect atomic mass and electron configuration. While isotopes have different numbers of neutrons, they maintain the same electron configuration and therefore similar chemical properties. However, the increased nuclear mass can slightly affect ionization energies through small changes in atomic radius.

The trend in ionization energies also reflects the effective nuclear charge experienced by valence electrons. As we move across a period, the increasing nuclear charge generally leads to higher ionization energies. However, this trend can be modified by electron-electron repulsions and orbital filling patterns, as seen in the oxygen-nitrogen comparison.

Example: Consider nitrogen $Z=7$ vs. oxygen $Z=8$: Despite oxygen having more protons, its first ionization energy is lower than nitrogen's because of electron pairing in the 2p orbital, which increases electron-electron repulsion.
