Understanding the Heart's Structure and Function

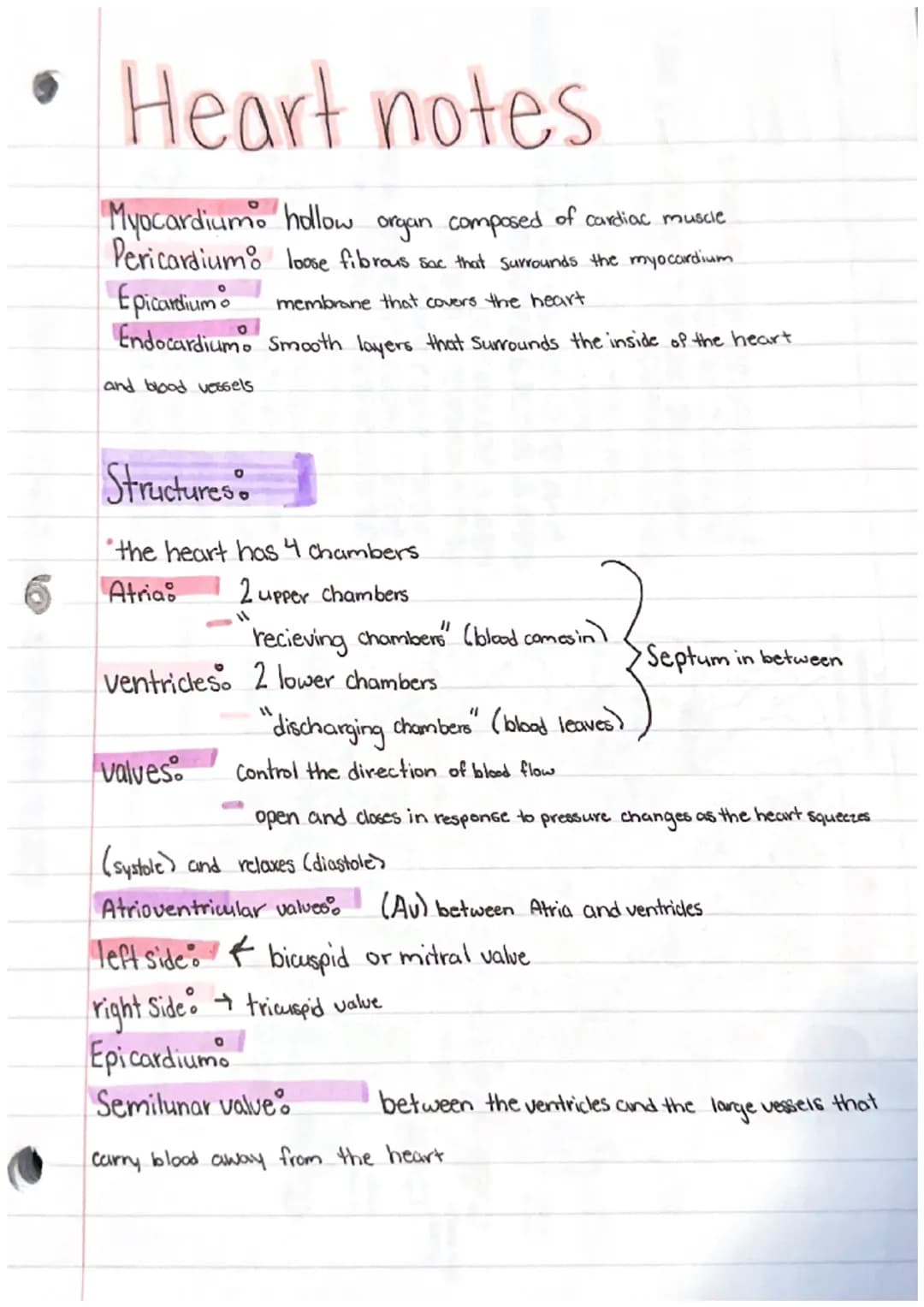

The heart is a remarkable muscular organ with complex layers and chambers working together to sustain life. The structure and function of heart chambers and valves begins with three distinct layers: the outer pericardium $a protective fibrous sac$, the middle myocardium $made of cardiac muscle$, and the inner endocardium $smooth lining$. Each layer serves crucial roles in maintaining proper cardiac function.

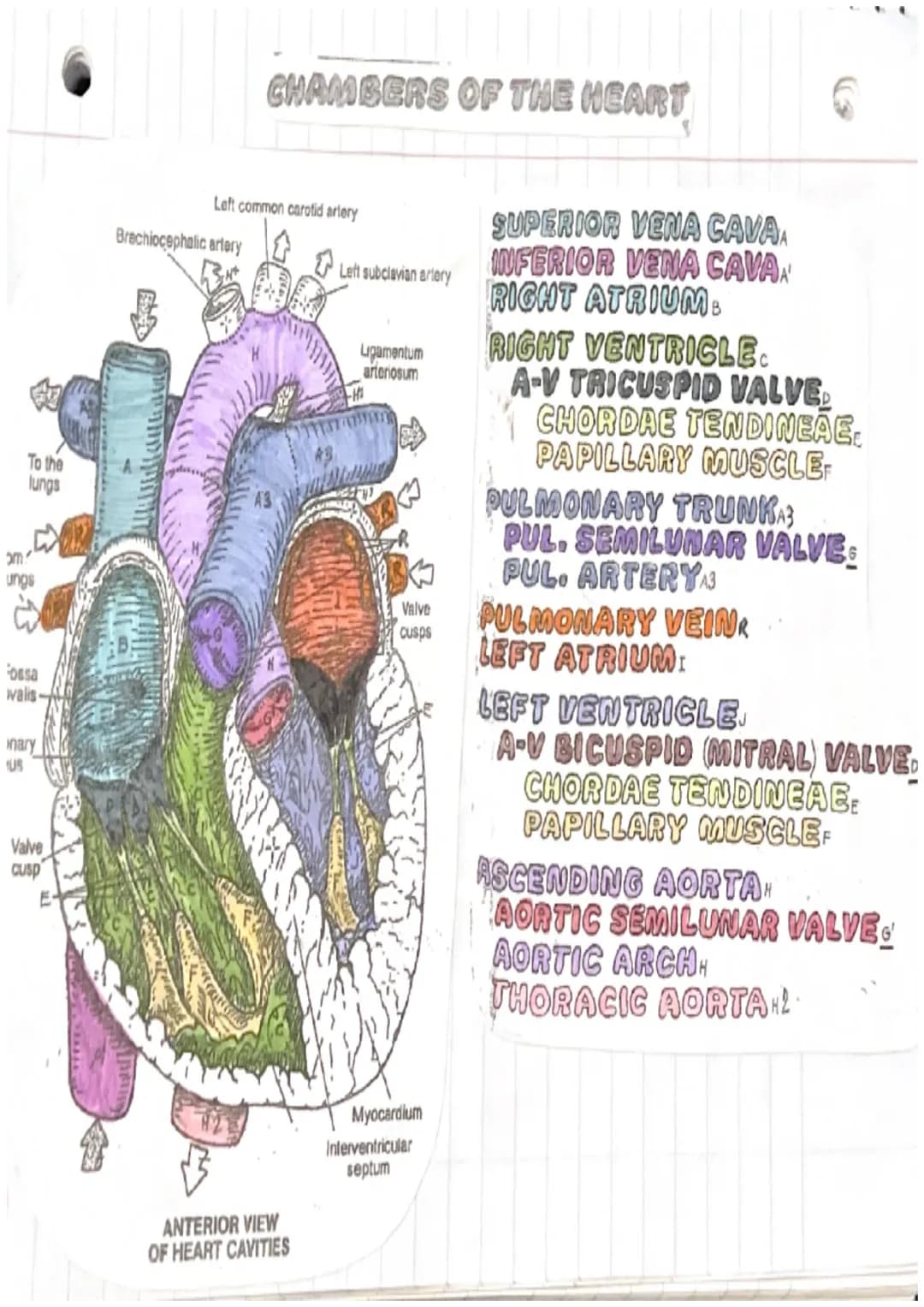

The heart contains four main chambers - two upper atria and two lower ventricles. The atria act as receiving chambers, collecting blood returning to the heart, while the ventricles serve as powerful pumping chambers that propel blood to the lungs and body. Between these chambers lie specialized valves that ensure one-way blood flow.

Definition: The cardiac cycle consists of systole $contraction$ and diastole $relaxation$ phases that work together to pump blood efficiently through the heart's chambers.

The heart valves are essential gatekeepers that prevent blood from flowing backward. The atrioventricular valves $tricuspid on the right, bicuspid/mitral on the left$ lie between the atria and ventricles. The semilunar valves $pulmonary and aortic$ guard the exits from the ventricles to the major arteries. These valves open and close in precise coordination with pressure changes during each heartbeat.

Blood Flow Through the Cardiovascular System

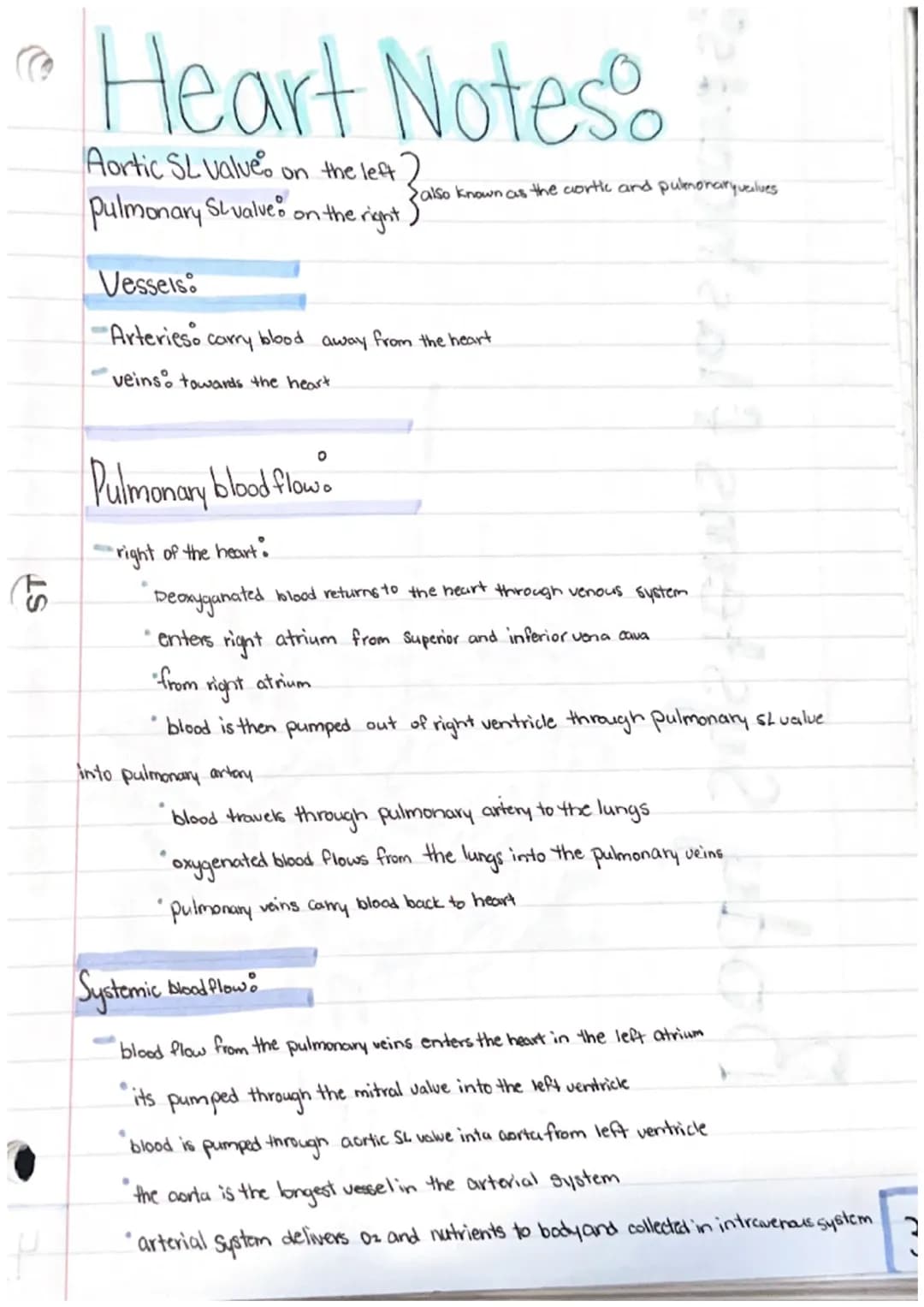

Blood flow through the heart and cardiovascular system follows two main circuits: pulmonary and systemic circulation. Understanding this flow pattern is crucial for comprehending how oxygen and nutrients reach every cell in the body.

In pulmonary circulation, deoxygenated blood enters the right atrium through the superior and inferior vena cava. It then flows through the tricuspid valve into the right ventricle, which pumps it through the pulmonary valve into the pulmonary arteries leading to the lungs. After receiving oxygen in the lungs, the blood returns through pulmonary veins to the left atrium.

Highlight: The left ventricle is the heart's most muscular chamber because it must generate enough force to pump blood throughout the entire body.

Systemic circulation begins as oxygenated blood moves from the left atrium through the mitral valve into the left ventricle. The powerful left ventricle then forces blood through the aortic valve into the aorta, the body's largest artery, which distributes oxygen-rich blood to all tissues through progressively smaller arteries and capillaries.

The Heart's Electrical System

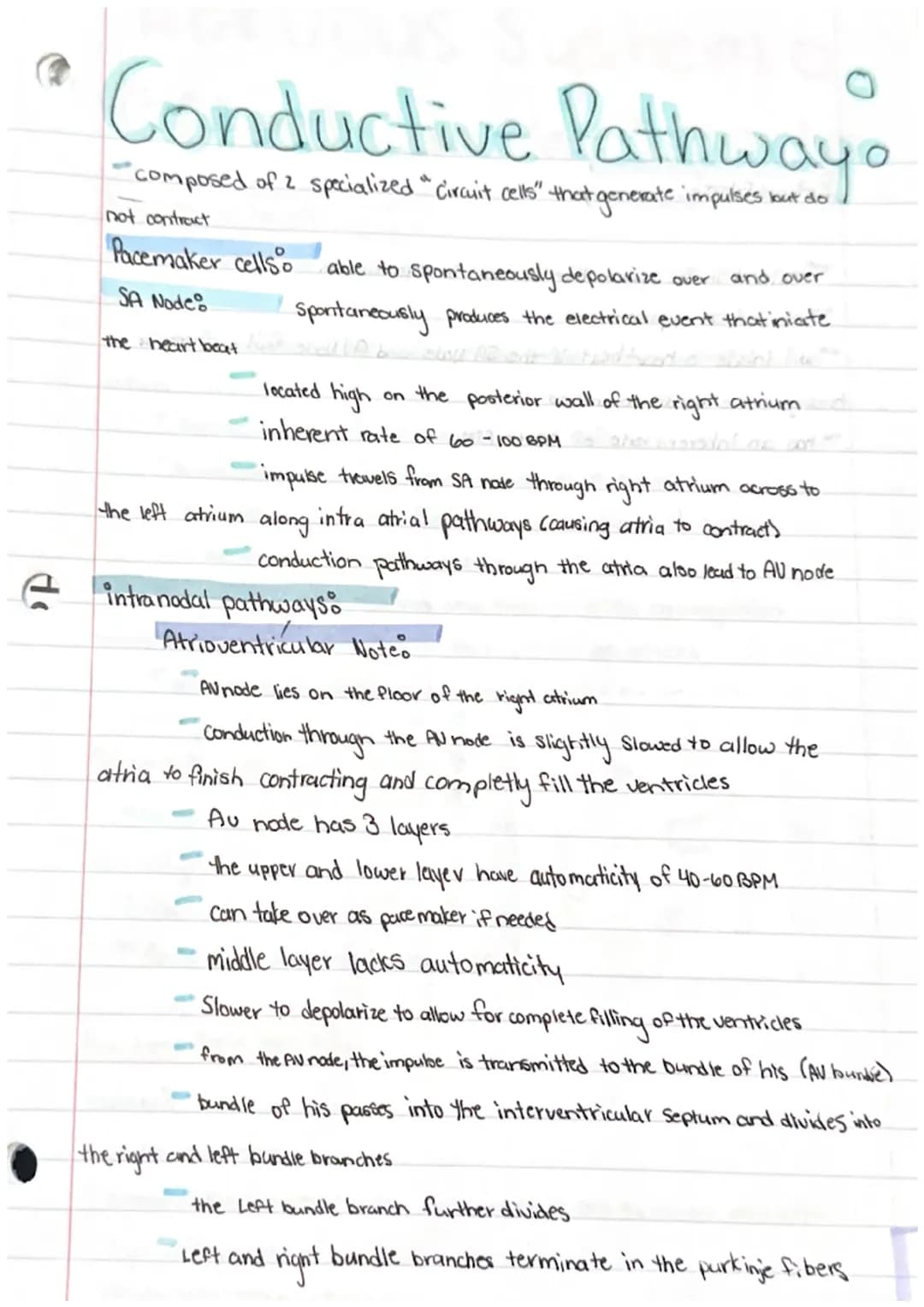

The heart's electrical conduction system is a sophisticated network that coordinates cardiac contractions. Pacemaker cells and cardiac conduction pathway components work together to maintain proper heart rhythm and ensure efficient blood pumping.

The sinoatrial $SA$ node, located in the right atrium's wall, contains specialized pacemaker cells that spontaneously generate electrical impulses 60-100 times per minute. These impulses travel through the atria via specific pathways, causing coordinated atrial contraction and directing the signal to the atrioventricular $AV$ node.

Vocabulary: Automaticity refers to the heart's ability to generate electrical impulses spontaneously without external nerve stimulation.

The AV node, positioned between the atria and ventricles, briefly delays the electrical signal. This crucial pause allows the atria to complete their contraction and fully fill the ventricles with blood. From here, the signal travels through the bundle of His and its branches, ultimately reaching the Purkinje fibers that stimulate ventricular contraction.

Cardiac Conduction and Rhythm Generation

The heart's electrical system demonstrates remarkable redundancy and specialization. The pacemaker cells and cardiac conduction pathway includes backup pacemaker sites that can maintain heart rhythm if the primary pacemaker fails.

The AV node contains three distinct layers, each with specific functions. The upper and lower layers possess backup pacemaker capabilities, automatically generating impulses at 40-60 beats per minute if needed. The middle layer lacks this automaticity but helps regulate signal transmission speed.

Example: Think of the cardiac conduction system as a complex electrical circuit, where the SA node acts as the primary power source, and the AV node serves as a crucial timing device.

The bundle branches and Purkinje fibers form an extensive network throughout the ventricles, ensuring rapid and coordinated contraction. This sophisticated system allows the heart to maintain its vital pumping function even under varying conditions and demands.

Understanding Cardiac Conduction Pathways and Heart Regulation

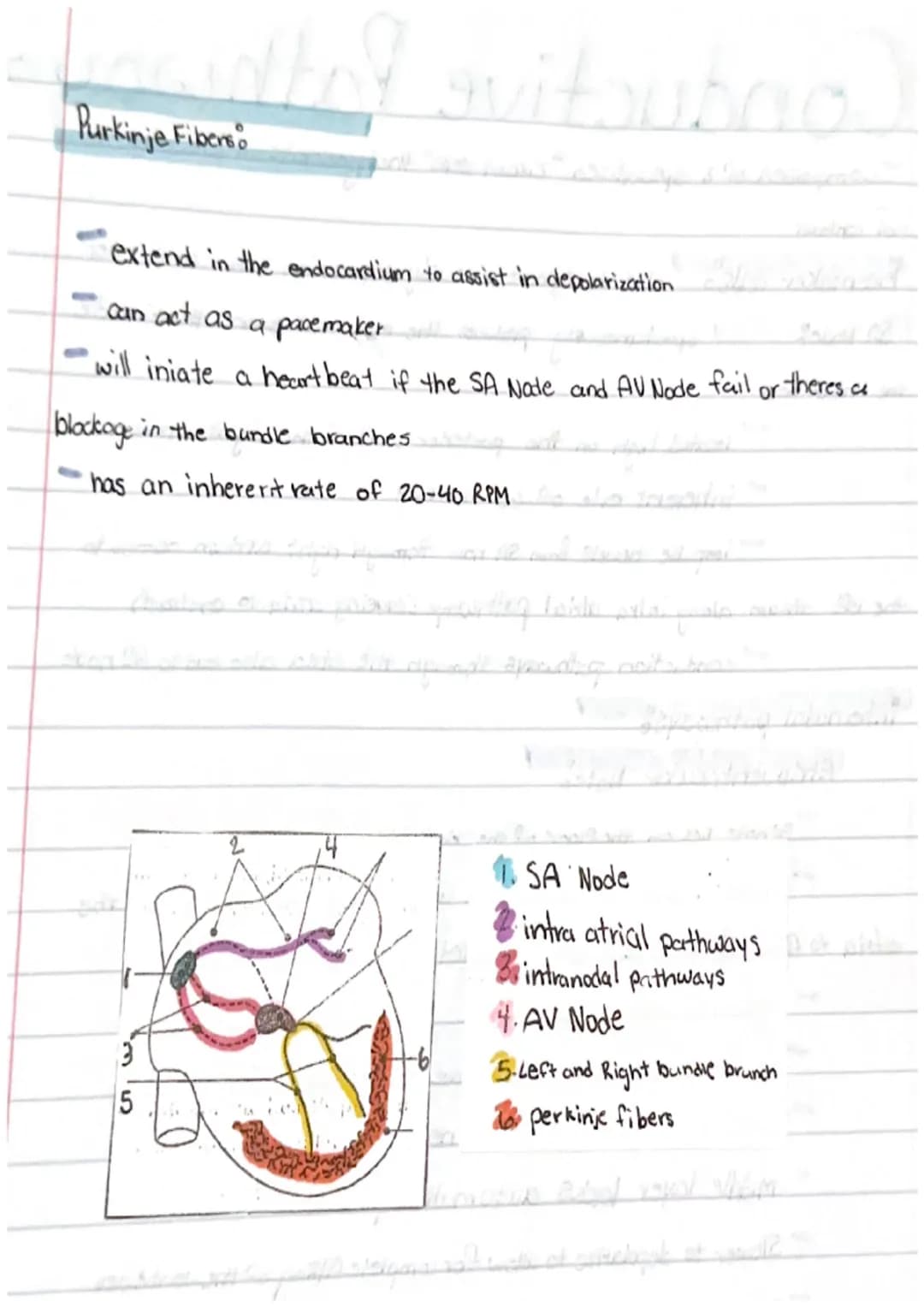

The heart's electrical conduction system is a sophisticated network that ensures coordinated contractions. The pacemaker cells and cardiac conduction pathway begin with the Purkinje fibers, specialized conducting cells in the heart's inner lining $endocardium$. These remarkable fibers can initiate heartbeats if primary pacemakers fail, maintaining a backup rate of 20-40 beats per minute.

Definition: Purkinje fibers are specialized cardiac muscle cells that conduct electrical impulses rapidly, ensuring synchronized ventricular contraction.

The conduction pathway follows a precise sequence starting at the SA Node $primary pacemaker$, traveling through intra-atrial and intranodal pathways to the AV Node, then splitting into left and right bundle branches before reaching the Purkinje fiber network. This intricate system ensures proper timing and coordination of heart contractions.

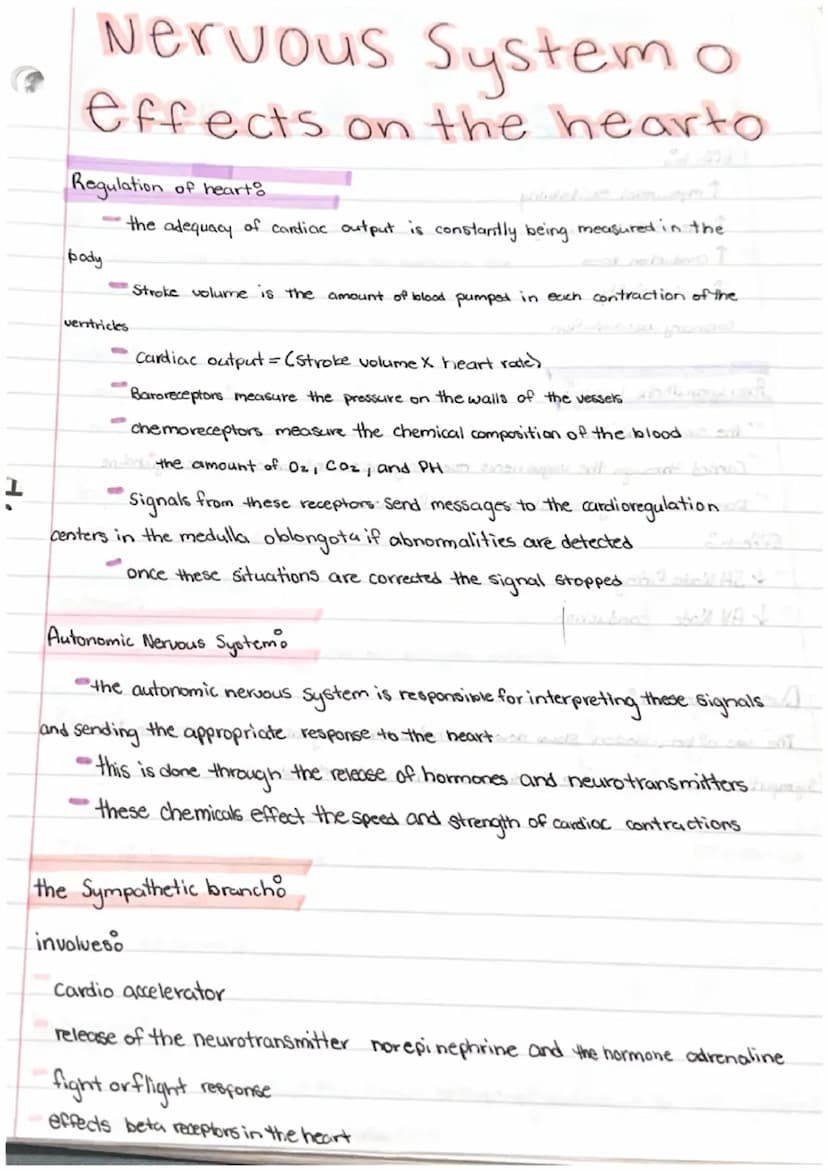

The nervous system plays a crucial role in regulating cardiac function through continuous monitoring of cardiac output. The body constantly measures stroke volume $blood pumped per contraction$ and adjusts heart rate accordingly. Baroreceptors monitor blood vessel pressure while chemoreceptors analyze blood composition, including oxygen, carbon dioxide, and pH levels.

Highlight: Cardiac output is calculated by multiplying stroke volume by heart rate, providing a measure of heart efficiency.

Autonomic Regulation of Cardiac Function

The autonomic nervous system masterfully controls heart function through two branches: sympathetic and parasympathetic. This dual regulation system ensures precise control over cardiac performance through hormone and neurotransmitter release.

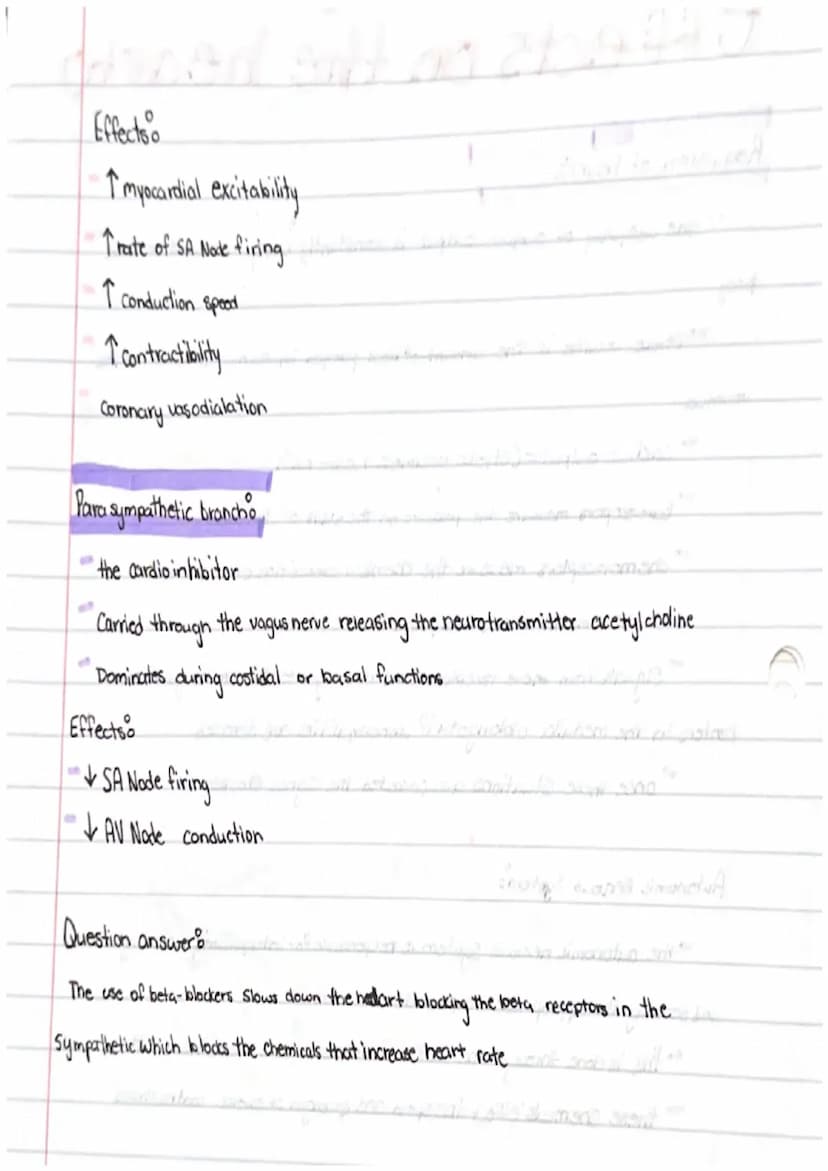

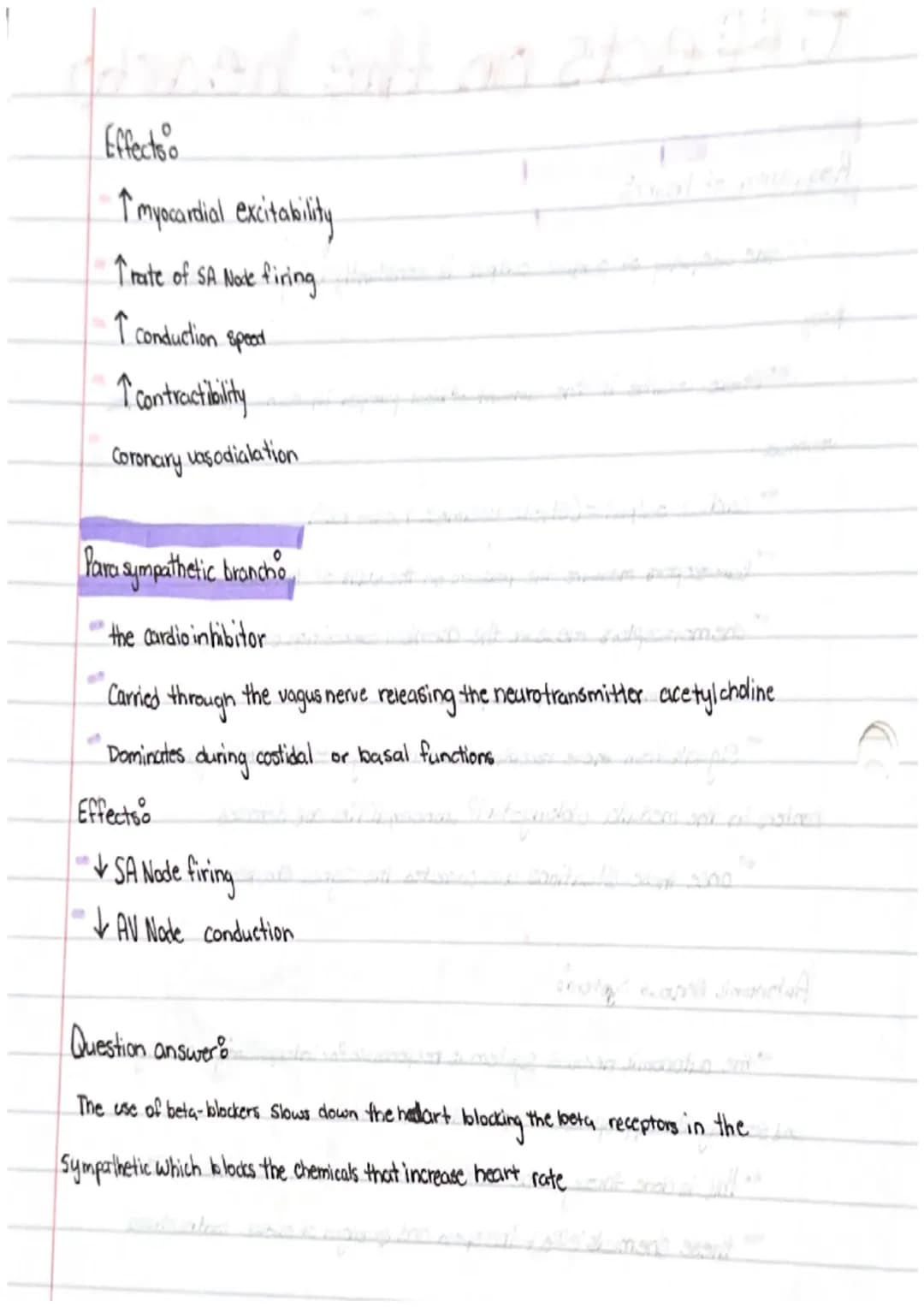

The sympathetic branch, often called the "cardio accelerator," operates through norepinephrine and adrenaline release. During fight-or-flight responses, it increases myocardial excitability, speeds up SA Node firing, enhances conduction speed, strengthens contractility, and causes coronary vasodilation.

Example: Beta-blockers work by blocking sympathetic effects on the heart, demonstrating the practical application of understanding cardiac regulation in medical treatment.

The parasympathetic branch, operating through the vagus nerve, releases acetylcholine and dominates during rest. This "cardio inhibitor" system helps maintain normal cardiac function during routine activities by moderating heart rate and contractility.

Electrocardiogram Components and Significance

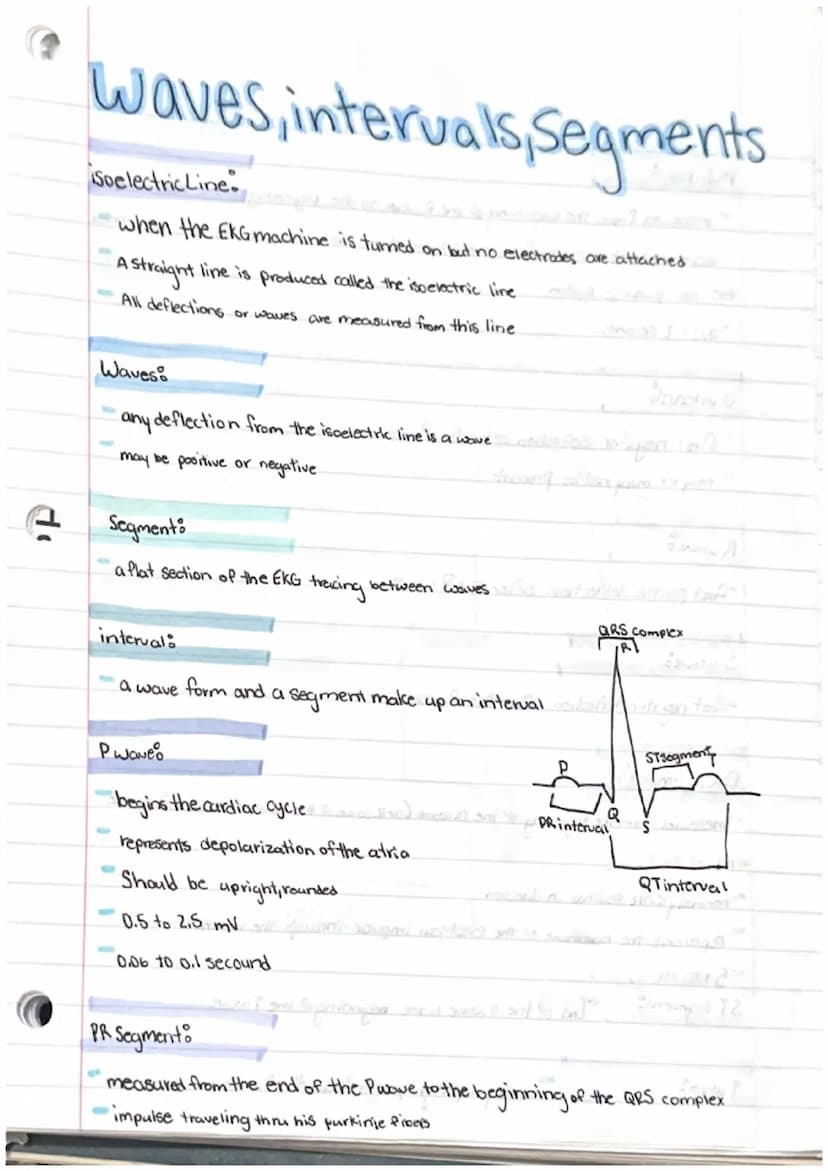

Understanding EKG waves, intervals, and segments provides crucial insights into cardiac function. The isoelectric line serves as the baseline reference for all measurements, while various waves represent specific electrical activities within the heart.

Vocabulary: The P wave represents atrial depolarization and should appear upright and rounded, measuring 0.5 to 2.5 mV and lasting 0.06 to 0.1 seconds.

The QRS complex, a crucial component of the ECG, represents ventricular depolarization. This complex includes potential Q waves $first negative deflection$, R waves $first positive deflection$, and S waves $negative deflection after R wave$. The entire QRS duration normally spans less than 0.12 seconds.

Advanced ECG Analysis and Clinical Significance

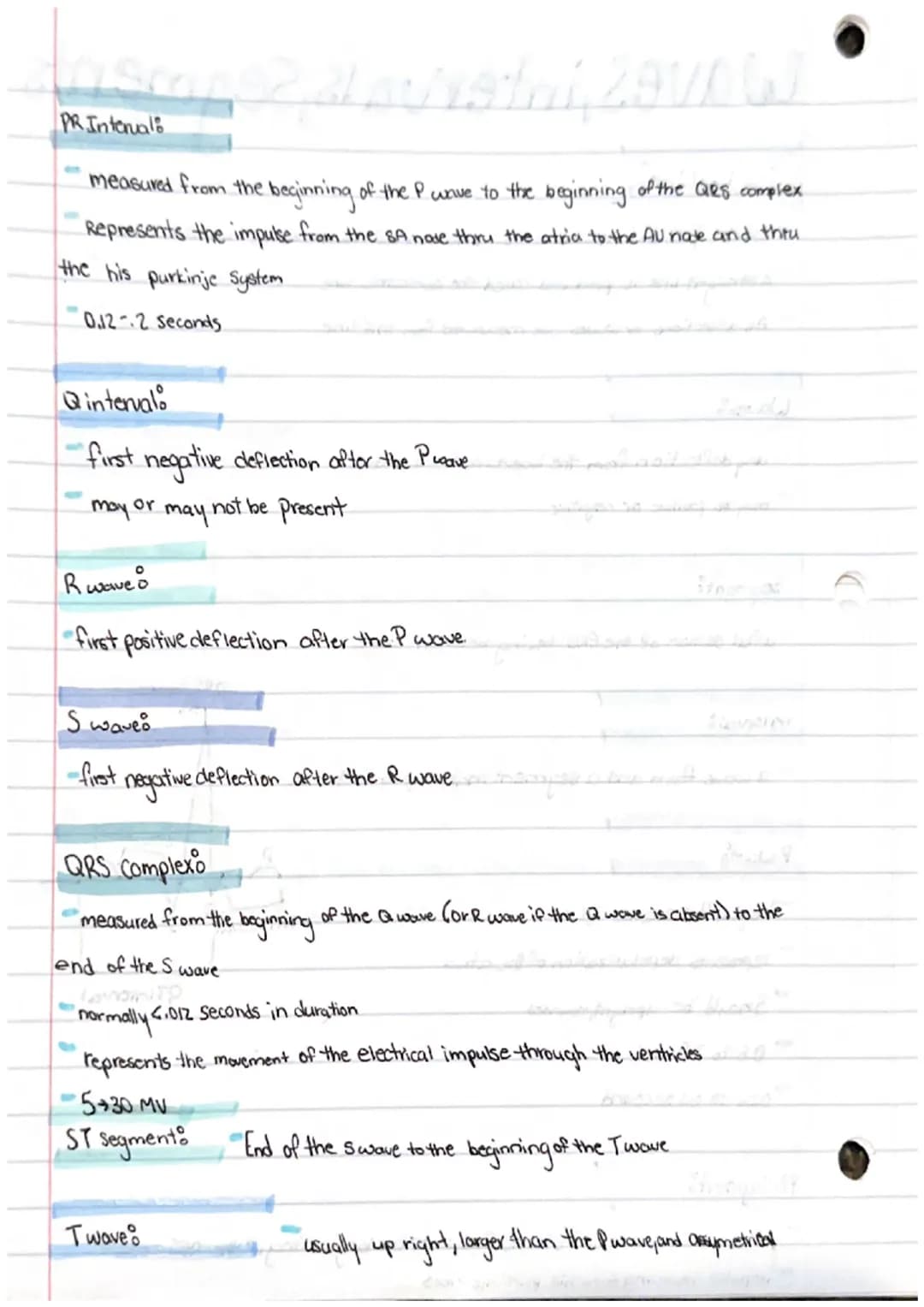

The PR interval, measured from P wave onset to QRS complex beginning, represents the complete atrial depolarization and AV nodal conduction time, typically lasting 0.12-0.2 seconds. This measurement provides valuable information about AV node function and conduction system health.

The ST segment and T wave configurations offer critical insights into ventricular repolarization patterns. The T wave, typically larger than the P wave and asymmetrical, represents ventricular recovery phase. Any deviation from normal patterns can indicate various cardiac conditions.

Definition: The QT interval represents the total time for ventricular depolarization and repolarization, serving as an important marker for cardiac electrical activity assessment.

These components together provide a comprehensive view of cardiac electrical activity, enabling healthcare providers to diagnose various heart conditions and assess treatment effectiveness.

Understanding ECG Waves and Intervals: A Comprehensive Guide

The electrocardiogram $ECG$ provides crucial information about the electrical activity of the heart, with each wave and interval revealing specific cardiac events. The pacemaker cells and cardiac conduction pathway create distinct patterns that medical professionals interpret to assess heart health.

The ECG waveform consists of several key components, each representing different phases of the cardiac cycle. The P wave marks atrial depolarization, followed by the QRS complex showing ventricular depolarization. The T wave represents ventricular repolarization, completing one cardiac cycle. Understanding these components helps track how electrical signals move through the heart's conduction system.

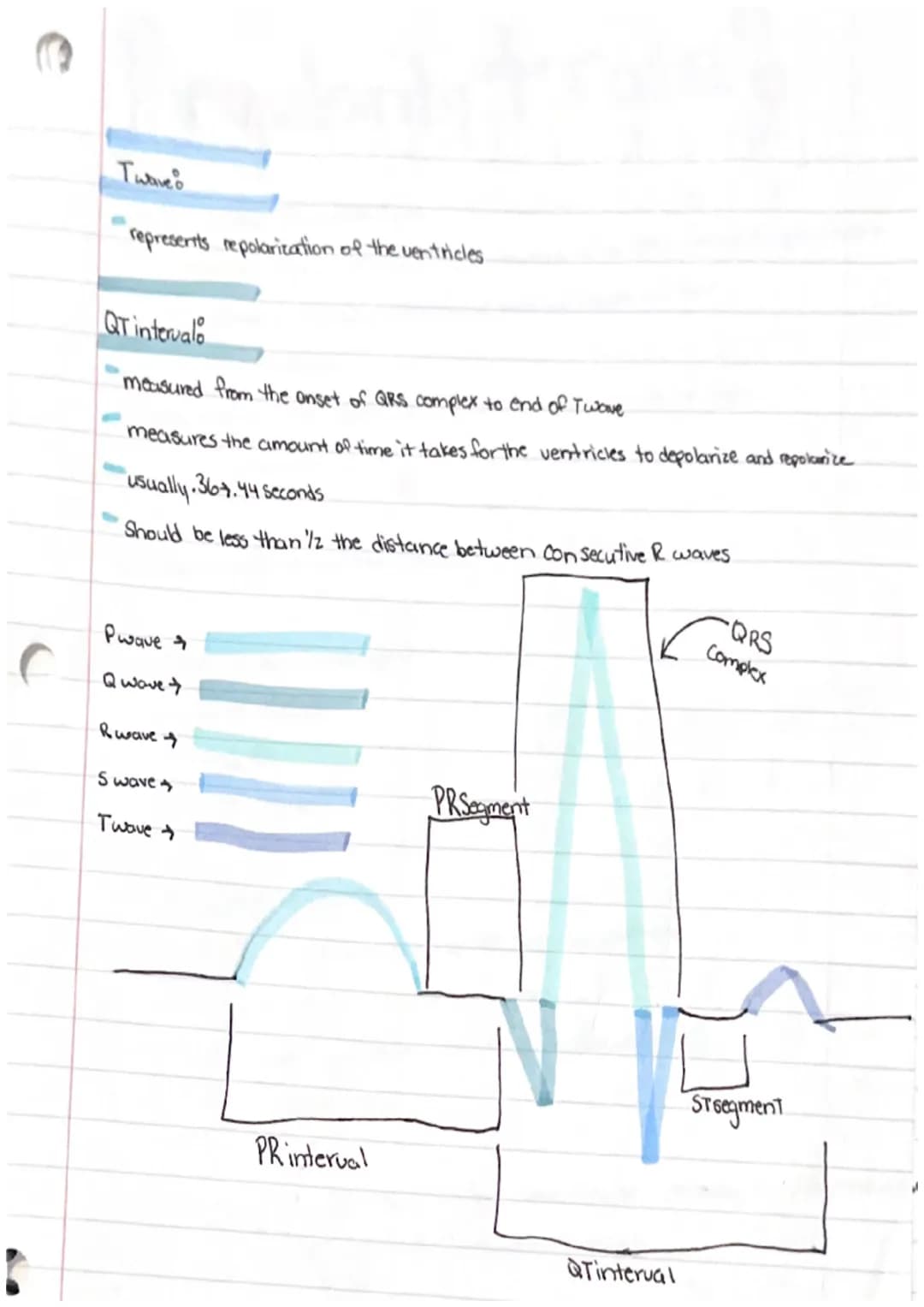

The QT interval, measured from the start of the QRS complex to the end of the T wave, indicates the total time needed for ventricular depolarization and repolarization. A normal QT interval typically measures around 367 milliseconds but should remain less than half the distance between consecutive R waves. This measurement is crucial for detecting potential cardiac abnormalities and assessing heart rhythm disorders.

Definition: The QT interval represents the time between the beginning of ventricular depolarization and the completion of ventricular repolarization. This measurement is essential for evaluating cardiac electrical activity and identifying potential rhythm abnormalities.

ECG Components and Their Clinical Significance

The PR interval and PR segment provide valuable information about atrioventricular conduction. The PR interval spans from the beginning of the P wave to the start of the QRS complex, while the PR segment represents the time between the end of the P wave and the beginning of the QRS complex. These measurements help assess the efficiency of electrical signal transmission between the atria and ventricles.

Understanding the relationship between different ECG components helps healthcare providers evaluate blood flow through the heart and cardiovascular system. The timing and morphology of each wave reflect the structure and function of heart chambers and valves, making the ECG an invaluable tool for cardiac assessment.

Medical professionals use these measurements to diagnose various cardiac conditions, from simple rhythm disturbances to complex conduction abnormalities. Regular monitoring of ECG patterns helps track disease progression and evaluate treatment effectiveness.

Highlight: ECG interpretation requires careful attention to wave morphology, intervals, and segments. Each component provides specific information about cardiac electrical activity and helps identify potential abnormalities in heart function.
