Understanding and Solving Conic Sections: A Student's Guide with Examples

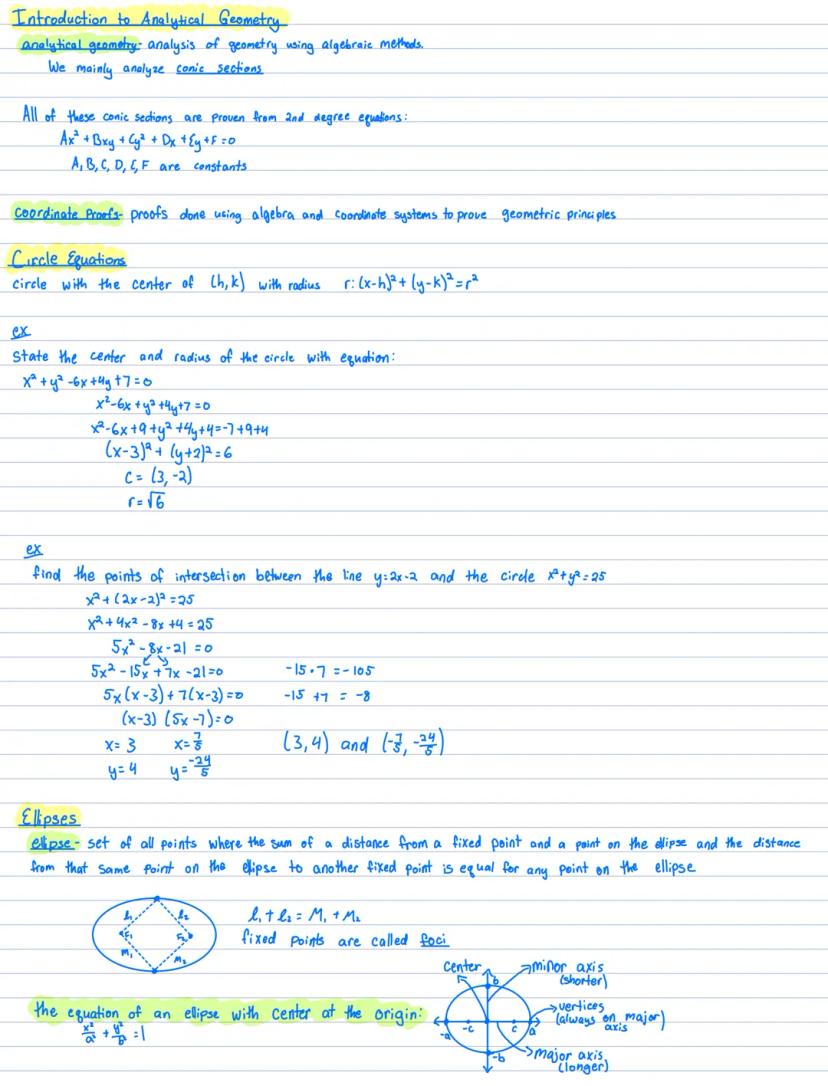

Introduction to Analytical Geometry

Analytical geometry uses algebraic methods to analyze geometric shapes. The star players here are conic sections, all derived from the second-degree equation: $Ax^2 + Bxy + Cy^2 + Dx + Ey + F = 0$.

When working with circles, the standard equation is $(x-h)^2 + (y-k)^2 = r^2$, where $(h,k)$ is the center and $r$ is the radius. For example, if you have $x^2 + y^2 - 6x + 4y + 7 = 0$, you can rearrange it to $(x - 3)^2 + (y + 2)^2 = 6$, revealing a circle with center at $(3, -2)$ and radius $\sqrt{6}$.

To find intersections between lines and circles, substitute the line equation into the circle equation. For instance, finding where $y = 2x - 2$ meets $x^2 + y^2 = 25$ involves substituting the $y$ value, solving the resulting quadratic, and finding the corresponding points: $(3, 4)$ and $(\frac{7}{5}, \frac{-24}{5})$.

💡 Quick Tip: When working with circle equations, always try to get them into standard form $(x-h)^2 + (y-k)^2 = r^2$ by completing the square for both $x$ and $y$ terms. This makes identifying the center and radius immediate!

An ellipse is a set of points where the sum of distances from any point on the ellipse to two fixed points (called foci) remains constant. The standard equation for an ellipse centered at the origin is $\frac{x^2}{a^2} + \frac{y^2}{b^2} = 1$, where $a$ and $b$ control the ellipse's size and shape.

Ellipses and Hyperbolas

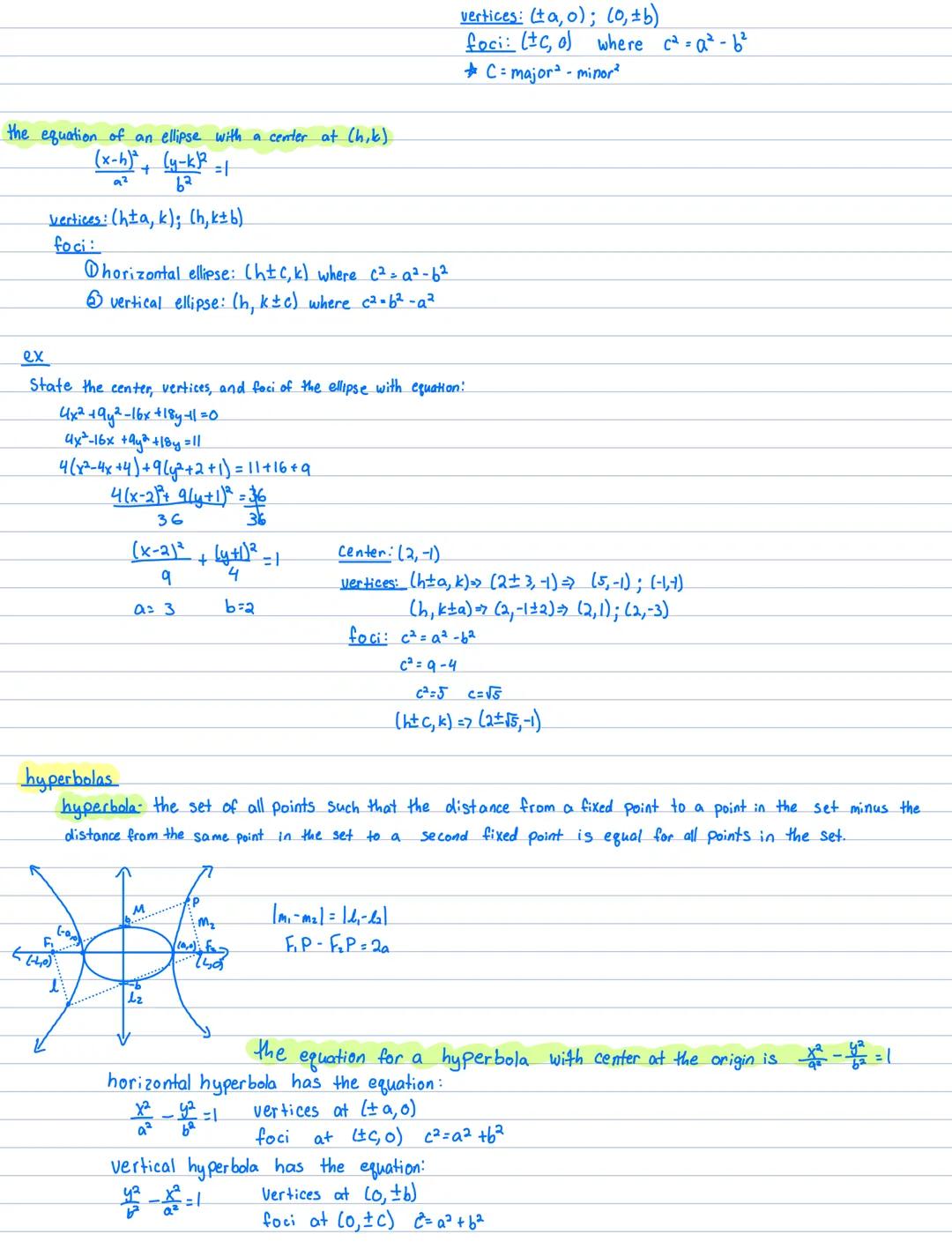

For an ellipse with center at $(h,k)$, the equation becomes $\frac{(x-h)^2}{a^2} + \frac{(y-k)^2}{b^2} = 1$. The vertices are found at $(h±a, k)$ and $(h, k±b)$. The foci depend on whether the ellipse is horizontal ($(h±c, k)$ where $c^2 = a^2 - b^2$) or vertical ($(h, k±c)$ where $c^2 = b^2 - a^2$).

When analyzing an ellipse like $4x^2 + 9y^2 - 16x + 18y - 11 = 0$, rearrange it into standard form by completing the square. The result, $\frac{(x - 2)^2}{9} + \frac{(y + 1)^2}{4} = 1$, reveals a center at $(2,-1)$ with $a=3$ and $b=2$. From here, you can find vertices at $(5,-1)$, $(-1,-1)$, $(2,1)$, and $(2,-3)$, and foci at $(2 ± \sqrt{5},-1)$.

A hyperbola is defined by the constant difference between distances from any point to two fixed points. For a hyperbola centered at the origin, the equation is $\frac{x^2}{a^2} - \frac{y^2}{b^2} = 1$ (horizontal) or $\frac{y^2}{b^2} - \frac{x^2}{a^2} = 1$ (vertical).

🔑 Remember: In both ellipses and hyperbolas, $a$ and $b$ determine the shape, but for hyperbolas, the relationship between $a$, $b$, and $c$ is $c^2 = a^2 + b^2$ (unlike ellipses where $c^2 = |a^2 - b^2|$).

Hyperbolas and Their Asymptotes

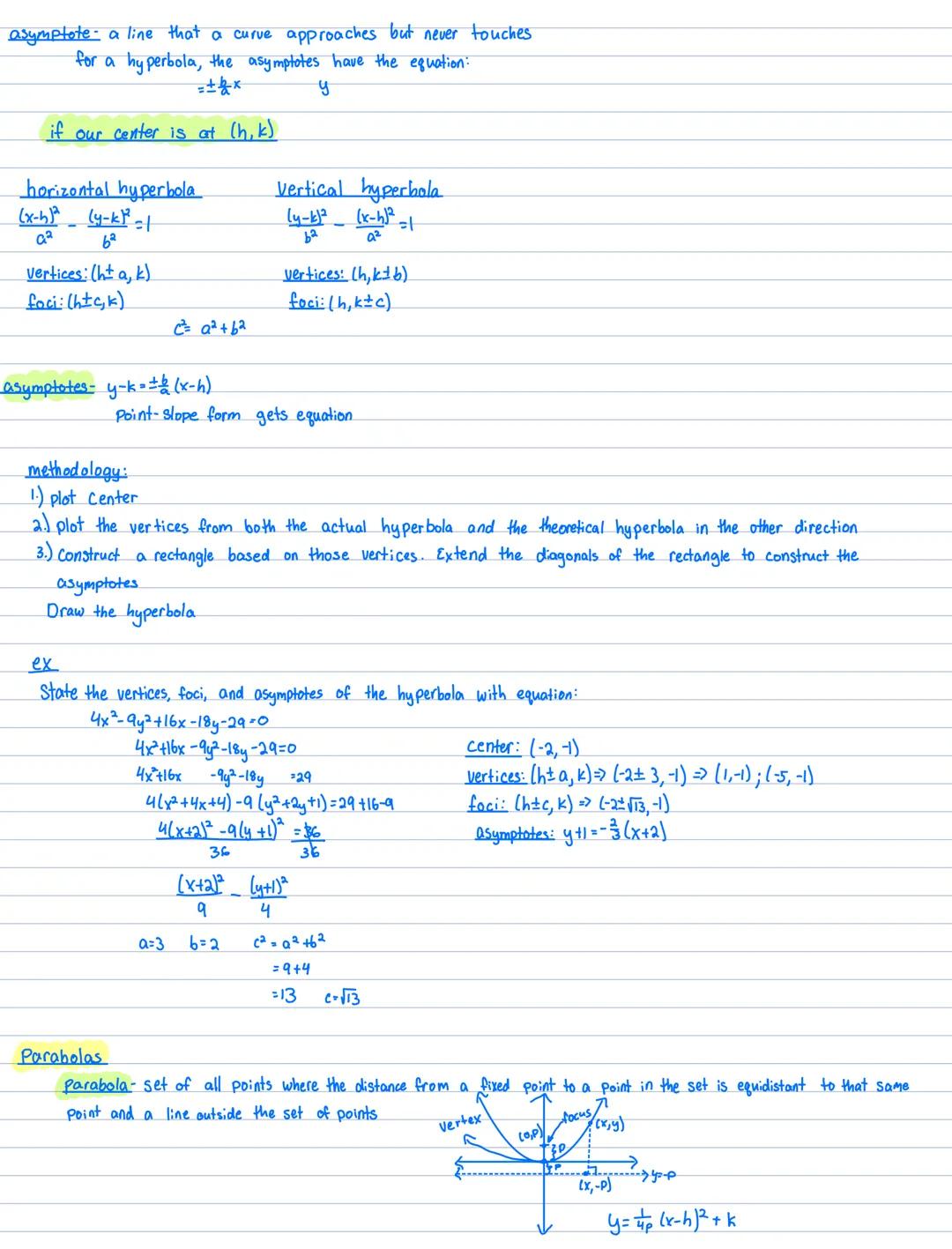

Hyperbolas have special lines called asymptotes that the curve approaches but never touches. For a hyperbola centered at the origin, these asymptotes follow the equation $y = ±\frac{b}{a}x$. For hyperbolas centered at $(h,k)$, the asymptotes become $y - k = ±\frac{b}{a}(x - h)$.

When graphing hyperbolas, follow this process: plot the center, mark the vertices, construct a rectangle using the vertices, and extend the rectangle's diagonals to create the asymptotes. The hyperbola's curves will approach these asymptotes but never cross them.

For a hyperbola like $4x^2 - 9y^2 + 16x - 18y - 29 = 0$, complete the square to get $\frac{(x + 2)^2}{9} - \frac{(y + 1)^2}{4} = 1$. This reveals a horizontal hyperbola with center at $(-2,-1)$, where $a=3$ and $b=2$. The foci are at $(-2±\sqrt{13},-1)$ since $c^2 = a^2 + b^2 = 13$.

🚀 Visualization Trick: Think of hyperbolas as two separate curves that mirror each other across the center. The asymptotes form an "X" that guides where the curves will go as they extend outward.

A parabola is the set of points where the distance from a fixed point (the focus) equals the distance to a fixed line (the directrix). The standard form varies depending on whether the parabola opens vertically or horizontally.

Parabolas

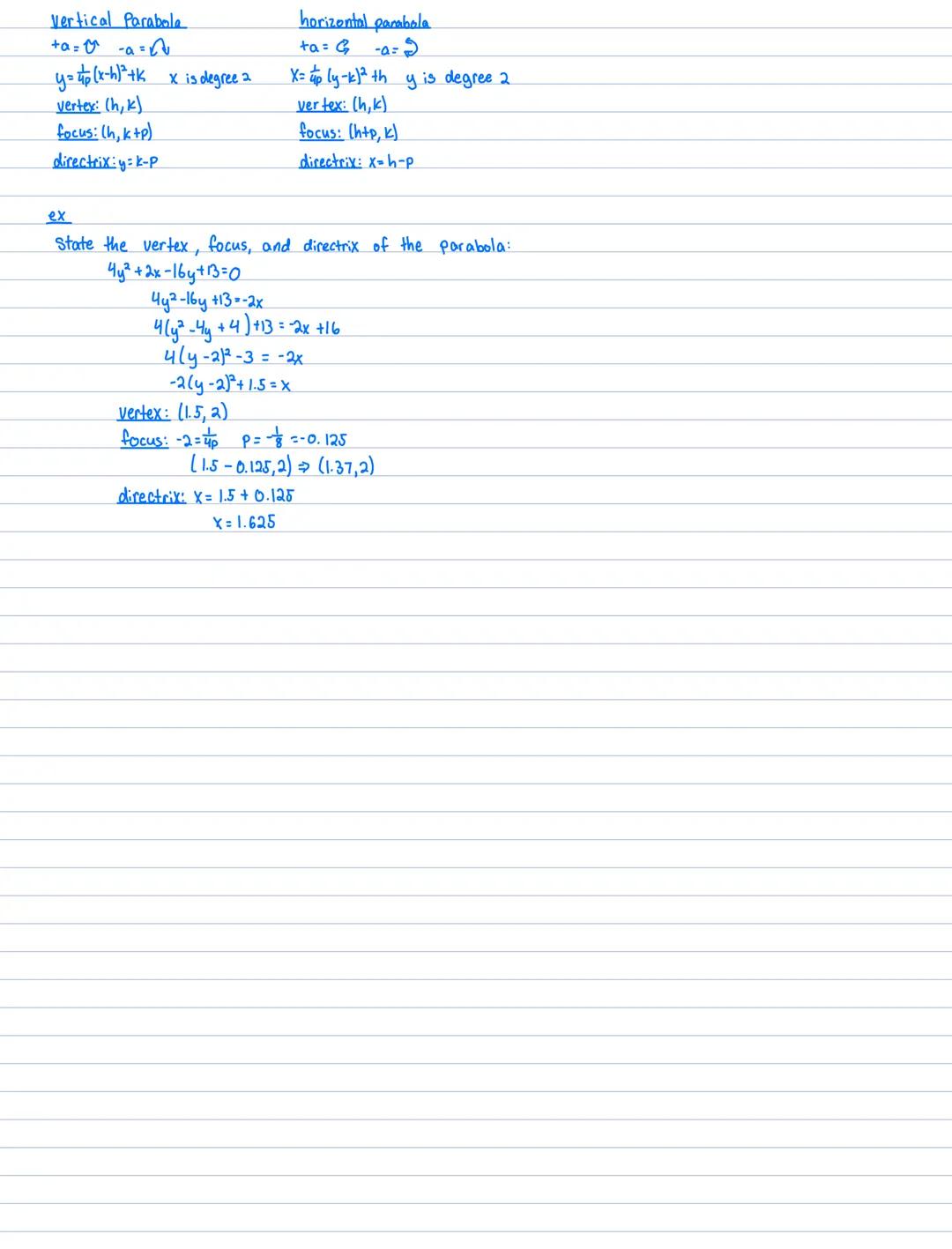

Vertical parabolas have the equation $y = \frac{1}{4p}(x-h)^2 + k$ (where $x$ is squared), with vertex at $(h,k)$, focus at $(h,k+p)$, and directrix at $y=k-p$. These parabolas open upward or downward.

Horizontal parabolas follow $x = \frac{1}{4p}(y-k)^2 + h$ (where $y$ is squared), with vertex at $(h,k)$, focus at $(h+p,k)$, and directrix at $x=h-p$. These parabolas open right or left.

When analyzing parabolas like $4y^2+2x-16y+13=0$, rearrange the equation by completing the square. For this example, you get $-2(y-2)^2+1.5=x$ which is a horizontal parabola with vertex at $(1.5,2)$. The constant $-2$ equals $\frac{1}{4p}$, so $p=-0.125$, placing the focus at $(1.37,2)$ and the directrix at $x=1.625$.

🎯 Test Prep Tip: The key to solving conic section problems is identifying which type you're dealing with. Look at the squared terms! If both $x^2$ and $y^2$ have the same sign, it's a circle or ellipse. Different signs indicate a hyperbola. If only one variable is squared, it's a parabola.

The power of analytical geometry lies in transforming visual problems into equations you can solve systematically. Whether you're dealing with circles, ellipses, hyperbolas, or parabolas, the standard forms give you a clear roadmap to find key features like centers, vertices, foci, and directrices.
