All About Cellular Respiration: Stages, Diagrams, and Equations

Cellular respirationis a vital metabolic process that converts energy... Show more

1
of 3

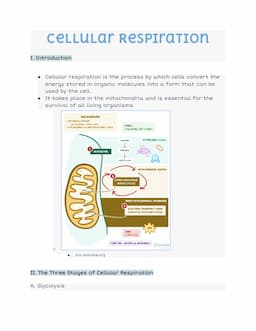

# CELLULAr Respiration

I. Introduction

- Cellular respiration is the process by which cells convert the
energy stored in organic molecules

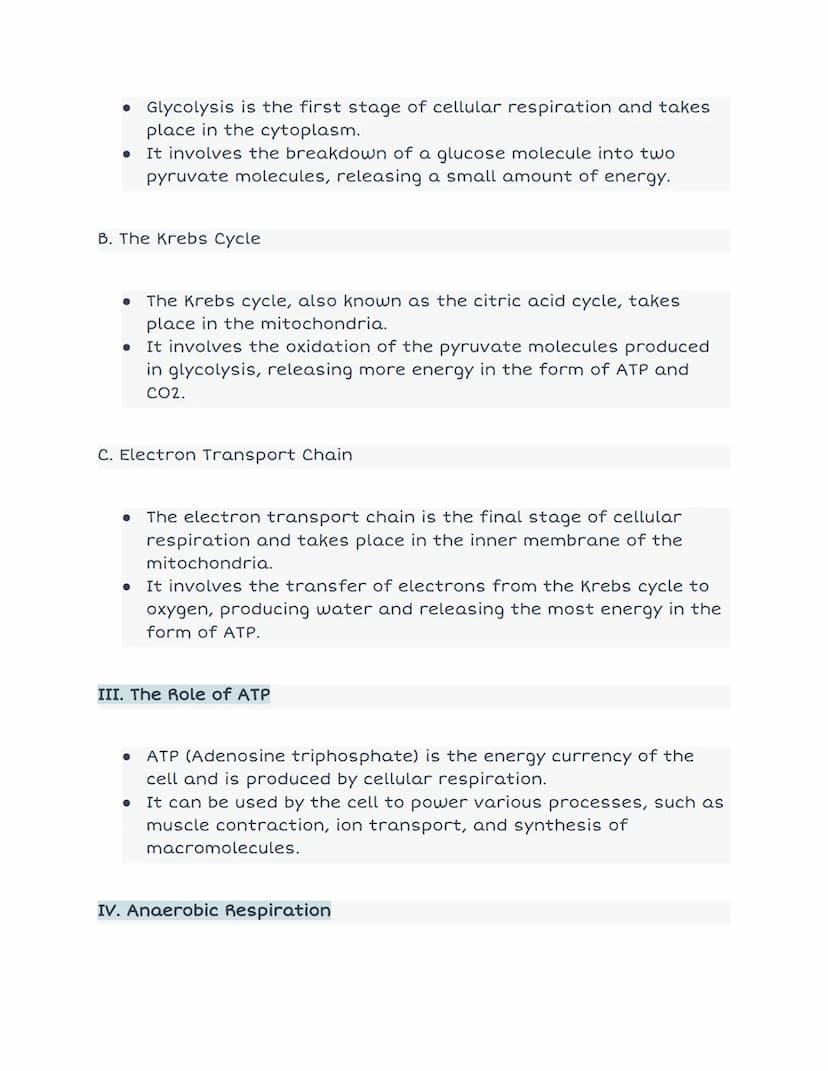

The Three Stages of Cellular Respiration

Cellular respiration is a complex process that occurs in three main stages: glycolysis, the Krebs cycle, and the electron transport chain. Each stage plays a crucial role in the conversion of energy from glucose to ATP.

Glycolysis

Glycolysis is the first stage of cellular respiration and takes place in the cytoplasm of the cell. During this process, a single glucose molecule is broken down into two pyruvate molecules.

Definition: Glycolysis is the metabolic pathway that breaks down glucose into pyruvate, releasing a small amount of energy in the form of ATP.

This stage is important because it initiates the energy extraction process and can occur in both aerobic and anaerobic conditions.

The Krebs Cycle

The Krebs cycle, also known as the citric acid cycle, is the second stage of cellular respiration. It occurs in the mitochondrial matrix and involves the oxidation of pyruvate molecules produced during glycolysis.

Highlight: The Krebs cycle is a key component of aerobic respiration, as it generates electron carriers that will be used in the electron transport chain.

During this cycle, more energy is released in the form of ATP and CO2 is produced as a waste product.

Electron Transport Chain

The electron transport chain is the final and most productive stage of cellular respiration. It takes place in the inner membrane of the mitochondria and is responsible for producing the majority of ATP.

Vocabulary: The electron transport chain is a series of protein complexes that transfer electrons from electron carriers to oxygen, creating a proton gradient that drives ATP synthesis.

This stage is crucial for maximizing energy production from the original glucose molecule. The process culminates in the formation of water as oxygen accepts the transferred electrons.

Understanding the differences and similarities between these stages, such as the difference between glycolysis and Krebs cycle, is essential for comprehending the overall process of cellular respiration and its importance in energy production for cells.

2
of 3
# CELLULAr Respiration

I. Introduction

- Cellular respiration is the process by which cells convert the
energy stored in organic molecules

The Role of ATP and Anaerobic Respiration

The Role of ATP

ATP (Adenosine triphosphate) is often referred to as the energy currency of the cell. It is the primary product of cellular respiration and plays a crucial role in powering various cellular processes.

Definition: ATP (Adenosine triphosphate) is a high-energy molecule that stores and transfers energy within cells.

ATP is used by cells for numerous functions, including:

  • Muscle contraction
  • Ion transport across cell membranes
  • Synthesis of macromolecules such as proteins and DNA

The production of ATP through cellular respiration is essential for maintaining cellular functions and overall organism survival.

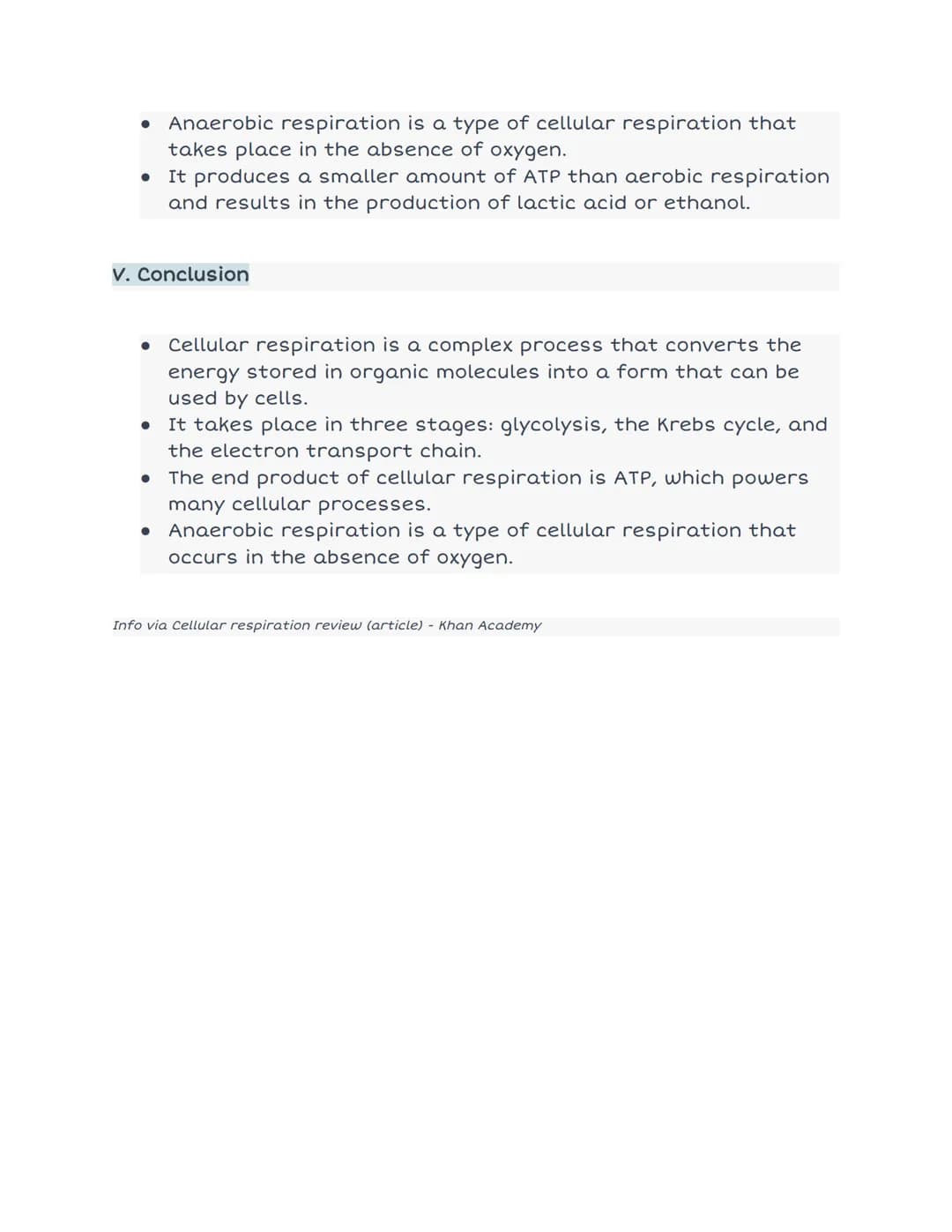

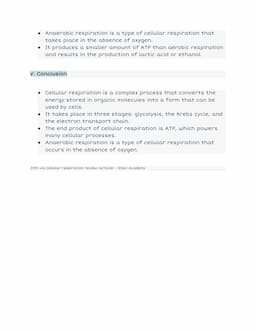

Anaerobic Respiration

While the previous sections focused on aerobic respiration, it's important to understand that cells can also perform anaerobic respiration when oxygen is not available.

Definition: Anaerobic respiration is a type of cellular respiration that occurs in the absence of oxygen, producing a smaller amount of ATP compared to aerobic respiration.

Key points about anaerobic respiration include:

  • It produces less ATP than aerobic respiration
  • It results in the production of lactic acid in animals or ethanol in plants and yeast
  • It allows cells to continue functioning in oxygen-deprived conditions

Example: During intense exercise, muscle cells may temporarily switch to anaerobic respiration when oxygen supply is insufficient, leading to the buildup of lactic acid and muscle fatigue.

Understanding the difference between aerobic respiration and fermentation (a type of anaerobic respiration) is crucial for comprehending how cells adapt to different environmental conditions and energy demands.

In conclusion, cellular respiration is a complex and essential process that enables organisms to extract and utilize energy from organic molecules. Whether through aerobic or anaerobic pathways, the ultimate goal is the production of ATP to power the myriad of cellular processes necessary for life.

3
of 3
# CELLULAr Respiration

I. Introduction

- Cellular respiration is the process by which cells convert the
energy stored in organic molecules

Introduction to Cellular Respiration

Cellular respiration is a fundamental metabolic pathway that enables cells to extract energy from glucose and produce ATP. This process is crucial for the survival of all living organisms, as ATP is required for numerous bodily reactions.

The process of cellular respiration can be divided into three main stages: glycolysis, the Krebs cycle (also known as the citric acid cycle), and the electron transport chain. Each stage occurs in different parts of the cell and contributes to the overall production of ATP.

Definition: Cellular respiration is the process by which cells convert the energy stored in organic molecules into a form that can be used by the cell, primarily ATP.

Highlight: Cellular respiration takes place primarily in the mitochondria, often referred to as the "powerhouses" of the cell.

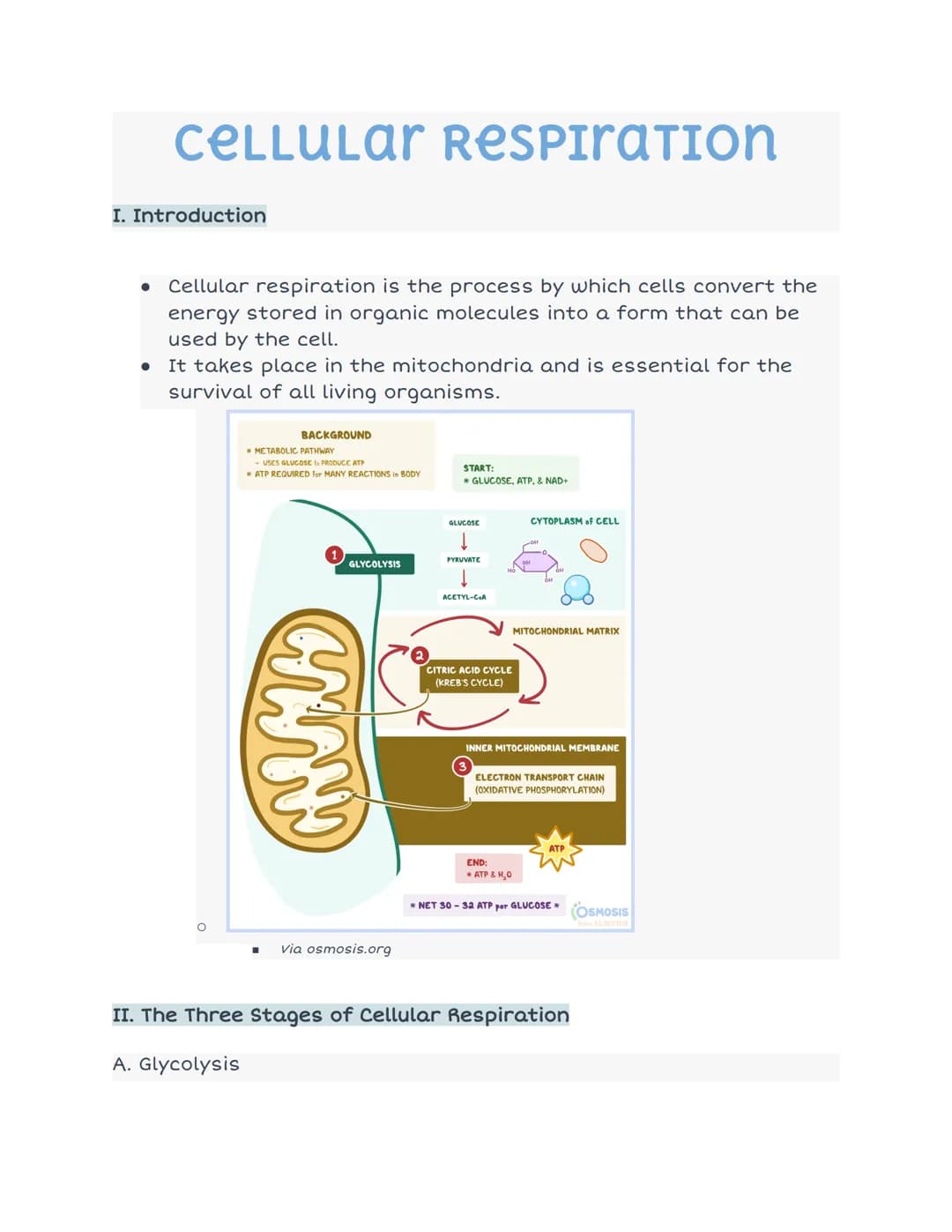

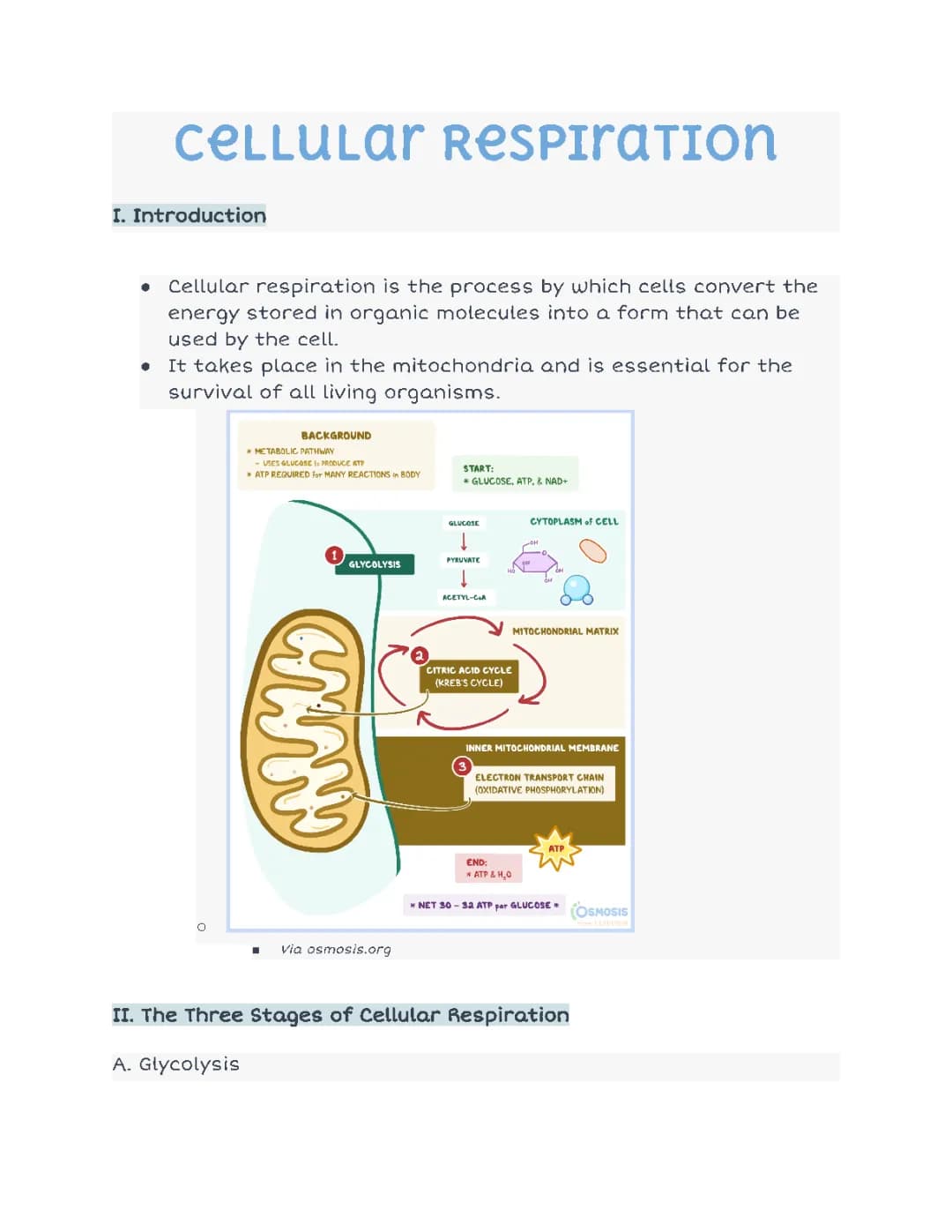

The diagram provided illustrates the flow of cellular respiration, starting with glucose and ending with the production of ATP and water. This visual representation helps to understand the interconnected nature of the three stages and their locations within the cell.

Example: In the diagram, we can see that glycolysis occurs in the cytoplasm, while the Krebs cycle and electron transport chain take place in different parts of the mitochondria.

Understanding the stages of cellular respiration and their functions is essential for grasping how organisms obtain and utilize energy at the cellular level.
