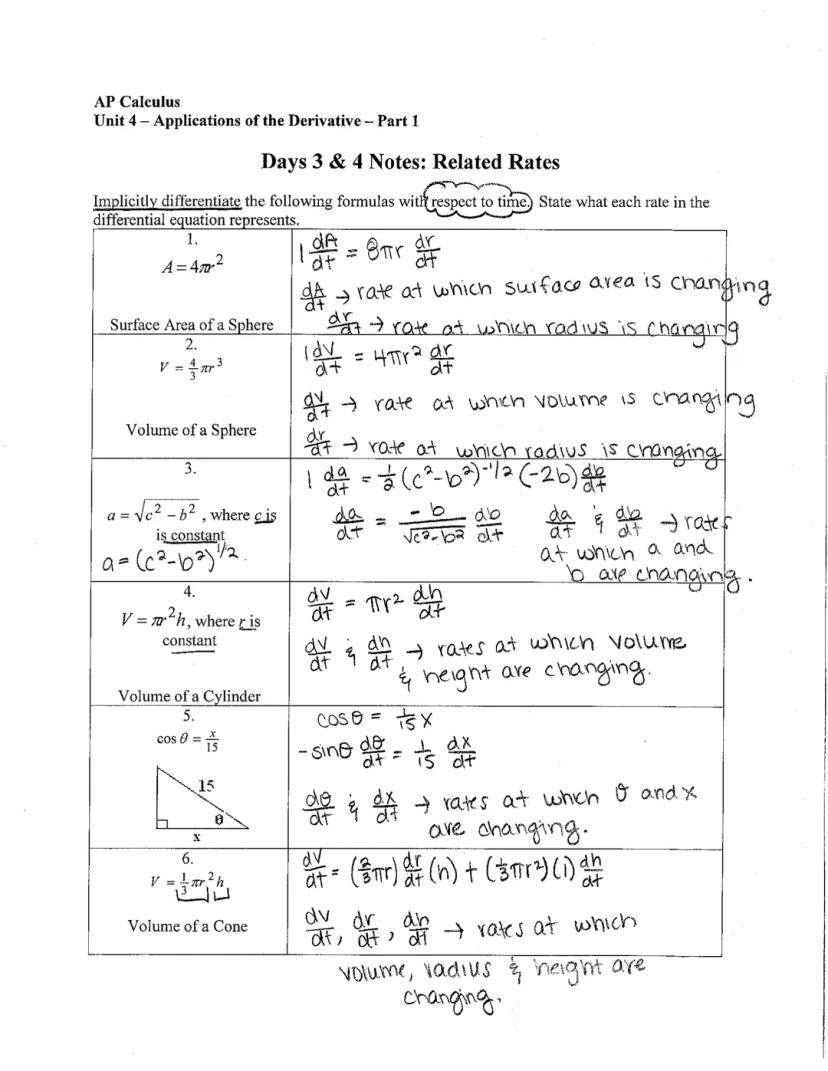

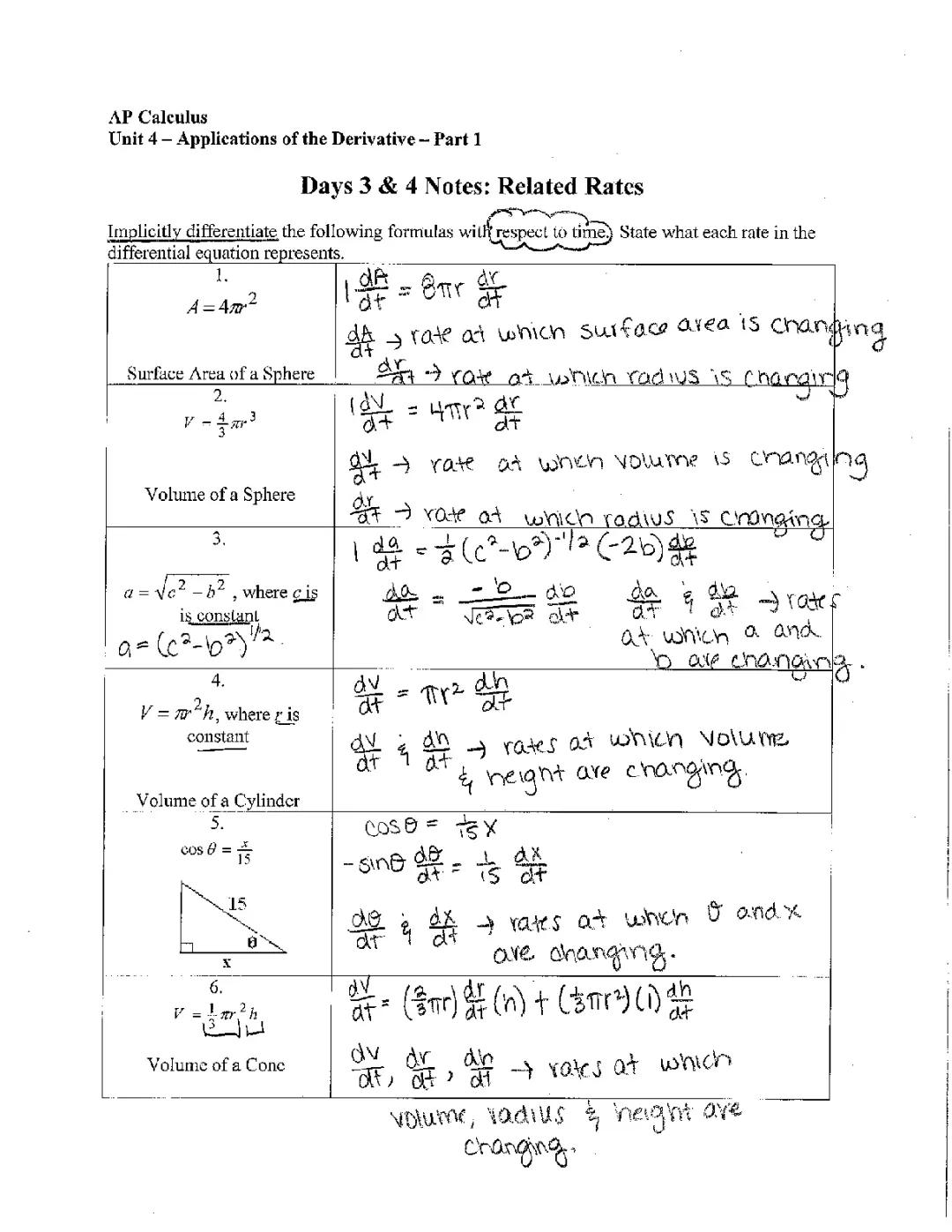

Implicit Differentiation for Related Rates

Related rates problems require us to find how one quantity changes when we know how another quantity is changing. The key is to differentiate both sides of an equation with respect to time.

When working with geometric formulas, we need to identify what each derivative represents. For example, in the sphere formula $A = 4\pi r^2$, differentiating gives us $\frac{dA}{dt} = 8\pi r \frac{dr}{dt}$ where $\frac{dA}{dt}$ represents the rate at which surface area is changing and $\frac{dr}{dt}$ is how fast the radius is changing.

Similar differentiation applies to other formulas like volume of a sphere $V = \frac{4}{3}\pi r^3$ which gives us $\frac{dV}{dt} = 4\pi r^2 \frac{dr}{dt}$. For more complex relationships like $a = \sqrt{c^2 - b^2}$ where $c$ is constant, we get $\frac{da}{dt} = \frac{-b}{\sqrt{c^2 - b^2}}\frac{db}{dt}$.

Remember: Always identify what each rate represents in the physical problem - this helps connect the math to the real-world situation!

Solving Related Rates Problems

Solving related rates problems follows a consistent step-by-step approach. Let's see how this works with a deflating balloon example.

First, identify all variables and rates involved. For a sphere losing air at 230π cm³/min when the radius is 4 cm, we need to find $\frac{dr}{dt}$. Start by writing an equation that connects the variables: $V = \frac{4}{3}\pi r^3$.

Next, differentiate with respect to time to get $\frac{dV}{dt} = 4\pi r^2 \frac{dr}{dt}$. Then substitute what you know: $-230\pi = 4\pi(4)^2 \cdot \frac{dr}{dt}$ where the negative sign shows the volume is decreasing.

Solving for $\frac{dr}{dt}$ gives us $\frac{dr}{dt} = \frac{-115}{32}$ cm/min. This negative value confirms that the radius is also decreasing as the balloon deflates.

Pro Tip: Always pay attention to signs in your final answer - they tell you whether quantities are increasing or decreasing!

Circular Ripple Problem

When a stone drops into water, it creates expanding circular ripples. These problems connect radius and area rates of change.

Imagine ripples with a radius increasing at 1 foot per second. When the radius reaches 4 feet, we want to find how fast the disturbed water area is changing. Since the area of a circle is $A = \pi r^2$, we differentiate to get $\frac{dA}{dt} = 2\pi r \frac{dr}{dt}$.

By plugging in our known values (r=4 feet and $\frac{dr}{dt}=1$ foot/second), we calculate $\frac{dA}{dt} = 2\pi(4)(1) = 8\pi$ square feet per second. This shows the area is increasing at a rate proportional to the radius.

The expanding ripple problem illustrates how the rate of area change depends on both the current radius and how fast that radius is changing. The larger the radius, the faster the area increases, even if the radius expansion rate stays constant.

Think about it: Notice how the rate of area change is much faster than the rate of radius change. This happens because area grows as the square of the radius!

Water Leaking from a Cylinder

When dealing with cylinders, we often need to relate changes in volume to changes in height. These problems appear frequently in real-world situations like draining tanks.

For a cylindrical tank with radius 4 feet leaking water at 3 cubic feet per second, we need to find how quickly the water level is dropping. First, we write the volume formula $V = \pi r^2h$ and substitute the constant radius: $V = 16\pi h$.

When we differentiate with respect to time, we get $\frac{dV}{dt} = 16\pi \frac{dh}{dt}$. Since water is leaking out, $\frac{dV}{dt} = -3$ (negative because volume is decreasing).

Solving for the height change rate: $\frac{dh}{dt} = \frac{-3}{16\pi}$ feet per second. The negative value confirms the water level is dropping as the tank empties.

Important insight: The rate at which the height changes depends on the cross-sectional area of the container. For the same volume change, a wider container's height changes more slowly than a narrower one's!

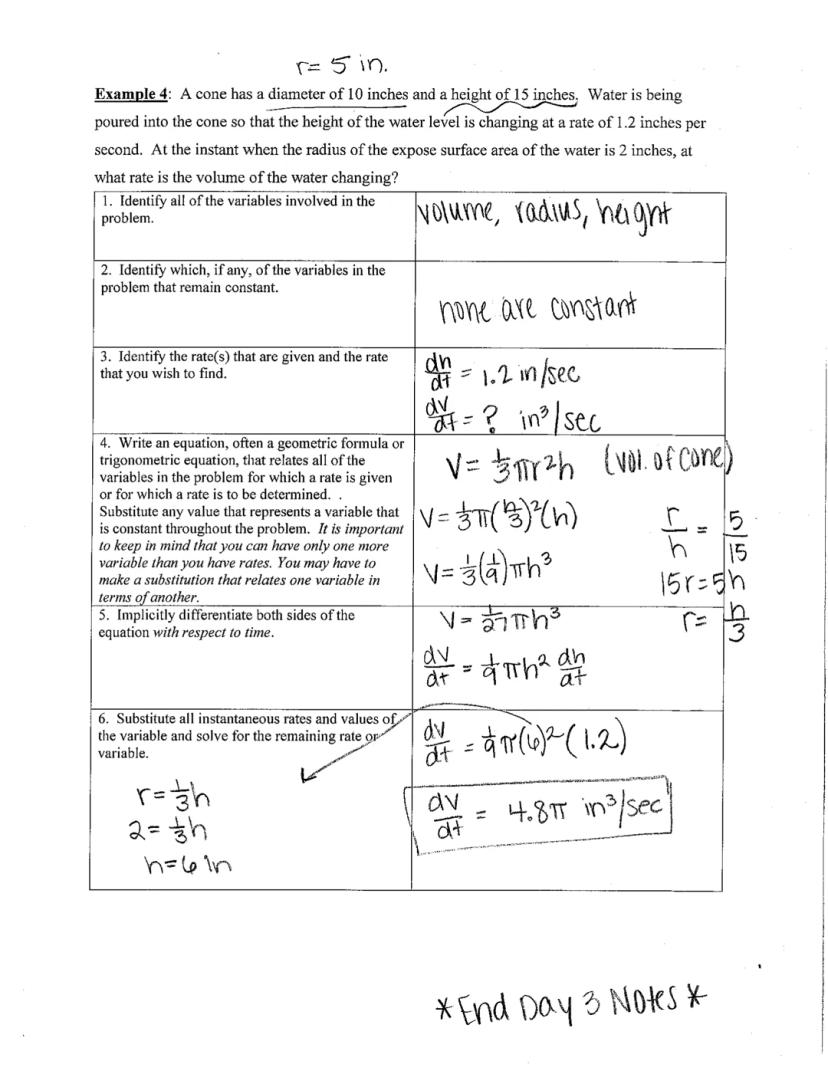

Cone Filling Problem

Water being poured into a cone creates a more complex related rates problem because both the radius and height of the water are changing simultaneously.

For a cone with diameter 10 inches and height 15 inches, if water is being added so the height increases at 1.2 inches per second, we need to find the volume change rate when the exposed water surface has radius 2 inches.

The key insight is using similar triangles to relate the radius of the water surface to its height: $r = \frac{5}{15}h$, so $r = \frac{h}{3}$. When $r = 2$ inches, the height $h = 6$ inches.

Using the cone volume formula $V = \frac{1}{3}\pi r^2h$ and substituting our relationship between $r$ and $h$, we get $\frac{dV}{dt} = \pi r^2\frac{dh}{dt} = \pi(2)^2(1.2) = 4.8\pi$ cubic inches per second.

Visualization tip: Imagine watching the water level rise - the exposed surface gets wider as the water gets deeper, causing the volume to increase faster than in a cylinder!

Moving Ladder Problem

The sliding ladder problem connects linear and angular rates of change using the Pythagorean theorem and implicit differentiation.

Imagine a 25-foot ladder leaning against a wall with its base being pulled away at 2 feet per second. When the base is 7 feet from the wall, we need to find how fast the top is sliding down.

Using the Pythagorean theorem, $x^2 + y^2 = 25^2$, where $x$ is the base distance and $y$ is the height. When $x = 7$, we calculate $y = 24$. Differentiating with respect to time: $2x\frac{dx}{dt} + 2y\frac{dy}{dt} = 0$.

Substituting our values and solving for $\frac{dy}{dt}$ gives us $\frac{dy}{dt} = -\frac{7}{12}$ feet per second. The negative sign shows the top of the ladder is moving downward.

For the triangle area change when $x = 7$, we use $A = \frac{1}{2}xy$ and find $\frac{dA}{dt} = \frac{527}{24}$ square feet per second. For the angle change when $x = 9$, we use trigonometry to find $\frac{d\theta}{dt} = \frac{2}{\sqrt{544}}$ radians per second.

Real-world connection: This problem models many situations where objects move along constrained paths, like mechanical linkages in engines!

Application Problems with Spheres and Motion

Related rates problems often involve distance, motion, and changing geometric shapes like spheres.

In the airplane problem, radar tracks a plane flying 5 miles high. When it's 10 miles past the antenna, the distance is changing at 240 mph. Using the Pythagorean theorem and implicit differentiation, we find the plane's speed is $120\sqrt{5}$ mph.

For a sphere with radius increasing at 2 inches per minute, we can find how fast the surface area changes when the radius is 6 inches. Using $A = 4\pi r^2$ and differentiating, $\frac{dA}{dt} = 8\pi r\frac{dr}{dt} = 8\pi(6)(2) = 96\pi$ square inches per minute.

Similarly, for a balloon expanding at $60\pi$ cubic inches per second, we first find $\frac{dr}{dt} = \frac{15}{16}$ inches per second when the radius is 4 inches. Then we calculate the surface area change rate as $\frac{dA}{dt} = 30\pi$ square inches per second.

Practical application: These calculations are crucial in medical imaging, where doctors track how fast tumors grow, or in engineering, when designing expanding or contracting materials!
