Understanding Molecular Geometry: A High School Guide
Lilly Johnson
@lilly_vermillion
1 / 3

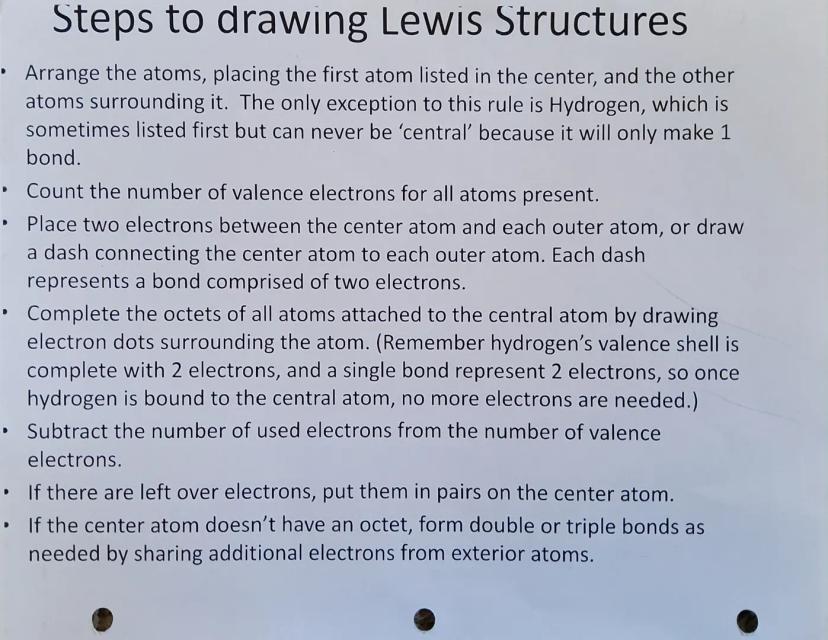

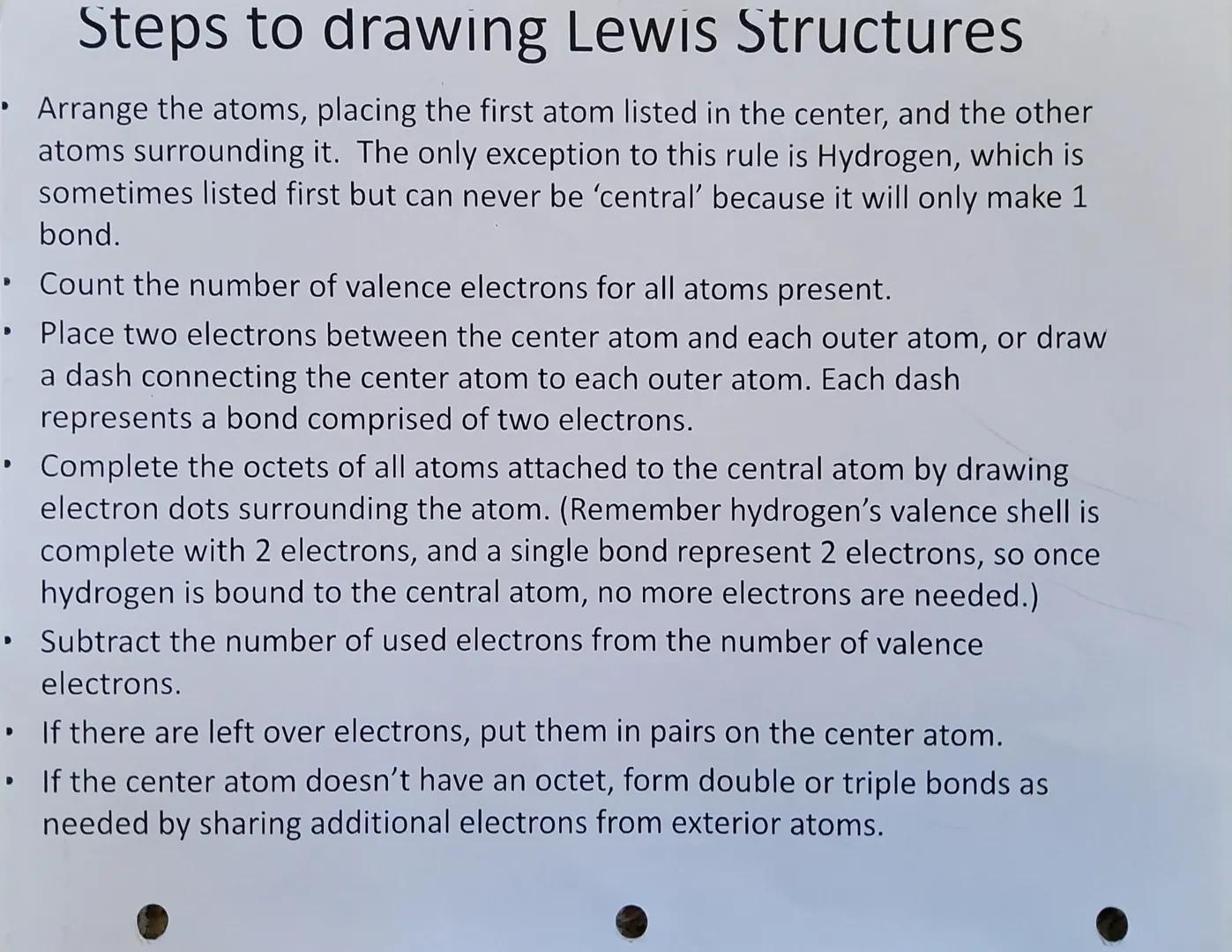

Drawing Lewis Structures
Creating Lewis structures helps visualize how electrons are arranged in molecules. Start by placing the first atom in the center (except hydrogen, which can never be central since it forms only one bond).
Count the total valence electrons for all atoms present, then place two electrons (or a dash) between the central atom and each outer atom to represent bonds. Complete the octets of all outer atoms by adding electron dots around them. Remember that hydrogen only needs two electrons to complete its valence shell.
After allocating electrons to outer atoms, subtract the used electrons from the total valence electrons. Any remaining electrons should be placed as lone pairs on the central atom. If the central atom still lacks an octet, form double or triple bonds by sharing additional electrons from exterior atoms.
💡 Quick Tip: When drawing complex molecules, always satisfy outer atoms' octets first before completing the central atom's octet!
This systematic approach ensures you'll correctly represent the electron distribution and bonding in molecules, which directly relates to their geometric structure.

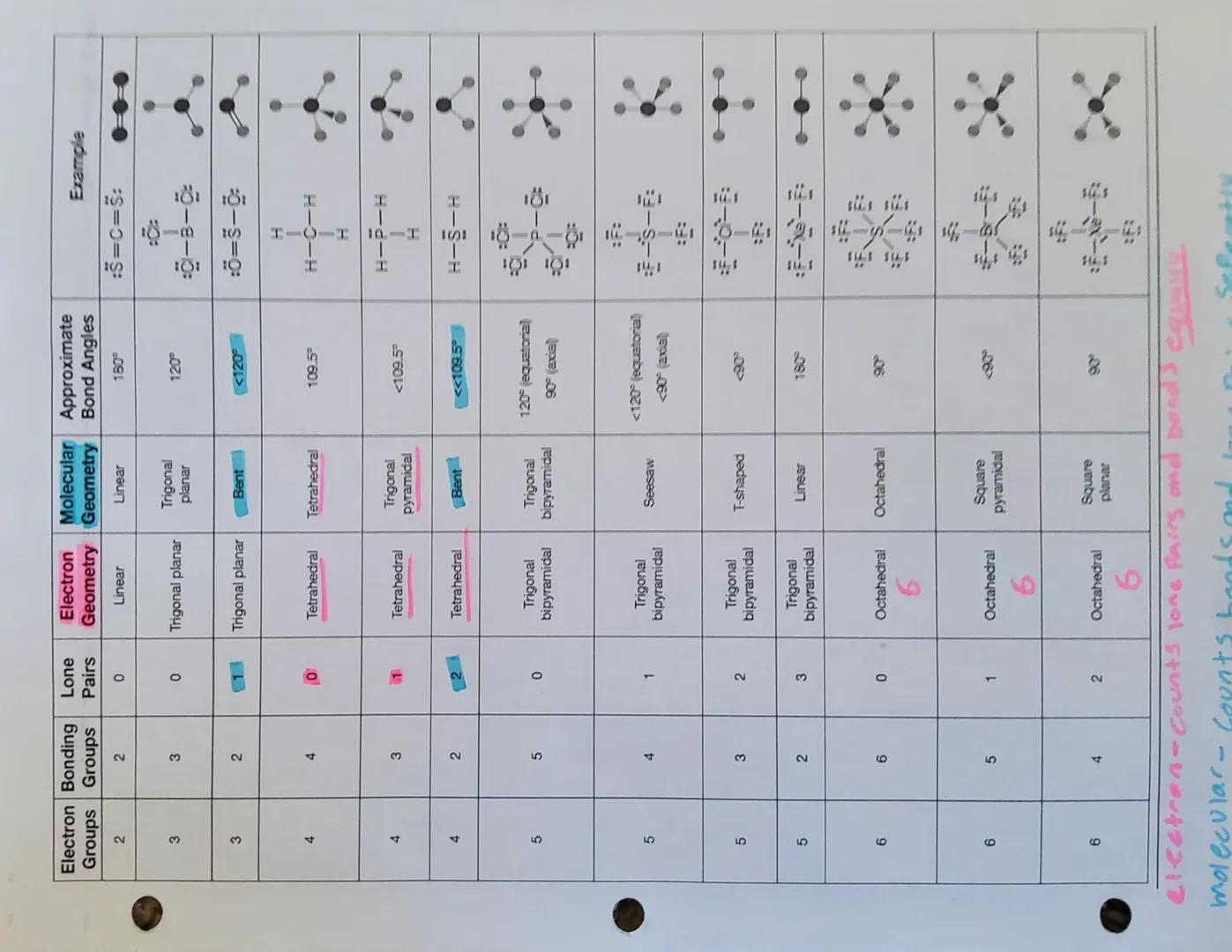

Molecular Geometry Chart
The shape of a molecule depends on both its electron groups and the presence of lone pairs. Electron geometry considers all electron groups, while molecular geometry describes only the arrangement of atoms.
When electrons repel each other, they create predictable arrangements that minimize repulsion. For example, with 2 electron groups, molecules form a linear shape with 180° bond angles (like CO₂). With 3 electron groups and no lone pairs, molecules adopt a trigonal planar arrangement with 120° angles.
Lone pairs significantly affect molecule shape. A molecule with 4 electron groups but 1 lone pair creates a trigonal pyramidal structure (like NH₃) rather than tetrahedral, with bond angles less than 109.5°. Similarly, a molecule with 2 lone pairs forms a bent structure (like H₂O).
💡 Remember: Lone pairs take up more space than bonding pairs, which causes bond angles to decrease from their ideal values!
As electron groups increase to 5 or 6, more complex geometries emerge, including trigonal bipyramidal and octahedral arrangements. The presence of lone pairs in these structures creates specialized shapes like seesaw, T-shaped, and square pyramidal.

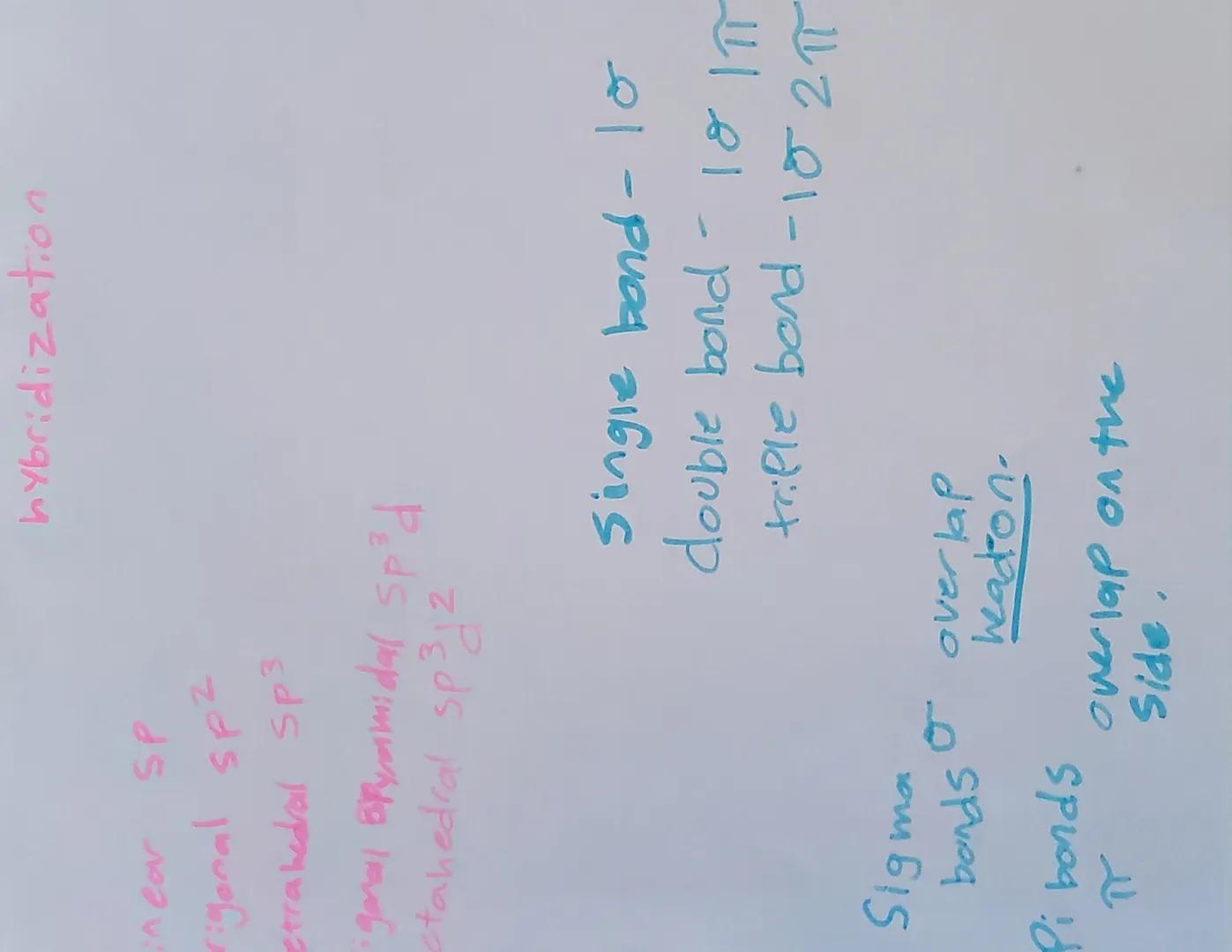

Hybridization and Bond Types
Hybridization explains how atomic orbitals combine to form new hybrid orbitals for bonding. Different molecular geometries correspond to specific hybridization types: linear molecules use sp hybridization, trigonal planar use sp², tetrahedral use sp³, trigonal bipyramidal use sp³d, and octahedral structures use sp³d².
Bonds between atoms come in two main types: sigma (σ) and pi (π) bonds. Sigma bonds form when orbitals overlap head-on, creating the primary framework of all single bonds. A single bond consists of one sigma bond, a double bond has one sigma and one pi bond, while a triple bond contains one sigma and two pi bonds.
Pi bonds form when orbitals overlap side-by-side, occurring only in multiple bonds. These bonds are generally weaker than sigma bonds because the sideways overlap isn't as strong as the direct head-on overlap in sigma bonds.
💡 Visualization Tip: Think of sigma bonds as the "backbone" of molecular structure, while pi bonds are like "side attachments" that strengthen connections between atoms!
The combination of hybridization and bond types ultimately determines both the shape and strength of molecular connections.
