Fluid pressure and buoyancy might seem like complicated physics concepts,...
AP Physics 1176 views·Updated Aug 13, 2026·3 pagesAP Physics 2: Fluid Pressure, Buoyancy, and Principles Explained
1 / 3
1
of 3

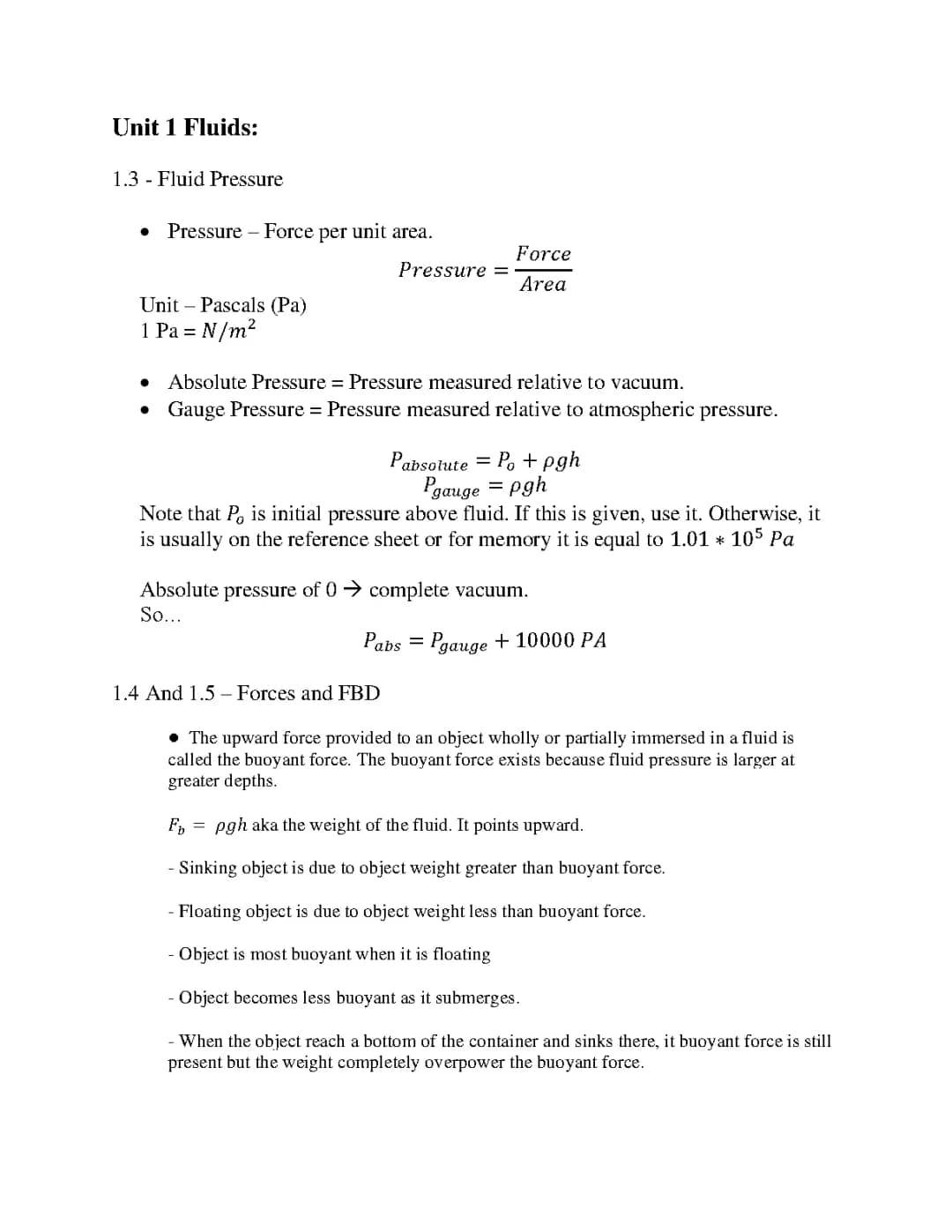

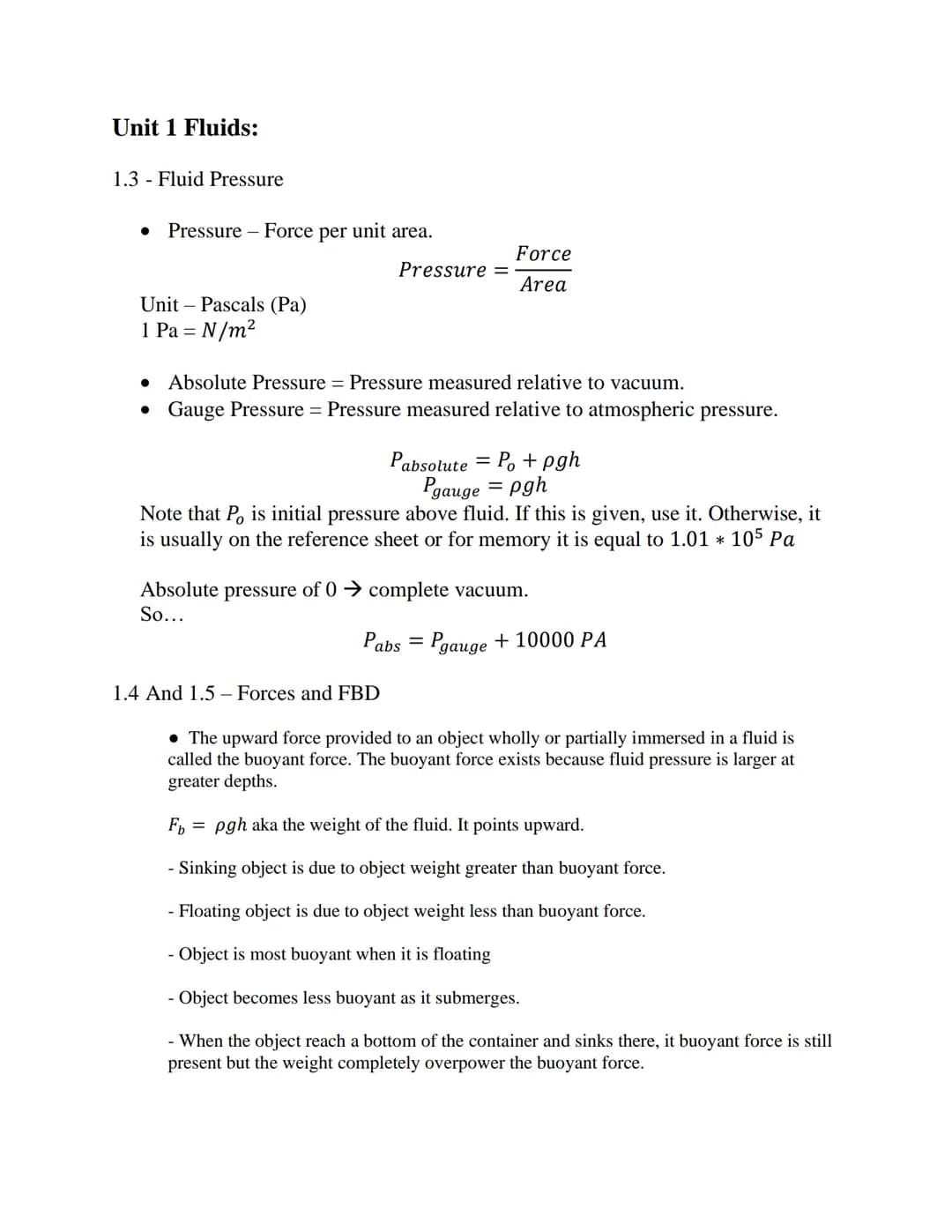

Fluid Pressure Basics
Ever wonder why your ears hurt when you dive deep in a pool? That's fluid pressure in action! Pressure is simply force spread over an area, measured in Pascals (Pa).
There are two main types of pressure you need to know. Absolute pressure measures pressure compared to a complete vacuum (like outer space). Gauge pressure measures pressure compared to the air pressure around us.
Here's the key formula: Pabsolute = Po + ρgh, where Po is the initial pressure above the fluid. For gauge pressure, it's just Pgauge = ρgh. The deeper you go in any fluid, the more pressure you feel!
Quick Tip: Atmospheric pressure is about 1.01 × 10⁵ Pa - that's the weight of all the air above us pressing down!
2
of 3

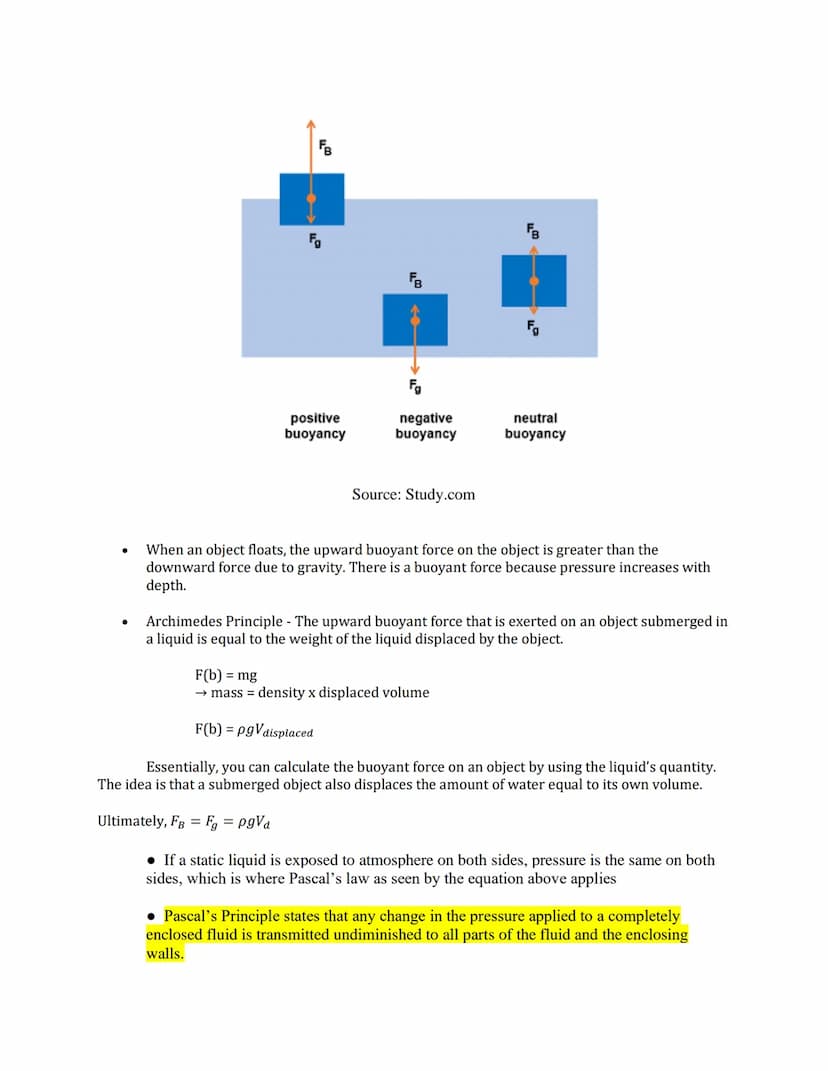

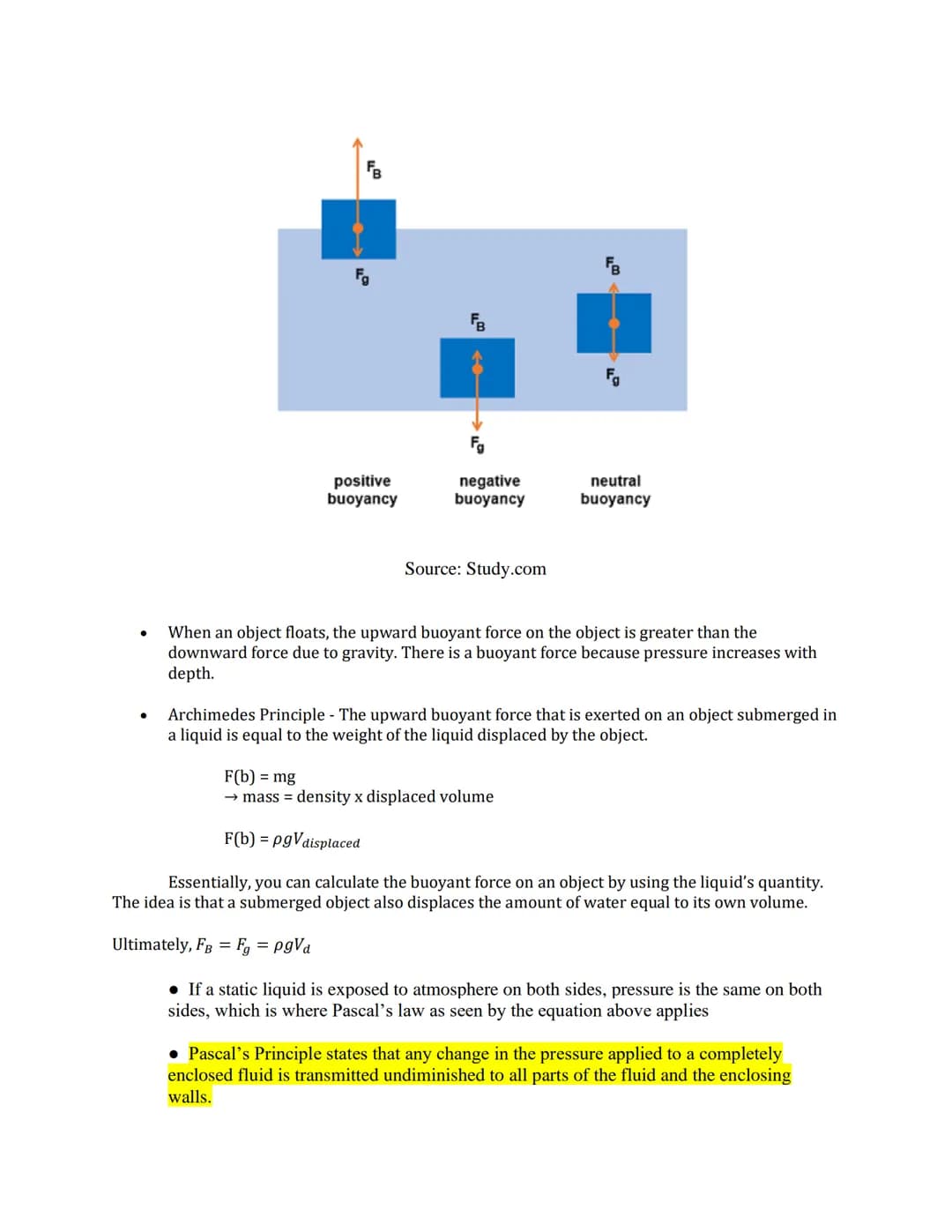

Buoyancy and Archimedes' Principle
Why do some objects float while others sink? It's all about the buoyant force - the upward push that fluids give to objects. This happens because pressure increases with depth, creating more force on the bottom of an object than the top.
Archimedes' Principle gives us the secret: the buoyant force equals the weight of the fluid that gets displaced (pushed out of the way). The formula is FB = ρgVdisplaced, where you use the fluid's density, not the object's density.
Here's how it works in real life: if the buoyant force is stronger than the object's weight, it floats (positive buoyancy). If the object weighs more, it sinks (negative buoyancy). When they're equal, the object hovers (neutral buoyancy) - like a submarine underwater!
Remember: A floating object displaces exactly enough fluid to equal its own weight - that's why ice cubes don't overflow your drink!
3
of 3

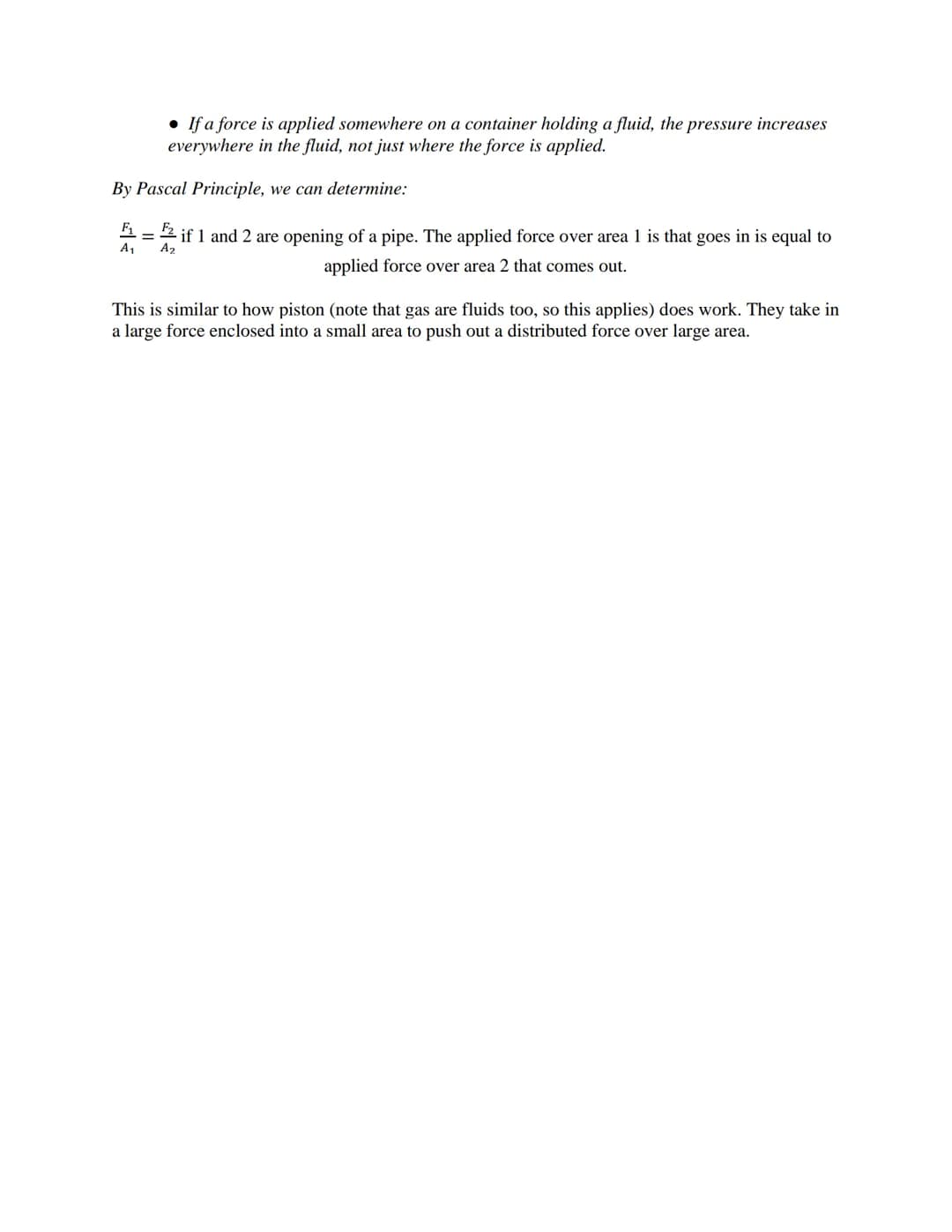

Pascal's Principle and Hydraulics
Here's something cool: when you squeeze a water bottle, the pressure increases everywhere inside, not just where you're pushing. That's Pascal's Principle - any pressure change in an enclosed fluid spreads equally throughout the entire fluid.
This principle powers amazing machines like hydraulic car lifts and brakes. The math is simple: F₁/A₁ = F₂/A₂. A small force applied to a small area can create a huge force over a large area.
Think about it this way - hydraulic systems are like mechanical advantage machines for fluids. You can push down hard on a small piston to lift something really heavy with a larger piston. It's the same reason why car brakes work so effectively when you press the brake pedal!
Real World Connection: Every time you use a hydraulic car jack or press your car's brake pedal, you're using Pascal's Principle to multiply force!
