Electric Fields Study Notes with Diagrams
I
Isabella
@isabella_qftg
1 / 4
Understanding Electric Fields
Ever wondered why your hair stands up when you touch a Van de Graaff generator? That's electric fields in action! An electric field is simply a region where charged objects can attract or repel other charges - it's like an invisible force zone around any charged particle.

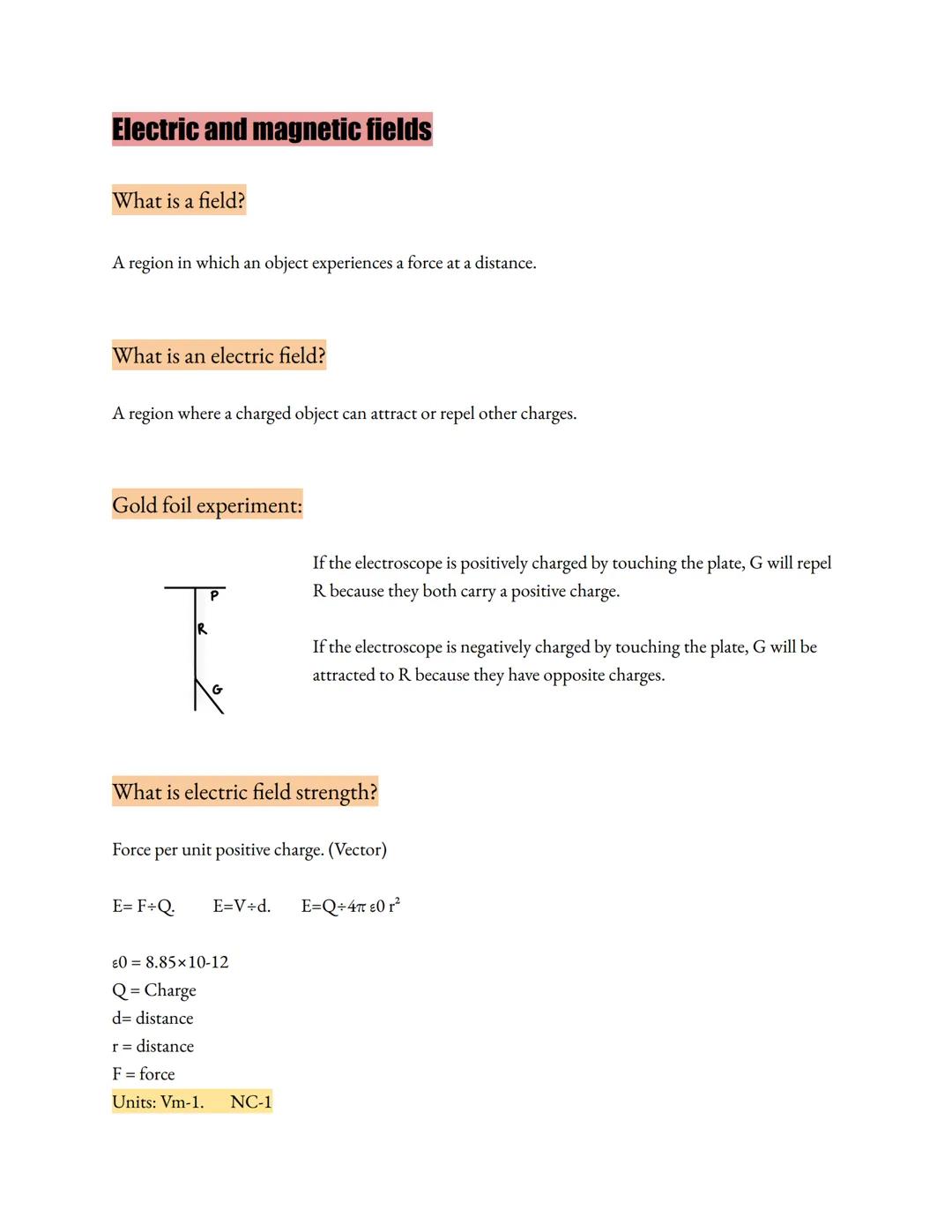

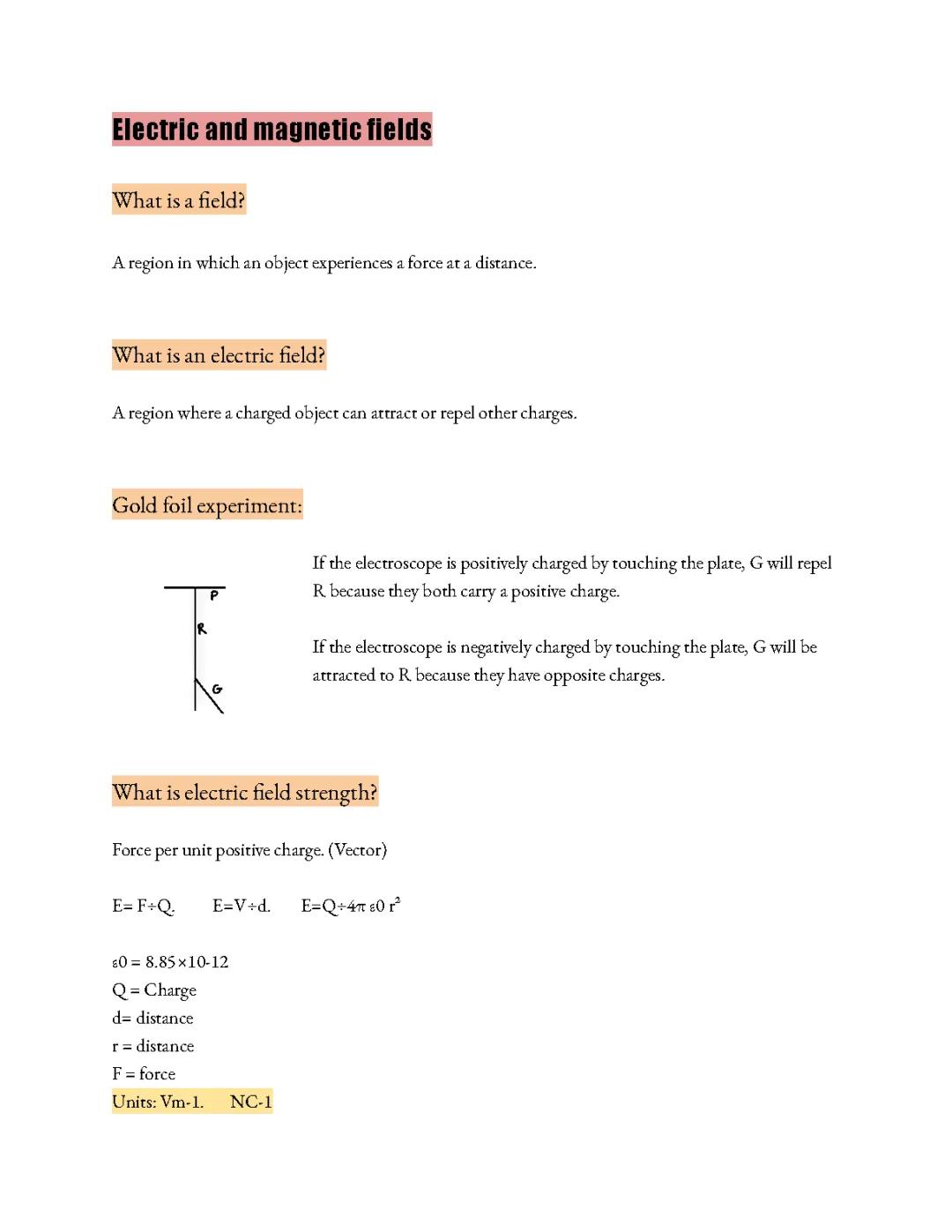

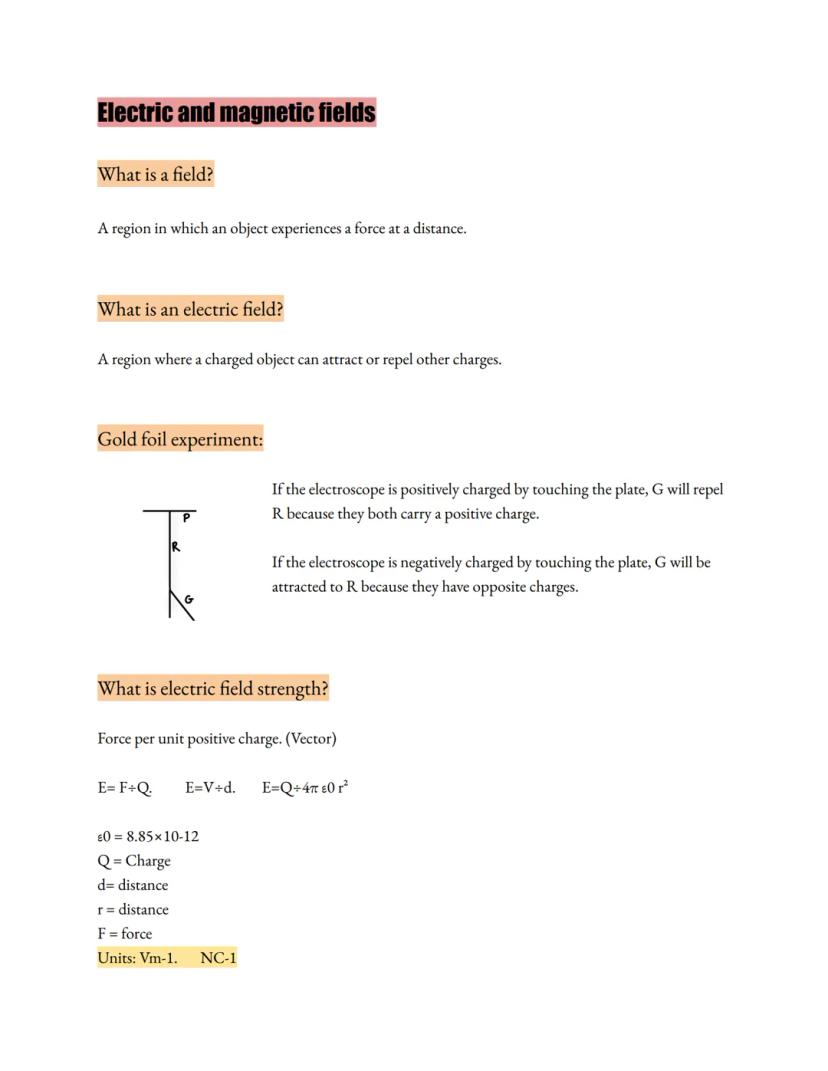

The gold foil experiment demonstrates this perfectly. When you charge an electroscope positively and bring it near another positive charge, they repel each other. Bring opposite charges together, and they attract. It's that simple!
Electric field strength measures how strong this invisible force is. You can calculate it three different ways: E = F ÷ Q (force per unit charge), E = V ÷ d (voltage over distance), or E = Q ÷ 4πε₀r² for point charges. The units are either V m⁻¹ or N C⁻¹ - both mean the same thing.
Quick Tip: Think of electric field strength like measuring how "pushy" the invisible force is around a charged object.
Drawing Electric Fields and Coulomb's Law

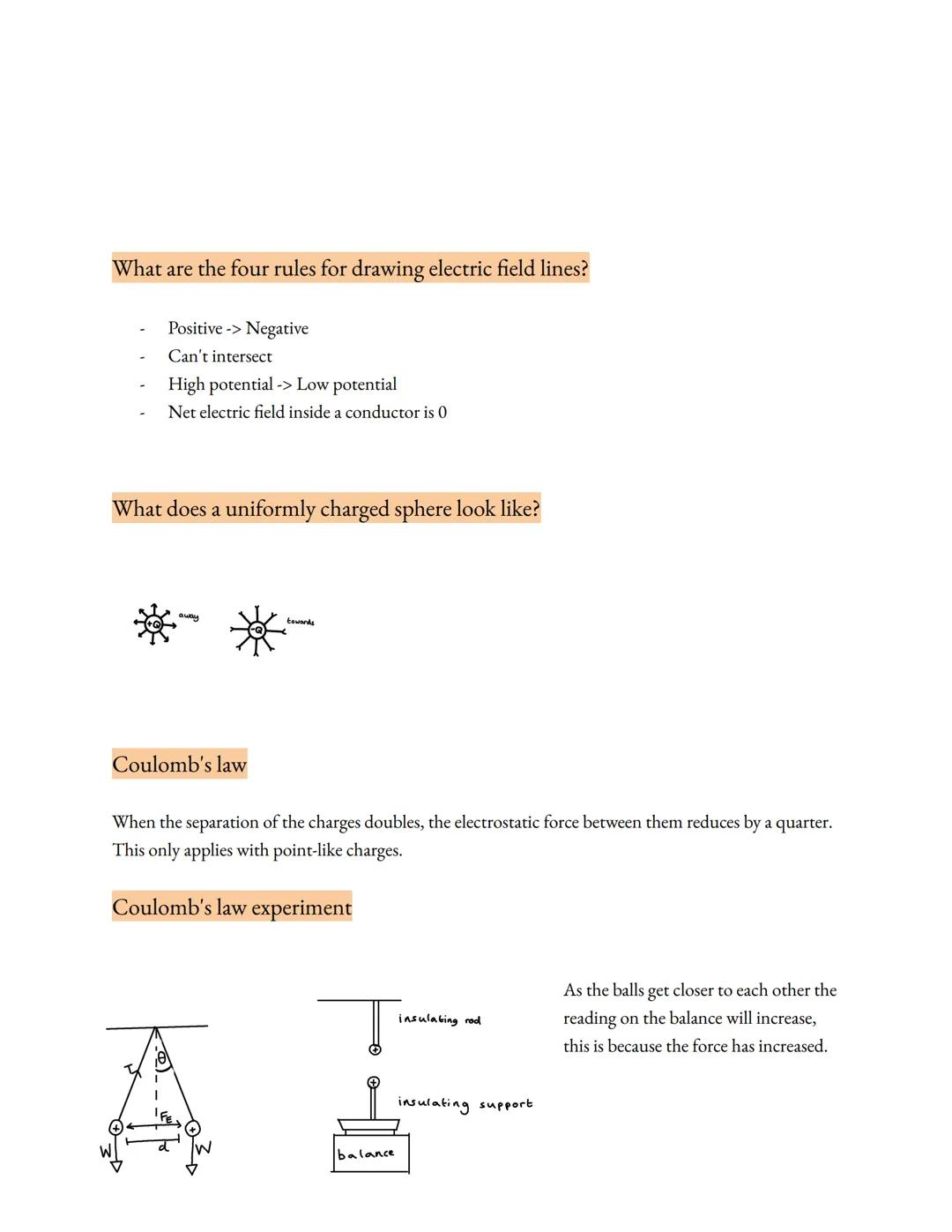

Drawing electric field lines follows four simple rules that you absolutely need to remember for exams. Lines always go from positive to negative charges, they never intersect (imagine trying to walk in two directions at once!), they flow from high to low potential, and inside conductors, the net electric field is always zero.
For a uniformly charged sphere, the field lines look like spokes on a bicycle wheel - radiating outward if positive, pointing inward if negative. This pattern is crucial for understanding how charges distribute themselves.
Coulomb's law reveals something fascinating about electric forces. When you double the distance between two charges, the force between them doesn't just halve - it drops to a quarter of its original strength! This inverse square relationship appears everywhere in physics.
Exam Focus: Remember that Coulomb's law only works for point-like charges - not extended objects like charged rods or plates.
Electric Potential and Uniform Fields

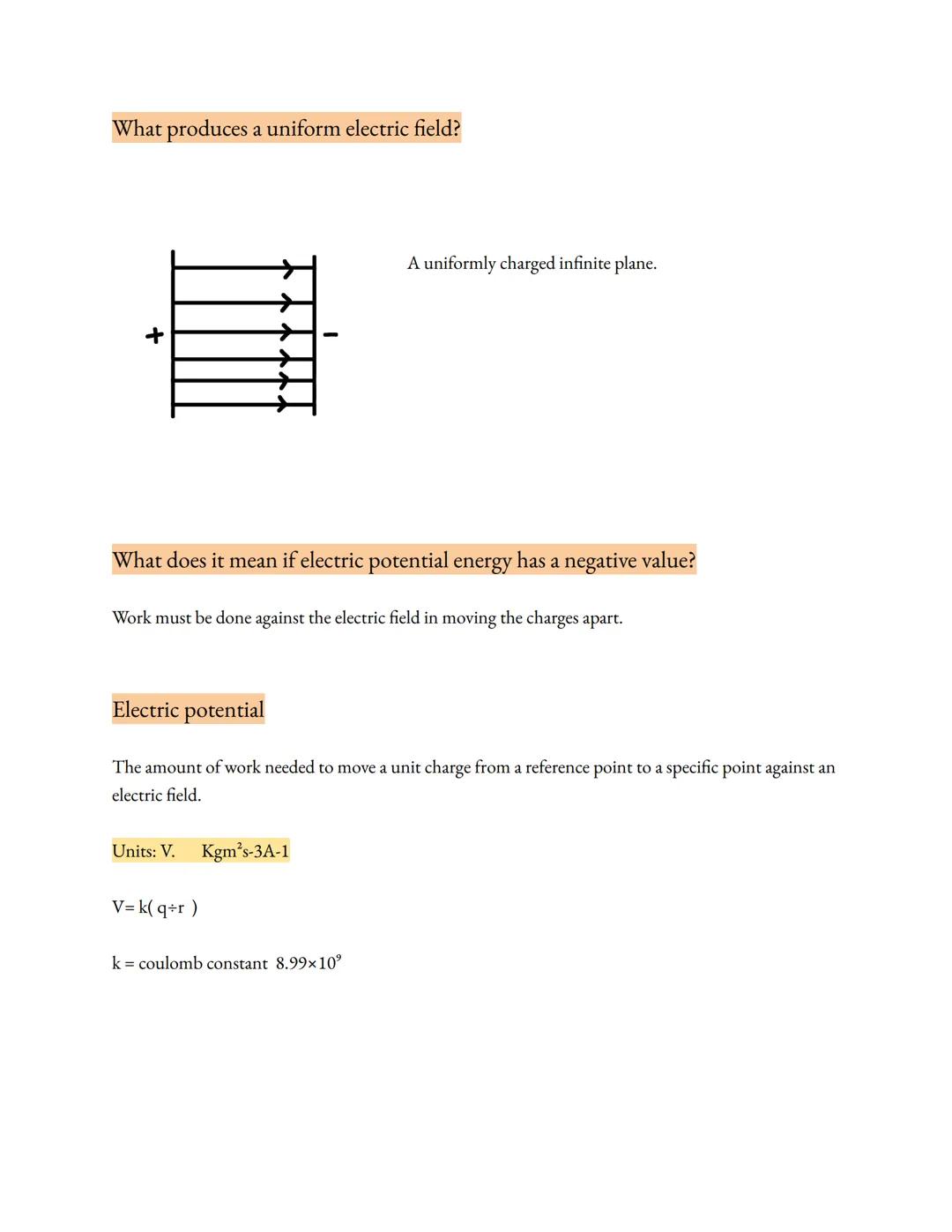

Want to create a perfectly uniform electric field? You need a uniformly charged infinite plane (or in reality, two parallel plates). Unlike the radiating field around a point charge, this creates perfectly straight, parallel field lines with constant strength.
Electric potential might sound complex, but it's just measuring energy per unit charge. Think of it like gravitational potential energy - the higher you go, the more potential energy you have. With electric charges, the further you move against the field, the more electric potential energy builds up.
When electric potential energy has a negative value, it means you'd need to do work against the electric field to separate the charges. It's like trying to pull two magnets apart - you have to fight against their natural attraction.
The formula V = k(q ÷ r) tells you the potential at any distance from a point charge, where k is Coulomb's constant (8.99 × 10⁹).
Memory Trick: Electric potential is like climbing a hill against gravity - the higher you go against the field, the more potential energy you gain.
Electric Potential Difference

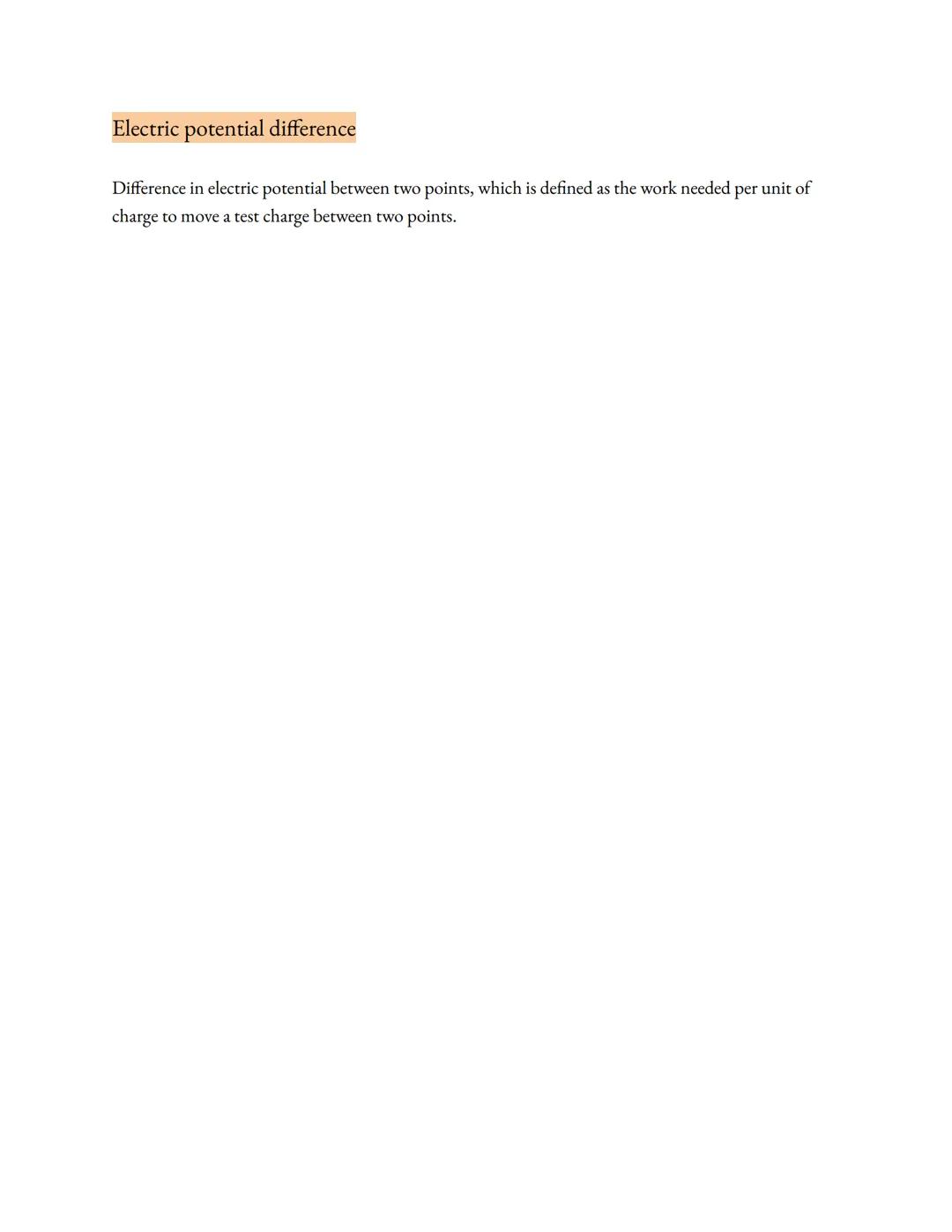

Electric potential difference is what we commonly call voltage - it's the energy difference between two points in an electric field. This concept is absolutely fundamental because it drives all electrical circuits and devices you use daily.
Think of it like the height difference between two points on a hill. Just as water naturally flows from higher to lower ground, electric charges naturally move from higher to lower potential. The bigger the potential difference, the stronger the "push" on the charges.
This potential difference is defined as the work needed per unit charge to move a test charge between two points. It's what makes your phone battery work, powers your home, and creates the spark when you touch a metal door handle after walking on carpet.
Real-World Connection: Every time you plug in a device, you're using electric potential difference - the mains voltage of 230V means there's a 230-joule energy difference per coulomb of charge.
