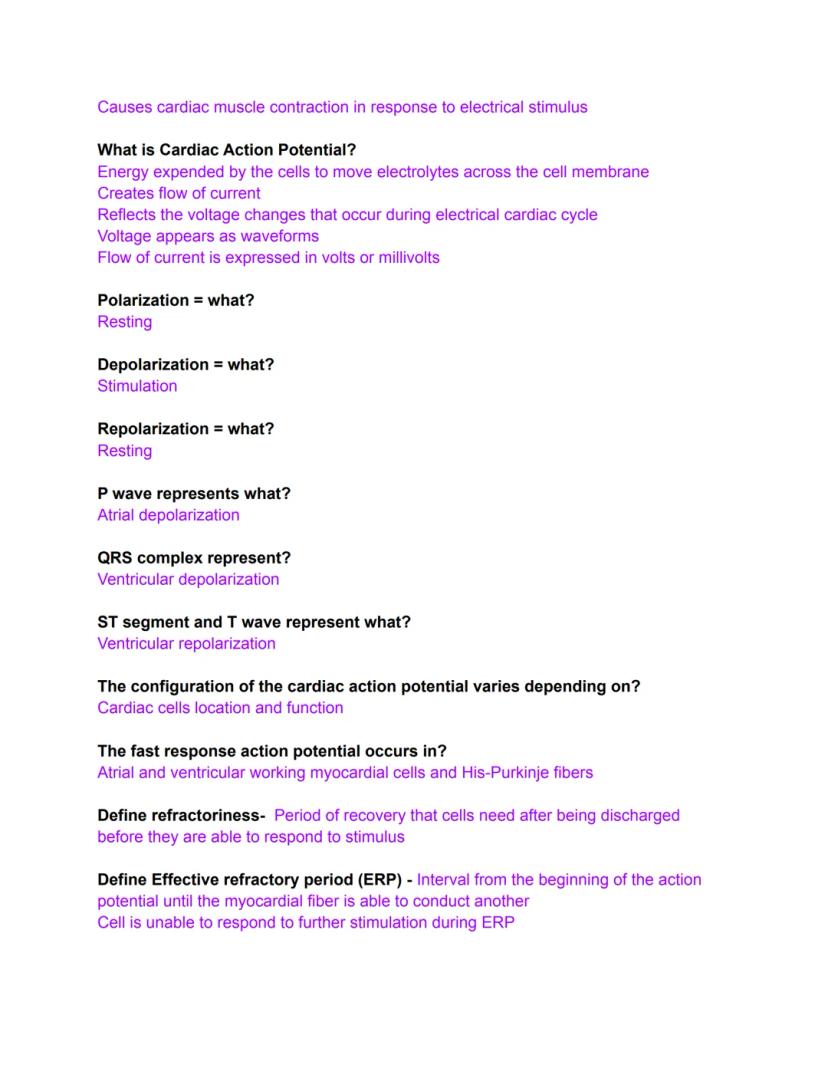

Page 2

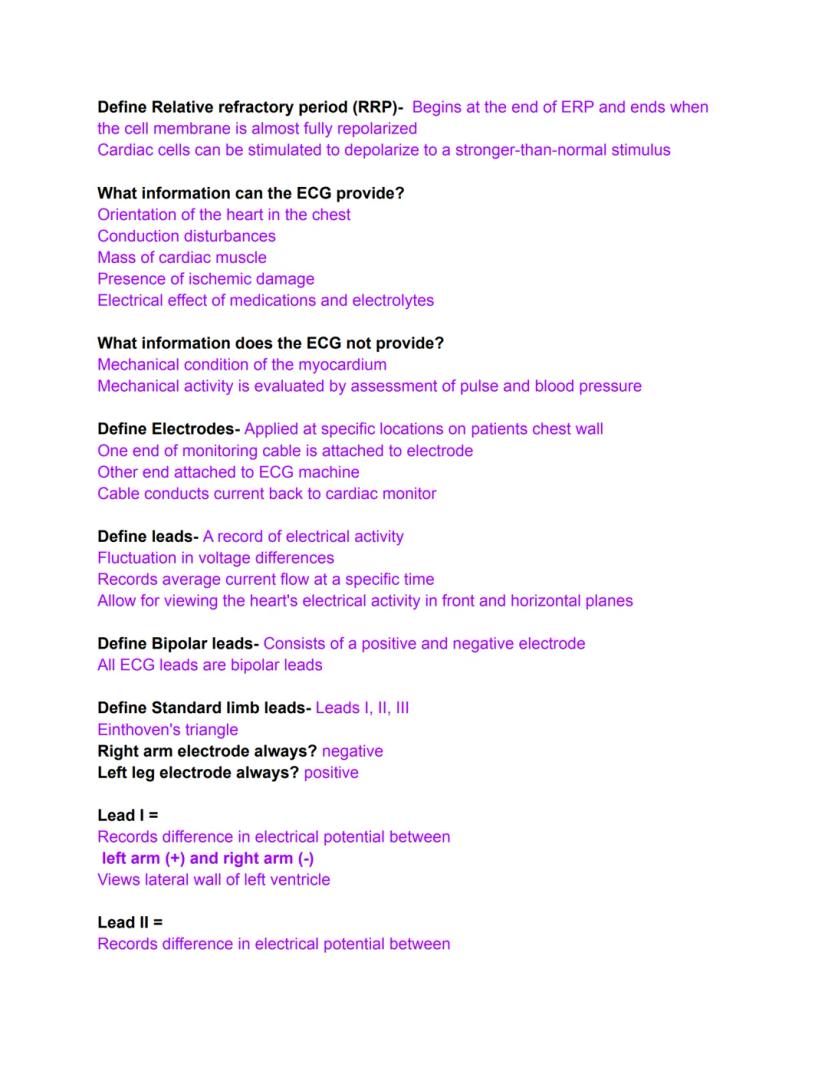

Page 3

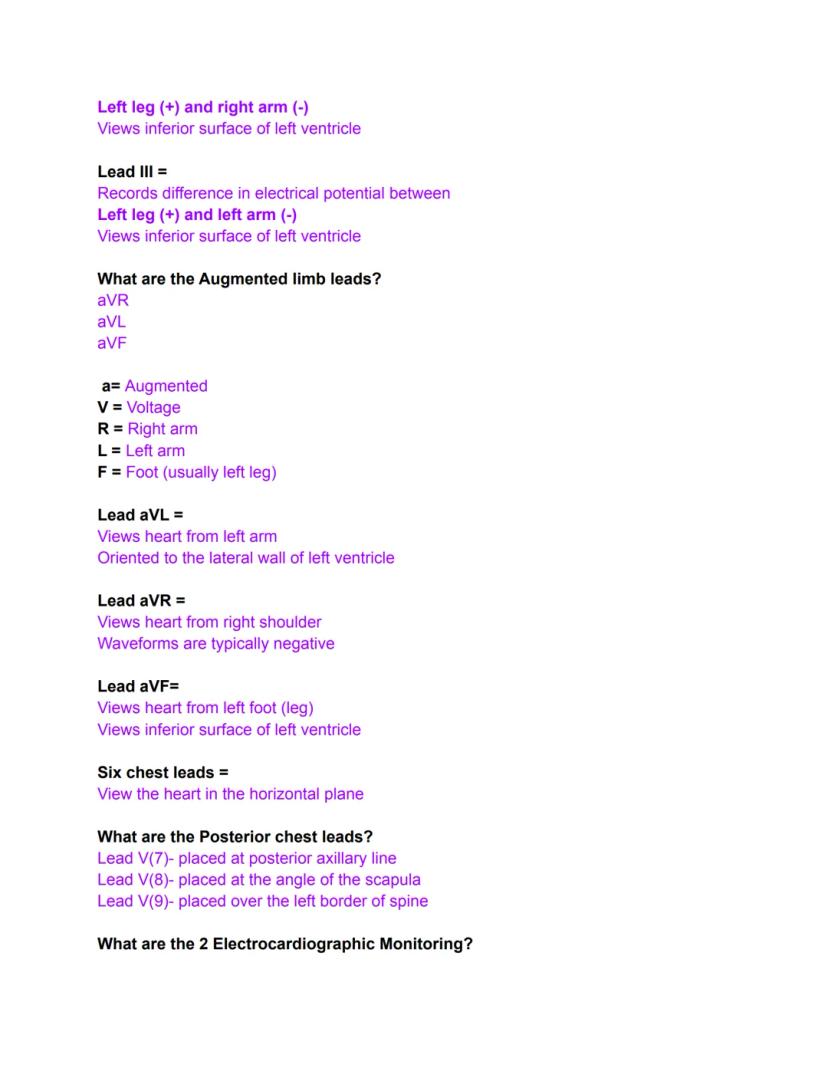

Page 4

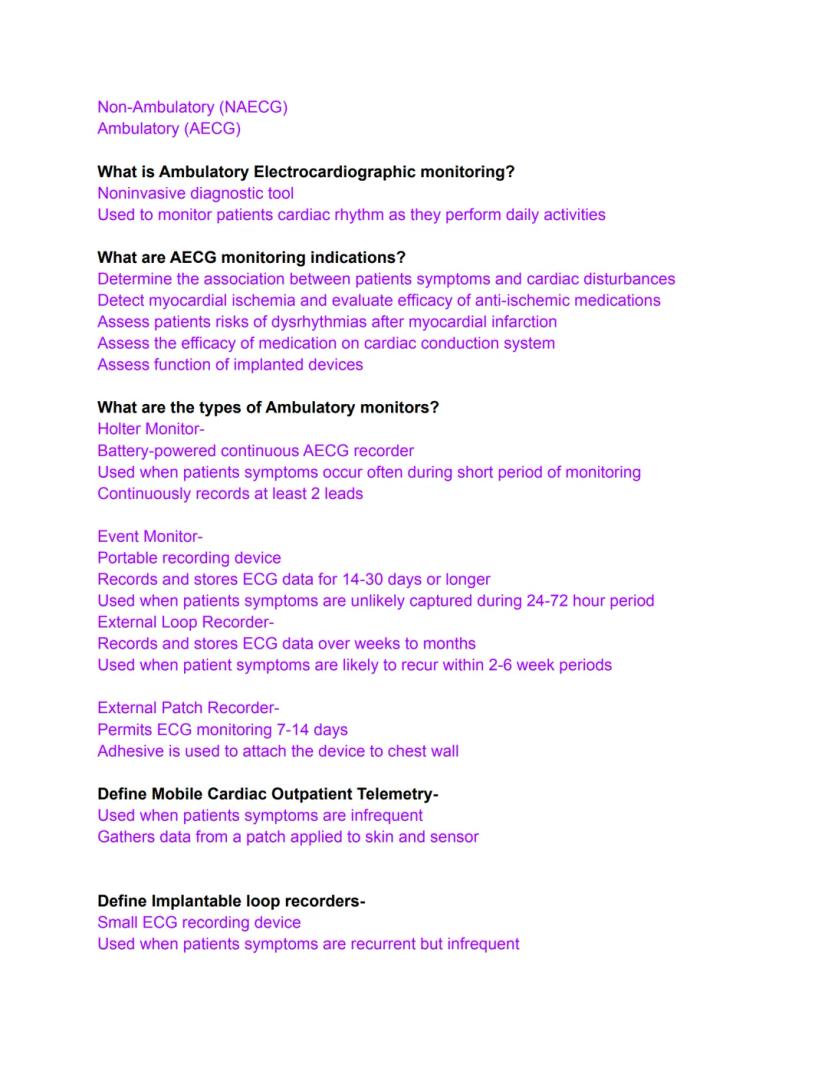

Page 5

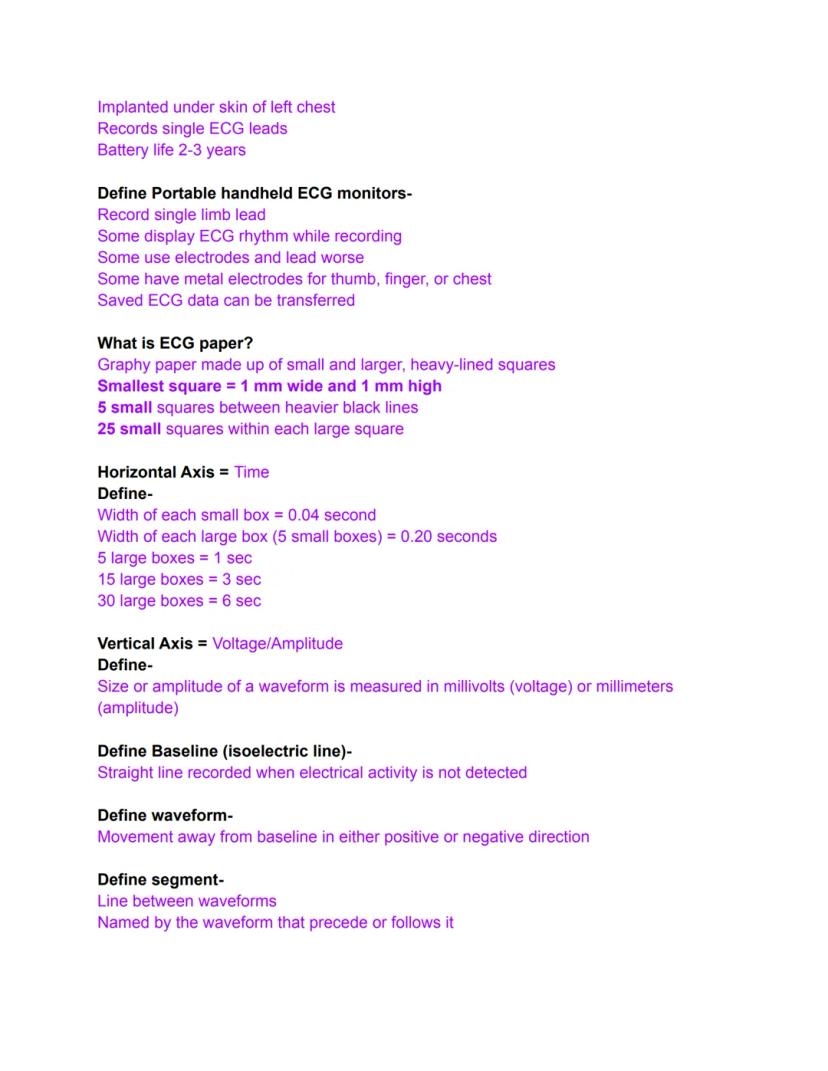

Page 6
Page 7
Page 8
Page 9
1 / 9

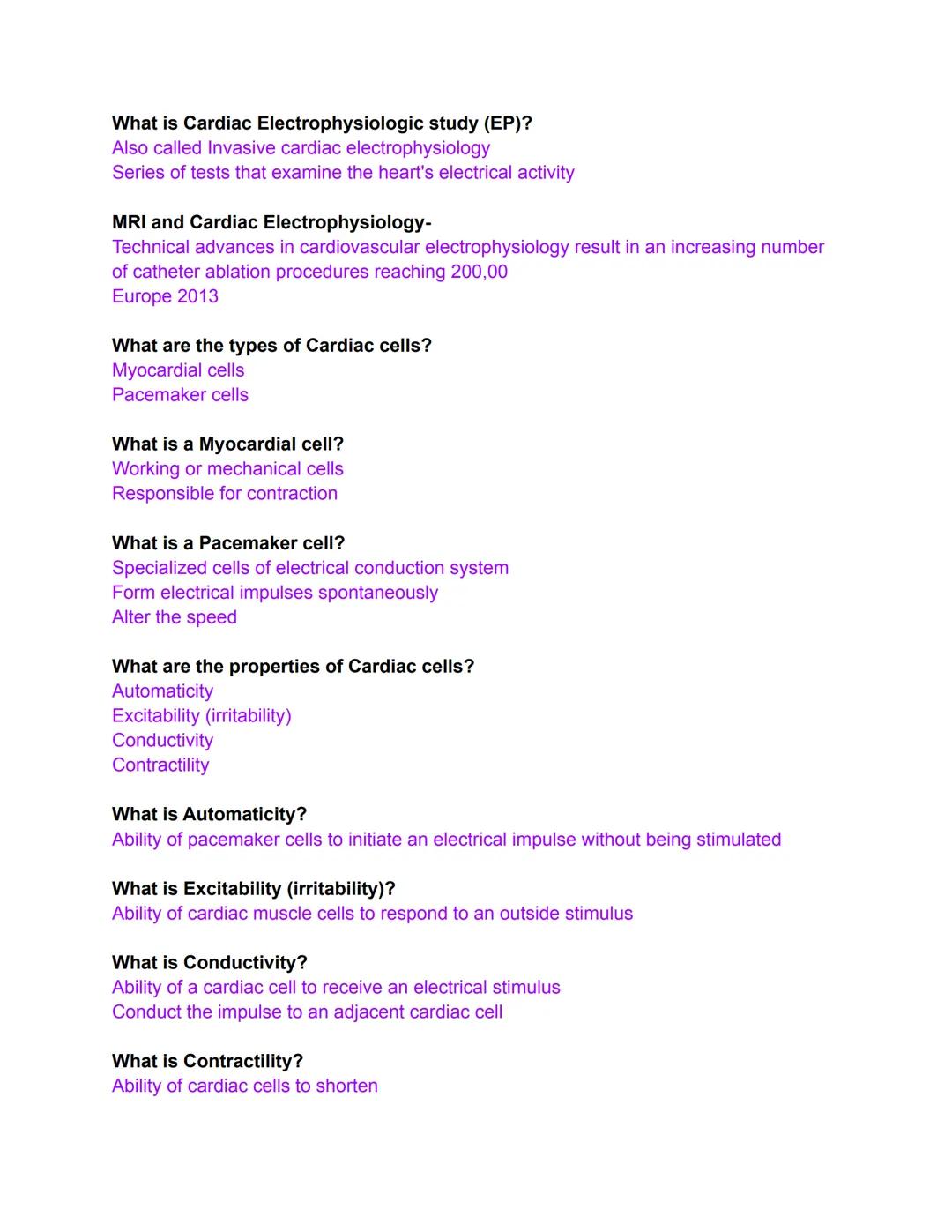

What is Cardiac Electrophysiologic study (EP)?
Also called Invasive cardiac electrophysiology
Series of tests that examine the heart's elect

Cardiac Cells and Their Properties

Ever wondered what makes your heart beat without you having to think about it? It's all about cardiac electrophysiology (EP), which examines your heart's electrical activity through specialized tests.

Your heart contains two main types of cells. Myocardial cells are the working cells responsible for contraction, while pacemaker cells are specialized cells that form electrical impulses spontaneously and control the heart's rhythm.

Cardiac cells have four key properties. Automaticity is the ability of pacemaker cells to create electrical impulses without outside stimulation. Excitability allows cardiac muscle cells to respond to stimuli, while conductivity enables them to receive and pass electrical signals to neighboring cells. Finally, contractility is their ability to shorten, creating the muscle contractions that pump blood.

💡 Did You Know? Over 200,000 catheter ablation procedures (a treatment for heart rhythm problems) were performed in Europe in 2013 alone, showing how important understanding cardiac electricity has become!

What is Cardiac Electrophysiologic study (EP)?
Also called Invasive cardiac electrophysiology
Series of tests that examine the heart's elect

Cardiac Action Potential and Electrical Phases

The heart's electrical activity creates a measurable signal called the cardiac action potential. This energy moves electrolytes across cell membranes, creating current flow that appears as waveforms on an ECG.

The electrical cycle has three main phases. Polarization is the resting state, depolarization occurs during stimulation, and repolarization is when the cell returns to resting. On an ECG, you'll see these as distinct waves: the P wave (atrial depolarization), the QRS complex (ventricular depolarization), and the ST segment and T wave (ventricular repolarization).

After being stimulated, cardiac cells need recovery time called refractoriness. The Effective Refractory Period (ERP) is when cells absolutely cannot respond to stimulation. The Relative Refractory Period (RRP) follows, when cells might respond, but only to stronger-than-normal stimuli.

🔍 Key Insight: The configuration of the cardiac action potential varies depending on cell location and function. Fast response action potentials occur in atrial and ventricular working myocardial cells and His-Purkinje fibers.

What is Cardiac Electrophysiologic study (EP)?
Also called Invasive cardiac electrophysiology
Series of tests that examine the heart's elect

ECG Basics and Electrodes

An ECG provides valuable information about your heart's electrical activity. It can show the orientation of your heart in your chest, identify conduction problems, assess muscle mass, detect damage from lack of oxygen, and reveal how medications and electrolytes affect your heart electrically.

However, an ECG has limitations. It doesn't directly show the mechanical condition of your heart muscle - that requires checking pulse and blood pressure.

To record an ECG, electrodes are placed at specific locations on your chest. These connect to an ECG machine via cables that conduct current. The resulting leads record the electrical activity as voltage differences, allowing doctors to view your heart's electrical activity from different angles.

Remember This: While ECGs show electrical activity, they don't show mechanical function. Your heart might be electrically active but not pumping effectively!

What is Cardiac Electrophysiologic study (EP)?
Also called Invasive cardiac electrophysiology
Series of tests that examine the heart's elect

ECG Leads and What They Show

ECG leads work like different cameras capturing your heart's electrical activity from various angles. Standard limb leads (I, II, III) form Einthoven's triangle, with the right arm electrode always negative and left leg electrode always positive.

Lead I records between left arm (+) and right arm (-), viewing the lateral wall of your left ventricle. Lead II records between left leg (+) and right arm (-), showing the inferior surface. Lead III records between left leg (+) and left arm (-), also viewing the inferior surface.

The augmented limb leads (aVR, aVL, aVF) provide additional perspectives. aVL views from the left arm toward the lateral wall, aVR from the right shoulder (usually showing negative waveforms), and aVF from the left foot/leg toward the inferior surface.

📝 Quick Tip: Think of leads as different camera angles around your heart. Each lead captures a unique view, helping doctors spot problems that might only be visible from certain directions.

What is Cardiac Electrophysiologic study (EP)?
Also called Invasive cardiac electrophysiology
Series of tests that examine the heart's elect

Ambulatory ECG Monitoring

Ambulatory electrocardiographic monitoring (AECG) lets doctors track your heart rhythm while you go about daily activities. This non-invasive tool helps connect your symptoms to actual cardiac disturbances.

Doctors use AECG to detect several issues: linking symptoms to heart rhythm problems, identifying oxygen deprivation (ischemia), assessing risks after heart attacks, evaluating how medications affect your heart's electrical system, and checking implanted device function.

Several types of monitors exist for different situations. A Holter monitor records continuously for 24-72 hours when symptoms occur frequently. Event monitors record for 14-30 days when symptoms are less common. External loop recorders monitor for weeks to months, while external patch recorders work for 7-14 days using an adhesive attachment.

🔄 Monitoring Options: Your doctor will choose the right monitor based on how often your symptoms occur. Infrequent symptoms might require an implantable loop recorder that can monitor for 2-3 years!

What is Cardiac Electrophysiologic study (EP)?
Also called Invasive cardiac electrophysiology
Series of tests that examine the heart's elect

ECG Paper and Measurements

ECG paper isn't just ordinary graph paper – it's specifically designed to measure time and voltage. The paper has small squares (1mm × 1mm) and larger, heavy-lined squares (5mm × 5mm) that help interpret the readings.

On the horizontal axis (time), each small box represents 0.04 seconds, while each large box equals 0.20 seconds. This means 5 large boxes equal 1 second, and 30 large boxes represent 6 seconds of heart activity.

The vertical axis measures voltage (amplitude) in millivolts or millimeters. When looking at an ECG, you'll see the baseline (isoelectric line) – a straight line when no electrical activity is detected. Waveforms are movements away from this baseline, while segments are lines between waveforms. Multiple waveforms together form a complex.

⏱️ Time Check: When analyzing an ECG, the horizontal measurements tell you how fast events are happening, while vertical measurements show how strong the electrical signals are. Both are crucial for proper interpretation!

What is Cardiac Electrophysiologic study (EP)?
Also called Invasive cardiac electrophysiology
Series of tests that examine the heart's elect

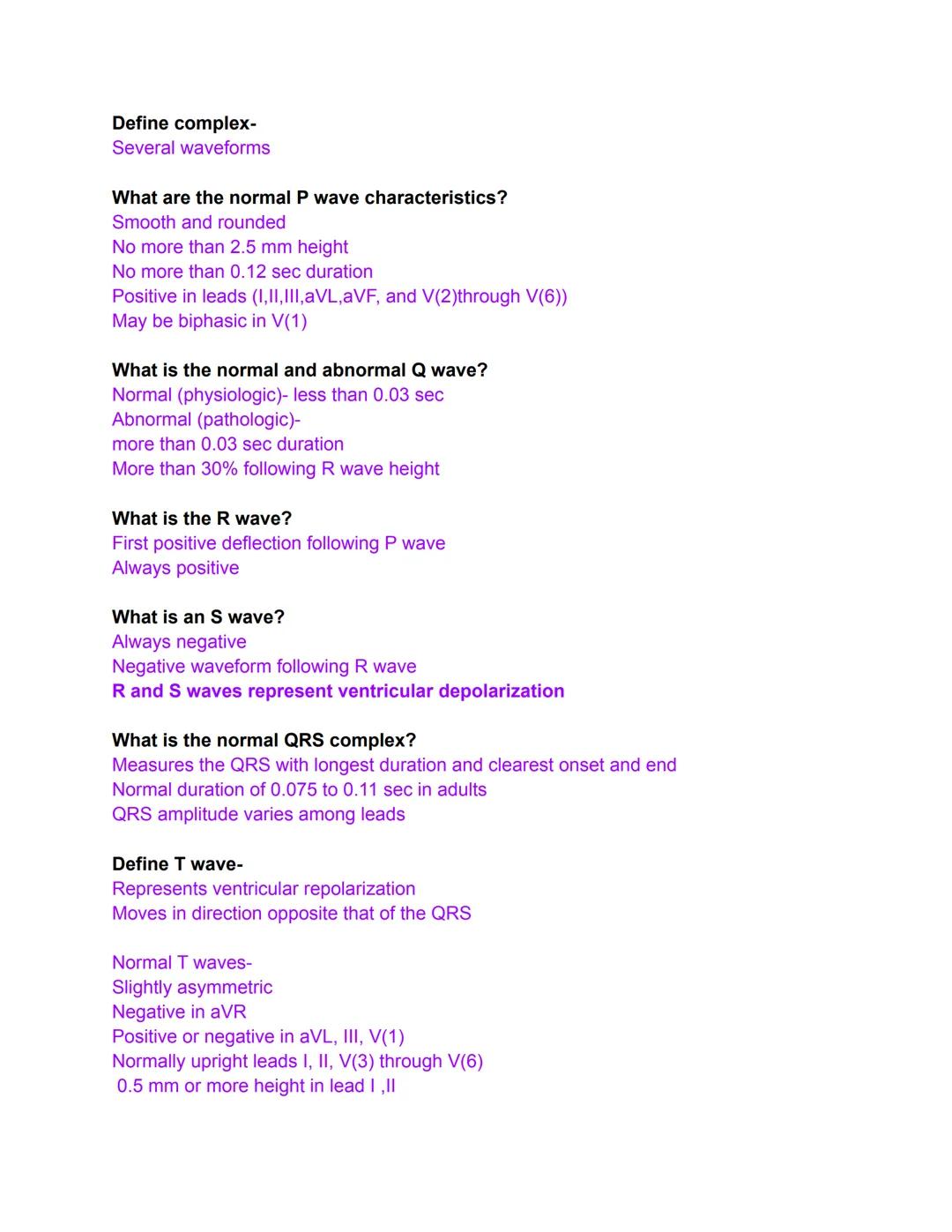

Normal ECG Waveforms

The P wave, representing atrial depolarization, should be smooth and rounded, less than 2.5mm in height and lasting less than 0.12 seconds. It's usually positive in most leads but may be biphasic (both positive and negative) in V1.

Q waves can be normal (physiologic) when less than 0.03 seconds, but abnormal (pathologic) when longer than 0.03 seconds or more than 30% of the following R wave's height. The R wave is the first positive deflection after the P wave and is always positive, while the S wave is always negative and follows the R wave. Together, the R and S waves represent ventricular depolarization.

A normal QRS complex has a duration of 0.075 to 0.11 seconds in adults, though its amplitude varies among leads. The T wave represents ventricular repolarization and typically moves in the opposite direction of the QRS. Normal T waves are slightly asymmetric and positive in most leads.

Wave Recognition: Learning to recognize normal waveform patterns is essential for spotting abnormalities. The shape, direction, and timing of each wave tells part of the heart's electrical story!

What is Cardiac Electrophysiologic study (EP)?
Also called Invasive cardiac electrophysiology
Series of tests that examine the heart's elect

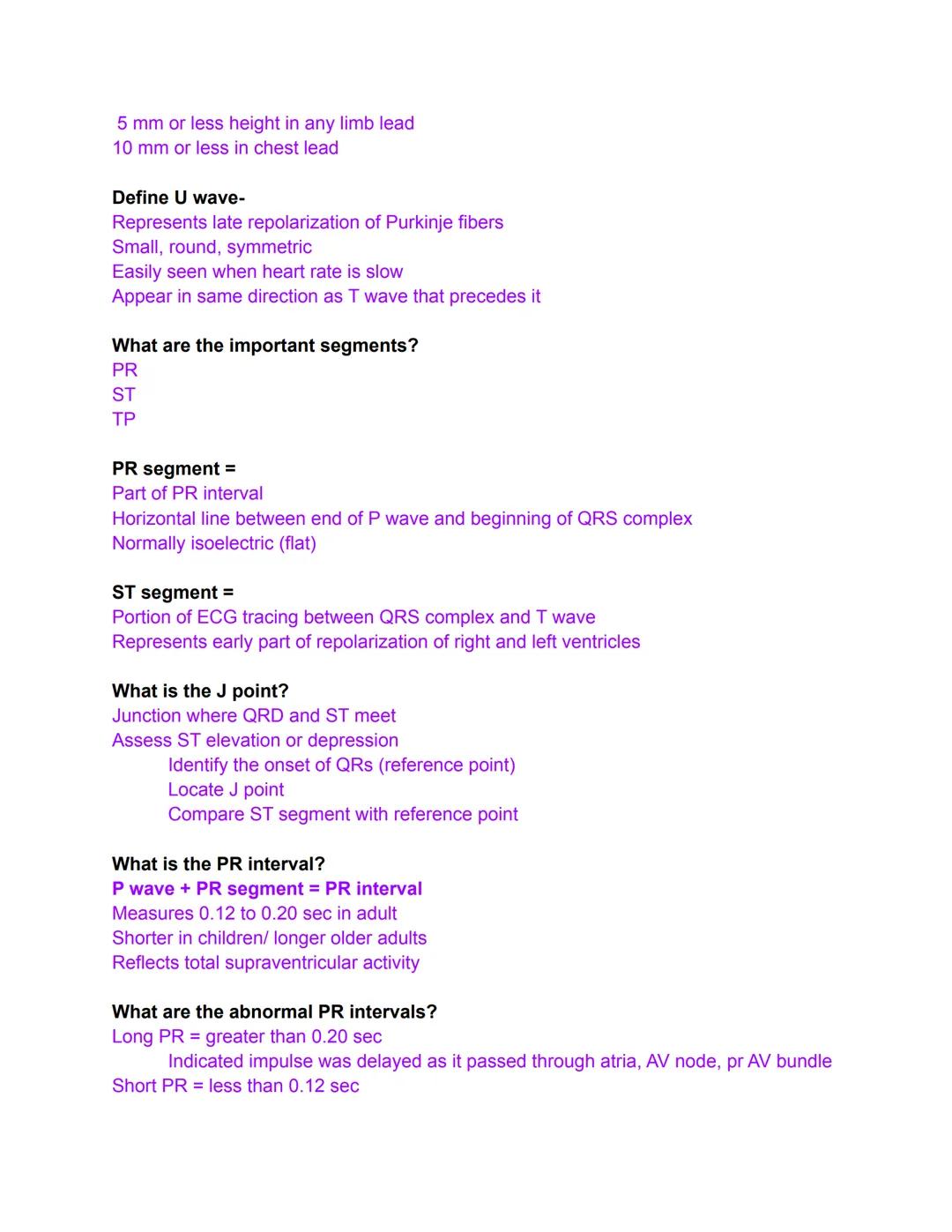

ECG Segments and Intervals

ECG segments and intervals reveal crucial timing information about your heart's electrical cycle. The PR segment is the horizontal line between the P wave and QRS complex and should normally be flat (isoelectric). The ST segment, found between the QRS complex and T wave, represents early ventricular repolarization.

The J point marks where the QRS and ST segment meet. Doctors use this reference point to assess ST elevation or depression, which can indicate serious conditions like heart attacks.

The PR interval Pwave+PRsegmentP wave + PR segment measures 0.12 to 0.20 seconds in adults and reflects total supraventricular activity. Abnormal PR intervals signal problems: a long PR (>0.20 sec) suggests delayed impulse transmission through the atria, AV node, or AV bundle, while a short PR (<0.12 sec) may indicate the impulse originated abnormally close to the AV node.

📊 Interval Insight: The PR interval gets longer as you age, which is completely normal. Children typically have shorter PR intervals than adults, while older adults often have longer ones.

What is Cardiac Electrophysiologic study (EP)?
Also called Invasive cardiac electrophysiology
Series of tests that examine the heart's elect

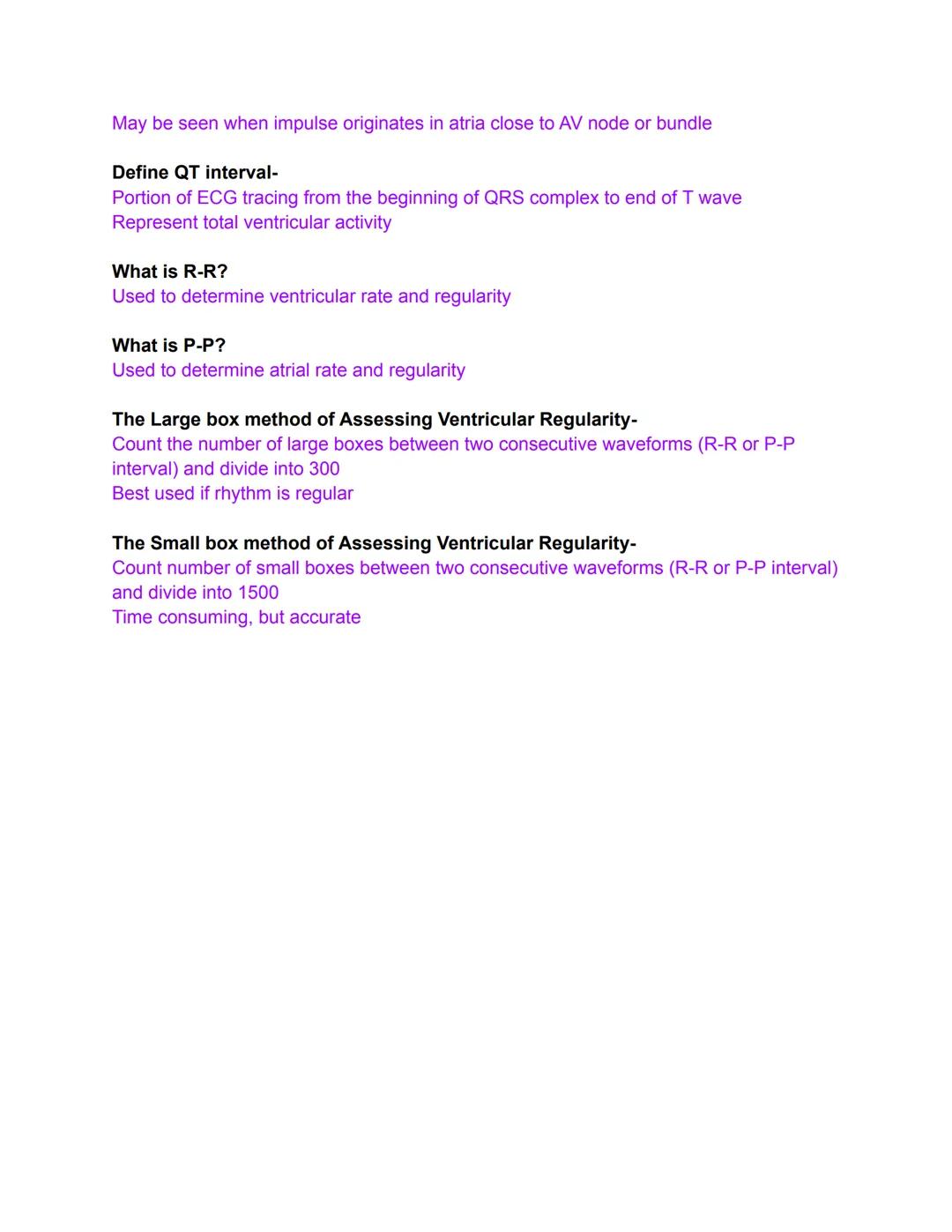

Measuring Heart Rate and Rhythm

Understanding how to measure heart rate from an ECG is a valuable skill. The QT interval spans from the beginning of the QRS complex to the end of the T wave and represents total ventricular activity.

To assess heart rates, we use specific patterns. The R-R interval (distance between consecutive R waves) helps determine ventricular rate and regularity, while the P-P interval (distance between consecutive P waves) reveals atrial rate and regularity.

Two main methods help calculate heart rate. The Large box method involves counting large boxes between consecutive waveforms RRorPPintervalsR-R or P-P intervals and dividing into 300. This works best for regular rhythms. For more accuracy, especially with irregular rhythms, the Small box method counts small boxes between consecutive waveforms and divides into 1500. It's more time-consuming but provides greater precision.

🧮 Quick Calculation: For a quick estimate of heart rate with a regular rhythm, count the number of large boxes between R waves and divide 300 by that number. For example, if there are 4 large boxes between R waves, the heart rate is 300 ÷ 4 = 75 beats per minute.
