Understanding Mains Electricity and the National Grid: A Study Guide

The National Grid and Home Electricity Safety Guide provides comprehensive coverage of UK electrical systems, mains power distribution, and domestic electrical safety, including detailed explanations of plug wiring, earthing systems, and current types.

  • Detailed exploration of mains electricity and national grid components, from power stations to home consumers
  • In-depth coverage of domestic plug wiring, including live, neutral, and earth wire configurations
  • Comprehensive explanation of AC/DC currents and their applications in the UK power system
  • Essential safety features including fuse selection and earthing mechanisms
  • Technical specifications of the National Grid voltage transformation process
...

2/7/2023

898


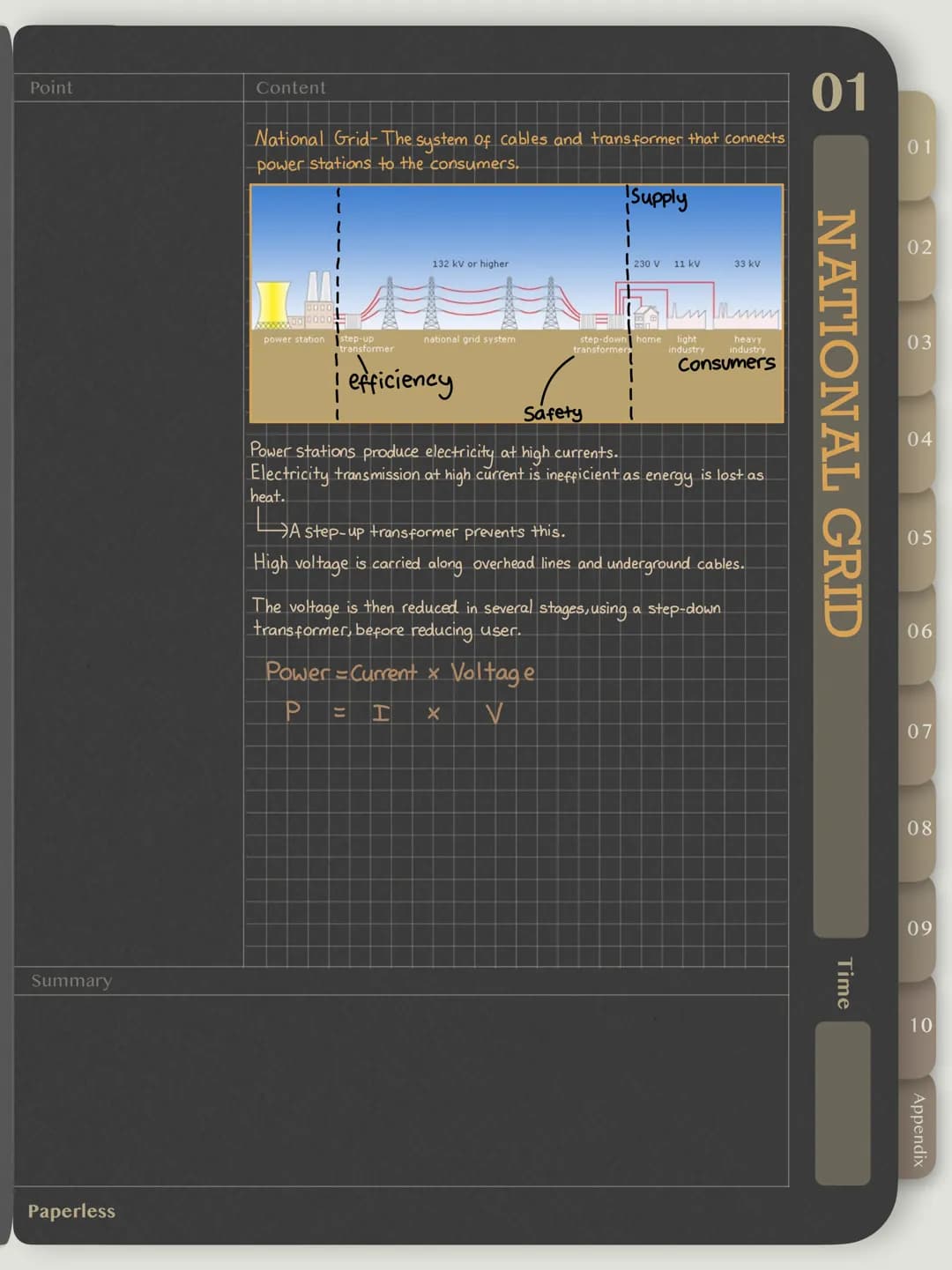

<p>The diagram below shows the system that distributes electricity around the UK. The national grid is the network of cables and transforme

View

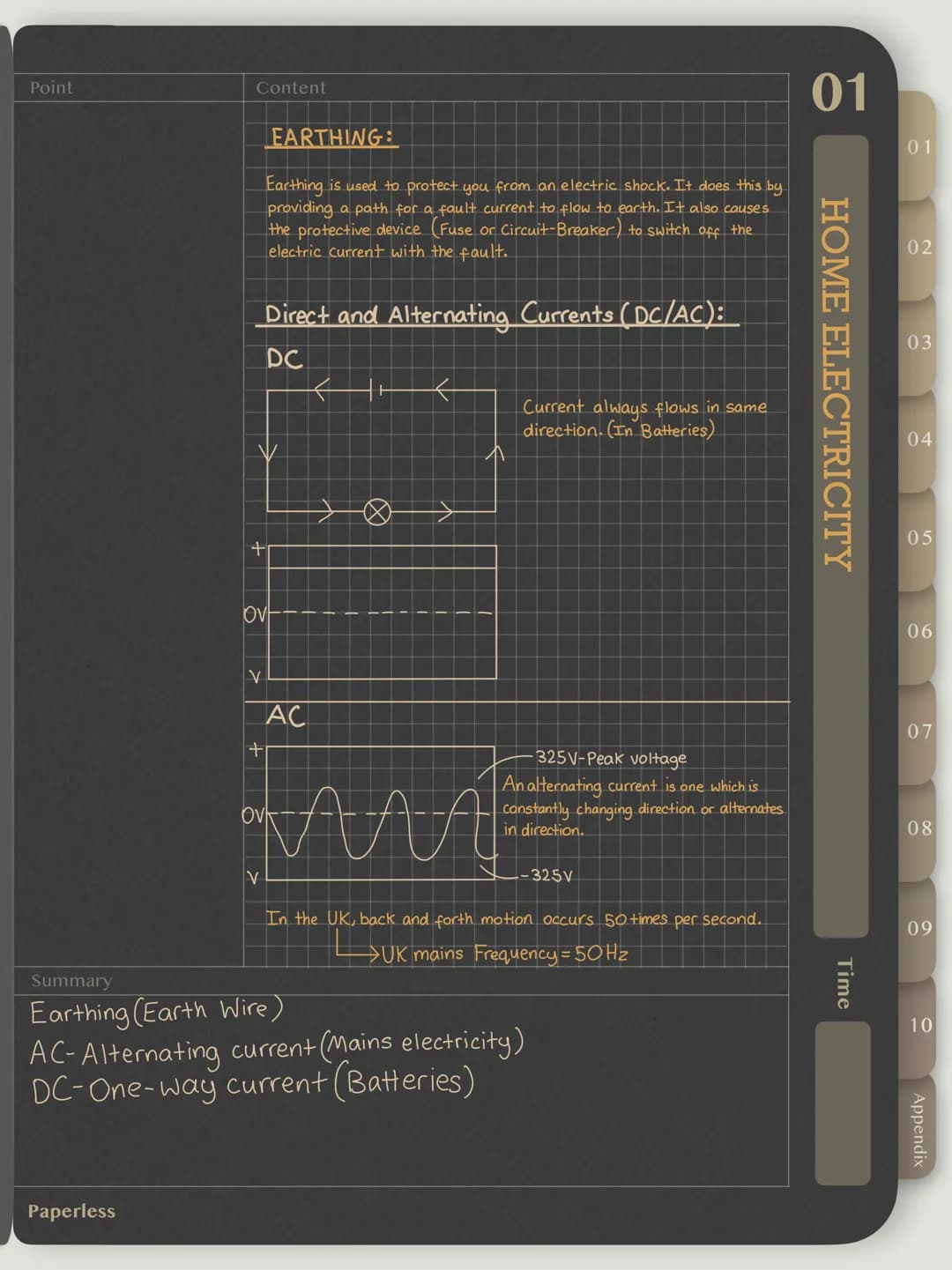

Electrical Current Types and Earthing Systems

This section explores the fundamental differences between AC and DC currents, alongside crucial earthing safety mechanisms.

Definition: Earthing provides a safe path for fault currents to flow to ground instead of through human contact, preventing electrical shocks.

Highlight: UK mains electricity operates at 50Hz, meaning the current alternates direction 50 times per second.

Example: While batteries provide DC current flowing in one direction, mains electricity uses AC current that constantly changes direction.


<p>The diagram below shows the system that distributes electricity around the UK. The national grid is the network of cables and transforme

View

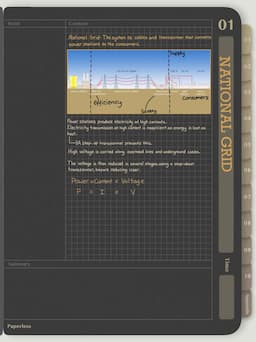

National Grid Distribution System

This comprehensive overview details the UK's power distribution infrastructure and voltage transformation processes.

Definition: The National Grid is the nationwide network of cables and transformers that distributes electricity from power stations to consumers.

Highlight: Power stations utilize step-up transformers to increase voltage for efficient long-distance transmission, followed by step-down transformers for safe consumer delivery.

Example: Voltage levels vary from 132kV or higher in the transmission network to 230V for domestic consumers, with intermediate voltages (33kV, 11kV) for industrial use.

Can't find what you're looking for? Explore other subjects.

Knowunity is the # 1 ranked education app in five European countries

Knowunity was a featured story by Apple and has consistently topped the app store charts within the education category in Germany, Italy, Poland, Switzerland and United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the # 1 ranked education app in five European countries

4.9+

Average App Rating

20 M

Students use Knowunity

#1

In Education App Charts in 17 Countries

950 K+

Students uploaded study notes

Still not sure? Look at what your fellow peers are saying...

iOS User

I love this app so much [...] I recommend Knowunity to everyone!!! I went from a C to an A with it :D

Stefan S, iOS User

The application is very simple and well designed. So far I have found what I was looking for :D

SuSSan, iOS User

Love this App ❤️, I use it basically all the time whenever I'm studying



Physics

898

Feb 7, 2023

3 pages

Understanding Mains Electricity and the National Grid: A Study Guide

user profile picture

Laurence

@laurence_l

The National Grid and Home Electricity Safety Guide provides comprehensive coverage of UK electrical systems, mains power distribution, and domestic electrical safety, including detailed explanations of plug wiring, earthing systems, and current types.

  • Detailed exploration of mains electricity and national... Show more

<p>The diagram below shows the system that distributes electricity around the UK. The national grid is the network of cables and transforme

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Electrical Current Types and Earthing Systems

This section explores the fundamental differences between AC and DC currents, alongside crucial earthing safety mechanisms.

Definition: Earthing provides a safe path for fault currents to flow to ground instead of through human contact, preventing electrical shocks.

Highlight: UK mains electricity operates at 50Hz, meaning the current alternates direction 50 times per second.

Example: While batteries provide DC current flowing in one direction, mains electricity uses AC current that constantly changes direction.


<p>The diagram below shows the system that distributes electricity around the UK. The national grid is the network of cables and transforme

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

National Grid Distribution System

This comprehensive overview details the UK's power distribution infrastructure and voltage transformation processes.

Definition: The National Grid is the nationwide network of cables and transformers that distributes electricity from power stations to consumers.

Highlight: Power stations utilize step-up transformers to increase voltage for efficient long-distance transmission, followed by step-down transformers for safe consumer delivery.

Example: Voltage levels vary from 132kV or higher in the transmission network to 230V for domestic consumers, with intermediate voltages (33kV, 11kV) for industrial use.


<p>The diagram below shows the system that distributes electricity around the UK. The national grid is the network of cables and transforme

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

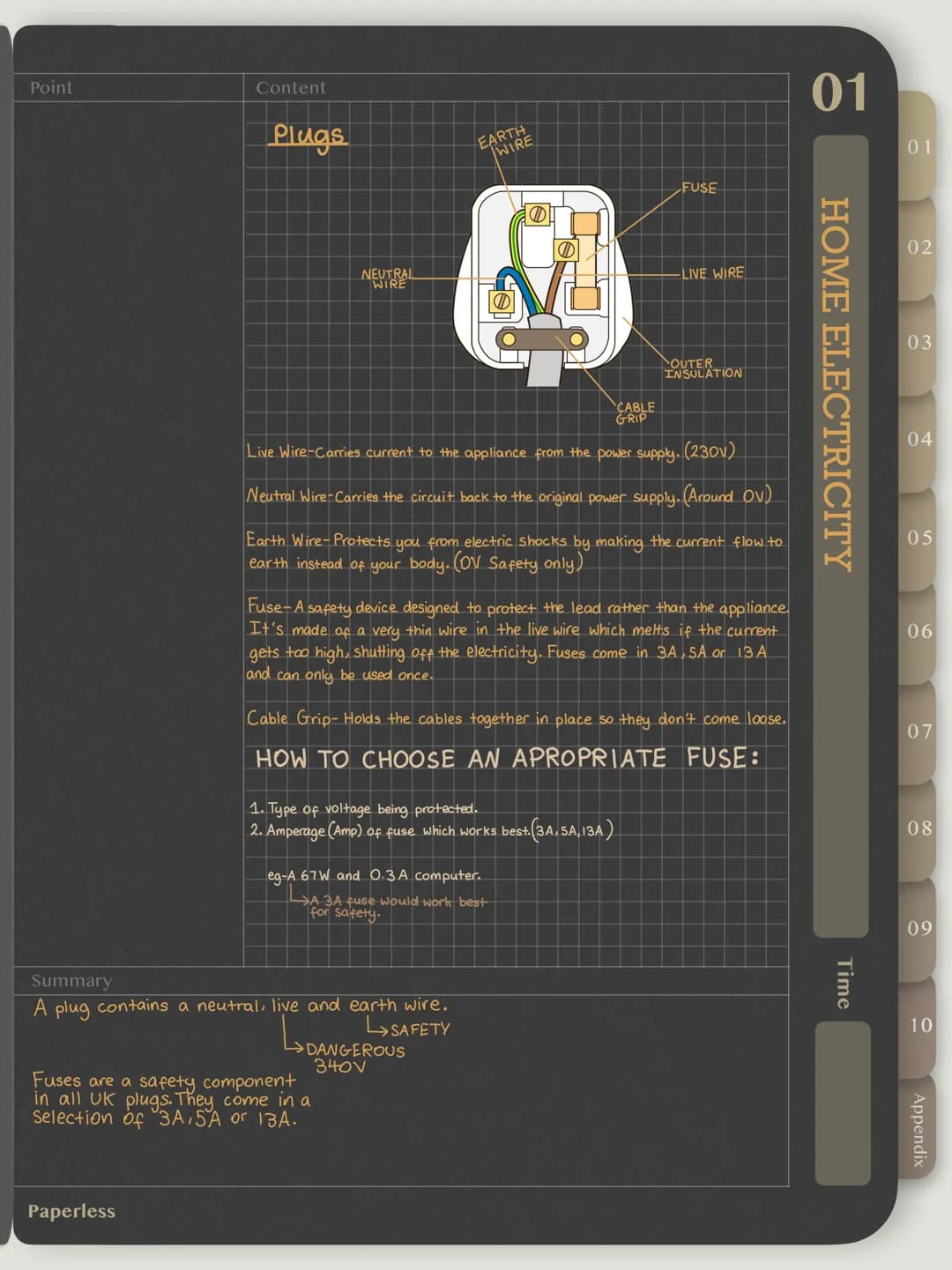

Home Electricity Safety and Plug Components
