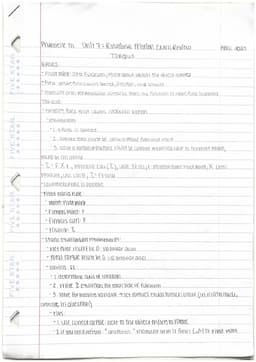

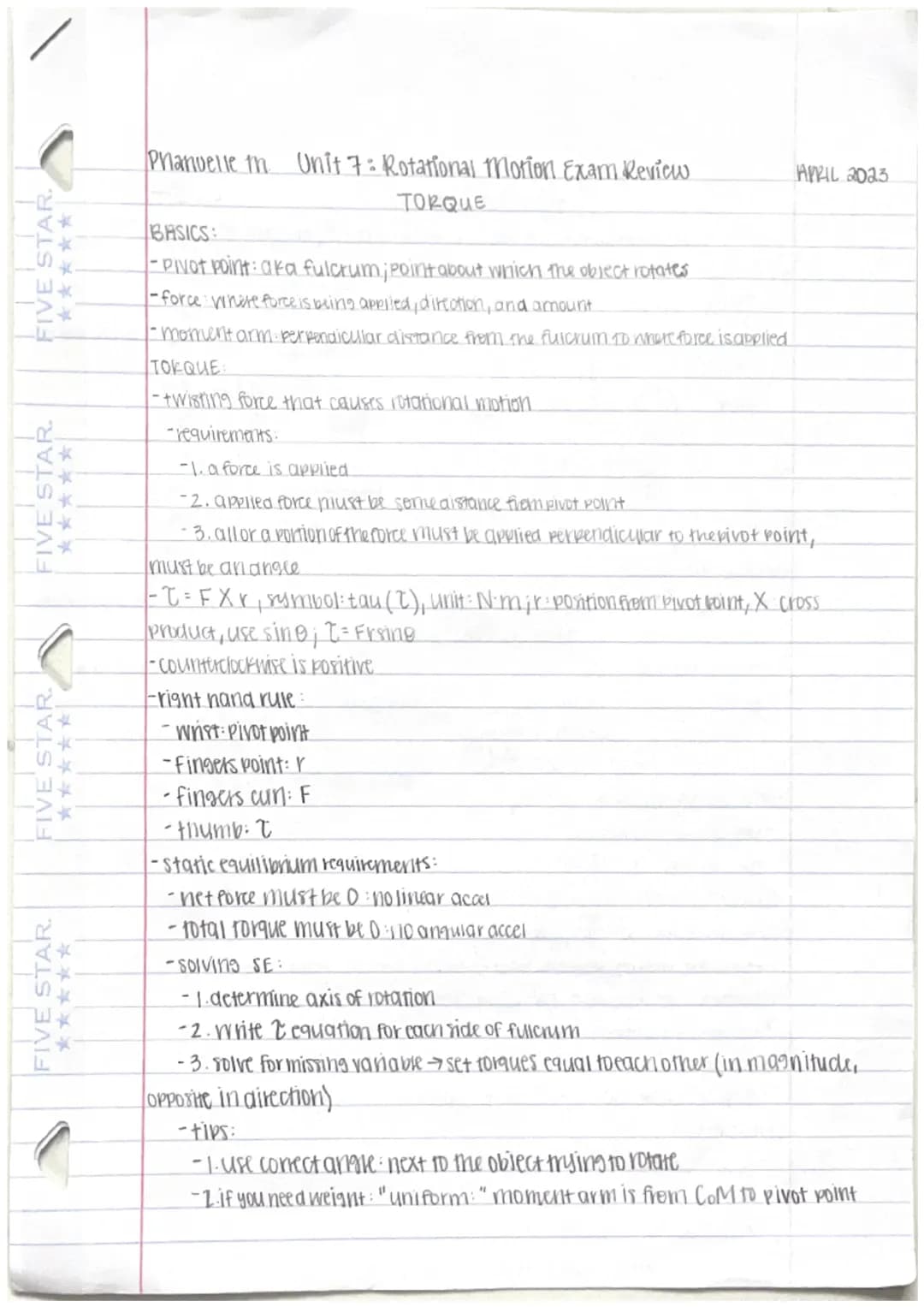

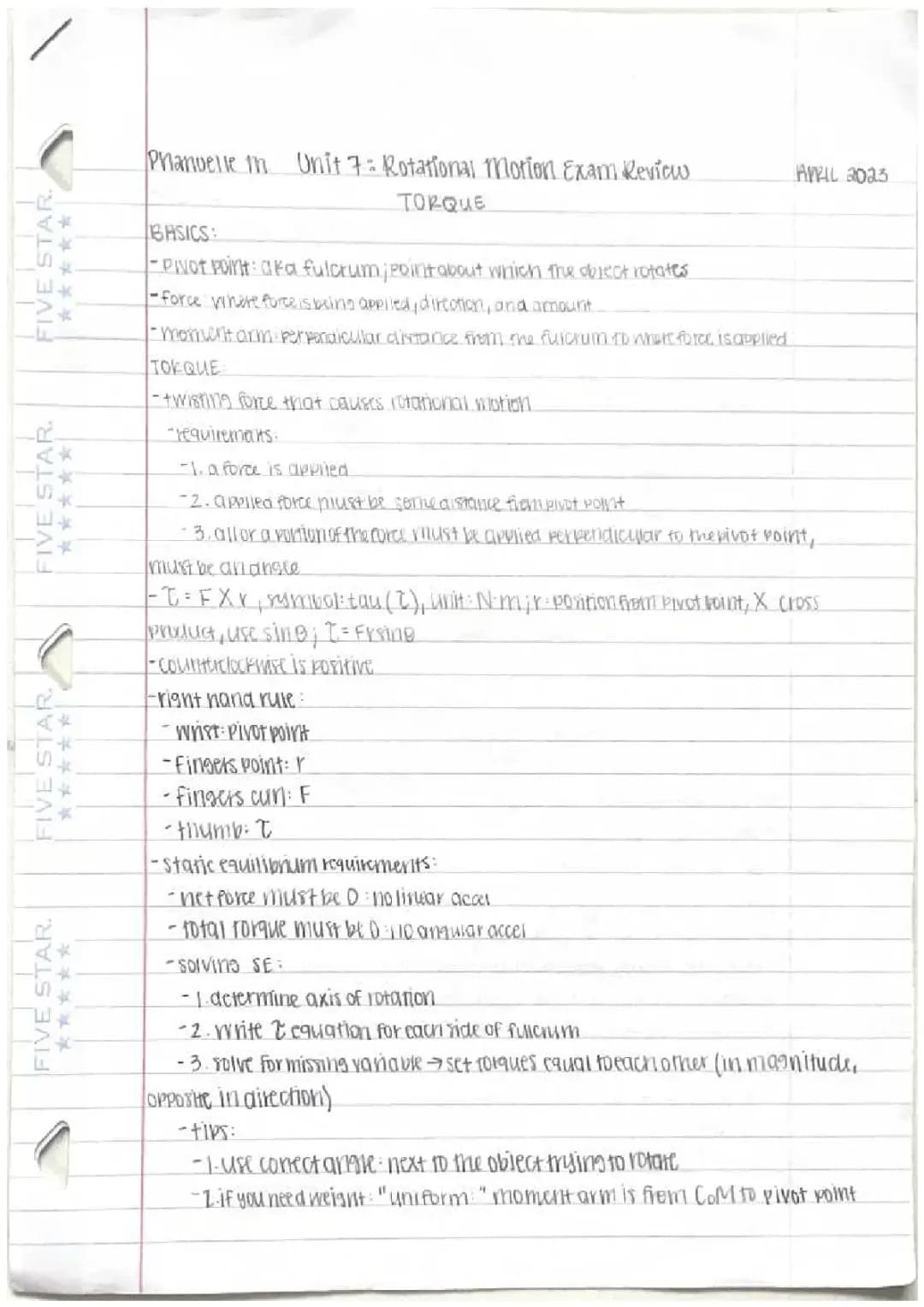

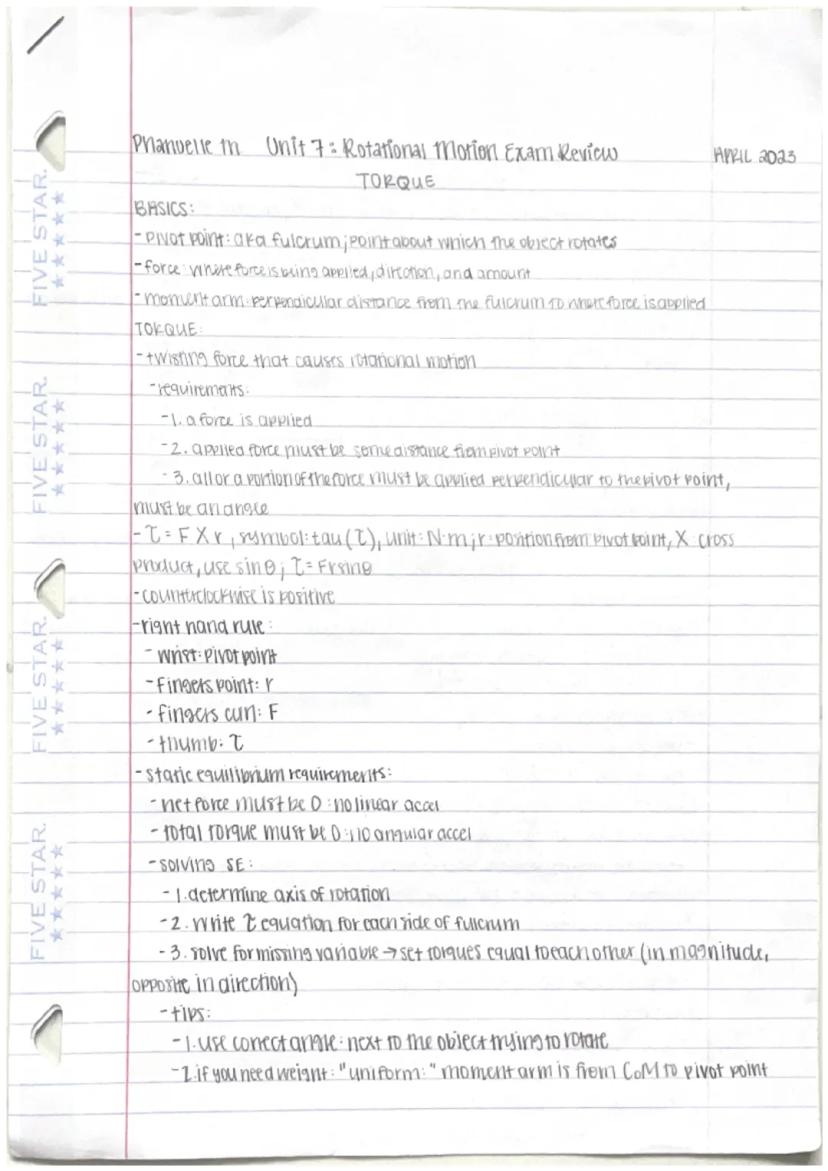

Phanvelle tn Unit 7: Rotational Motion Exam Review
TORQUE
BASICS
-Pivot point: aka fulcrum; point about which the object rotates
-force where force is being applied, direction, and amount
1-moment arm: perpendicular distance from the fulcrum to where force is applied
TORQUE
-twisting force that causes rotational motion
APRIL 2023
-requirements:
-1. a force is applied.
-2. applied force must be some distance from pivot point
-3. all or a portion of the force must be applied perpendicular to the pivot point,
must be an angle
-T=FXr₁ symbol: tau (2), unit: N⋅mir position from Pivot Point, X cross
product, use sine; T = Frsing
-counterclockwise is positive.
Fright hand rule
-wrist Pivot point
-Fingers point: r
-fingers cun: F
-thumb t
-static equilibrium requirements:
-net force must be 0: no linear accel
-total rorque must be 0:110 angular accel
-SOIVING SE
-1.determine axis of rotation
-2. Write 2 equation for each side of fullcrum.
-3. solve for missing variable set forques equal to each other (in magnitude,
(Opposite in direction)
-tips:
-1. Use correct angle: next to the object trying to rotate

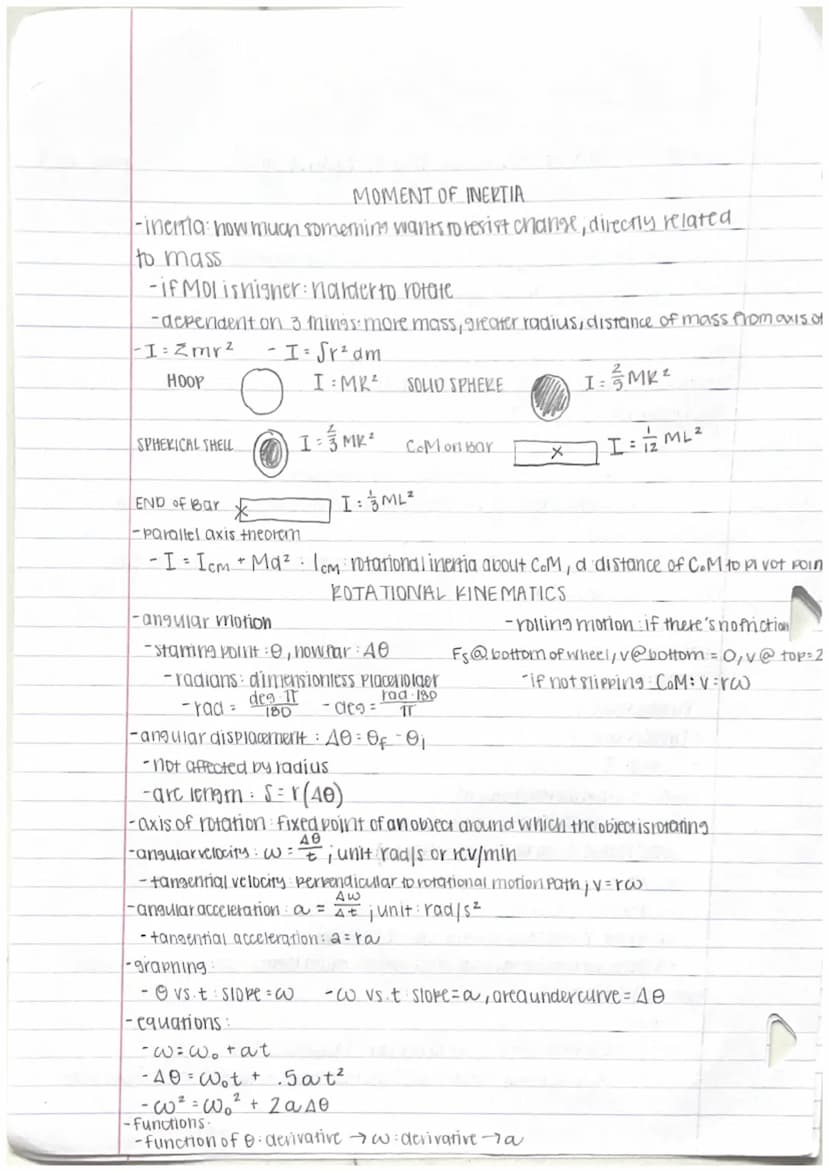

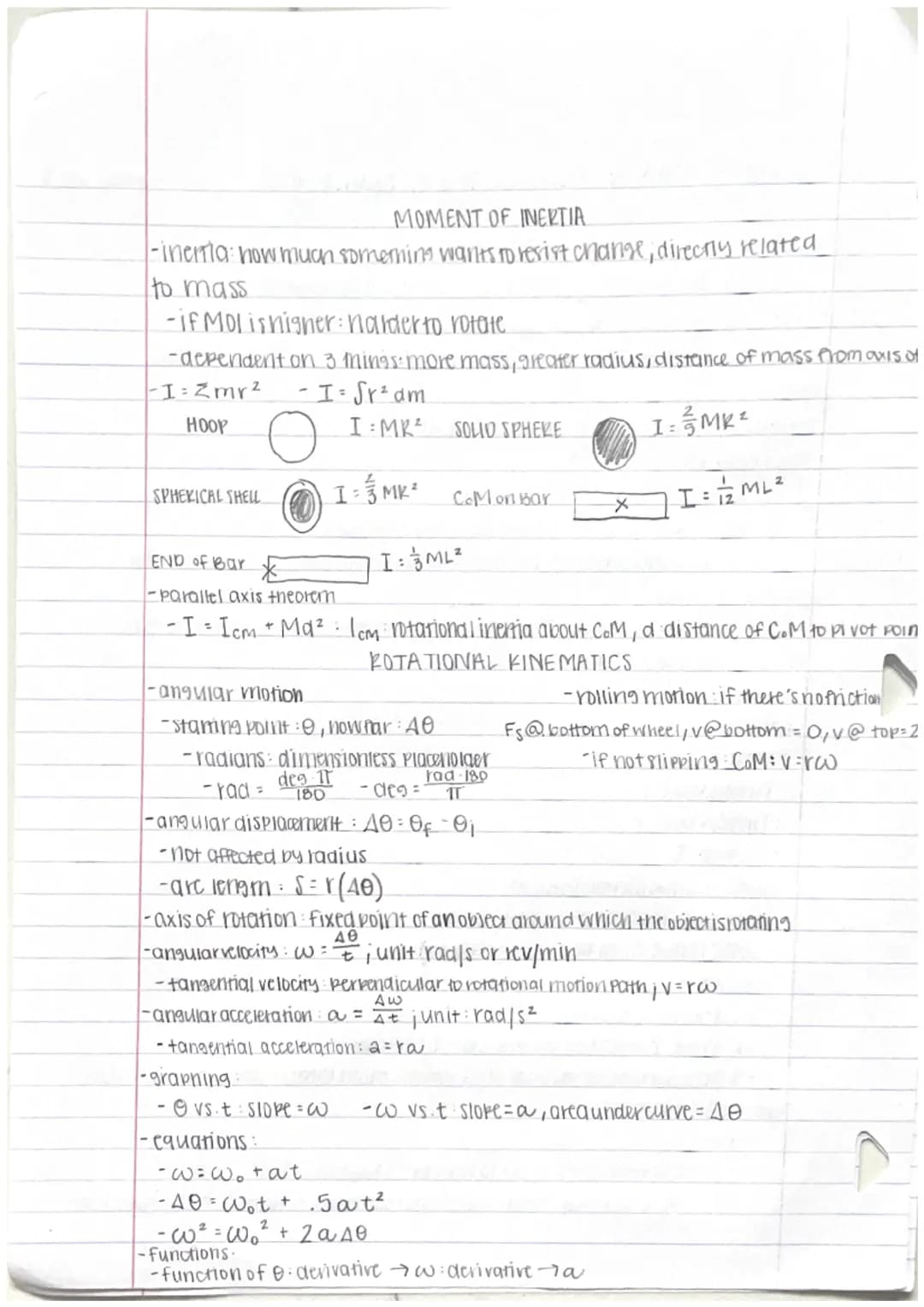

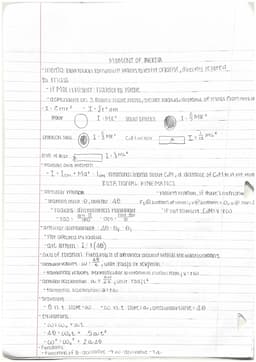

-1 if you need weight: "uniform: " moment arm is from Com to pivot point MOMENT OF INERTIA
-inenta: how much somerning wants to resist change, directly related
to mass
-if Molishigher: harder to rotate
-dependent on 3 things: more mass, greater radius, distance of mass from axis of
-I=Zmr²
I= Sr² am
HOOP
I: MR²
I= 3/MK ²
SPHERICAL THELL
о
I = MK²
SOLID SPHERE
CoM on Bar
I: ML²
END of Bar X
-parallel axis theorem
-I = Icm + Ma² Icm: rotational inertia about CoM, a distance of C.M to pl vot poin
ROTATIONAL KINEMATICS
-angular motion
-starting point:0, now nar: 40
-radians dimensionless placeholder
des It
rad 180
- rad =
I= 1/2 ML ²
-rolling motion if there's nofriction
Fs@bottom of wheel/v@bottom = 0, v@ top=2
if not slipping CoM: v=rW
180 -αeg = IT
-angular displacement: 40 = 0f 0₁
- not affected by radius
-are lengm : S = r (40)
-axis of rotation fixed point of an object around which the object is rotating
A0
-angular velocity: W= +; unit rad/s or rev/min
- tangential velocity: perpendicular to rotational motion Path; v=rw
Aw
-angular acceleration: a = A + junit: rad/s ²
- tangential acceleration : a = ra
-grapning.
- vs.t: slope = c
-equations:
-w=w₂ + at
-40 Wot + .Sat²
2
-w²=w₂² + 2a A0
-C vs t slope = a, area undercurve = 40
-functions.

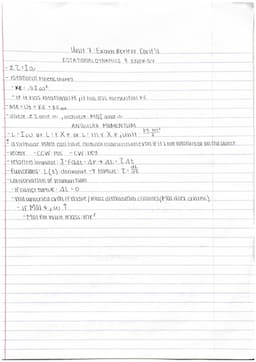

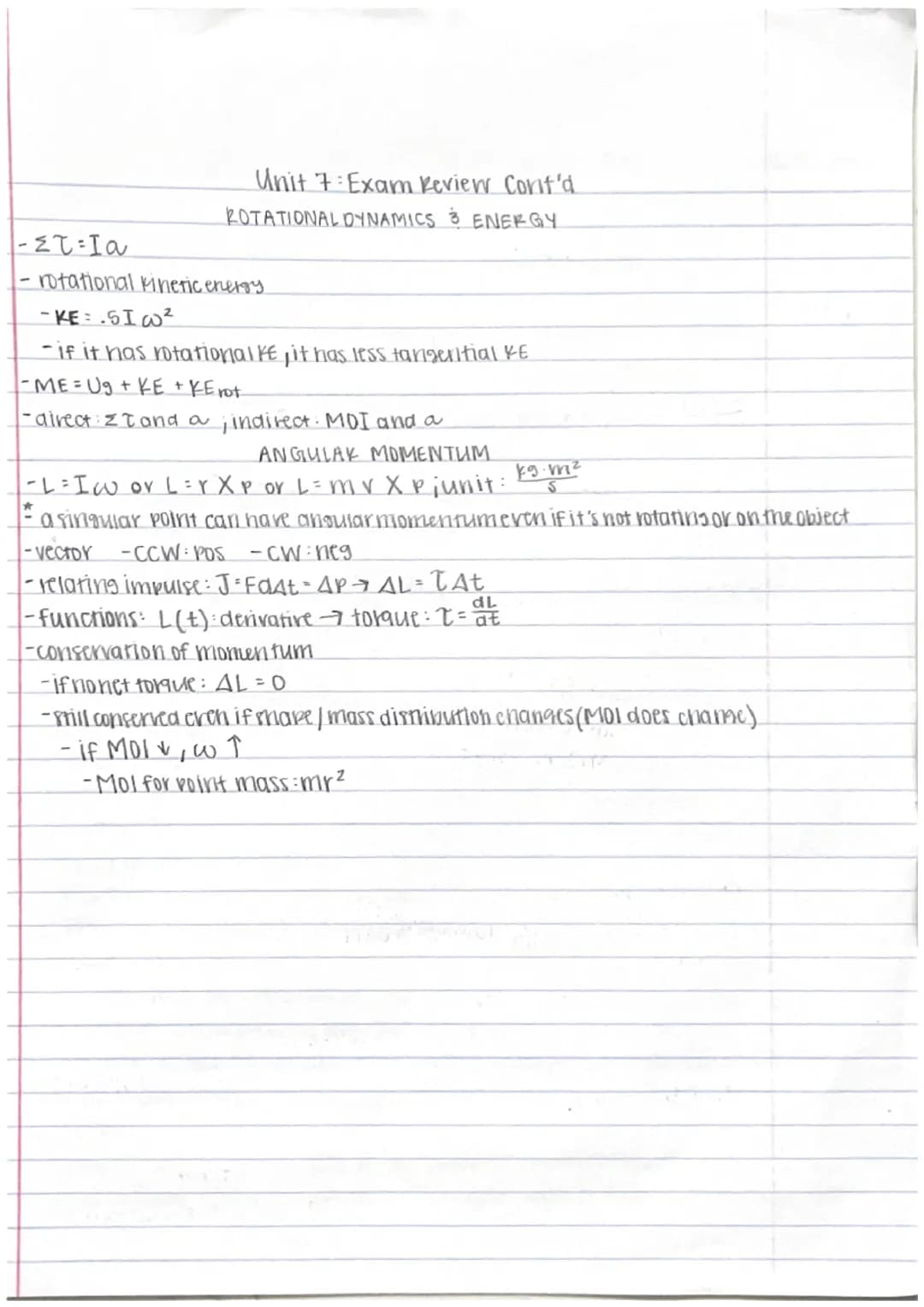

-function of :derivative →w derivative a Unit 7 Exam Review Conf'd
ROTATIONAL DYNAMICS & ENERGY
-ET-Ia
• rotational kinetic energy.
-KE.SI W²
- if it has rotationalke, it has less tangential &E
1-ME=Ug + KE + KE rot
-direct IT and a ; indirect. MOI and a
ANGULAK MOMENTUM
kg.m²
- L = I∞ or L=Y XP or L = mv X Pj unit:
* a singular point can have angular momentum even if it's not rotating or on the object
-vector
-CCW: POS - CW÷neg
-relating impulse: J-Fast-AP → AL = TAt
dL
-functions: L(t) derivative
torque: I = at
-conservation of momen tum
- if nonet torque: AL=0
-still conserved even if shape / mass distribution changes (Mol does change)
- if MOI✓, w ↑
-Mol for point mass=mr²
