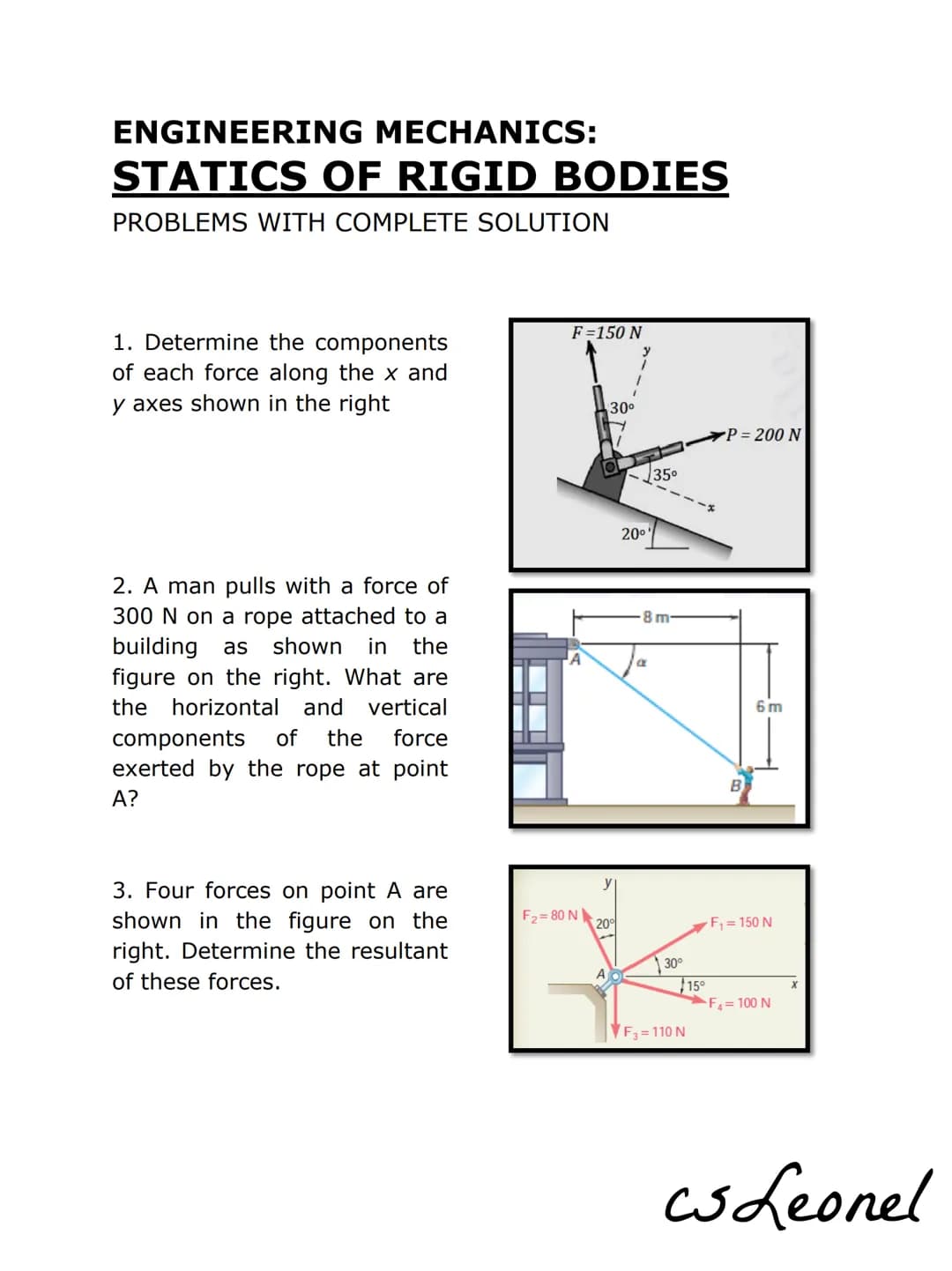

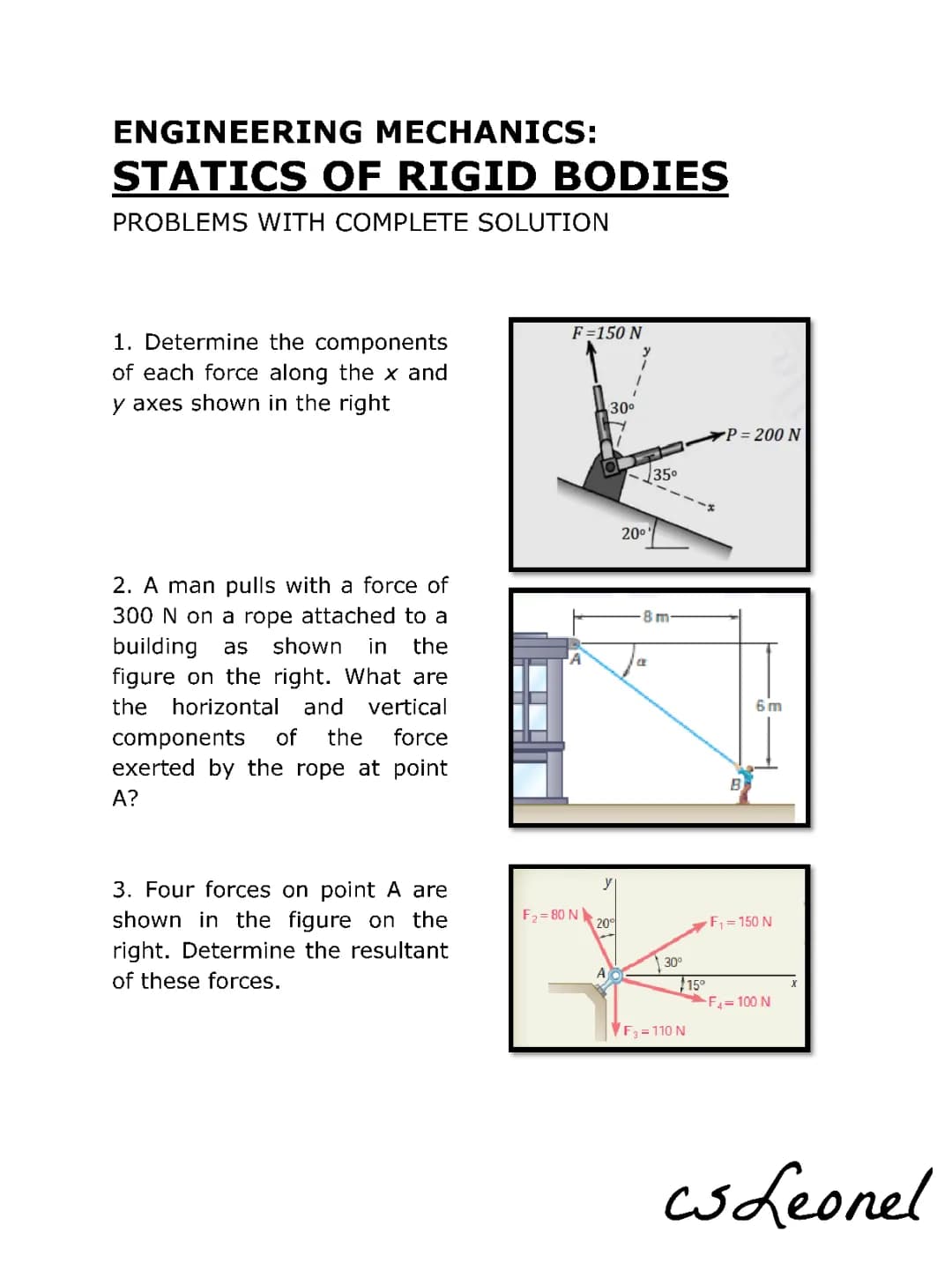

STATICS OF RIGID BODIES - PROBLEMS WITH COMPLETE SOLUTION
83
•
Nov 26, 2025
•
Understanding Statics of Rigid Bodies: Solved Problems for Engineering Mechanics
L
Leonel
@leonel_dyzi
1 / 4
Force Component Analysis
When working with forces in engineering, we often need to break them down into their component parts along different axes. This helps us analyze complex force systems more easily.

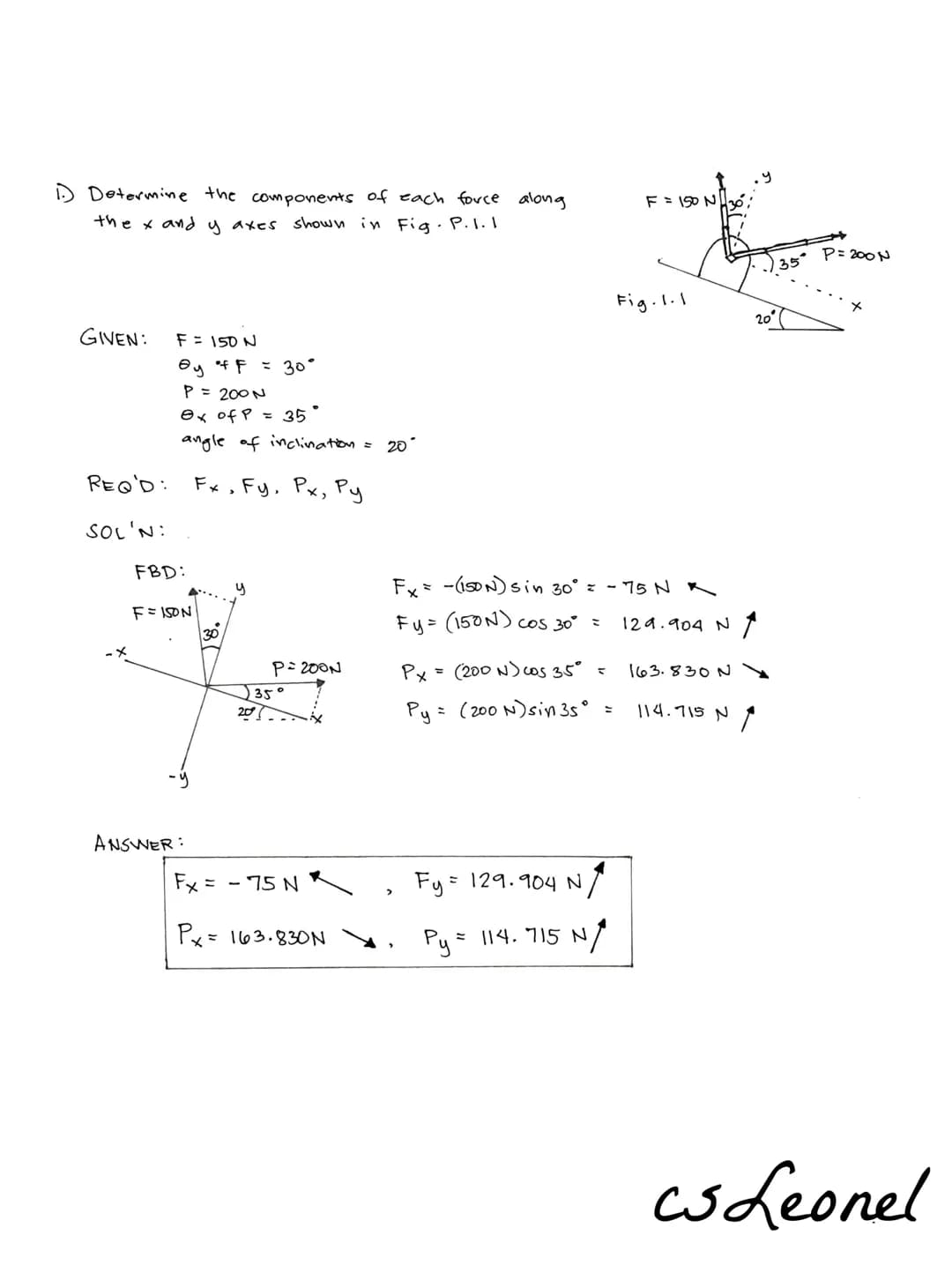

For any force, we can find its x-component (horizontal) and y-component (vertical) using trigonometry. The direction of the force determines which trigonometric functions to use.
In problem 1, we have two forces: a 150 N force at 30° and a 200 N force at 35° from their respective axes. These forces need to be resolved into their x and y components for analysis.
Pro Tip: When finding components, always pay attention to the direction! A force pointing down and to the right will have a positive x-component but a negative y-component.
Solving Force Components Step-by-Step
Breaking down forces into components requires clear understanding of coordinate systems. For the 150 N force at 30° from the y-axis, we need to find what portion acts horizontally and vertically.
For the horizontal (x) component:
- The force is angled 30° from vertical, so we use sine: Fx = -(150 N) × sin 30° = -75 N
- The negative sign indicates the force points left along the x-axis
For the vertical (y) component:
- We use cosine: Fy = (150 N) × cos 30° = 129.9 N
- This is positive, showing the force points upward
The same process applies to the 200 N force, where Px = 163.8 N and Py = 114.7 N. These component values tell us exactly how much force acts in each direction.
Finding Force Components in Applied Situations
In real-world engineering problems, we often need to determine force components based on geometry. When a 300 N force pulls on a rope attached to a building, we must find the horizontal and vertical effects.

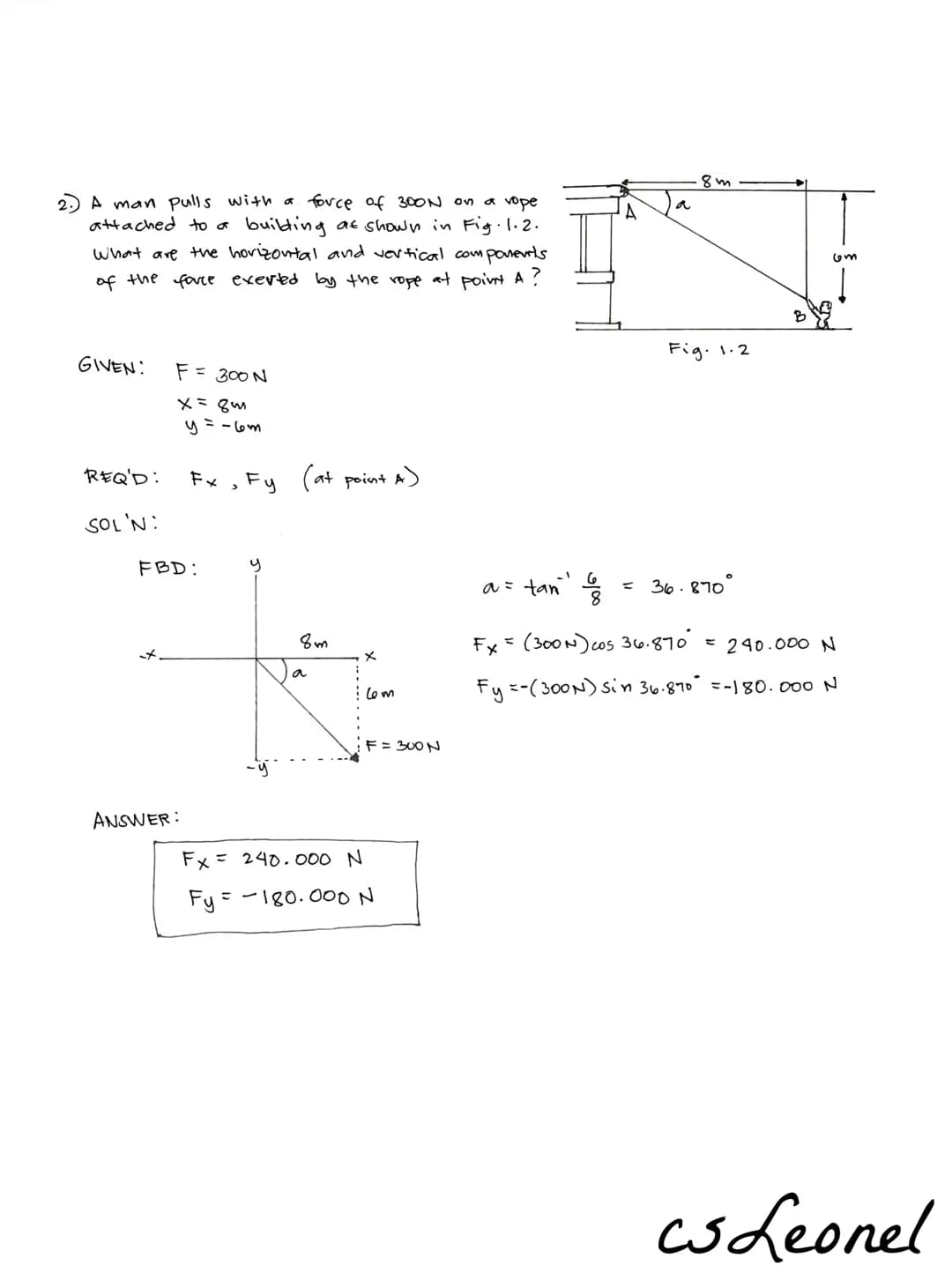

First, we need to identify the angle of the rope. Since it runs from point A to point B (8m horizontally and 6m vertically), we can calculate the angle using the inverse tangent: α = tan⁻¹(6/8) = 36.87°.
Once we know the angle, we can find the force components:
- Horizontal component: Fx = (300 N) × cos 36.87° = 240 N
- Vertical component: Fy = -(300 N) × sin 36.87° = -180 N
Remember: The negative sign in the vertical component shows the force pulls downward, which makes sense given the rope's direction!
Calculating Force Resultants
When multiple forces act on a single point, we need to find the resultant force - the single force that would have the same effect as all forces combined.

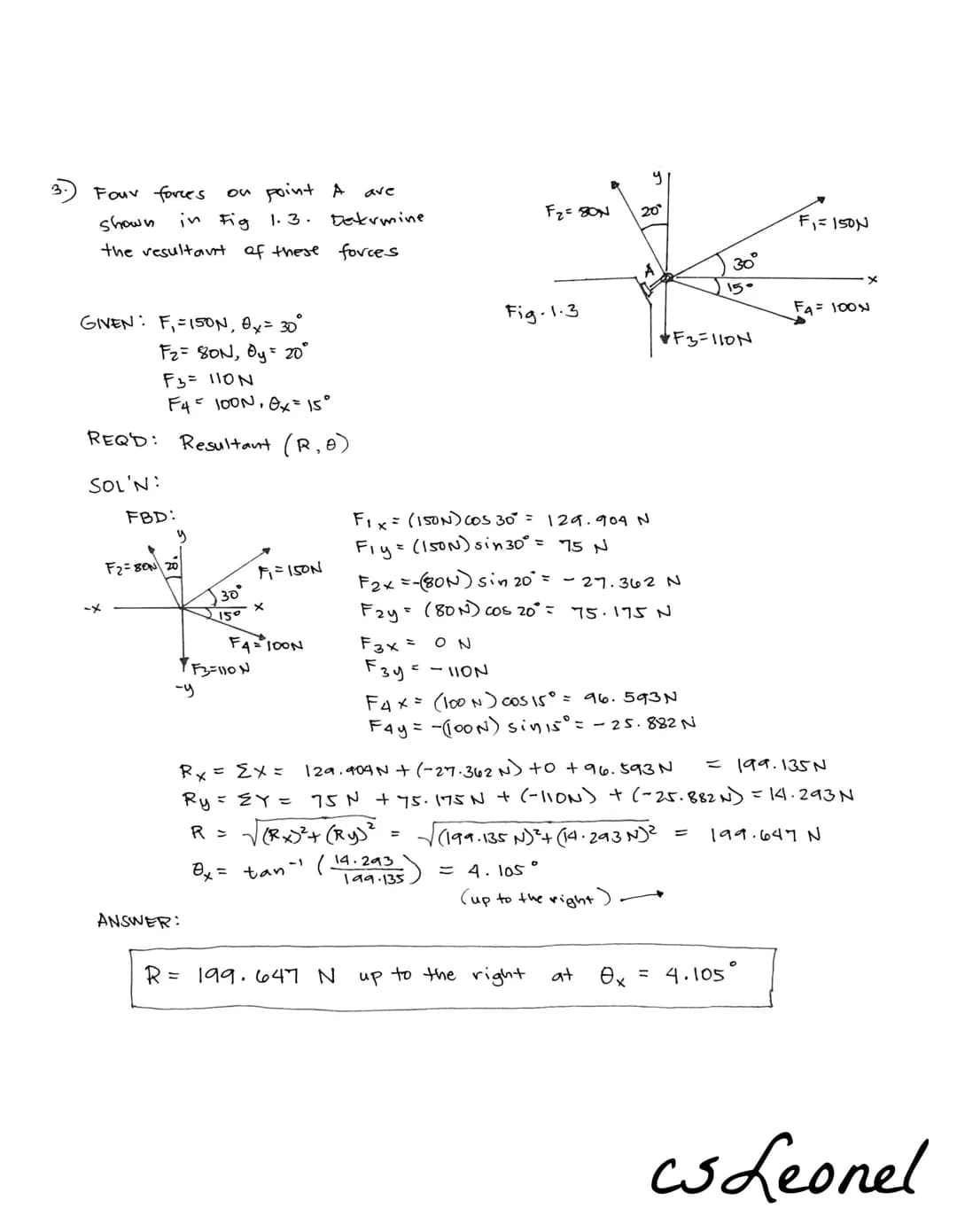

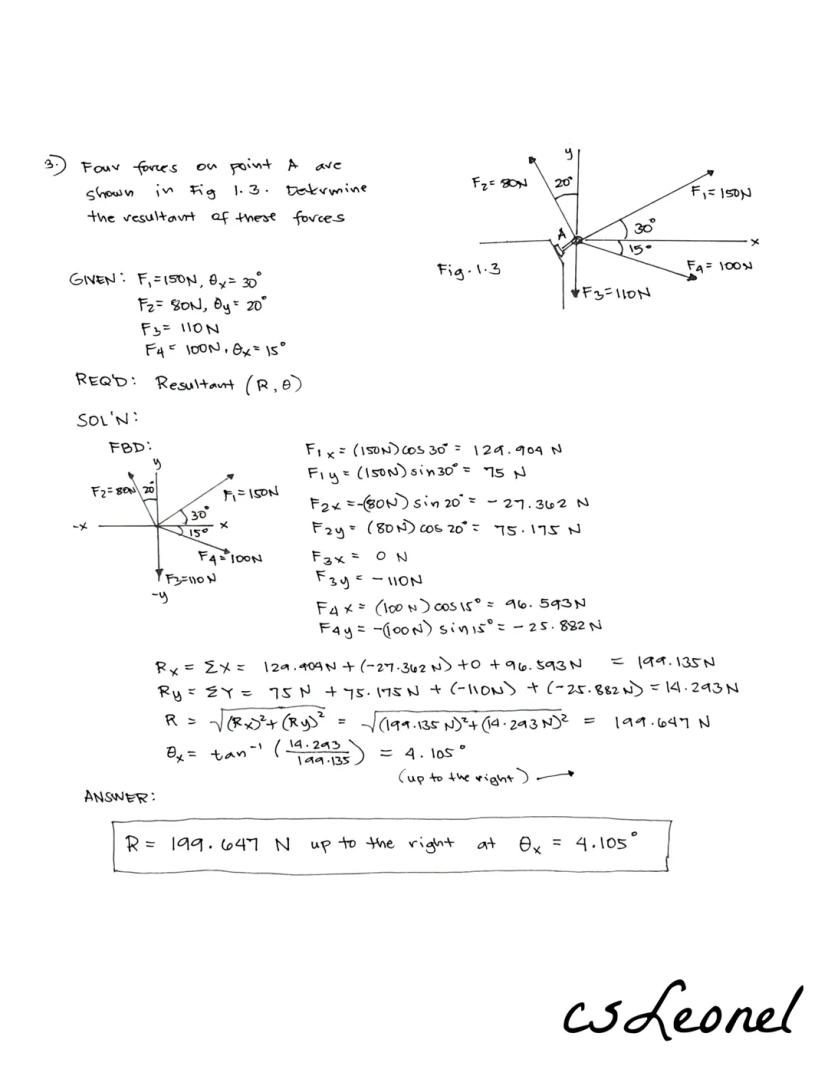

To find the resultant of the four forces acting on point A:
- Calculate the x and y components of each force
- Add all x-components together: Rx = 129.9 N + + 0 N + 96.6 N = 199.1 N
- Add all y-components together: Ry = 75 N + 75.2 N + + = 14.3 N
The resultant force magnitude is found using the Pythagorean theorem: R = √ = √(199.1² + 14.3²) = 199.6 N
The direction is determined using the inverse tangent: θ = tan⁻¹ = tan⁻¹(14.3/199.1) = 4.1°
This means the resultant force of 199.6 N acts upward and to the right at an angle of 4.1° from the x-axis.
