Understanding Basic Electronic Components
1 / 7

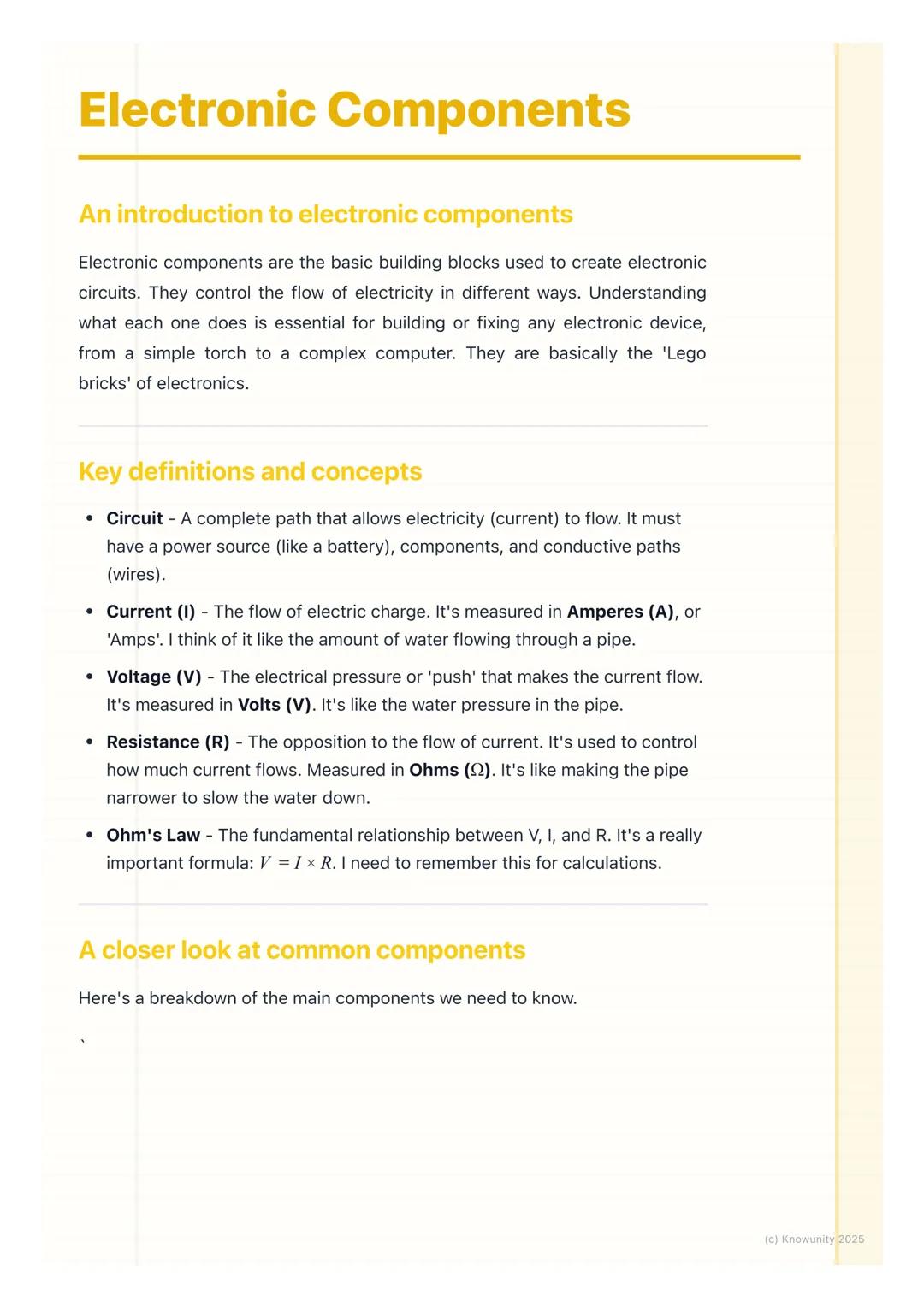

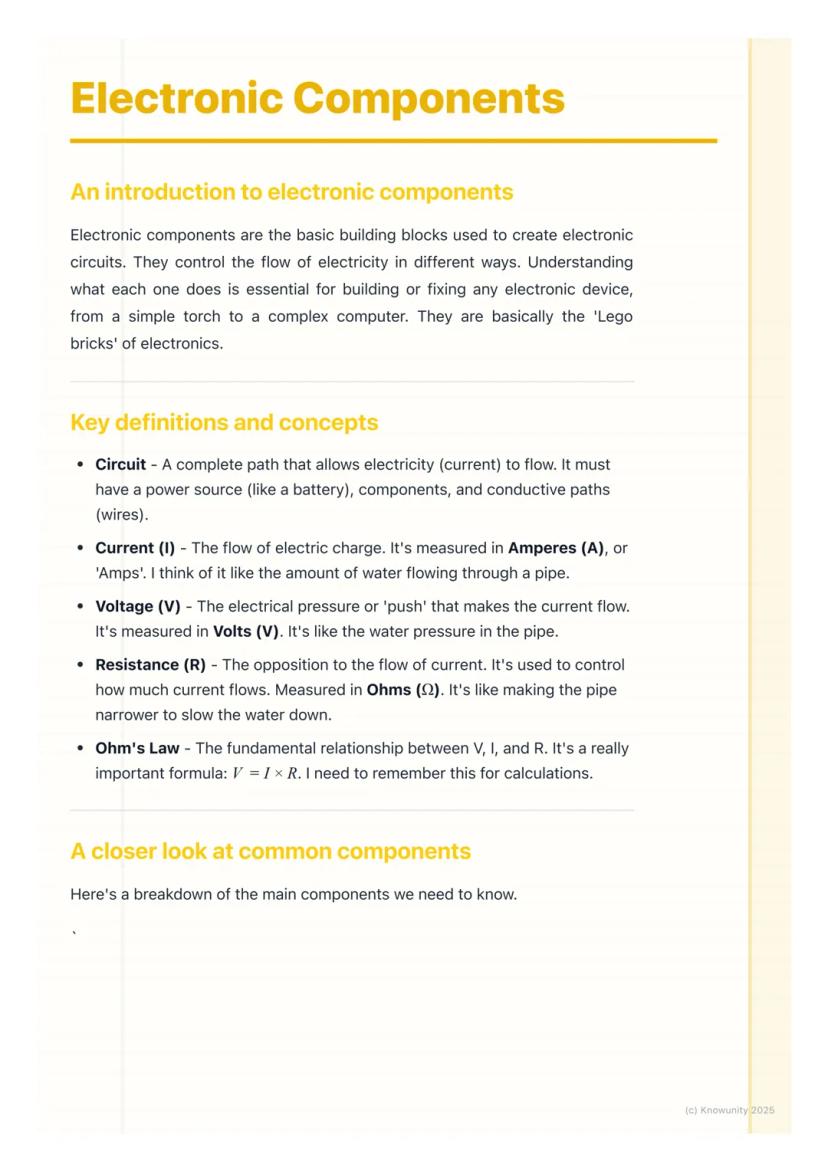

Electronic Components Basics
Electronic components are literally everywhere in your daily life - from your gaming console to your car's engine management system. They're the fundamental pieces that control how electricity flows through circuits.
Here's what you absolutely need to know: a circuit is just a complete path that lets electricity flow. Picture it like a race track - you need a starting point (battery), the track itself (wires), and some obstacles or features along the way (the components).
Current flows like water through a pipe, measured in Amperes (A). Voltage is the electrical pressure pushing that current along, measured in Volts (V). Resistance acts like a narrow section in the pipe that slows things down, measured in Ohms (Ω).
Remember This: Ohm's Law is your best friend: V = I × R. Master this formula and you'll ace most electronics calculations!

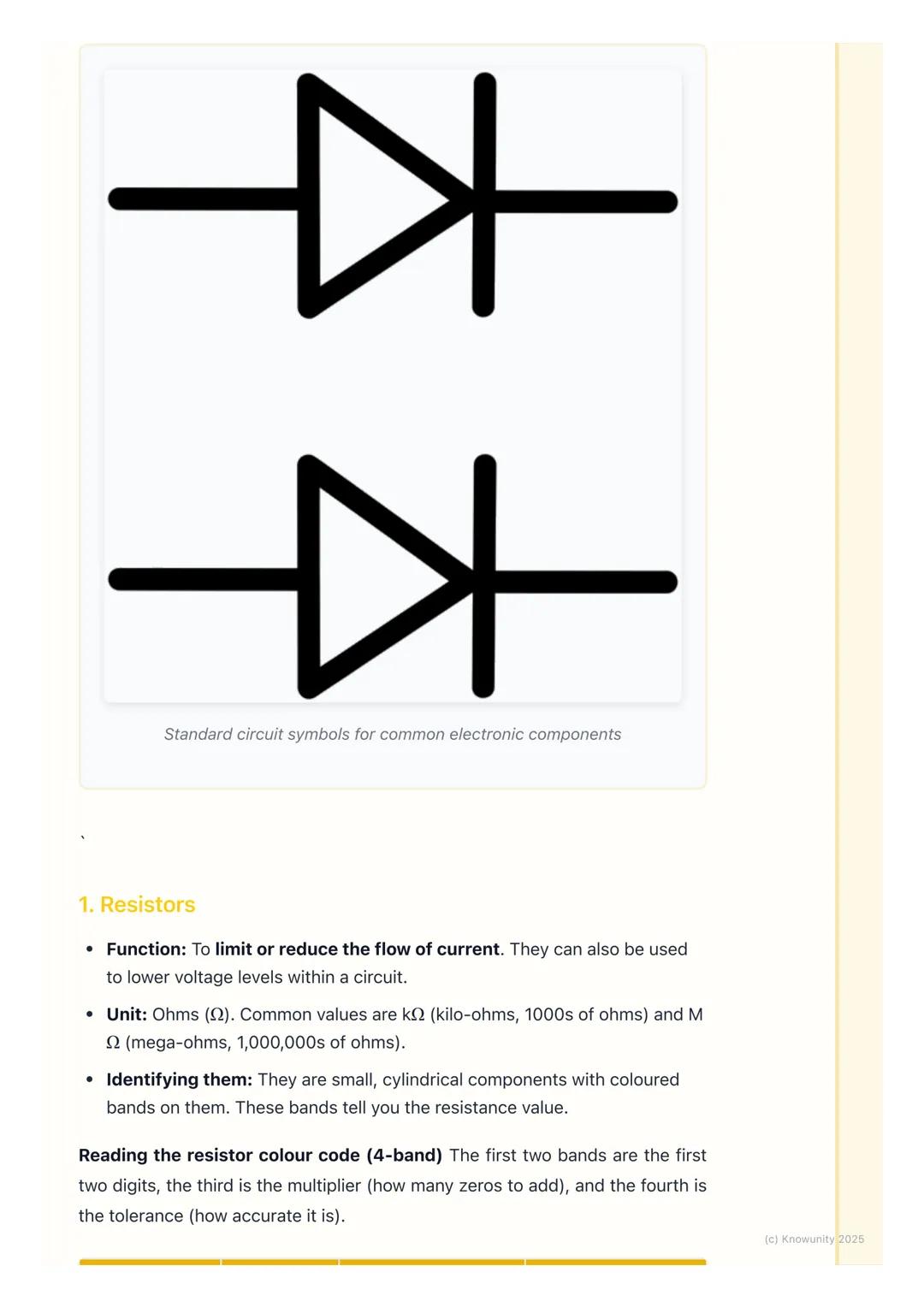

Resistors - The Current Controllers
Resistors are probably the most common components you'll encounter. Their job is simple: limit the flow of current to protect other components from getting fried.

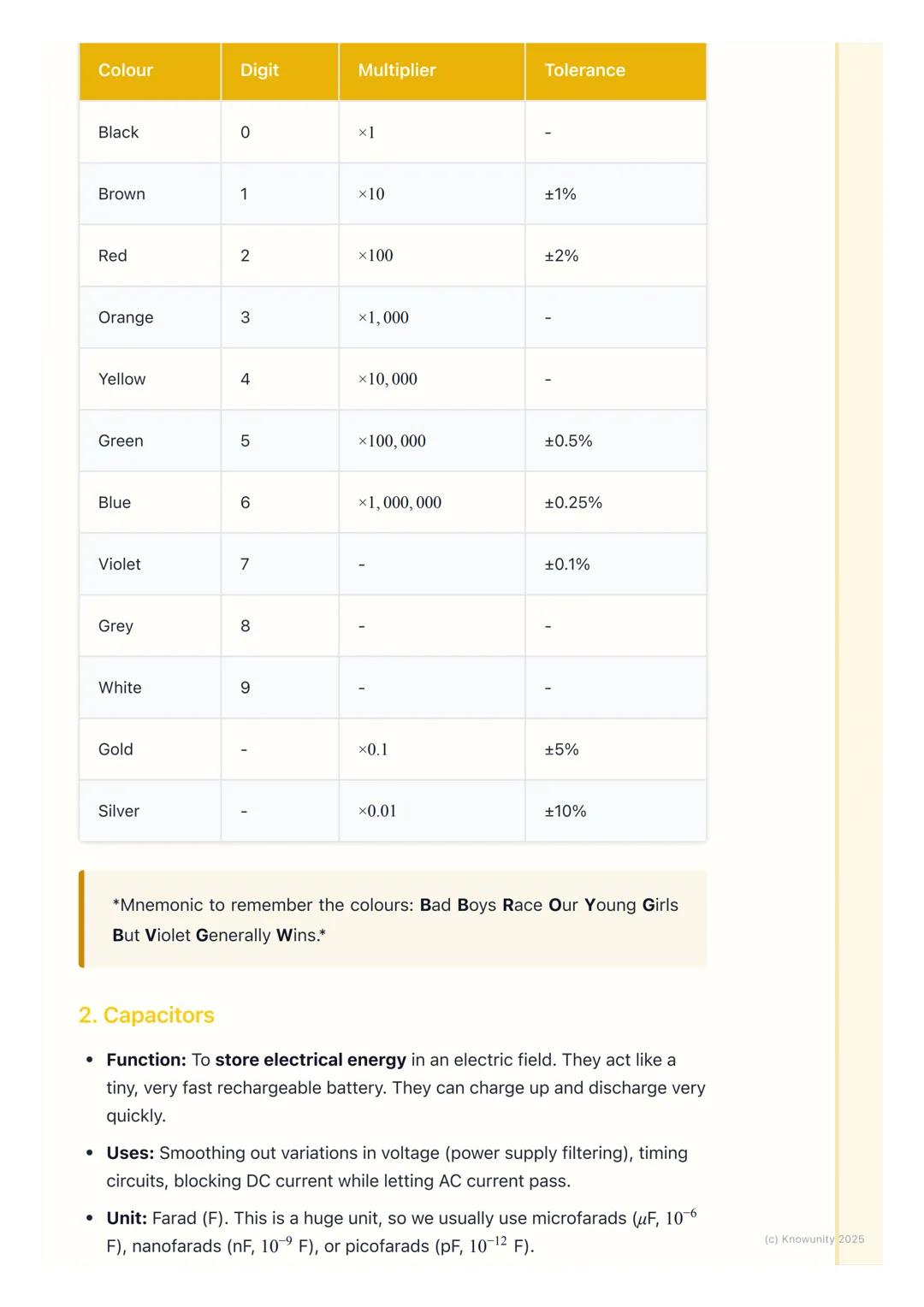

You'll recognise them by their coloured bands - it's like a secret code that tells you their value. The resistor colour code uses the first two bands for digits, the third as a multiplier (how many zeros to add), and the fourth shows tolerance (how accurate the value is).
Here's a memory trick that actually works: "Bad Boys Race Our Young Girls But Violet Generally Wins" for Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Grey, White. The colours represent numbers 0-9 in that order.
Pro Tip: When you're unsure about a resistor's value, use a multimeter to double-check. It's way faster than squinting at tiny colour bands!
Capacitors and Diodes - Energy Storage and One-Way Streets
Capacitors are like tiny, super-fast rechargeable batteries. They store electrical energy and release it when needed. You'll find them smoothing out power supplies and creating timing circuits in everything from camera flashes to computer motherboards.
Watch out for electrolytic capacitors - they're polarised, meaning they have a positive and negative side. Connect them backwards and they'll literally explode (well, pop quite dramatically).

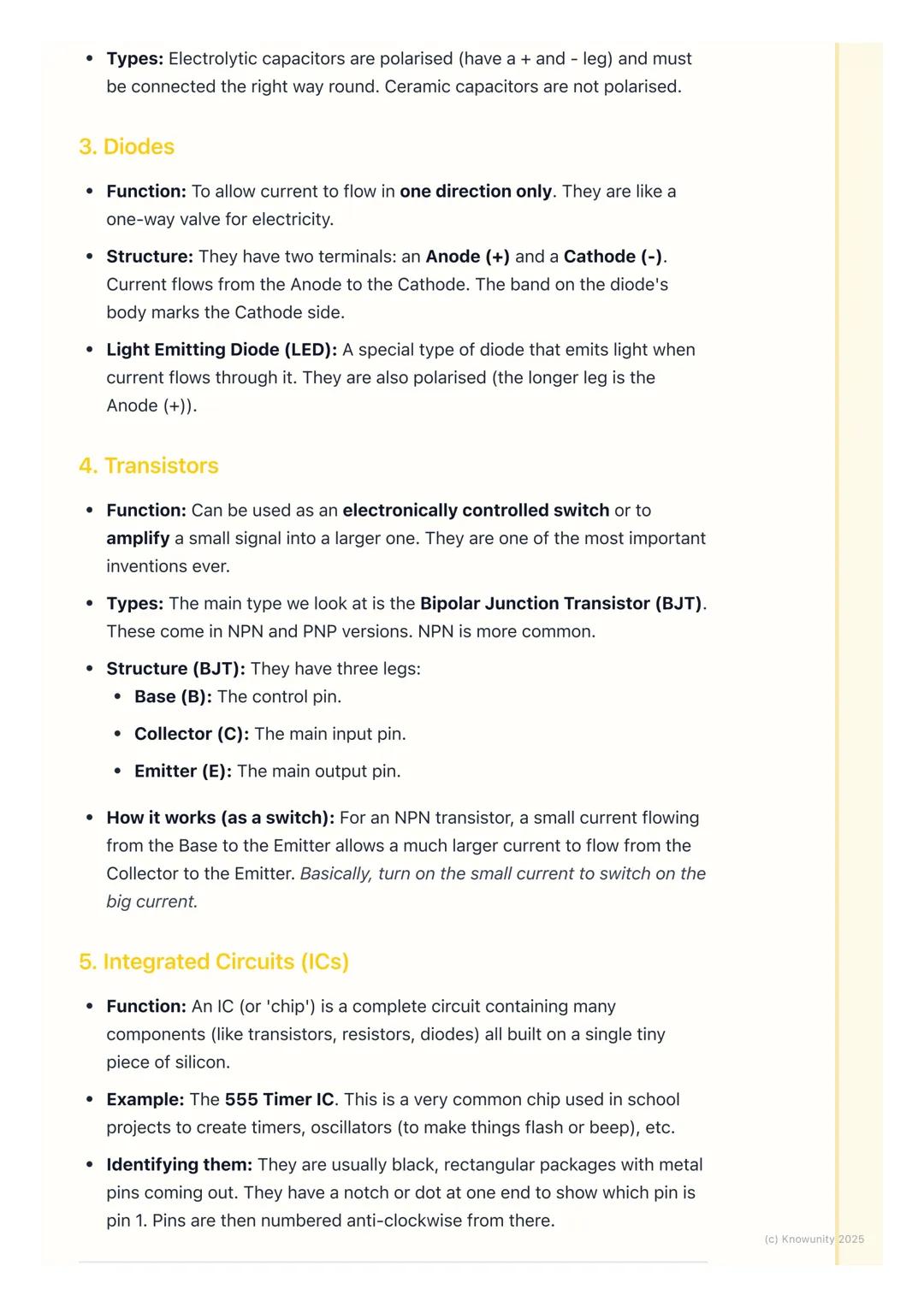

Diodes are the one-way streets of electronics. Current flows from the anode (+) to the cathode (-) and absolutely nowhere else. The stripe on a diode's body always marks the cathode side.
LEDs are special diodes that light up when current flows through them. The longer leg is always positive. Just remember - they need a current-limiting resistor or they'll burn out instantly.
Watch Out: Polarity matters! Getting the positive and negative connections wrong can destroy components or make circuits fail completely.
Transistors and Integrated Circuits - The Smart Stuff
Transistors are absolutely revolutionary - they're either electronic switches or amplifiers, depending on how you use them. Think of them as taps that can be turned on or off by applying a small signal to the base, which then controls a much larger current between the collector and emitter.
NPN transistors are the most common type. A small current from base to emitter allows a massive current to flow from collector to emitter. It's like using a tiny key to open a huge floodgate.
Integrated Circuits (ICs) are complete circuits shrunk down onto a single chip. The 555 timer IC is legendary in electronics - it's used in thousands of projects to create timers, flashers, and sound generators.
ICs have a notch or dot marking pin 1, then you count anti-clockwise from there. Get this wrong and your circuit definitely won't work.
Key Insight: Transistors are the foundation of all modern computing - your smartphone has billions of them working together!
Practical Calculations - Making It Work

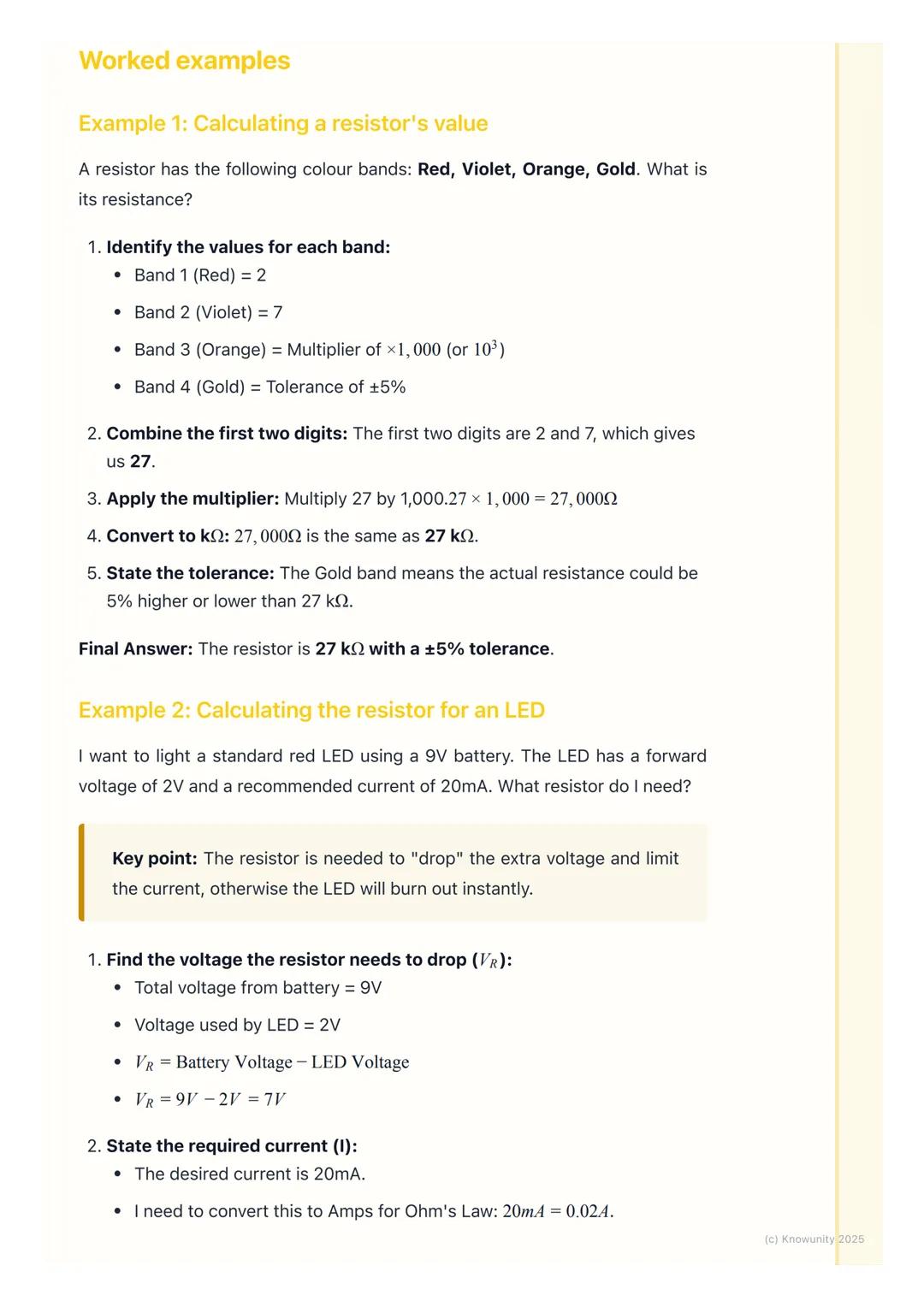

Let's crack some real problems you'll face in exams and projects. Resistor colour codes might seem tricky, but they follow a logical pattern.
For a resistor with Red, Violet, Orange, Gold bands: Red (2) + Violet (7) gives 27, Orange means ×1,000, so 27,000Ω or 27kΩ. Gold means ±5% tolerance.

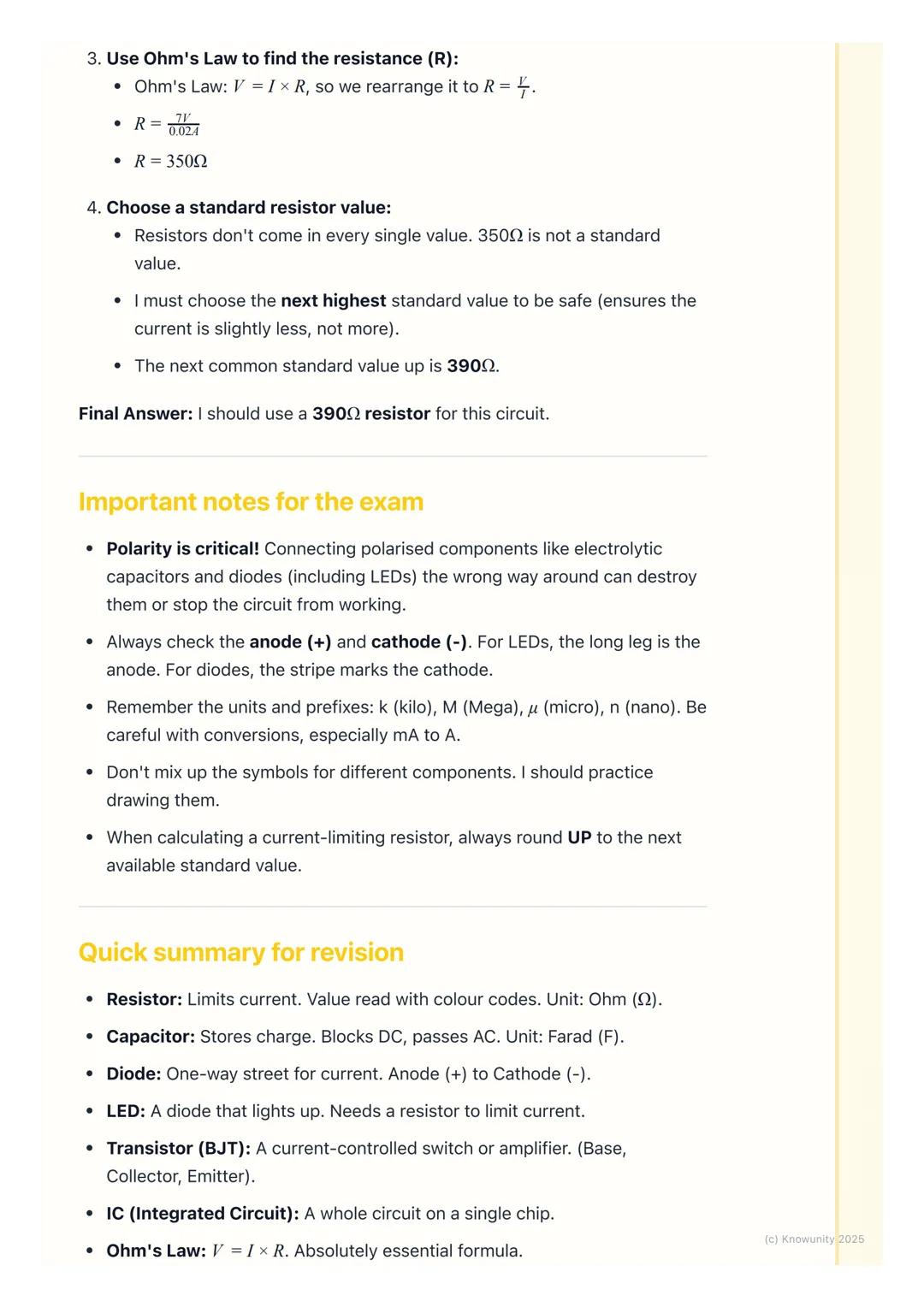

LED circuits need careful calculation. If you're powering a 2V LED from a 9V battery, the resistor must drop 7V. With 20mA current required, use Ohm's Law: R = V/I = 7V/0.02A = 350Ω.
Always choose the next highest standard value (390Ω in this case) to ensure your LED doesn't get too much current and burn out.
Exam Success: Convert mA to A by dividing by 1,000. It's a common mistake that costs marks - 20mA = 0.02A, not 20A!
Exam Essentials and Quick Review
Polarity is everything in electronics. LEDs, diodes, and electrolytic capacitors must be connected correctly. For LEDs, long leg = positive. For diodes, the stripe marks negative (cathode).
Unit prefixes will trip you up if you're not careful: k , M , μ , n . Practice converting between them.
When designing circuits, safety first - always calculate resistor values to limit current. Round UP to the next available standard value to protect components.
Your revision checklist: Resistors limit current (Ω), Capacitors store charge (F), Diodes are one-way (anode to cathode), Transistors switch/amplify , ICs are complete circuits on chips.
Final Reminder: Ohm's Law solves most problems. Learn it, love it, use it constantly!
