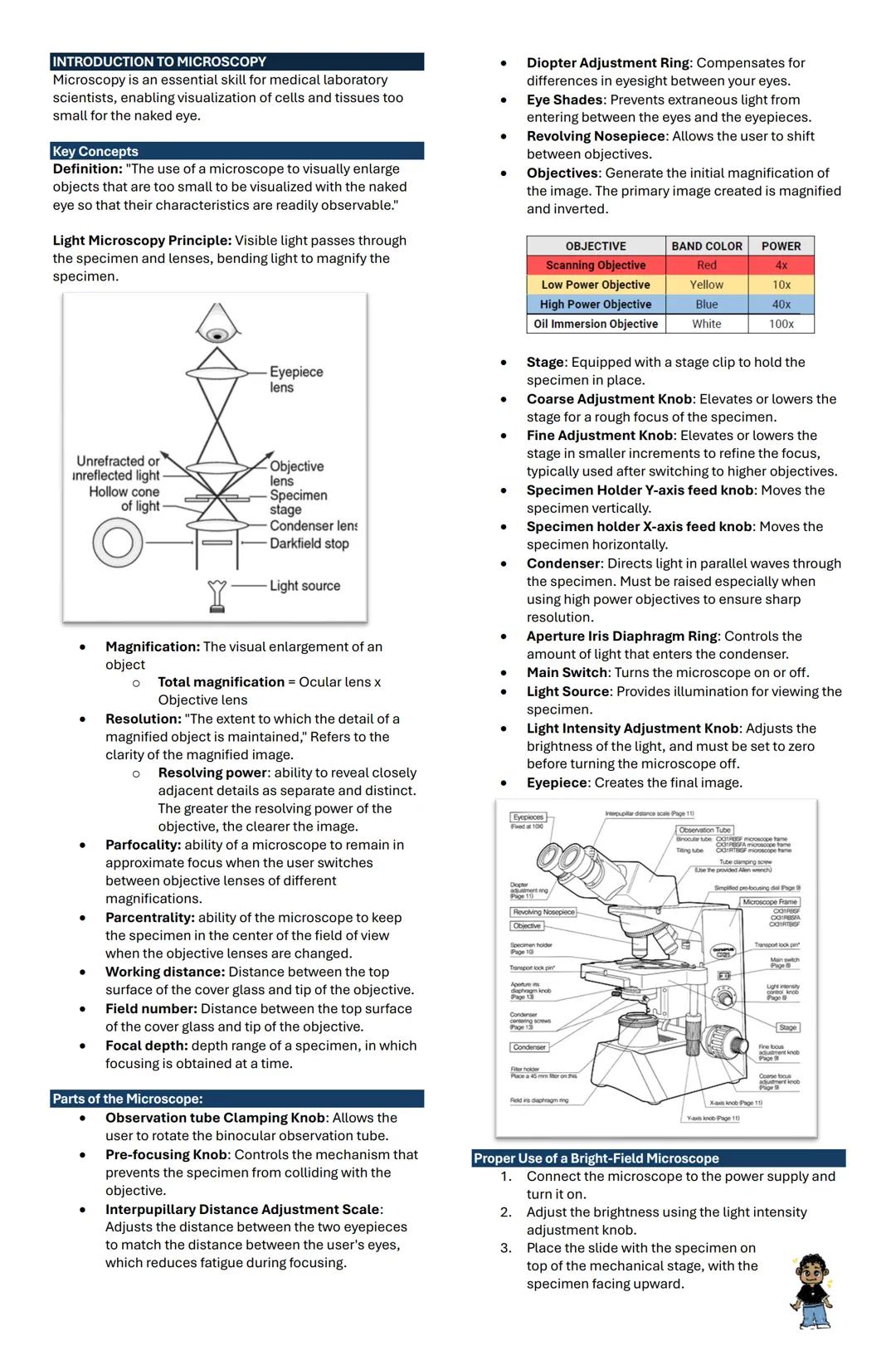

Introduction to Microscopy

Microscopy is a fundamental skill that allows medical professionals to visualize cells and tissues invisible to the naked eye. This powerful technique enables detailed observation of microscopic structures.

The light microscope works by passing visible light through specimens and through a series of lenses that bend light to magnify objects. The primary components of a microscope include the eyepieces with diopter adjustment rings, objectives that provide initial magnification, and the mechanical stage that holds specimens. Each objective has a specific power and is color-coded: scanning (4x, red), low power (10x, yellow), high power (40x, blue), and oil immersion (100x, white).

When using a microscope, focus is achieved through the coarse and fine adjustment knobs. The coarse knob makes large movements to roughly focus the specimen, while the fine adjustment knob makes smaller, more precise adjustments. The condenser directs light in parallel waves through the specimen and must be positioned properly, especially at higher magnifications, to ensure clear resolution.

Pro Tip: Calculate total magnification by multiplying the power of the ocular lens by the power of the objective lens $e.g., 10x ocular × 40x objective = 400x total magnification$.

Important concepts in microscopy include resolution (clarity of the magnified image), parfocality (ability to remain in approximate focus when switching objectives), and parcentrality (ability to keep the specimen centered when changing objectives). Understanding these principles is essential for proper specimen examination in laboratory settings.

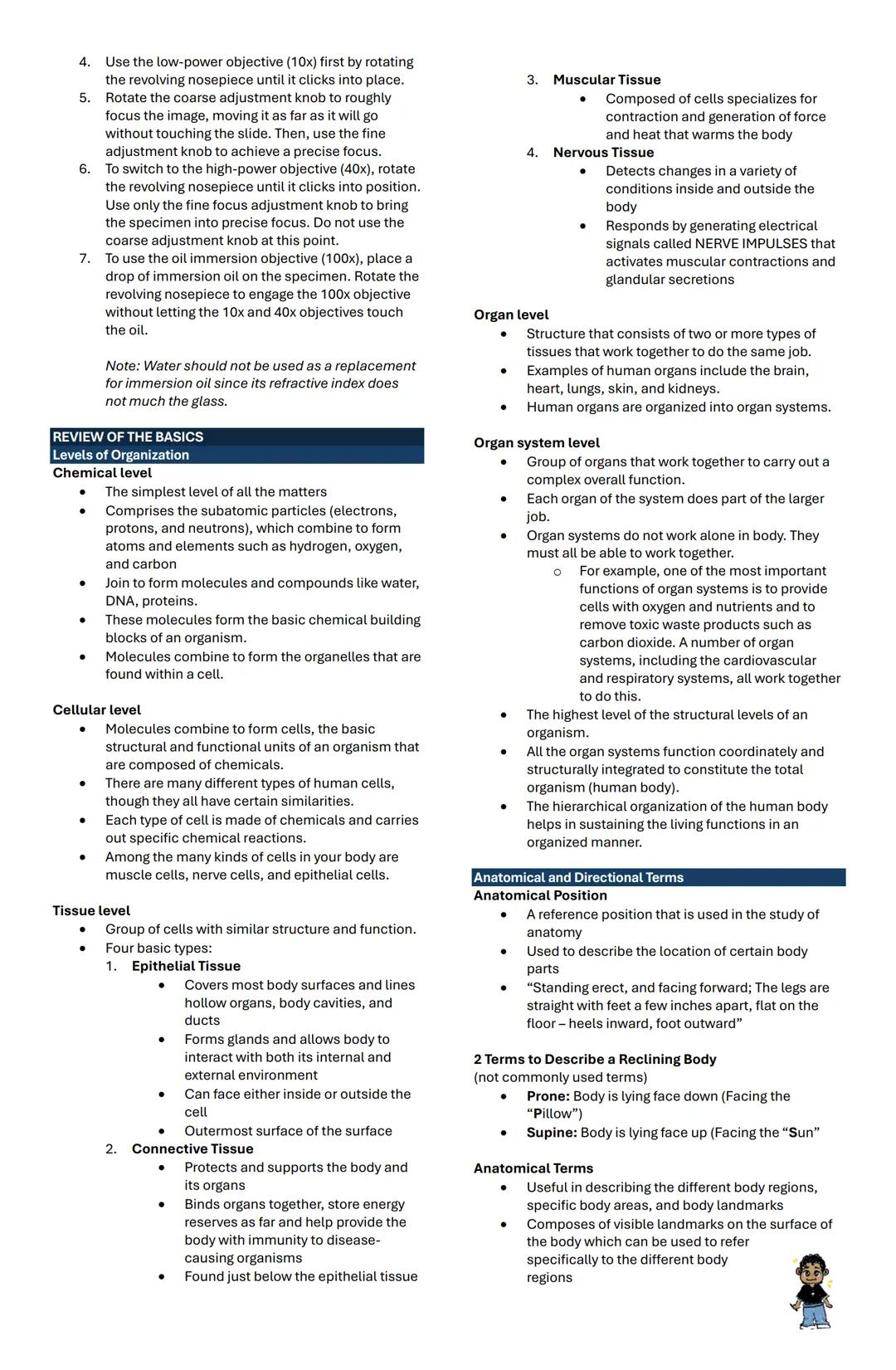

Proper Microscope Technique

Mastering proper microscope technique is crucial for obtaining clear, accurate views of specimens. Following a step-by-step approach will help you avoid common mistakes and protect both the specimen and the microscope.

Begin by connecting the microscope to power and adjusting the light intensity. Place your slide on the mechanical stage with the specimen facing upward. Always start with the low-power objective (10x) for initial focusing. Use the coarse adjustment knob to get a rough focus, but be careful not to let the objective touch the slide. Once you've achieved basic focus, use the fine adjustment knob for precise clarity.

When moving to higher magnification, rotate the nosepiece to click the desired objective into place. For the high-power objective (40x), use only the fine adjustment knob—never the coarse knob, as this could damage both the slide and the lens. For oil immersion (100x), you'll need to place a drop of immersion oil directly on the specimen before rotating the 100x objective into position.

Remember: Never use water instead of immersion oil, as water's refractive index doesn't match glass, resulting in poor image quality.

The human body is organized in levels of increasing complexity. At the chemical level, subatomic particles form atoms and molecules like DNA and proteins. These combine to form the cellular level, where specialized cells like muscle and nerve cells perform specific functions. Cells with similar functions group together to form tissues. The four basic tissue types—epithelial, connective, muscular, and nervous—each serve distinct purposes in the body.

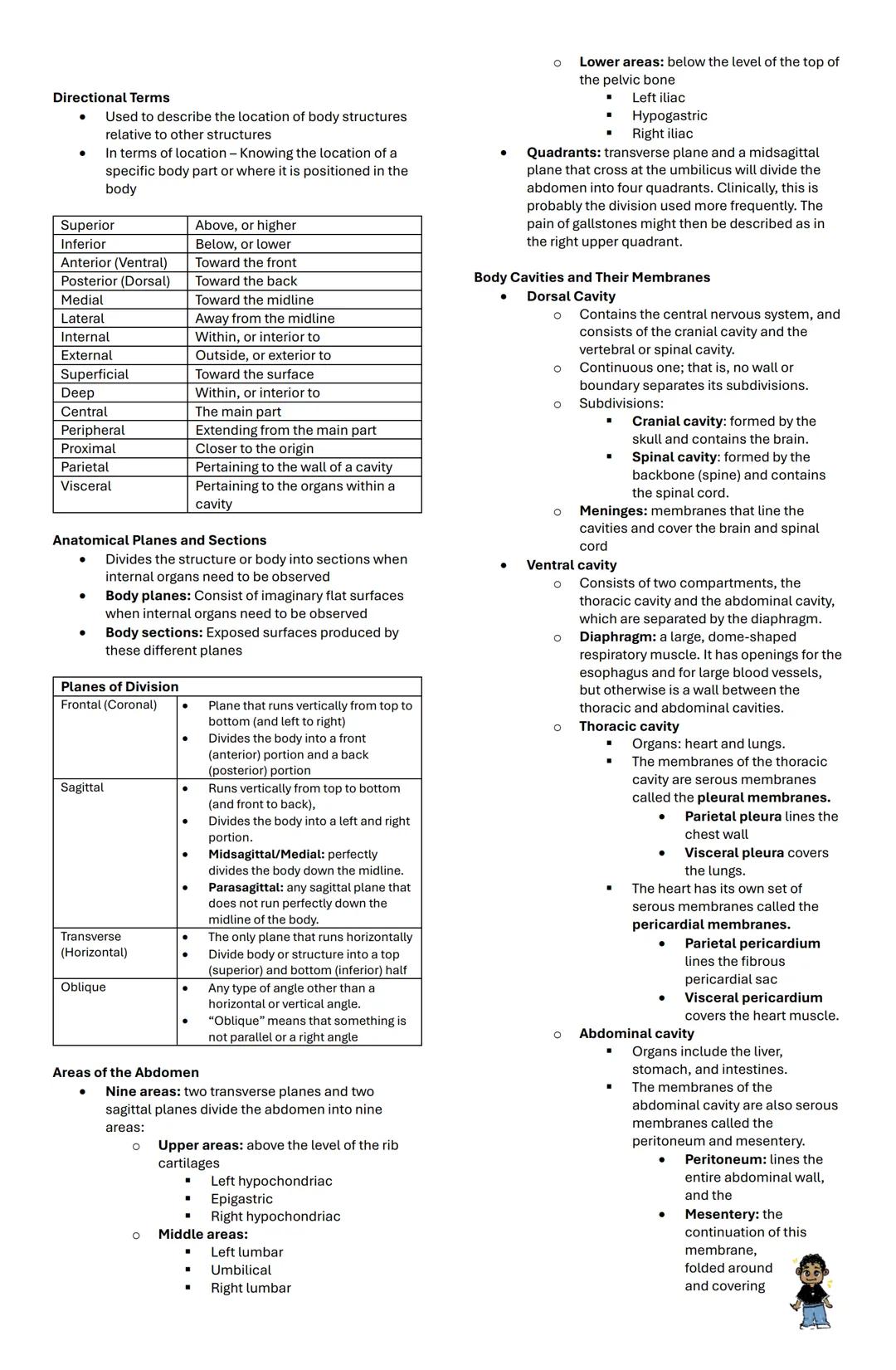

Levels of Organization and Anatomical Terminology

Tissues combine to form organs—structures with two or more tissue types working together for a specific function. Multiple organs then function together as organ systems to carry out complex tasks like delivering oxygen and removing waste. The entire organism represents the highest level of organization, with all organ systems working in coordination.

Understanding anatomical terminology allows precise communication about body locations and relationships. The anatomical position serves as a reference point: standing erect, facing forward, with legs straight and palms facing forward. From this position, we use directional terms to describe locations: superior (above) and inferior (below), anterior (toward the front) and posterior (toward the back), and medial (toward the midline) and lateral (away from the midline).

For a person lying down, specific terms apply: prone (lying face down) and supine (lying face up). These positional terms help healthcare professionals accurately communicate about patient positioning during procedures.

Quick Reference: Think of "superior" as toward the head and "inferior" as toward the feet to remember these directional relationships.

Anatomical planes divide the body into sections for visualization. The frontal (coronal) plane divides the body into front and back portions. The sagittal plane divides the body into left and right portions, with the midsagittal plane perfectly splitting the body down the middle. The transverse plane cuts horizontally to separate superior and inferior portions.

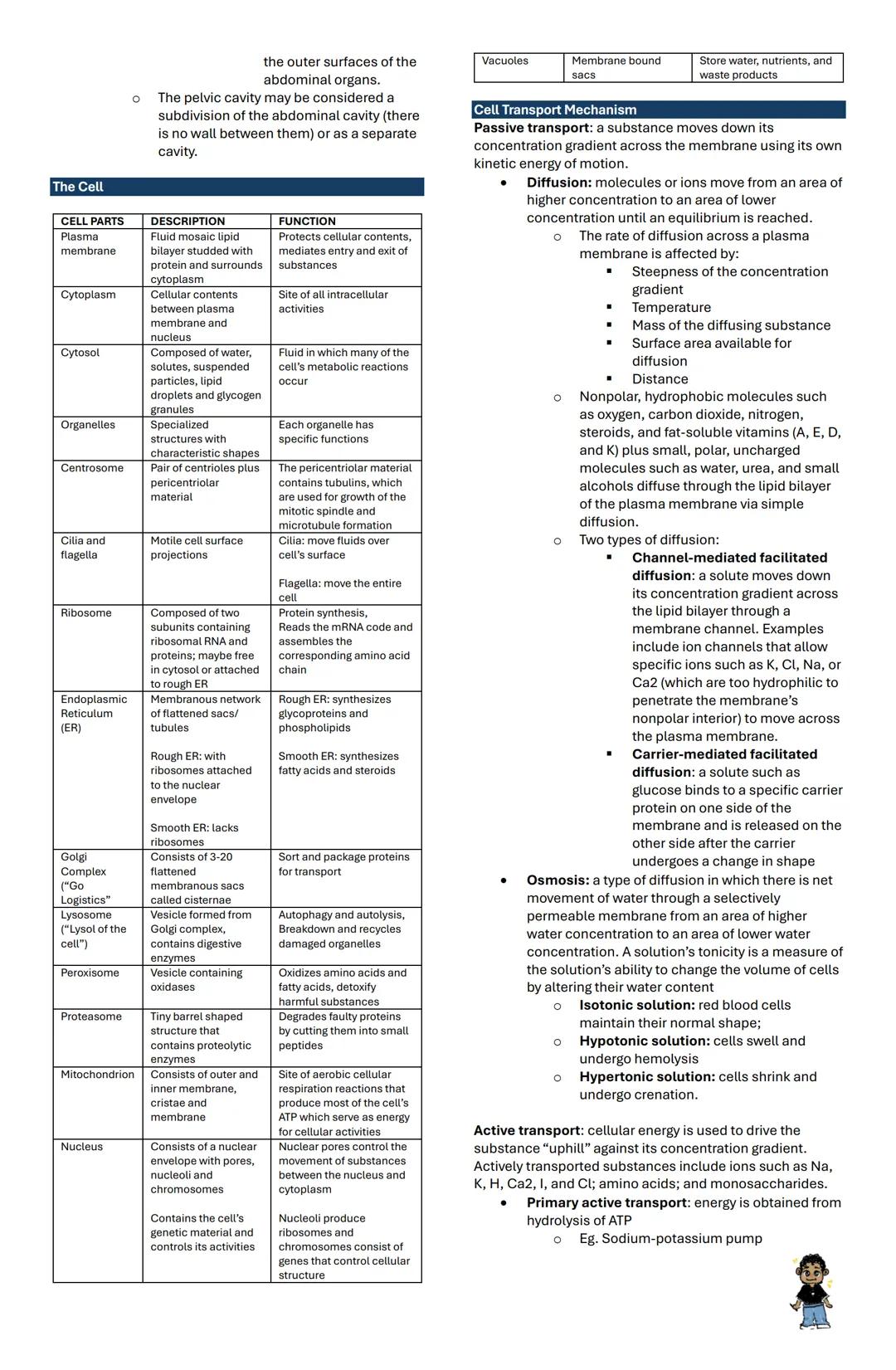

Body Cavities and Cell Transport

The human body contains major cavities that house and protect vital organs. The dorsal cavity holds the central nervous system and includes the cranial cavity (containing the brain) and the spinal cavity (containing the spinal cord). The ventral cavity is divided by the diaphragm into the thoracic cavity (housing the heart and lungs) and the abdominal cavity (containing the liver, stomach, and intestines).

Each body cavity is lined with protective membranes. The brain and spinal cord are covered by meninges, while the thoracic organs are lined with pleural membranes (for lungs) and pericardial membranes (for the heart). The abdominal cavity is lined with the peritoneum, which folds around organs as the mesentery.

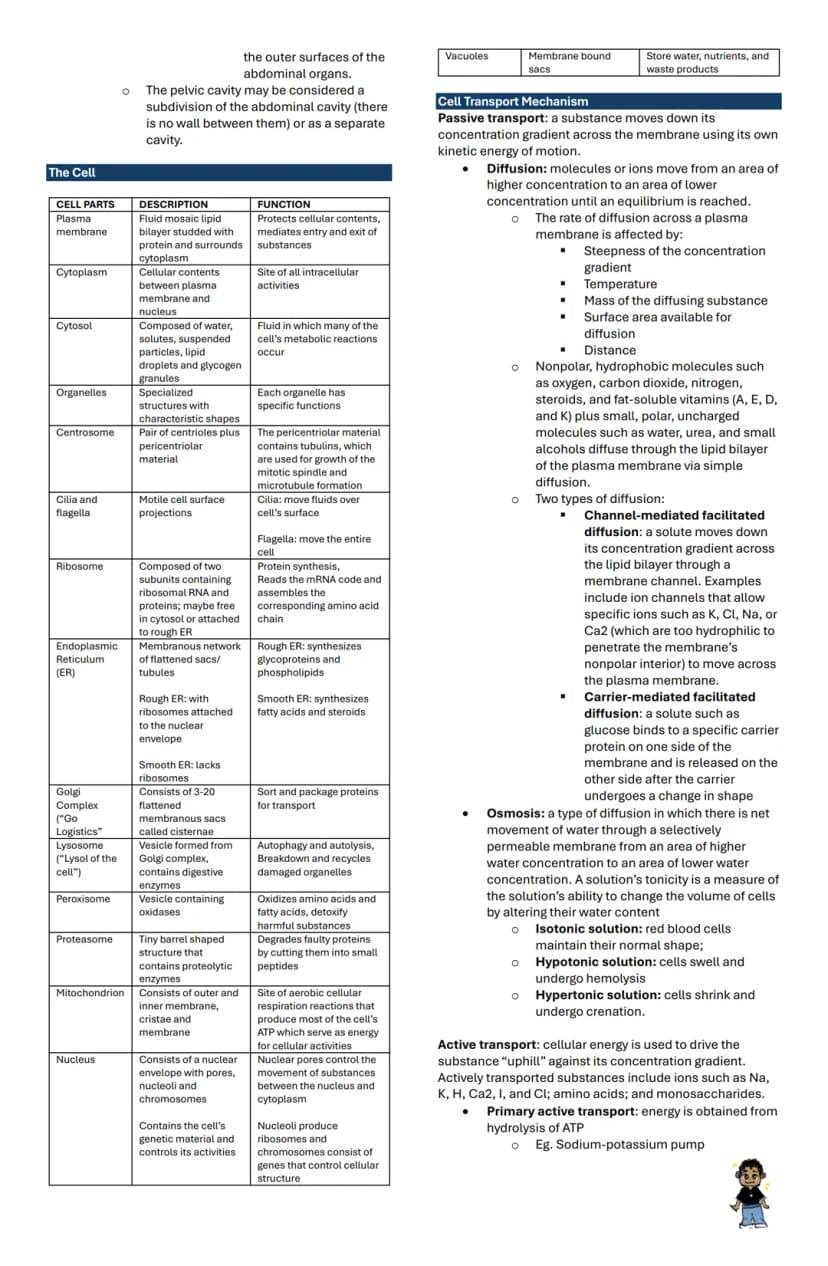

At the cellular level, materials move in and out of cells through various transport mechanisms. Passive transport requires no energy and moves substances down their concentration gradient. Examples include diffusion (movement from higher to lower concentration) and osmosis (diffusion of water across a membrane). The rate of diffusion depends on factors like concentration gradient steepness, temperature, and distance.

Clinical Connection: Understanding tonicity is crucial in medical settings—cells in a hypotonic solution swell and may burst, while cells in a hypertonic solution shrink and undergo crenation.

Active transport uses cellular energy to move substances against their concentration gradient. Primary active transport directly uses ATP, while secondary active transport harnesses energy from concentration gradients created by primary transport. The sodium-potassium pump is a classic example of primary active transport, maintaining crucial ion balances across cell membranes.

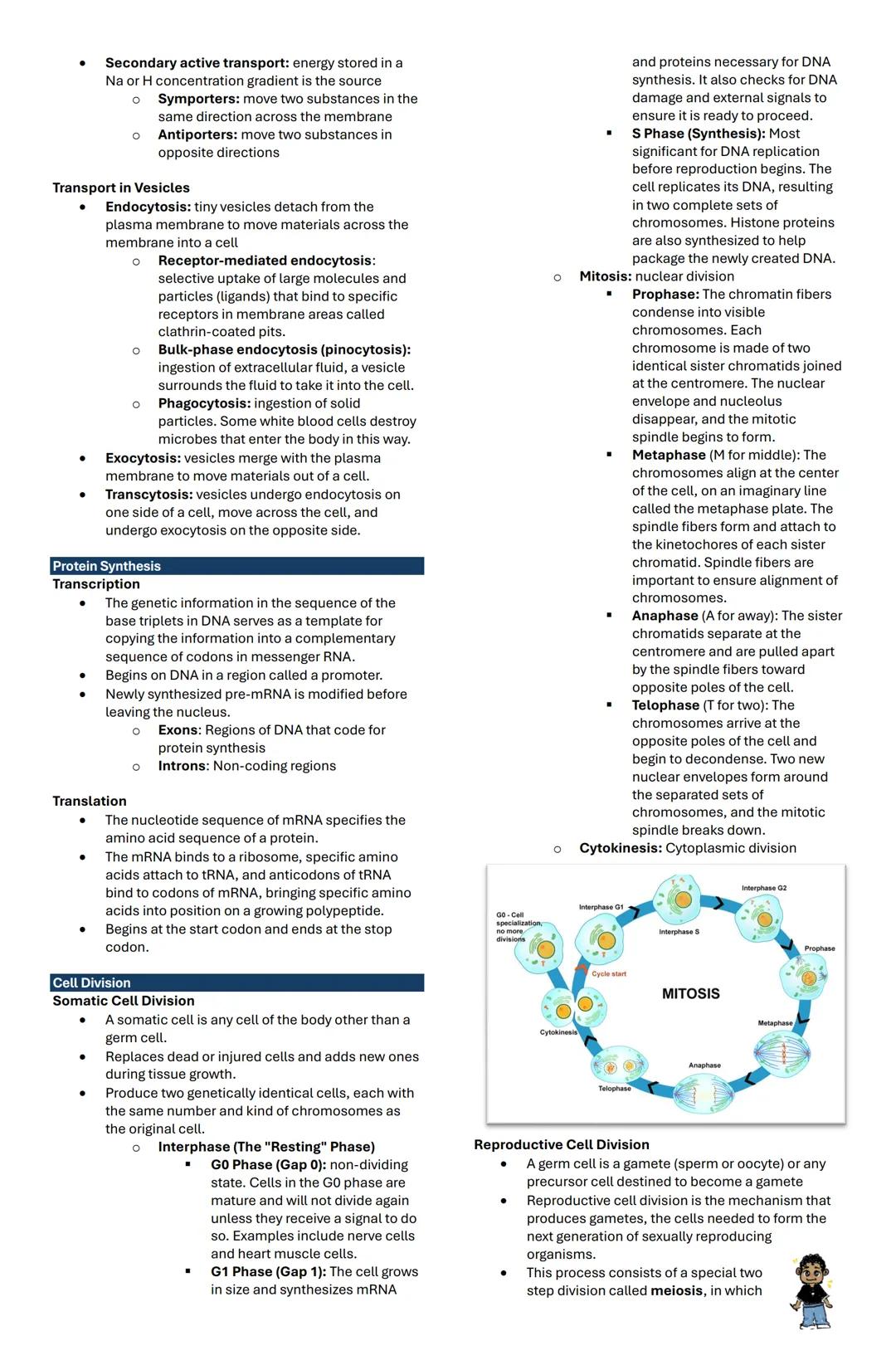

Cellular Transport and Division

Cells can move larger materials through vesicular transport. During endocytosis, materials enter the cell through vesicles in three main ways: receptor-mediated endocytosis (selective uptake of specific molecules), bulk-phase endocytosis (ingestion of extracellular fluid), and phagocytosis (ingestion of solid particles). In contrast, exocytosis exports materials by vesicles fusing with the plasma membrane, while transcytosis moves materials across a cell from one side to the other.

Protein synthesis involves two major steps. During transcription, DNA information is copied into messenger RNA (mRNA). The process begins at a region called a promoter, with exons being the coding regions and introns being the non-coding regions. In translation, ribosomes read the mRNA sequence to assemble specific amino acids into proteins, beginning at a start codon and ending at a stop codon.

Cell division follows specific cycles. Somatic cells (body cells) divide to replace damaged cells or add new ones during growth. The cell cycle includes:

• Interphase: G0 $non-dividing$, G1 (growth), and S phase (DNA replication)
• Mitosis: Nuclear division through prophase, metaphase, anaphase, and telophase
• Cytokinesis: Division of the cytoplasm

Study Focus: Understanding the phases of mitosis is crucial—remember PMAT: Prophase (chromosomes condense), Metaphase (chromosomes align at center), Anaphase (chromosomes separate), and Telophase (nuclear envelope reforms).

Reproductive cell division uses meiosis, a two-step division that produces gametes (sperm and eggs) with half the chromosomal number to maintain proper chromosome count when fertilization occurs.

Cellular Conditions and Integumentary System

Two major cellular conditions affect human health. Aging is a normal process with progressive alteration of homeostatic responses, possibly caused by genetically programmed cell division cessation, free radical buildup, or intensified autoimmune responses. Cancer involves uncontrolled cell division, forming tumors. Malignant tumors can metastasize (spread) to other body parts, while benign tumors don't spread but may still be harmful depending on location.

The integumentary system consists primarily of skin—our largest organ. The skin has two main layers: the outer epidermis (epithelial tissue) and the inner dermis (connective tissue). The epidermis contains five layers (strata), beginning with the stratum basale where cell division occurs. This layer contains keratinocytes that produce keratin, melanocytes that produce melanin pigment, and Langerhans cells that participate in immune responses.

As cells move upward through the stratum spinosum, stratum granulosum, and potentially the stratum lucidum (present only in thick skin), they undergo keratinization. Eventually, they reach the stratum corneum, consisting of dead, keratinized cells that provide protection.

Clinical Application: The epidermis completely renews itself approximately every 4-6 weeks, which is why topical medications like steroid creams must be applied consistently for effectiveness.

The highly vascularized dermis contains two layers: the superficial papillary layer with pain and touch receptors, and the deeper reticular layer with interlacing collagen fibers. Below the skin lies the hypodermis (subcutaneous layer), which provides insulation and protection through adipose tissue.

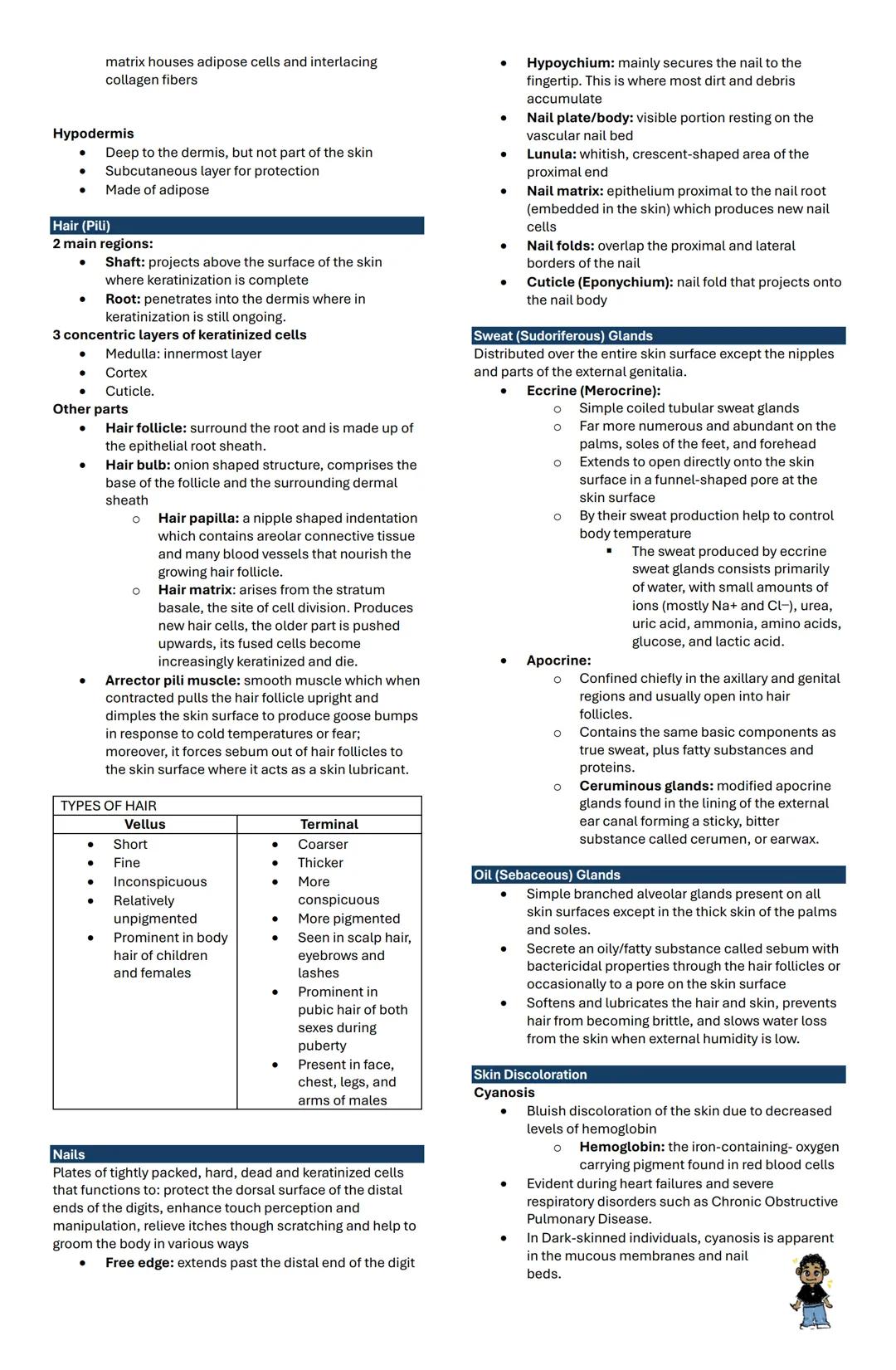

Hair, Skin Conditions, and Diagnostic Signs

Hair is a significant component of the integumentary system, consisting of the projecting shaft and the embedded root. Each hair has three concentric layers: the innermost medulla, middle cortex, and outer cuticle. The hair follicle surrounds the root, with the hair bulb at its base containing the hair papilla with blood vessels that nourish growing hair. The arrector pili muscle attached to hair follicles causes "goose bumps" when contracted.

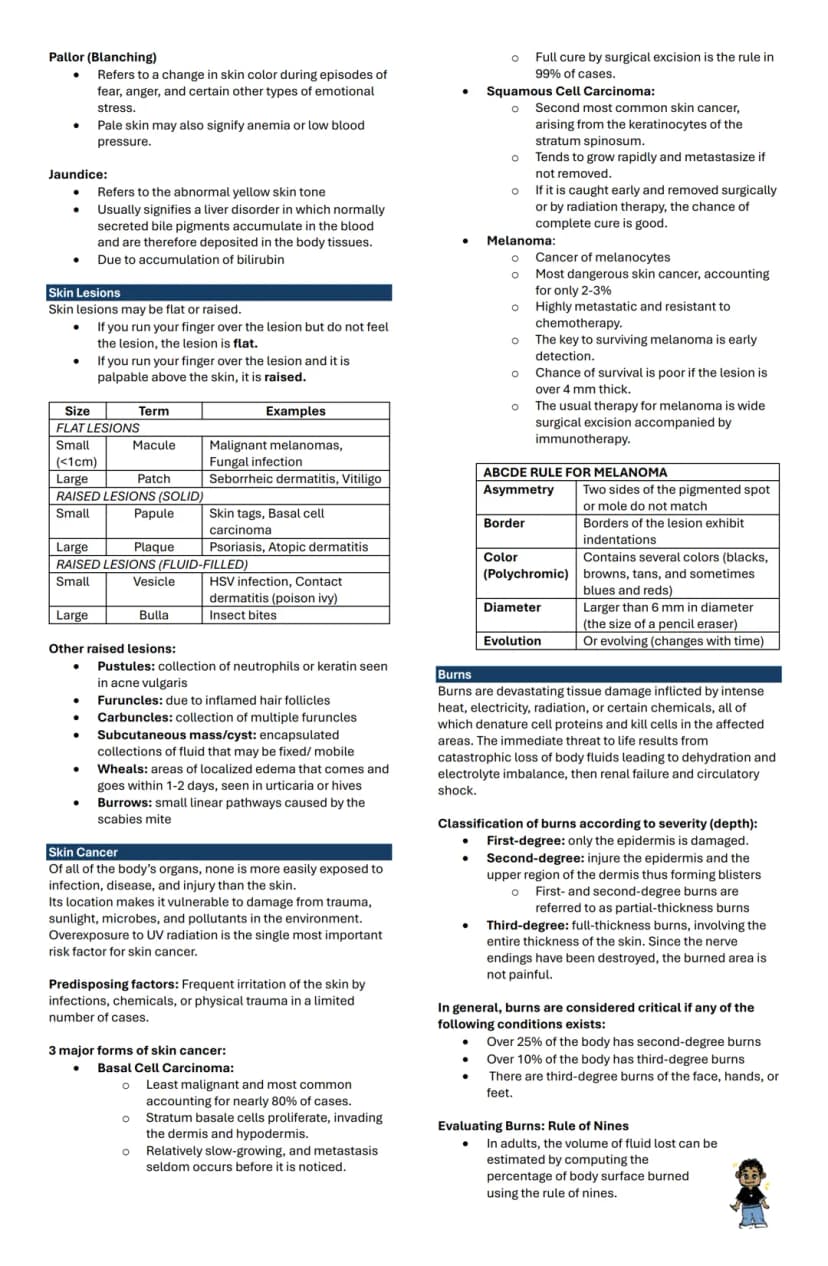

Skin color changes often indicate underlying conditions. Pallor (blanching) may occur during emotional stress or indicate anemia or low blood pressure. Jaundice creates an abnormal yellow skin tone, typically signifying liver disorders with bilirubin accumulation.

Skin lesions provide valuable diagnostic information. Flat lesions include small macules (like melanomas) and larger patches (like vitiligo). Raised solid lesions include small papules (like skin tags) and larger plaques (like psoriasis). Fluid-filled lesions range from small vesicles (like herpes infections) to larger bullae (like insect bites).

Diagnostic Key: When examining suspicious moles, remember the ABCDE rule: Asymmetry, Border irregularity, Color variation, Diameter >6mm, and Evolution (change over time).

Skin cancer primarily results from UV radiation exposure. Basal cell carcinoma (80% of cases) grows slowly with rare metastasis. Squamous cell carcinoma grows rapidly but responds well to early treatment. Melanoma, though only 2-3% of skin cancers, is highly dangerous due to metastasis and treatment resistance.

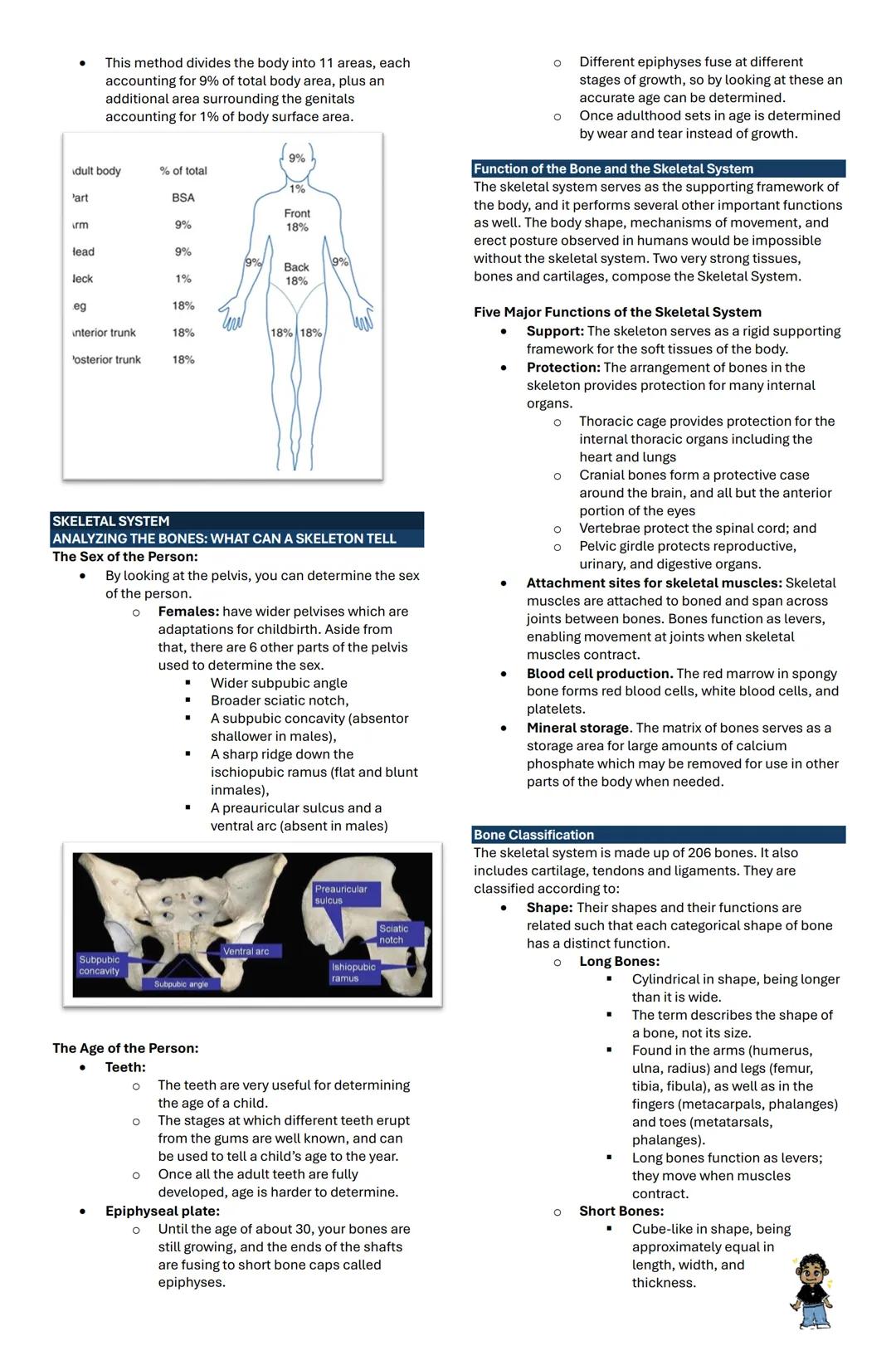

Burns and Skeletal System Introduction

Burns cause devastating tissue damage through heat, electricity, radiation, or chemicals that denature proteins and kill cells. The immediate life threat comes from fluid loss leading to dehydration and circulatory shock. Burns are classified by severity:

• First-degree: Only epidermis damaged $partial-thickness$
• Second-degree: Epidermis and upper dermis damaged, forming blisters $partial-thickness$
• Third-degree: Full-thickness burns involving entire skin depth, often painless due to nerve destruction

Burns are considered critical when over 25% of the body has second-degree burns, over 10% has third-degree burns, or when third-degree burns affect the face, hands, or feet. The Rule of Nines helps evaluate burn extent by dividing the body into 11 areas of 9% each, plus 1% for the genitals.

The skeletal system provides the body's framework and performs several essential functions. Through analyzing bones, forensic scientists can determine characteristics about a person. The pelvis reveals biological sex—females have wider pelvises with broader sciatic notches and distinct features like the subpubic concavity. Age determination comes from examining teeth eruption patterns in children and epiphyseal plate fusion in young adults.

Fascinating Fact: Different epiphyses fuse at different ages, allowing forensic anthropologists to determine age with surprising accuracy up to about age 30, after which age determination relies on bone wear patterns.

The skeletal system serves five major functions: providing support for the body's framework, offering protection for vital organs, creating attachment sites for skeletal muscles, enabling blood cell production in red marrow, and storing minerals like calcium phosphate.

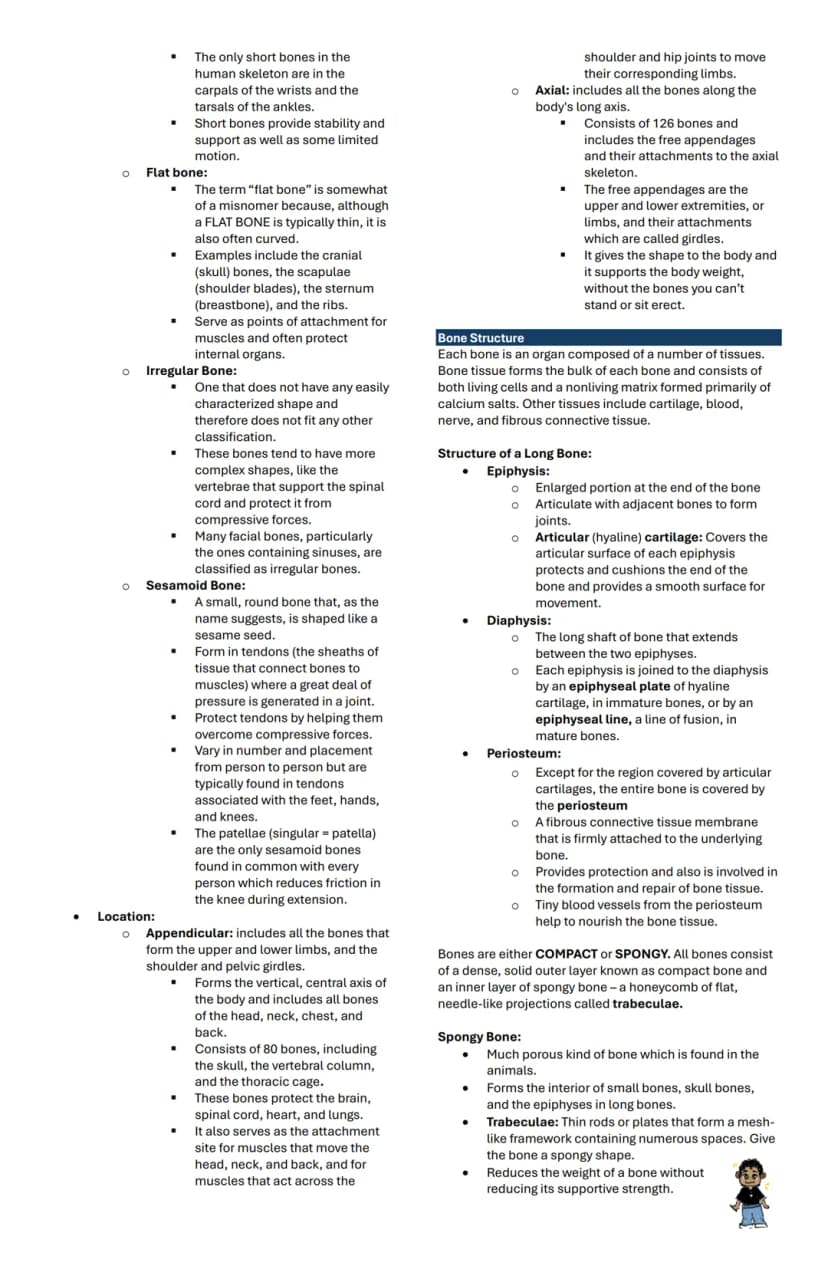

Bone Classification and Structure

The human skeletal system comprises 206 bones, plus cartilage, tendons, and ligaments. Bones are classified by shape, with each type serving specific functions:

Long bones (like the femur and humerus) are cylindrical and function as levers for movement. Short bones (found in wrists and ankles) provide stability and limited motion. Flat bones (like the skull and scapulae) protect organs and provide muscle attachment sites. Irregular bones (like vertebrae) have complex shapes for specific functions. Sesamoid bones form in tendons where pressure is high, with the patella (kneecap) being the most consistent example.

Bones are also classified by location. The axial skeleton forms the central axis (80 bones including the skull, vertebral column, and thoracic cage) and protects vital organs. The appendicular skeleton (126 bones) includes the limbs and their attachments to the axial skeleton, giving the body its shape and supporting weight.

Each bone is an organ with multiple tissue types. Long bones have distinctive structures:

• Epiphyses: Enlarged ends that articulate with adjacent bones
• Diaphysis: The long shaft connecting the epiphyses
• Periosteum: Protective fibrous covering over most of the bone surface

Clinical Connection: The periosteum contains nerve endings that make bone injuries extremely painful, and it's crucial for bone healing as it contains osteoblasts that help with fracture repair.

All bones consist of two main tissue types. Compact bone forms the dense outer layer, while spongy bone creates the interior structure with its mesh-like framework of trabeculae. This arrangement reduces weight without sacrificing strength.

Bone Structure and Body Cavities

The internal structure of bones is designed for both strength and efficiency. Compact bone forms a hard protective layer, while spongy bone with its honeycomb-like trabeculae reduces weight without compromising support. This design exemplifies how form follows function in human anatomy.

Bones are categorized into specific regions: epiphyses (the ends that form joints), the diaphysis (the main shaft), and the periosteum (the fibrous outer covering). Each region has specialized components that contribute to the bone's overall function. In growing bones, the epiphyseal plate of cartilage allows for lengthening, eventually becoming the epiphyseal line in mature bones.

The body cavities house and protect vital organs. The dorsal cavity contains the central nervous system, divided into the cranial cavity (housing the brain) and the spinal cavity (containing the spinal cord). These cavities are lined with protective membranes called meninges.

The ventral cavity is separated by the diaphragm into the thoracic cavity (containing the heart and lungs) and the abdominal cavity (housing digestive organs). Each cavity has specific serous membranes providing protection: pleural membranes for lungs, pericardial membranes for the heart, and the peritoneum for abdominal organs.

Medical Relevance: Understanding body cavities is essential for medical imaging interpretation and surgical approaches. Knowing which organs reside in which cavities helps identify the source of symptoms and plan appropriate treatments.

Cellular transport mechanisms include passive transport (diffusion, facilitated diffusion, osmosis) requiring no energy, and active transport requiring cellular energy to move substances against concentration gradients. The sodium-potassium pump is a crucial example of primary active transport that maintains cell membrane potential.
