Let's explore the world of microscopes - powerful tools that...
Biology99 views·Updated Jul 25, 2026·2 pagesUnderstanding Compound Light Microscope Anatomy
Vickyyy@vickyyy_knower
1
of 2

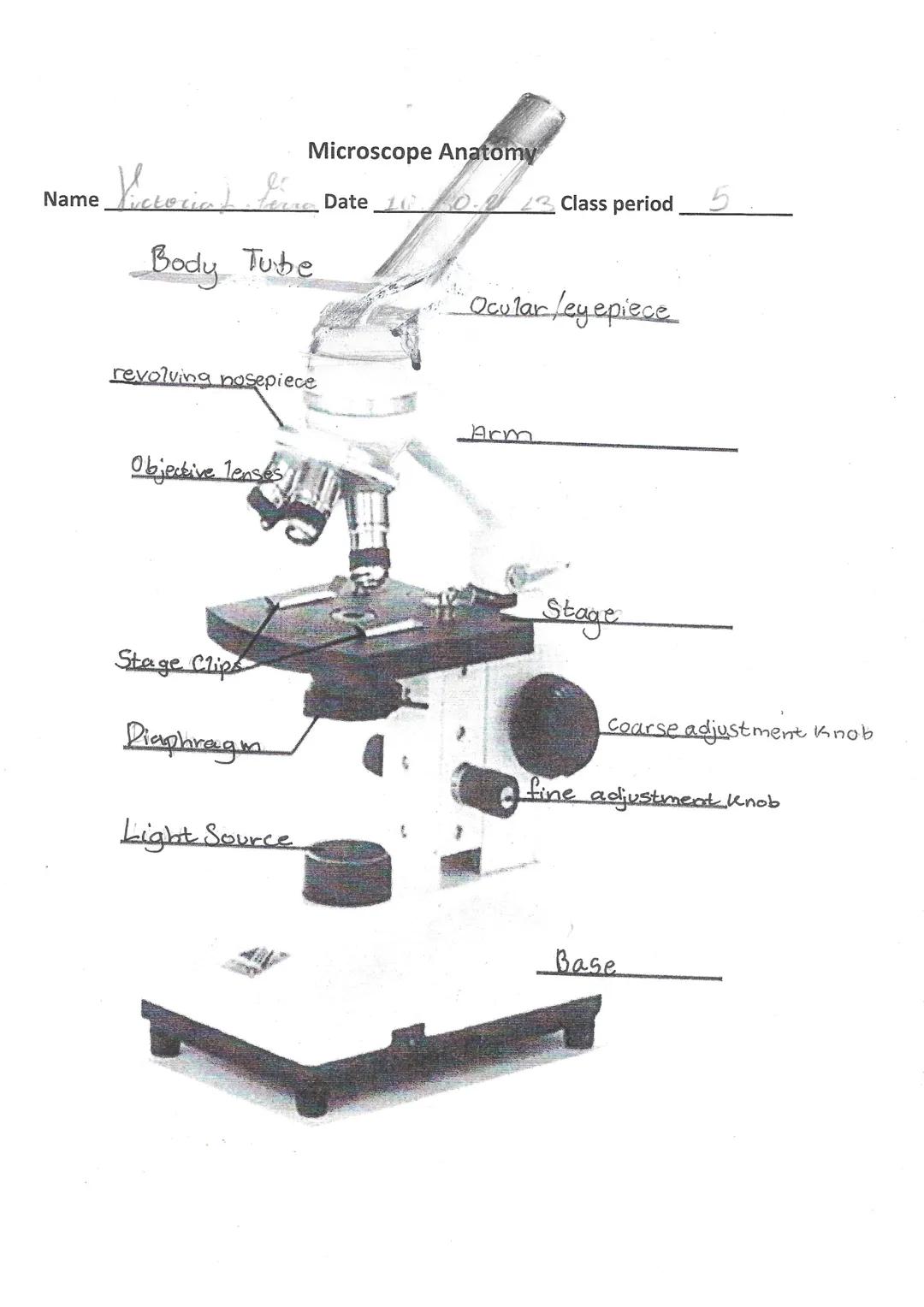

Microscope Anatomy
A microscope has many important parts that work together to help you see microscopic objects. At the top, you'll find the ocular (or eyepiece), which connects to the body tube extending down to the revolving nosepiece that holds multiple objective lenses.
The middle section consists of the arm that provides structural support, the stage where you place your specimens, and stage clips that hold your slides in place. The diaphragm sits below the stage and controls the amount of light passing through your specimen.
At the bottom, you'll find the light source built into the base which provides illumination. On the side of the microscope, the coarse adjustment knob makes large movements while the fine adjustment knob allows for precise focusing.
Pro Tip: Always carry your microscope with one hand on the arm and one hand supporting the base to prevent damage to this delicate instrument!
2
of 2

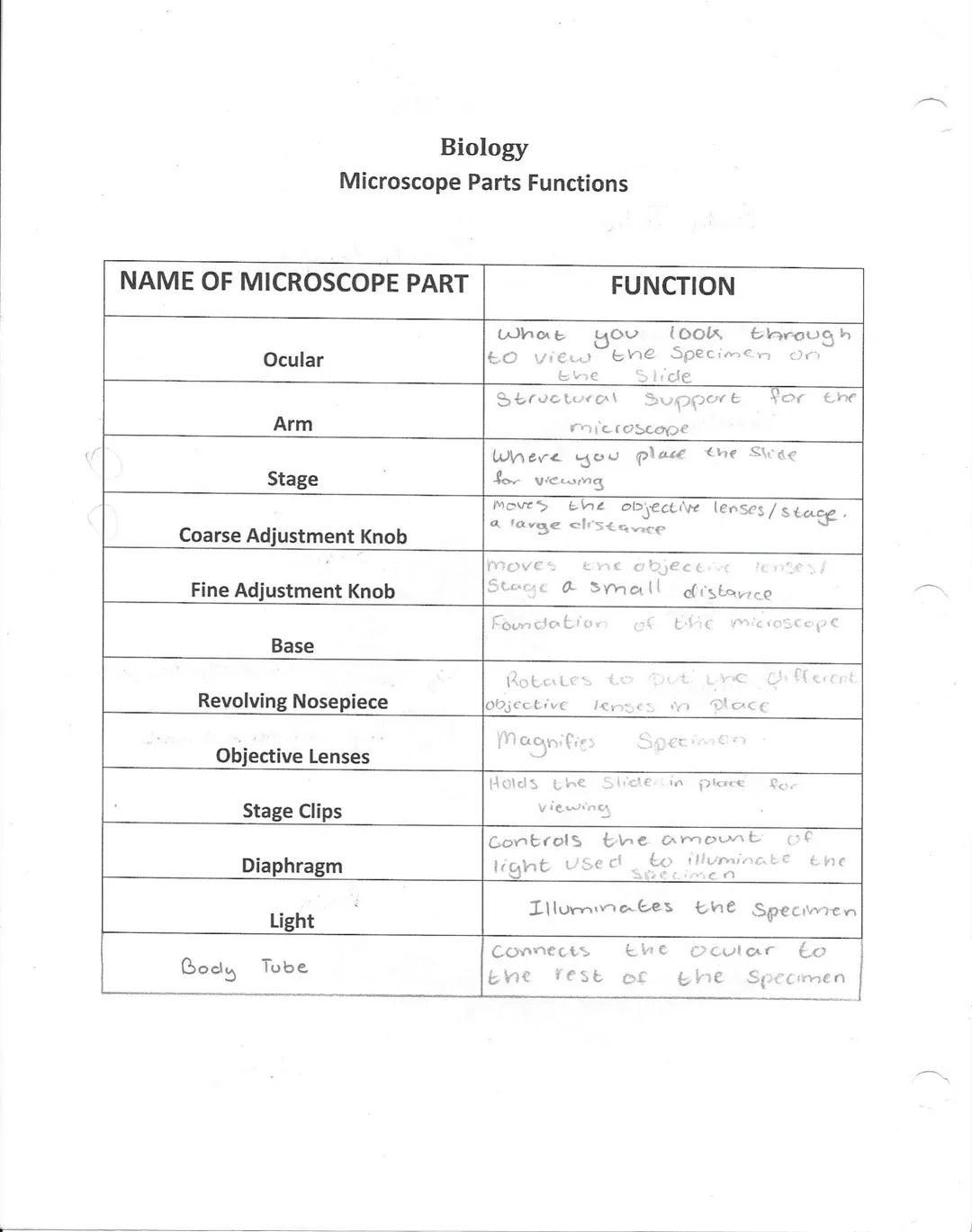

Microscope Parts Functions
Every part of your microscope has a specific job. The ocular (eyepiece) is what you look through to view your specimen. The arm provides structural support for the entire microscope, while the stage is the platform where you place your slide.
The coarse adjustment knob moves the objective lenses or stage a large distance for initial focusing. For more precise viewing, the fine adjustment knob moves them just a tiny bit. The base forms the foundation of the microscope, and the revolving nosepiece rotates to switch between different objective lenses.
The objective lenses do the actual magnification of your specimen. To keep your slide from moving around, the stage clips hold it firmly in place. The diaphragm controls how much light passes through your specimen, while the light source provides illumination from below.
Remember: Always start focusing with the lowest power objective lens and then rotate to higher magnifications after you've found your specimen!
We thought you’d never ask...
Our AI companion is specifically built for the needs of students. Based on the millions of content pieces we have on the platform we can provide truly meaningful and relevant answers to students. But its not only about answers, the companion is even more about guiding students through their daily learning challenges, with personalised study plans, quizzes or content pieces in the chat and 100% personalisation based on the students skills and developments.
You can download the app in the Google Play Store and in the Apple App Store.
That's right! Enjoy free access to study content, connect with fellow students, and get instant help – all at your fingertips.
Similar Content
Environmental ScienceMost popular content: Structure of a Microscope
1Most popular content in Biology
9C
BiologyCell Organelles
This Quiz Is To Test Your Knowledge Of Cell Organelles And Their Functions Inside The Cell. It Can Also Be A Study Guide To Remember Them Better.
6th6950
B
Biologybiology cell organelles and functions
Do you know the cell organelles and their functions?
9th4800
M
BiologyMitosis and Cell Division Flashcards
These flashcards cover the basics of mitosis and why cell division occurs in the first place.
9th3470
D
BiologyDiscover the Fascinating World of Living Organisms
Uncover the secrets of biology and explore the diverse and amazing life forms that inhabit our planet with this captivating flashcard set.
7th4520
A
BiologyAnimal and plant cell structure
Quiz on animal and plant cell structures
9th3550
D
BiologyDNA
Parts of DNA
9th3050
D
BiologyDiscover Punnet Squares
Uncover the secrets of life with this comprehensive Biology flashcard set. Perfect for grade 10 students studying Living Environment.
10th3991
S
BiologySteps of Cellular Respiration
3 basic steps and Molecule Vocab
9th2680
D
BiologyDNA and RNA
Uncover the secrets of life with this comprehensive Biology flashcard set. Perfect for grade 10 students studying Living Environment.
10th1,1002
Most popular content
9I
SAT®Introduction to SAT Error Pattern Analysis
Practice identifying common reasoning traps and misinterpretations in SAT reading and math stimuli to understand why distractors are plausible.
9th2,2050
C
BiologyCell Organelles
This Quiz Is To Test Your Knowledge Of Cell Organelles And Their Functions Inside The Cell. It Can Also Be A Study Guide To Remember Them Better.
6th6950
F
AP PsychologyFoundations of Ethical Guidelines in Research
Practice the core principles of the APA ethical code including informed consent, debriefing, and the role of Institutional Review Boards.
9th1,3370
B
Biologybiology cell organelles and functions
Do you know the cell organelles and their functions?
9th4800
I
SAT®Introduction to SAT Scoring and Scaled Results
Practice interpreting how raw scores are converted to the 1600-point scale and identifying the composition of section scores.
9th8610
F
AP PsychologyFoundations of Research Design and Methodology
Practice distinguishing between different research methods including experiments, correlations, and case studies while identifying key variables.
9th6670
M
MathematicsMath Made Easy: Essential Concepts for Grade 7
Master key math concepts with this comprehensive flashcard set designed specifically for 7th graders. Boost your understanding and ace your exams!
7th7561
M
BiologyMitosis and Cell Division Flashcards
These flashcards cover the basics of mitosis and why cell division occurs in the first place.
9th3470
H
AP PsychologyHistorical Foundations of Psychology
Practice distinguishing between structuralism, functionalism, and the early philosophical roots of psychological science.
9th1,0940
Students love us — and so will you.
4.6/5App Store
4.7/5Google Play
The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.
Stefan SiOS user
This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.
Samantha KlichAndroid user
Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.
AnnaiOS user
Biology99 views·Updated Jul 25, 2026·2 pagesUnderstanding Compound Light Microscope Anatomy
Vickyyy@vickyyy_knower
Let's explore the world of microscopes - powerful tools that let you see tiny things invisible to the naked eye! Understanding the parts of a microscope and their functions is essential for proper use in your science lab activities.
1
of 2
Sign up to see the content. It's free!
- Access to all documents
- Improve your grades
- Join milions of students

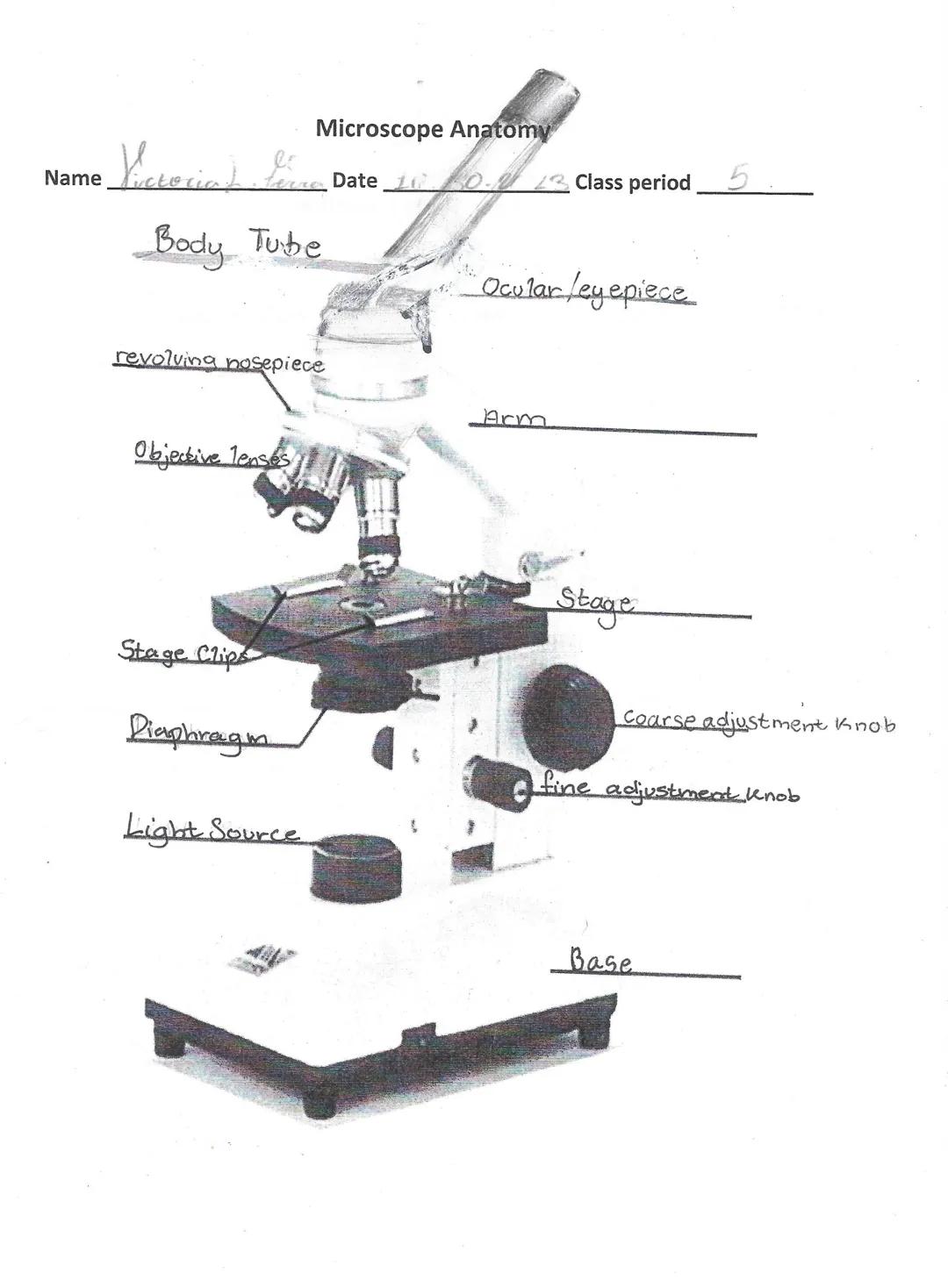

Microscope Anatomy
