Understanding Microscopy Techniques and Staining Methods

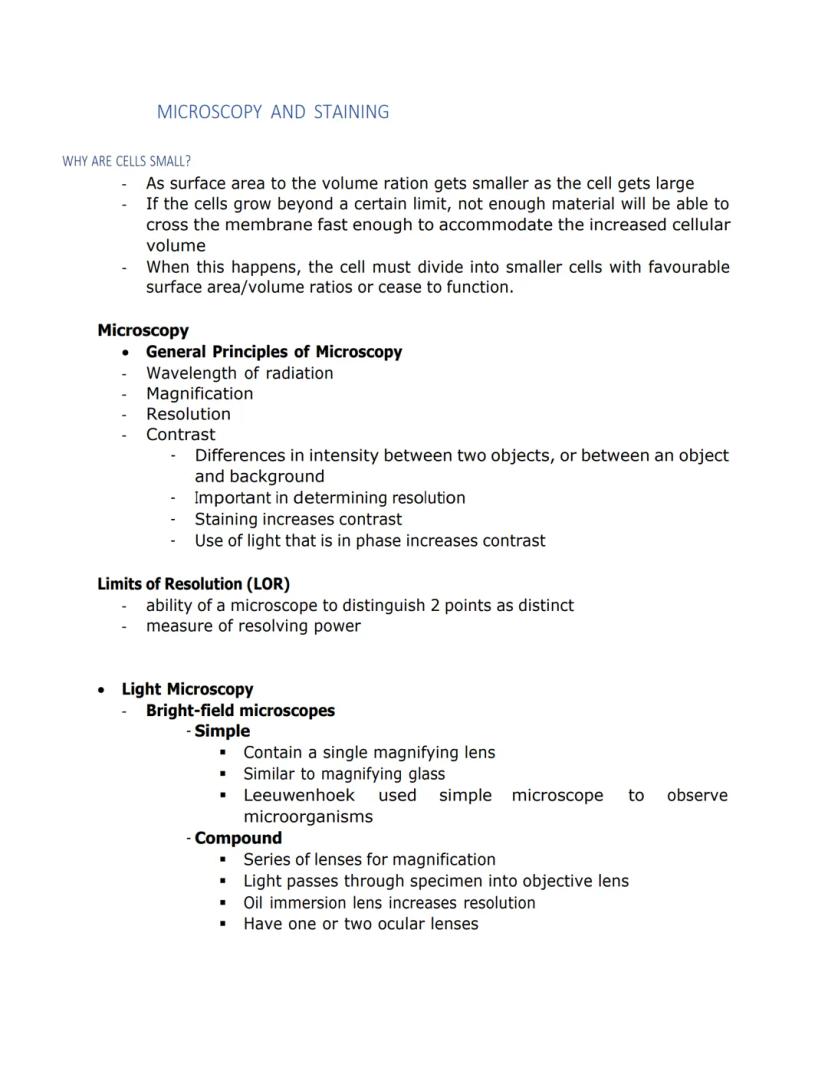

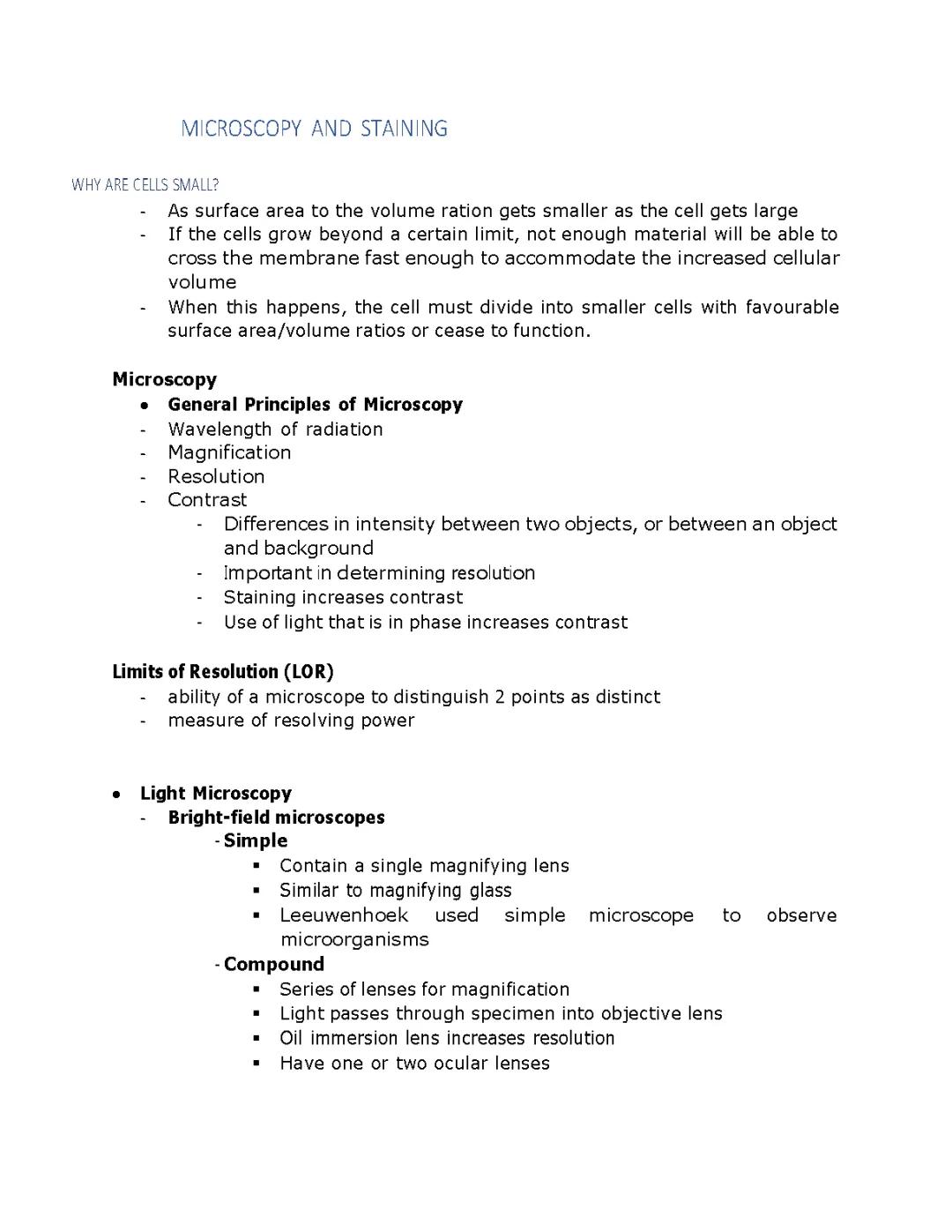

Understanding Cell Size and Microscopy Basics

Ever wonder why cells are so small? It's all about efficiency! As cells grow larger, their surface area to volume ratio decreases, making it harder for materials to cross the cell membrane quickly enough. When a cell gets too big, it must either divide into smaller cells or stop functioning properly.

Microscopy depends on several key principles that determine what we can see. Magnification increases the apparent size of an object, while resolution is the ability to distinguish two points as separate. The wavelength of light used affects resolution - shorter wavelengths allow us to see smaller details. Contrast (the difference in intensity between objects) is crucial for clear viewing, which is why we use staining techniques.

Light microscopes come in different forms. Simple microscopes have a single magnifying lens (like Leeuwenhoek used to first observe microorganisms), while compound microscopes use multiple lenses for greater magnification. With compound microscopes, light passes through the specimen into an objective lens, and the total magnification equals the objective lens magnification times the ocular lens magnification.

Quick Tip: When using a microscope, remember that the oil immersion lens (100x) gives the highest magnification but requires a drop of oil between the slide and lens to increase resolution by reducing light scattering.

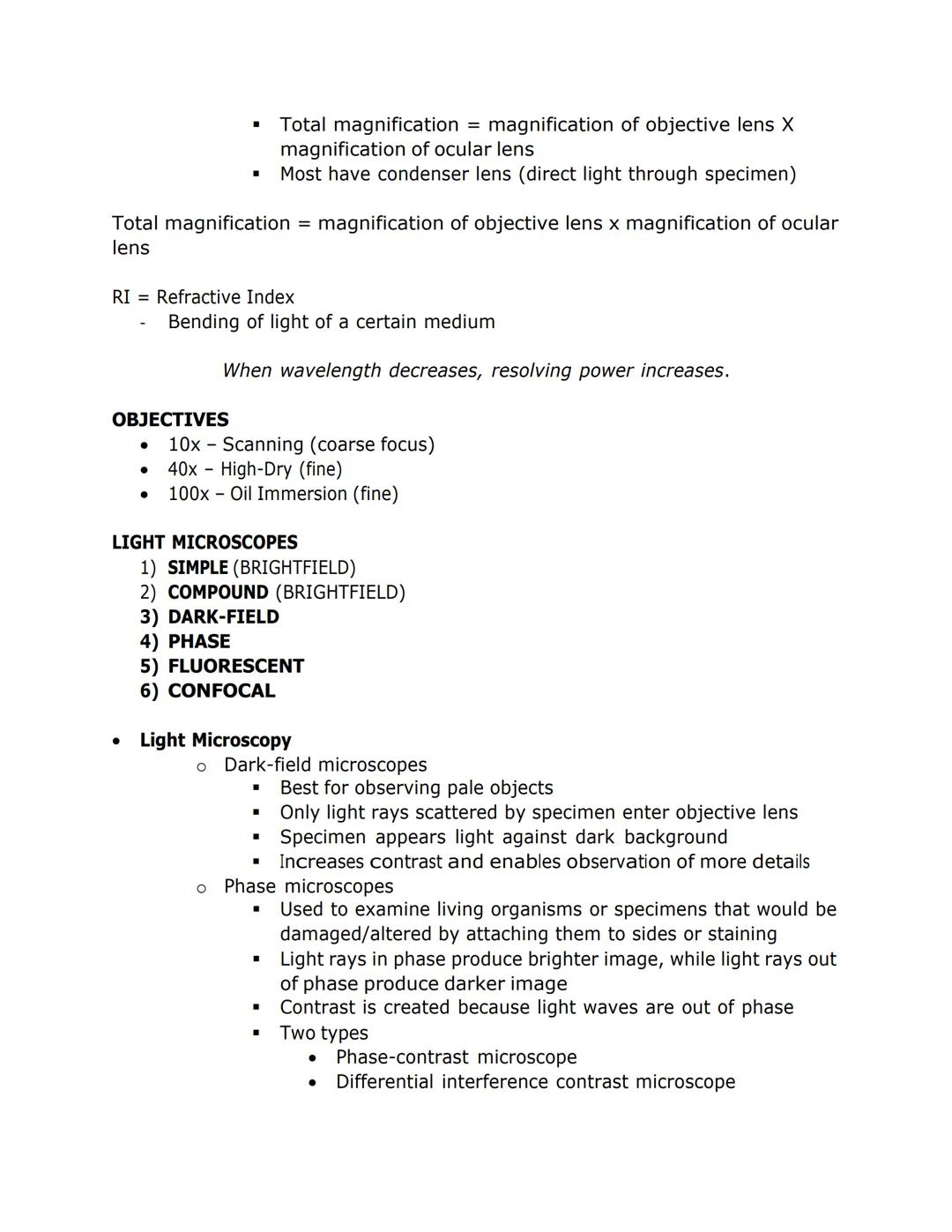

Types of Light Microscopes

Your standard microscope has different objective lenses: 10x (scanning), 40x (high-dry), and 100x (oil immersion). Each serves a specific purpose in helping you observe specimens at different levels of detail.

Brightfield microscopes are what you typically use in school labs. They show specimens as dark objects against a bright background. But sometimes, that's not enough to see certain details. That's where specialized microscopes come in!

Dark-field microscopes are perfect for pale objects that are hard to see. They only allow scattered light to enter the lens, making specimens appear bright against a dark background. This increased contrast reveals details you'd miss with regular brightfield microscopy.

Phase microscopes are game-changers for viewing living organisms without damaging them through staining. These clever devices use light waves that are in and out of phase to create contrast. There are two main types: phase-contrast and differential interference contrast microscopes, both excellent for observing living specimens.

Remember This: The type of microscope you choose depends on what you're trying to see. Different specimens require different techniques - brightfield for stained cells, dark-field for nearly transparent organisms, and phase for living samples.

Advanced Microscopy Techniques

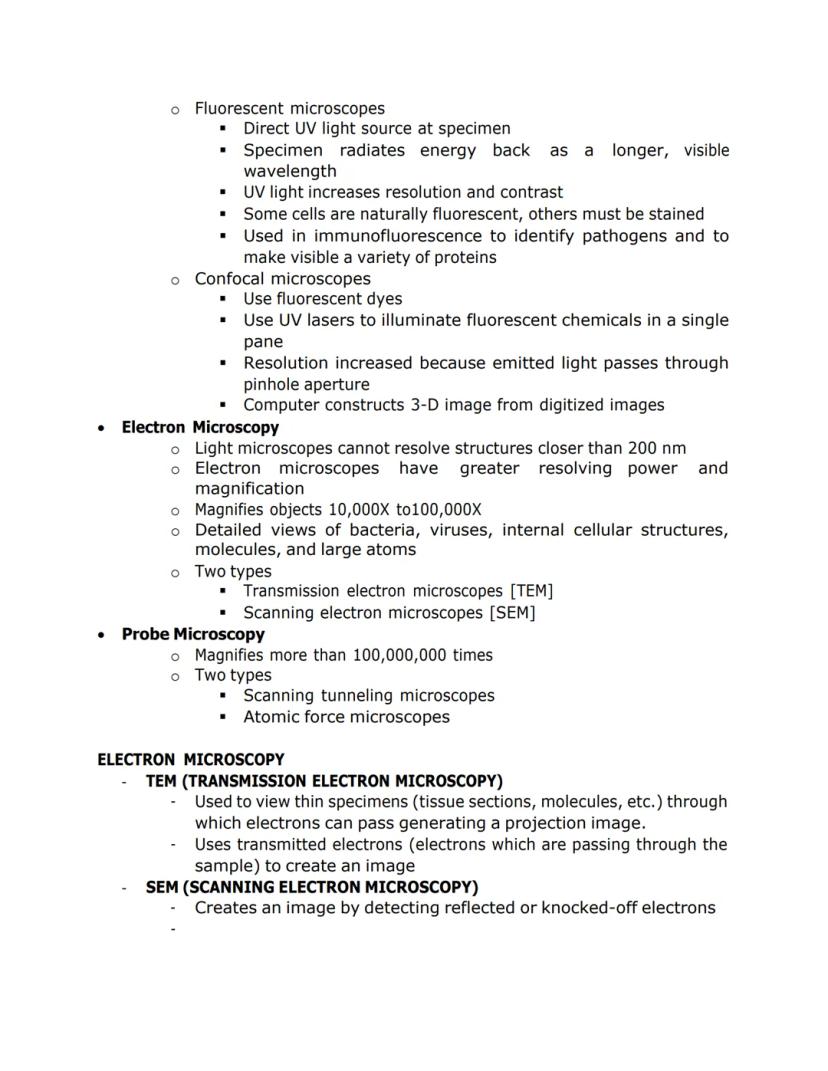

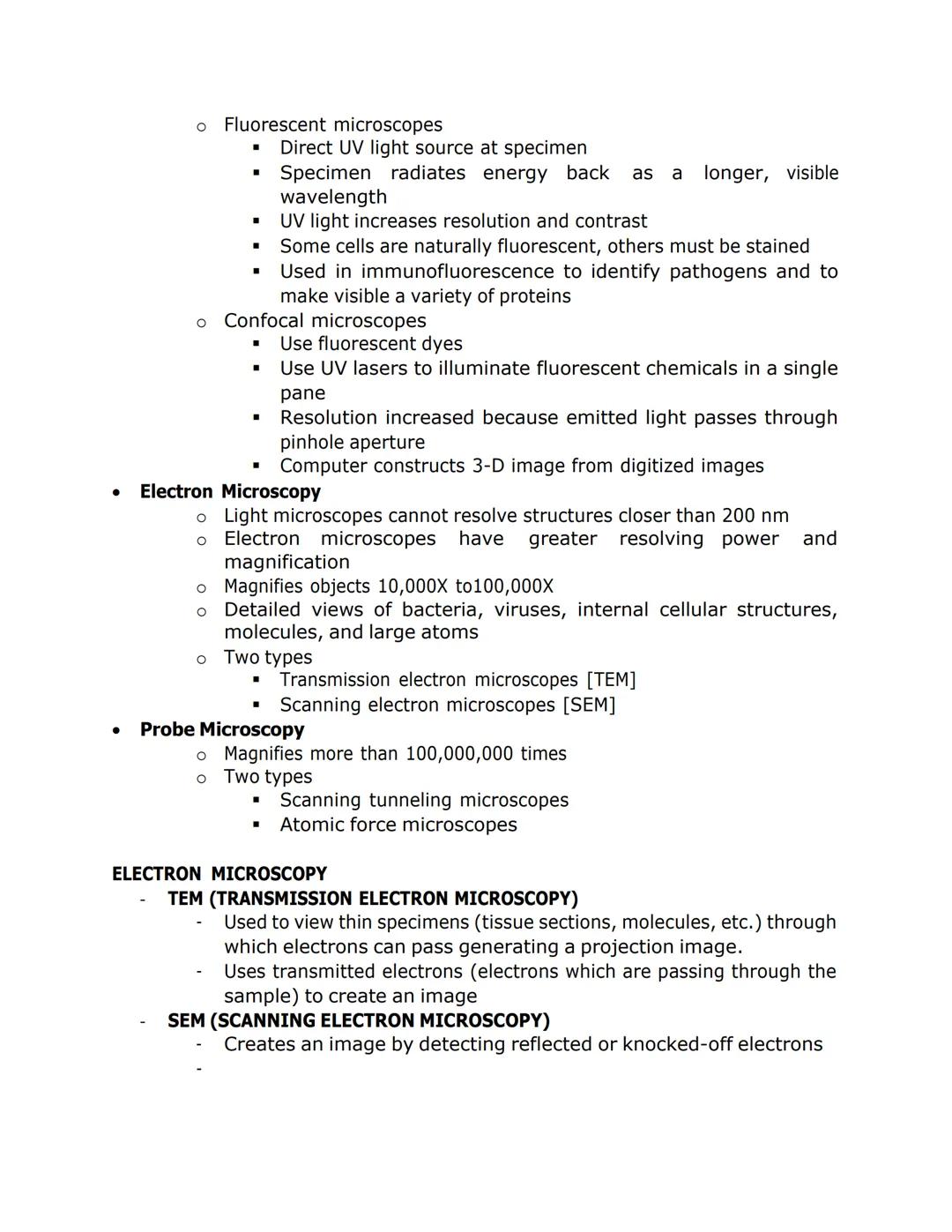

Fluorescent microscopes are like having glow-in-the-dark vision for cells! They direct UV light at specimens, causing them to radiate energy back as visible light. Some cells naturally fluoresce, while others need special stains. Scientists use this technique in immunofluorescence to identify pathogens and visualize different proteins.

Confocal microscopes take fluorescence to the next level. They use UV lasers to illuminate fluorescent dyes in a single plane of the specimen. The emitted light passes through a tiny pinhole, increasing resolution dramatically. A computer then builds amazing 3D images from these digital slices.

When light microscopes reach their limits (they can't resolve structures closer than 200 nm), scientists turn to electron microscopes. These powerful tools magnify objects 10,000 to 100,000 times, revealing detailed views of bacteria, viruses, and even large molecules. The two main types are transmission electron microscopes (TEM), which pass electrons through thin specimens, and scanning electron microscopes (SEM), which detect reflected electrons.

Mind-Blowing Fact: The most powerful microscopes, called probe microscopes, can magnify objects more than 100,000,000 times! This technology allows scientists to see individual atoms and molecules - structures so small they're almost unimaginable.

Staining Techniques

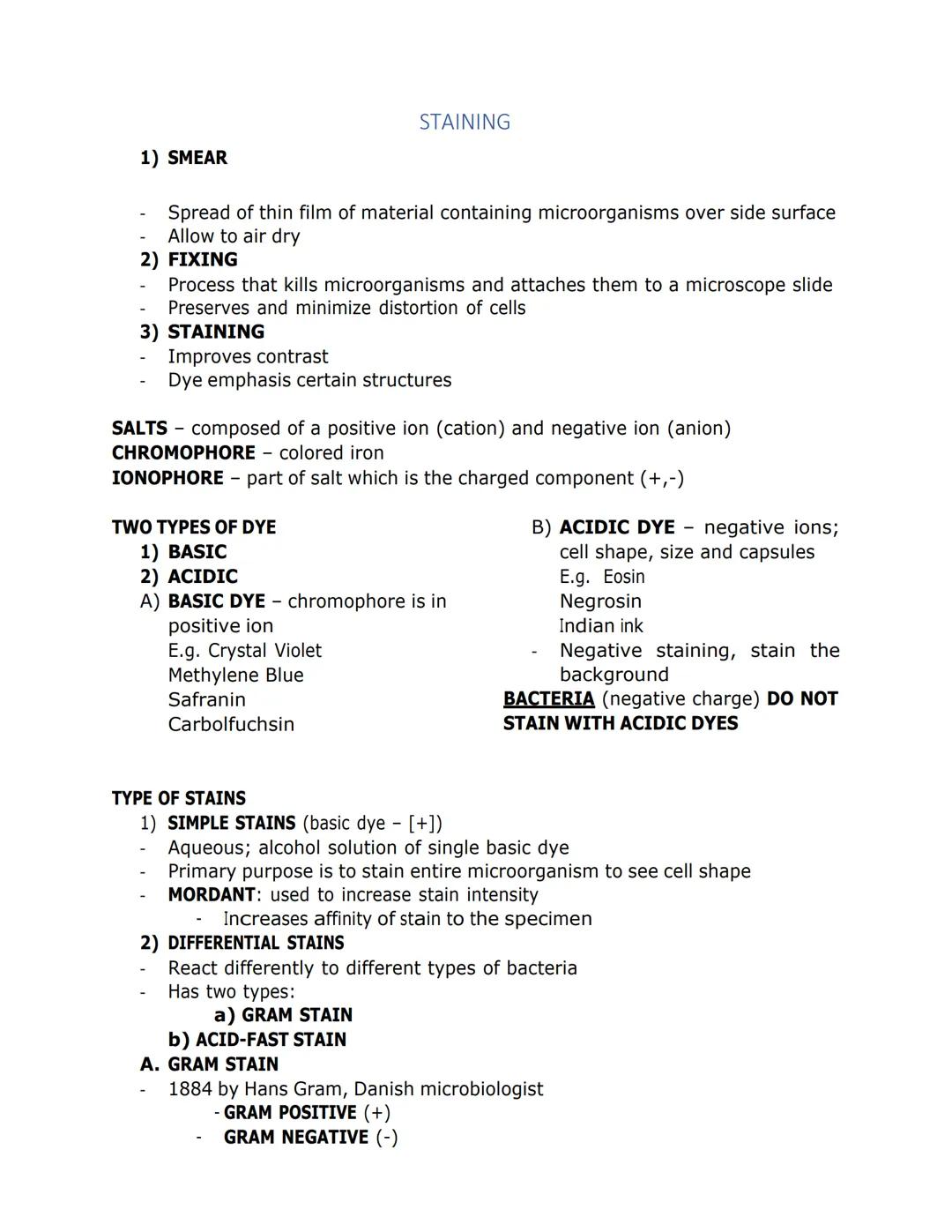

Preparing cells for microscopic viewing involves three key steps. First, you create a smear by spreading a thin film of material on a slide. Then comes fixing, which kills microorganisms and attaches them to the slide while preserving their structure. Finally, staining improves contrast and highlights specific structures.

Stains are actually salts composed of positive (cation) and negative (anion) ions. The colored part is called the chromophore, while the charged component is the ionophore. There are two main types of dyes: basic dyes (with positive chromophores) and acidic dyes (with negative chromophores).

Bacteria naturally have a negative charge, so they attract positively charged basic dyes like crystal violet and methylene blue. Acidic dyes like eosin and negrosin don't stain bacterial cells directly - instead, they create negative stains by coloring the background while leaving bacteria unstained.

Pro Tip: When staining bacteria, remember that simple stains use a single basic dye to show cell shape, while differential stains (like Gram stain) react differently to different types of bacteria, helping scientists identify and classify them. A mordant can be added to increase stain intensity!

Differential Staining Techniques

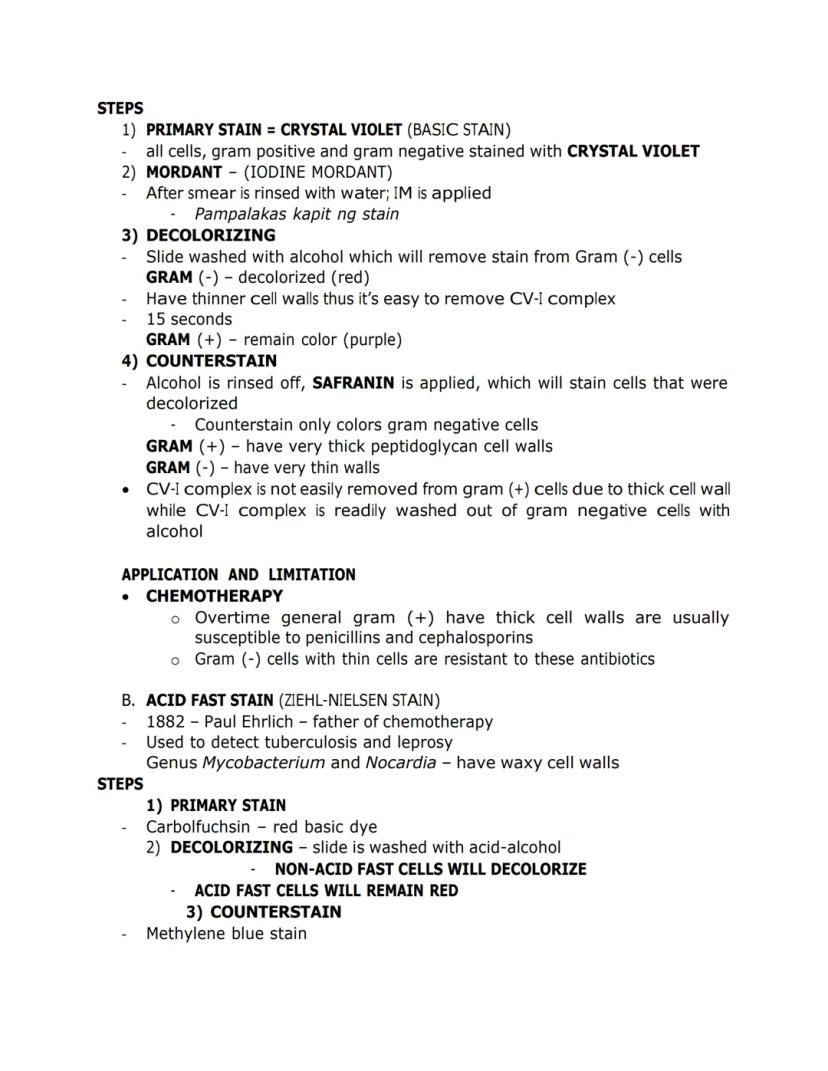

The Gram stain, developed in 1884 by Hans Gram, is one of the most important techniques in microbiology. This four-step process helps distinguish between two major types of bacteria: Gram-positive and Gram-negative.

First, all cells are stained purple with crystal violet (the primary stain). Next, iodine mordant is applied to strengthen the stain's grip. The key step is decolorizing with alcohol - this removes stain from Gram-negative cells (which have thin cell walls) while Gram-positive cells (with thick peptidoglycan walls) retain the purple color. Finally, a counterstain called safranin turns the decolorized Gram-negative cells red.

This staining difference isn't just for identification - it has practical applications in medicine! Gram-positive bacteria are usually more susceptible to penicillins and cephalosporins, while Gram-negative bacteria tend to be resistant to these antibiotics.

The acid-fast stain (Ziehl-Nielsen stain) is another crucial differential technique. It helps detect bacteria with waxy cell walls like Mycobacterium (which causes tuberculosis and leprosy). The stain uses carbolfuchsin as a primary stain, followed by acid-alcohol decolorizing. Only acid-fast cells retain the red color, while non-acid-fast cells take up the methylene blue counterstain.

Clinical Connection: Doctors often order Gram stains and acid-fast stains when diagnosing infections. These tests can provide quick preliminary information about what type of bacteria might be causing the problem, helping guide initial treatment decisions before culture results are available.

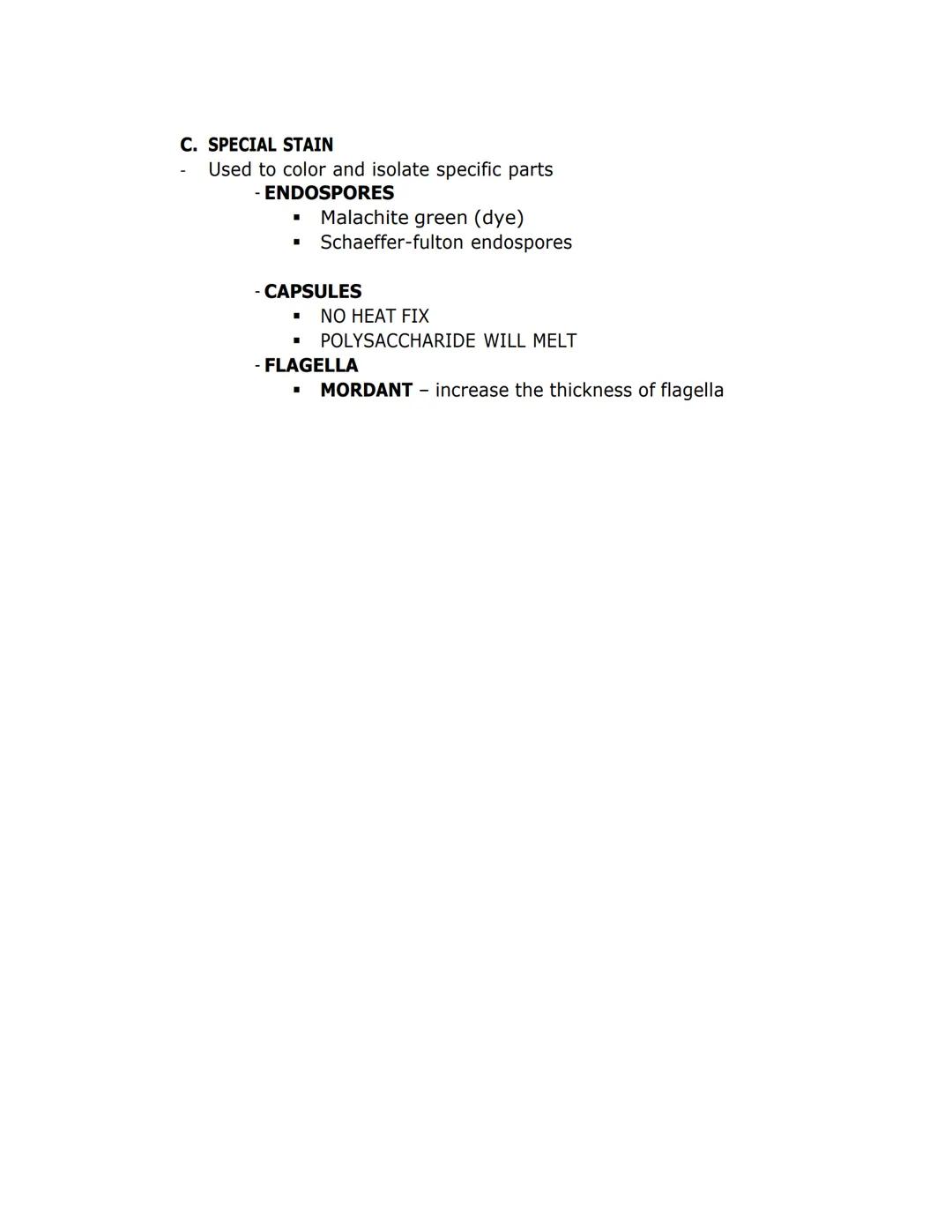

Special Staining Techniques

Sometimes regular staining isn't enough - you need special techniques to highlight specific bacterial structures. These specialized methods reveal features that would otherwise remain invisible.

Endospore staining uses malachite green dye through the Schaeffer-Fulton method. Endospores are resistant structures formed by certain bacteria that can survive extreme conditions. They're notoriously difficult to stain using conventional methods, but this special technique makes them visible under the microscope.

Capsule staining requires special attention - no heat fixing allowed! That's because bacterial capsules are made of polysaccharides that would melt with heat. These capsules are important virulence factors that help bacteria evade the immune system, so seeing them can be crucial for understanding pathogenicity.

Flagella staining uses mordants to increase the thickness of these tiny propeller-like structures. Flagella are so thin they can't be seen with ordinary stains, but with special techniques, these locomotion organelles become visible, helping scientists understand how bacteria move.

Lab Hack: When preparing slides for special stains, patience and technique are everything! Follow procedures carefully and don't rush - a properly prepared slide can reveal structures that provide critical information about bacterial identification and function.
