Fun with Pedigree Charts: Easy Examples for Kids

Pedigree charts are essential tools in genetics for visualizing inheritance patterns of traits or diseases across generations. They use standardized symbols to represent individuals and their relationships, helping researchers and geneticists analyze and predict genetic outcomes. Pedigree analysis examples are crucial for understanding various inheritance patterns, including autosomal dominant, autosomal recessive, X-linked dominant, and X-linked recessive traits.

Key points:

  • Pedigrees use squares for males and circles for females
  • Shaded shapes indicate affected individuals
  • Horizontal lines connect parents, vertical lines show offspring
  • Carriers are represented by half-shaded shapes in some cases
  • Pedigrees can reveal dominant, recessive, and sex-linked inheritance patterns
  • Analyzing pedigrees helps determine genotypes and predict genetic outcomes
...

12/13/2023

318

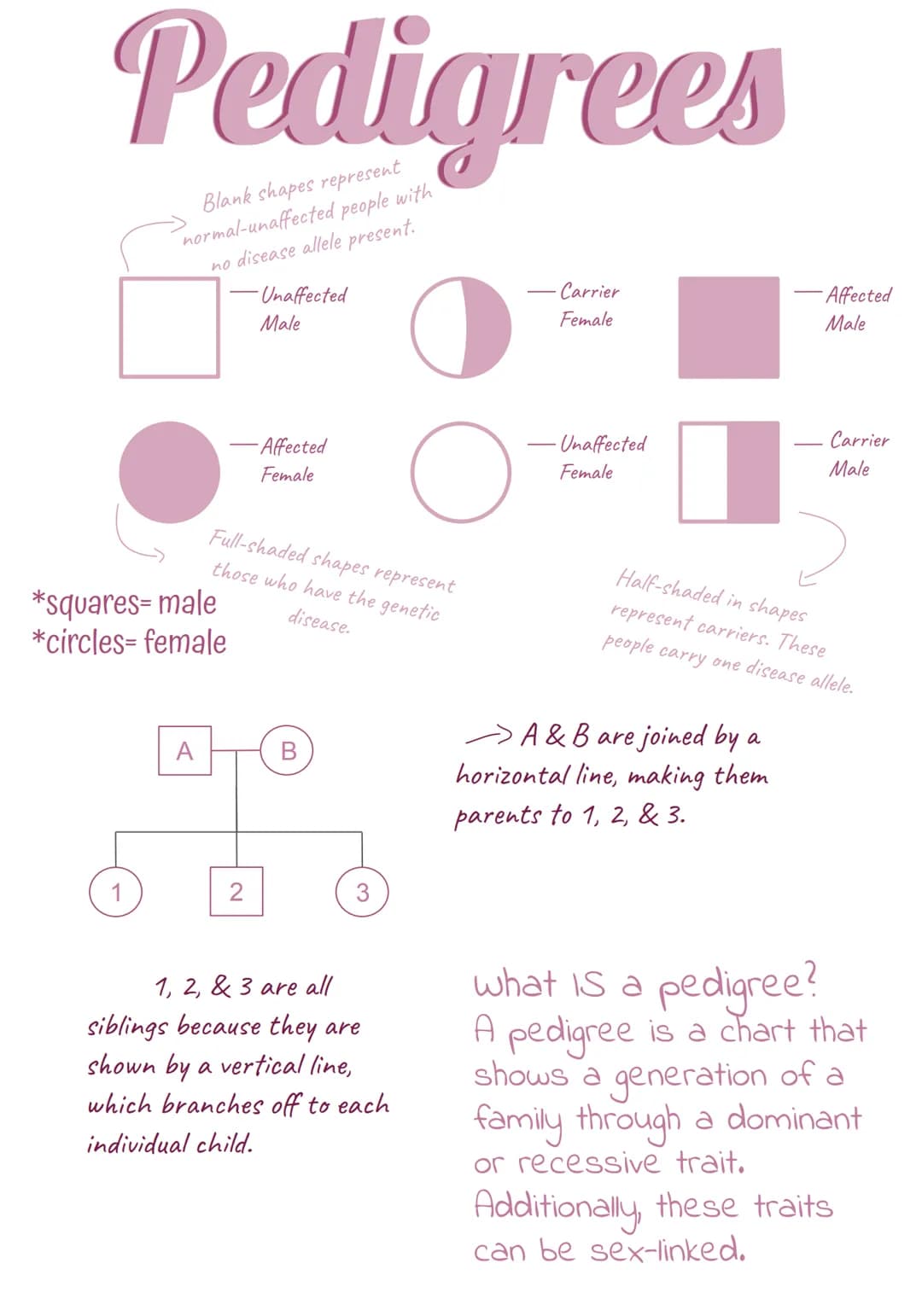

Pedigrees
Blank shapes represent
normal-unaffected people with
no disease allele present.
*squares-male
*circles- female
-Unaffected
Male
-

View

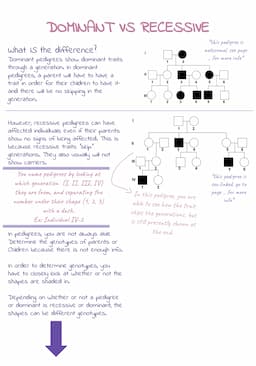

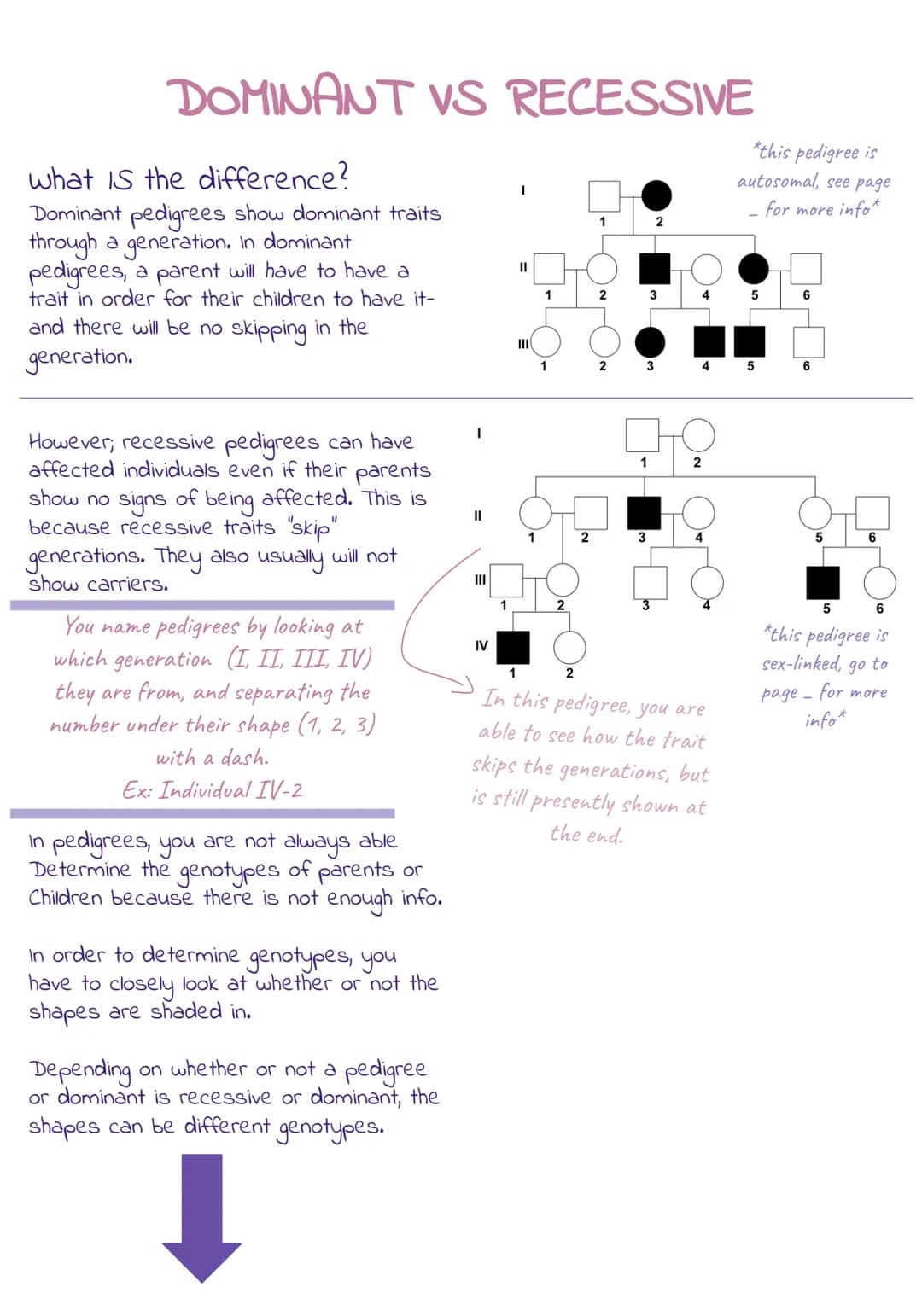

Dominant vs Recessive Traits in Pedigrees

This page explores the differences between dominant and recessive traits as represented in pedigree charts, which is essential for pedigree genetics analysis.

Autosomal dominant pedigrees:

  • Affected individuals appear in every generation
  • At least one parent must be affected for a child to inherit the trait
  • No generation skipping occurs

Autosomal recessive pedigrees:

  • Affected individuals can appear even if parents are unaffected
  • Traits can "skip" generations
  • Carriers are usually not shown in these pedigrees

Example: In a recessive pedigree, you might see affected individuals in the third generation with unaffected parents, demonstrating the "skipping" of generations.

The page also introduces the naming convention for individuals in a pedigree:

  • Roman numerals (I, II, III, IV) indicate generations
  • Arabic numerals (1, 2, 3) identify individuals within a generation

Highlight: Determining genotypes from pedigrees requires careful analysis of shaded and unshaded shapes, considering the inheritance pattern.

The page concludes with examples of autosomal and sex-linked pedigrees, emphasizing the importance of understanding these differences for accurate genetic analysis.

Pedigrees
Blank shapes represent
normal-unaffected people with
no disease allele present.
*squares-male
*circles- female
-Unaffected
Male
-

View

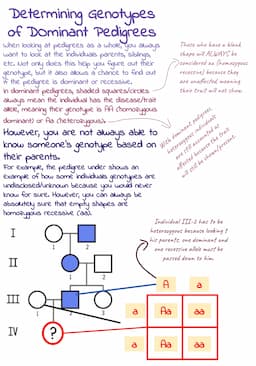

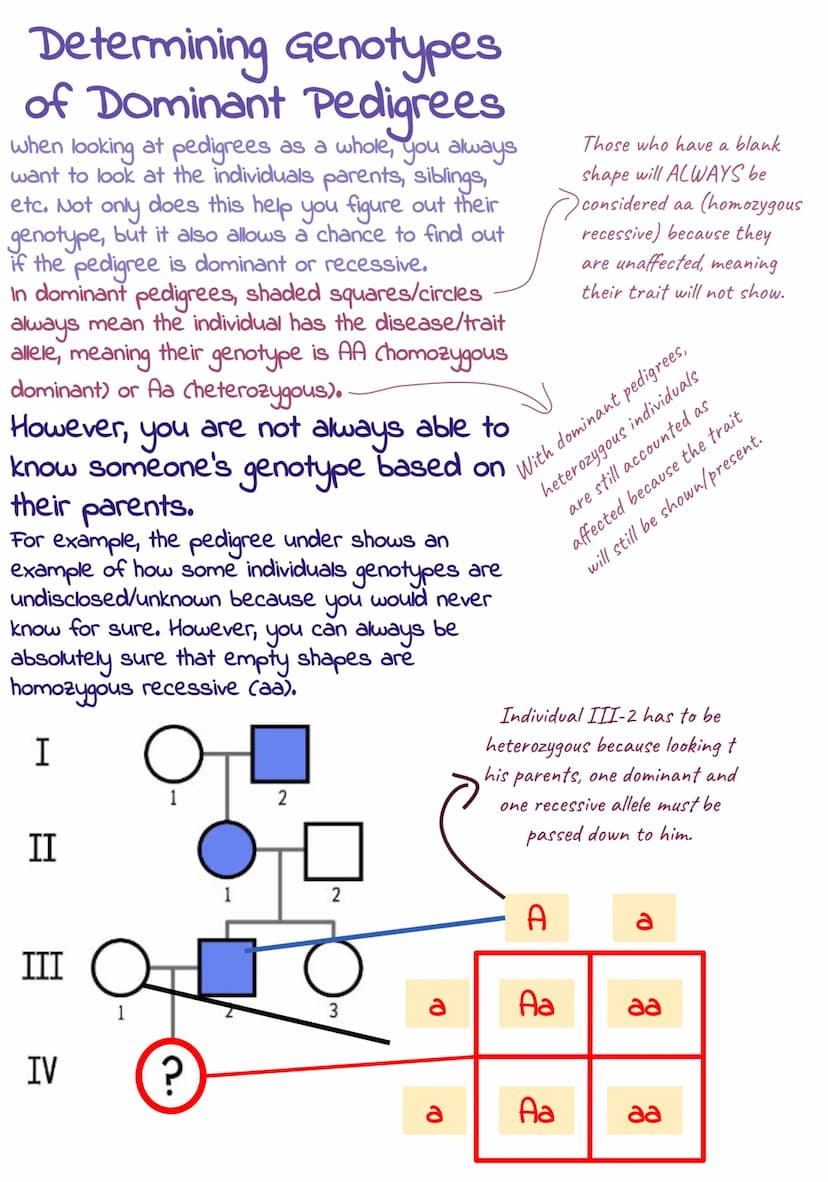

Determining Genotypes in Dominant Pedigrees

This page focuses on how to analyze autosomal dominant pedigree charts to determine individual genotypes, which is crucial for pedigree analysis examples.

Key points for analyzing dominant pedigrees:

  • Shaded shapes (affected individuals) can be either homozygous dominant (AA) or heterozygous (Aa)
  • Unshaded shapes (unaffected individuals) are always homozygous recessive (aa)
  • Genotypes of some individuals may remain unknown due to limited information

Example: In a dominant pedigree, if an affected parent (Aa) has a child with an unaffected parent (aa), the child has a 50% chance of being affected (Aa) and a 50% chance of being unaffected (aa).

The page provides a detailed example of a dominant pedigree, demonstrating how to deduce genotypes based on parental information and offspring phenotypes.

Highlight: In dominant pedigrees, heterozygous individuals (Aa) are still considered affected because the dominant allele is expressed in their phenotype.

The page also includes a Punnett square to illustrate the possible genotype combinations when a heterozygous individual (Aa) mates with a homozygous recessive individual (aa).

Vocabulary: Heterozygous refers to having two different alleles for a particular gene, while homozygous means having two identical alleles.

Pedigrees
Blank shapes represent
normal-unaffected people with
no disease allele present.
*squares-male
*circles- female
-Unaffected
Male
-

View

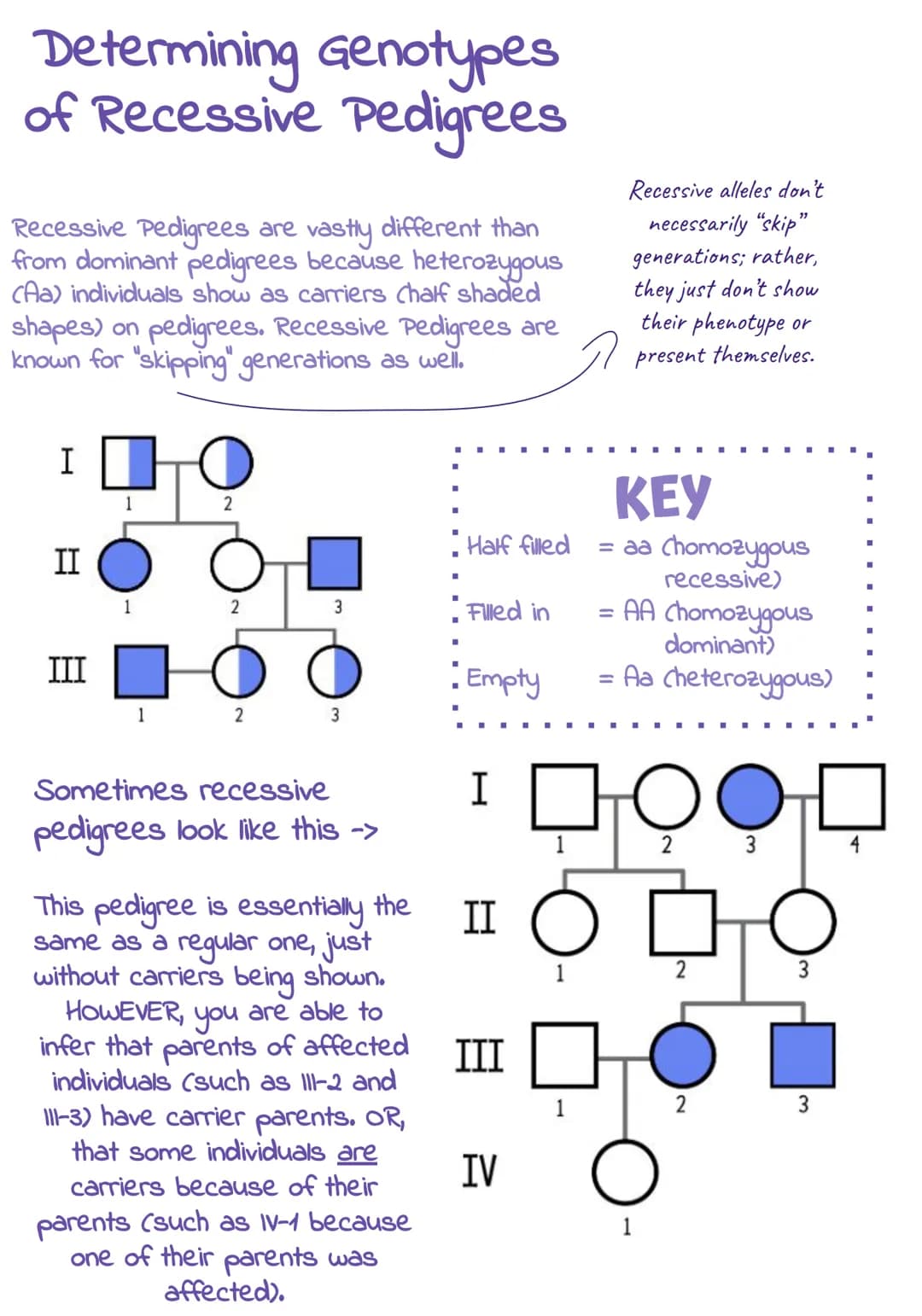

Determining Genotypes in Recessive Pedigrees

This page delves into the analysis of autosomal recessive pedigree charts, highlighting the differences from dominant pedigrees and providing guidance on determining genotypes in pedigrees.

Key characteristics of recessive pedigrees:

  • Heterozygous individuals (Aa) are carriers, often shown as half-shaded shapes
  • Affected individuals are homozygous recessive (aa)
  • Traits can appear to "skip" generations

Example: In a recessive pedigree, two unaffected carrier parents (Aa) can have an affected child (aa) with a 25% probability.

The page presents two types of recessive pedigree representations:

  1. With carriers shown (half-shaded shapes)
  2. Without carriers explicitly shown

Highlight: Even when carriers are not explicitly shown in a pedigree, their presence can be inferred based on the affected offspring or parental genotypes.

The page includes a detailed pedigree example with a key explaining the genotypes associated with different shape fillings:

  • Filled in = aa (homozygous recessive)
  • Empty = AA (homozygous dominant)
  • Half filled = Aa (heterozygous)

Vocabulary: Phenotype refers to the observable characteristics of an organism, while genotype is the genetic makeup.

Pedigrees
Blank shapes represent
normal-unaffected people with
no disease allele present.
*squares-male
*circles- female
-Unaffected
Male
-

View

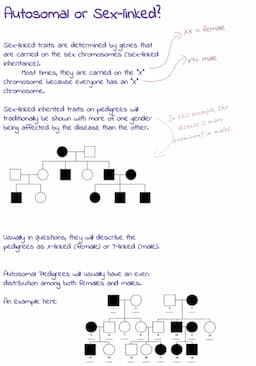

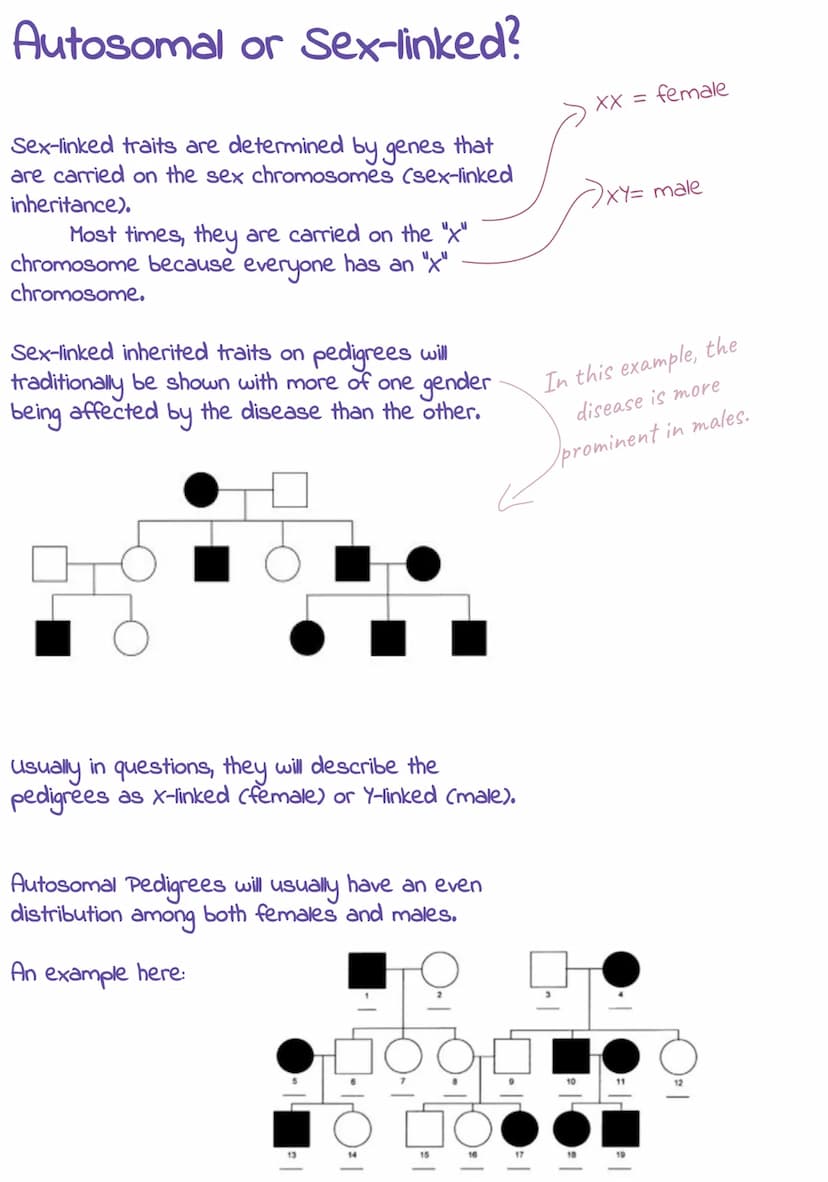

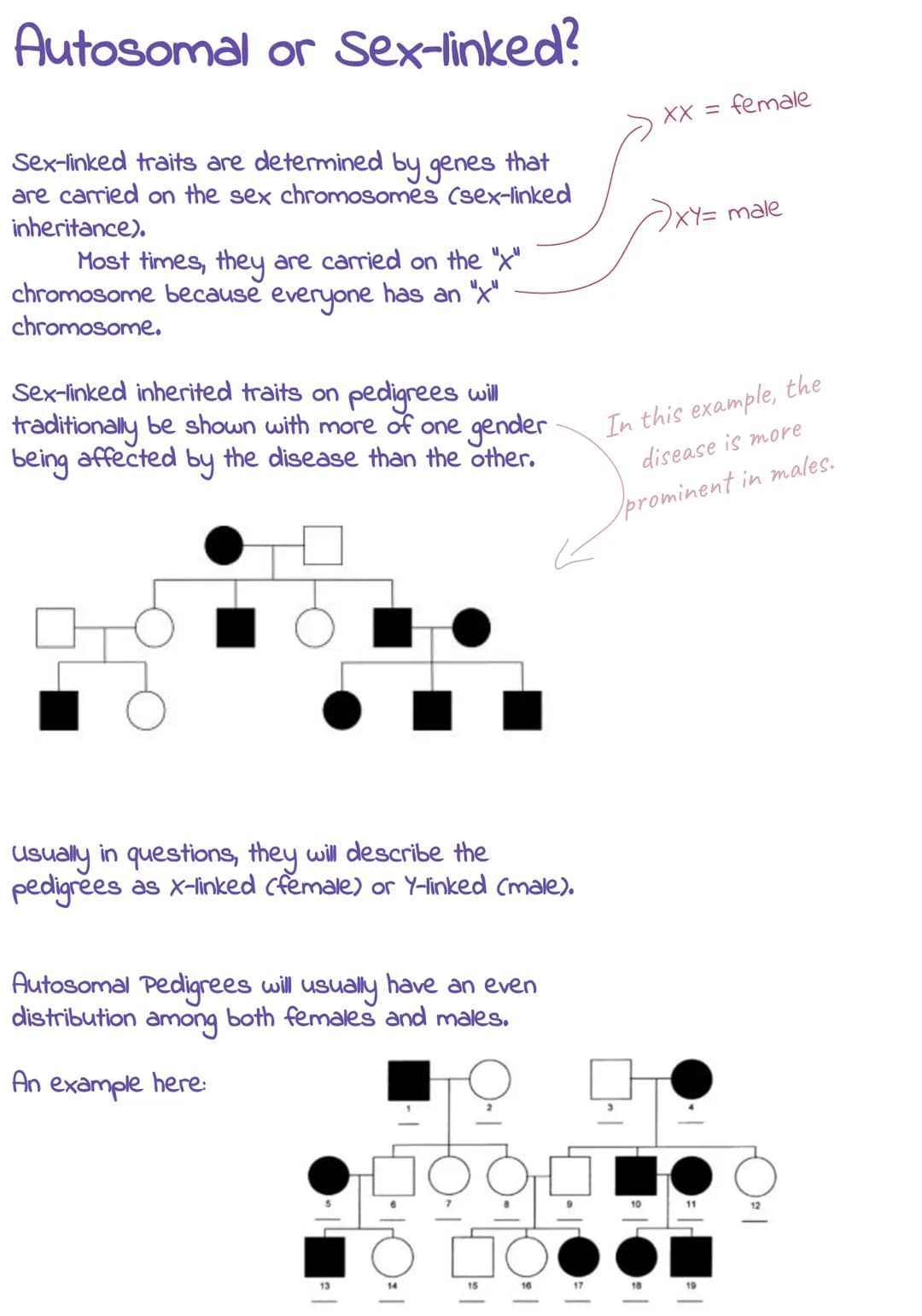

Autosomal vs Sex-linked Inheritance

This final page discusses the differences between autosomal and sex-linked inheritance patterns in pedigrees, which is crucial for comprehensive pedigree analysis examples.

Key points on sex-linked traits:

  • Determined by genes on sex chromosomes (X or Y)
  • Most commonly carried on the X chromosome
  • Pedigrees show uneven distribution of affected individuals between genders

Definition: Sex-linked inheritance refers to the transmission of traits or diseases through genes located on the sex chromosomes.

Characteristics of sex-linked pedigrees:

  • Usually show more affected individuals of one gender
  • Often described as X-linked (female) or Y-linked (male) in genetic problems

Autosomal pedigrees:

  • Show an even distribution of the trait among both males and females

Example: The page provides a pedigree chart demonstrating a sex-linked trait with more affected males than females.

Highlight: Understanding the difference between autosomal and sex-linked inheritance is crucial for accurate pedigree analysis and genetic counseling.

The page concludes with a visual representation of sex chromosomes (XX for females, XY for males) to reinforce the concept of sex-linked inheritance.

Can't find what you're looking for? Explore other subjects.

Knowunity is the # 1 ranked education app in five European countries

Knowunity was a featured story by Apple and has consistently topped the app store charts within the education category in Germany, Italy, Poland, Switzerland and United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the # 1 ranked education app in five European countries

4.9+

Average App Rating

20 M

Students use Knowunity

#1

In Education App Charts in 17 Countries

950 K+

Students uploaded study notes

Still not sure? Look at what your fellow peers are saying...

iOS User

I love this app so much [...] I recommend Knowunity to everyone!!! I went from a C to an A with it :D

Stefan S, iOS User

The application is very simple and well designed. So far I have found what I was looking for :D

SuSSan, iOS User

Love this App ❤️, I use it basically all the time whenever I'm studying



Biology

318

Dec 13, 2023

5 pages

Fun with Pedigree Charts: Easy Examples for Kids

user profile picture

abby

@abby_shoo

Pedigree charts are essential tools in genetics for visualizing inheritance patterns of traits or diseases across generations. They use standardized symbols to represent individuals and their relationships, helping researchers and geneticists analyze and predict genetic outcomes. Pedigree analysis examplesare

... Show more
Pedigrees
Blank shapes represent
normal-unaffected people with
no disease allele present.
*squares-male
*circles- female
-Unaffected
Male
-

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Dominant vs Recessive Traits in Pedigrees

This page explores the differences between dominant and recessive traits as represented in pedigree charts, which is essential for pedigree genetics analysis.

Autosomal dominant pedigrees:

  • Affected individuals appear in every generation
  • At least one parent must be affected for a child to inherit the trait
  • No generation skipping occurs

Autosomal recessive pedigrees:

  • Affected individuals can appear even if parents are unaffected
  • Traits can "skip" generations
  • Carriers are usually not shown in these pedigrees

Example: In a recessive pedigree, you might see affected individuals in the third generation with unaffected parents, demonstrating the "skipping" of generations.

The page also introduces the naming convention for individuals in a pedigree:

  • Roman numerals (I, II, III, IV) indicate generations
  • Arabic numerals (1, 2, 3) identify individuals within a generation

Highlight: Determining genotypes from pedigrees requires careful analysis of shaded and unshaded shapes, considering the inheritance pattern.

The page concludes with examples of autosomal and sex-linked pedigrees, emphasizing the importance of understanding these differences for accurate genetic analysis.

Pedigrees
Blank shapes represent
normal-unaffected people with
no disease allele present.
*squares-male
*circles- female
-Unaffected
Male
-

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

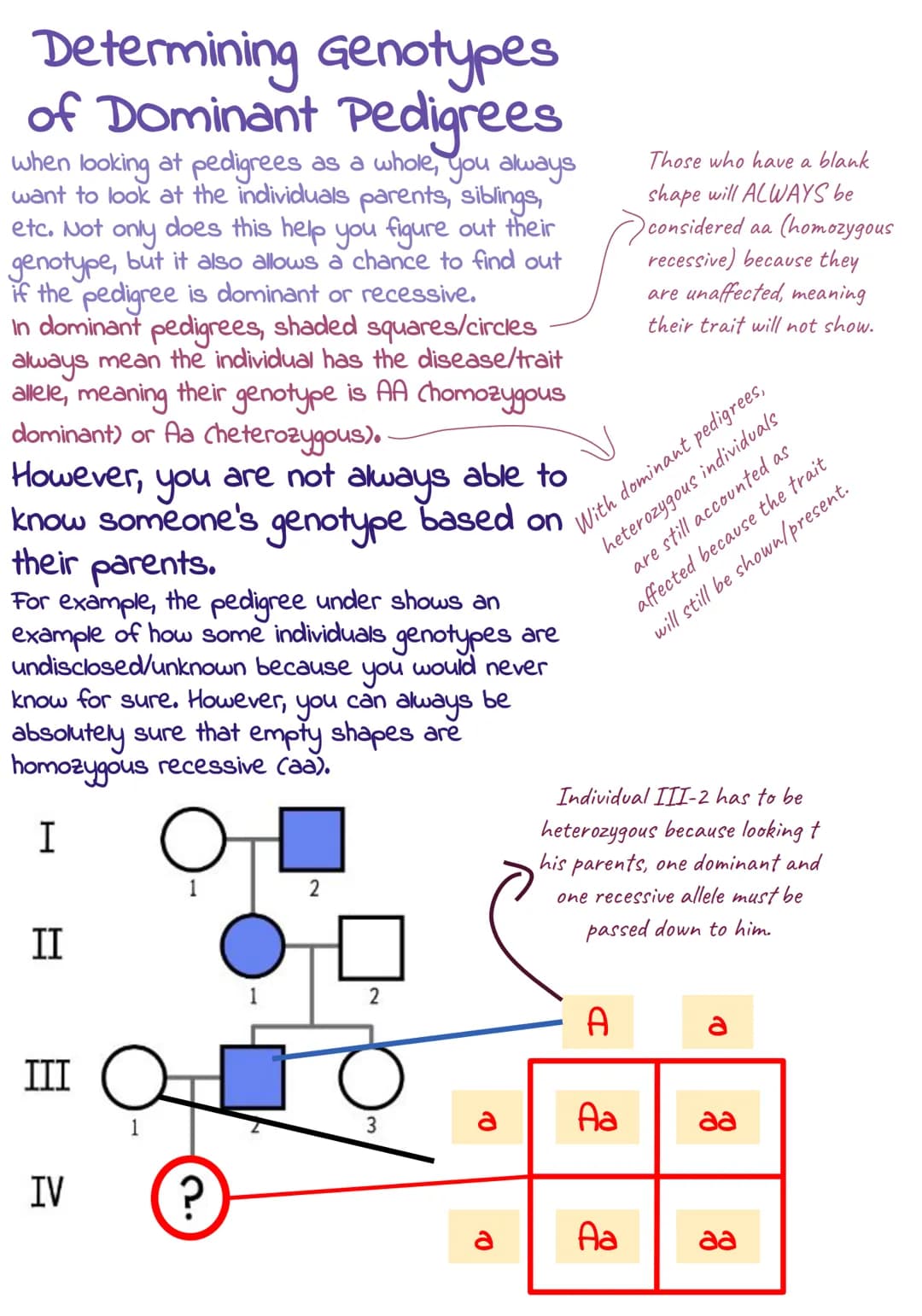

Determining Genotypes in Dominant Pedigrees
