The Microscope
1,141
•
Nov 29, 2025
•
Understanding the Microscope: Parts and Functions
Ann Villamor
@annevillamor_sun
1 / 4

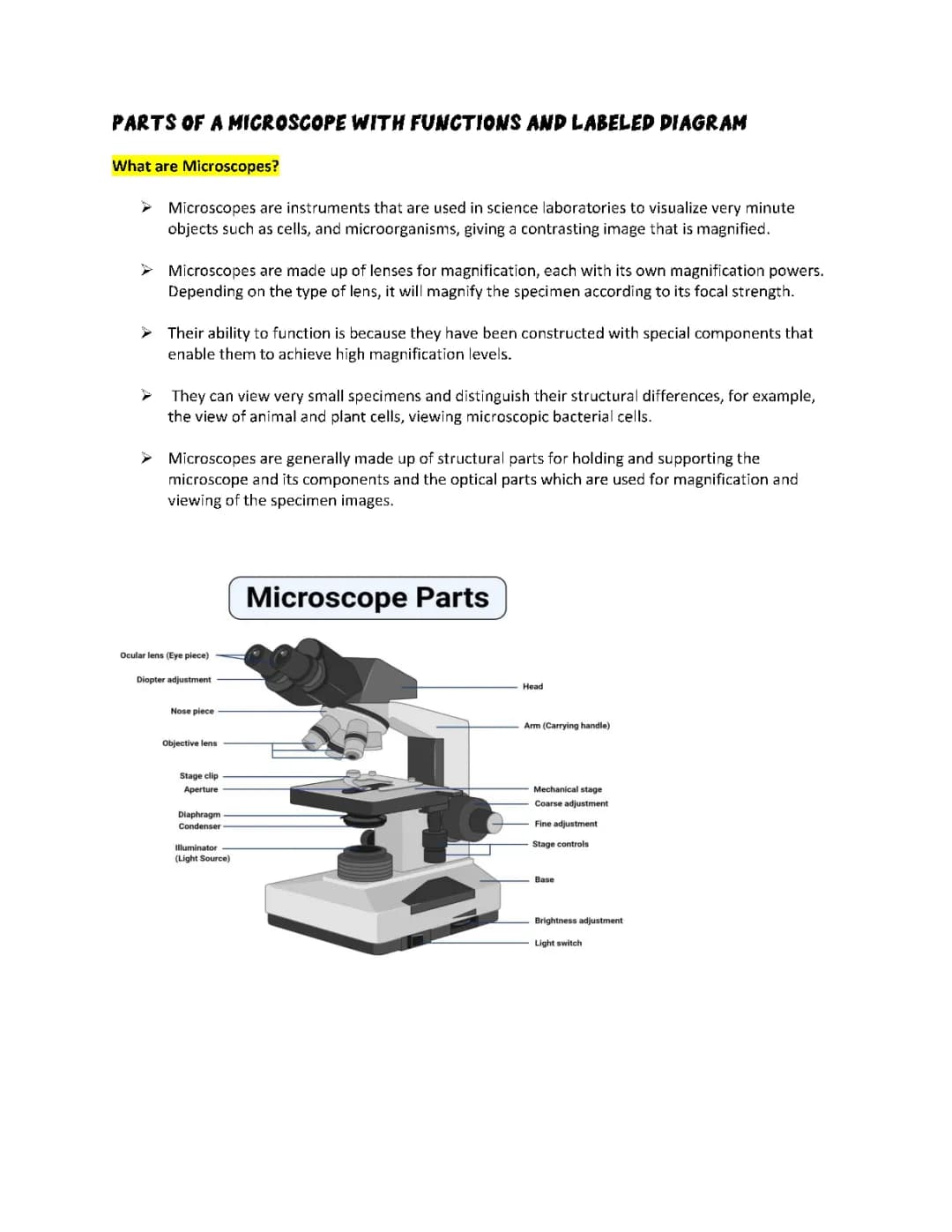

Introduction to Microscopes
Microscopes are powerful instruments used in science labs to visualize extremely tiny objects like cells and microorganisms. They work by using a system of lenses that magnify specimens many times their actual size, allowing us to see details impossible to observe with the naked eye.
The power of microscopes comes from their specially designed components that achieve high magnification levels. These tools can distinguish structural differences between tiny specimens, such as comparing plant and animal cells or examining microscopic bacteria.
Microscopes have two main component categories: structural parts (that hold and support the microscope) and optical parts (that magnify and help you view specimen images). The structural parts include the head (body), base (support), and arm (connecting piece), while the optical parts include various lenses and light-controlling components.
Quick Tip: When using a microscope, always carry it with one hand on the arm and one supporting the base - this protects the delicate components and keeps everything properly aligned!

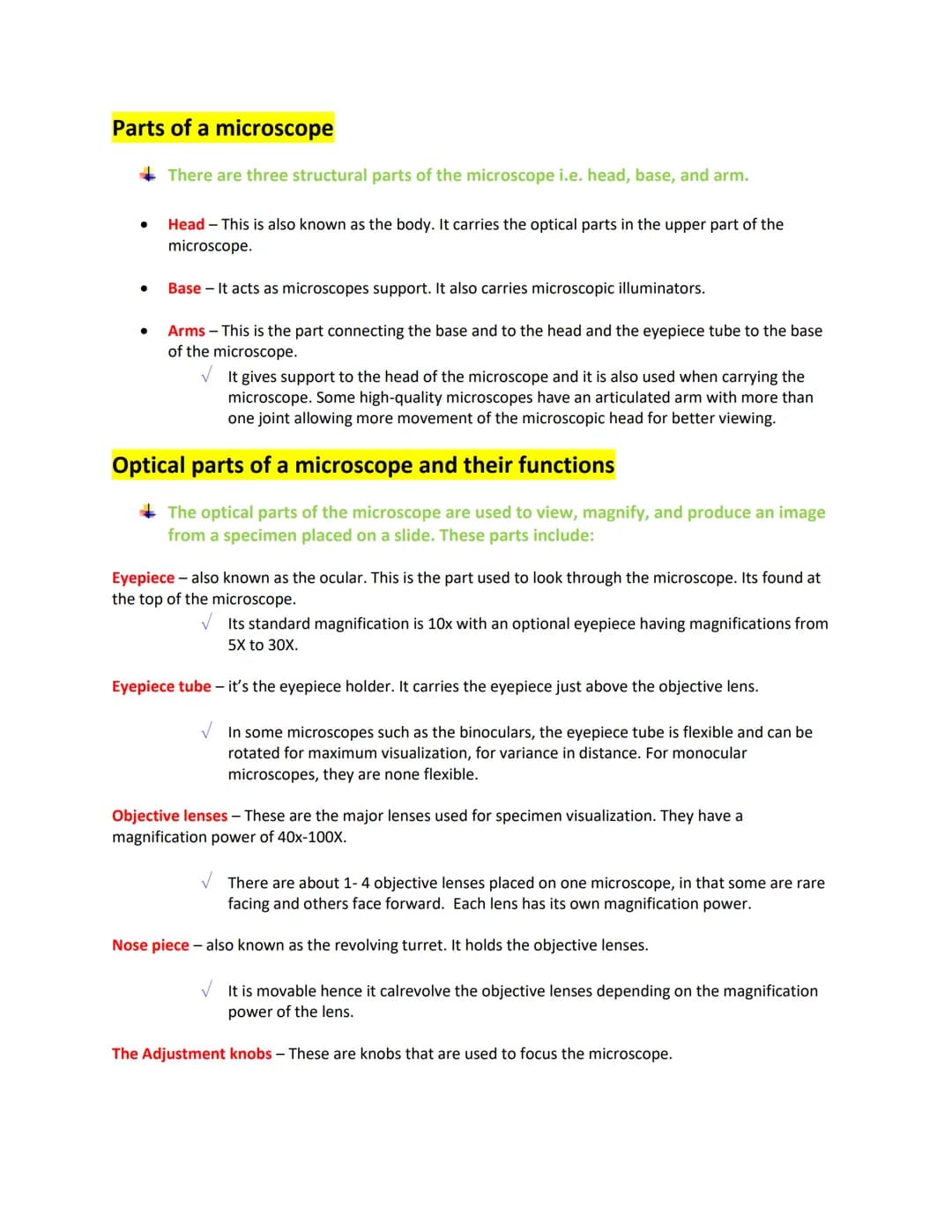

Structural and Optical Parts of a Microscope
The microscope's structure consists of three main parts that provide support and stability. The head (also called the body) carries the optical components at the upper part. The base supports the entire microscope and houses the illuminators, while the arm connects the head to the base and serves as a handle when carrying the microscope.
The optical parts do the actual work of viewing and magnifying specimens. The eyepiece (ocular) is what you look through, typically offering 10x magnification. The objective lenses are the primary magnification components, with powers ranging from 40x to 100x. Most microscopes have multiple objective lenses mounted on a rotating nosepiece (turret), allowing you to switch between different magnification levels.
Focusing is done using two types of adjustment knobs. Coarse adjustment knobs make large focusing movements, while fine adjustment knobs allow for precise focusing once you're close to the desired image clarity. These controls help you get the clearest possible view of your specimen.
Remember: The total magnification of your specimen equals the eyepiece magnification multiplied by the objective lens magnification. For example, a 10x eyepiece with a 40x objective gives you 400x total magnification!

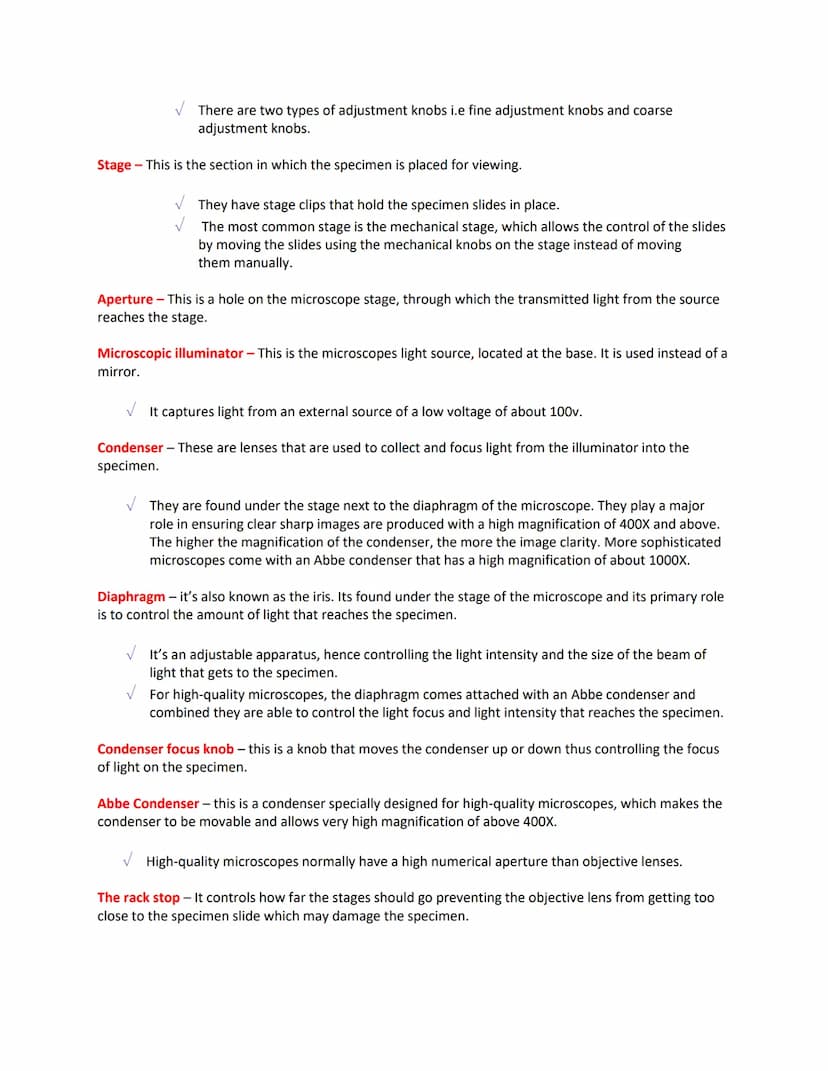

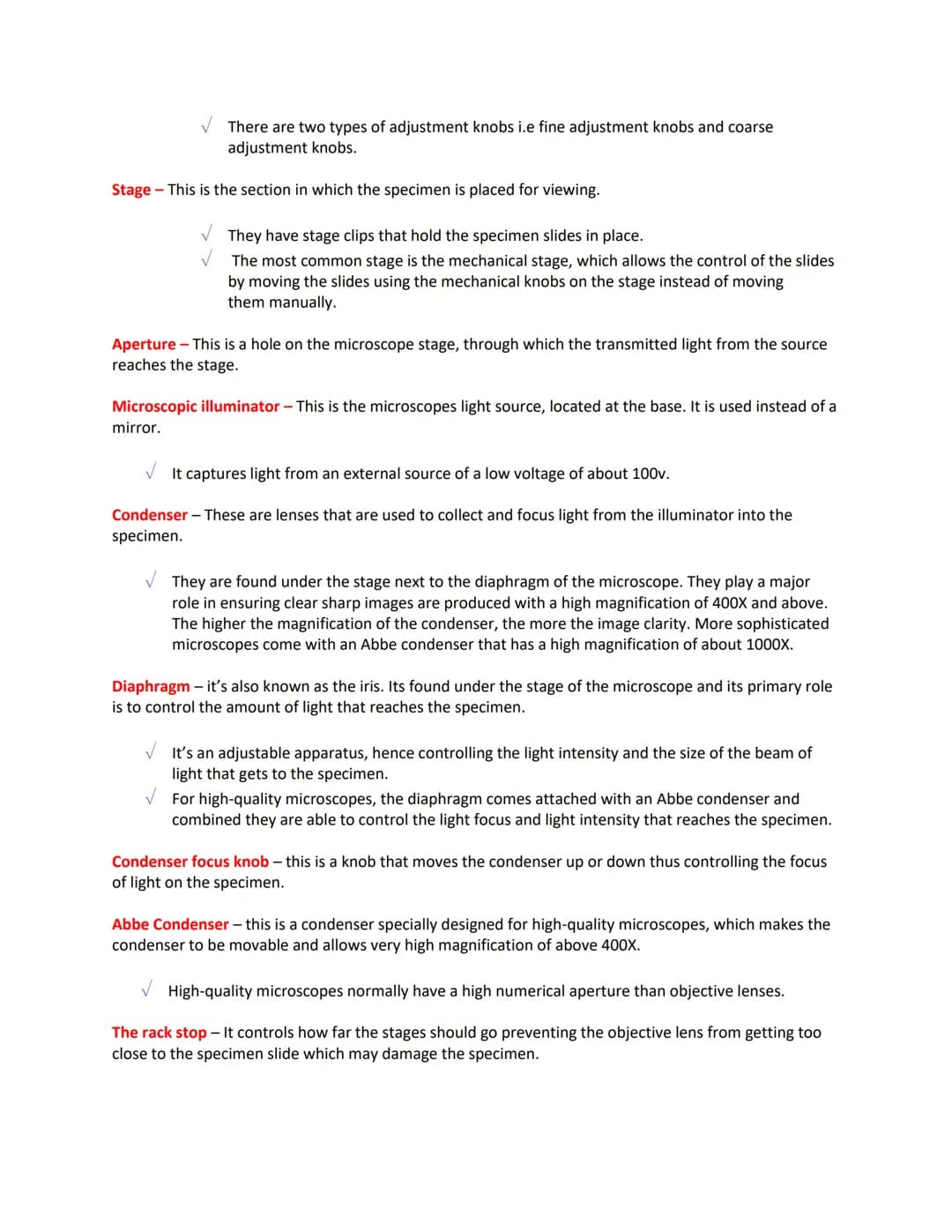

Specimen Viewing and Light Control
The stage is where you place your specimen slides for viewing. Most microscopes feature stage clips that hold slides firmly in place, and higher-quality microscopes have mechanical stages that let you precisely control slide movement using adjustment knobs rather than your fingers.
Light management is crucial for clear images. The aperture is a hole in the stage that allows light from the illuminator (the light source at the base) to pass through your specimen. The condenser consists of lenses that collect and focus this light onto the specimen, helping create sharp images at high magnifications.
The diaphragm (or iris) controls how much light reaches the specimen by adjusting the size of the light beam. This is essential for creating the right contrast when viewing different types of specimens. Higher-quality microscopes include an Abbe condenser that can achieve magnifications up to 1000x with exceptional clarity.
Pro Tip: For clearer images of transparent specimens, try reducing the light intensity using the diaphragm. This creates more contrast and helps reveal structures that might otherwise be hard to see!

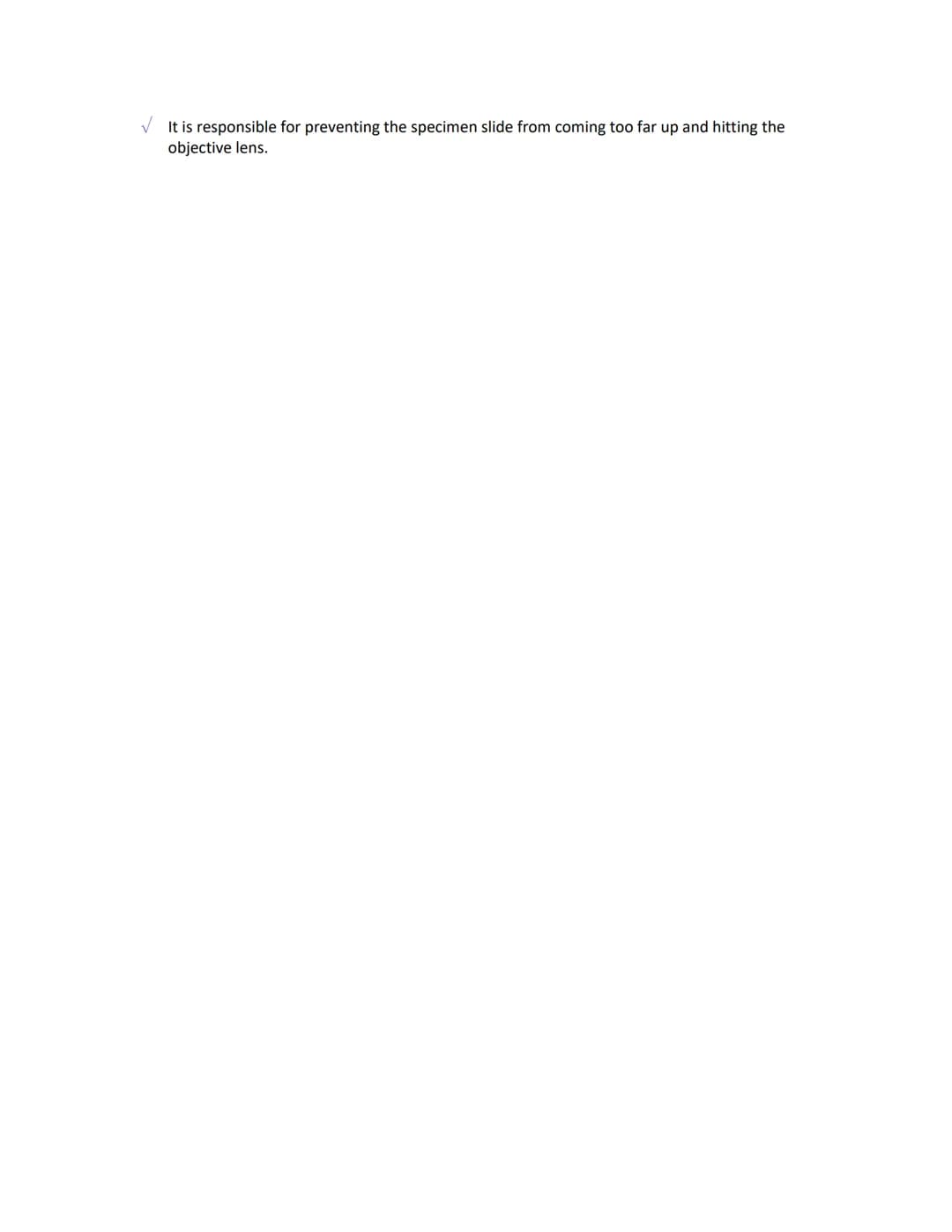

Safety Features
The rack stop is a crucial safety feature that prevents the stage from moving too close to the objective lens. This protects both your specimen slides and the delicate objective lenses from damage due to accidental contact.
This simple but important component acts as a physical limit, ensuring that even if you turn the focus knobs too far, the specimen slide won't crash into the objective lens. This is especially important when using higher-power objectives that must be positioned very close to the specimen.
Safety First: Always start focusing with the lowest power objective lens and the stage in its lowest position, then work your way up to higher magnifications. This practice, along with the rack stop, helps prevent damage to both the specimen and microscope.
