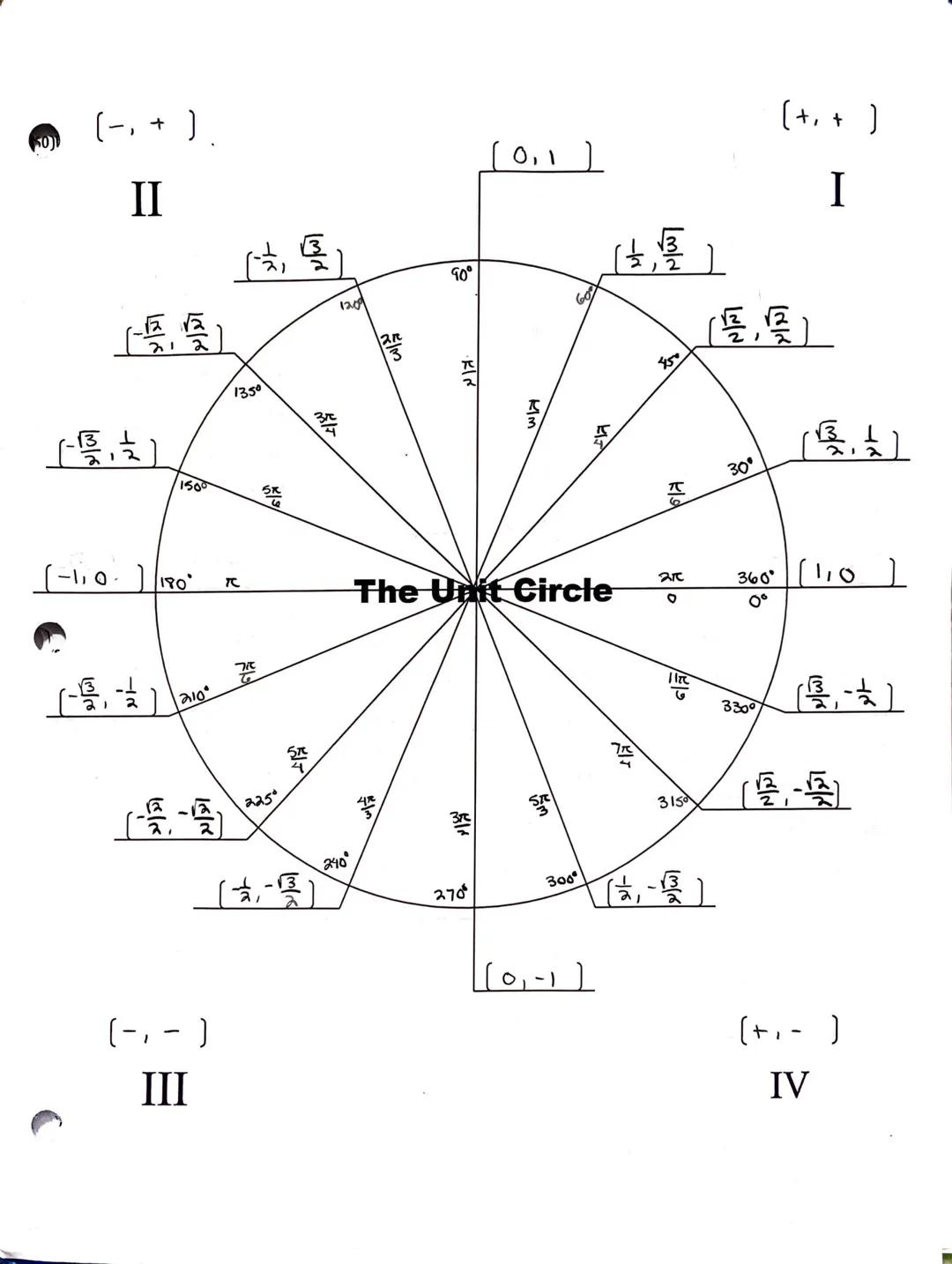

The Unit Circle

The unit circle is a perfect circle with radius 1 centered at (0,0) on the coordinate plane. When you move around this circle, each point corresponds to an angle and has specific x and y coordinates that represent cosine and sine values.

The circle is divided into four quadrants (labeled I, II, III, and IV), and key points are marked with their exact coordinates. For instance, at 0° or 360° (the rightmost point), the coordinates are (1,0), while at 90° (the topmost point), they're (0,1).

As you travel around the circle, you'll notice patterns in the signs of coordinates: in Quadrant I, both x and y are positive [+,+]; in Quadrant II, x is negative and y is positive [-,+]; in Quadrant III, both are negative [-,-]; and in Quadrant IV, x is positive and y is negative [+,-].

Quick Tip: Remember that for any point on the unit circle, the x-coordinate equals cosine of the angle, and the y-coordinate equals sine of the angle. This makes finding trigonometric values much easier!

Special angles like 30°, 45°, 60°, and their multiples are particularly important to recognize as they have exact coordinate values using fractions with square roots. For example, at 45° the coordinates are $√2/2, √2/2$.
