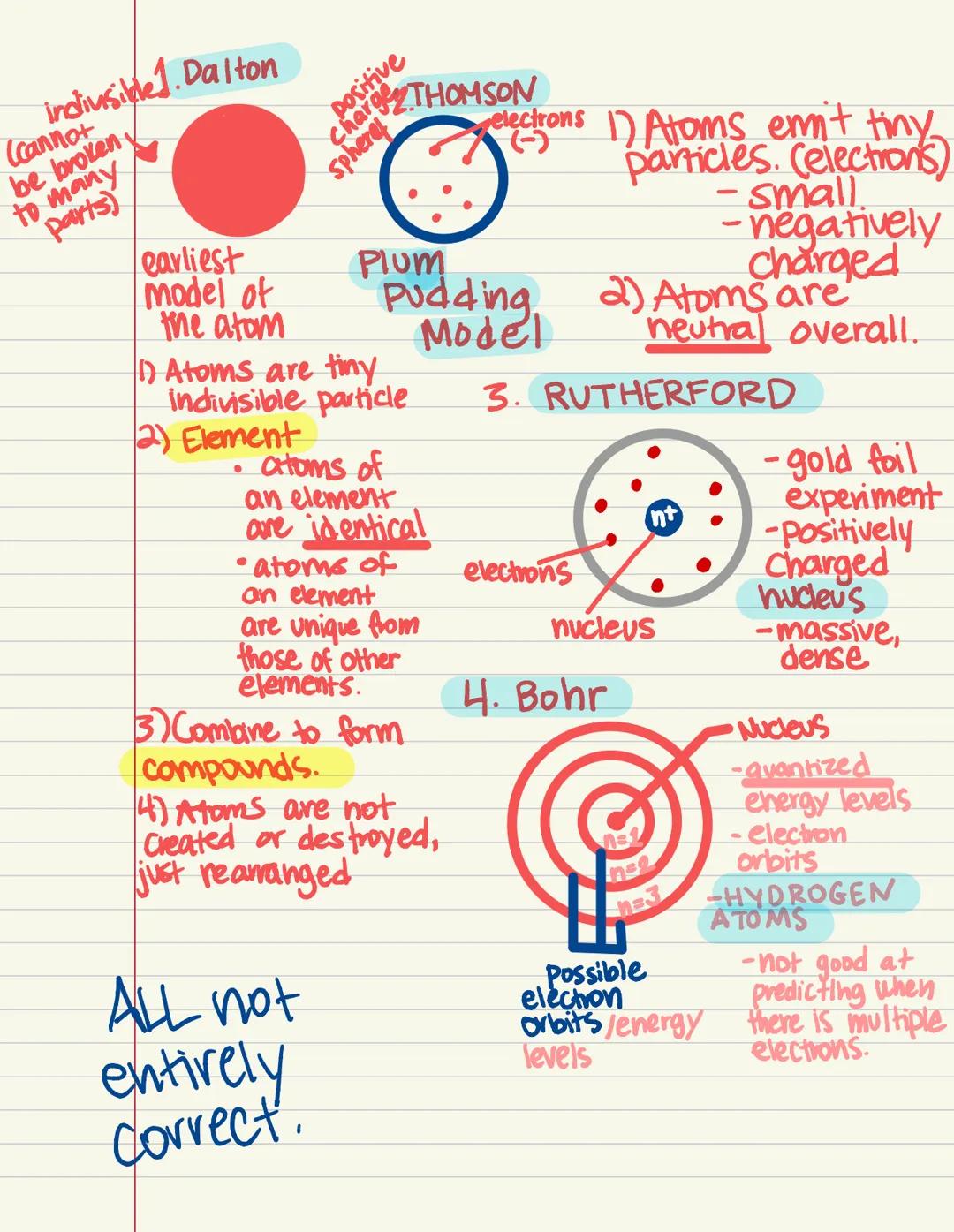

Evolution of the Atomic Model

The atomic model has dramatically changed over time as scientists made new discoveries. Dalton's model was the earliest, suggesting atoms were tiny indivisible particles unique to each element that could combine to form compounds but couldn't be created or destroyed.

Thomson updated this with his "plum pudding model," recognizing atoms contained negatively charged electrons embedded in a positive sphere. This explained why atoms were electrically neutral despite having charged parts.

Rutherford's model came next after his famous gold foil experiment, which revealed atoms contained a small, dense, positively charged nucleus with electrons orbiting around it—similar to a tiny solar system.

Quick Insight: Each atomic model represents scientific progress, with each scientist building on previous discoveries to create a more accurate picture of what atoms actually look like!

Bohr's model introduced quantized energy levels, showing electrons orbit only at specific distances from the nucleus in fixed energy levels $n=1, n=2, etc.$. While this worked well for hydrogen, it couldn't accurately predict behavior in atoms with multiple electrons.

Modern Atomic Structure

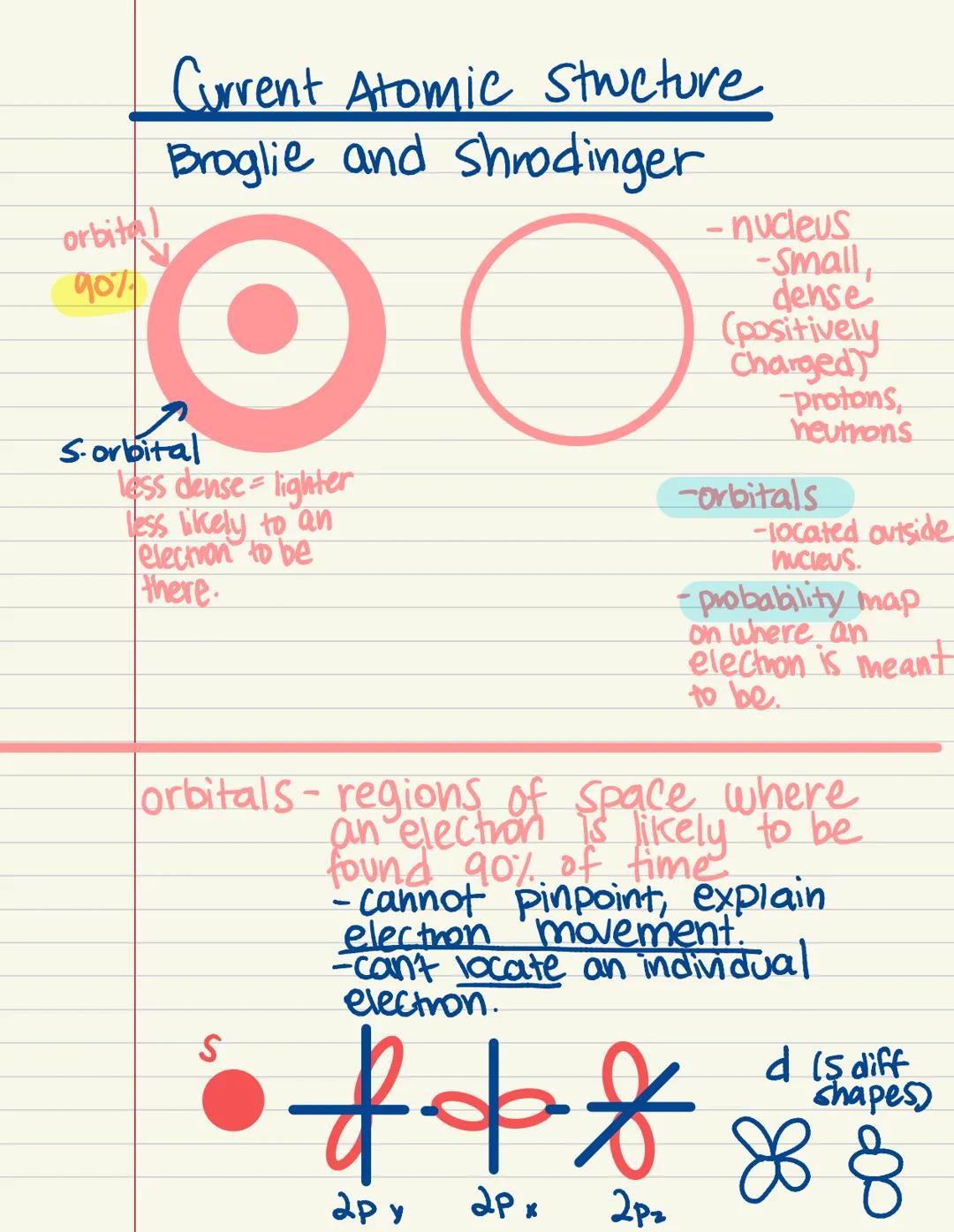

Today's atomic model, developed by de Broglie and Schrödinger, is far more sophisticated than earlier versions. We now understand that the nucleus (containing protons and neutrons) is incredibly small and dense, making up most of an atom's mass while taking up almost none of its volume.

Instead of precise orbits, electrons exist in orbitals—three-dimensional regions where an electron is 90% likely to be found. These orbitals have different shapes like spheres (s orbitals) or dumbbells (p orbitals). This model reflects a fundamental principle: we cannot pinpoint exactly where an electron is at any moment.

Remember This: Think of electron orbitals as "probability maps" rather than definite paths—they show where electrons are most likely to be found, not where they definitely are!

Orbitals have distinctive shapes depending on their type—s orbitals are spherical, while p orbitals have dumbbell shapes oriented along different axes (px, py, pz). Each orbital type has unique energy characteristics and can hold specific numbers of electrons.

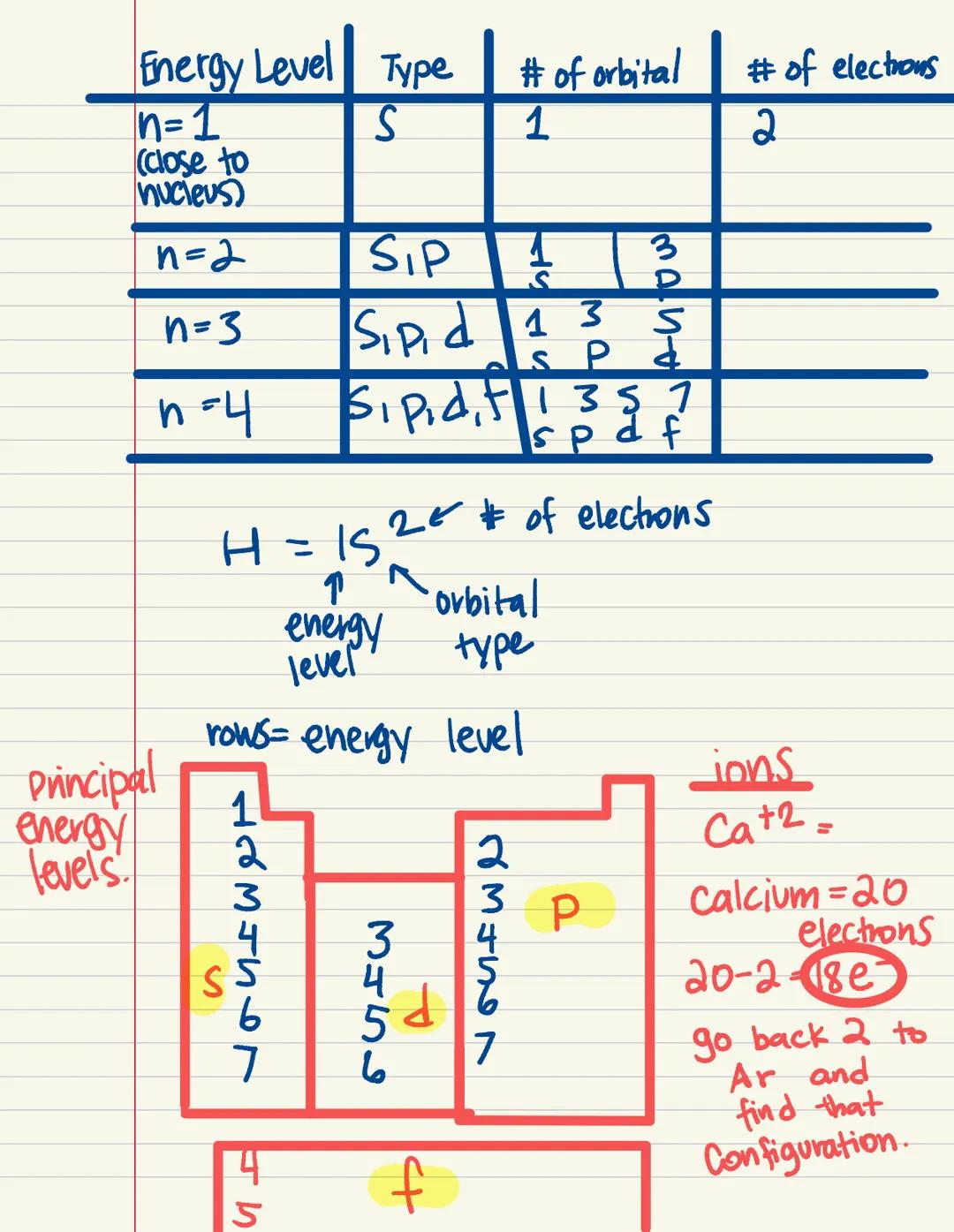

Electron Configuration

Atoms organize their electrons in a specific pattern called electron configuration. Each energy level $n=1, n=2, etc.$ contains different types of orbitals that can hold specific numbers of electrons—s orbitals hold 2 electrons, p orbitals hold 6 total, d orbitals hold 10, and f orbitals hold 14.

The electrons fill orbitals in order of increasing energy, following specific patterns. We write configurations using shorthand like 1s², meaning the 1s orbital contains 2 electrons. The principal energy level (n) determines how far the electrons are from the nucleus—higher numbers mean farther away.

When atoms gain or lose electrons to form ions, their electron configuration changes. For example, calcium (Ca) has 20 electrons, but Ca²⁺ has lost 2 electrons for a total of 18. To write its configuration, you'd find the element with 18 electrons (argon) and use that as your base.

Pro Tip: Think of electron configuration like filling an apartment building—fill the lower floors (energy levels) first, and specific room types (orbitals) in a particular order before moving up to higher floors!

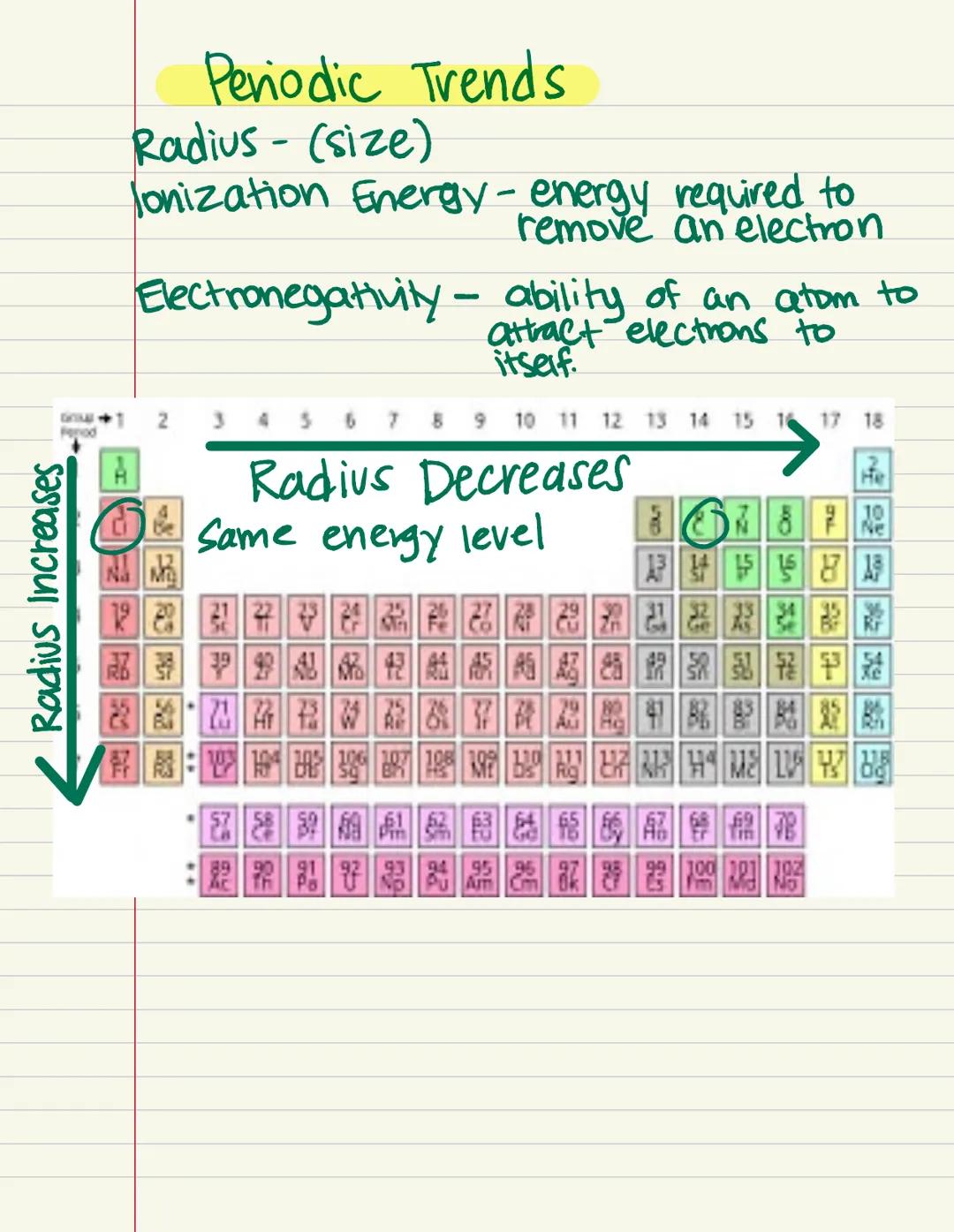

Periodic Trends - Size Matters

The size of atoms, measured by their atomic radius, follows predictable patterns across the periodic table. Moving from left to right across a period (row), atoms get smaller because more protons pull electrons closer to the nucleus with greater force.

Moving down a group (column), atoms get larger because electrons occupy higher energy levels that are farther from the nucleus. This creates more electron-electron repulsion and increases the atom's overall size.

Visualization Help: Imagine the periodic table as a map where size decreases as you move east (right) but increases as you move south (down)!

The periodic table helps us predict other important trends like ionization energy (energy required to remove an electron) and electronegativity (ability of an atom to attract electrons to itself). These properties are critical for understanding how elements behave in chemical reactions.

Ionization Energy & Electronegativity

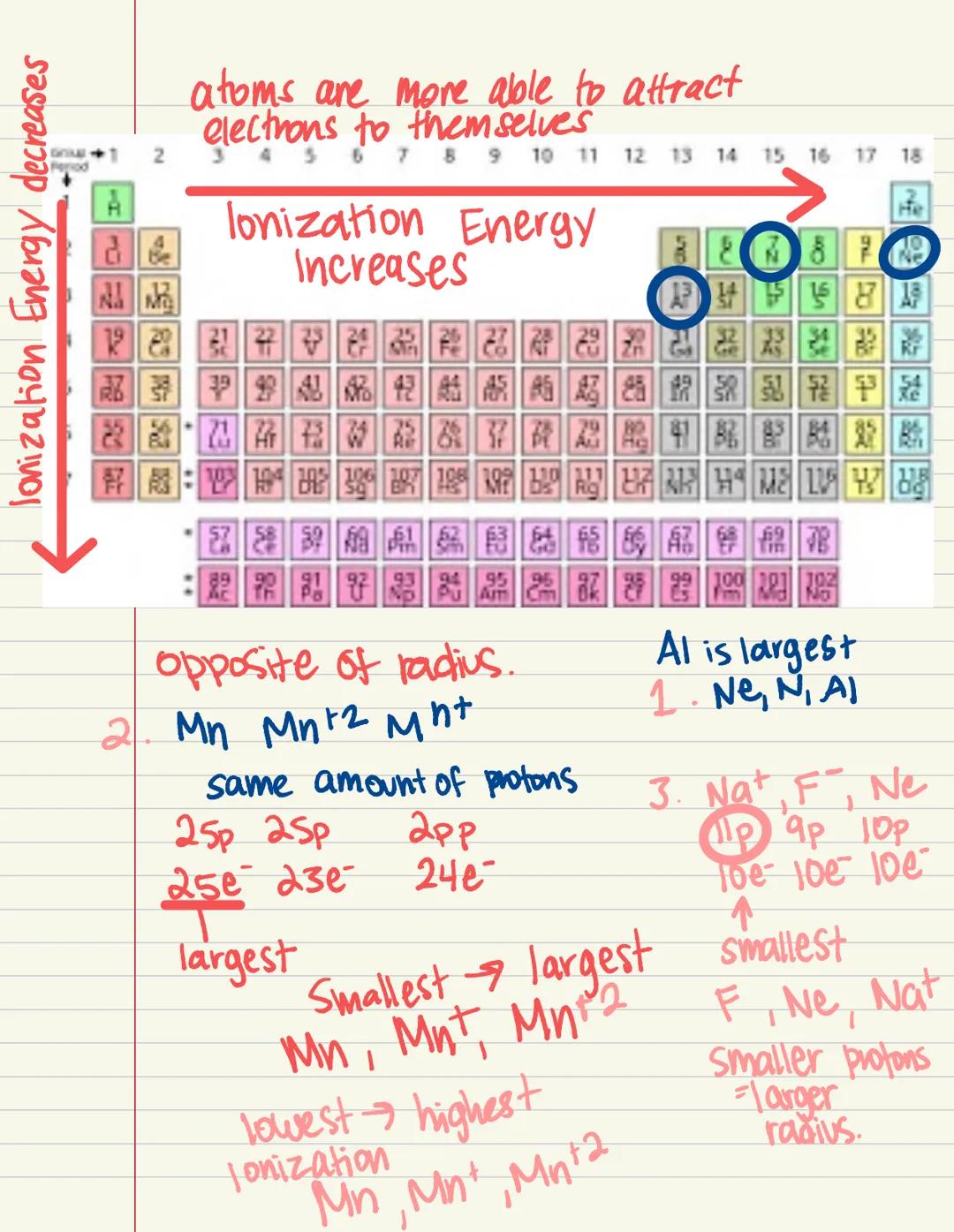

Ionization energy follows the opposite trend of atomic radius—it increases as you move right across a period and decreases as you move down a group. This makes sense: smaller atoms hold their electrons more tightly, requiring more energy to remove them.

When comparing ions of the same element with different charges (like Mn, Mn²⁺, Mn³⁺), the more positive the ion, the smaller its radius. This happens because removing electrons decreases electron-electron repulsion while maintaining the same nuclear charge.

Electronegativity measures how strongly atoms attract shared electrons in bonds. It generally increases from left to right across periods and decreases down groups. Elements with high electronegativity (like fluorine and oxygen) pull electrons strongly toward themselves in bonds.

Real-World Connection: Electronegativity differences explain why water (H₂O) is such a good solvent—oxygen's high electronegativity creates partial charges that help dissolve many substances!

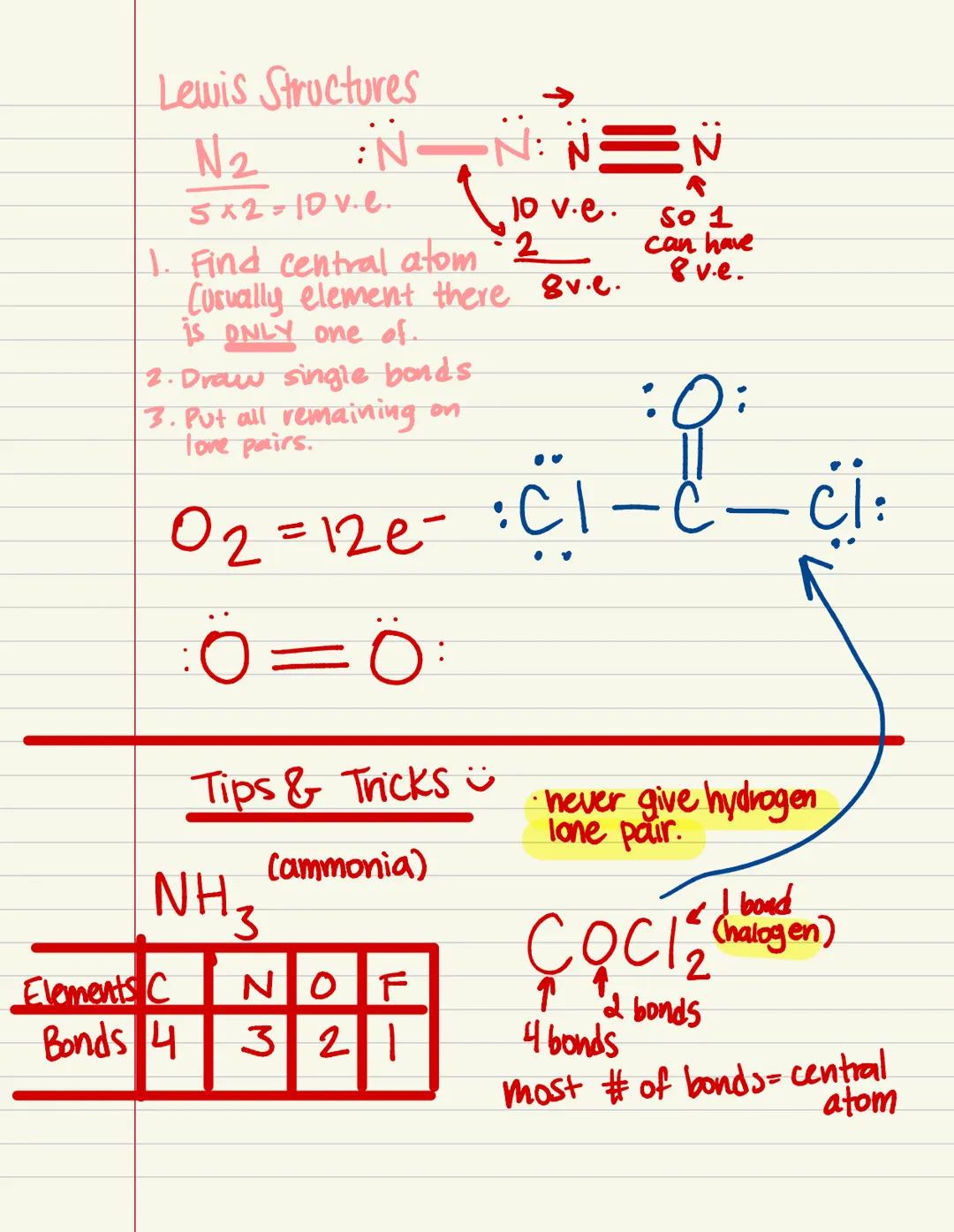

Lewis Structures: Mapping Electrons

Lewis structures are diagrams that show how electrons are arranged in molecules, helping us visualize both bonding and non-bonding electrons. To draw one, first count the total valence electrons (outer electrons) from all atoms in the molecule.

Follow these steps to create accurate Lewis structures: identify the central atom (usually the least electronegative element or the one that appears only once), connect atoms with single bonds, then distribute remaining electrons as lone pairs until each atom has eight electrons (the octet rule).

Different elements form specific numbers of bonds based on their position in the periodic table. Carbon typically forms 4 bonds, nitrogen 3, oxygen 2, and fluorine 1. This pattern helps predict which atom will be central in a molecule.

Quick Check: When drawing Lewis structures, remember that hydrogen can only have 2 electrons total (never a lone pair), and your final structure should give most atoms 8 electrons (except H with 2)!

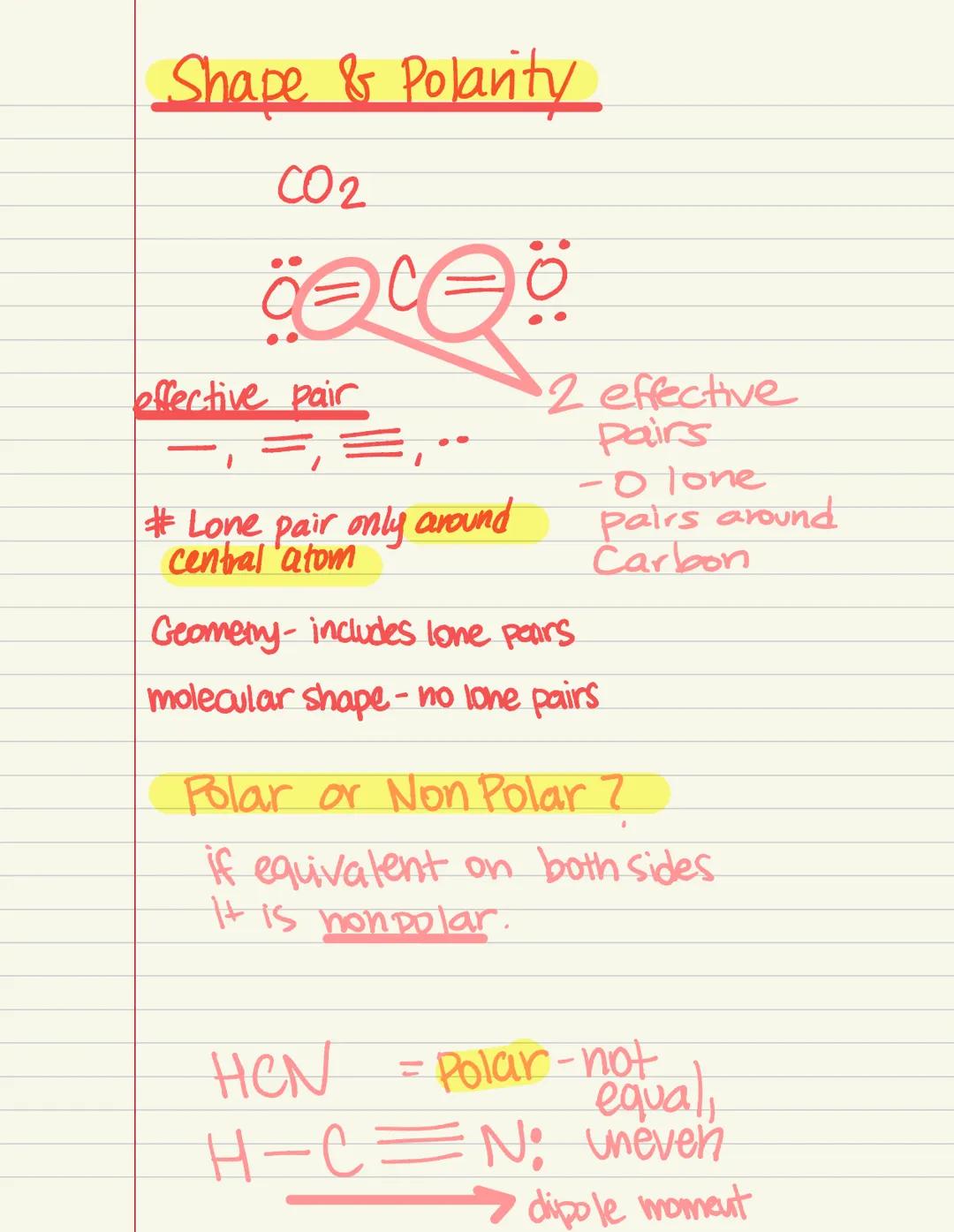

Molecular Shape & Polarity

A molecule's shape determines many of its properties, including whether it's polar or nonpolar. To predict shape, we count the number of effective pairs (both bonding regions and lone pairs) around the central atom.

The difference between molecular geometry and molecular shape is important—geometry includes all electron pairs, while shape only describes the arrangement of atoms. For example, CO₂ has two effective pairs and a linear shape, while H₂O has four effective pairs but a bent shape due to its two lone pairs.

Polarity depends on both the electronegativity differences between atoms and the overall molecular shape. If a molecule has polar bonds arranged symmetrically (like CO₂), the dipole moments cancel out, creating a nonpolar molecule. Asymmetrical arrangements (like HCN) result in polar molecules.

Applied Knowledge: Molecular polarity explains why oil and water don't mix—water's bent shape makes it polar, while oil molecules are nonpolar, following the rule "like dissolves like"!

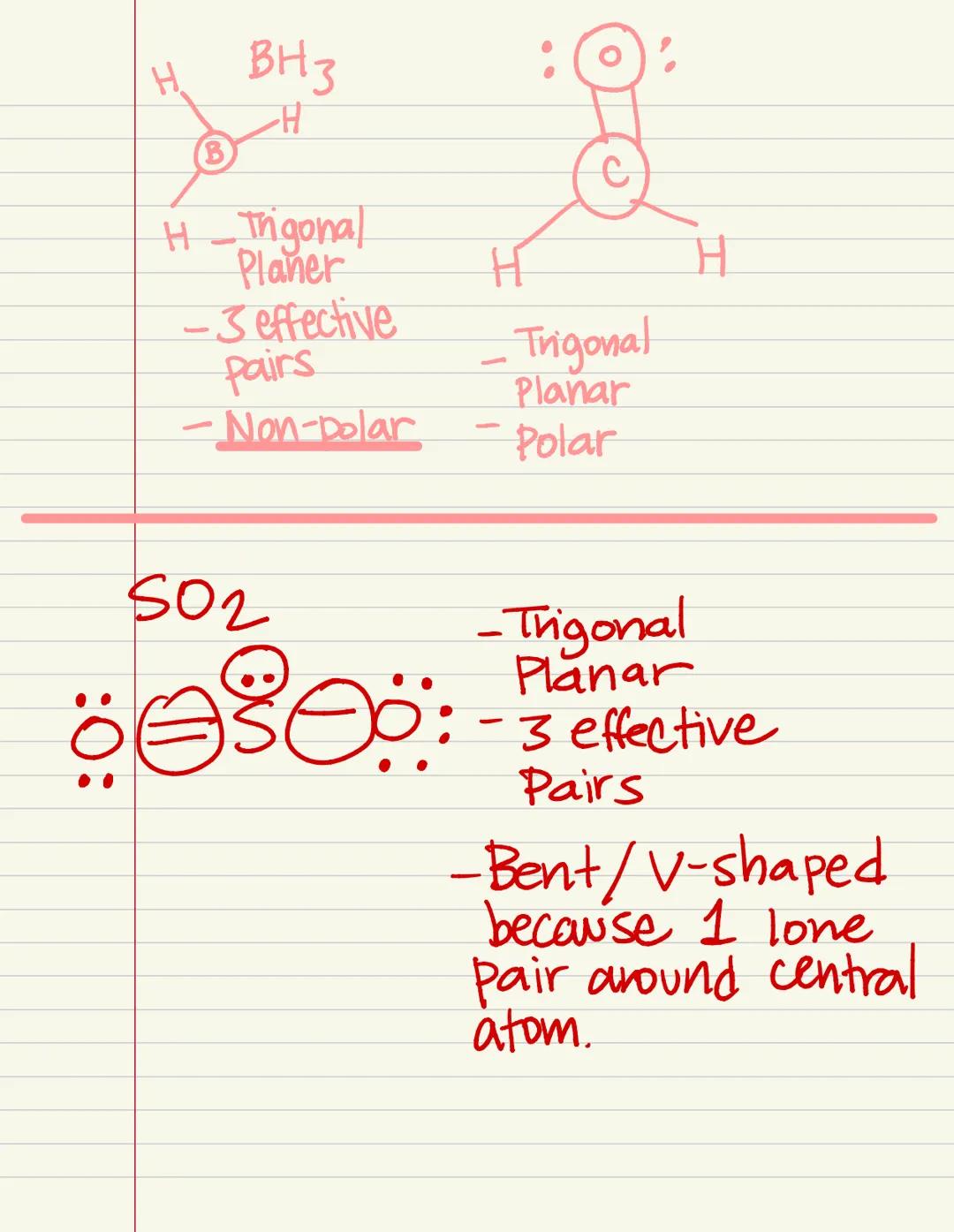

Molecular Geometry Examples

Trigonal planar geometry occurs when a central atom has three effective pairs with no lone pairs. BH₃ is a perfect example, with hydrogen atoms arranged at 120° angles around the boron. This symmetric arrangement makes BH₃ nonpolar because the bonds' polarities cancel each other out.

H₂CO (formaldehyde) also has trigonal planar geometry, but it's polar because the C=O bond is much more polar than the C-H bonds. This creates an uneven electron distribution and a net dipole moment.

SO₂ has three effective pairs but only two are bonding pairs, with one lone pair on sulfur. This creates a bent or V-shaped molecular shape, making SO₂ polar despite having the same central geometry (trigonal planar) as the other examples.

Visualization Tip: Imagine the geometry as a balloon animal—when you remove a bonding pair and replace it with a lone pair, that area "pinches in," changing the overall shape!

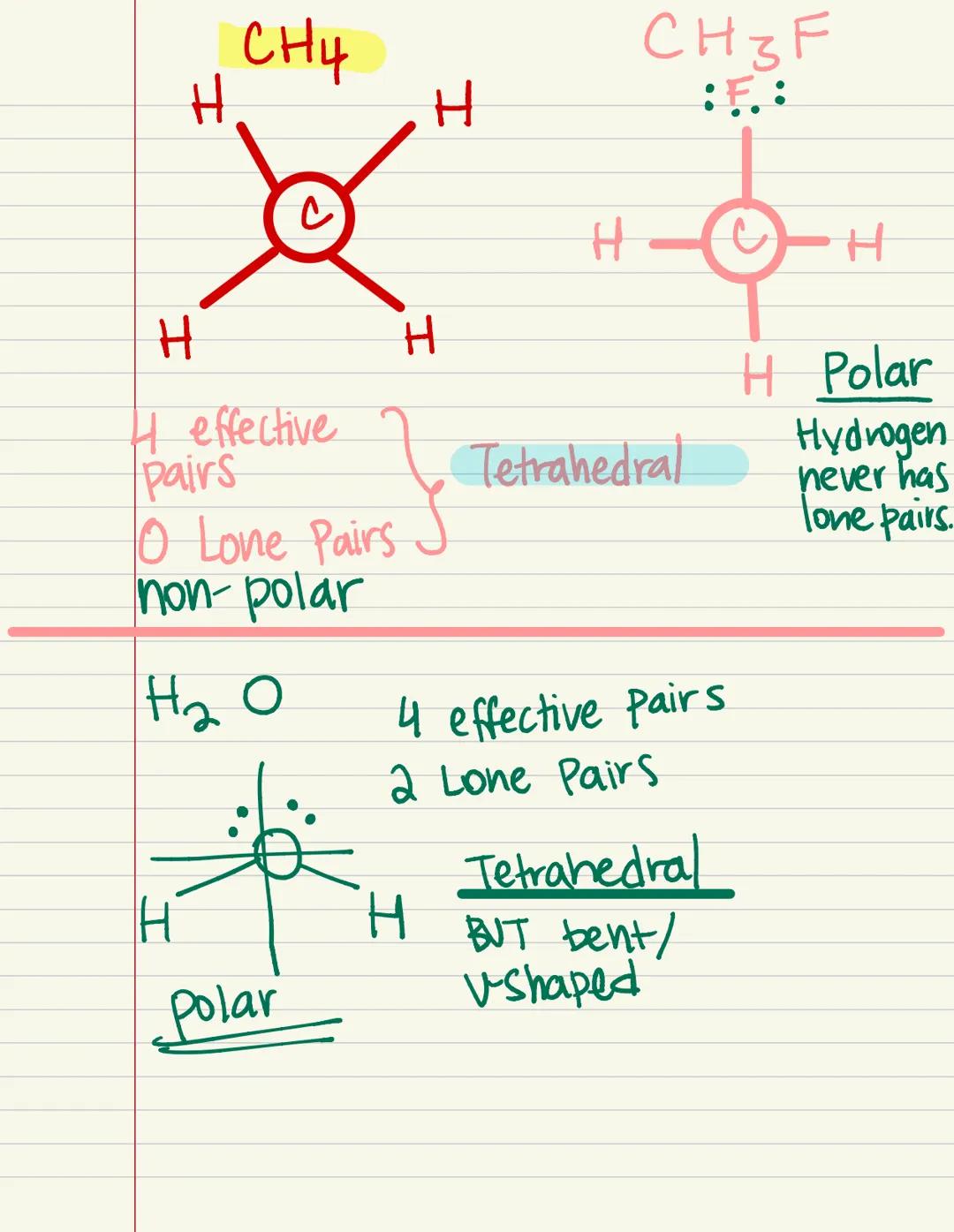

Tetrahedral Geometries

When a central atom has four effective electron pairs, it forms a tetrahedral electron arrangement with 109.5° angles between pairs. CH₄ (methane) is the perfect example—four identical C-H bonds extending in a symmetric pattern with no lone pairs, making it nonpolar.

When one of the bonding pairs differs in electronegativity, like in CH₃F, the molecule maintains a tetrahedral shape but becomes polar due to the uneven electron distribution. The highly electronegative fluorine pulls electrons toward itself, creating a permanent dipole.

Water (H₂O) has four effective pairs but only two bonding pairs, with two lone pairs on oxygen. This creates a bent molecular shape, though the electron arrangement is still tetrahedral. The bent shape combined with oxygen's high electronegativity makes water strongly polar.

Remember: Hydrogen never has lone pairs in molecular structures—it can only form one bond and accommodate two electrons total!

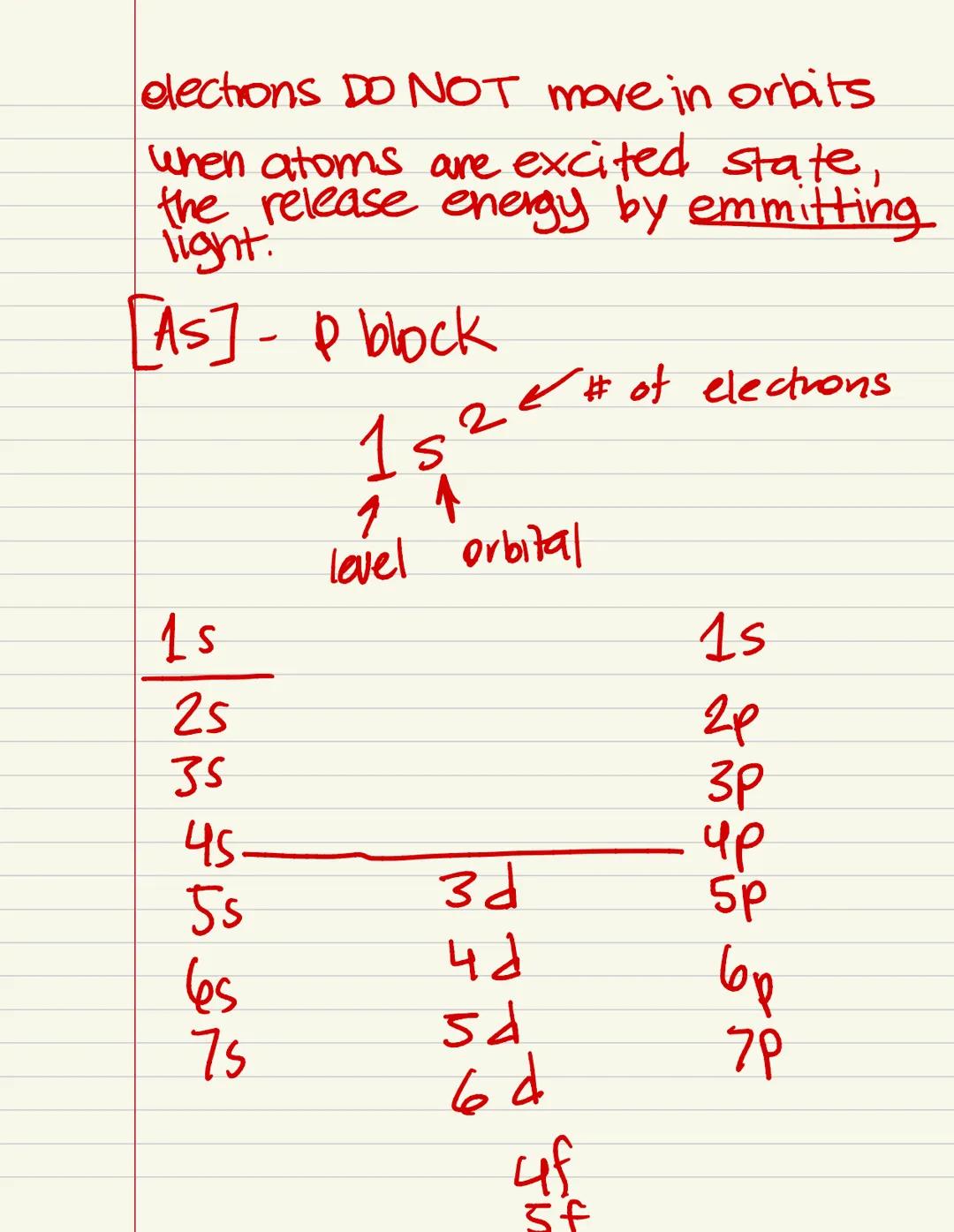

Electron Behavior & Energy Levels

Modern atomic theory teaches us that electrons don't move in fixed orbits as Bohr suggested. Instead, they exist in probability clouds (orbitals) with specific energy levels. When atoms are in an excited state, electrons jump to higher energy levels, then release energy as light when returning to lower levels.

The order in which orbitals fill with electrons follows a specific pattern: 1s, 2s, 2p, 3s, 3p, 4s, 3d, and so on. This seemingly strange order occurs because the energies of orbitals begin to overlap as we move to higher energy levels.

When writing electron configurations, we often use noble gas notation as shorthand. For example, $Ar$ represents the complete electron configuration of argon (1s²2s²2p⁶3s²3p⁶), allowing us to focus only on the valence electrons that participate in bonding.

Cool Fact: The beautiful colors in fireworks come from electrons dropping from excited states to ground states in different metal compounds, releasing specific wavelengths of light!
