Understanding Atomic Structure: Key Components Simplified

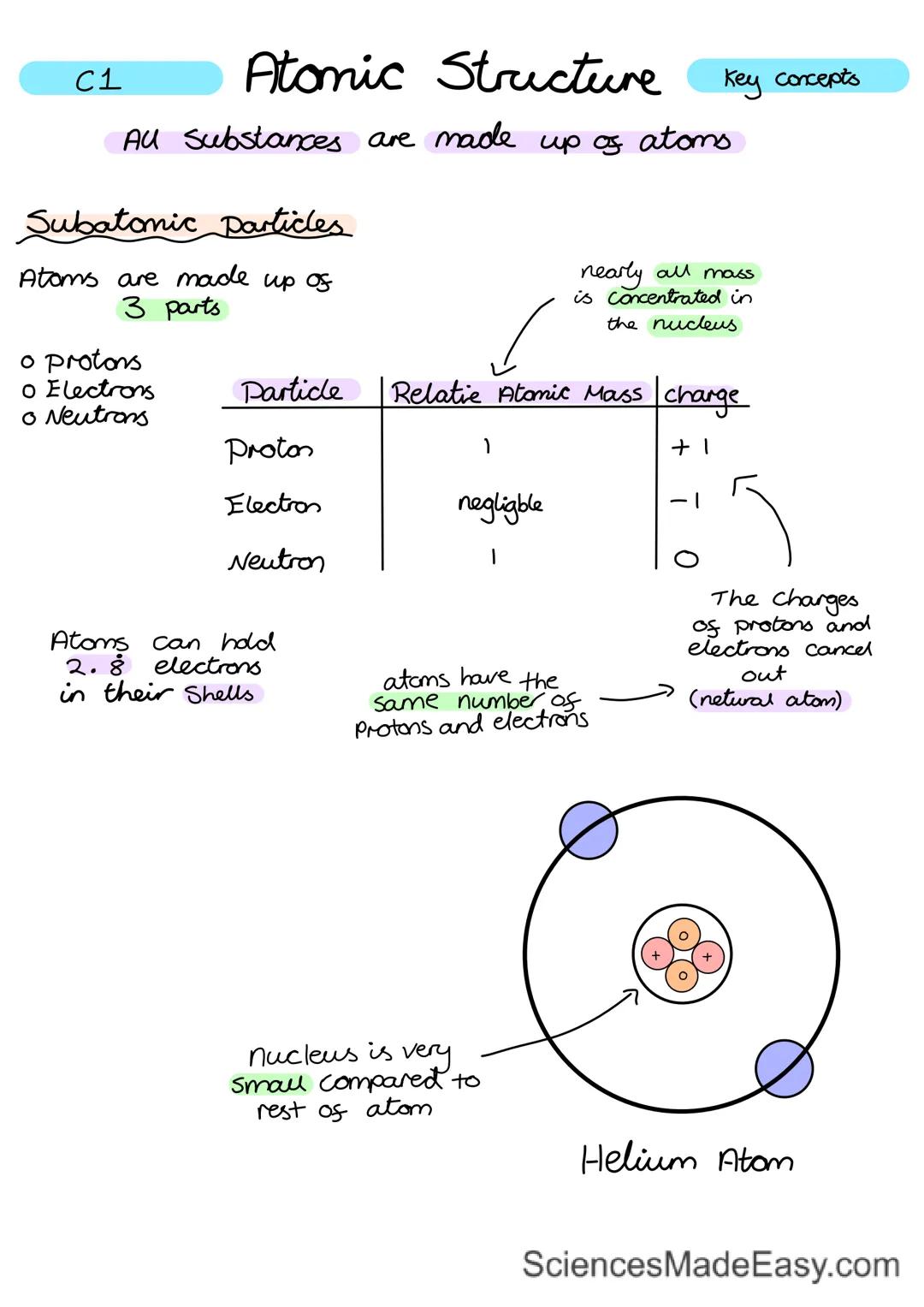

Atomic Structure

Everything around us is made of incredibly tiny particles called atoms. These atoms have three key parts: protons, neutrons, and electrons.

The center of an atom, called the nucleus, contains protons (positively charged) and neutrons (no charge). Almost all of an atom's mass is packed into this tiny nucleus! Surrounding the nucleus are electrons (negatively charged), which orbit in shells.

💡 Think of an atom like a miniature solar system - the nucleus is the sun, while electrons are like planets orbiting around it.

In a normal atom, the number of protons equals the number of electrons, making the atom neutral overall. Electrons fill up shells in a specific order: the first shell can hold 2 electrons, while the second can hold 8.

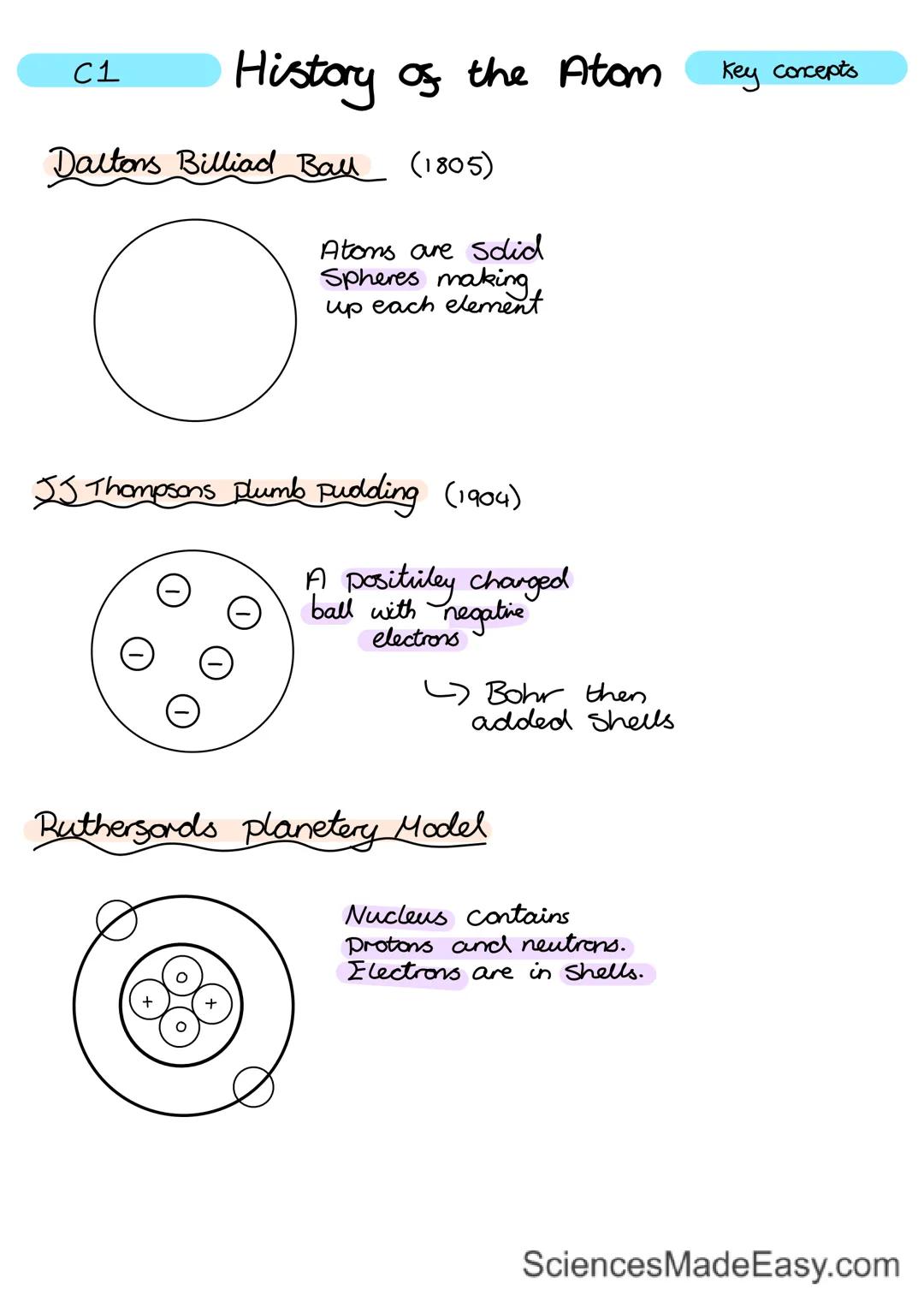

History of the Atom

Scientists' understanding of atoms has evolved dramatically over time through three major models.

Dalton's Billiard Ball Model (1805) proposed that atoms were tiny, solid spheres that couldn't be divided - like miniature billiard balls. This simple model was a good start but couldn't explain electricity or why different elements had different properties.

Thomson's Plum Pudding Model (1904) suggested atoms were positively charged spheres with negative electrons embedded throughout - like raisins in pudding. Bohr later added the concept of electron shells to explain why electrons didn't collapse into the nucleus.

Rutherford's Planetary Model transformed our understanding by placing protons and neutrons in a central nucleus with electrons orbiting around it. This model, with some refinements, is still the basic picture we use today.

Each new model represented a scientific breakthrough that explained more about how atoms behave and why elements have their unique properties.

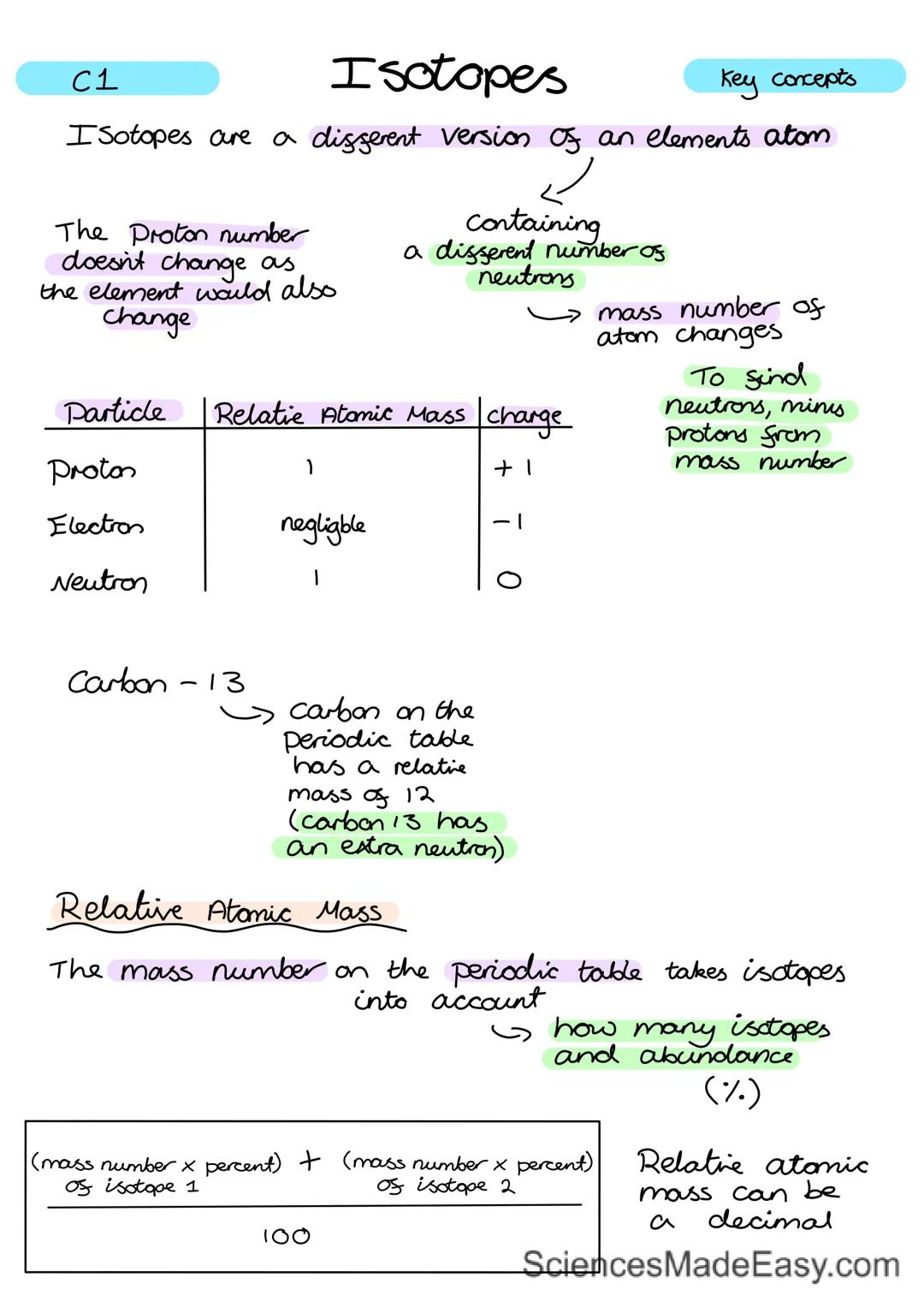

Isotopes and Atomic Mass

Isotopes are different versions of the same element that contain different numbers of neutrons. They keep the same number of protons (otherwise they'd be a different element), but their mass number changes.

For example, most carbon atoms have 6 protons and 6 neutrons (carbon-12), but carbon-13 has an extra neutron. To find the number of neutrons, just subtract the number of protons from the mass number.

💡 Think about siblings in a family - they share the same last name (protons) but have different personalities (neutrons)!

The mass number shown on the periodic table is actually the relative atomic mass that takes into account all the different isotopes of that element. It's calculated using this formula:

(mass number × percent of isotope 1) + (mass number × percent of isotope 2) ÷ 100

This is why some elements have decimal atomic masses on the periodic table - they're weighted averages of all the naturally occurring isotopes.

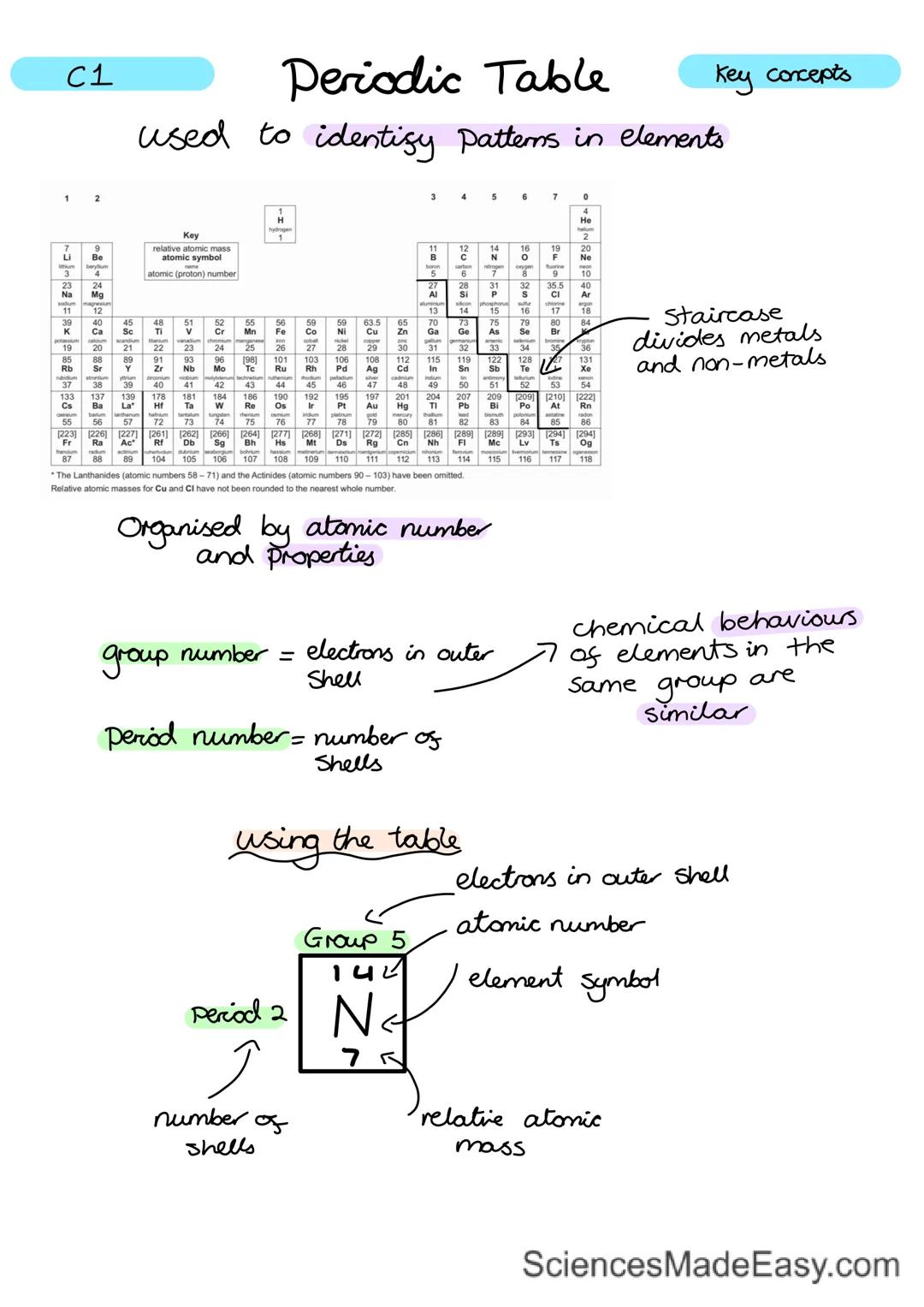

The Periodic Table

The periodic table is like a roadmap of chemistry, organizing elements in a way that reveals patterns in their properties.

Elements are arranged by atomic number (number of protons) from left to right, with each horizontal row called a period. The vertical columns, called groups, contain elements with similar chemical properties because they have the same number of electrons in their outer shell.

A staircase-like line divides metals (left side) from non-metals (right side). The table provides crucial information at a glance:

• The atomic number (number of protons)
• The atomic symbol (one or two letter abbreviation)
• The relative atomic mass (weighted average of isotopes)

💡 The periodic table is the ultimate cheat sheet for chemistry! The group number tells you how many electrons are in the outer shell, while the period number tells you how many shells the atom has.

You can use the table to predict how elements will behave in reactions based on their location. Elements in the same group have similar chemical behaviors because their outer electron arrangements are similar.

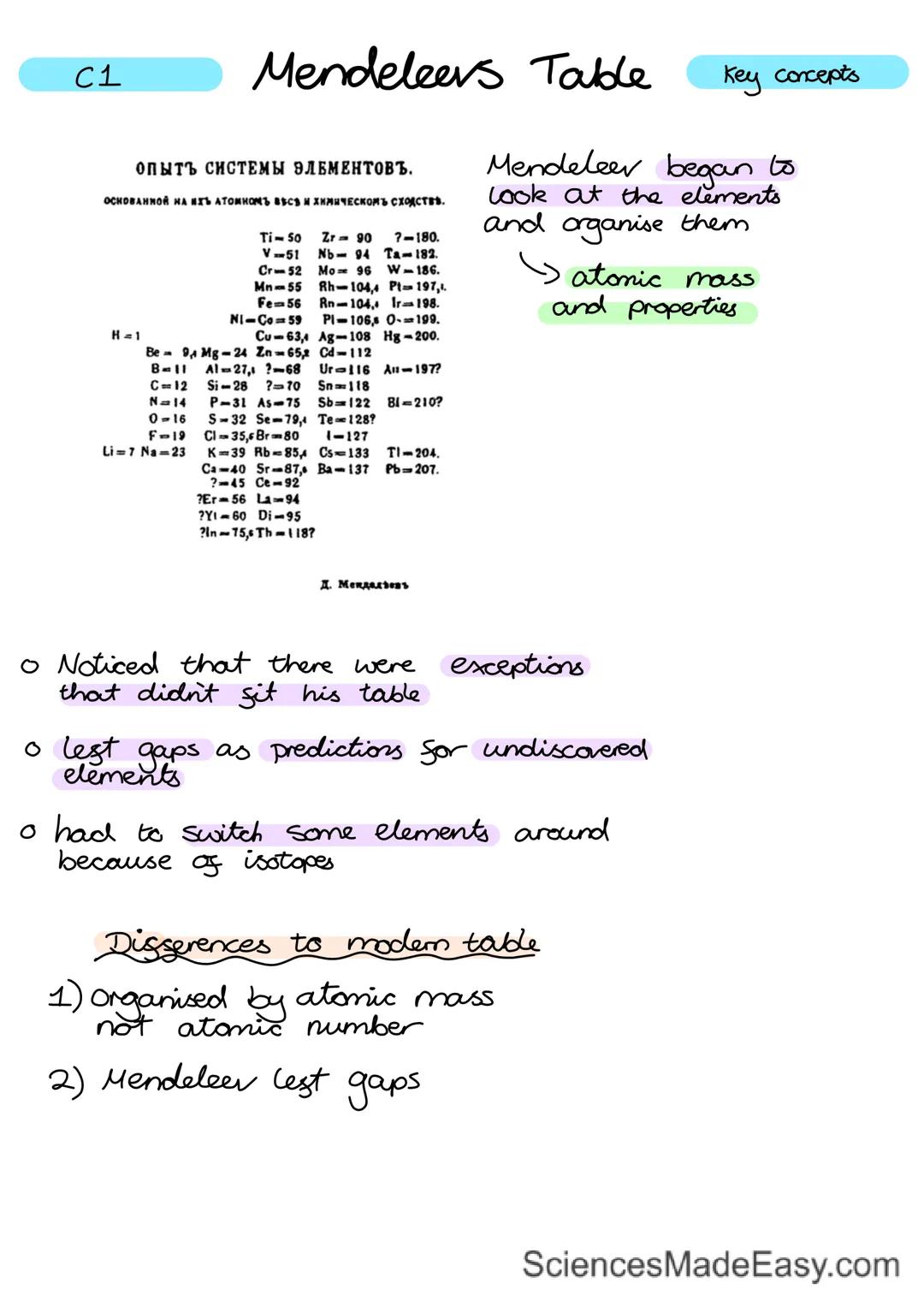

Mendeleev's Table

Before our modern periodic table, a Russian chemist named Mendeleev created the first successful organization of the elements in 1869, and his work was revolutionary.

Mendeleev arranged elements by atomic mass (not atomic number) and grouped them by similar properties. What made his table brilliant was that he:

• Left gaps where he predicted undiscovered elements should be
• Sometimes switched elements that didn't fit the pattern (which we now know was due to isotopes affecting atomic mass)
• Created a system that successfully predicted properties of elements that hadn't been discovered yet!

The main differences between Mendeleev's table and our modern one are:

1. Ours is organized by atomic number (protons), not atomic mass
2. Mendeleev's had gaps for undiscovered elements, while our modern table is complete

💡 Mendeleev's periodic table was like working on a jigsaw puzzle with missing pieces - he figured out what the missing pieces should look like before anyone had ever seen them!

His work laid the foundation for how we organize and understand elements today, even though our understanding has become much more sophisticated.

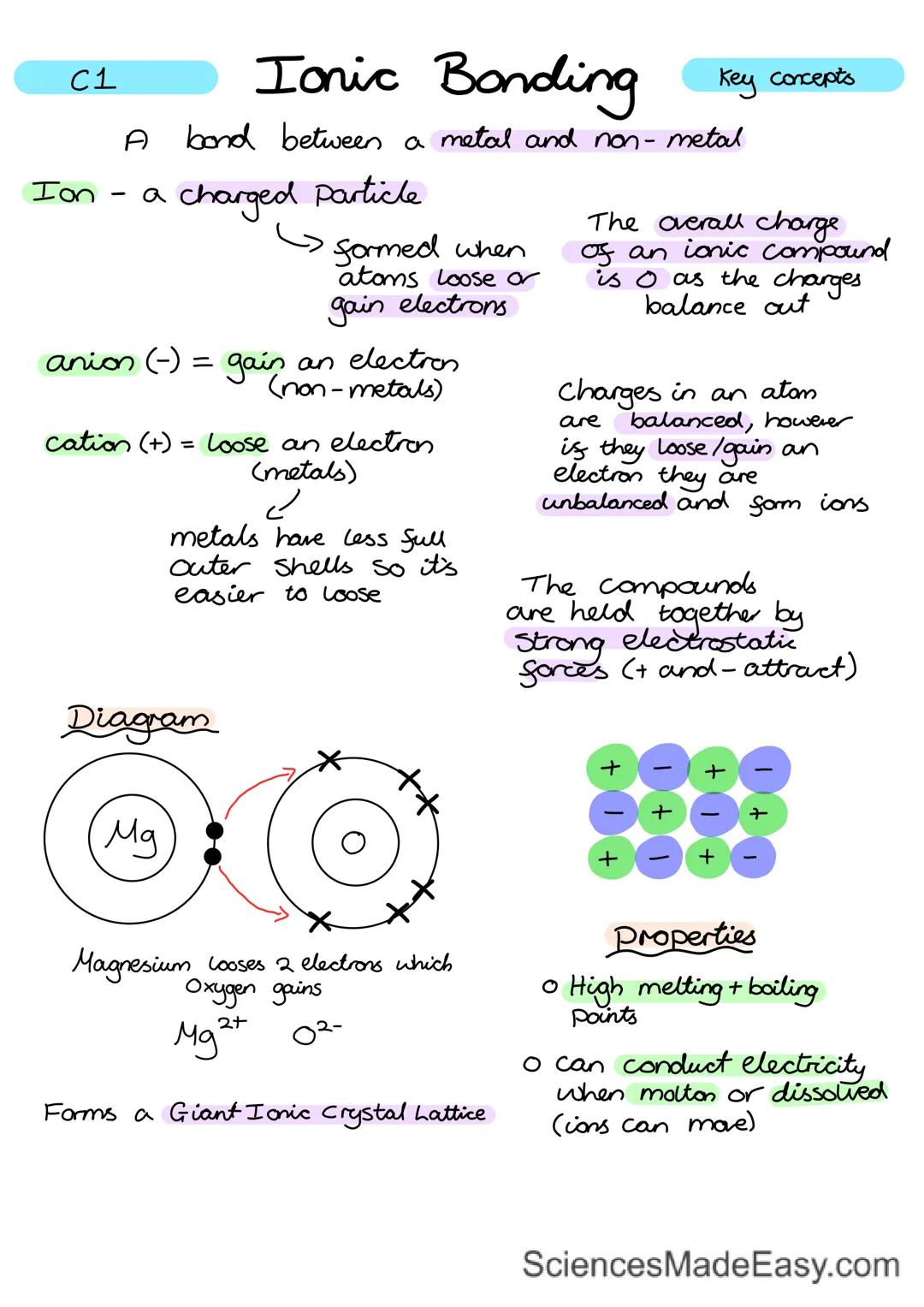

Ionic Bonding

Ionic bonds form between metals and non-metals when electrons are completely transferred from one atom to another, creating charged particles called ions.

When a metal atom loses electrons, it forms a cation (positively charged ion). Non-metals gain electrons to form anions (negatively charged ions). Metals tend to lose electrons because their outer shells are less than half full, making it easier to lose than gain.

For example, when magnesium reacts with oxygen, each magnesium atom loses 2 electrons (becoming Mg²⁺) and each oxygen atom gains 2 electrons (becoming O²⁻). These oppositely charged ions attract each other through strong electrostatic forces, creating a giant ionic crystal lattice.

💡 Think of ionic bonding like a tug-of-war where one team completely pulls the rope away from the other team!

Compounds formed through ionic bonding typically have these properties:

• High melting and boiling points (due to strong forces)
• Ability to conduct electricity when molten or dissolved (because ions can move)
• Solid at room temperature
• Often crystalline structure

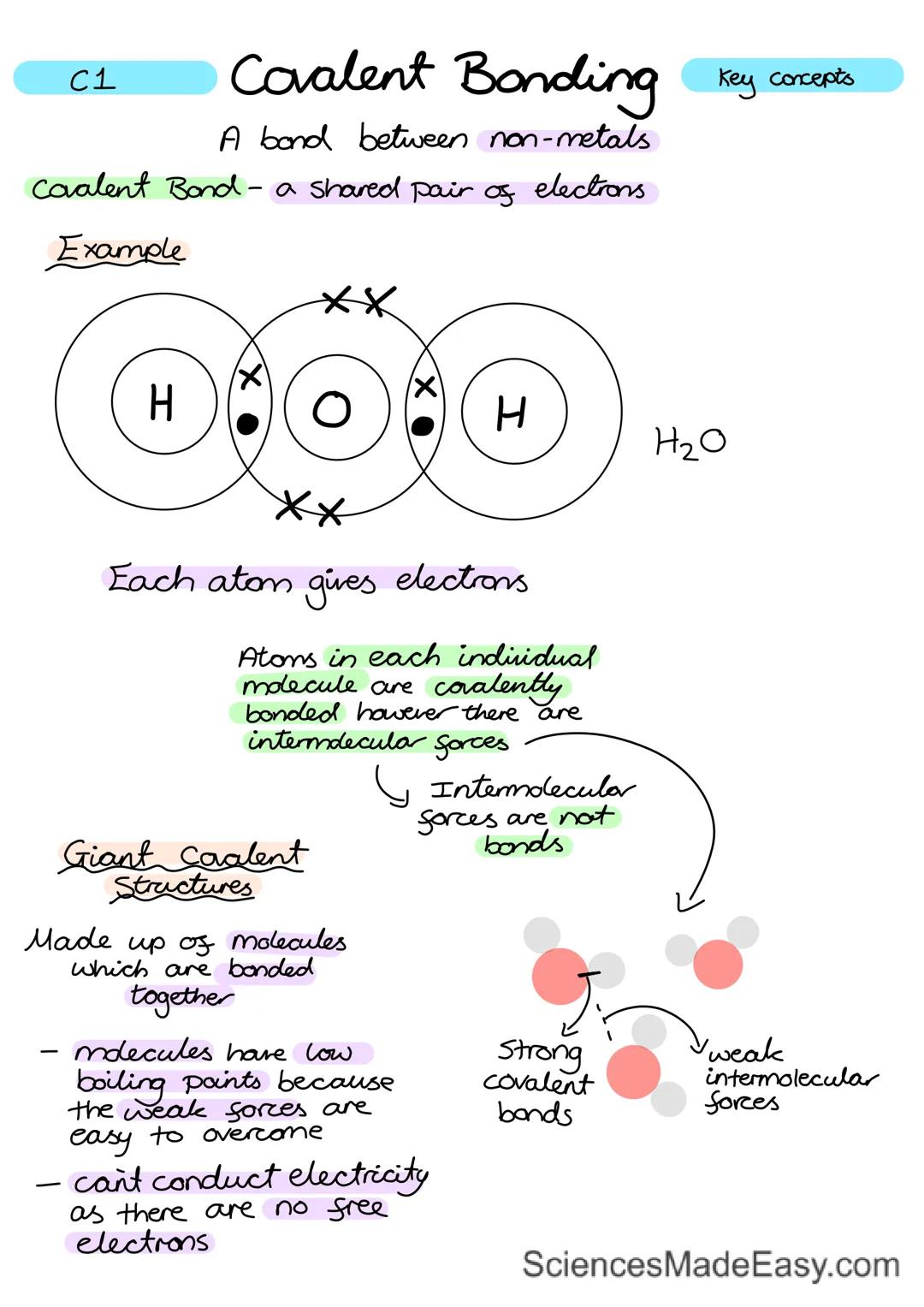

Covalent Bonding

Covalent bonds form between non-metals when atoms share pairs of electrons rather than transferring them completely. This sharing allows both atoms to fill their outer electron shells.

In water (H₂O), each hydrogen atom shares an electron with oxygen, and the oxygen shares an electron with each hydrogen. This creates a stable molecule where each atom has a filled outer shell.

Individual covalent molecules are held together by strong covalent bonds, but between separate molecules, there are much weaker intermolecular forces. This is important because it explains why many covalent compounds:

• Have low melting and boiling points (weak intermolecular forces are easily overcome)
• Cannot conduct electricity (no free electrons or ions)
• Often exist as gases or liquids at room temperature

💡 Covalent bonding is like sharing a textbook with your lab partner - you both get to use it without either person giving it up completely!

Some substances form giant covalent structures where atoms are linked together in continuous networks by strong covalent bonds, giving them very different properties from simple molecular substances.

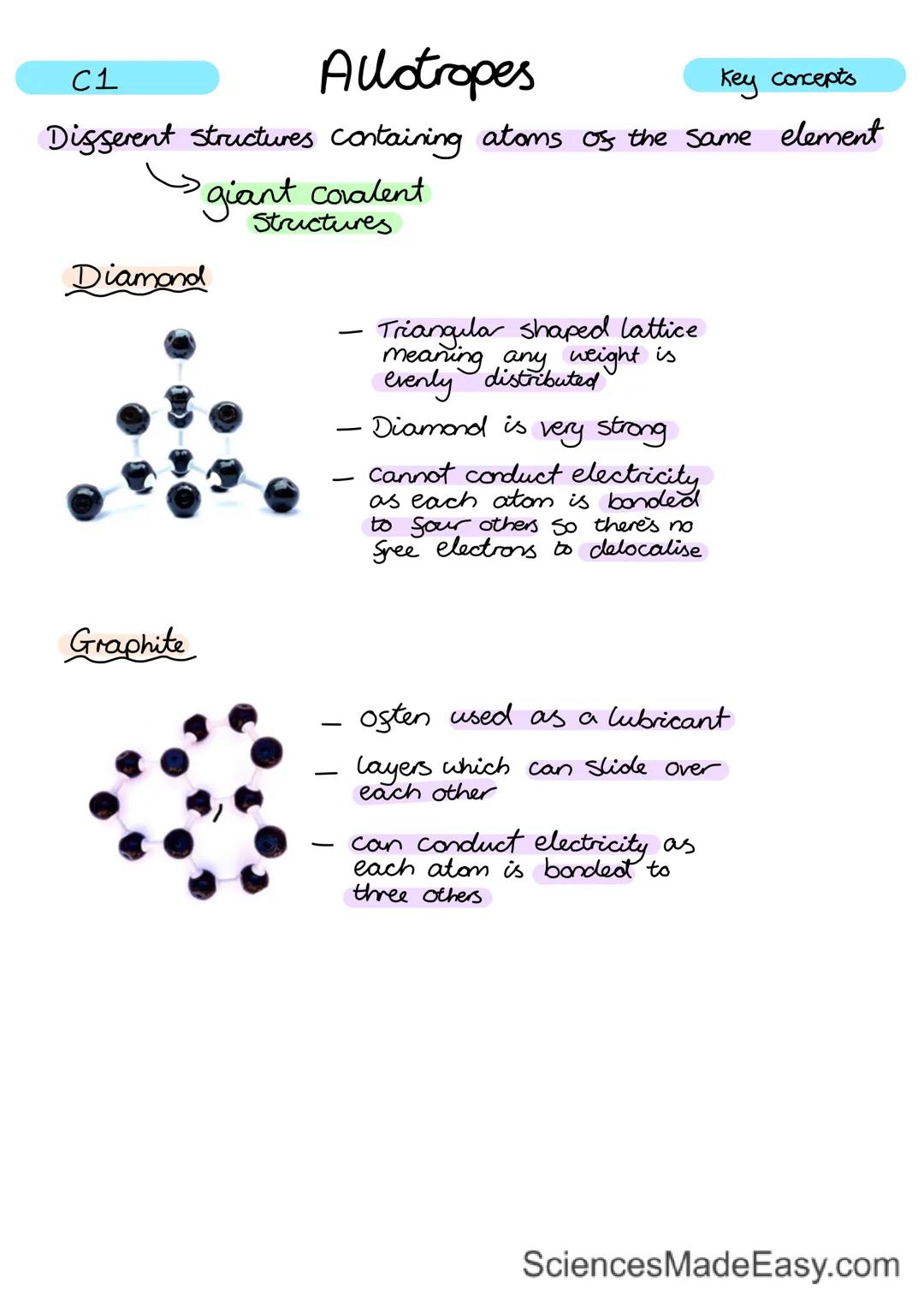

Allotropes

Allotropes are different structural forms of the same element, and carbon provides fascinating examples with dramatically different properties.

Diamond forms a tetrahedral lattice where each carbon atom is covalently bonded to four other carbon atoms. This three-dimensional structure creates one of the hardest natural substances because:

• The triangular shape distributes weight evenly
• The strong covalent bonds extend throughout the entire structure
• There are no free electrons, so diamond cannot conduct electricity

Graphite, another carbon allotrope, has a completely different structure with layers of hexagonally arranged carbon atoms. Each carbon atom bonds to only three others (not four), which:

• Creates sheets that can slide over each other, making graphite an excellent lubricant
• Leaves one electron per carbon atom free to move, allowing graphite to conduct electricity
• Results in much weaker forces between layers compared to the strong bonds within layers

💡 It's mind-blowing that diamond and graphite are both made of 100% carbon atoms - their drastically different properties come entirely from how those atoms are arranged!

These different arrangements show how structure determines properties, not just the type of atom involved.

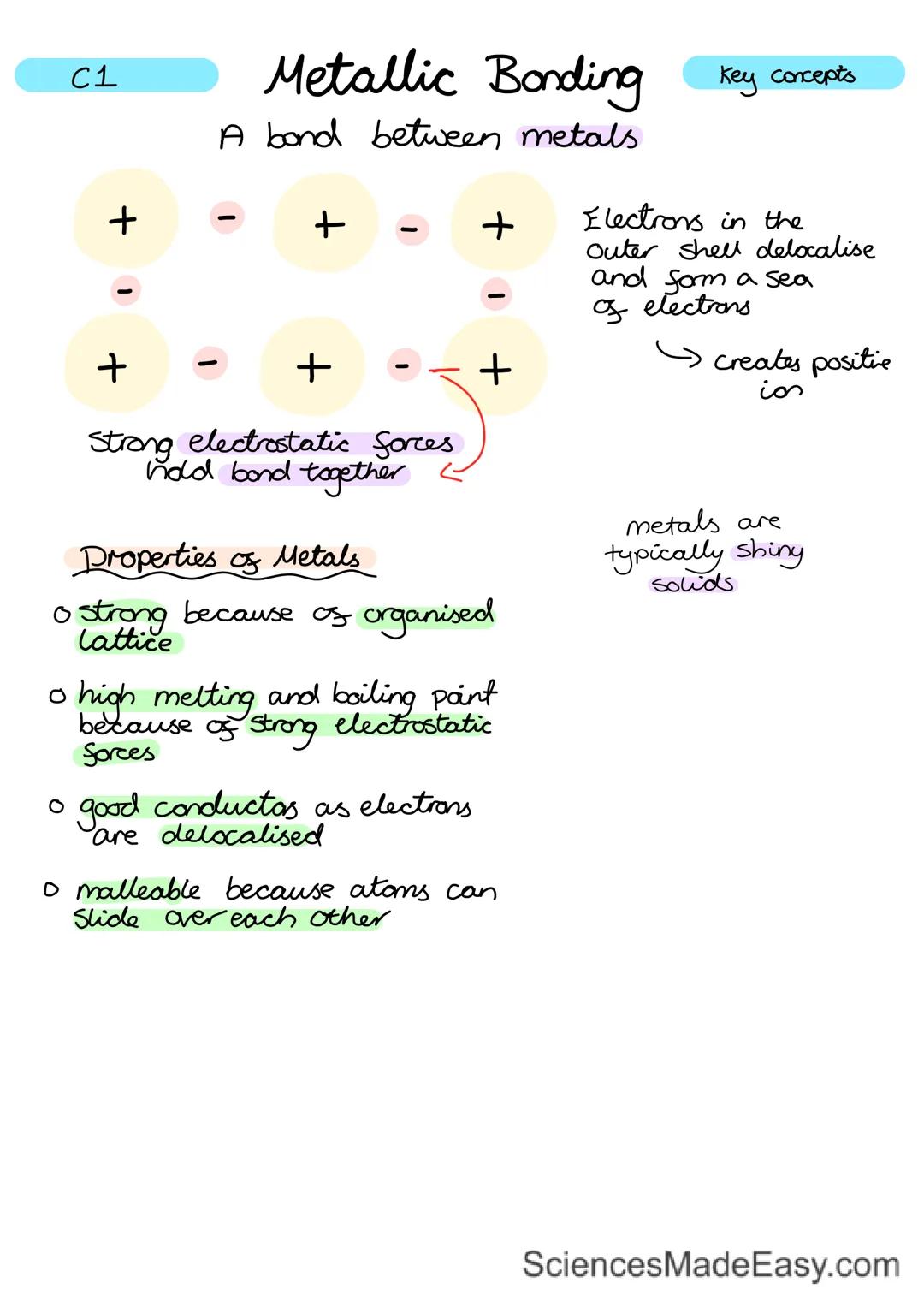

Metallic Bonding

Metals have a unique bonding structure that explains their special properties. In metallic bonding, the outer shell electrons detach from individual atoms and form a "sea" of freely moving electrons surrounding positive metal ions.

This structure creates strong electrostatic forces between the positive ions and the sea of negative electrons, holding the metal together. The arrangement explains why metals typically have these characteristics:

• Strong and durable because of their organized lattice structure
• High melting and boiling points due to strong electrostatic forces
• Excellent conductors of electricity because electrons are free to move
• Malleable (can be hammered into shapes) because the layers of atoms can slide over each other without breaking bonds
• Usually shiny solids at room temperature

💡 Think of metallic bonding like a bunch of positively charged balls floating in a sea of negative electrons - the balls can move around while staying in the sea!

This electron mobility is why metals conduct electricity so well - when you apply a voltage, these free electrons can flow, creating an electric current.

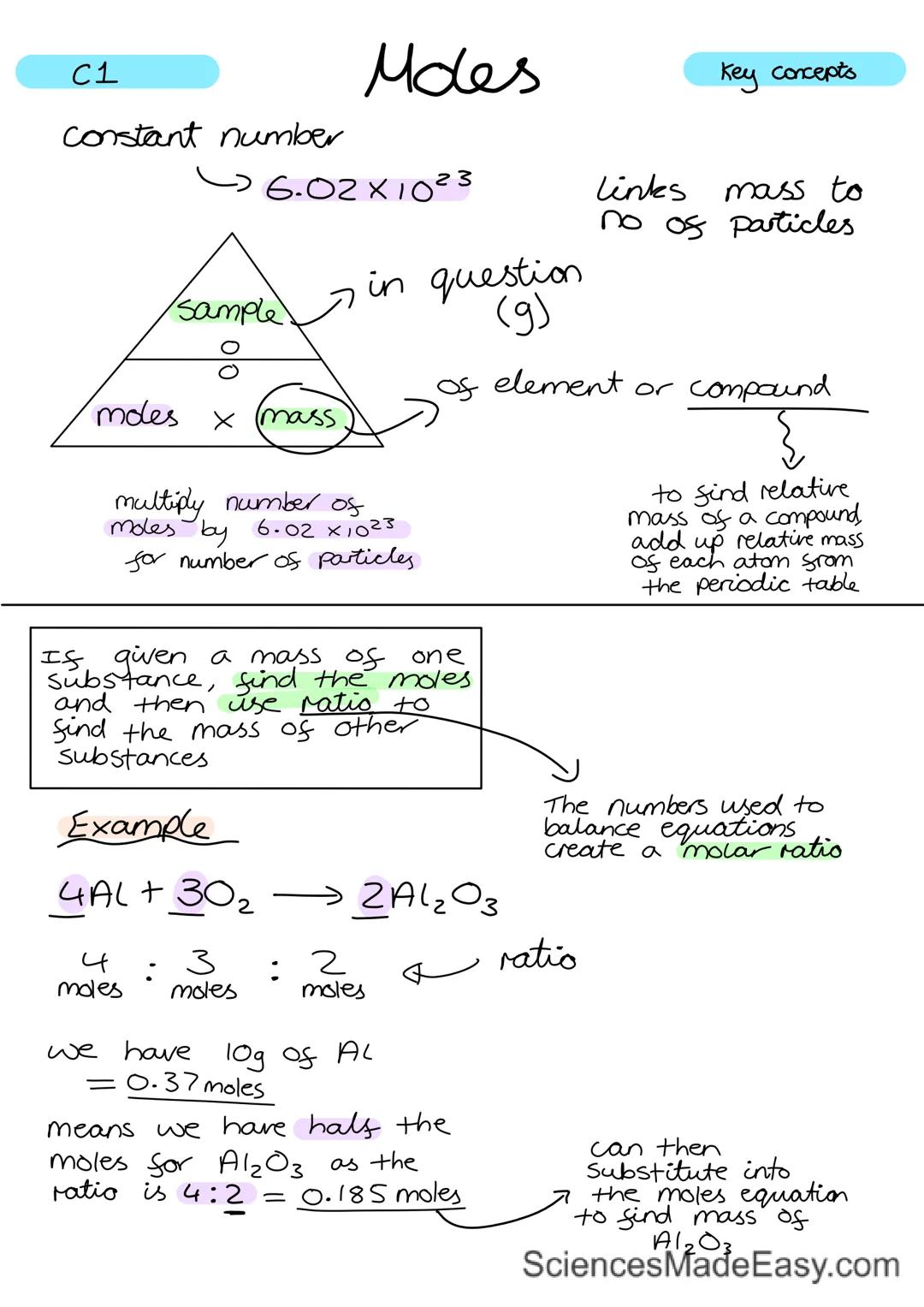

Moles

The mole is a crucial concept that connects the microscopic world of atoms to the macroscopic world we can measure in the lab. One mole contains exactly 6.02 × 10²³ particles (Avogadro's constant).

This constant links mass to the number of particles and helps us work with the tiny atoms and molecules we can't see directly. The formula for calculating moles is:

Number of moles = Mass of substance $g$ ÷ Relative mass of substance

For example, if we have 10g of aluminum (relative atomic mass = 27), we have: 10 ÷ 27 = 0.37 moles of aluminum

Moles are especially important in balancing chemical equations. In the equation 4Al + 3O₂ → 2Al₂O₃, the numbers create a molar ratio of 4:3:2. If we have 0.37 moles of aluminum, we would produce 0.185 moles of aluminum oxide (half as much, since the ratio is 4:2).

💡 Think of moles like a currency exchange between the microscopic and macroscopic worlds - they let us convert between atoms we can't see and substances we can weigh!

Once we know the moles, we can substitute back into the moles equation to find masses of other substances in the reaction.
