Understanding Molecular Geometry in Chemistry

Molecular Geometry: The Shapes of Molecules

Ever wonder why some molecules can dissolve in water while others can't? It all comes down to their shape! Molecular geometry refers to the three-dimensional arrangement of atoms in a molecule.

The shape of a molecule isn't just interesting to look at—it directly influences the molecule's properties like polarity, reactivity, and even what state of matter it exists in at room temperature.

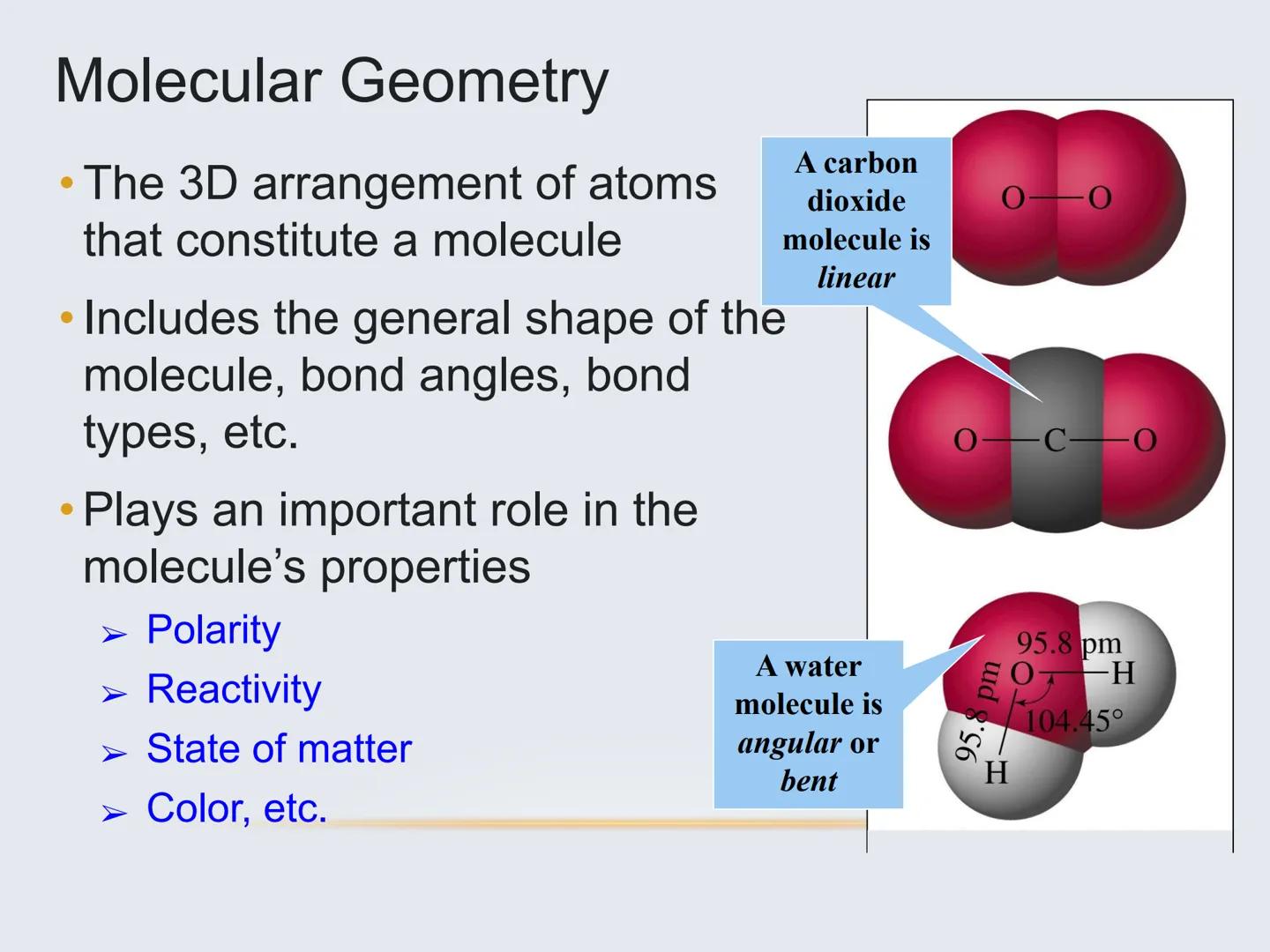

Did you know? Carbon dioxide (CO₂) is linear, while water (H₂O) is bent. These different shapes explain why water is a liquid at room temperature while CO₂ is a gas!

Determining Molecular Shape

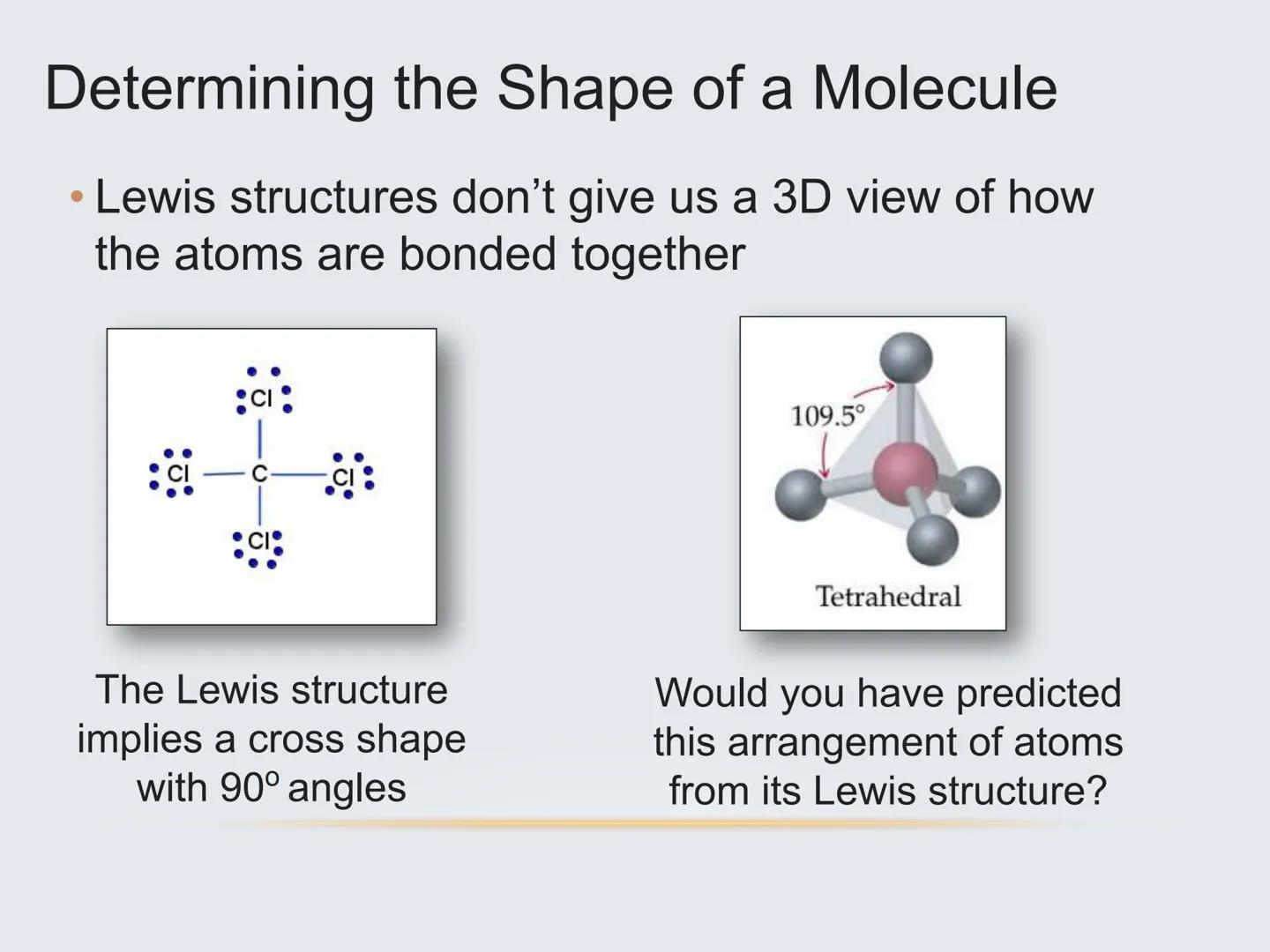

The Lewis structure of a molecule (those dot diagrams you've drawn) doesn't actually tell you how a molecule is arranged in 3D space. The real arrangement is often surprising!

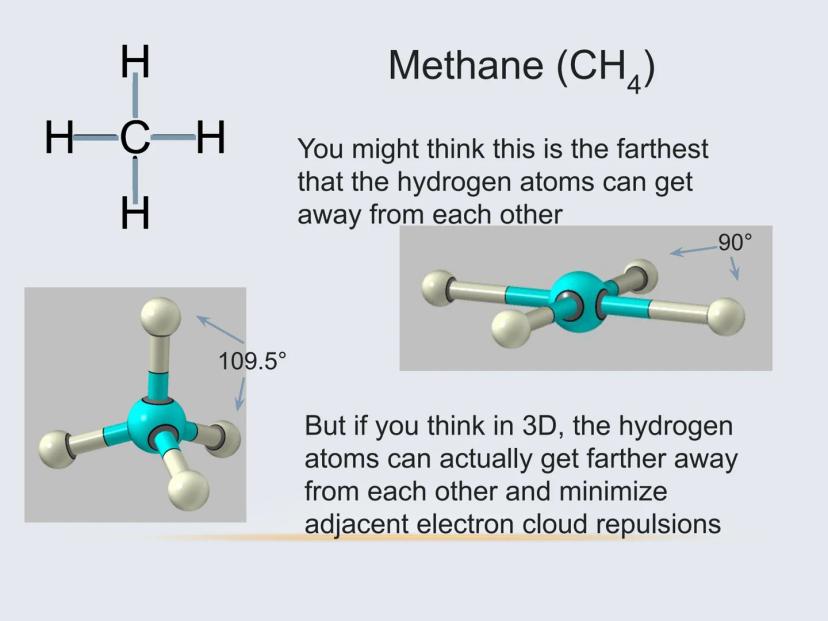

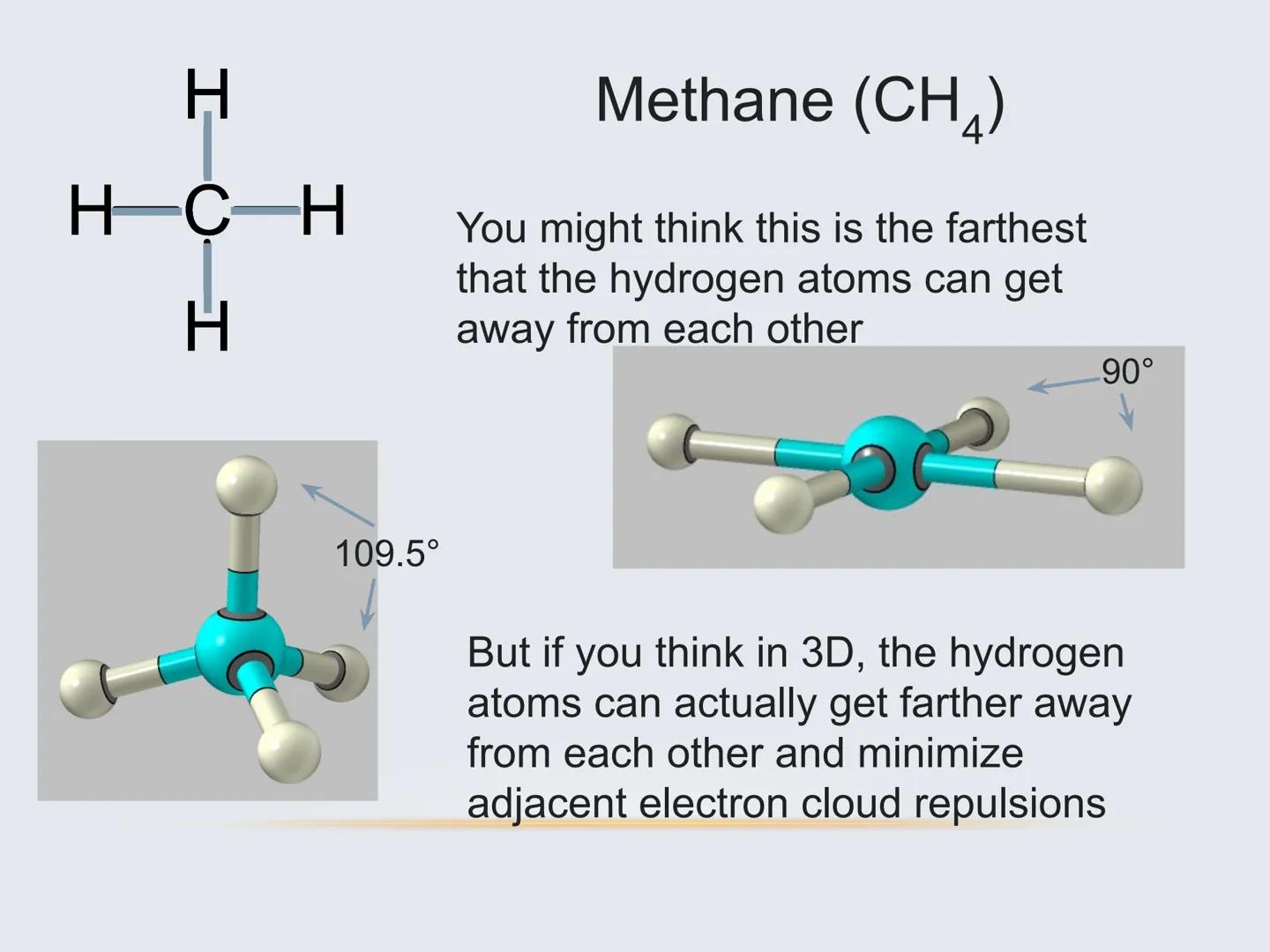

For example, methane (CH₄) might look like a flat cross on paper, but in reality, the hydrogen atoms arrange themselves in a 3D tetrahedral shape with 109.5° angles between bonds. This happens because electrons naturally repel each other and seek to be as far apart as possible.

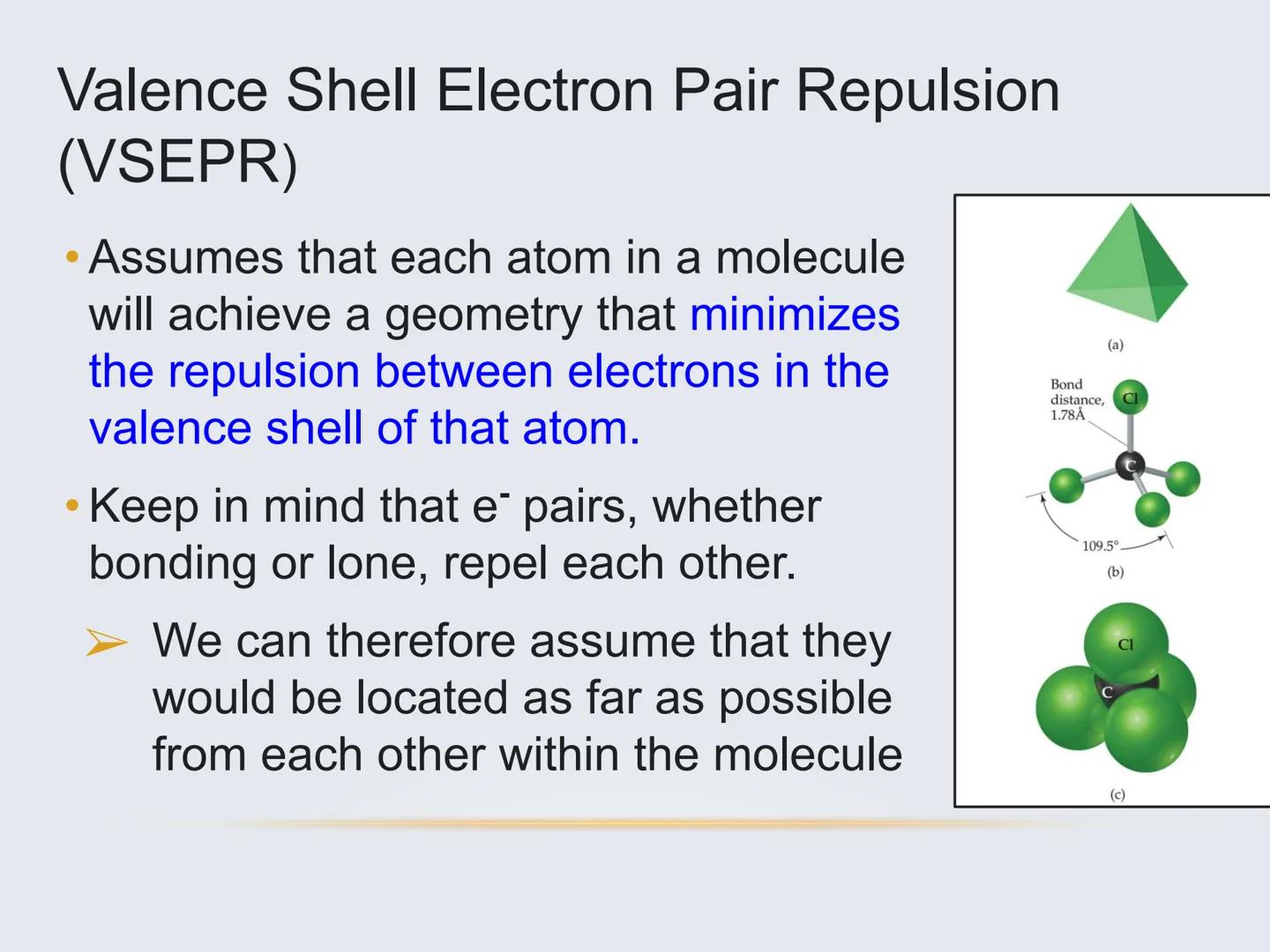

To predict these 3D arrangements, we use a model called VSEPR (Valence Shell Electron Pair Repulsion). The basic idea is simple: electron pairs around an atom, whether they're bonding or non-bonding, push away from each other as much as possible.

Common Molecular Geometries

Molecules can take on several common shapes depending on how many atoms and lone pairs surround the central atom:

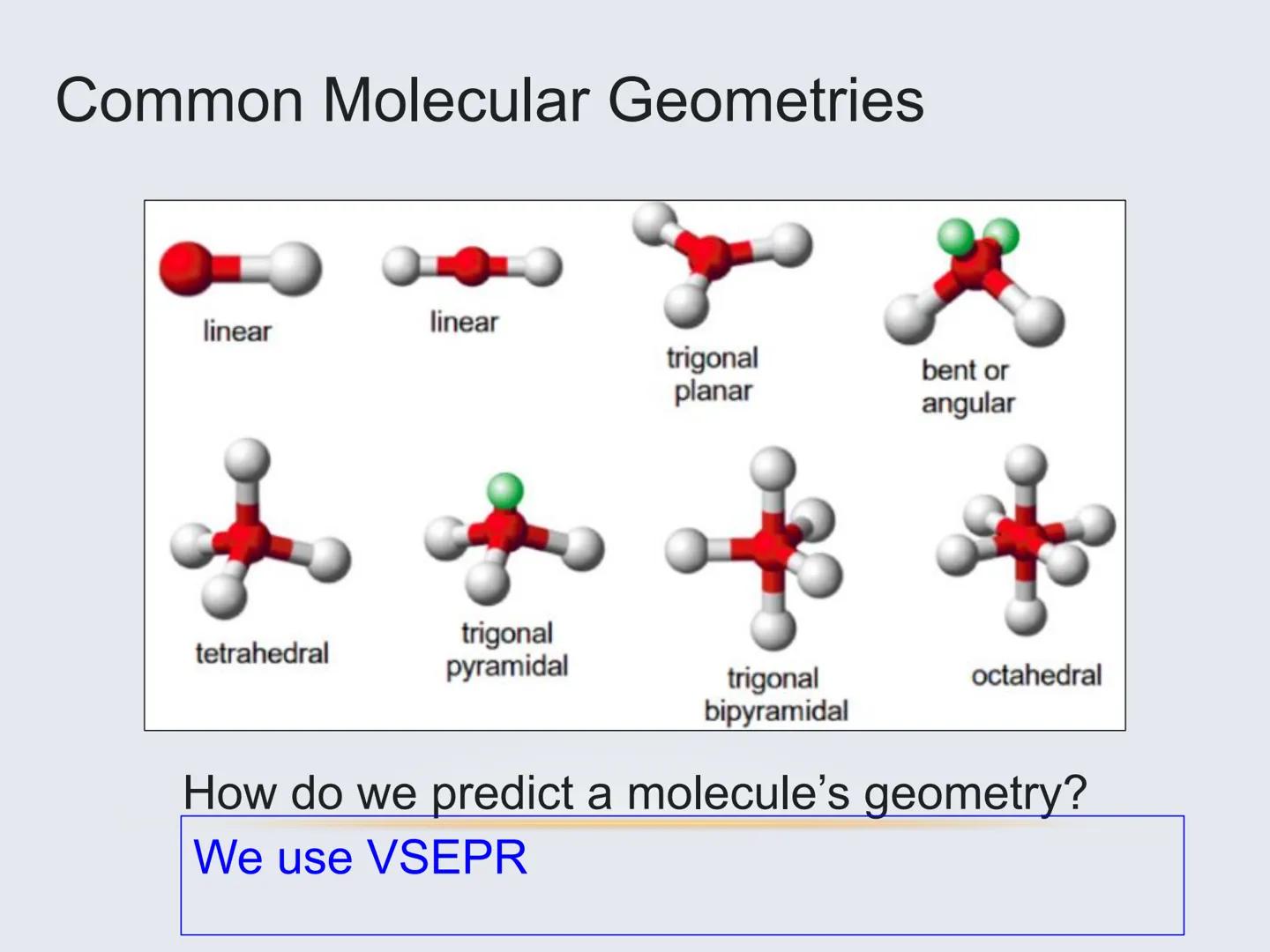

• Linear - atoms arranged in a straight line (180° angles)
• Trigonal planar - three atoms in a flat triangle (120° angles)
• Tetrahedral - four atoms at the corners of a triangular pyramid (109.5° angles)
• Trigonal pyramidal - three atoms plus one lone pair (similar to tetrahedral)
• Bent or angular - two atoms plus lone pairs create a "V" shape

These shapes aren't random—they're the result of electrons pushing away from each other to minimize repulsion. VSEPR theory helps us predict which shape will form in each case.

Understanding Electron Domains

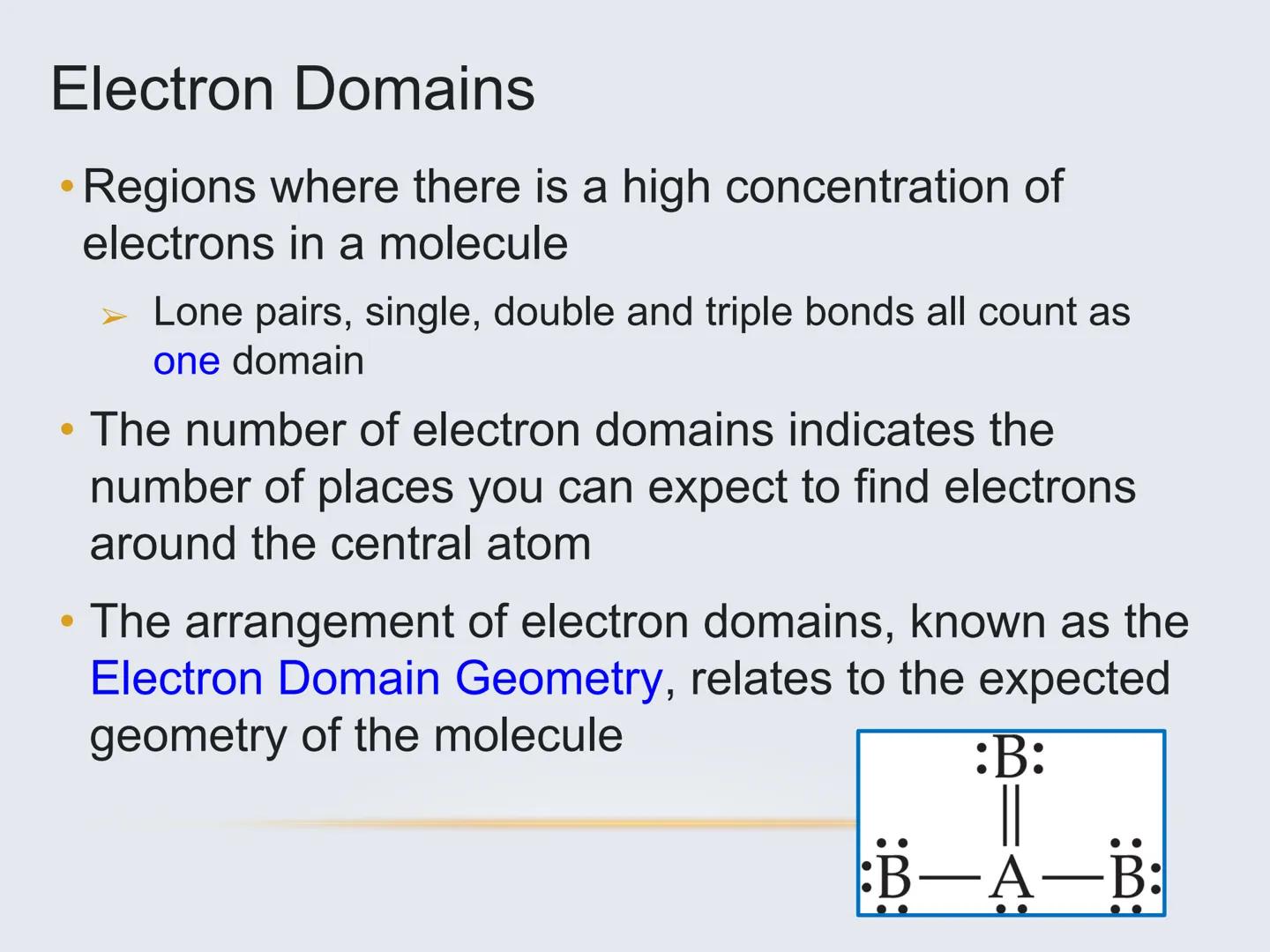

To figure out a molecule's shape, you need to identify its electron domains—regions around the central atom where electrons are concentrated.

An electron domain can be:

• A single bond
• A double bond
• A triple bond
• A lone pair of electrons

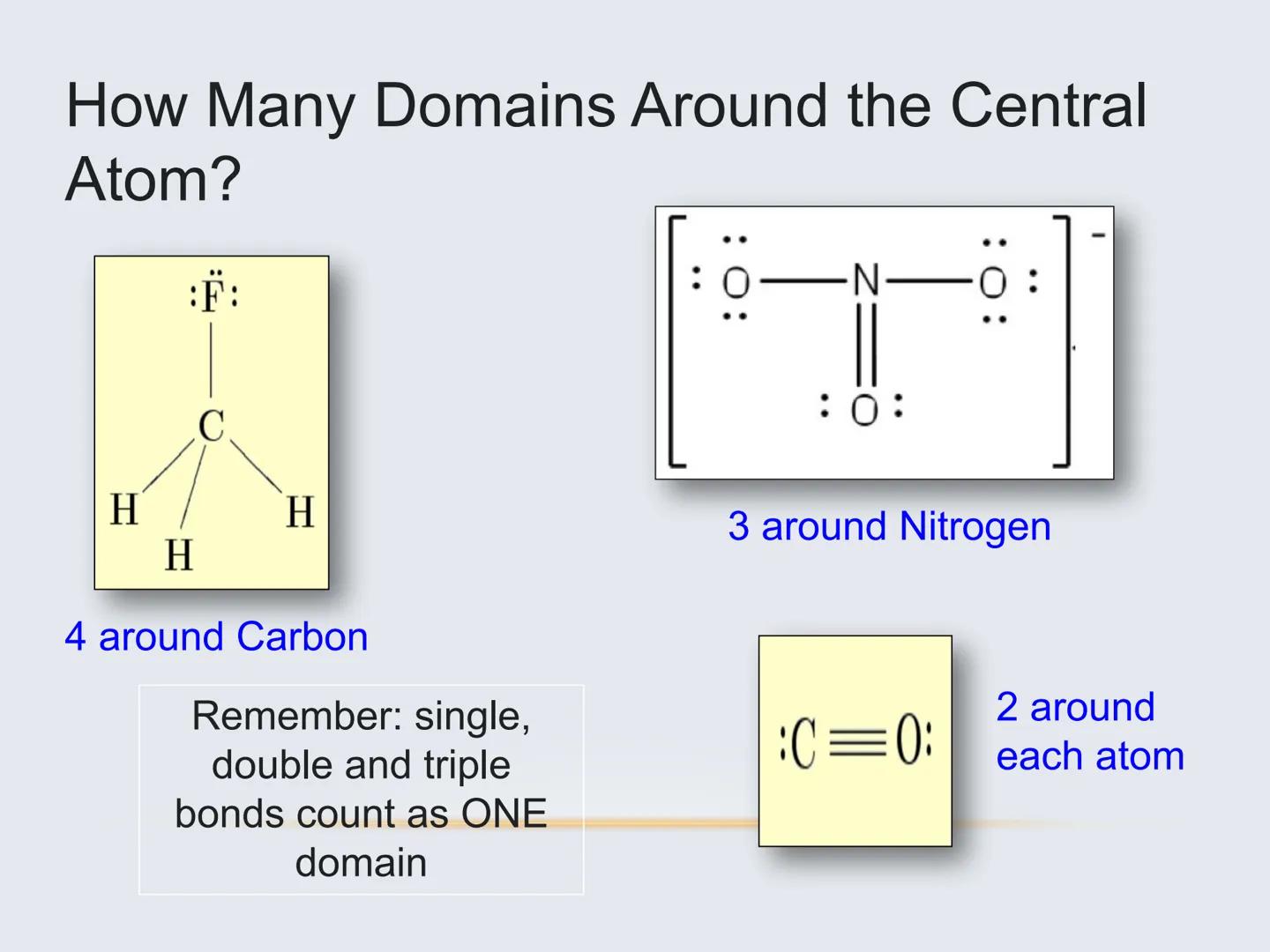

Important: All bonds (single, double, or triple) count as just ONE electron domain. This is key for correctly determining geometry.

For example, carbon dioxide (CO₂) has only two electron domains (the two double bonds), making it linear. Water (H₂O) has four electron domains (two bonds and two lone pairs), making it bent.

Electron Domain Geometry vs. Molecular Geometry

There are two related but different concepts you need to understand:

Electron Domain Geometry (EDG) refers to the arrangement of all electron domains (bonds and lone pairs) around the central atom. It depends only on the total number of electron domains.

Molecular Geometry refers to the actual shape formed by the atoms (not including lone pairs). It depends on both the electron domain geometry and how many of those domains are lone pairs.

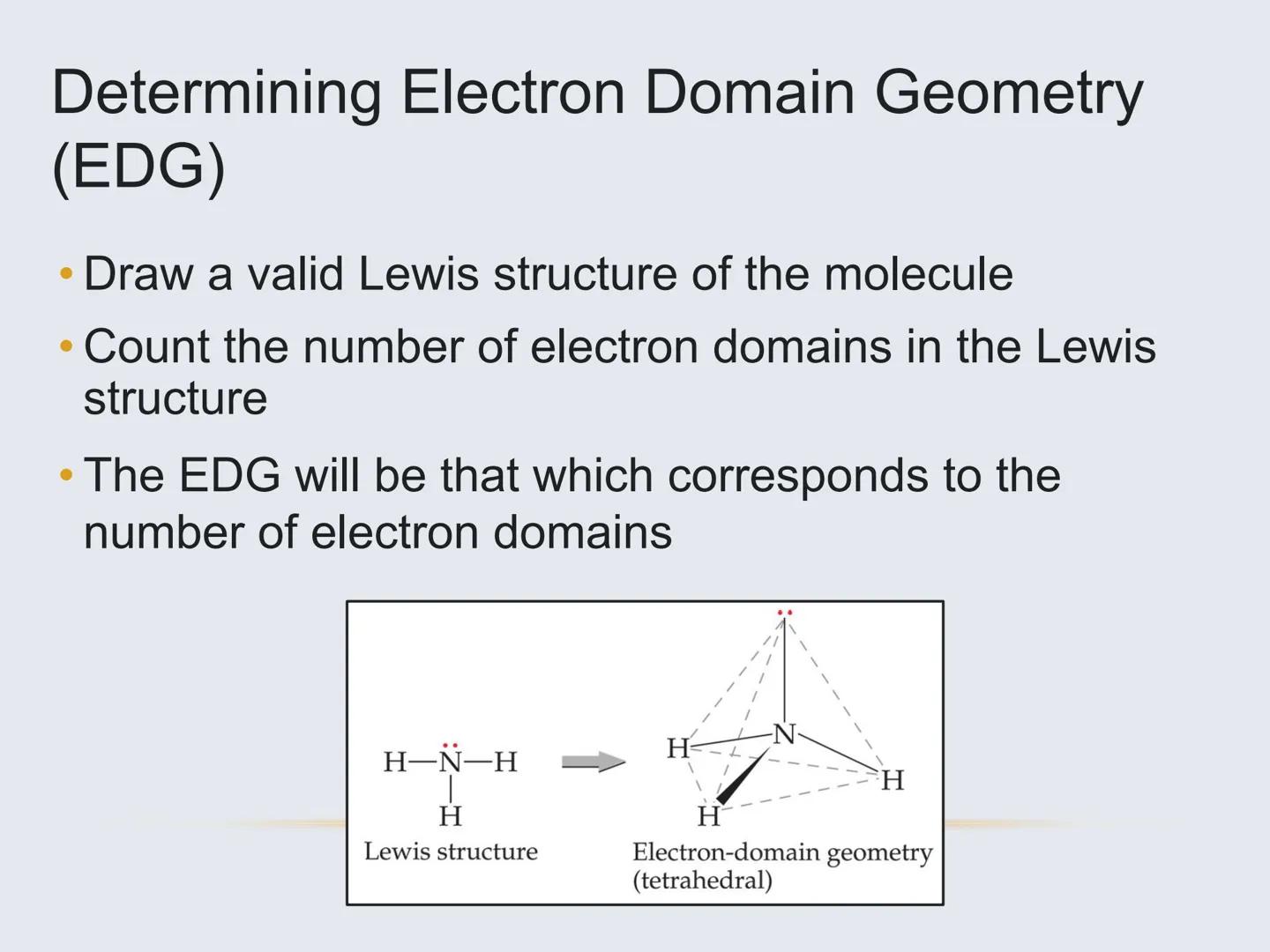

For example, ammonia (NH₃) has 4 electron domains (tetrahedral EDG), but since one domain is a lone pair, its molecular geometry is trigonal pyramidal.

Remember: Lone pairs take up space but aren't visible in the final shape!

Predicting Shapes with VSEPR

To predict a molecule's shape:

1. Draw the Lewis structure
2. Count electron domains around the central atom
3. Determine the electron domain geometry based on this count
4. Identify how many domains are lone pairs
5. Name the molecular geometry based on the visible atoms only

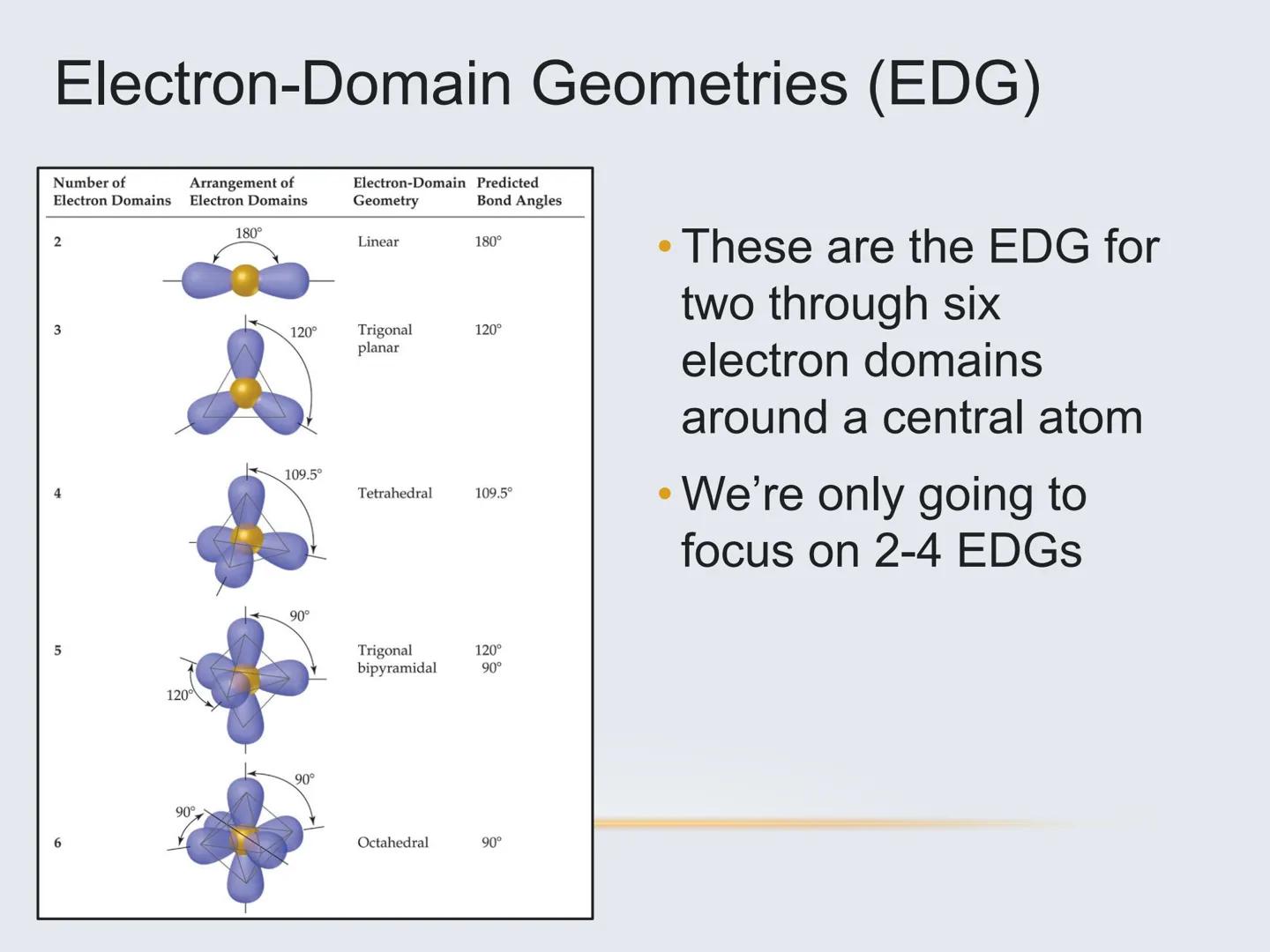

The number of electron domains tells you the basic arrangement:

• 2 domains → linear (180°)
• 3 domains → trigonal planar (120°)
• 4 domains → tetrahedral (109.5°)

Bold tip: Remember that the molecular geometry often differs from the electron domain geometry when lone pairs are present!

Two Electron Domains

When a central atom has only two electron domains, the geometry is always linear with a bond angle of 180°.

Examples include:

• Carbon dioxide (CO₂): O=C=O
• Hydrogen cyanide (HCN): H−C≡N

In these molecules, the two electron domains push as far away from each other as possible, creating a straight line. This arrangement minimizes repulsion between the electron clouds.

Even if these molecules have double or triple bonds, remember that each bond (regardless of type) counts as just one electron domain. The linear shape is the only possible geometry with two electron domains.

Three Electron Domains

With three electron domains, we get two possible molecular geometries:

1. Trigonal planar (if all domains are bonds)

   • Example: Formaldehyde (CH₂O)
   • Bond angles are approximately 120°
   • All atoms lie in the same plane

2. Bent or angular (if one domain is a lone pair)

   • Example: Sulfur dioxide (SO₂)
   • Bond angle is approximately 120°
   • The lone pair pushes the bonds slightly closer together

The electron domain geometry is always trigonal planar with three domains, but the presence of a lone pair creates the bent molecular shape.

Four Electron Domains

Four electron domains create the most common and important molecular shapes:

1. Tetrahedral (if all domains are bonds)

   • Example: Methane (CH₄)
   • Bond angles of 109.5°
   • Perfect 3D symmetry

2. Trigonal pyramidal (if one domain is a lone pair)

   • Example: Ammonia (NH₃)
   • Bond angles slightly less than 109.5° (around 107°)
   • Looks like a pyramid with nitrogen at the top

3. Bent (if two domains are lone pairs)

   • Example: Water (H₂O)
   • Bond angle around 104.5°
   • V-shaped molecule

Quick tip: Lone pairs take up more space than bonding pairs, which is why bond angles decrease when lone pairs are present.

Molecular Polarity

After determining a molecule's shape, you can predict whether it's polar or nonpolar—a critical property that affects how it interacts with other molecules.

A polar molecule has an uneven distribution of charge, with one side slightly positive and the other slightly negative. This creates a dipole (like a tiny magnet).

A nonpolar molecule has an even distribution of charge with no positive or negative ends.

Polarity depends on two factors:

1. Whether the molecule contains polar bonds (different electronegativity)
2. The molecule's shape and symmetry

Even with polar bonds, a molecule can be nonpolar if it has a symmetric shape that causes the bond dipoles to cancel out.
