Fun Guide to Electron Configurations and Energy Levels for Kids
1 / 5

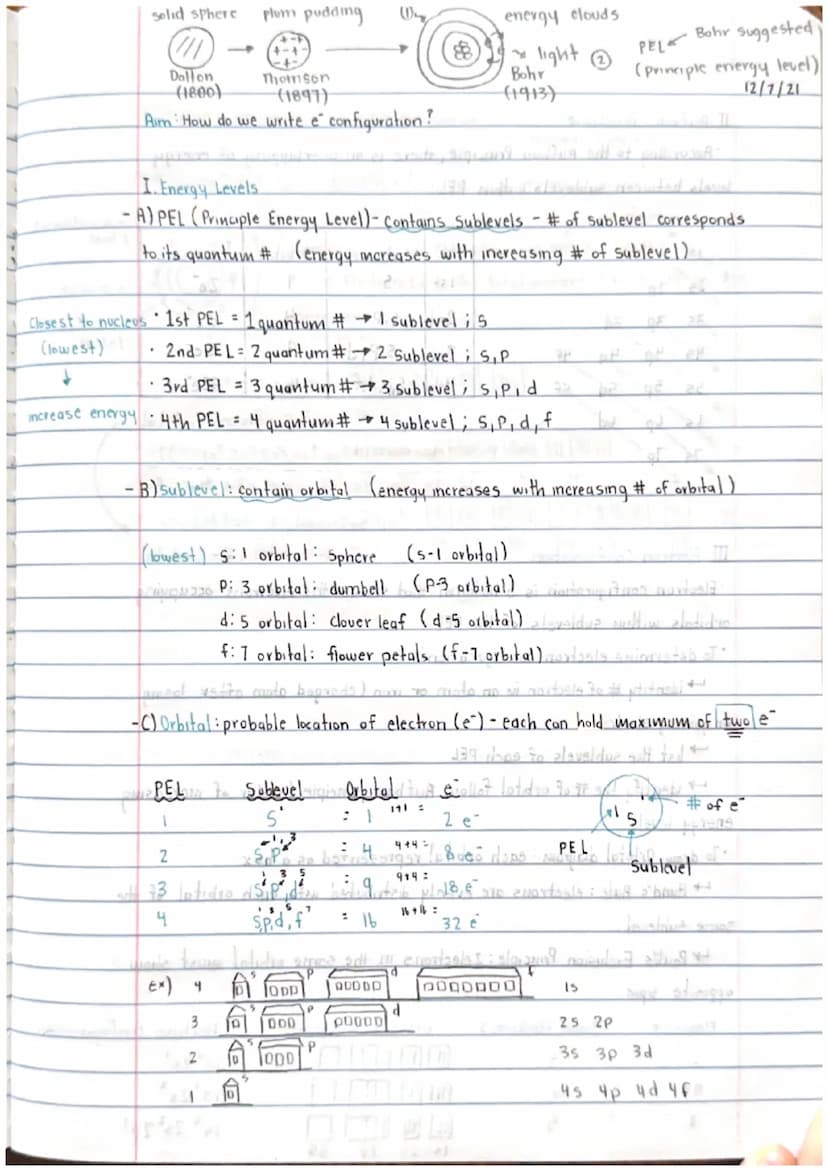

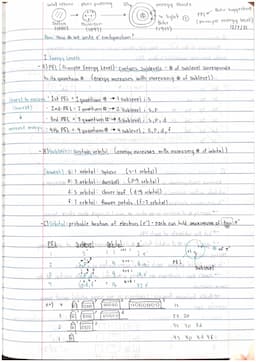

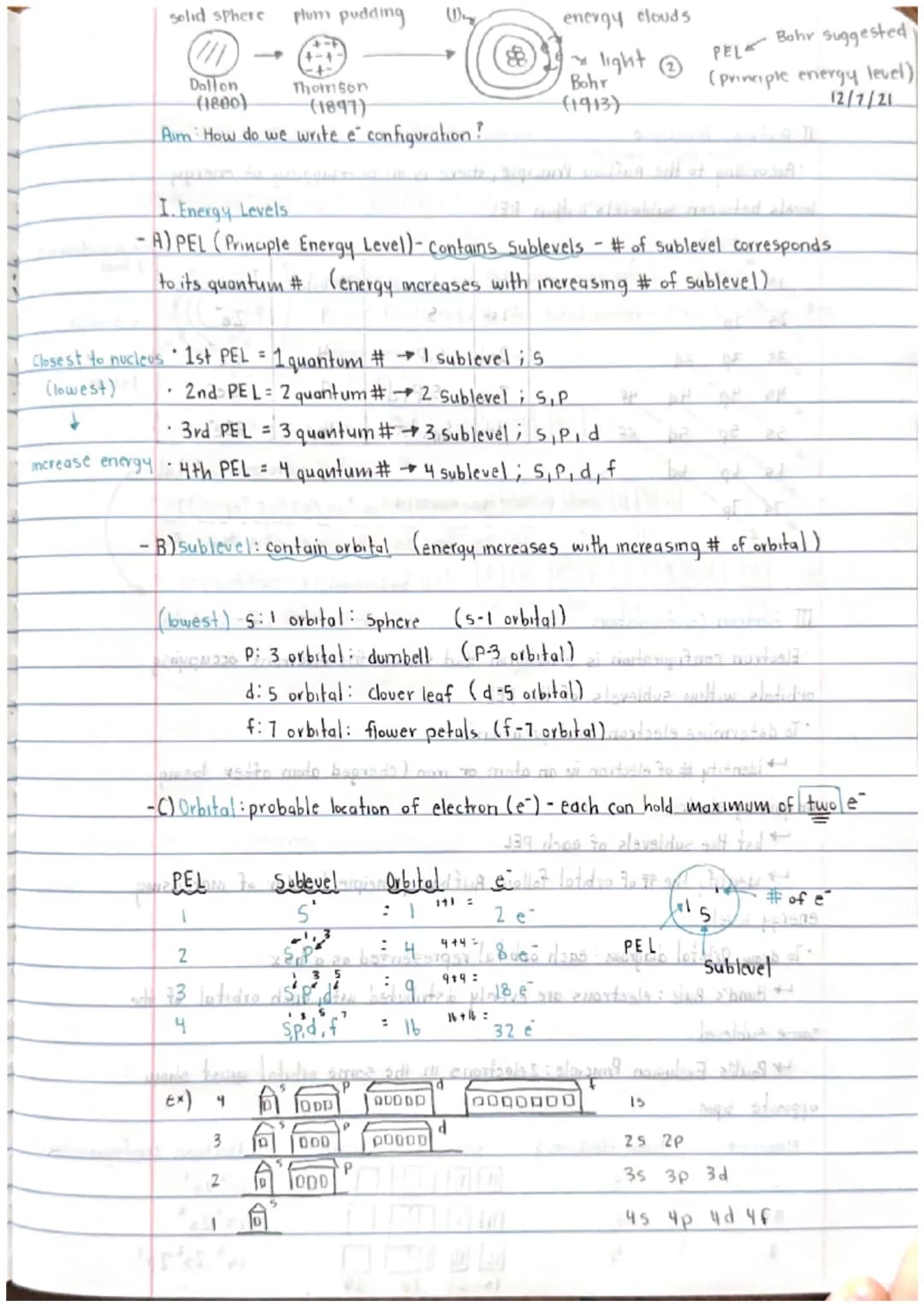

Principle Energy Levels and Electron Configuration
This page delves deeper into the structure of electron energy levels in the quantum mechanical model, introducing the concept of electron configuration.
Principle Energy Levels (PELs)
Principle Energy Levels are the main divisions of electron energy in an atom:
- Each PEL contains sublevels
- The number of sublevels corresponds to the PEL's quantum number
- Energy increases with higher quantum numbers
Sublevels and Orbitals
Sublevels contain specific types of orbitals:
- s sublevel: 1 spherical orbital
- p sublevel: 3 dumbbell-shaped orbitals
- d sublevel: 5 cloverleaf-shaped orbitals
- f sublevel: 7 complex-shaped orbitals
Example: The 2nd PEL has quantum number 2, so it contains 2 sublevels: 2s and 2p.
Electron Configuration
Definition: Electron configuration is a notation that shows how electrons are distributed in an atom's orbitals.

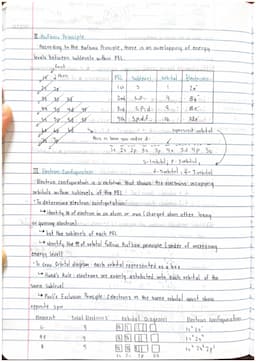

The Aufbau Principle guides the filling of orbitals:
- Electrons fill lower energy orbitals first
- There is some overlap in energy between sublevels of different PELs
Highlight: The order of filling follows a specific pattern: 1s, 2s, 2p, 3s, 3p, 4s, 3d, 4p, 5s, etc.
This page provides a foundation for understanding how to write and interpret electron configurations.
Writing Electron Configurations and Orbital Diagrams
This page focuses on the practical application of electron configuration principles, teaching how to write configurations and draw orbital diagrams.
Steps for Writing Electron Configurations
- Determine the total number of electrons (for ions, adjust for charge)
- List sublevels following the Aufbau Principle order
- Fill orbitals with electrons, following Hund's Rule and Pauli Exclusion Principle
Example: For Lithium (Li), with 3 electrons: 1sยฒ 2sยน
Orbital Diagrams
Orbital diagrams visually represent electron distribution:
- Each orbital is represented by a box
- Electrons are shown as arrows (โโ)
Highlight: Hund's Rule states that electrons occupy orbitals of equal energy individually before pairing up.
Definition: The Pauli Exclusion Principle states that no two electrons in an atom can have the same set of quantum numbers. In practice, this means no more than two electrons can occupy the same orbital, and they must have opposite spins.
Examples are provided for elements like Lithium (Li), Beryllium (Be), and Boron (B), showing both electron configurations and orbital diagrams.
This page provides practical guidance for applying quantum mechanical principles to describe electron arrangements in atoms.

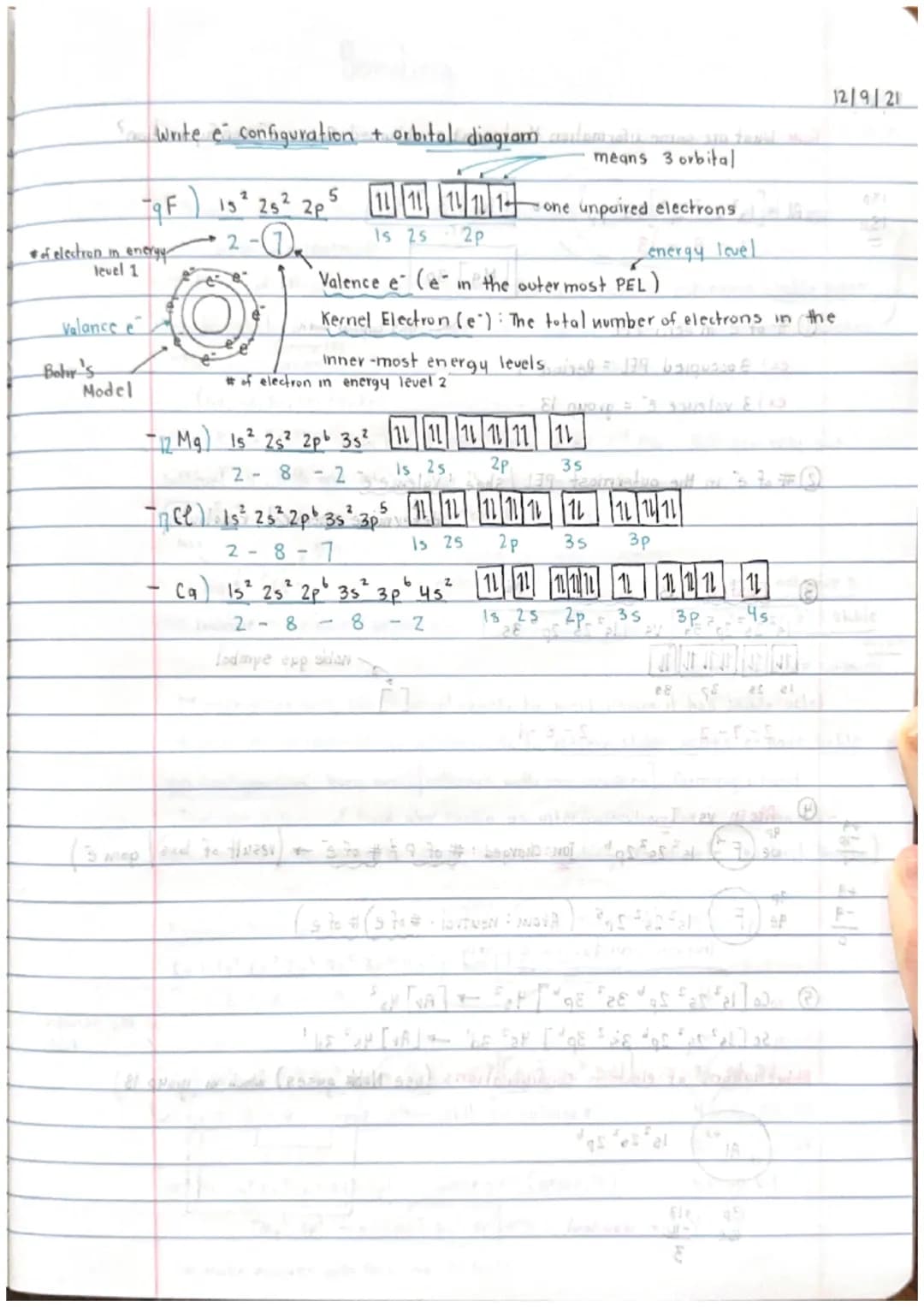

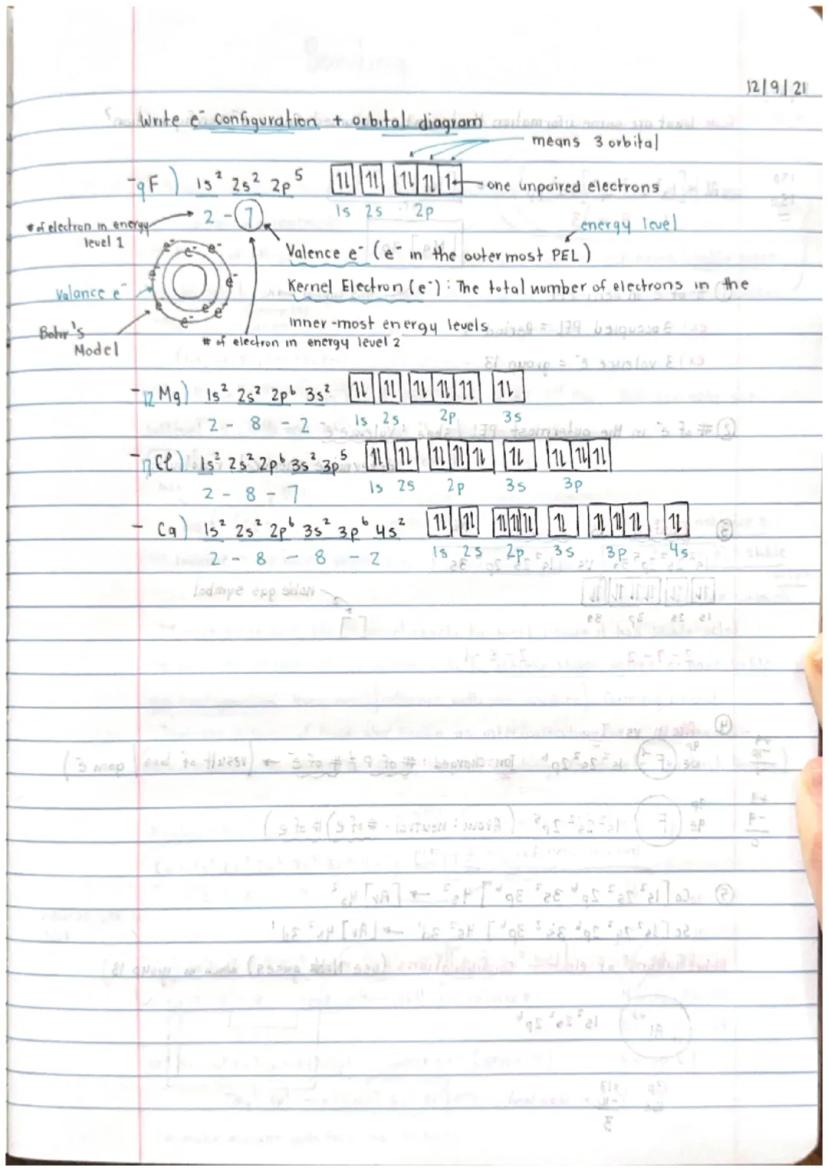

Valence Electrons and Kernel Electrons
This final page explores the concepts of valence electrons and kernel electrons, which are important for understanding chemical behavior and atomic structure.
Valence Electrons
Definition: Valence electrons are the electrons in the outermost principle energy level of an atom.
Valence electrons are crucial for determining an atom's chemical properties and bonding behavior. They can be identified from the electron configuration or Bohr model diagram.
Kernel Electrons
Definition: Kernel electrons are all the electrons in the inner energy levels of an atom, excluding the valence electrons.
Kernel electrons typically do not participate in chemical reactions.
Example: For Magnesium (Mg): 1sยฒ 2sยฒ 2pโถ 3sยฒ
- Valence electrons: 2 (in 3s)
- Kernel electrons: 10 (in 1s, 2s, and 2p)
The page includes examples of electron configurations and orbital diagrams for elements like Magnesium (Mg) and Calcium (Ca), highlighting their valence and kernel electrons.
Highlight: Understanding valence electrons is crucial for predicting an element's chemical behavior and its position in the periodic table.
This page ties together the concepts of electron configuration with practical applications in chemistry and periodic trends.

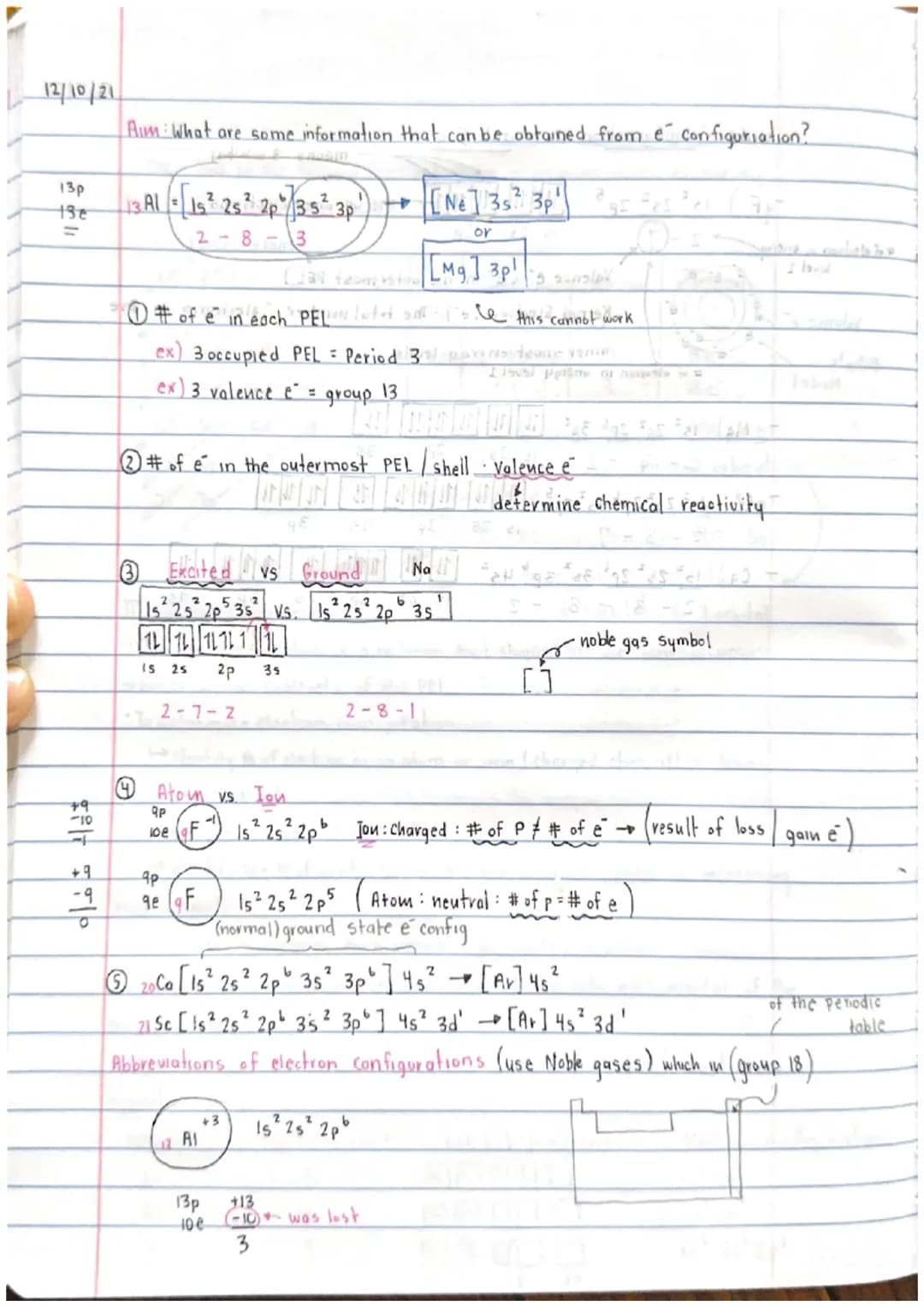

Electron Configuration Applications
Understanding electron configuration helps predict chemical behavior and element properties. This section demonstrates practical applications of electron configuration chart knowledge.
Example: For Magnesium (Mg): 1sยฒ 2sยฒ 2pโถ 3sยฒ Shows 2 valence electrons in the outer shell
Vocabulary: Valence electrons are those in the outermost principal energy level.
Definition: Kernel electrons are all electrons except valence electrons.

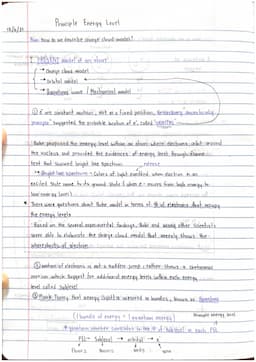

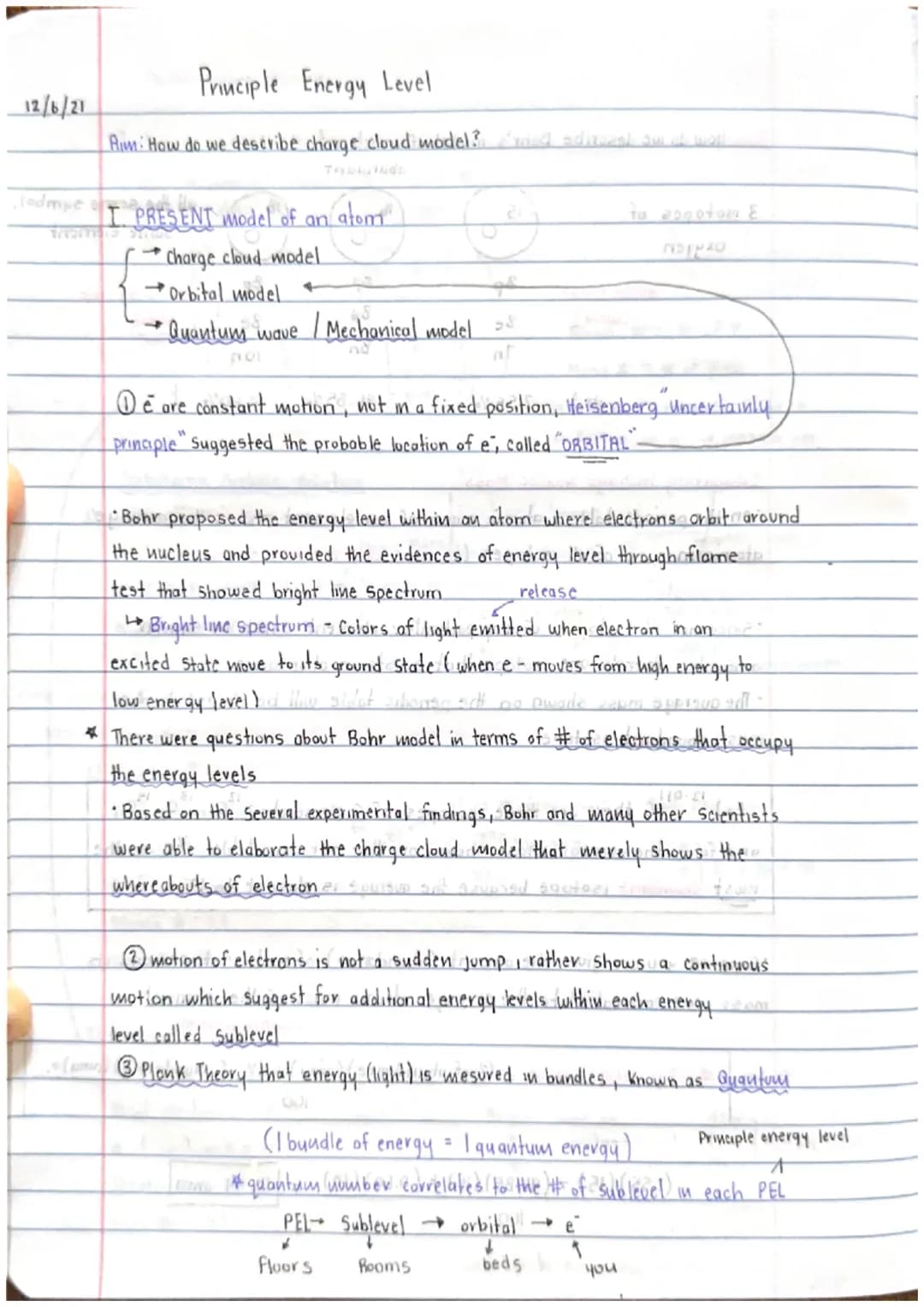

Introduction to the Quantum Mechanical Model of the Atom
The quantum mechanical model of atom represents a significant advancement in our understanding of atomic structure. This page introduces key concepts that differentiate this model from earlier atomic theories.
Definition: The quantum mechanical model, also called the charge cloud or orbital model, describes electrons as existing in probability clouds around the nucleus rather than in fixed orbits.
The quantum model builds upon Bohr's concept of energy levels but incorporates important new ideas:
- Electron positions are described probabilistically (Heisenberg Uncertainty Principle)
- Electrons occupy "orbitals" - regions of probable location
- Energy levels contain sublevels with multiple orbitals
- Electron behavior follows quantum principles
Highlight: The quantum model explains the bright line spectrum observed when excited electrons return to lower energy states, a phenomenon that supported Bohr's energy level concept.
Vocabulary: Quantum - a discrete packet or bundle of energy, as proposed in Planck's theory
This model provides a more accurate and comprehensive description of atomic structure and electron behavior than previous models like the Bohr model or Rutherford atomic model.
