Understanding Paper Chromatography: Principles and Methods

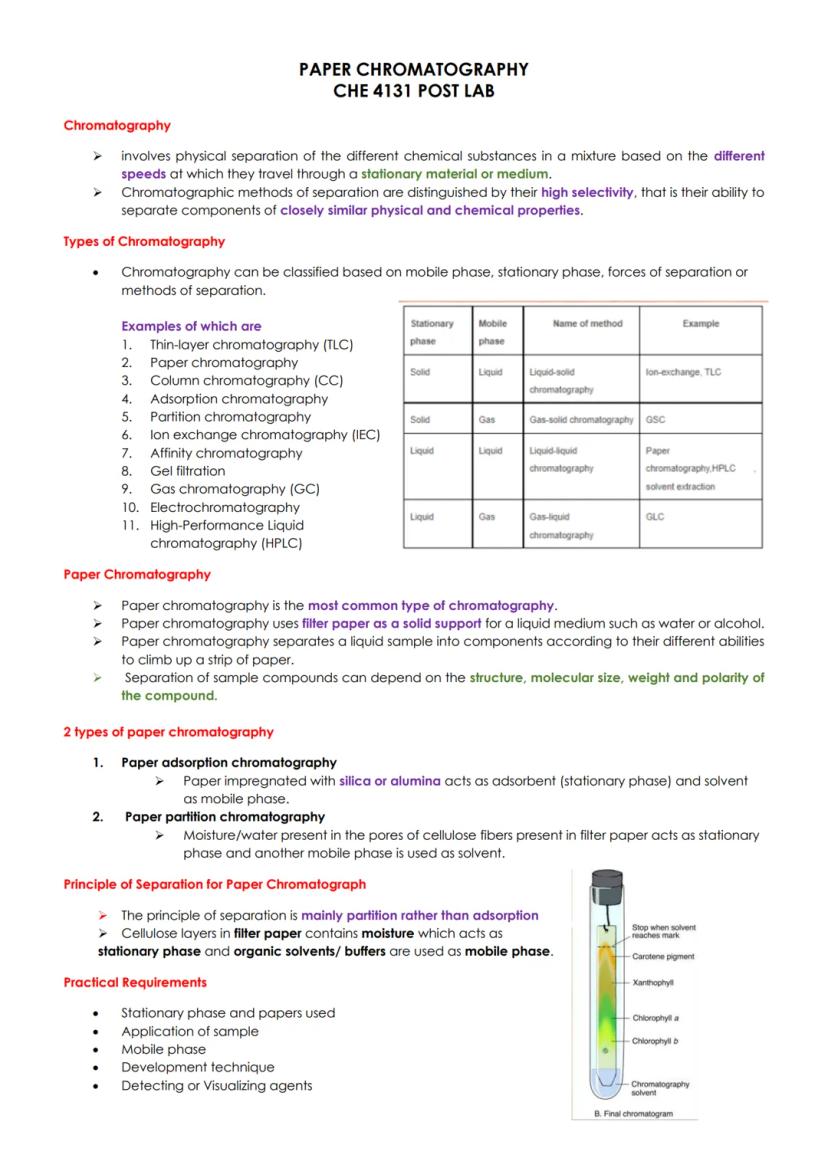

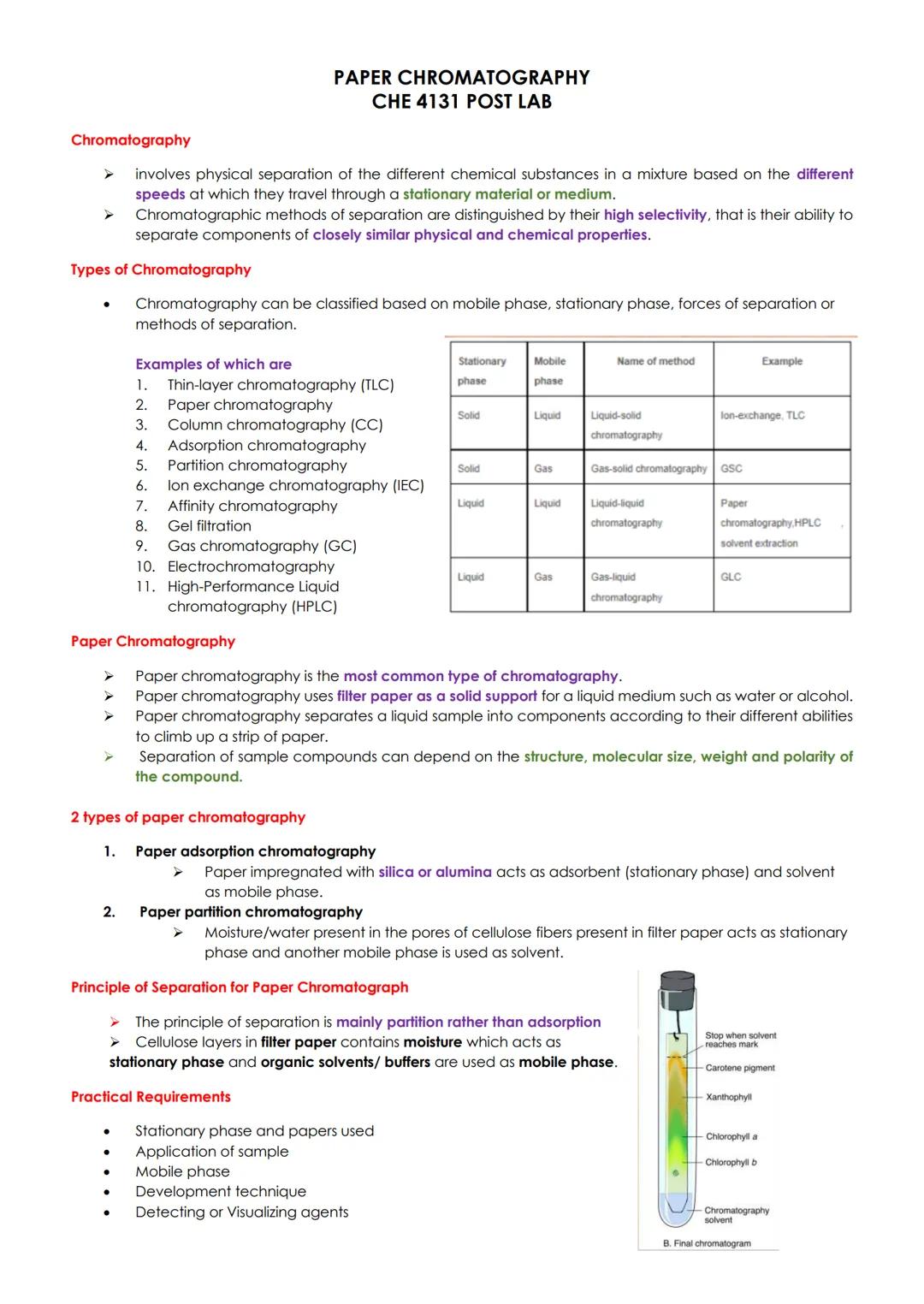

Fundamentals of Paper Chromatography

Ever wonder how scientists can separate the components in a complex mixture like plant pigments? Paper chromatography is the answer! This technique uses filter paper as a solid support and separates components based on their different abilities to travel up the paper.

Paper chromatography works through partition rather than adsorption. The moisture trapped in the cellulose fibers of filter paper acts as the stationary phase, while an organic solvent serves as the mobile phase. The separation depends on factors like molecular structure, size, weight, and polarity of each compound.

There are two main types: paper adsorption chromatography (where paper impregnated with silica/alumina acts as the adsorbent) and paper partition chromatography (where moisture in paper fibers is the stationary phase). This technique is just one of many chromatographic methods, which include thin-layer chromatography (TLC), column chromatography, and high-performance liquid chromatography (HPLC).

Quick Tip: Paper chromatography is one of the most accessible chromatography techniques - that's why it's commonly used in school labs! You can separate complex mixtures with minimal equipment.

![Diagram showing different pigment bands separated by chromatography]

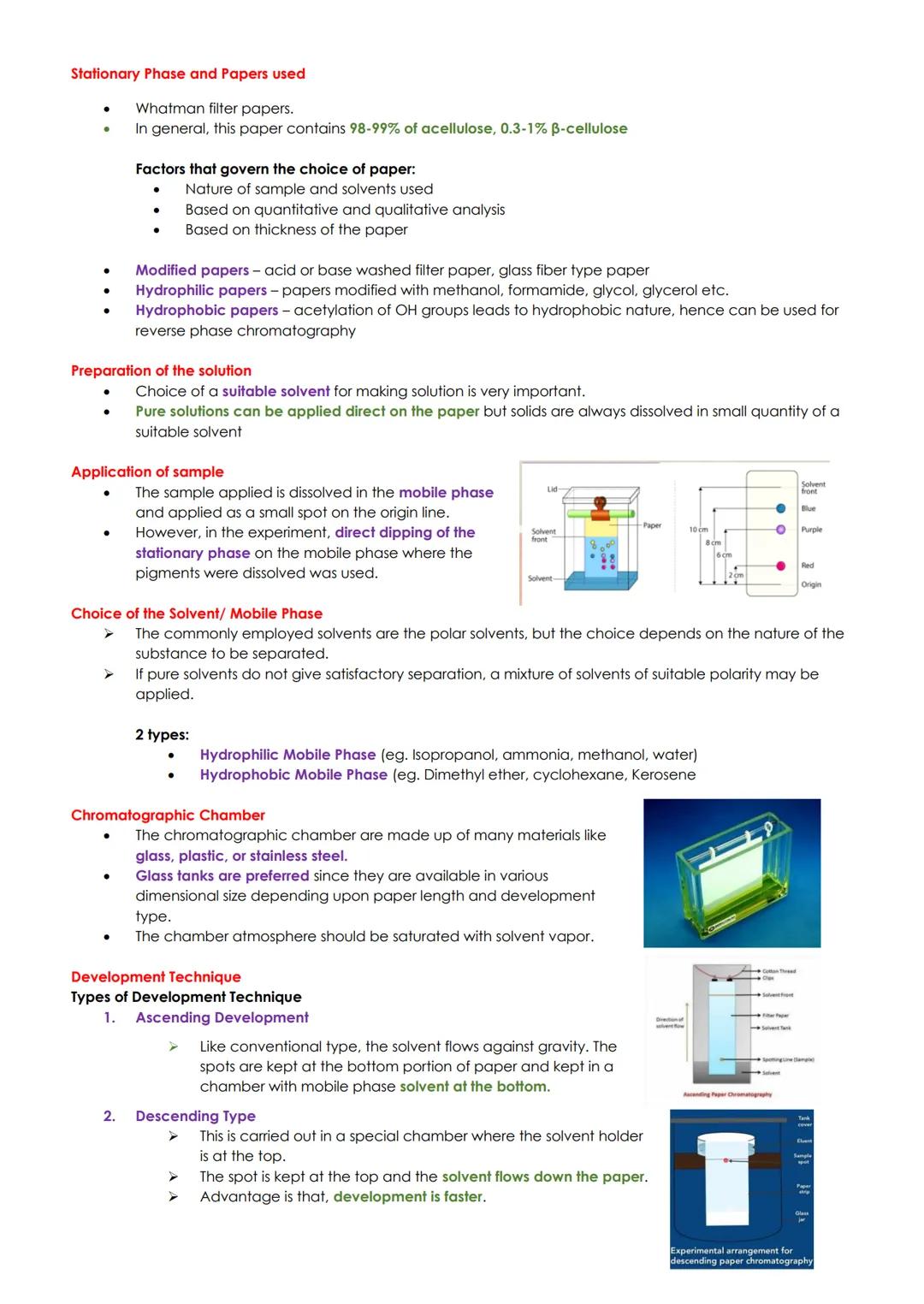

Materials and Sample Application

The paper used in chromatography matters more than you might think! Most experiments use Whatman filter paper, which contains 98-99% cellulose. The choice of paper depends on your sample, solvents, and whether you're doing qualitative or quantitative analysis.

Preparing your sample properly is crucial for good results. Solid samples must be dissolved in a suitable solvent before application. You'll typically apply your sample as a small spot on the "origin line" (the starting point on the paper). In some experiments, you might simply dip the paper directly into a solution containing your sample.

The mobile phase (solvent) choice depends entirely on what you're trying to separate. Scientists often use polar solvents like isopropanol, methanol, or water. If a single solvent doesn't work well, they might create a mixture to achieve better separation. The development happens in a chromatography chamber - usually a glass container that keeps the atmosphere saturated with solvent vapor.

Real-World Connection: The principles of paper chromatography are used in forensic science to analyze ink from crime scene documents. Different inks separate into distinct patterns, helping identify forgeries!

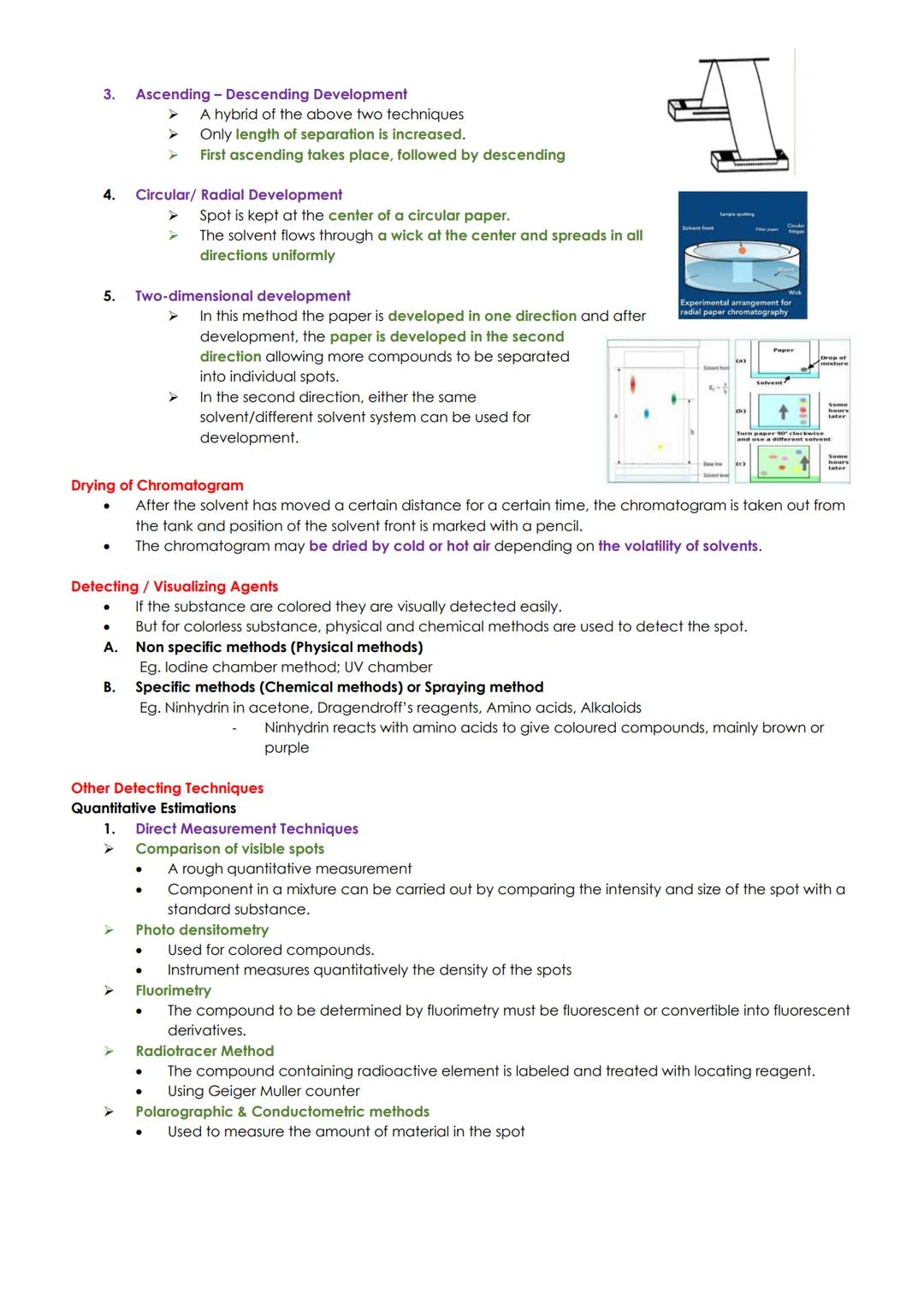

Development Techniques and Visualization

The way you allow your chromatogram to develop can significantly impact your results. In ascending development, the solvent flows upward against gravity (most common in school labs). With descending development, the solvent flows downward, which is faster. There's even two-dimensional development where the paper is developed in one direction, then rotated and developed again - perfect for separating complex mixtures!

After development, the chromatogram needs to be dried with cold or hot air. But how do you see the separated components? If they're colored (like plant pigments), you can see them directly. For colorless substances, special visualization methods are needed. Physical methods include using iodine vapor or UV light, while chemical methods involve spraying reagents that react with specific compounds to produce color.

Scientists can perform both qualitative and quantitative analysis using paper chromatography. For quantitative work, they might compare spot intensity, use photo densitometry (measuring color density), or employ fluorimetry for fluorescent compounds. For particularly sensitive work, radioactive tracers can be used to detect extremely small amounts of material.

Pro Tip: When analyzing amino acids or proteins, ninhydrin spray is commonly used - it reacts with amino acids to produce distinctive purple or brown spots, making invisible compounds visible!

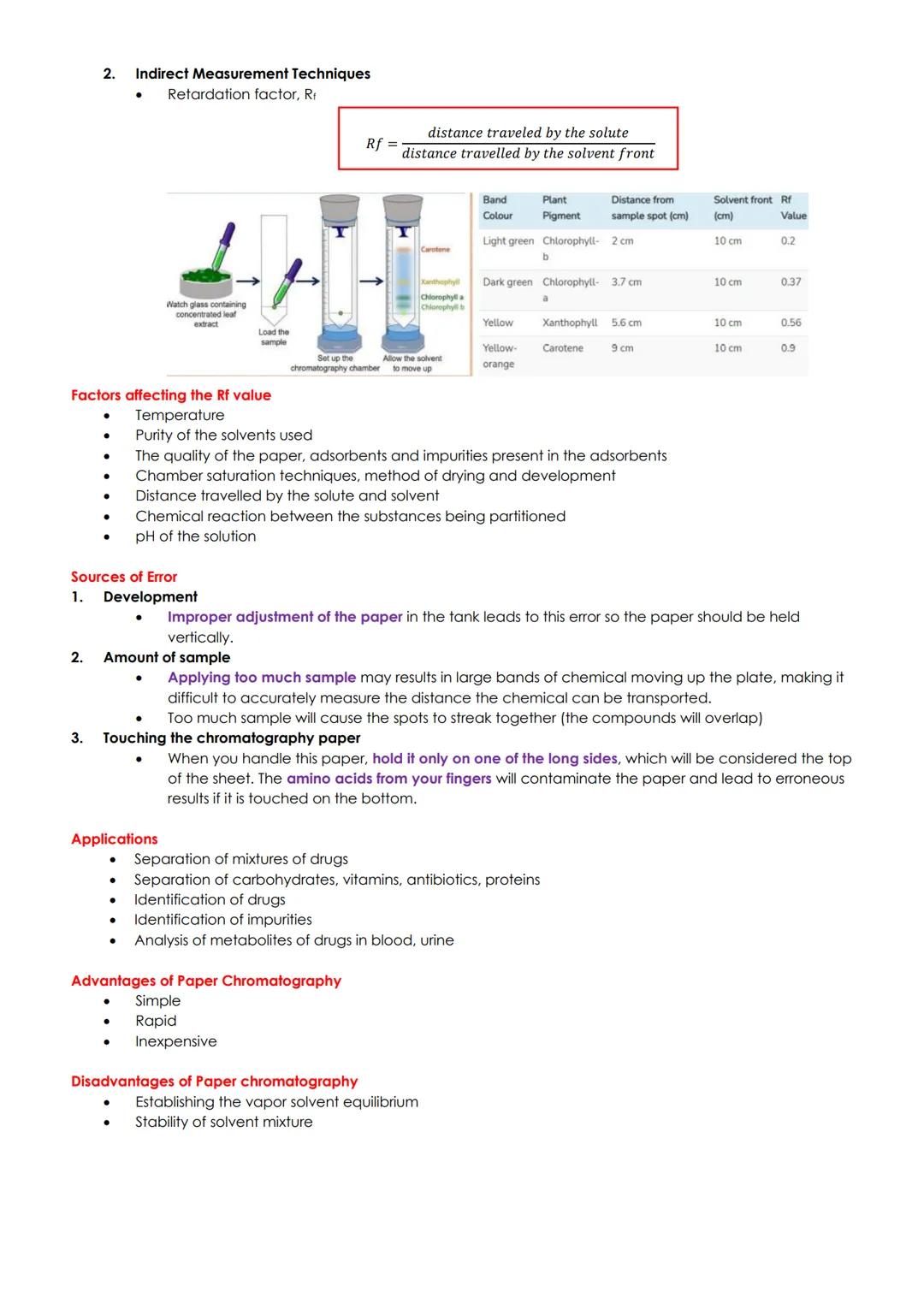

RF Values and Applications

The most important measurement in paper chromatography is the Retardation factor (Rf), calculated as the distance traveled by the substance divided by the distance traveled by the solvent front. This value is unique for each compound under specific conditions and helps identify unknown substances.

Rf values aren't absolute constants - they're affected by temperature, solvent purity, paper quality, chamber saturation, and even pH. That's why it's important to run known standards alongside your unknown samples. For example, when separating plant pigments, chlorophyll-b might have an Rf value of 0.2, while carotene could be around 0.9.

Common errors in paper chromatography include improper paper positioning, applying too much sample (causing streaking), and contaminating the paper with fingerprints. Always handle chromatography paper by the edges to avoid introducing oils and amino acids from your fingers.

Paper chromatography has numerous practical applications in medicine, forensics, and research. It's used to separate drugs, carbohydrates, vitamins, proteins, and to identify impurities or metabolites in biological samples. While it's advantageous for being simple, rapid, and inexpensive, its limitations include challenges with solvent equilibrium and maintaining stable solvent mixtures.

Looking Forward: While paper chromatography may seem basic, it laid the groundwork for more advanced techniques like HPLC that scientists use today. The fundamental principles you're learning now apply across all chromatographic methods!
