Understanding Atomic Structure and Isotopes

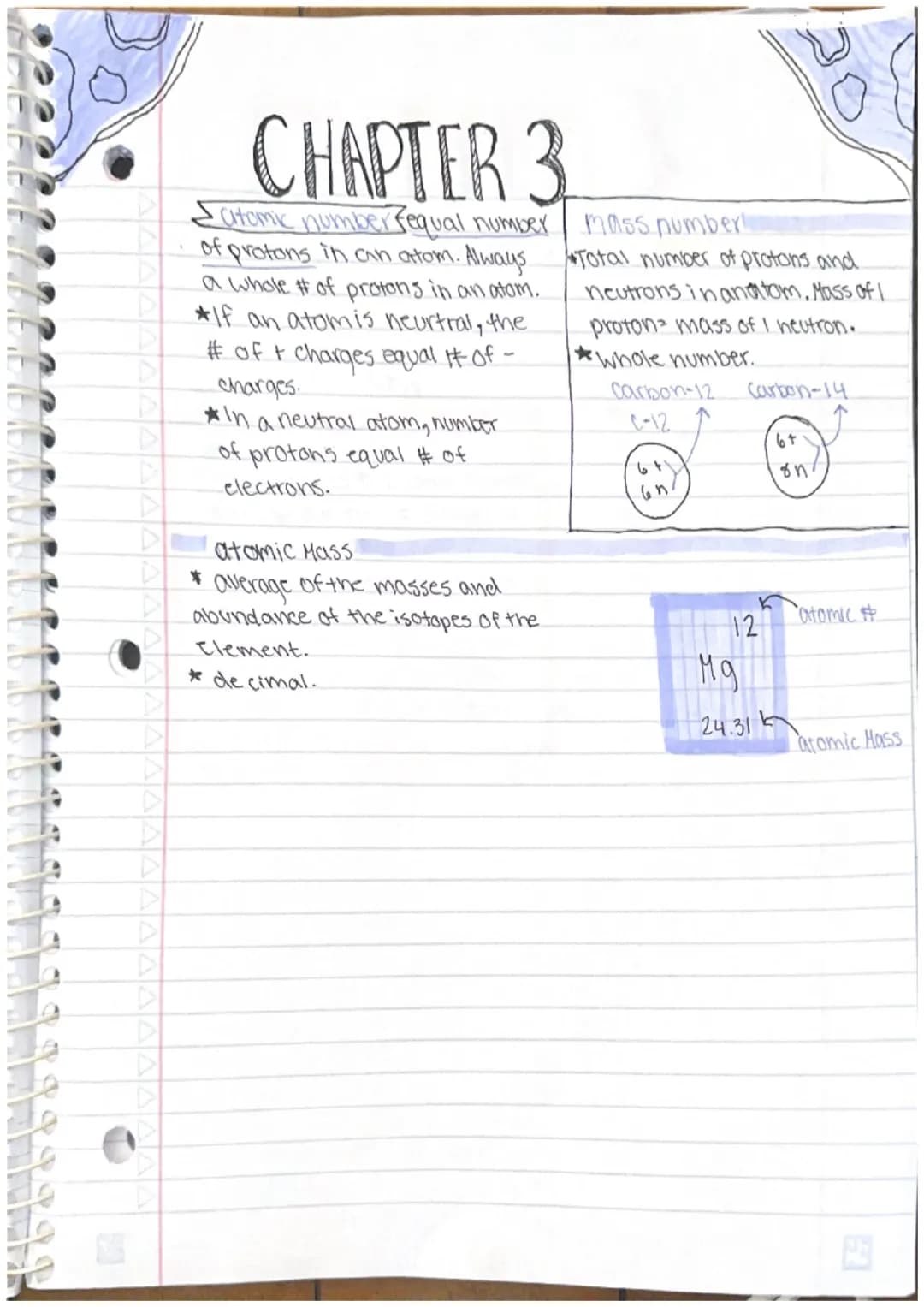

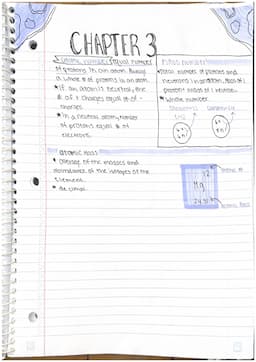

The atomic number of elements from 1 to 30 forms the foundation of atomic structure. In a neutral atom, the number of protons equals the number of electrons, creating a balanced electrical charge. This fundamental principle helps us understand how all 118 elements interact and behave in nature.

Isotopes represent variations of the same element with different numbers of neutrons. While the number of protons and electrons remains constant, the varying neutron count creates distinct mass numbers. This concept is crucial for understanding isotopes and atomic mass for 11th grade studies.

The atomic mass of an element represents the weighted average of its naturally occurring isotopes. For example, Boron has two primary isotopes: Boron-10 (19.8% abundance) and Boron-11 (80.2% abundance). This distribution determines boron's atomic mass of approximately 10.81 amu.

Definition: Atomic mass is the weighted average of all naturally occurring isotopes of an element, considering both their individual masses and their relative abundances in nature.

Evolution of Atomic Theory and Models

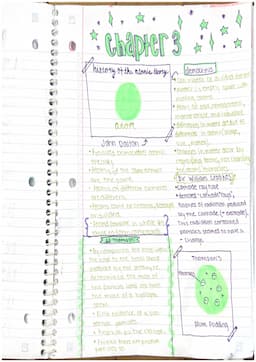

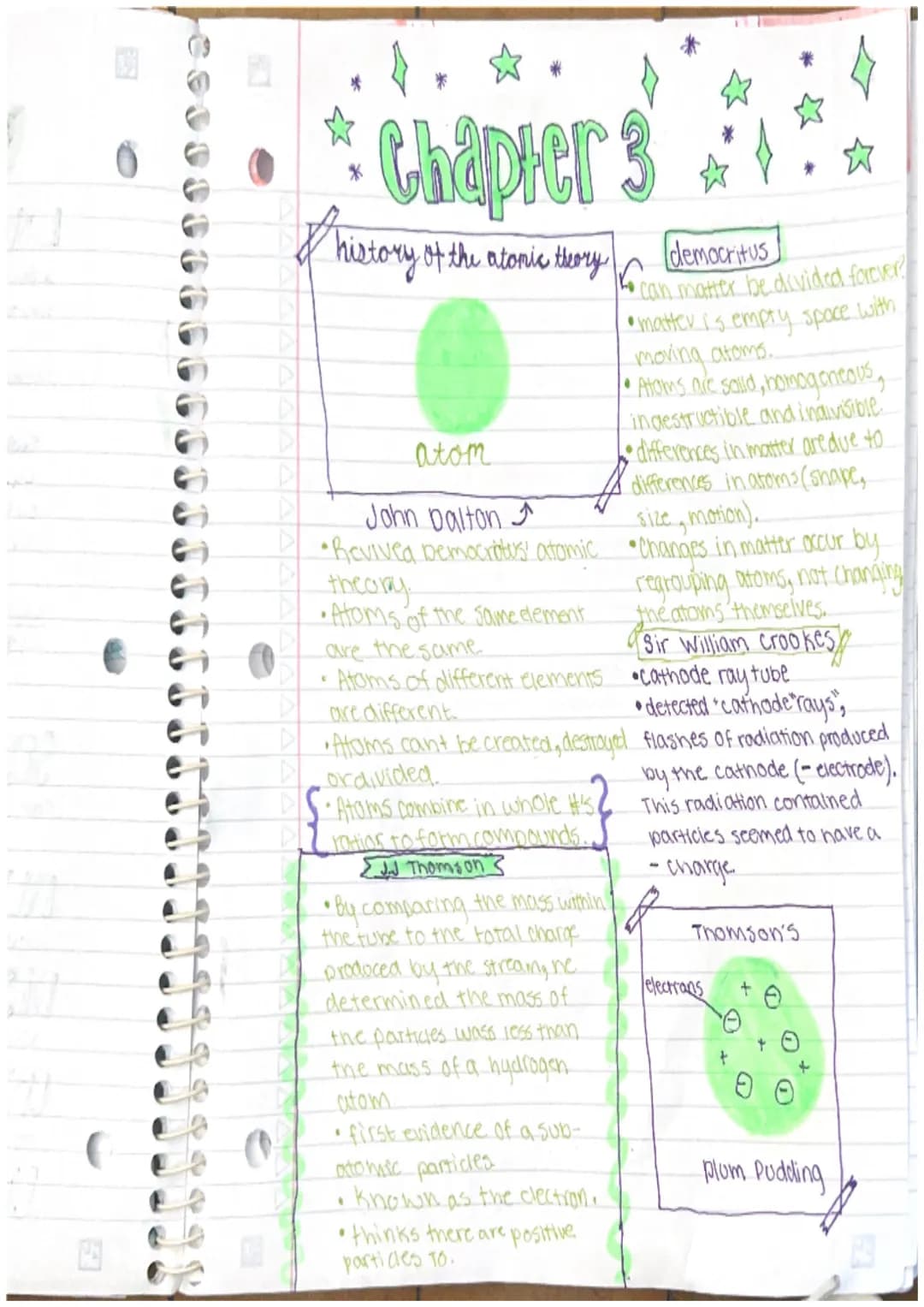

The models of the atom timeline showcases significant scientific developments. John Dalton's atomic theory established the foundation by proposing that all matter consists of indivisible atoms. The Thomson atomic theory later introduced the concept of electrons within the atomic structure.

Rutherford's atomic theory emerged from his famous gold foil experiment, which revealed the nuclear structure of atoms. Most alpha particles passed straight through the gold foil, while some deflected, proving atoms consist mostly of empty space with a dense, positively-charged nucleus.

The development of different models of atom with pictures helps visualize these concepts. From Dalton's solid sphere to Thomson's "plum pudding" model, and Rutherford's nuclear model, each iteration brought us closer to our modern understanding.

Highlight: Rutherford's gold foil experiment demonstrated that atoms are mostly empty space with a small, dense, positively-charged nucleus.

Nuclear Structure and Particle Discovery

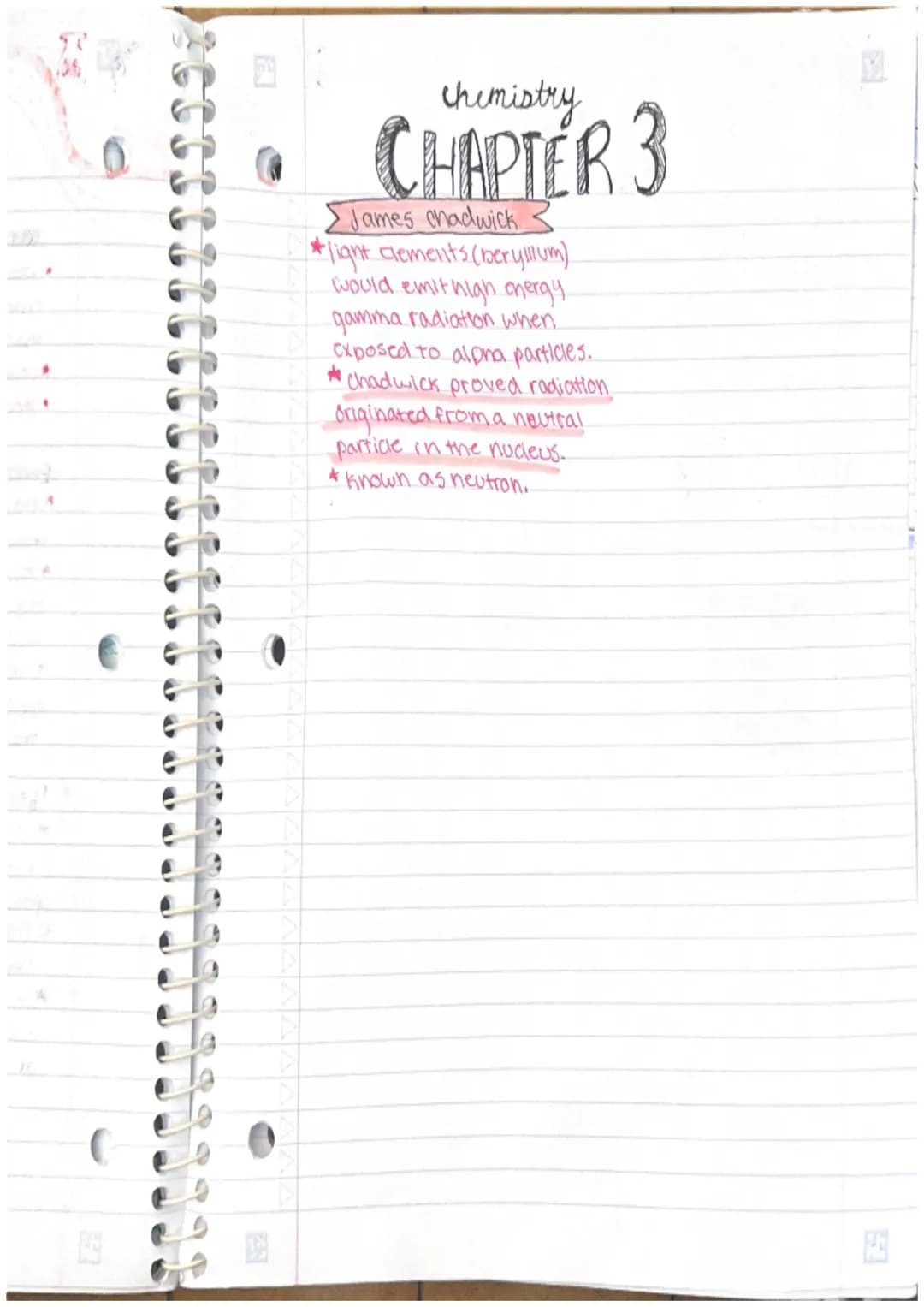

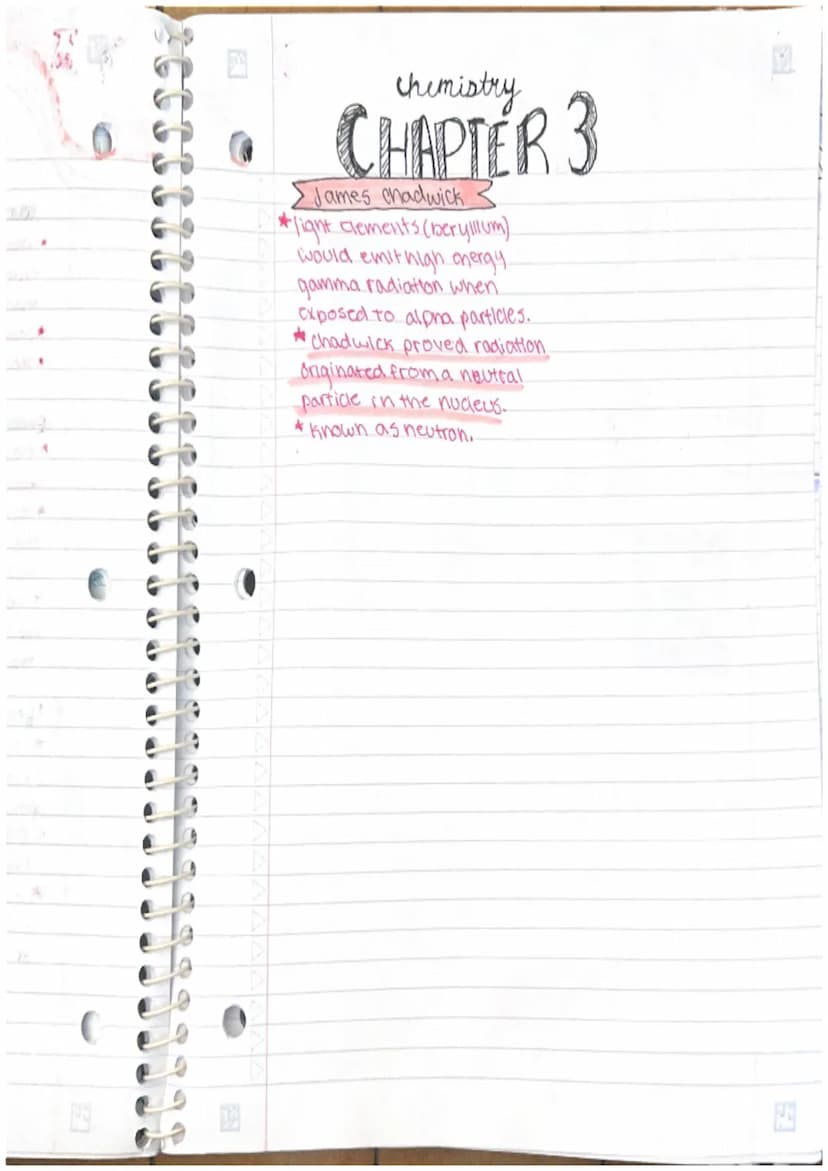

James Chadwick's groundbreaking discovery of the neutron expanded our understanding of atomic structure. By bombarding beryllium with alpha particles, he observed high-energy radiation that led to identifying the neutral particle within the nucleus.

The atomic models pdf resources often detail how this discovery completed our basic understanding of atomic structure, with protons and neutrons in the nucleus and electrons orbiting outside. This model explains the difference between isotopes and atomic mass for 11th grade students.

Modern atomic theory incorporates quantum mechanics, showing electrons exist in probability clouds rather than defined orbits. This understanding helps explain chemical bonding and reactivity patterns among the elements.

Example: The Bohr model of magnesium (atomic number 12) shows 12 protons in its nucleus, balanced by 12 electrons arranged in three electron shells.

Experimental Foundations of Atomic Theory

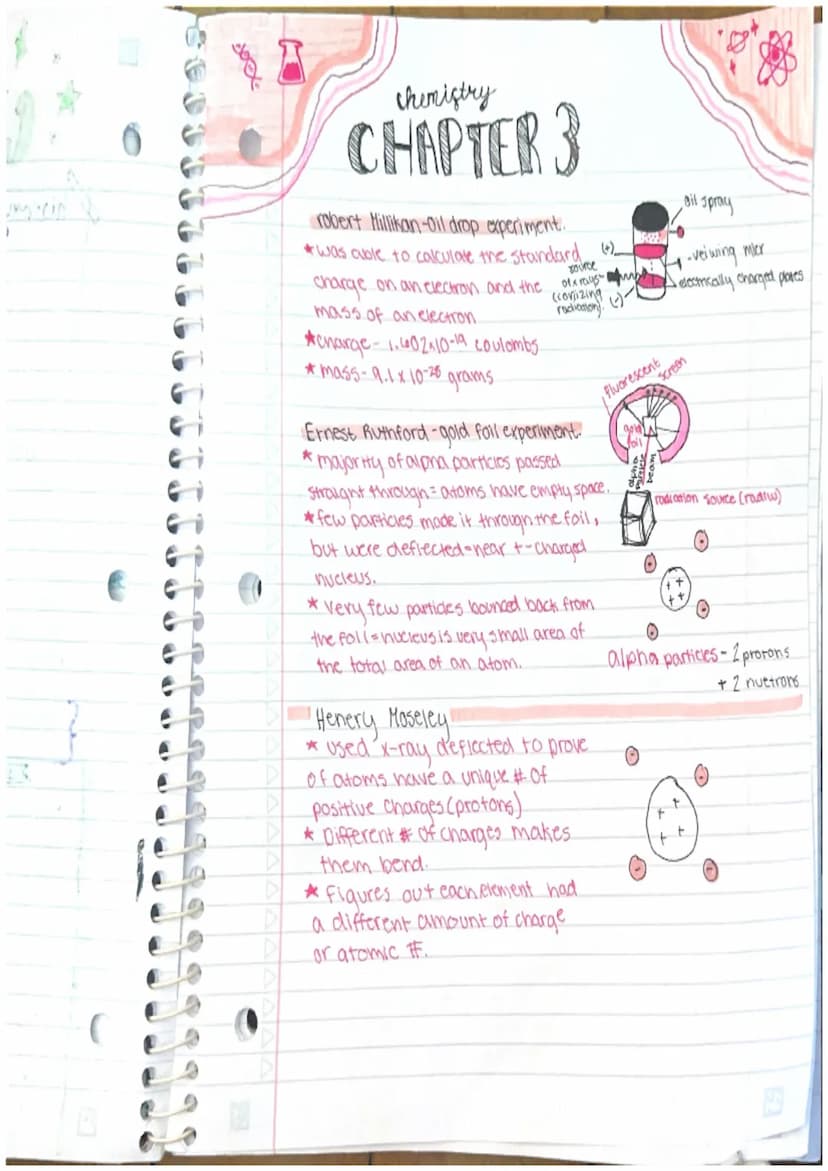

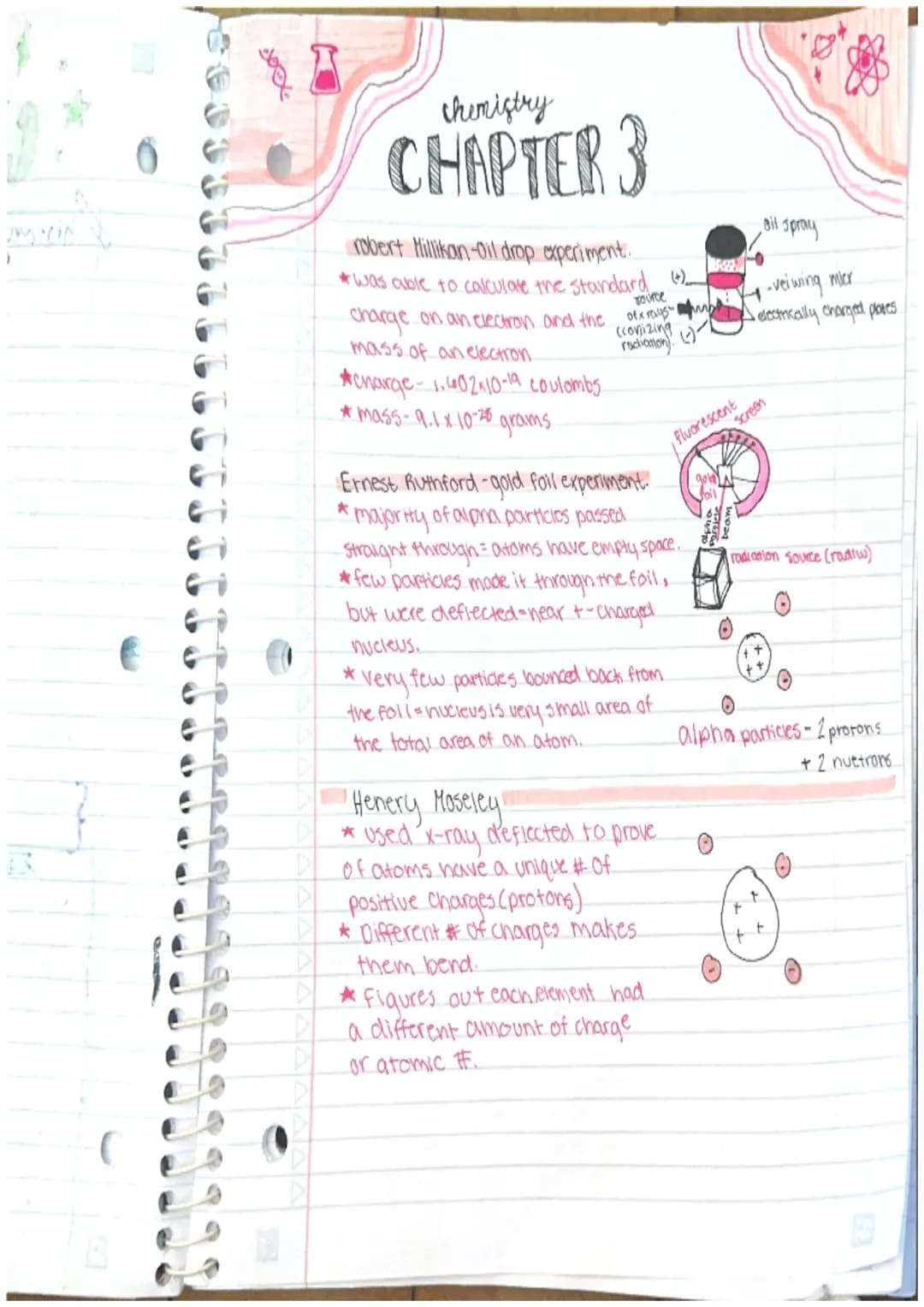

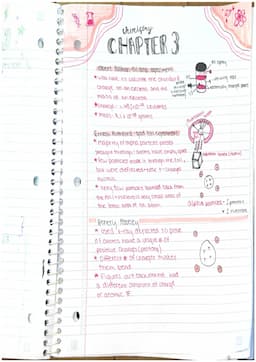

Robert Millikan's oil drop experiment precisely measured the electron's charge $-1.602×10⁻¹⁹ coulombs$ and mass (9.1×10⁻²⁸ grams). These measurements proved electrons' existence as fundamental particles and established their properties.

Henry Moseley's x-ray diffraction work demonstrated that each element has a unique number of protons, leading to the modern concept of atomic numbers. This discovery organized the periodic table by atomic number rather than atomic mass, resolving several inconsistencies.

These experimental foundations support the atomic numbers and models for 10th grade worksheets by providing concrete evidence for atomic theory. The combination of theoretical models and experimental proof creates a comprehensive understanding of atomic structure.

Vocabulary: X-ray diffraction - The scattering of x-rays by atoms in a crystal, used to determine atomic structure and properties.

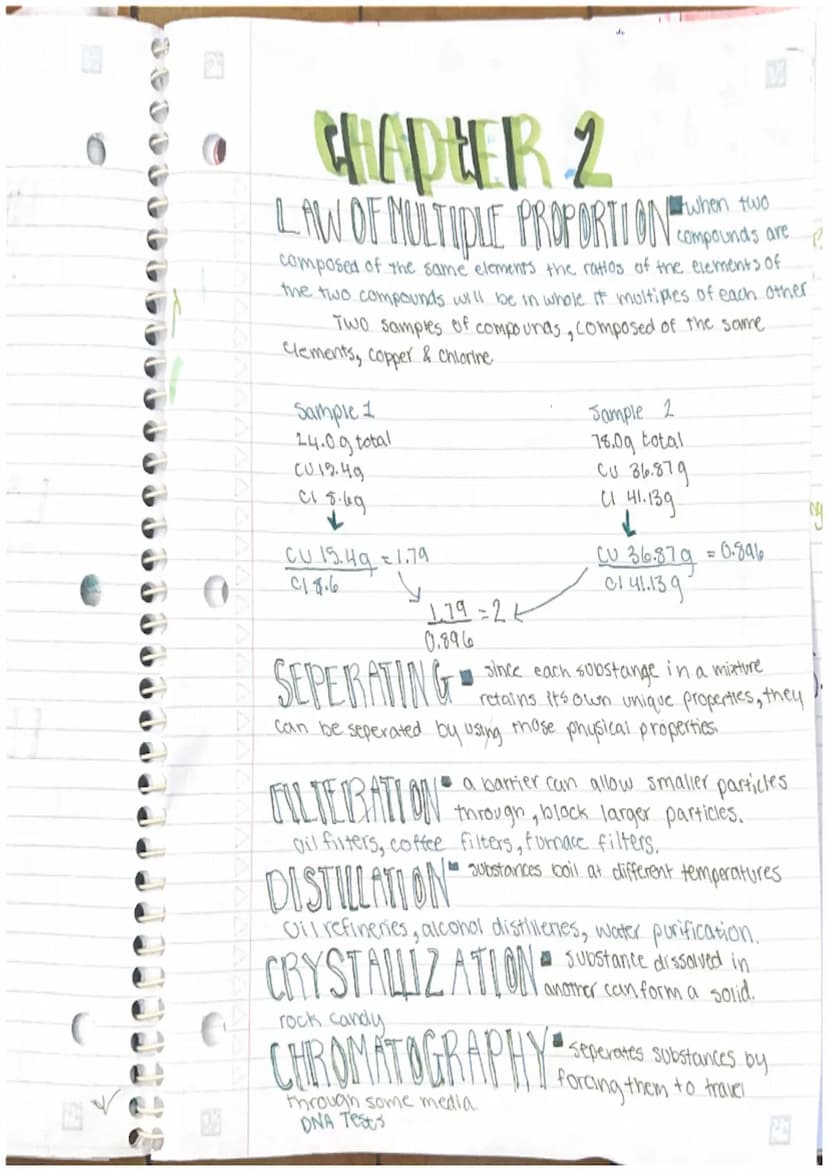

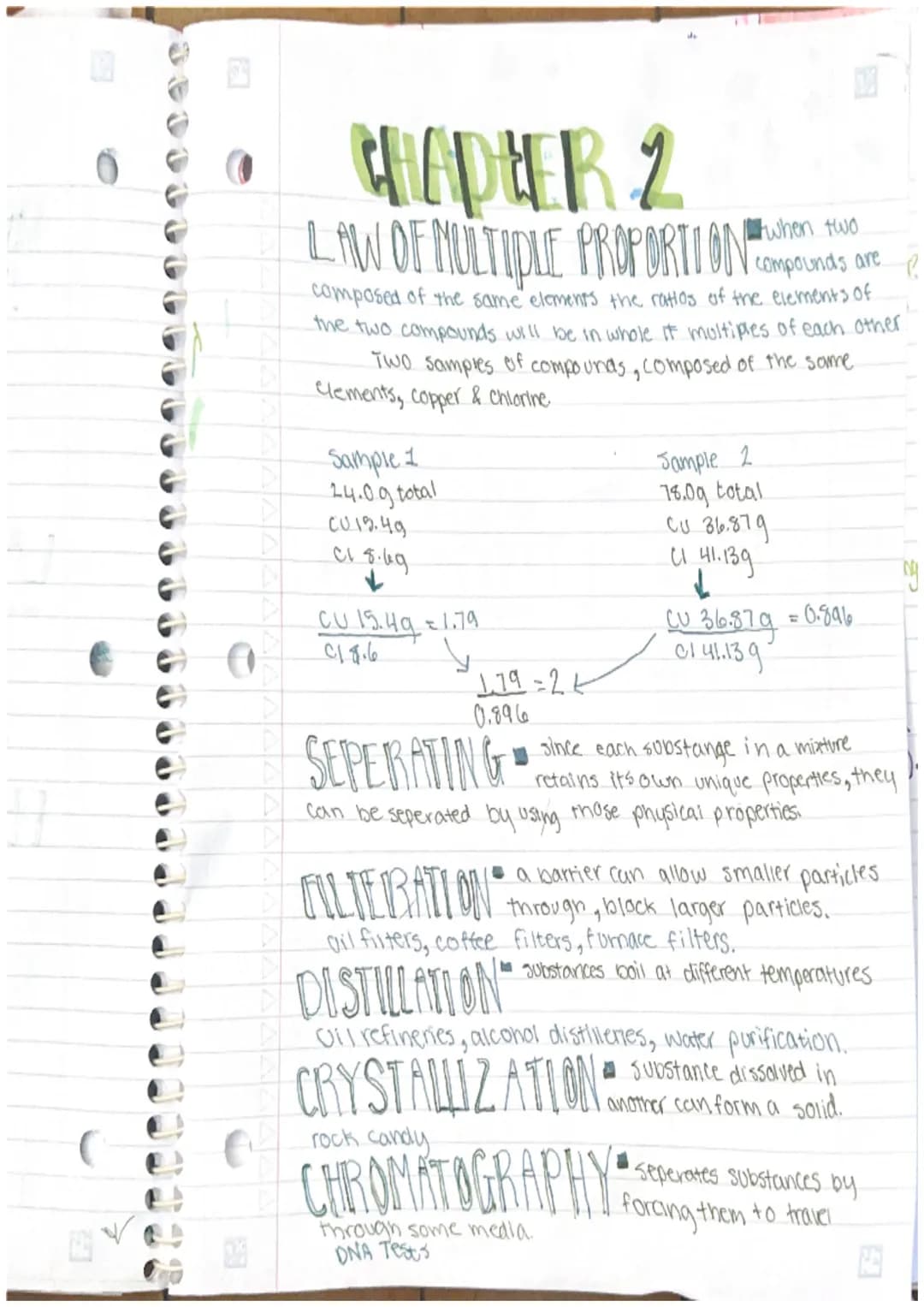

Page 6: Chemical Laws and Separation Techniques

This page explains the Law of Multiple Proportion and various separation methods.

Definition: Law of Multiple Proportion states that when two compounds are composed of the same elements, their mass ratios will be in whole number multiples.

Example: Separation techniques include:

• Filtration
• Chromatography
• Distillation
• Crystallization

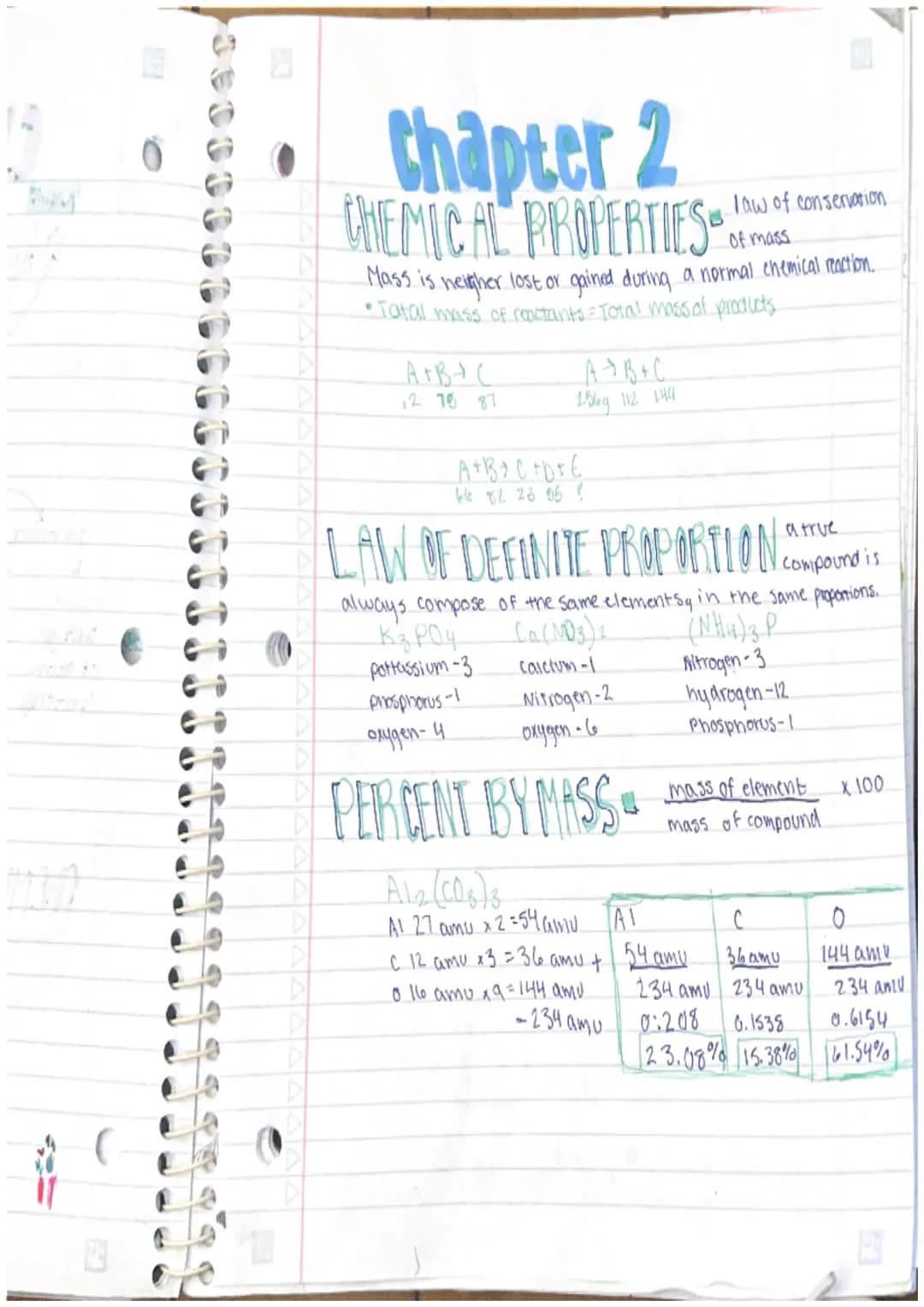

Page 7: Chemical Properties and Laws

This page covers fundamental chemical laws and calculations.

Definition: Law of Conservation of Mass states that mass is neither created nor destroyed during chemical reactions.

Example: Percent by mass calculation for Al₂(CO₃)₃:

• Aluminum: 23.08%
• Carbon: 15.38%
• Oxygen: 61.54%

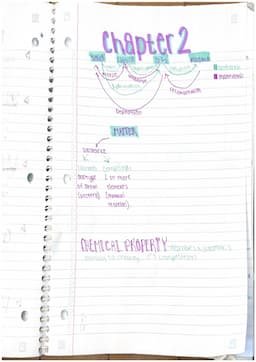

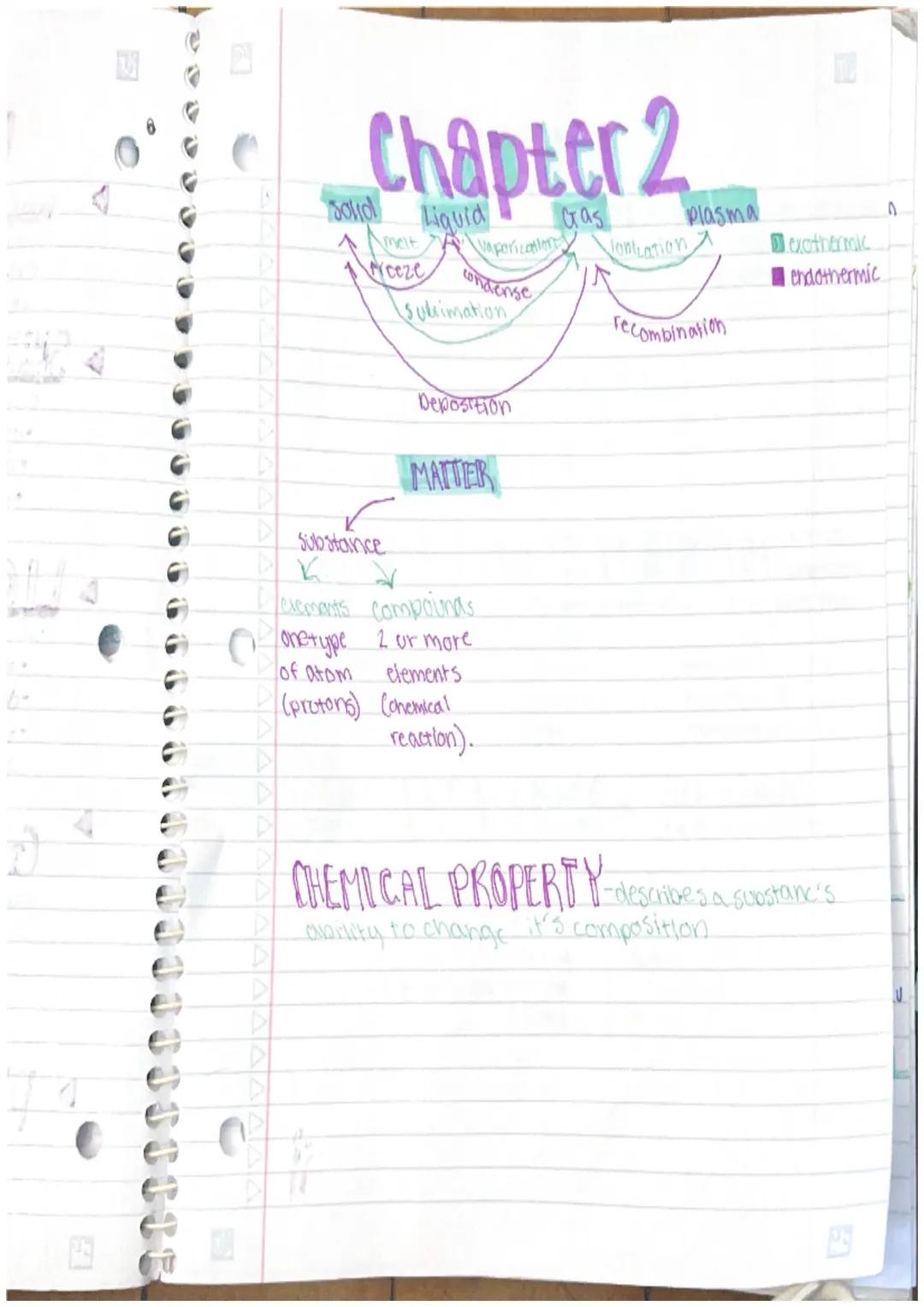

Page 8: States of Matter

This page illustrates the relationships between different states of matter.

Vocabulary: Phase changes:

• Melting: Solid to liquid
• Vaporization: Liquid to gas
• Condensation: Gas to liquid
• Freezing: Liquid to solid
• Sublimation: Solid to gas directly

Highlight: The diagram shows the interconnected nature of phase transitions between states of matter.

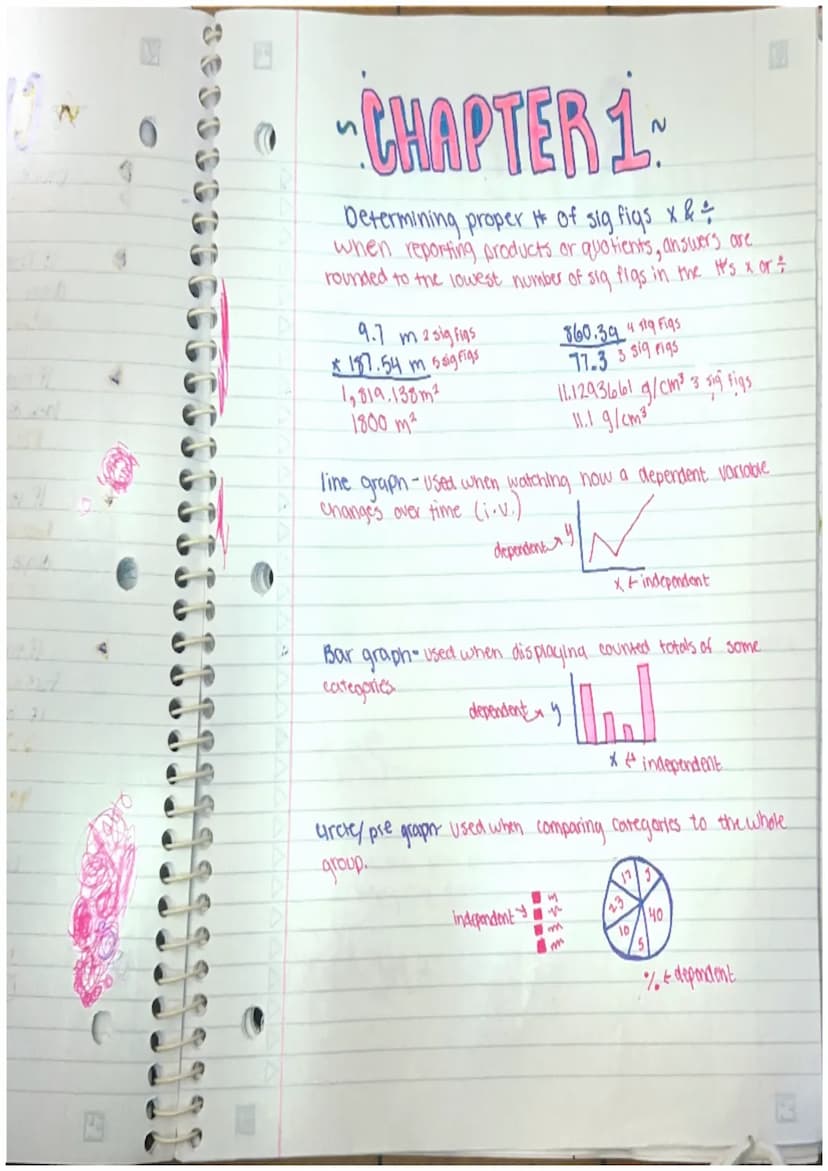

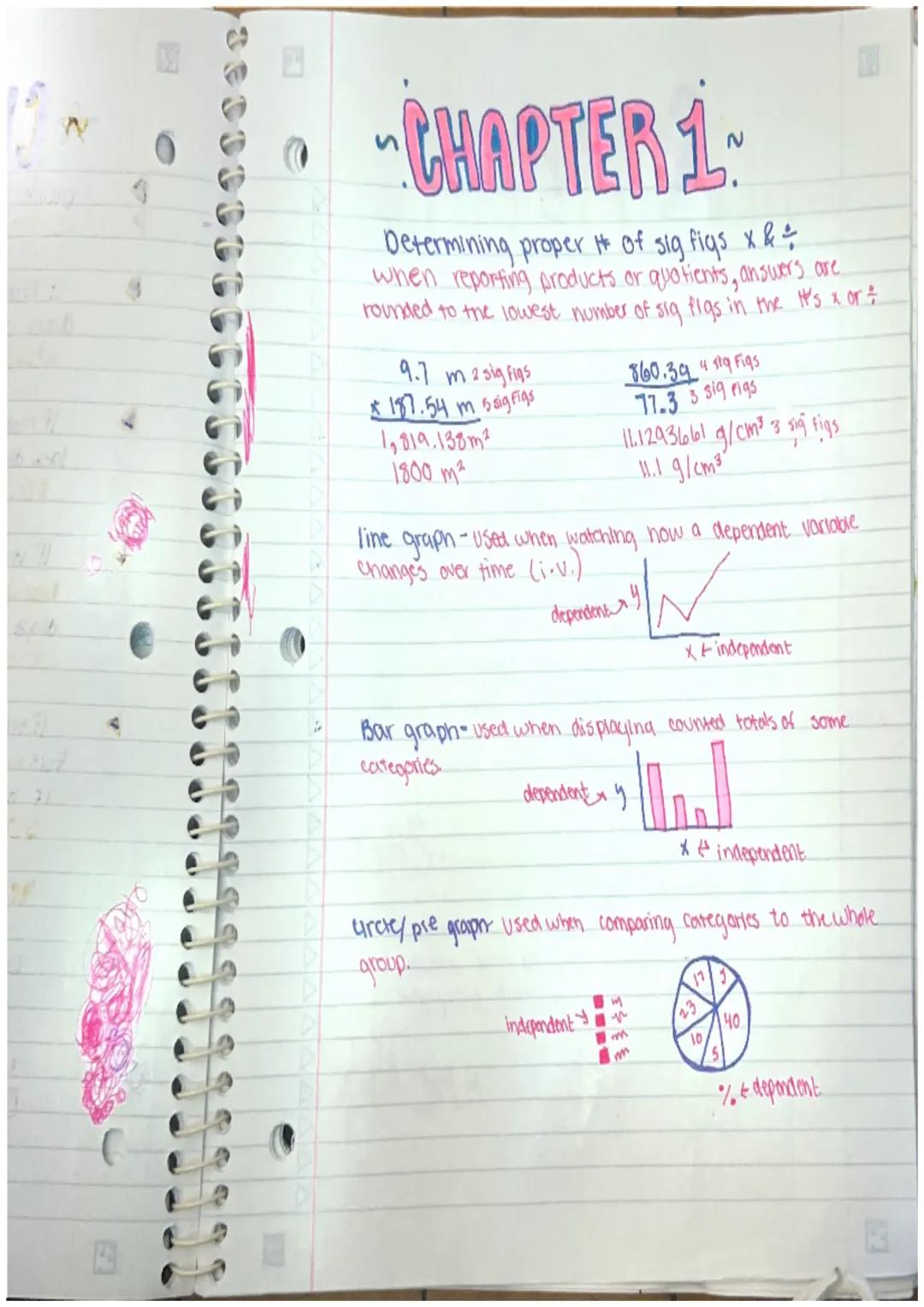

Understanding Significant Figures and Scientific Graphs in Chemistry

Scientific measurements require precise reporting of numbers using atomic numbers and models. When working with calculations, understanding significant figures (sig figs) is crucial for accurate results. Products and quotients must be rounded according to the measurement with the fewest significant figures.

Consider measurements in length: 9.7 meters contains 2 significant figures, while 187.54 meters has 5 significant figures. When multiplying these values to find area, the result must be rounded to match the measurement with fewer sig figs. For example, calculating 1,819.138 square meters should be rounded to 1,800 square meters to maintain proper scientific precision.

Different types of graphs serve specific purposes in displaying scientific data. Line graphs effectively show changes over time, with the independent variable (usually time) on the x-axis and the dependent variable on the y-axis. This is particularly useful when studying models of the atom timeline or tracking isotope decay. Bar graphs excel at comparing counted totals across categories, making them ideal for displaying atomic number of elements distribution. Pie charts (circle graphs) help visualize how different parts contribute to a whole, perfect for showing isotope abundance or electron distribution.

Definition: Significant figures are all the digits in a measurement that are known with certainty, plus one estimated digit. They ensure precision in scientific calculations and measurements.

Example: When measuring density to 11.1293661 g/cm³ with an instrument precise to 3 significant figures, the result should be reported as 11.1 g/cm³.

Atomic Structure and Scientific Data Visualization

Understanding atomic models pdf materials requires careful attention to measurement precision and data presentation. Scientists use various graphical tools to communicate findings about atomic numbers and models for 10th grade concepts effectively. Each visualization method serves a specific purpose in representing atomic structure and behavior.

The choice of graph type depends on the relationship between variables being studied. Independent variables (those controlled by the experimenter) are typically plotted on the x-axis, while dependent variables (those being measured) appear on the y-axis. This convention helps readers quickly understand cause-and-effect relationships in atomic studies, particularly when examining isotopes and atomic mass.

When studying different models of atom with pictures, visual representations become crucial for understanding atomic theory development. Graphs can show how our understanding of atomic structure evolved from Dalton's solid sphere model to modern quantum mechanical models. These visualizations help students grasp complex concepts about atomic structure and behavior.

Highlight: Always identify the independent and dependent variables before choosing a graph type. Time is usually an independent variable, while measurements like mass, temperature, or reaction rate are typically dependent variables.

Vocabulary: Independent variables are manipulated by the researcher, while dependent variables respond to changes in the independent variables.

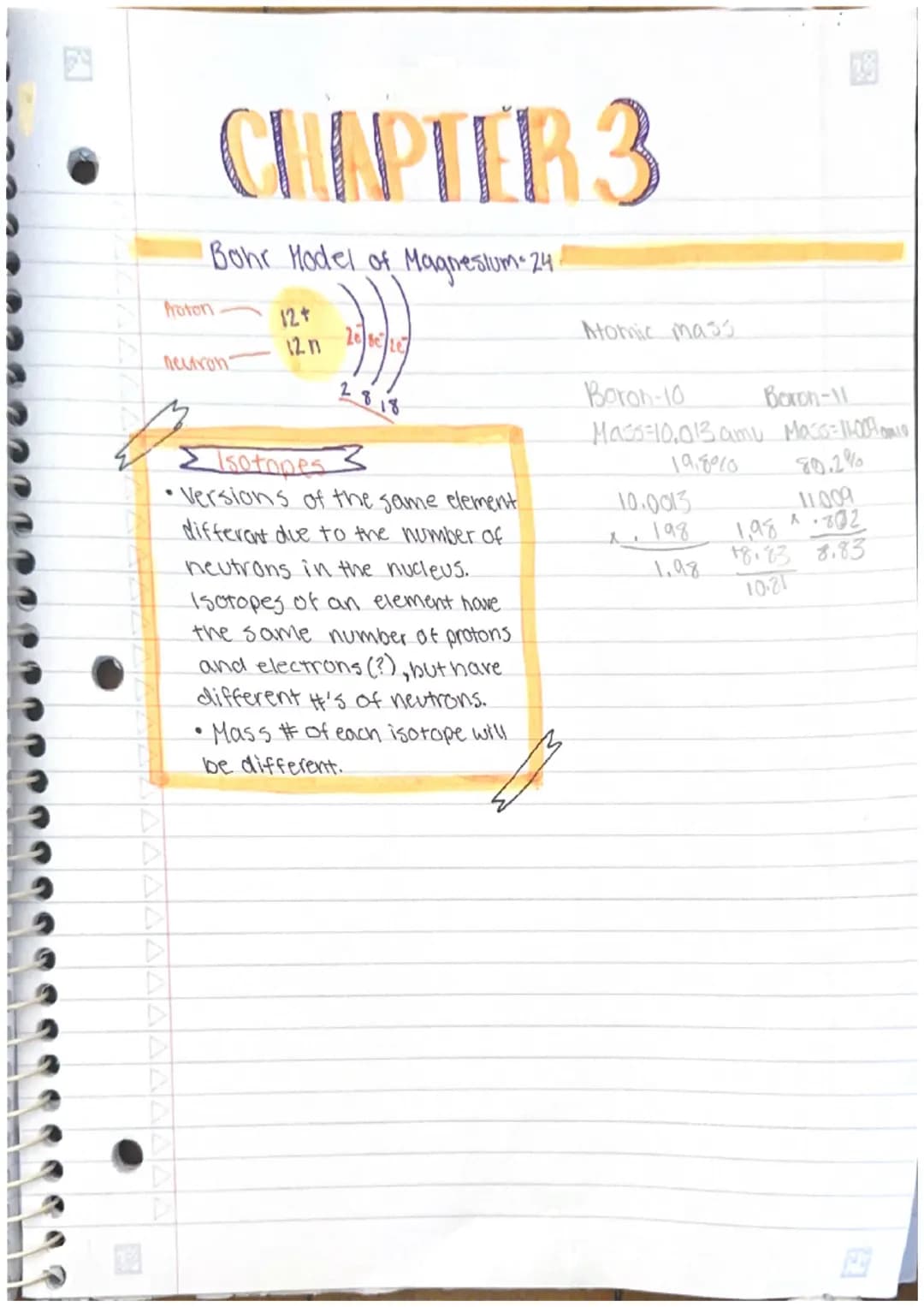

Page 1: Atomic Structure and Isotopes

This page introduces the atomic models and isotope concepts. The Bohr model of Magnesium-24 is used to demonstrate basic atomic structure with protons and neutrons.

Definition: Isotopes are versions of the same element with different numbers of neutrons but the same number of protons and electrons.

Example: Boron isotopes are presented with their mass numbers and relative abundances:

• Boron-10: Mass = 10.013 amu (19.8%)
• Boron-11: Mass = 11.009 amu (80.2%)

Highlight: The atomic mass calculations shown demonstrate how weighted averages determine an element's standard atomic mass.
