Shell and Tube Heat Exchanger with Examples

Learn about Shell and Tube Heat Exchangers with Examples | Free PDF Download

Shell and tube heat exchanger design and calculations are essential for understanding heat transfer processes in industrial applications. Here's a comprehensive analysis of the provided content:

A shell and tube heat exchanger is a type of heat transfer device featuring tubes contained within a cylindrical shell, commonly used for fluid-to-fluid heat exchange operations.

Key aspects include:

  • Complex calculations involving Reynolds number (Re) and Prandtl number (Pr)
  • Multiple flow configurations including parallel and counter flow arrangements
  • Heat transfer coefficient calculations for both shell and tube sides
  • Temperature difference calculations using LMTD method
  • Various design considerations for optimal heat exchange
...

2/22/2023

15


<p>The shell and tube heat exchanger contains different types of passes such as the 1-2 shell and tube heat exchanger. It also has various

View

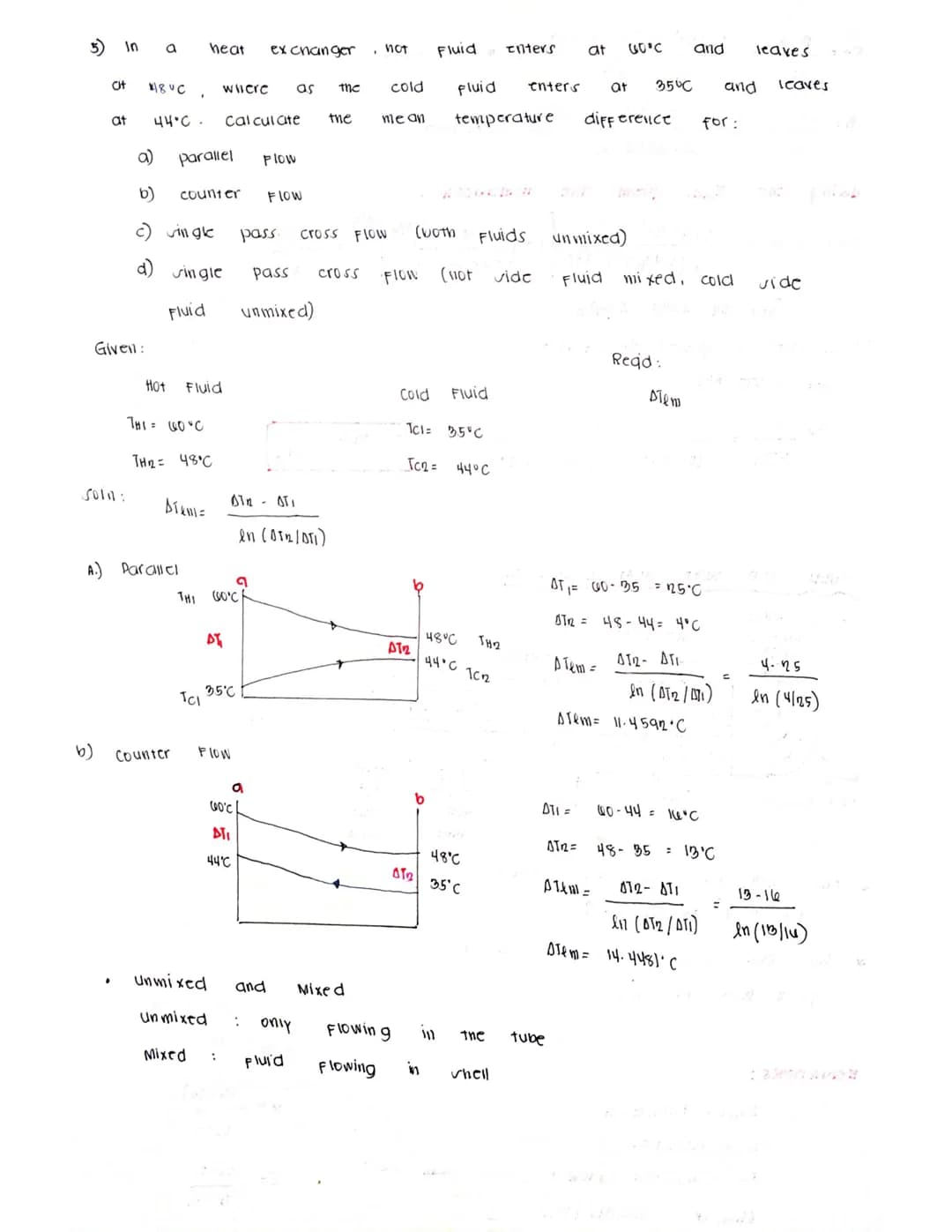

Page 2: Temperature Difference Calculations

This section covers temperature difference calculations for various flow arrangements in shell and tube heat exchanger applications.

Definition: Parallel flow occurs when both fluids flow in the same direction, while counter flow has fluids flowing in opposite directions.

Example: For a hot fluid entering at 60°C and cold fluid at 35°C, detailed calculations are provided for both parallel and counter flow arrangements.

Highlight: The mean temperature difference varies significantly between parallel and counter flow configurations.


<p>The shell and tube heat exchanger contains different types of passes such as the 1-2 shell and tube heat exchanger. It also has various

View

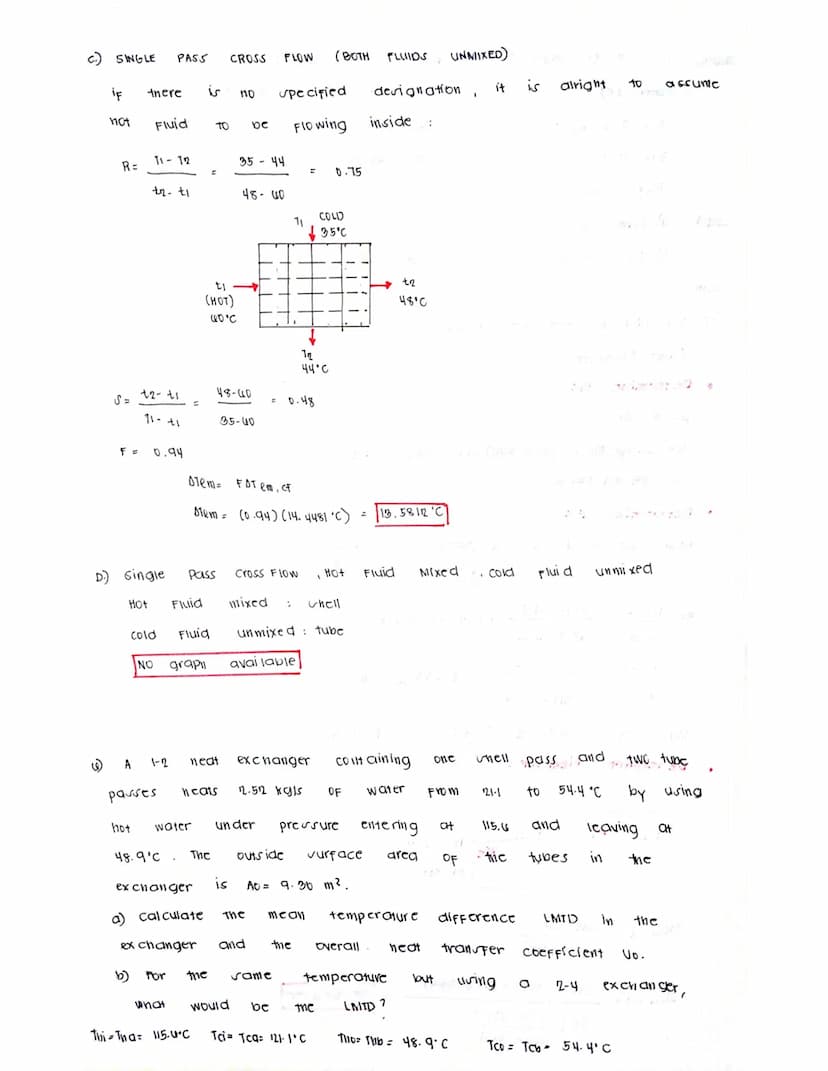

Page 3: Cross Flow Analysis

Detailed analysis of cross-flow arrangements in shell and tube heat exchanger design calculations.

Vocabulary: Mixed and unmixed flows refer to different fluid mixing patterns within the exchanger.

Example: Calculations show a correction factor of 0.94 for cross-flow arrangements.

Highlight: The effectiveness of heat transfer varies depending on whether fluids are mixed or unmixed.


<p>The shell and tube heat exchanger contains different types of passes such as the 1-2 shell and tube heat exchanger. It also has various

View

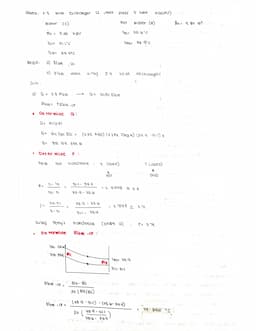

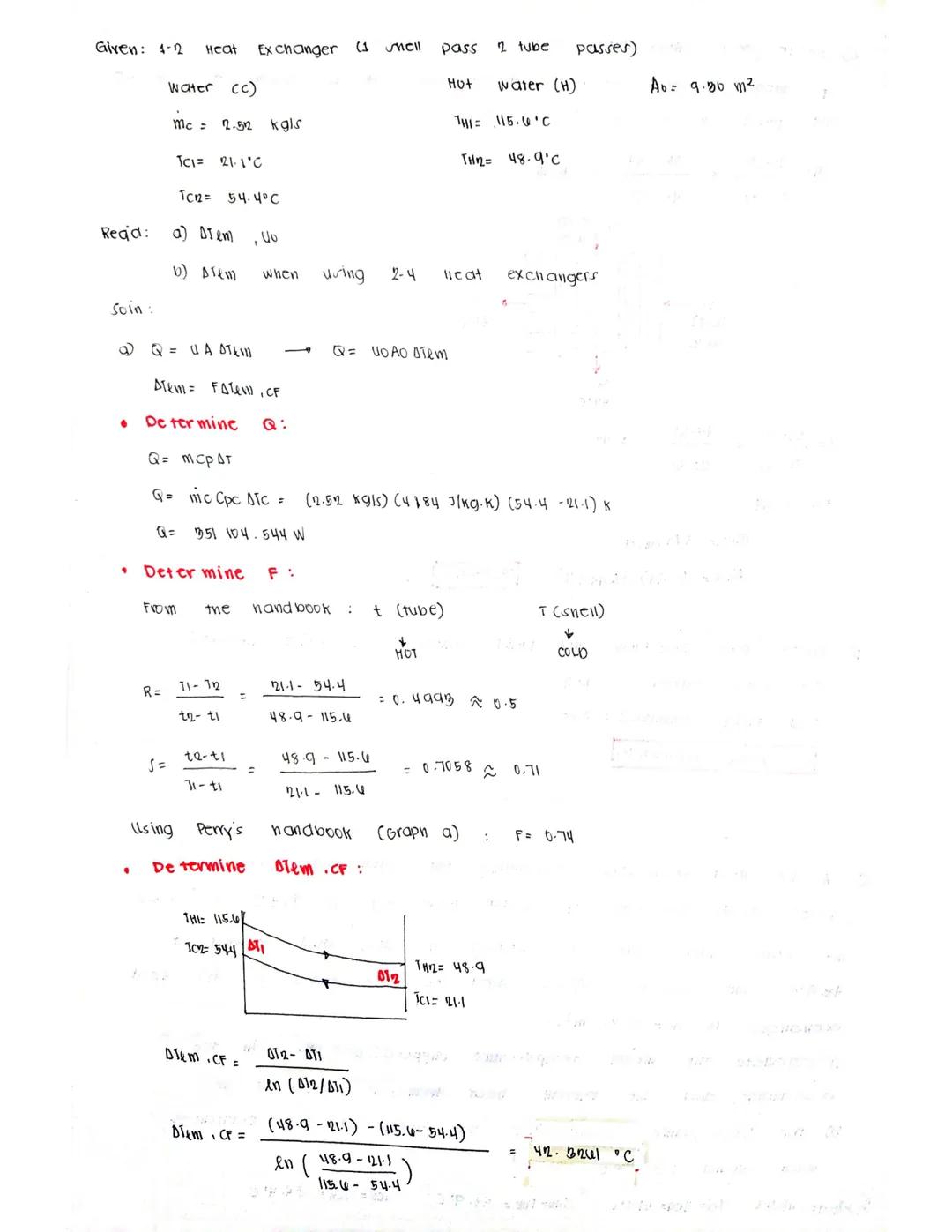

Page 4: Heat Transfer Calculations

Comprehensive coverage of heat transfer calculations for shell and tube heat exchanger sizing.

Example: A practical calculation showing heat transfer for water heating from 21.1°C to 54.4°C.

Definition: The overall heat transfer coefficient UoUo represents the total thermal resistance between the two fluids.

Highlight: The page demonstrates the use of Perry's handbook for determining critical parameters.


<p>The shell and tube heat exchanger contains different types of passes such as the 1-2 shell and tube heat exchanger. It also has various

View

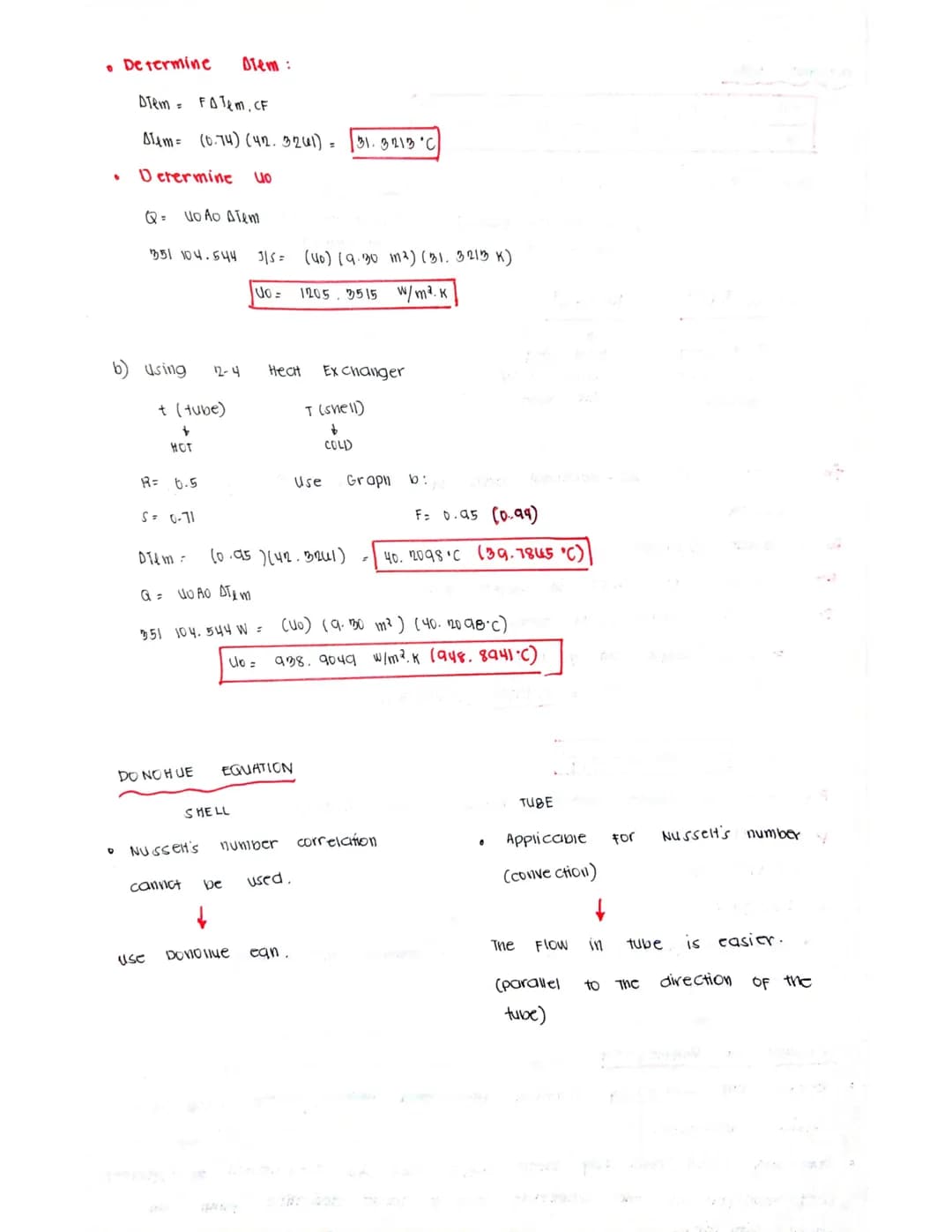

Page 5: Advanced Heat Transfer Analysis

Advanced concepts in shell and tube heat exchanger calculations including Nusselt number correlations.

Vocabulary: Nusselt number represents the ratio of convective to conductive heat transfer across a boundary.

Highlight: The overall heat transfer coefficient is calculated as 1205.3515 W/m².K for the given conditions.

Example: Detailed calculations showing the relationship between heat transfer rate, surface area, and temperature difference.

Can't find what you're looking for? Explore other subjects.

Knowunity is the # 1 ranked education app in five European countries

Knowunity was a featured story by Apple and has consistently topped the app store charts within the education category in Germany, Italy, Poland, Switzerland and United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the # 1 ranked education app in five European countries

4.9+

Average App Rating

21 M

Students use Knowunity

#1

In Education App Charts in 17 Countries

950 K+

Students uploaded study notes

Still not sure? Look at what your fellow peers are saying...

iOS User

I love this app so much [...] I recommend Knowunity to everyone!!! I went from a C to an A with it :D

Stefan S, iOS User

The application is very simple and well designed. So far I have found what I was looking for :D

SuSSan, iOS User

Love this App ❤️, I use it basically all the time whenever I'm studying



Chemistry

15

Feb 22, 2023

5 pages

Learn about Shell and Tube Heat Exchangers with Examples | Free PDF Download

Shell and tube heat exchanger design and calculations are essential for understanding heat transfer processes in industrial applications. Here's a comprehensive analysis of the provided content:

A shell and tube heat exchanger is a type of heat transfer device featuring... Show more


<p>The shell and tube heat exchanger contains different types of passes such as the 1-2 shell and tube heat exchanger. It also has various

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

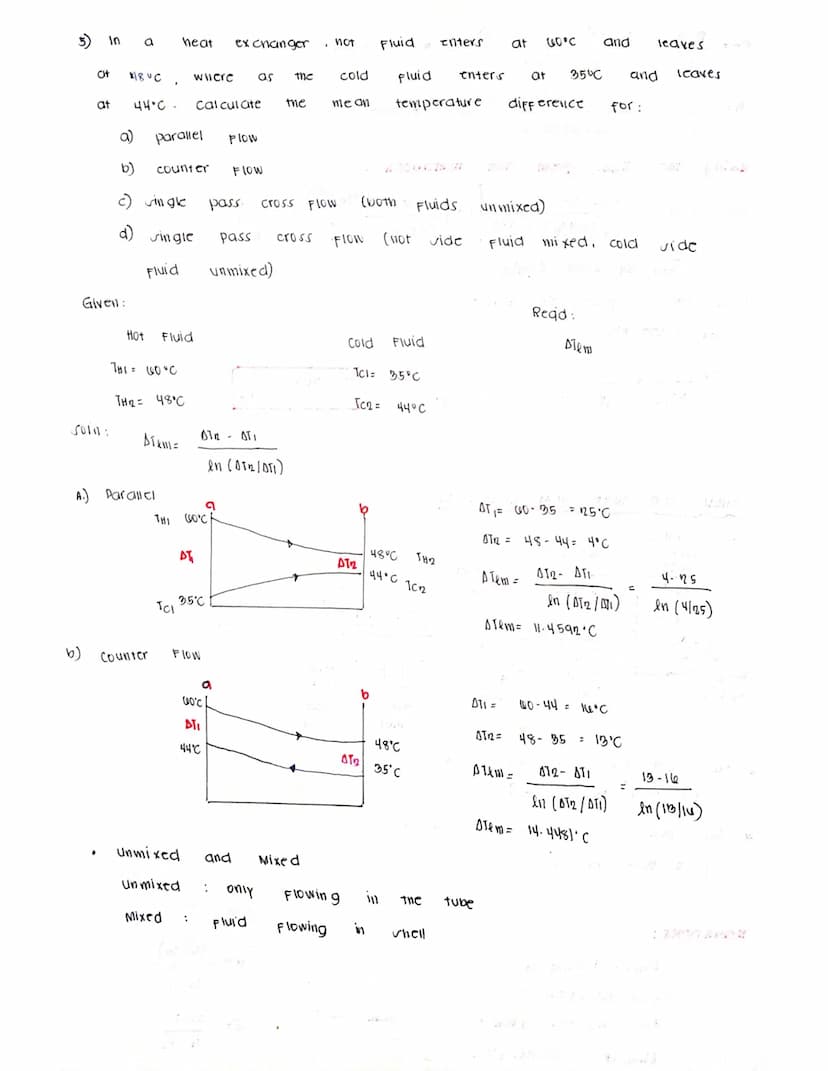

Page 2: Temperature Difference Calculations

This section covers temperature difference calculations for various flow arrangements in shell and tube heat exchanger applications.

Definition: Parallel flow occurs when both fluids flow in the same direction, while counter flow has fluids flowing in opposite directions.

Example: For a hot fluid entering at 60°C and cold fluid at 35°C, detailed calculations are provided for both parallel and counter flow arrangements.

Highlight: The mean temperature difference varies significantly between parallel and counter flow configurations.


<p>The shell and tube heat exchanger contains different types of passes such as the 1-2 shell and tube heat exchanger. It also has various

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

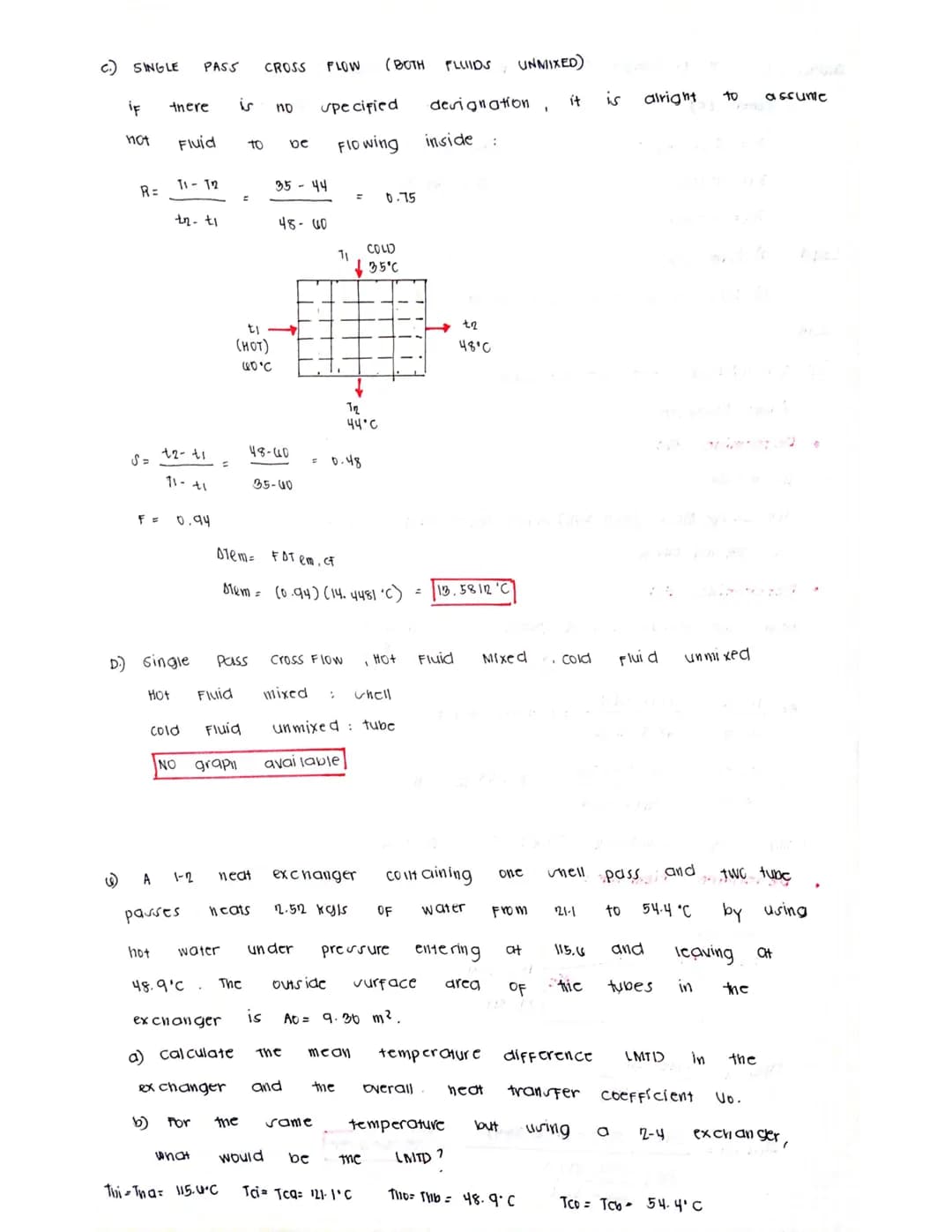

Page 3: Cross Flow Analysis

Detailed analysis of cross-flow arrangements in shell and tube heat exchanger design calculations.

Vocabulary: Mixed and unmixed flows refer to different fluid mixing patterns within the exchanger.

Example: Calculations show a correction factor of 0.94 for cross-flow arrangements.

Highlight: The effectiveness of heat transfer varies depending on whether fluids are mixed or unmixed.


<p>The shell and tube heat exchanger contains different types of passes such as the 1-2 shell and tube heat exchanger. It also has various

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

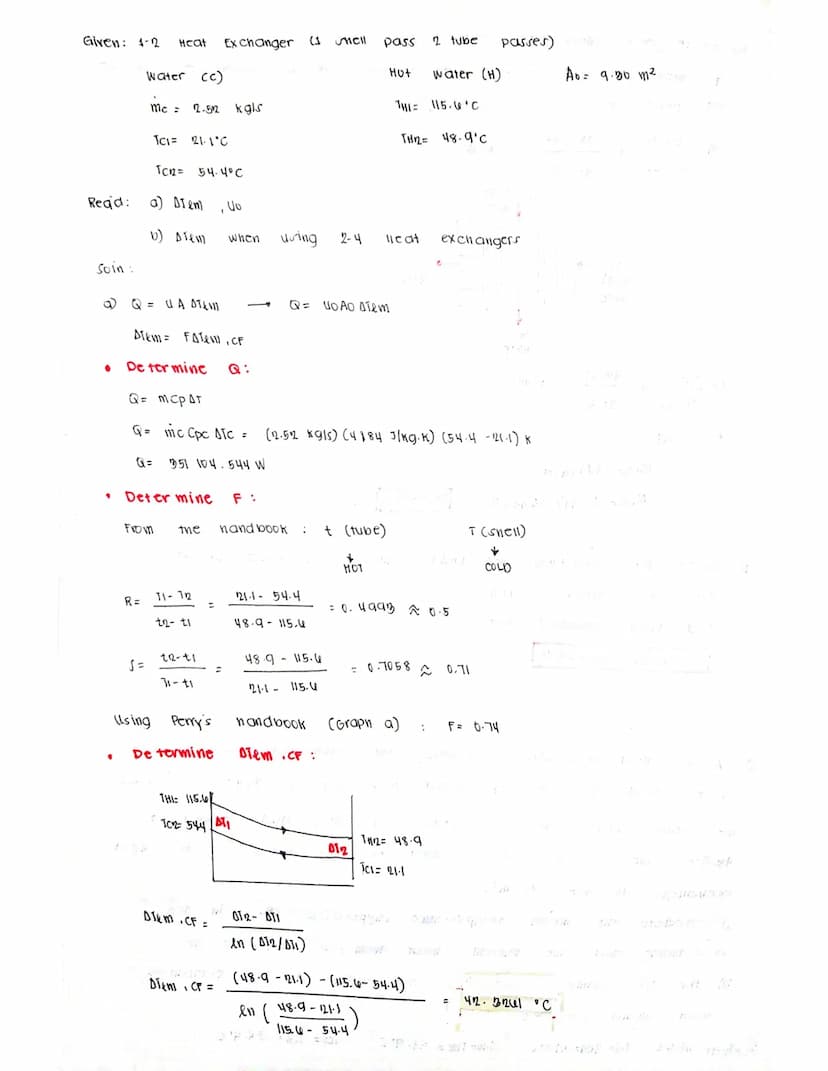

Page 4: Heat Transfer Calculations

Comprehensive coverage of heat transfer calculations for shell and tube heat exchanger sizing.

Example: A practical calculation showing heat transfer for water heating from 21.1°C to 54.4°C.

Definition: The overall heat transfer coefficient UoUo represents the total thermal resistance between the two fluids.

Highlight: The page demonstrates the use of Perry's handbook for determining critical parameters.


<p>The shell and tube heat exchanger contains different types of passes such as the 1-2 shell and tube heat exchanger. It also has various

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Page 5: Advanced Heat Transfer Analysis

Advanced concepts in shell and tube heat exchanger calculations including Nusselt number correlations.

Vocabulary: Nusselt number represents the ratio of convective to conductive heat transfer across a boundary.

Highlight: The overall heat transfer coefficient is calculated as 1205.3515 W/m².K for the given conditions.

Example: Detailed calculations showing the relationship between heat transfer rate, surface area, and temperature difference.


<p>The shell and tube heat exchanger contains different types of passes such as the 1-2 shell and tube heat exchanger. It also has various

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

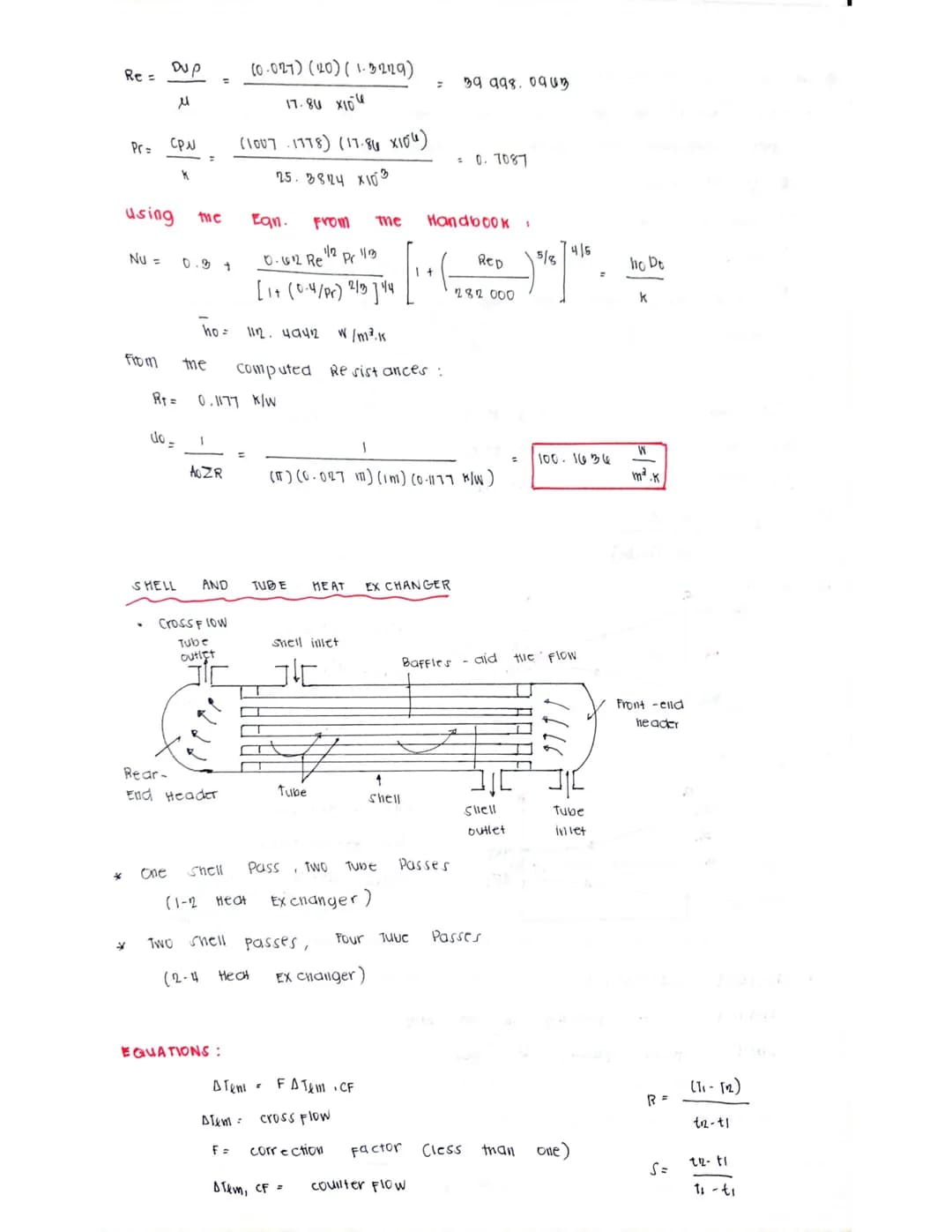

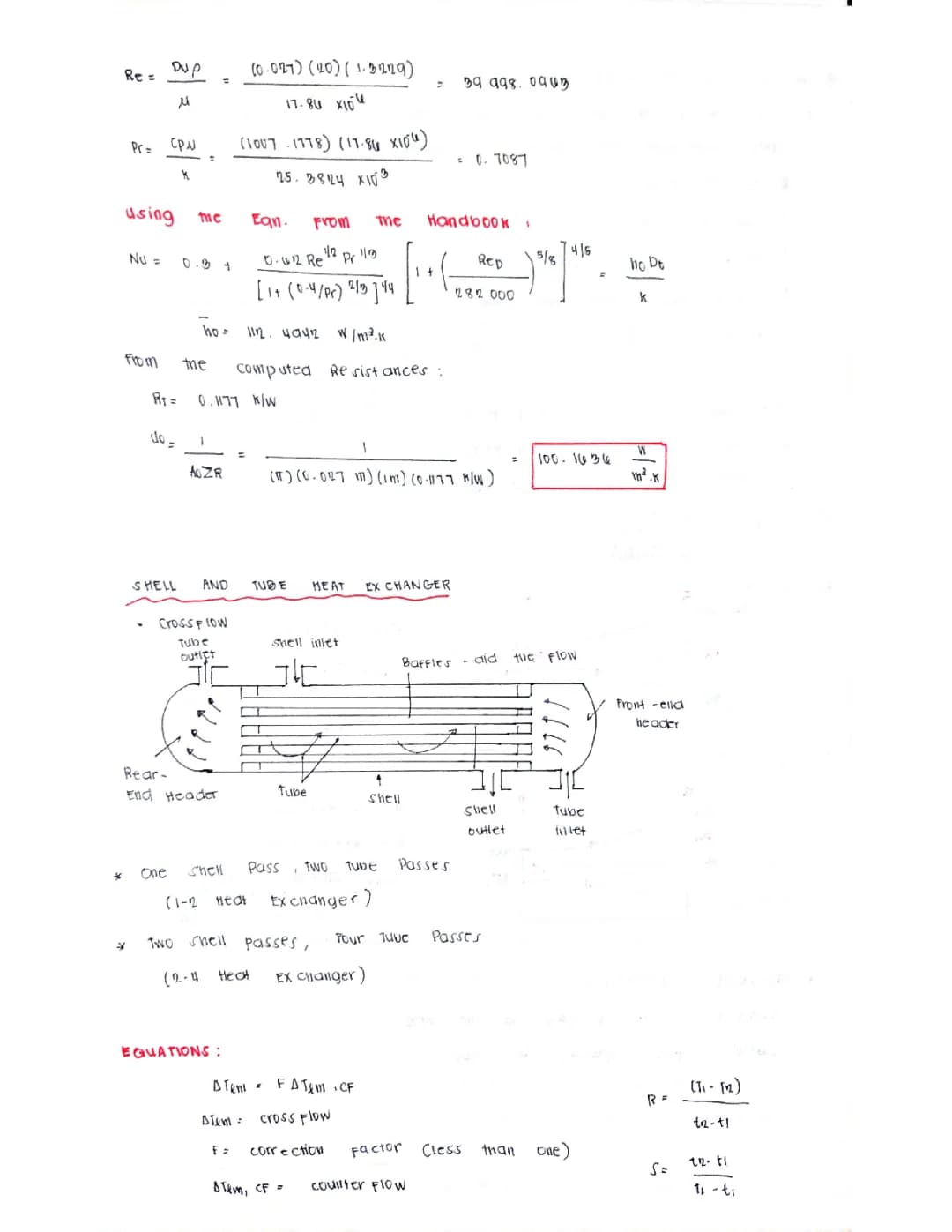

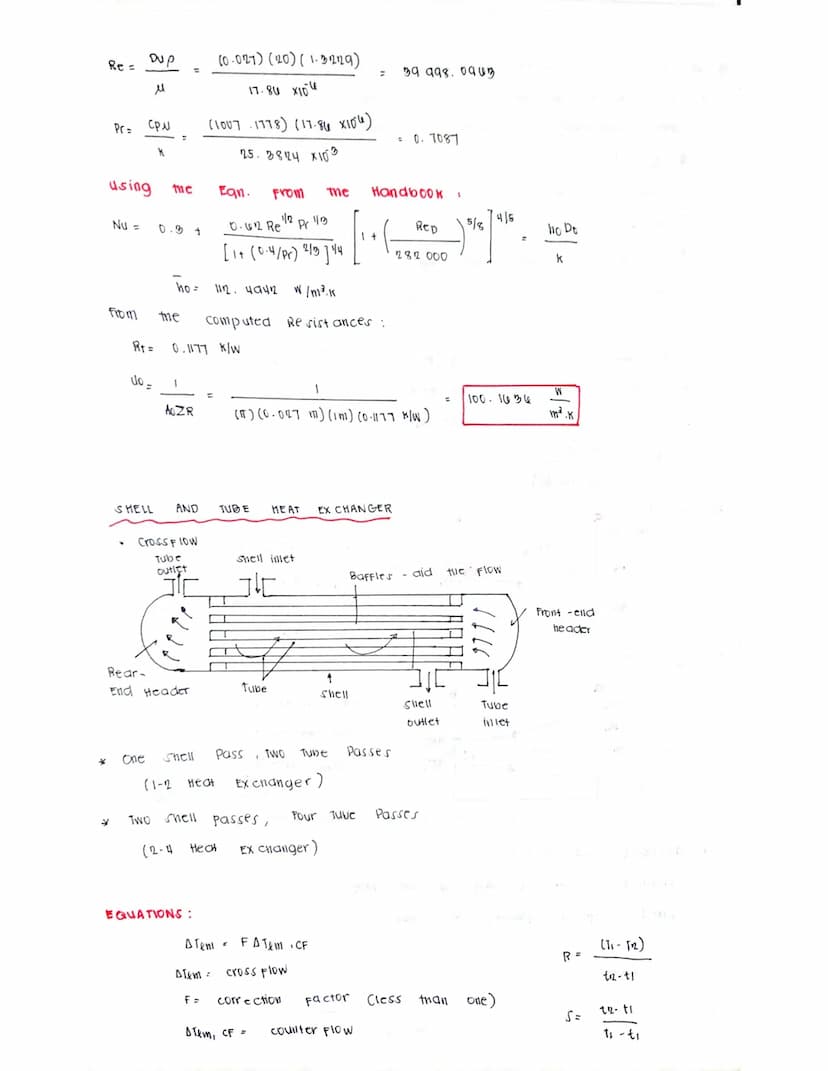

Page 1: Shell and Tube Heat Exchanger Fundamentals

This page introduces fundamental equations and configurations for shell and tube heat exchanger design. The content focuses on basic heat transfer calculations and exchanger arrangements.

Definition: A 1-2 shell and tube heat exchanger refers to an arrangement with one shell pass and two tube passes.

Vocabulary: LMTD LogMeanTemperatureDifferenceLog Mean Temperature Difference is a crucial parameter in heat exchanger calculations.

Example: The overall heat transfer coefficient hoho is calculated as 112.412 W/m².K using the provided equations.

Highlight: The page emphasizes cross-flow configuration with baffles for improved heat transfer efficiency.
