Energy Diagrams and Reaction Pathways

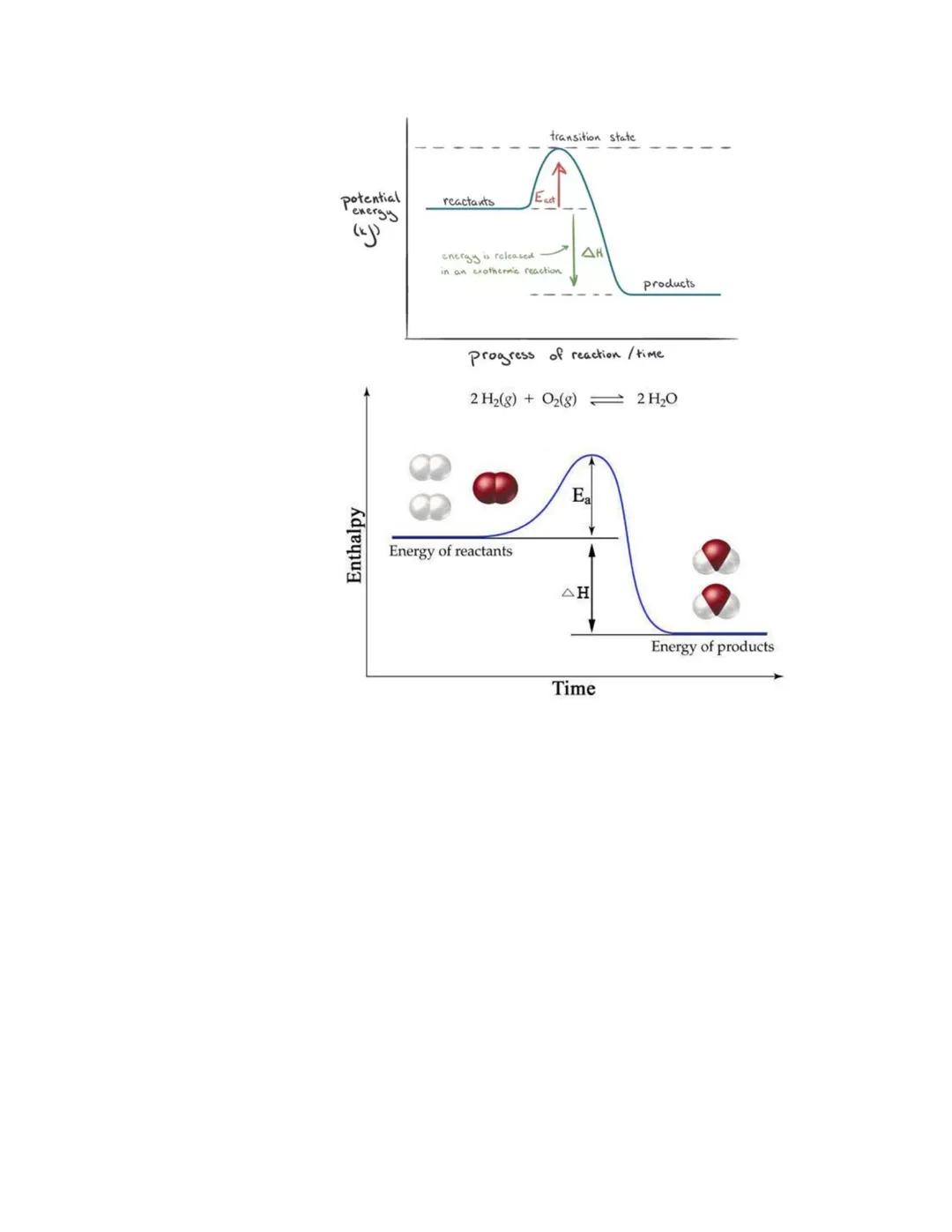

Energy diagrams visually show what happens during chemical reactions. They map the energy changes as reactants transform into products along the reaction pathway.

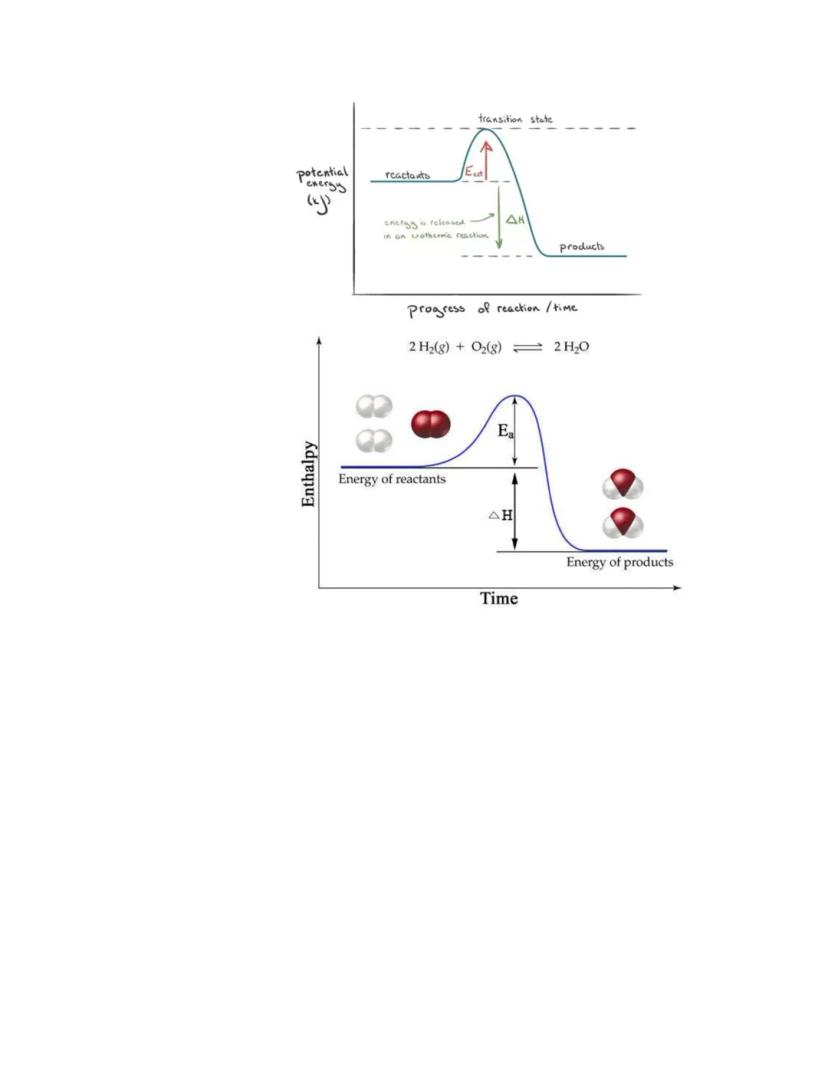

In these diagrams, you can see the activation energy as a hill that reactants must climb before becoming products. The height of this hill determines how fast a reaction occurs—lower activation energy means faster reactions.

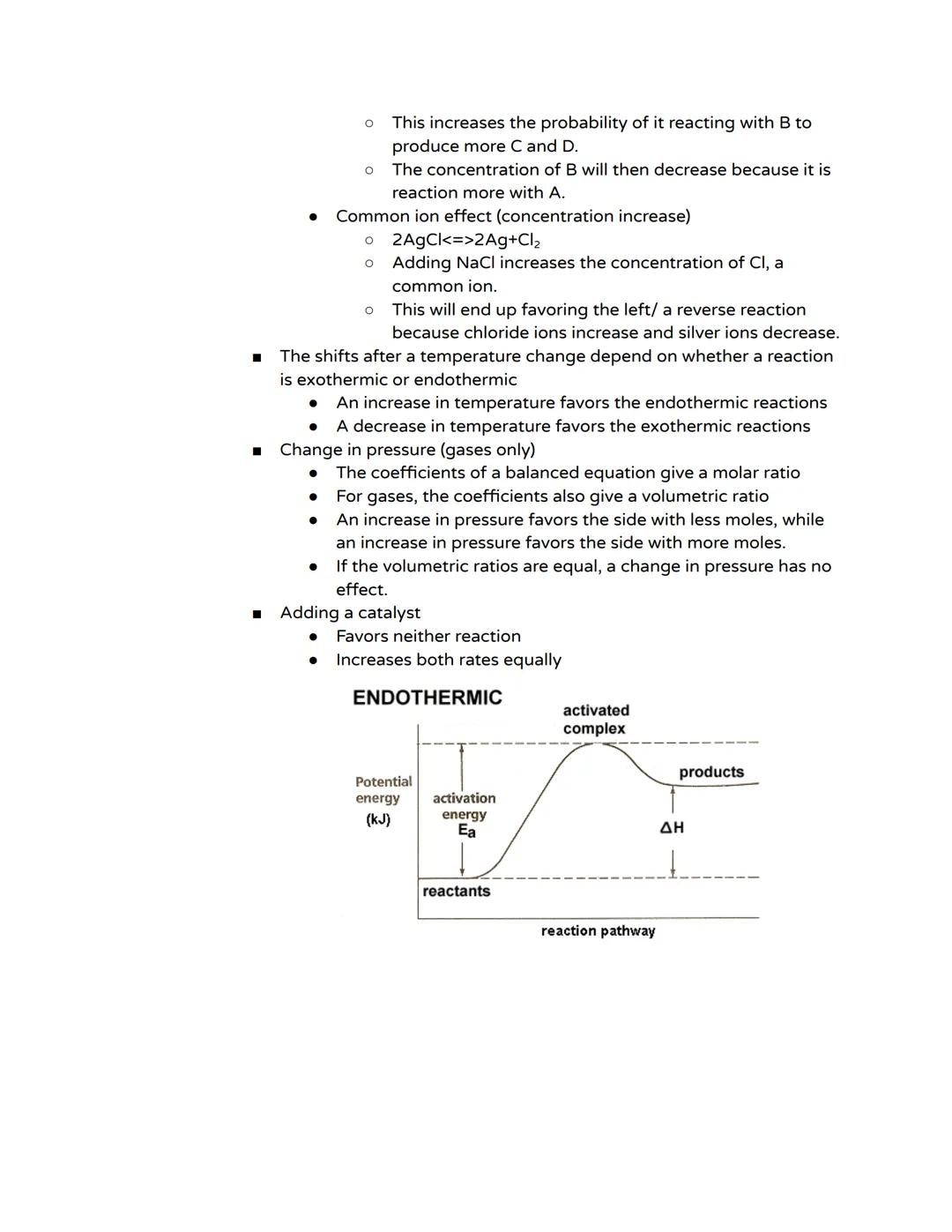

For exothermic reactions, products have lower energy than reactants, resulting in a negative ΔH. The diagram shows a downhill trend after passing the activated complex. For endothermic reactions, products have higher energy than reactants (positive ΔH), showing an uphill trend overall.
Catalysts create an alternative reaction pathway with a lower activation energy hill. This doesn't change the overall energy difference between reactants and products (ΔH remains the same), but it makes reaching the activated complex easier.
📊 Energy diagrams help explain why striking a match requires initial energy input even though burning is exothermic. You need to overcome the activation energy barrier to start the reaction!
These diagrams connect the concepts of kinetics (reaction rates) and thermodynamics (energy changes), showing how they work together in chemical reactions.
