Understanding Chemical Bonding in Unit 4

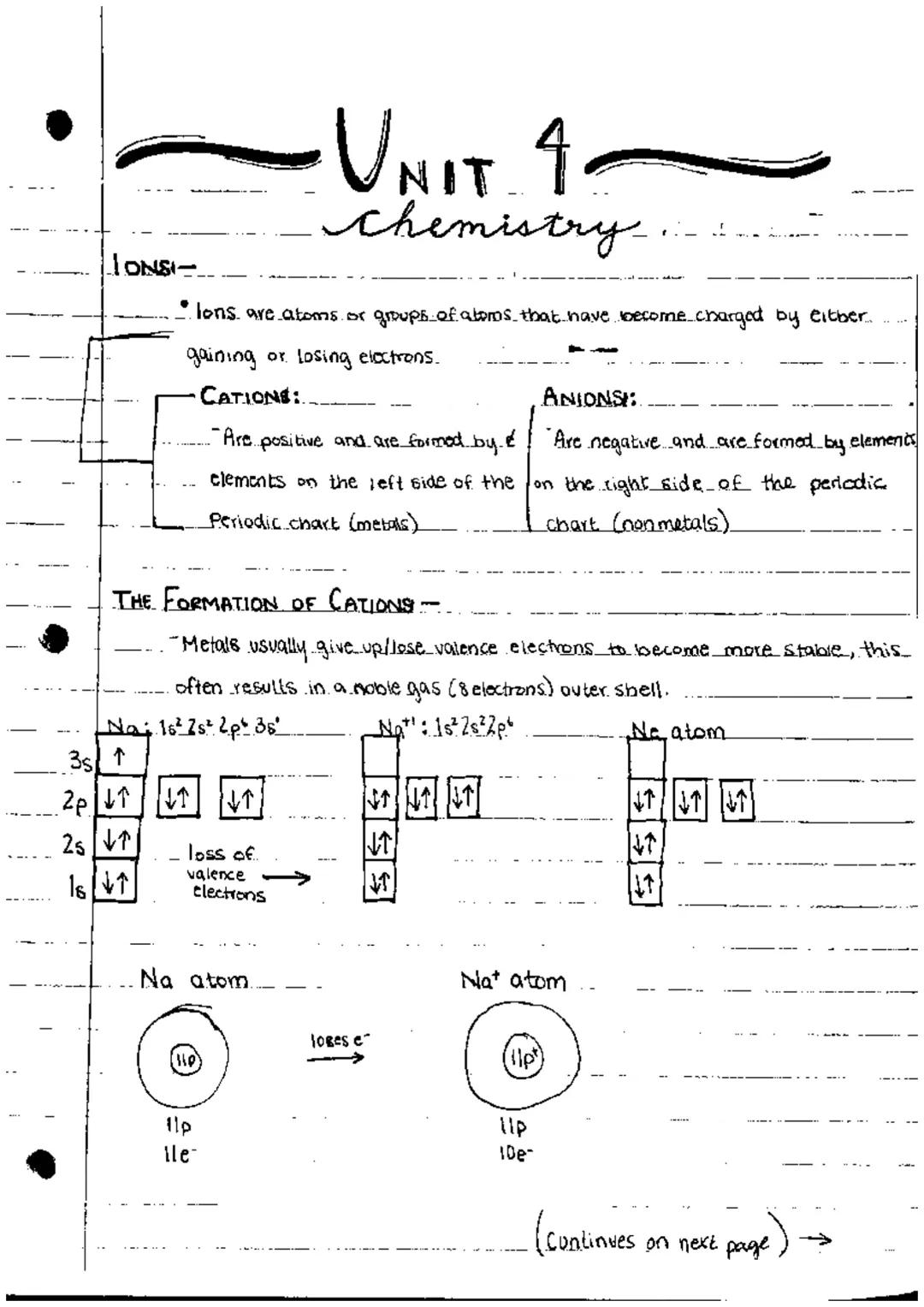

Understanding Ions

Ions are atoms that have become charged by either gaining or losing electrons. They form the basis for many chemical reactions in our world. There are two main types of ions you need to know:

Cations are positively charged ions formed when metals (found on the left side of the periodic table) lose electrons. For example, when sodium (Na) loses its single valence electron, it becomes Na⁺, taking on the electron configuration of neon, a noble gas. This makes sodium more stable.

Anions are negatively charged ions formed when nonmetals (found on the right side of the periodic table) gain electrons. These elements typically gain enough electrons to achieve a full outer shell, similar to a noble gas.

💡 Think of ions like people at a dance - some give away electrons (cations), while others take electrons (anions). This "electron dance" creates the charges that help atoms stick together!

The formation of ions follows a pattern: metals lose electrons to form cations, while nonmetals gain electrons to form anions. Both are seeking stability by achieving a noble gas electron configuration.

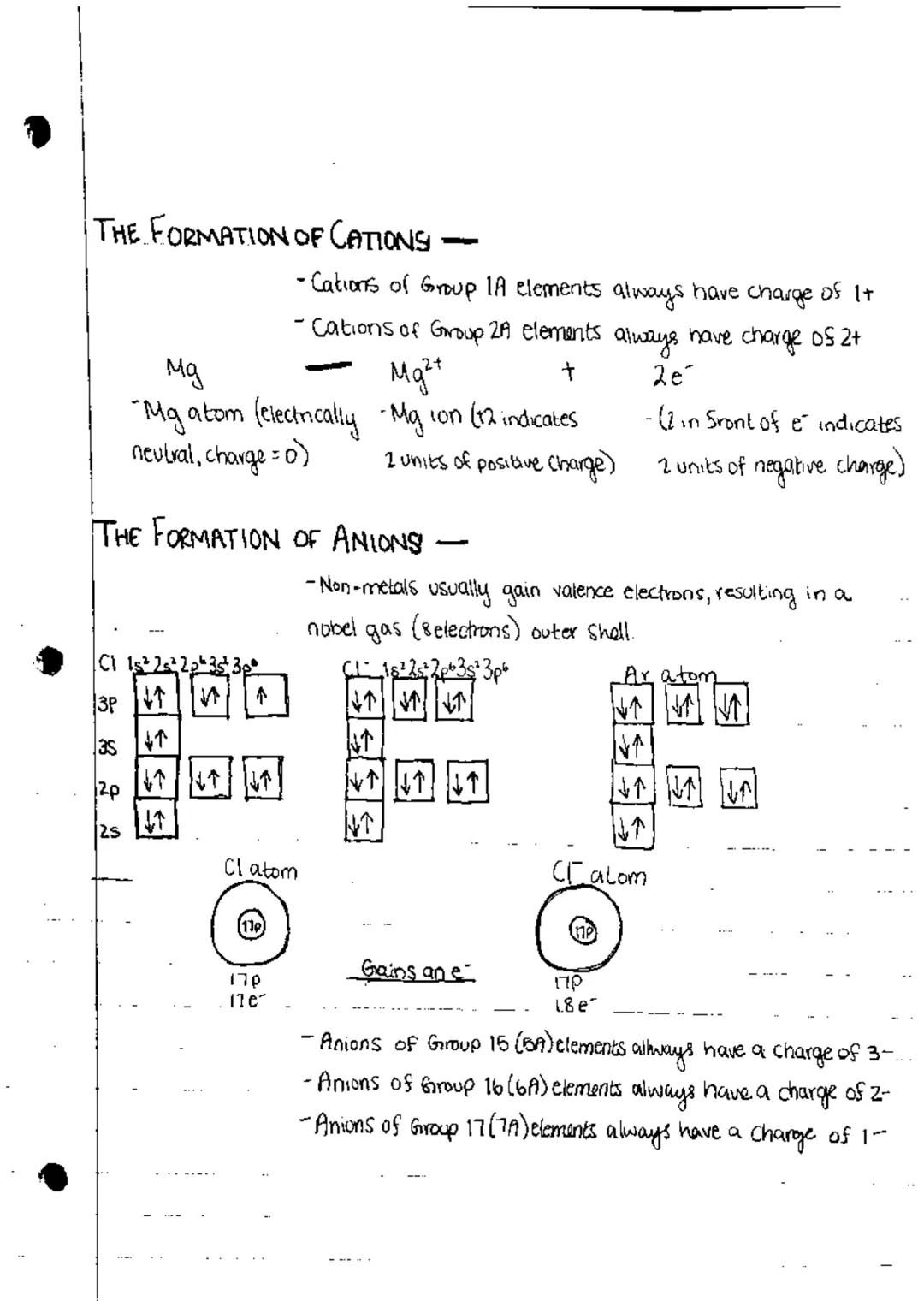

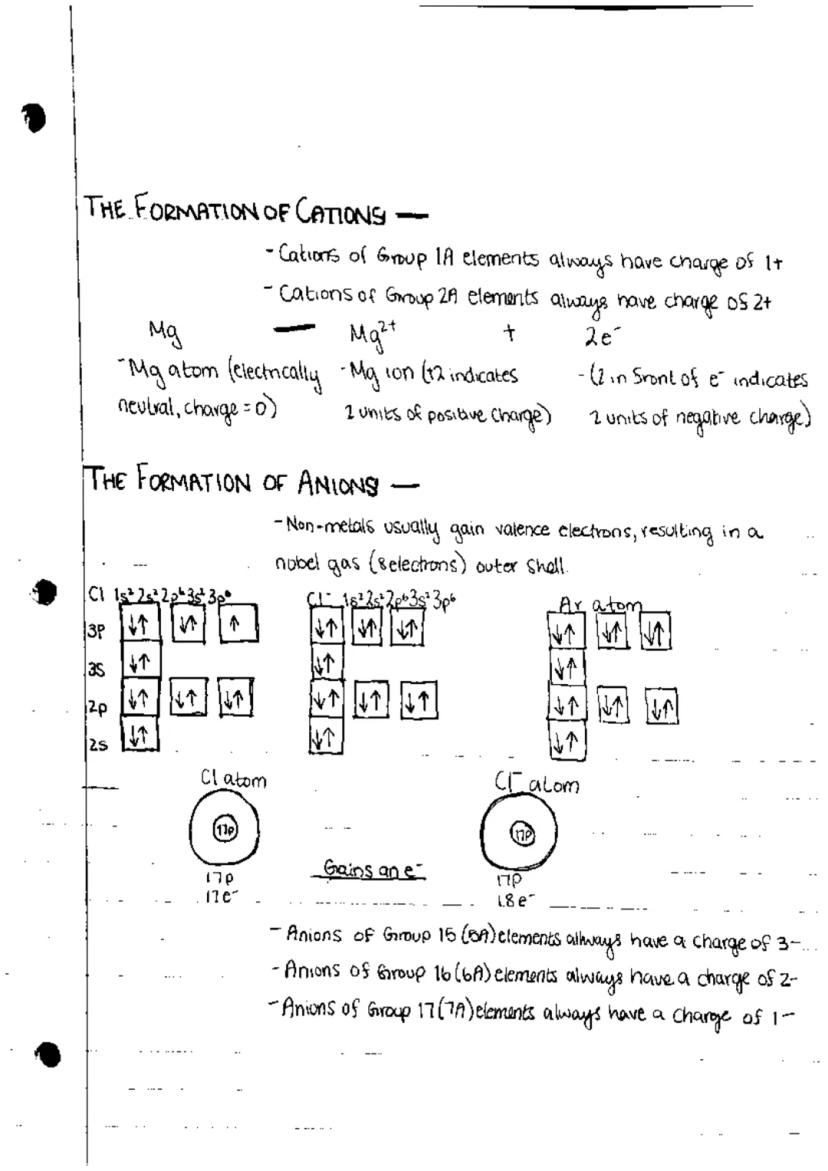

Ion Formation Patterns

When atoms form ions, they follow predictable patterns based on their position in the periodic table. This makes it easier for you to predict what charges different elements will have.

Group 1A elements (like sodium and potassium) always form cations with a +1 charge by losing one electron. Similarly, Group 2A elements (like magnesium and calcium) always form cations with a +2 charge by losing two electrons. Magnesium, for example, goes from being a neutral atom to Mg²⁺ by giving up two electrons.

On the nonmetal side, the pattern continues: Group 7A elements (halogens like chlorine) form anions with a -1 charge, Group 6A elements form -2 anions, and Group 5A elements form -3 anions. When chlorine gains an electron, it becomes Cl⁻, achieving the electron configuration of argon.

🔑 Remember this shortcut: An element's group number often tells you how many electrons it will gain or lose. Group 1A loses 1 electron $+1$, Group 7A gains 1 electron $-1$.

These ion formation patterns are crucial for understanding chemical bonding and predicting how elements will interact with each other.

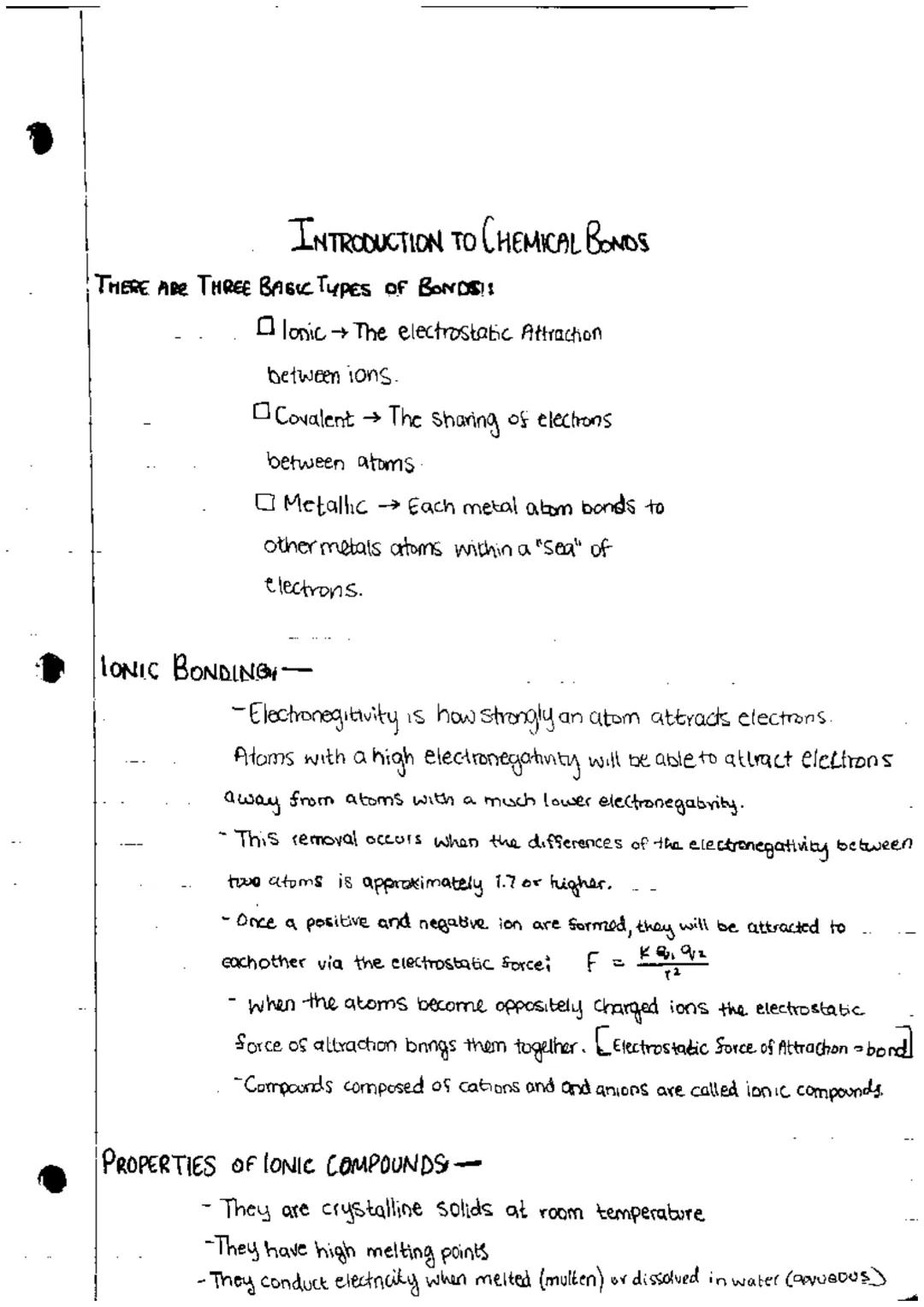

Chemical Bonds Basics

Chemical bonds are what hold atoms together to form compounds. There are three main types of bonds you'll need to understand: ionic, covalent, and metallic.

Ionic bonds form through the electrostatic attraction between oppositely charged ions. This happens when atoms with very different electronegativities interact. When the electronegativity difference is approximately 1.7 or higher, one atom can completely pull electrons away from the other, forming ions that attract each other.

Covalent bonds form when atoms share electrons rather than transferring them completely. This typically happens between nonmetal atoms with similar electronegativities.

Metallic bonds occur when metal atoms bond to other metal atoms within a "sea" of electrons. This explains many properties of metals like conductivity and malleability.

💡 Ionic compounds have distinctive properties: they form crystalline solids at room temperature, have high melting points, and can conduct electricity when melted or dissolved in water.

The electronegativity difference between atoms determines what type of bond will form. Think of electronegativity as an atom's "electron greediness" - atoms with high electronegativity (like fluorine) strongly attract electrons.

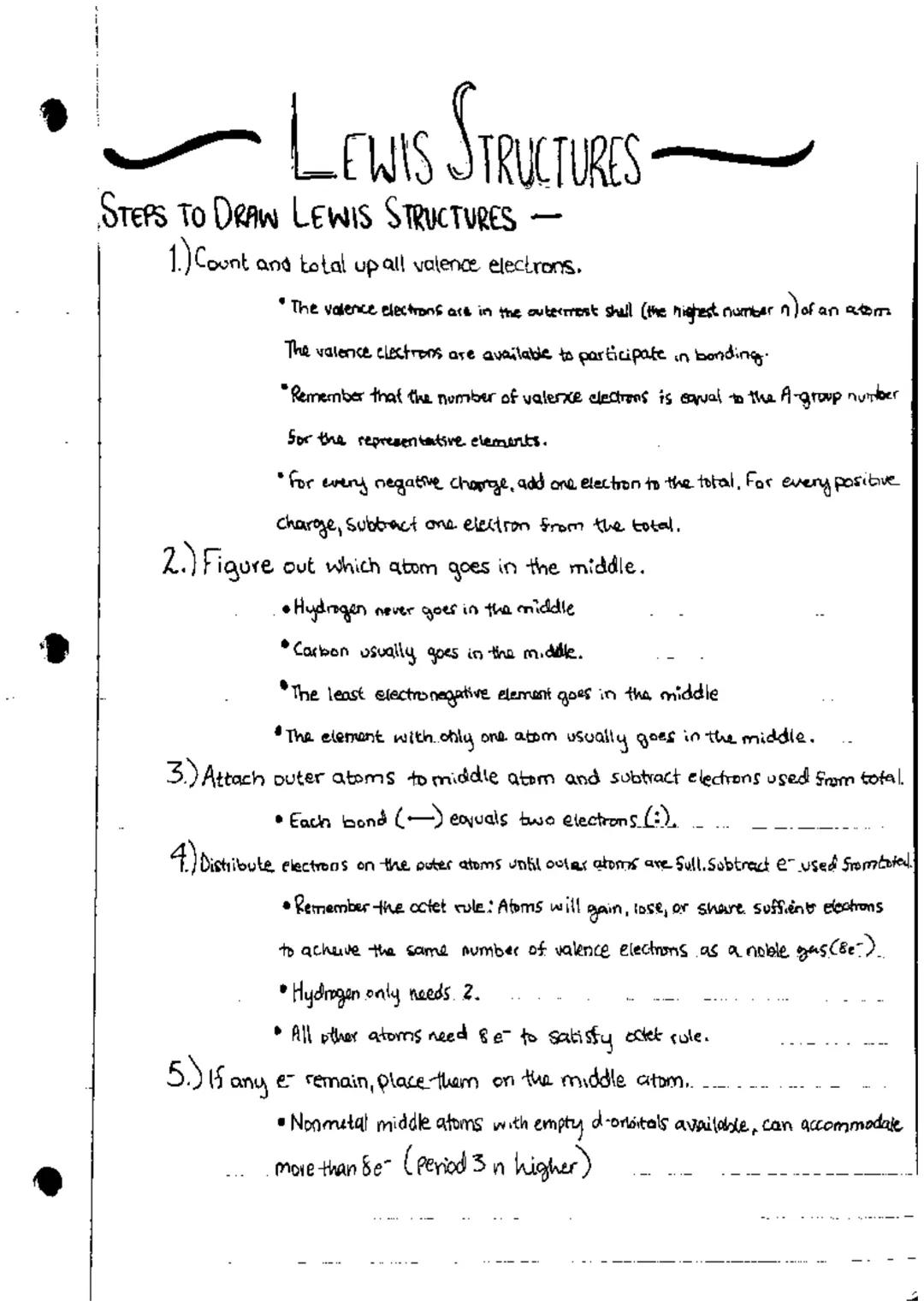

Drawing Lewis Structures

Lewis structures are diagrams that show how atoms bond together and how the valence electrons are arranged. They're super useful for visualizing molecules and understanding chemical behavior.

To draw Lewis structures, follow these steps:

1. Count the total valence electrons for all atoms in the molecule (remember: valence electrons = group number for representative elements). Add an electron for each negative charge or subtract one for each positive charge in polyatomic ions.

2. Determine the central atom, which is usually the least electronegative element (except hydrogen, which never goes in the middle). Carbon typically goes in the middle, as does the element that appears only once in the formula.

3. Connect the atoms with single bonds (each bond = 2 electrons), then subtract these electrons from your total. Place the remaining electrons around the outer atoms to satisfy the octet rule - atoms want 8 electrons in their outer shell (except hydrogen, which needs only 2).

🧠 The octet rule is chemistry's version of "everybody wants to be like the noble gases" - atoms will gain, lose, or share electrons to achieve 8 valence electrons.

If the middle atom doesn't have 8 electrons after distributing them to outer atoms, you may need to form double or triple bonds by having outer atoms share more of their electrons with the central atom.

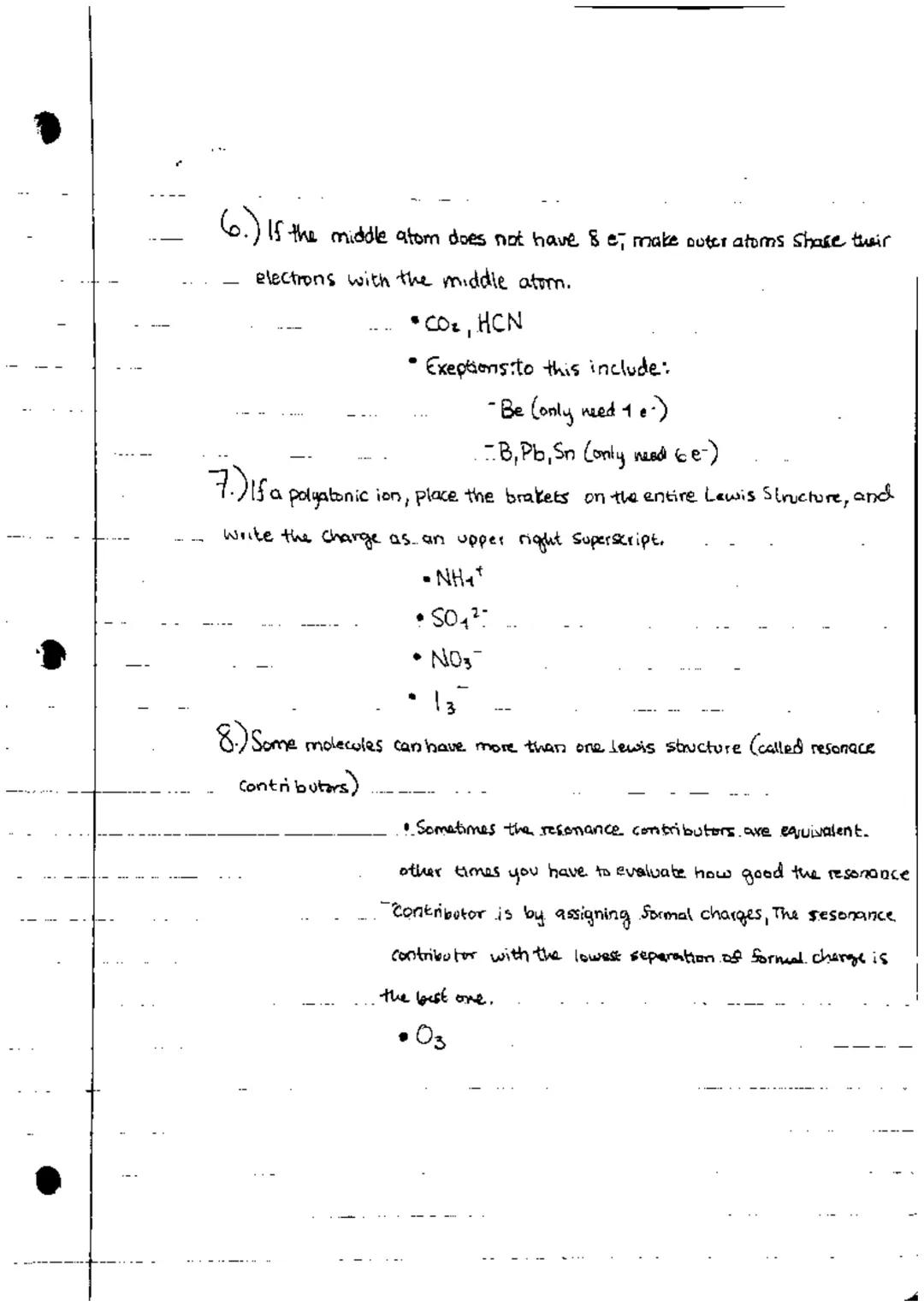

Advanced Lewis Structures

Sometimes drawing Lewis structures gets tricky, especially with complex molecules and polyatomic ions. Here's how to handle these special cases:

If your central atom doesn't have a full octet after distributing all electrons, you'll need to create multiple bonds by having outer atoms share more electrons with the central atom. This happens in molecules like CO₂ and HCN.

For polyatomic ions like NH₄⁺ or SO₄²⁻, draw the entire Lewis structure normally, then place brackets around it and write the charge as a superscript in the upper right.

Some molecules can be represented by multiple valid Lewis structures called resonance contributors. For example, ozone (O₃) can have different arrangements of double bonds. In these cases, the actual structure is a hybrid of all possible arrangements.

🔍 When dealing with multiple possible structures, look for the one with the least separation of formal charges - that's usually the most stable arrangement.

There are a few exceptions to the octet rule: Beryllium can have just 4 electrons, while boron, lead, and tin often have just 6 electrons in their outer shell. Elements in period 3 and higher (with available d-orbitals) can actually accommodate more than 8 electrons in certain compounds.

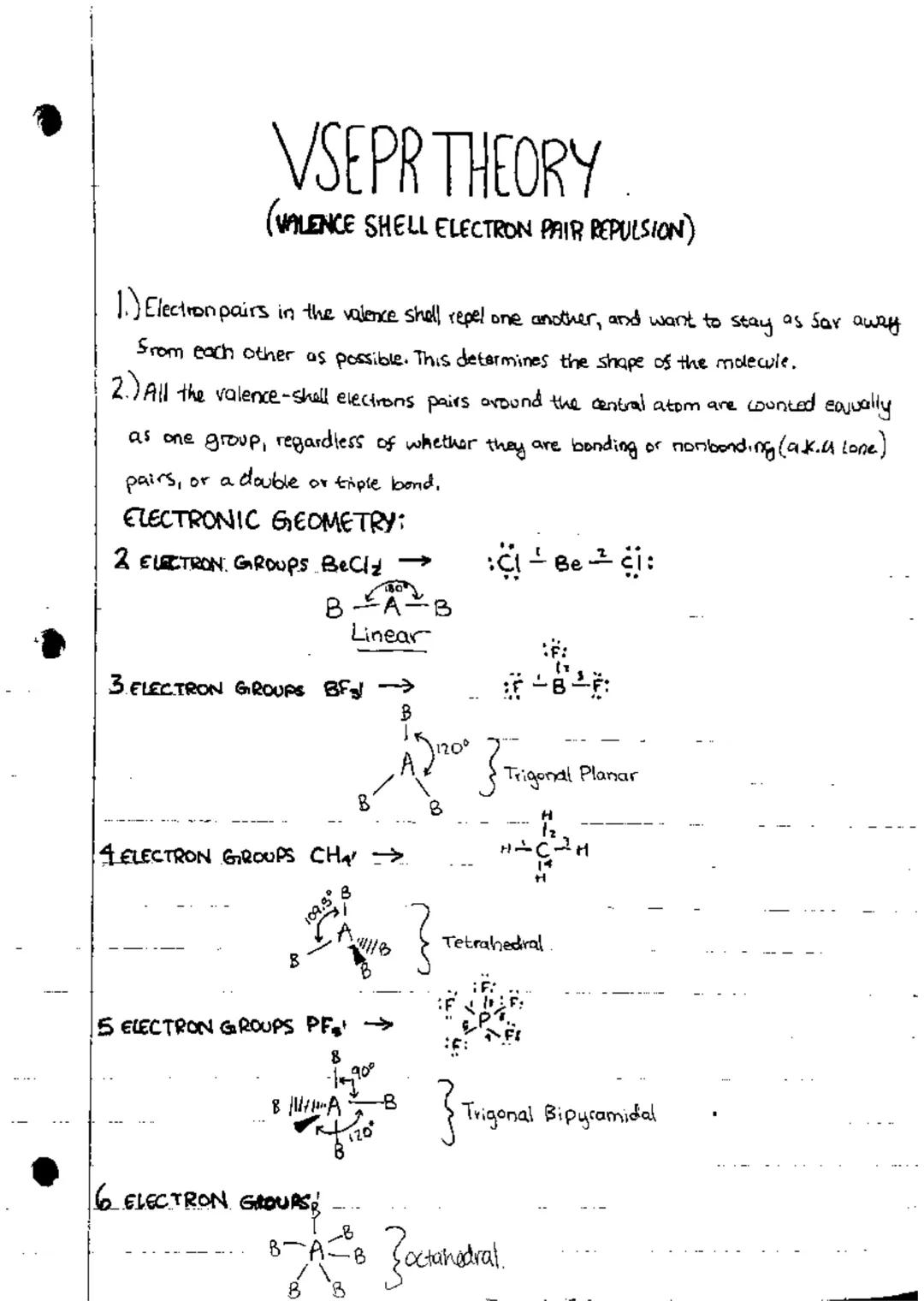

VSEPR Theory Fundamentals

VSEPR (Valence Shell Electron Pair Repulsion) theory helps us predict molecular shapes. The basic idea is simple: electron pairs around a central atom repel each other and try to get as far apart as possible. This arrangement determines the 3D shape of molecules.

In VSEPR, all electron groups count equally - whether they're bonding pairs (single, double, or triple bonds) or lone pairs (non-bonding electrons). The number of electron groups determines the electronic geometry:

• 2 electron groups: Linear geometry (180° bond angle), like in BeCl₂
• 3 electron groups: Trigonal planar geometry (120° bond angles), like in BF₃
• 4 electron groups: Tetrahedral geometry (109.5° bond angles), like in CH₄
• 5 electron groups: Trigonal bipyramidal geometry, like in PF₅
• 6 electron groups: Octahedral geometry, like in SF₆

🌟 Think of electron groups as balloons tied together at their ends - they naturally push away from each other to create these specific geometric arrangements!

These geometries represent the overall arrangement of electron pairs, but the actual molecular shape may differ if lone pairs are present. The bond angles may also vary slightly from the ideal angles due to different repulsion forces.

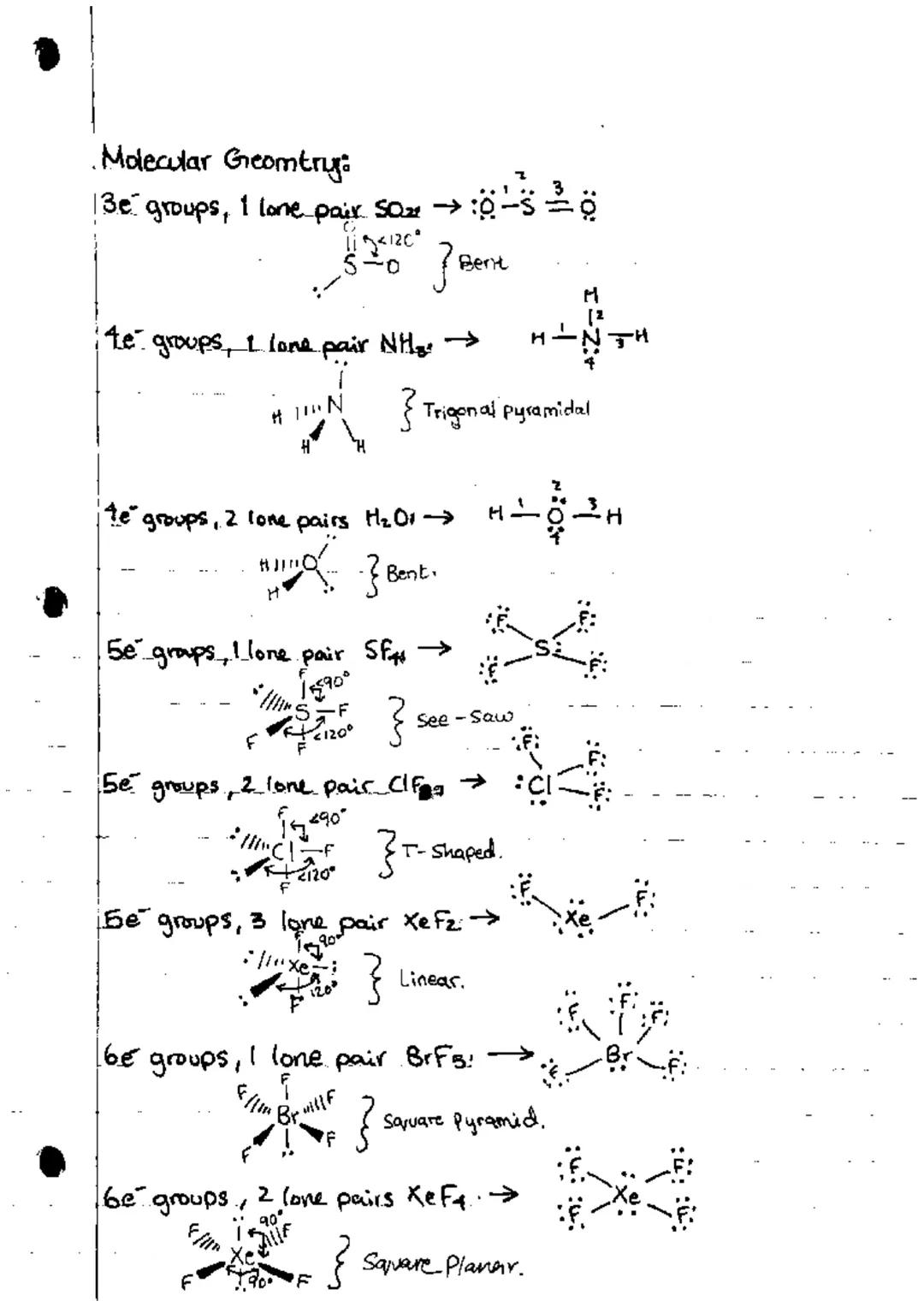

Molecular Geometry

While electronic geometry tells us how all electron groups are arranged, molecular geometry describes only the arrangement of atoms (not lone pairs). Lone pairs take up space but aren't visible in the molecular shape.

When a central atom has both bonding pairs and lone pairs, the resulting shapes include:

• 3 electron groups with 1 lone pair: Bent shape (like in SO₂)
• 4 electron groups with 1 lone pair: Trigonal pyramidal shape (like in NH₃)
• 4 electron groups with 2 lone pairs: Bent shape (like in H₂O)
• 5 electron groups with 1 lone pair: See-saw shape (like in SF₄)
• 5 electron groups with 2 lone pairs: T-shaped shape (like in ClF₃)
• 5 electron groups with 3 lone pairs: Linear shape (like in XeF₂)
• 6 electron groups with 1 lone pair: Square pyramidal shape (like in BrF₅)
• 6 electron groups with 2 lone pairs: Square planar shape (like in XeF₄)

💡 Lone pairs occupy more space than bonding pairs, causing bond angles to be slightly smaller than predicted by the ideal electronic geometry.

The presence of lone pairs dramatically affects molecular shape. For example, both CH₄ (methane) and NH₃ (ammonia) have a central atom with 4 electron groups, but methane is tetrahedral while ammonia is trigonal pyramidal because of its lone pair.

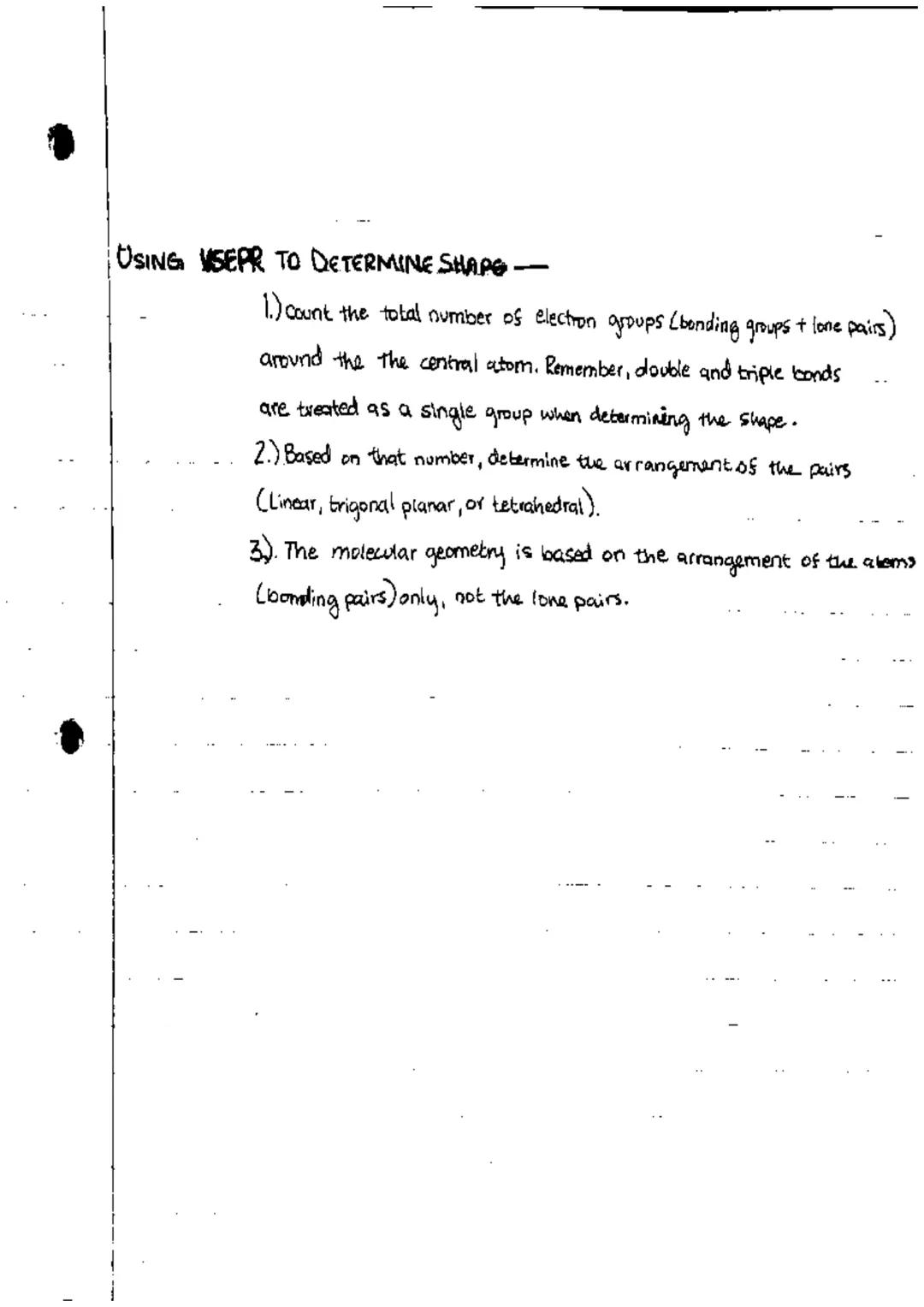

Determining Molecular Shapes

Predicting molecular shapes using VSEPR theory requires just a few simple steps that you can master quickly.

First, count the total number of electron groups around the central atom, including both bonding groups and lone pairs. Remember that multiple bonds (double or triple) count as just a single group when determining shape. This total tells you the electronic geometry.

Next, identify the arrangement of the electron pairs based on their number. For example, 4 electron groups will arrange in a tetrahedral pattern to minimize repulsion.

Finally, determine the molecular geometry by looking only at the arrangement of atoms, not the lone pairs. This gives you the actual shape of the molecule that you could observe.

🧪 This approach to determining molecular shapes is incredibly practical - it helps explain why water is a bent molecule (not linear), which explains its unique properties like being an excellent solvent!

The shape of a molecule directly affects its properties, including polarity, reactivity, and how it interacts with other molecules. Mastering VSEPR theory gives you the power to predict these properties just by looking at a chemical formula.
