Plate Tectonics & Earth's Layers: APES Unit 4 Complete Guide and Answers

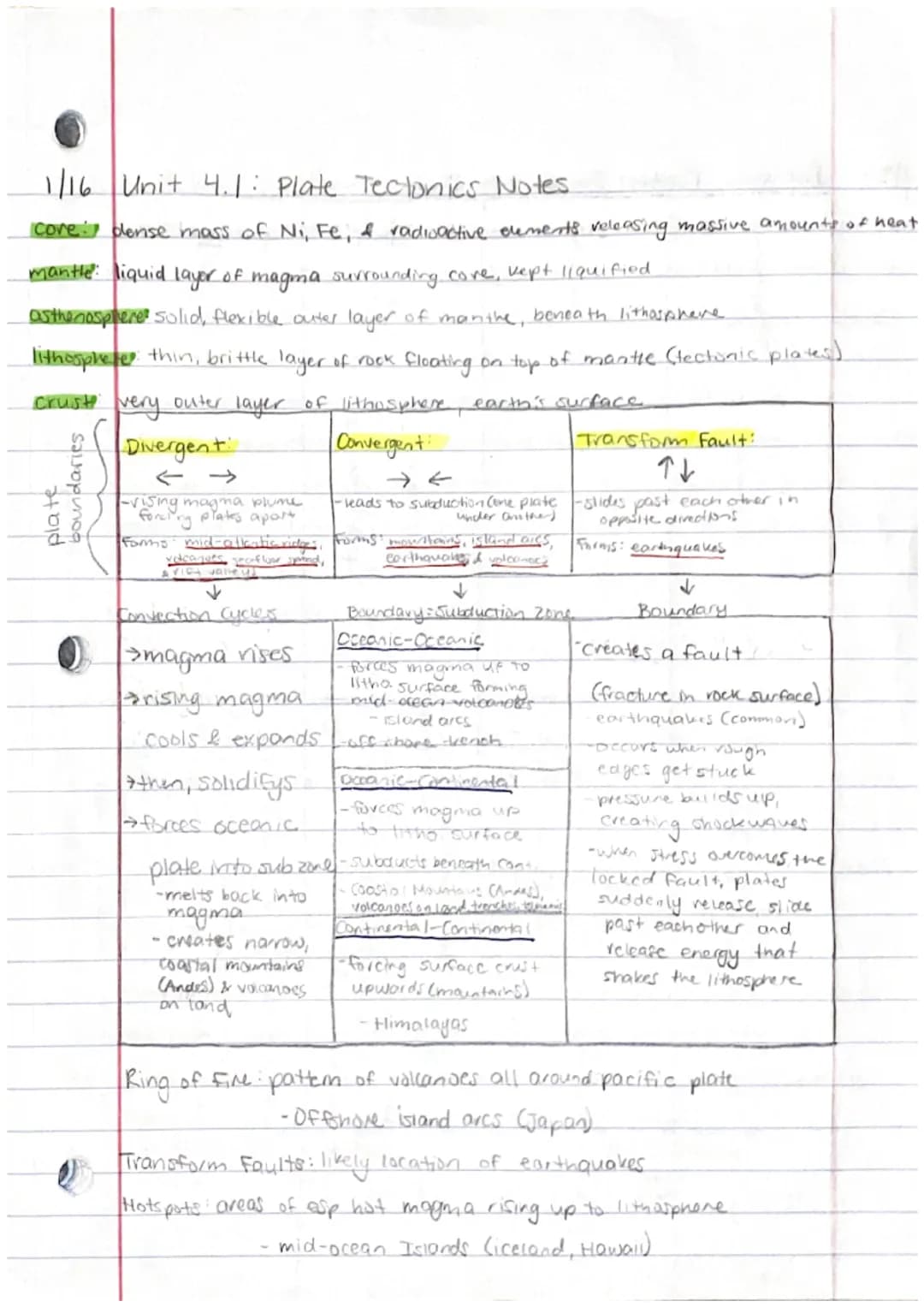

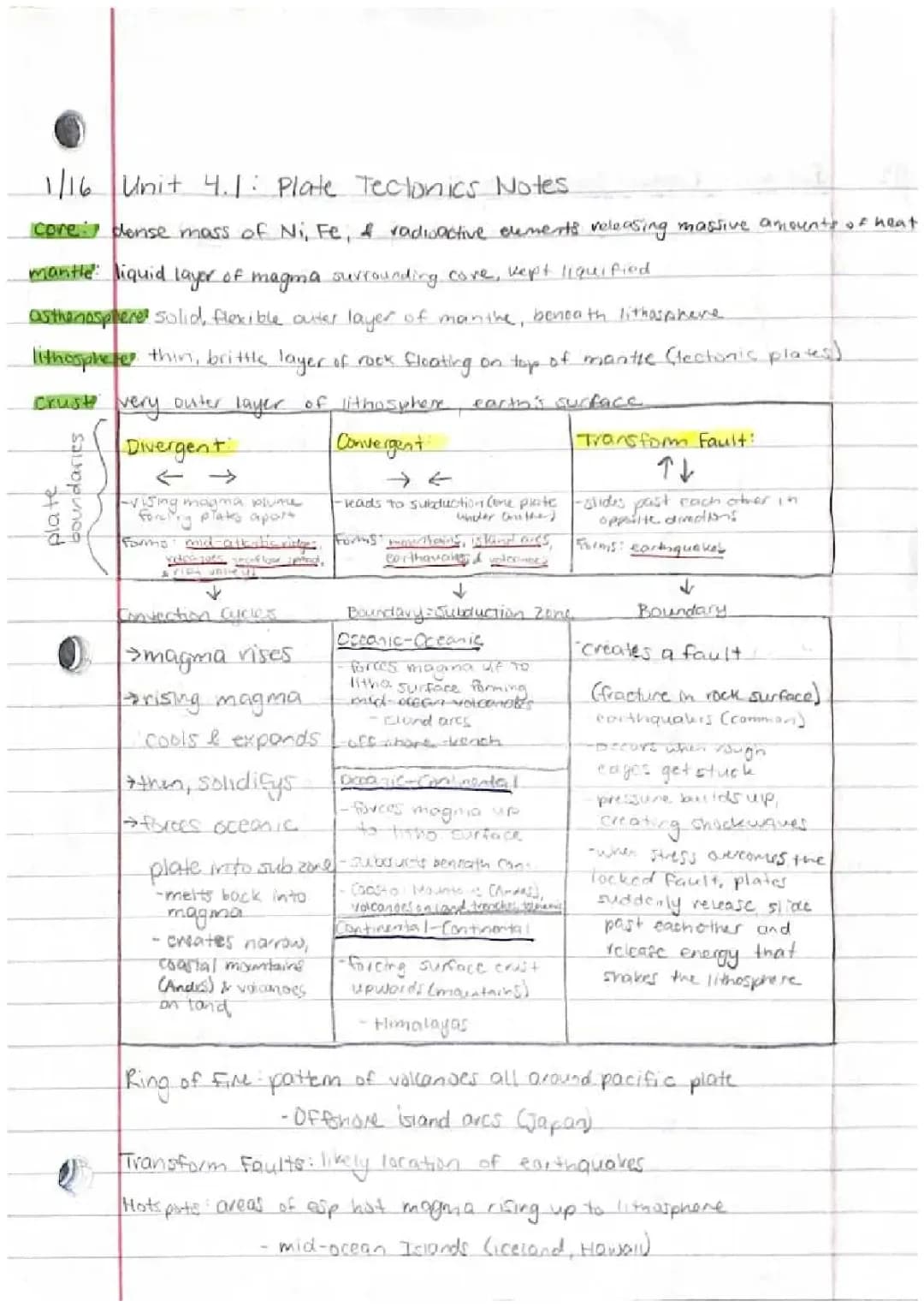

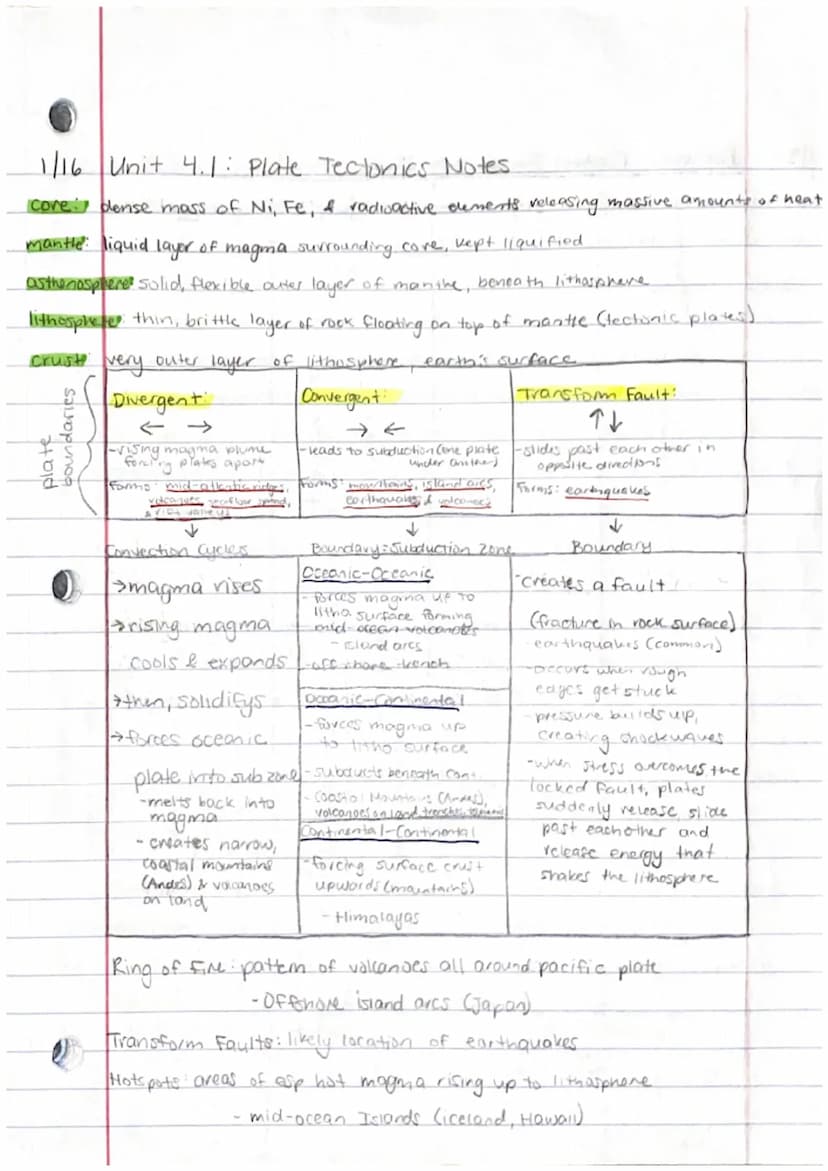

Understanding Earth's Structure and Plate Tectonics

The Earth's internal structure consists of several distinct layers, each playing a crucial role in plate tectonics. At the center lies the core, a dense mass of nitrogen, iron, and radioactive elements that generates immense heat. Surrounding this is the mantle, a liquid layer of magma kept in a fluid state by the core's heat. The asthenosphere, a solid but flexible portion of the mantle, lies beneath the lithosphere. The outermost layer, known as the crust, forms part of the lithosphere where tectonic plates interact.

Tectonic plates move and interact at three main types of boundaries. At divergent boundaries, rising magma forces plates apart, creating mid-Atlantic ridges and seafloor spreading. Convergent boundaries occur when plates collide, leading to subduction and mountain formation. Transform fault boundaries form when plates slide past each other horizontally, often resulting in earthquakes.

The Ring of Fire, a pattern of volcanoes surrounding the Pacific plate, demonstrates the dramatic effects of plate interactions. This region features offshore island arcs like Japan and numerous active volcanoes, showcasing the dynamic nature of Earth's crustal movements.

Definition: The lithosphere is the rigid outer layer of Earth consisting of the crust and upper mantle, broken into tectonic plates that float on the partially molten asthenosphere below.

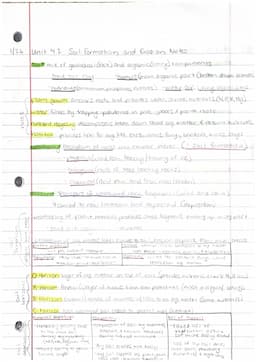

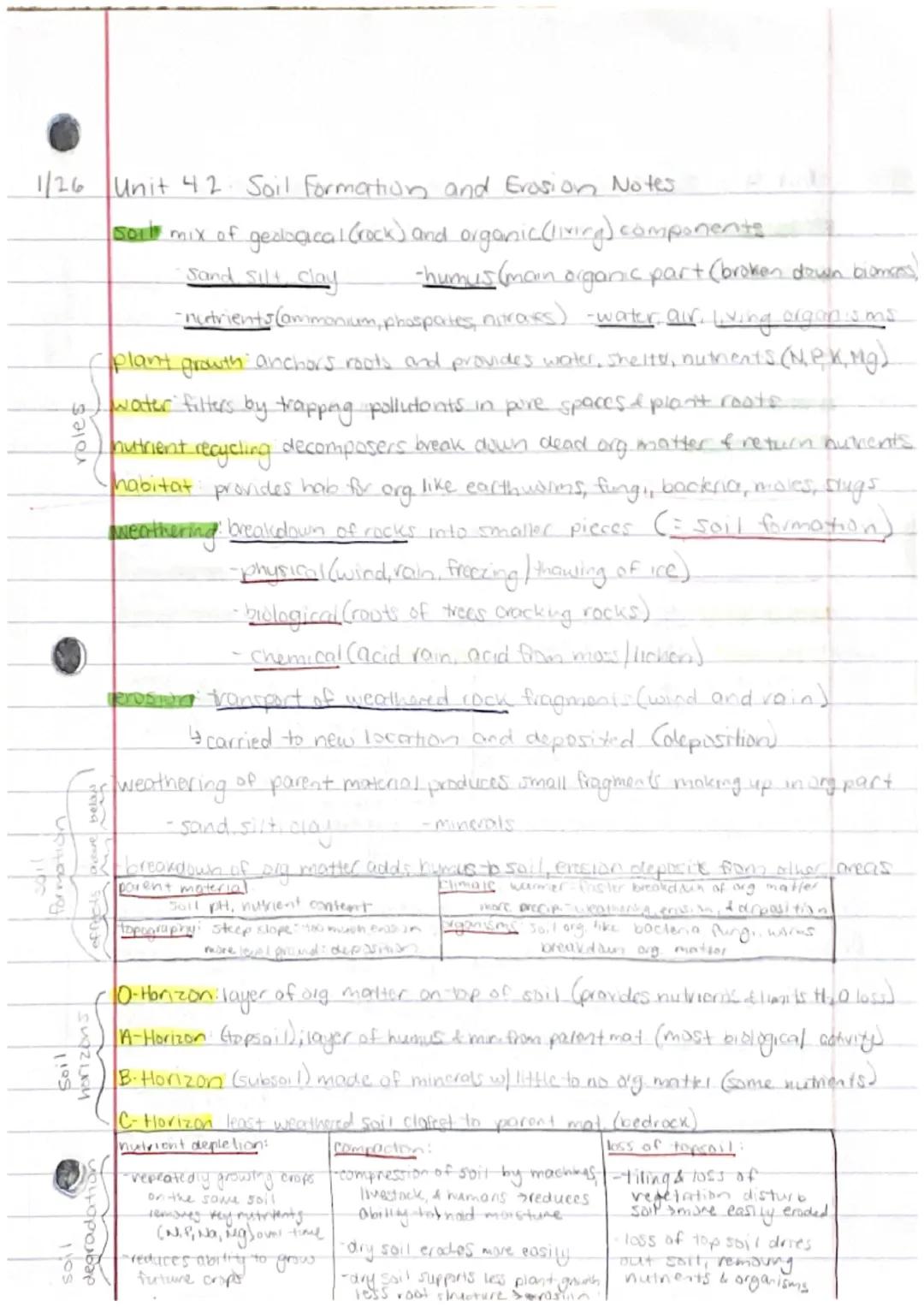

Soil Formation and Erosion Processes

Soil formation and erosion apes notes explain how soil develops through the interaction of geological and organic components. Soil consists of mineral particles (sand, silt, and clay), organic matter (humus), nutrients, water, air, and living organisms. This complex mixture supports essential functions including plant growth, water filtration, and nutrient recycling.

Weathering plays a fundamental role in soil formation through physical, biological, and chemical processes. Physical weathering occurs through wind, rain, and freeze-thaw cycles. Biological weathering happens when organism activity breaks down rocks, while chemical weathering involves reactions with acids and other compounds.

Soil horizons APES describe the distinct layers that develop in mature soils. The O-horizon contains organic matter, the A-horizon (topsoil) contains humus and minerals, the B-horizon (subsoil) consists mainly of minerals, and the C-horizon contains partially weathered parent material.

Vocabulary: Soil horizons are distinct layers that form in mature soils, each with unique characteristics and compositions that develop through weathering and biological processes.

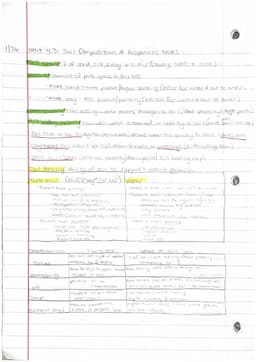

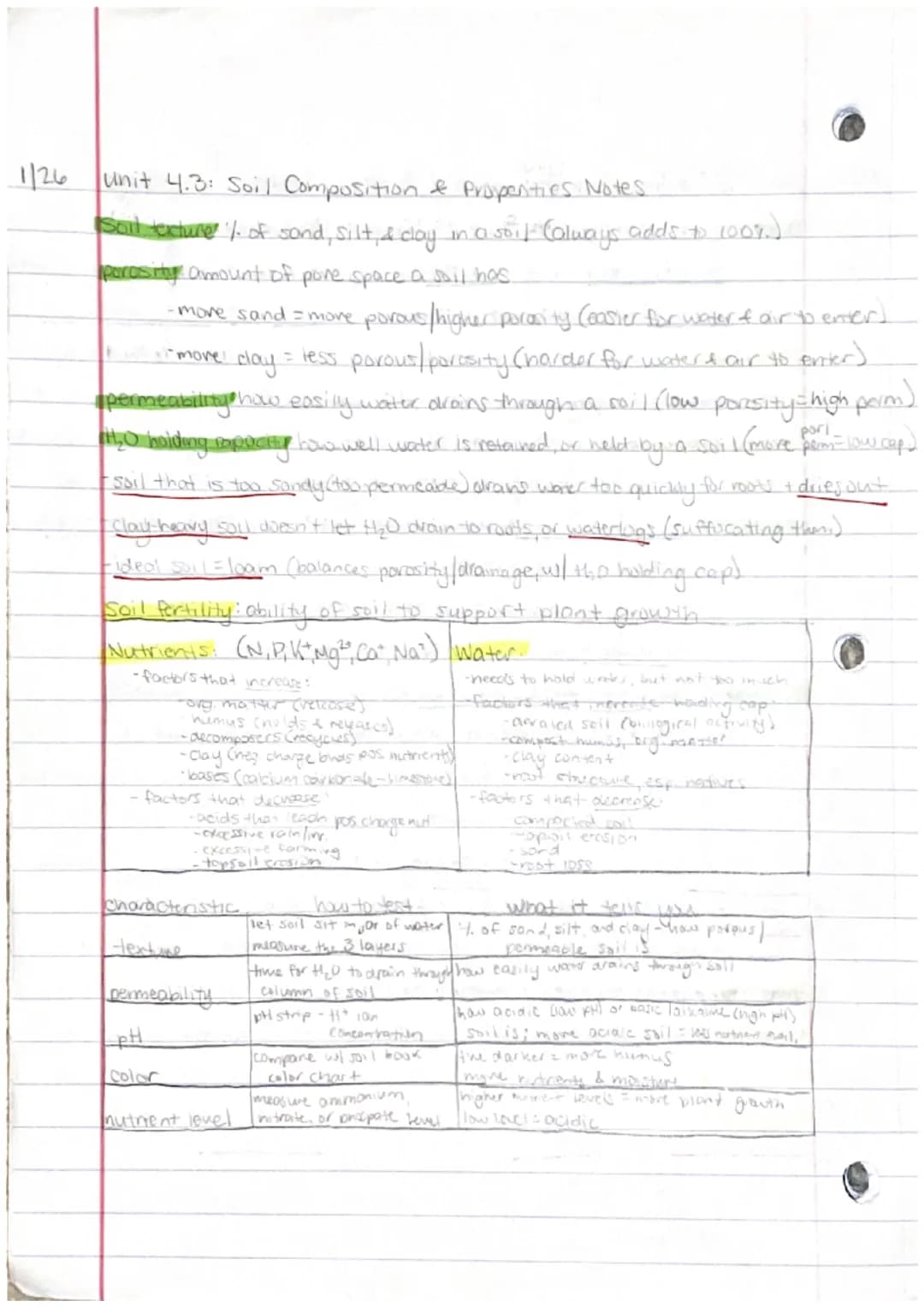

Soil Composition and Properties Analysis

Understanding soil composition and properties is crucial for environmental science. Soil texture refers to the proportion of sand, silt, and clay particles, which determines important characteristics like porosity and permeability. These properties affect how well soil can hold and transmit water, crucial factors for plant growth.

4.3 soil composition and properties examines how soil fertility depends on various factors including nutrient content, organic matter presence, and pH levels. Ideal soil conditions require a balance of these elements to support healthy plant growth and maintain ecosystem functions.

Soil testing helps determine characteristics like texture, permeability, pH, color, and nutrient levels. These measurements provide valuable information about soil health and its ability to support plant life.

Highlight: Loam soil represents the ideal balance between porosity and water-holding capacity, containing optimal proportions of sand, silt, and clay particles.

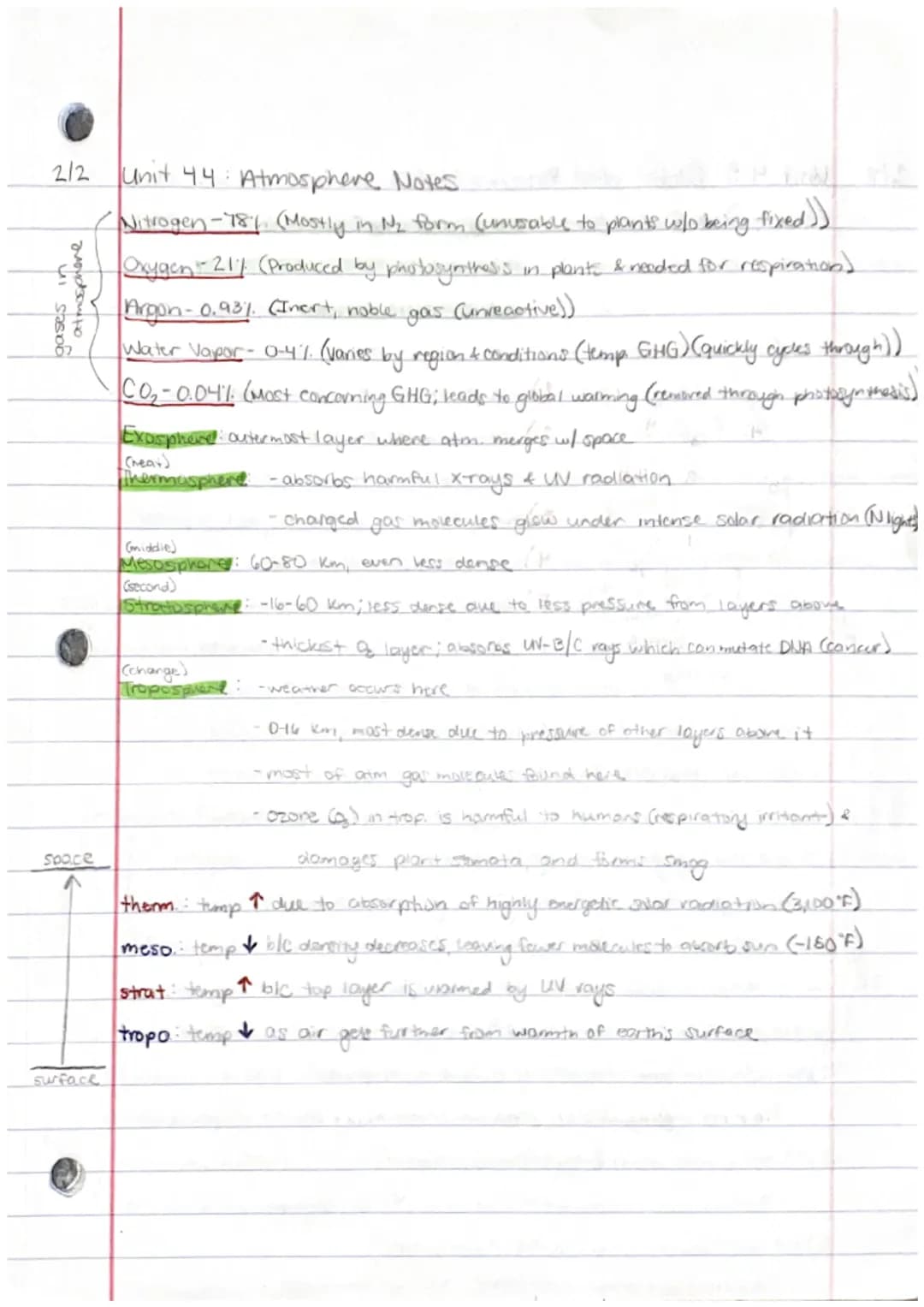

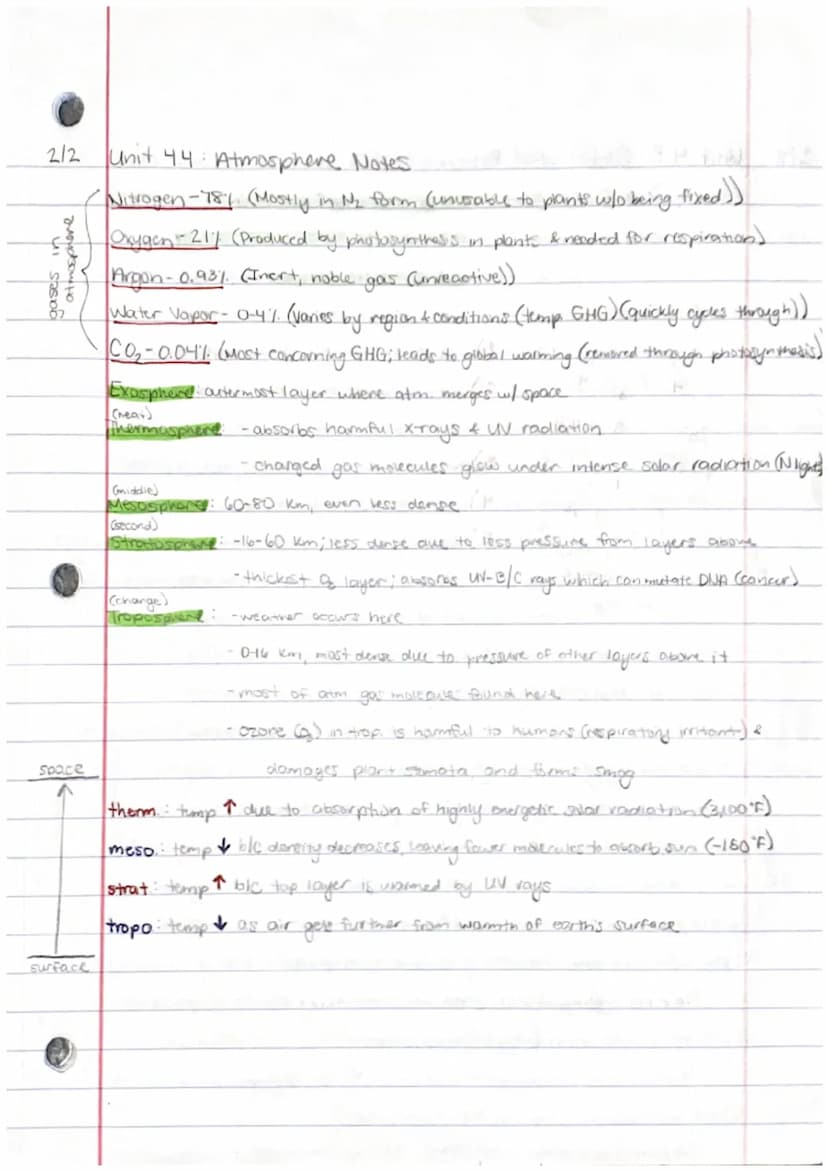

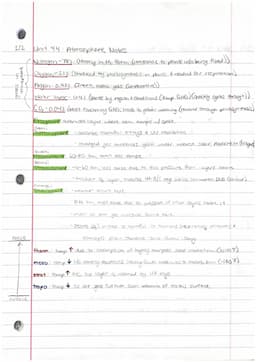

Earth's Atmospheric Layers and Composition

The atmosphere consists of several gases, with nitrogen (78%) and oxygen (21%) being the most abundant. Other components include argon, water vapor, and carbon dioxide, each playing unique roles in Earth's systems.

The atmosphere is structured in distinct layers, each with specific characteristics. The troposphere $0-16 km$ contains most atmospheric gases and is where weather occurs. The stratosphere $16-60 km$ contains the ozone layer, protecting Earth from harmful UV radiation. The mesosphere $60-80 km$ and thermosphere extend further into space.

Temperature variations characterize each atmospheric layer. The troposphere cools with altitude, while the stratosphere warms due to ozone absorption of UV radiation. These temperature patterns influence atmospheric circulation and weather patterns.

Example: The ozone layer in the stratosphere absorbs 97-99% of the sun's high-frequency ultraviolet radiation, protecting life on Earth from harmful effects.

Understanding Global Wind Patterns and Atmospheric Circulation

The movement of air in Earth's atmosphere follows predictable patterns driven by tectonic plates and solar energy. These patterns significantly influence our planet's climate systems and weather conditions.

Air circulation begins at the equator where intense solar heating causes warm air to rise. This rising air creates what's known as the Hadley Cell, a major atmospheric circulation pattern. As warm air rises at the equator, it holds more moisture, leading to frequent precipitation in tropical regions. The air then moves poleward, cooling and descending around 30° north and south latitude, creating major desert regions due to the lack of moisture.

Definition: The Coriolis Effect is the deflection of moving objects caused by Earth's rotation. This effect influences global wind patterns, causing winds to curve right in the Northern Hemisphere and left in the Southern Hemisphere.

The interaction between air properties and Earth's rotation creates distinct wind belts. Trade winds blow from east to west between 0-30° latitude, while westerlies dominate between 30-60° latitude. These wind patterns drive ocean currents and influence weather systems across continents. Understanding these patterns is crucial for weathering processes and climate prediction.

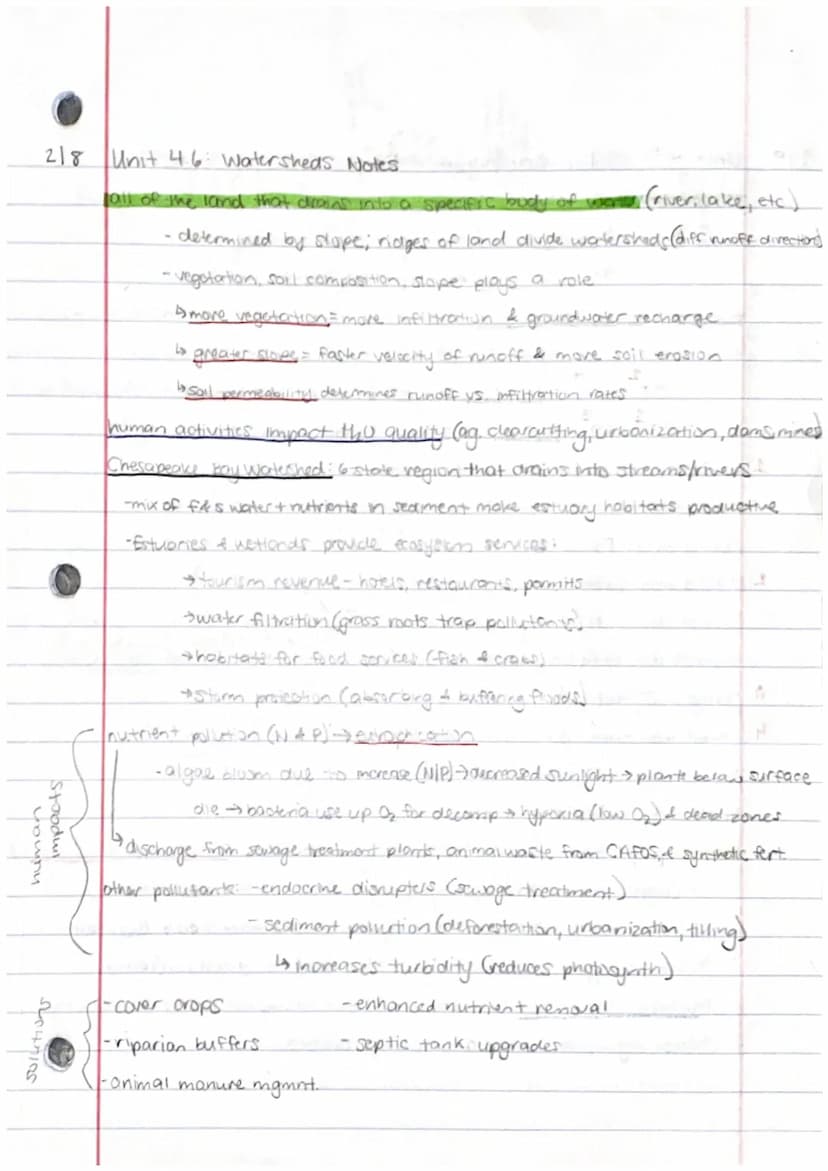

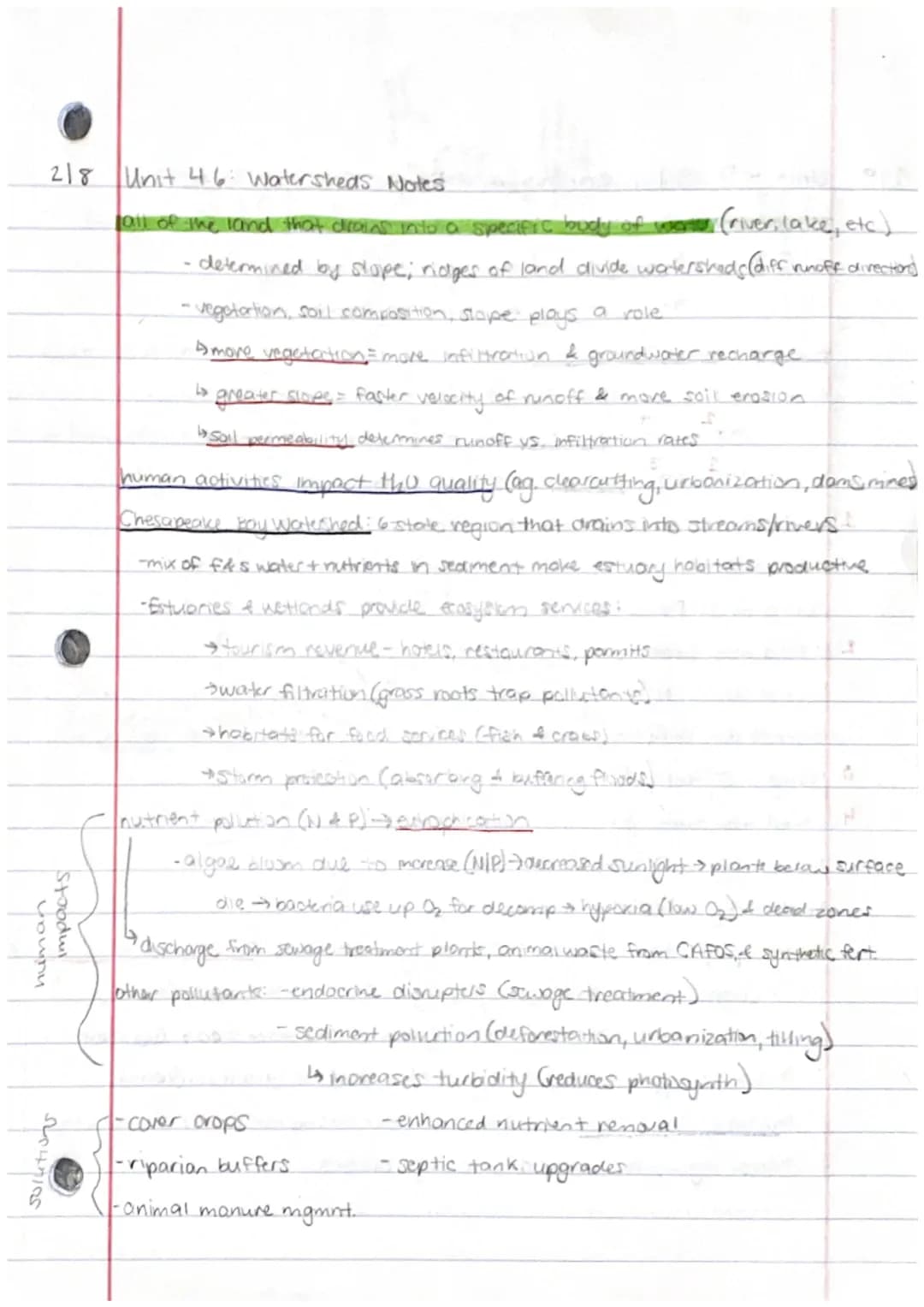

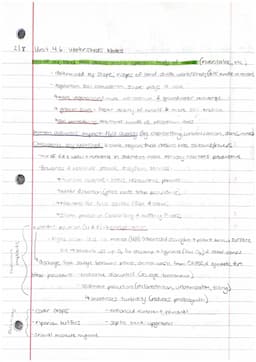

Watersheds and Water Quality Management

A watershed encompasses all land areas that drain into a specific body of water, making them crucial components of soil composition and properties. The characteristics of watersheds are determined by several factors including slope, vegetation coverage, and soil composition.

Highlight: Vegetation plays a critical role in watershed health by increasing water infiltration and groundwater recharge, while steeper slopes accelerate runoff and increase soil erosion.

The Chesapeake Bay Watershed serves as a prime example of a complex watershed system, spanning six states and combining fresh and salt water ecosystems. These estuarine environments provide vital ecosystem services including water filtration, habitat provision, and storm protection. However, human activities significantly impact watershed health through nutrient pollution, sediment loading, and chemical contamination.

Management solutions include enhanced nutrient removal systems, riparian buffer zones, and improved agricultural practices to protect soil horizons APES and water quality.

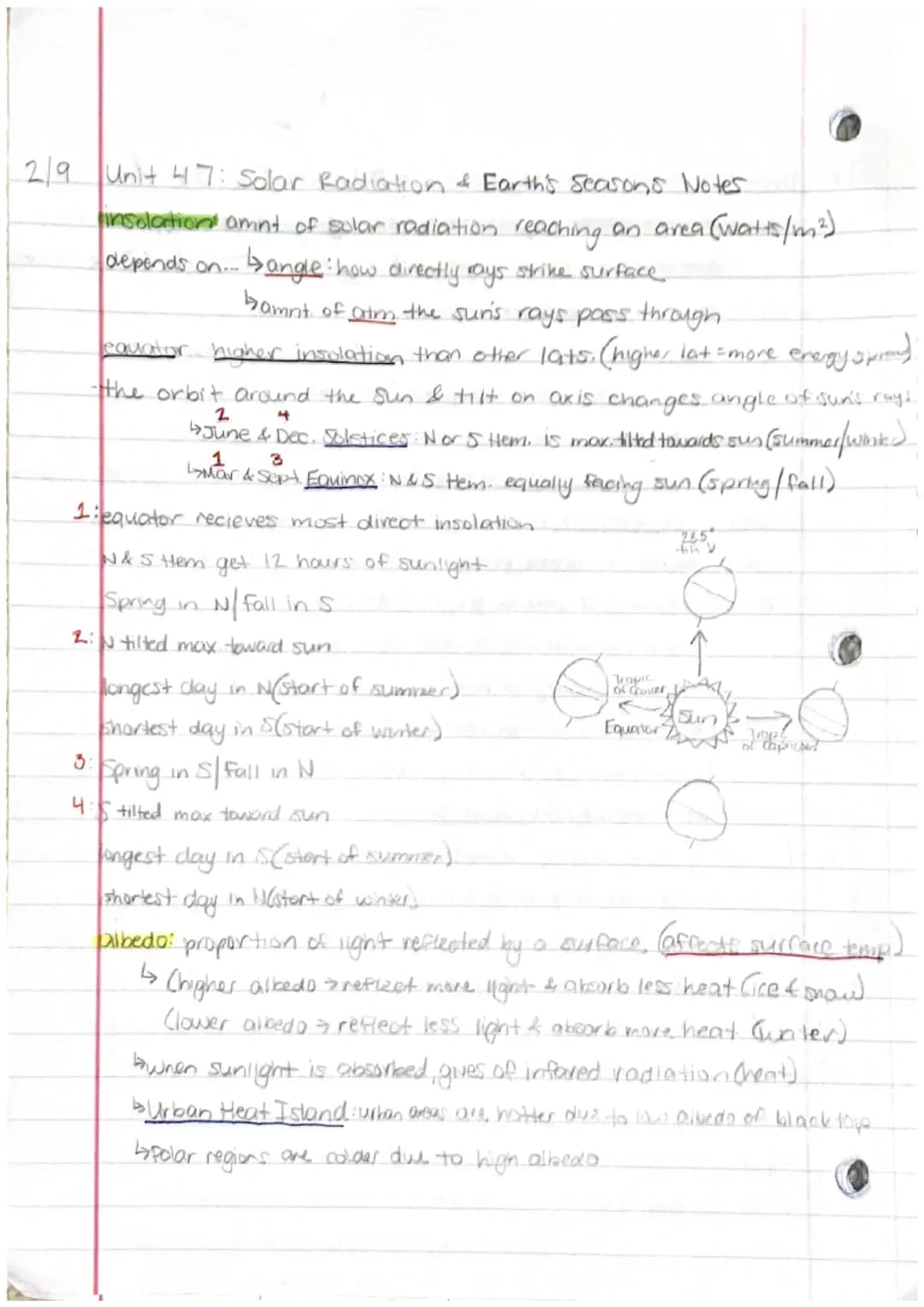

Solar Radiation and Earth's Seasonal Changes

Understanding solar radiation patterns is essential for comprehending Earth's seasonal changes and climate systems. Insolation, the amount of solar radiation reaching Earth's surface, varies with latitude and atmospheric conditions.

Vocabulary: Albedo refers to the proportion of light reflected by a surface, significantly affecting local and global temperatures. High albedo surfaces like ice reflect more light, while low albedo surfaces like water absorb more heat.

The Earth's 23.5° tilt on its axis creates seasonal variations as it orbits the sun. During solstices, either the Northern or Southern Hemisphere is maximally tilted toward the sun, creating summer conditions in one hemisphere and winter in the other. Equinoxes occur when both hemispheres receive equal solar radiation, resulting in spring and fall seasons.

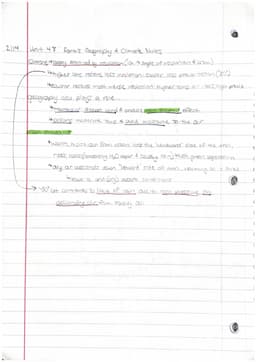

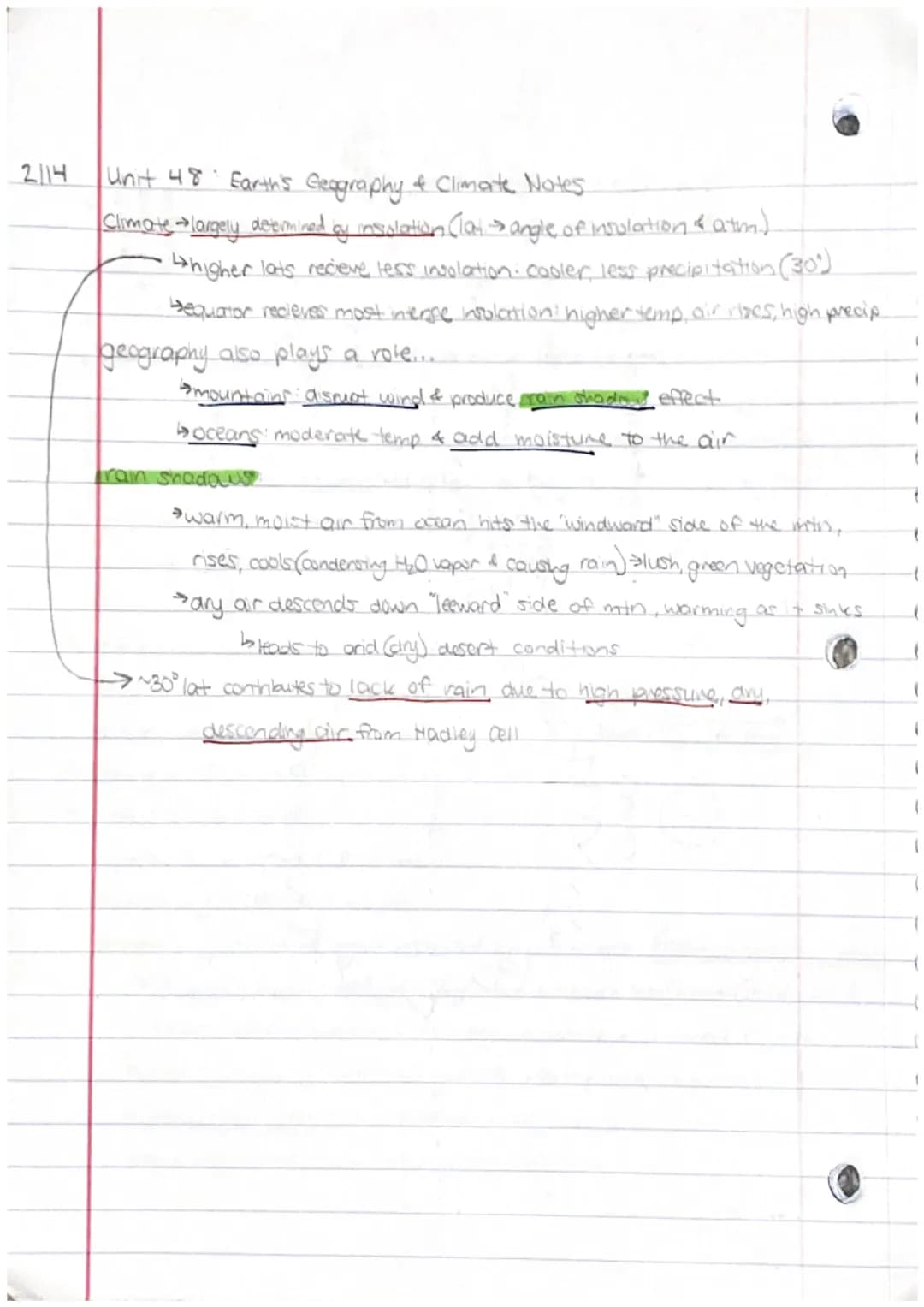

Geographic Influences on Climate Patterns

Earth's geography plays a fundamental role in shaping regional climates through its interaction with atmospheric circulation patterns. Mountains, oceans, and latitude all contribute to local and regional climate characteristics.

Example: Rain shadow effects occur when mountains block moisture-laden air, creating wet conditions on windward slopes and arid conditions on leeward sides. This process demonstrates how soil formation and erosion patterns are influenced by geographic features.

Latitude significantly influences climate through variations in solar radiation intensity. Equatorial regions receive more direct sunlight, resulting in warmer temperatures and higher precipitation. Higher latitudes experience less intense solar radiation, leading to cooler temperatures and different precipitation patterns.

Ocean currents moderate coastal temperatures and influence moisture availability, while mountain ranges can disrupt wind patterns and create distinct microclimates. These geographic features work together with atmospheric circulation to create Earth's diverse climate zones.

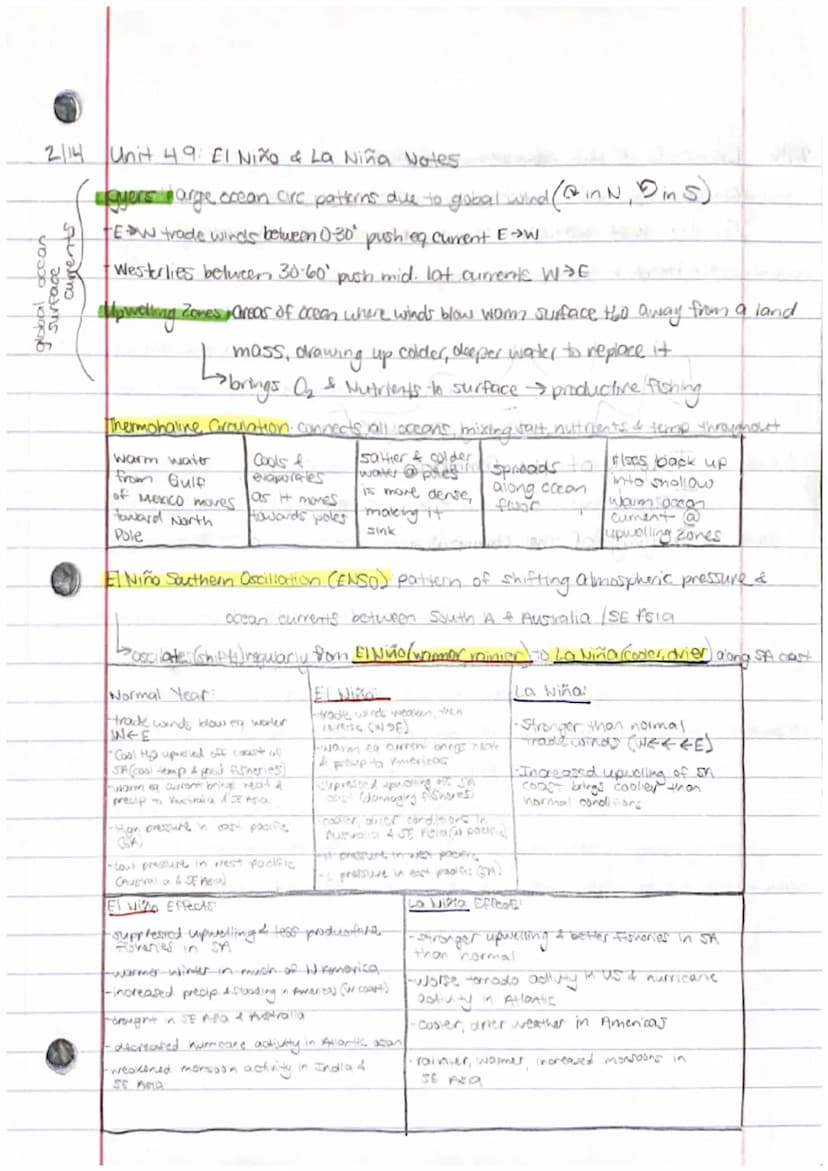

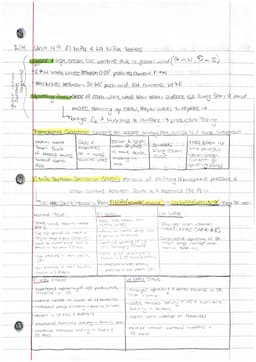

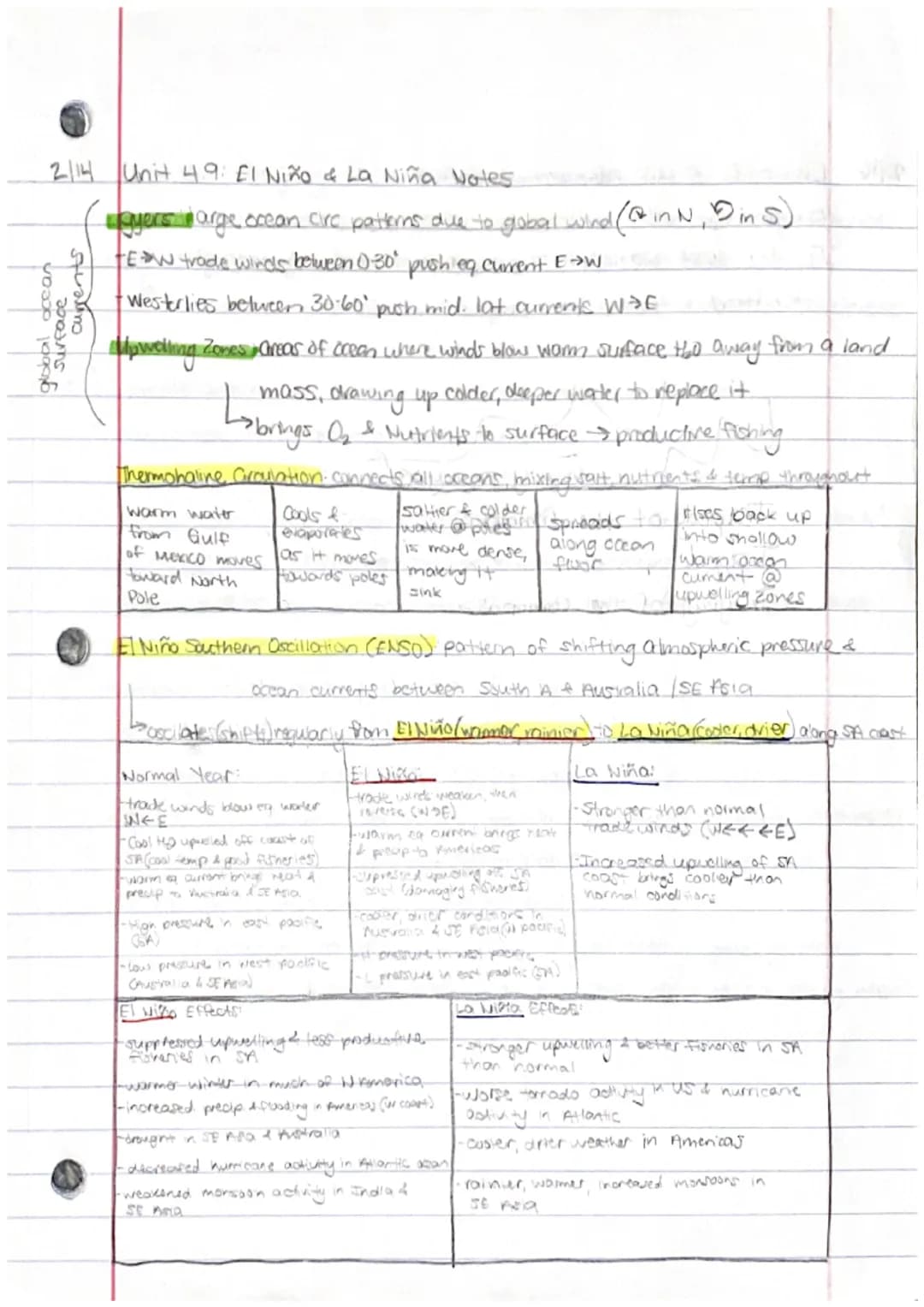

Understanding Ocean Circulation and Climate Patterns

The Earth's oceans play a crucial role in global climate regulation through complex circulation patterns driven by tectonic plates and wind systems. These patterns form part of the larger system that affects weathering and climate worldwide.

The global ocean circulation is primarily influenced by trade winds between 0-30 degrees latitude, pushing equatorial currents from east to west, while westerlies between 30-60 degrees drive mid-latitude currents in the opposite direction. This creates a dynamic system of upwelling zones, where winds draw deeper, colder water to the surface, bringing vital nutrients and oxygen that support productive fishing grounds.

Definition: Thermohaline Circulation is the global ocean conveyor belt that connects all oceans, mixing salt, nutrients, and temperature throughout the water column. This process begins with warm water from the Gulf of Mexico flowing northward, cooling and becoming denser as it approaches the poles, then sinking and spreading along the ocean floor.

The El Niño Southern Oscillation (ENSO) represents a significant pattern of shifting atmospheric pressure and ocean currents between South America and Australia/Southeast Asia. This cycle alternates between El Niño (warmer, rainier) and La Niña (cooler, drier) conditions along the South American coast.

El Niño and La Niña: Climate Pattern Effects

During normal years, strong trade winds blow westward across the Pacific, maintaining cool water temperatures off South America's coast through upwelling. This creates ideal conditions for fisheries and establishes a typical precipitation pattern with high pressure in the eastern Pacific and low pressure in the western Pacific.

Highlight: El Niño occurs when trade winds weaken, allowing warm water to flow eastward toward South America. This disrupts normal upwelling patterns and causes:

• Suppressed productivity in South American fisheries
• Increased precipitation and flooding in the Americas
• More severe tornado activity in the United States
• Enhanced hurricane activity in the Atlantic

La Niña represents the opposite phase, characterized by stronger than normal trade winds and increased upwelling off South America's coast. This creates cooler than normal conditions and results in:

• Decreased hurricane activity in the Atlantic
• Weakened monsoon activity in India and Southeast Asia
• Enhanced fishery conditions off South America
• Colder, drier weather patterns across the Americas

These climate patterns significantly influence global weather systems, affecting everything from agricultural productivity to natural disaster frequency, demonstrating the interconnected nature of Earth's oceanic and atmospheric systems.
