Weather Measuring Instruments: A Simple Guide
1 / 8
Measuring Weather Basics
Weather measurement is all about collecting accurate data so meteorologists can create reliable forecasts. Whether it's farmers planning their harvests or you deciding what to wear to school, weather forecasts affect everyone's daily decisions.

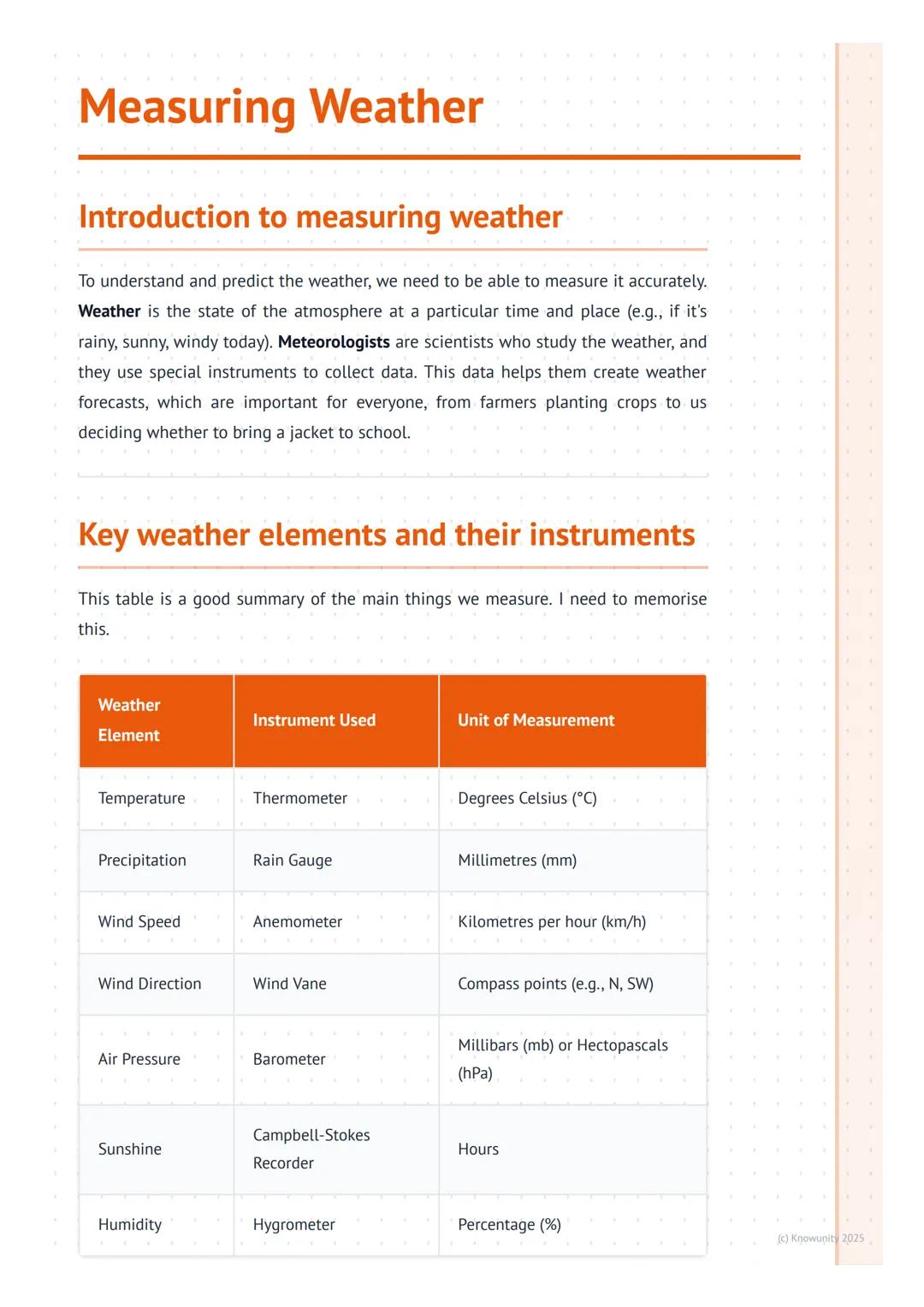

There are seven main weather elements that scientists measure regularly. Each one requires a specific instrument and has its own unit of measurement. The most important ones you need to know are temperature (measured in °C with a thermometer), precipitation (measured in mm with a rain gauge), and air pressure (measured in millibars with a barometer).
Wind is measured in two ways: wind speed using an anemometer and wind direction using a wind vane (compass points). Scientists also track sunshine hours with a Campbell-Stokes recorder and humidity levels with a hygrometer.
Quick Tip: Create flashcards linking each weather element to its instrument and unit - this is exactly what examiners love to test!
Temperature and Precipitation Instruments

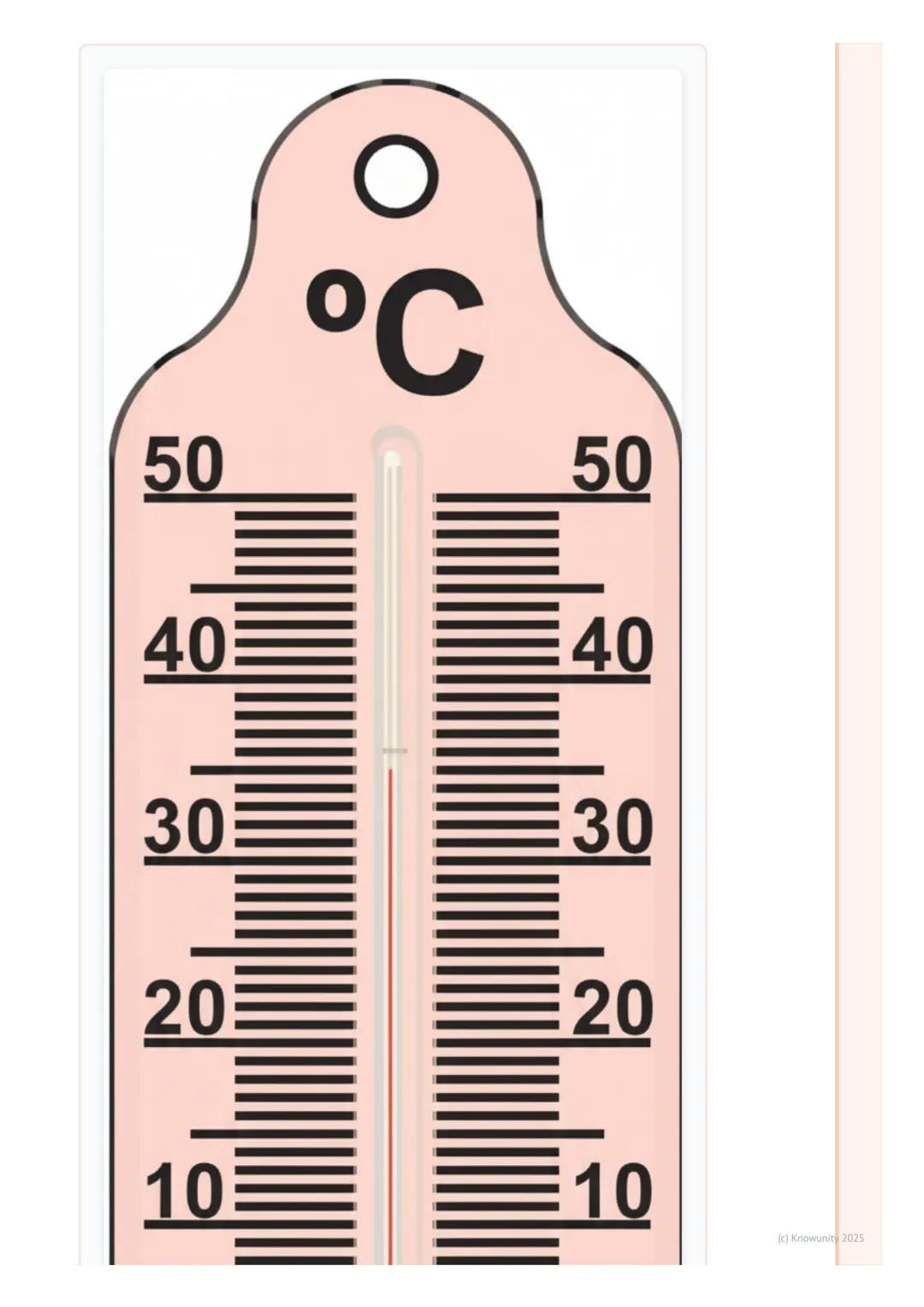

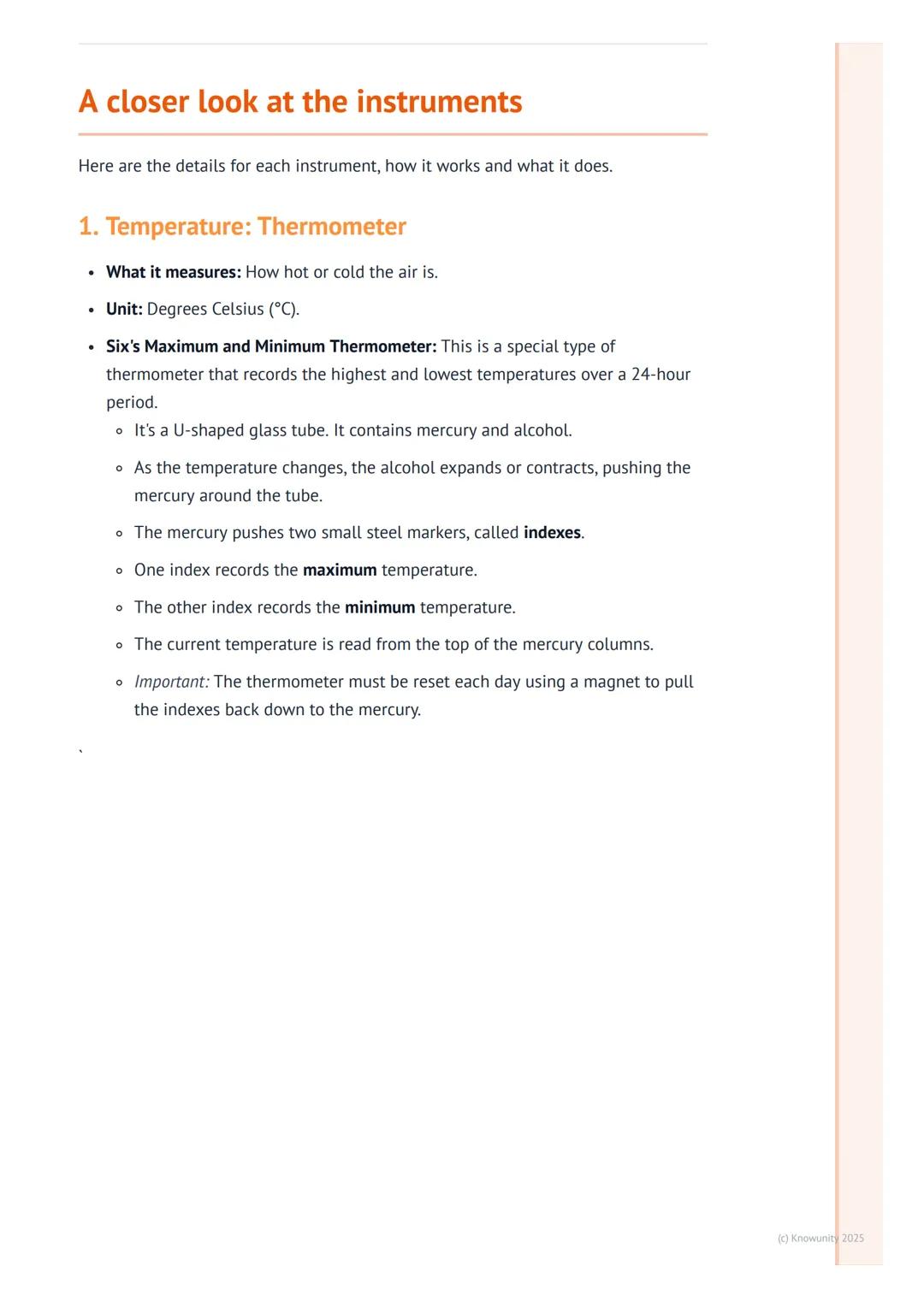

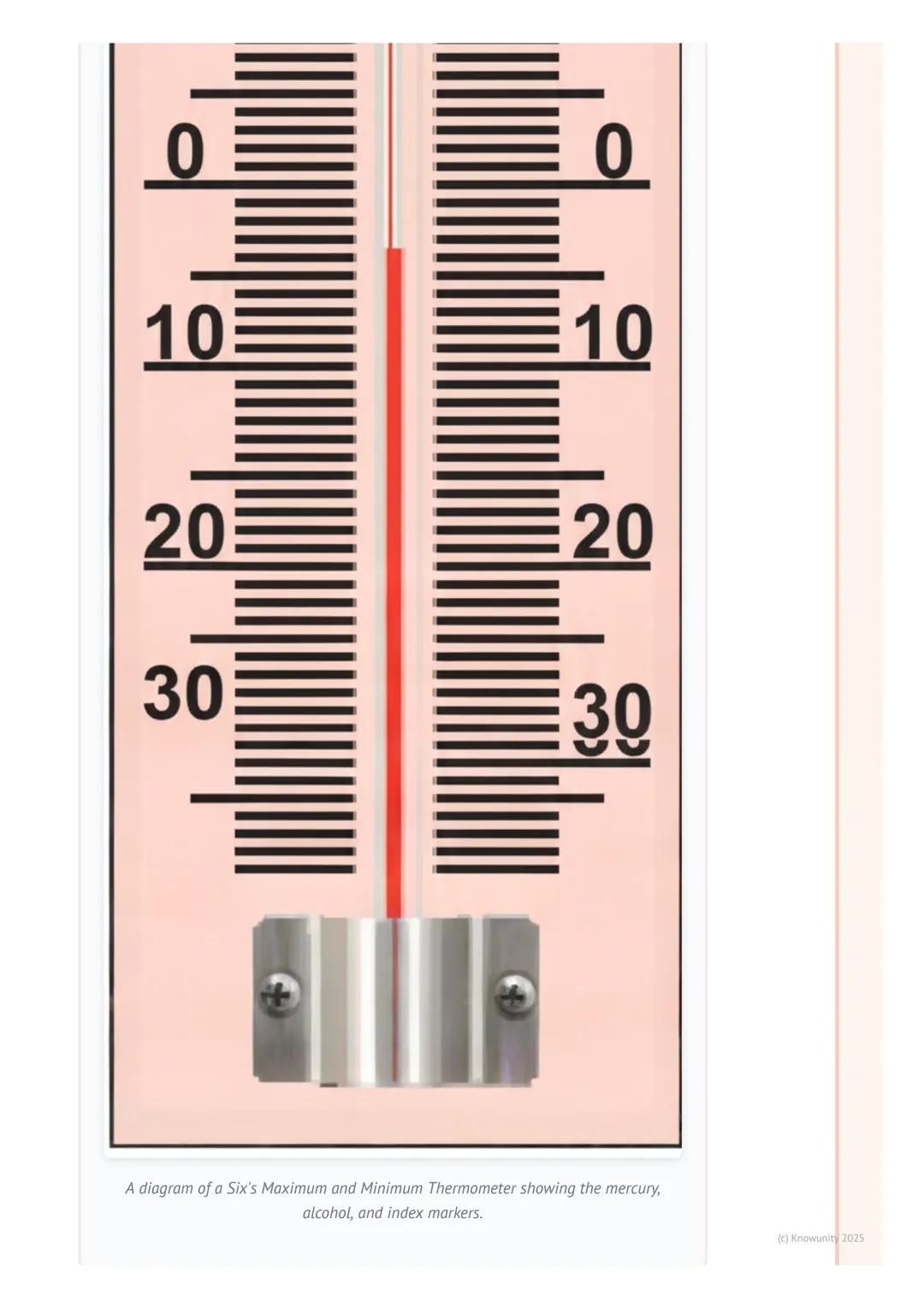

The Six's Maximum and Minimum Thermometer is your best friend for understanding temperature measurement. This clever U-shaped device contains mercury and alcohol, with two small steel markers called indexes that track the highest and lowest temperatures over 24 hours.
Here's how it works: as temperature changes, the alcohol expands or contracts, pushing mercury around the tube. The mercury moves the indexes, which stay in place to record the maximum and minimum temperatures. You read the current temperature from the top of the mercury columns, and the thermometer must be reset daily using a magnet.

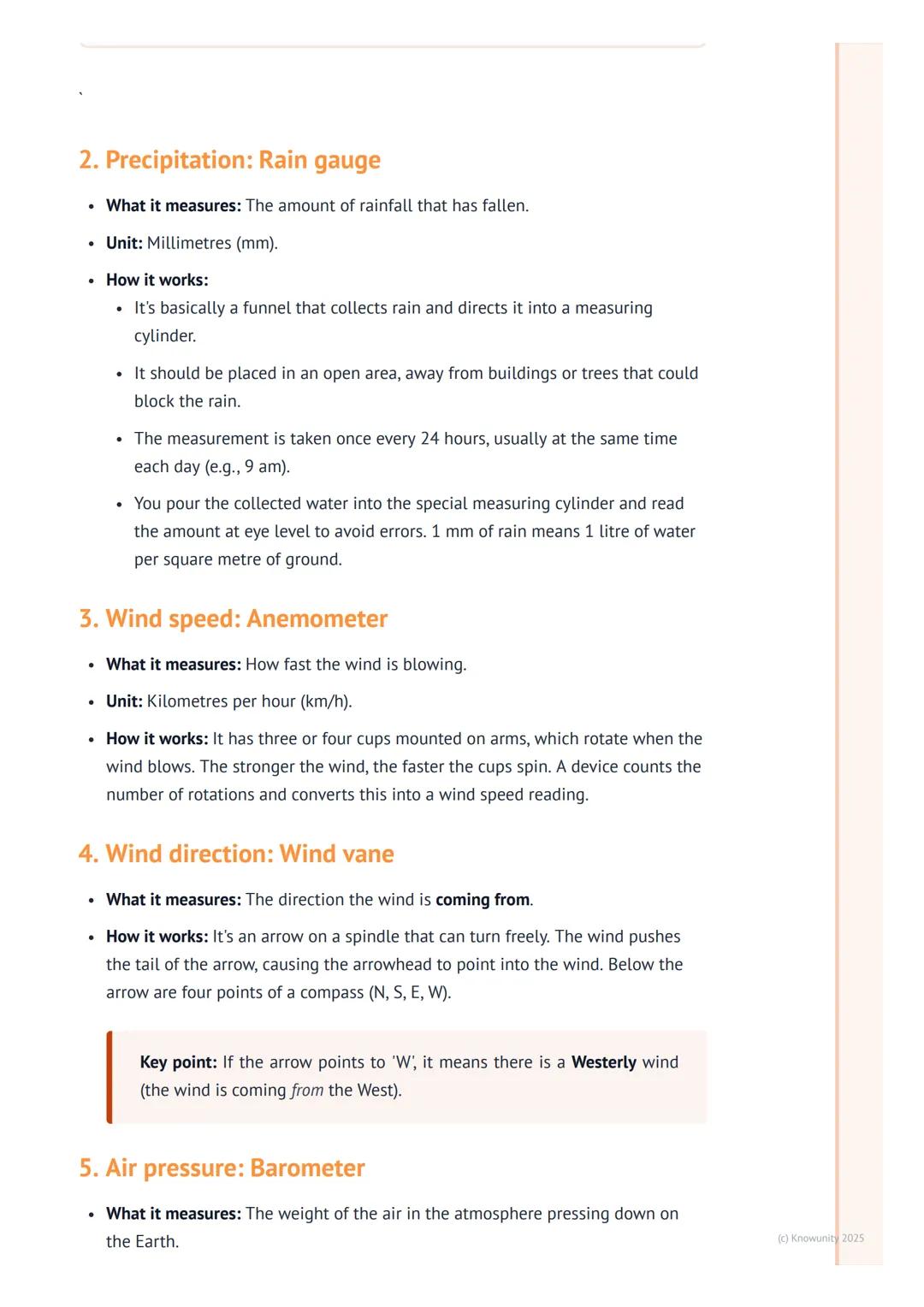

Rain gauges are brilliantly simple - they're basically funnels that collect rainwater into a measuring cylinder. The key is placing them in open areas away from buildings or trees that might block rainfall. Measurements are taken at the same time each day (usually 9 am), and you read the water level at eye level to avoid errors.
Remember: 1 mm of rainfall means 1 litre of water fell on every square metre of ground - that's quite a lot when you think about it!
Wind and Air Pressure Measurement
Anemometers measure wind speed using three or four cups mounted on rotating arms. The faster the wind blows, the quicker the cups spin, and a counter converts these rotations into kilometres per hour. Wind vanes are even simpler - they're arrows that point into the wind to show direction.
Here's a crucial point that trips up many students: if a wind vane points west, you have a westerly wind coming FROM the west, not blowing towards it. This distinction is vital for exam success.

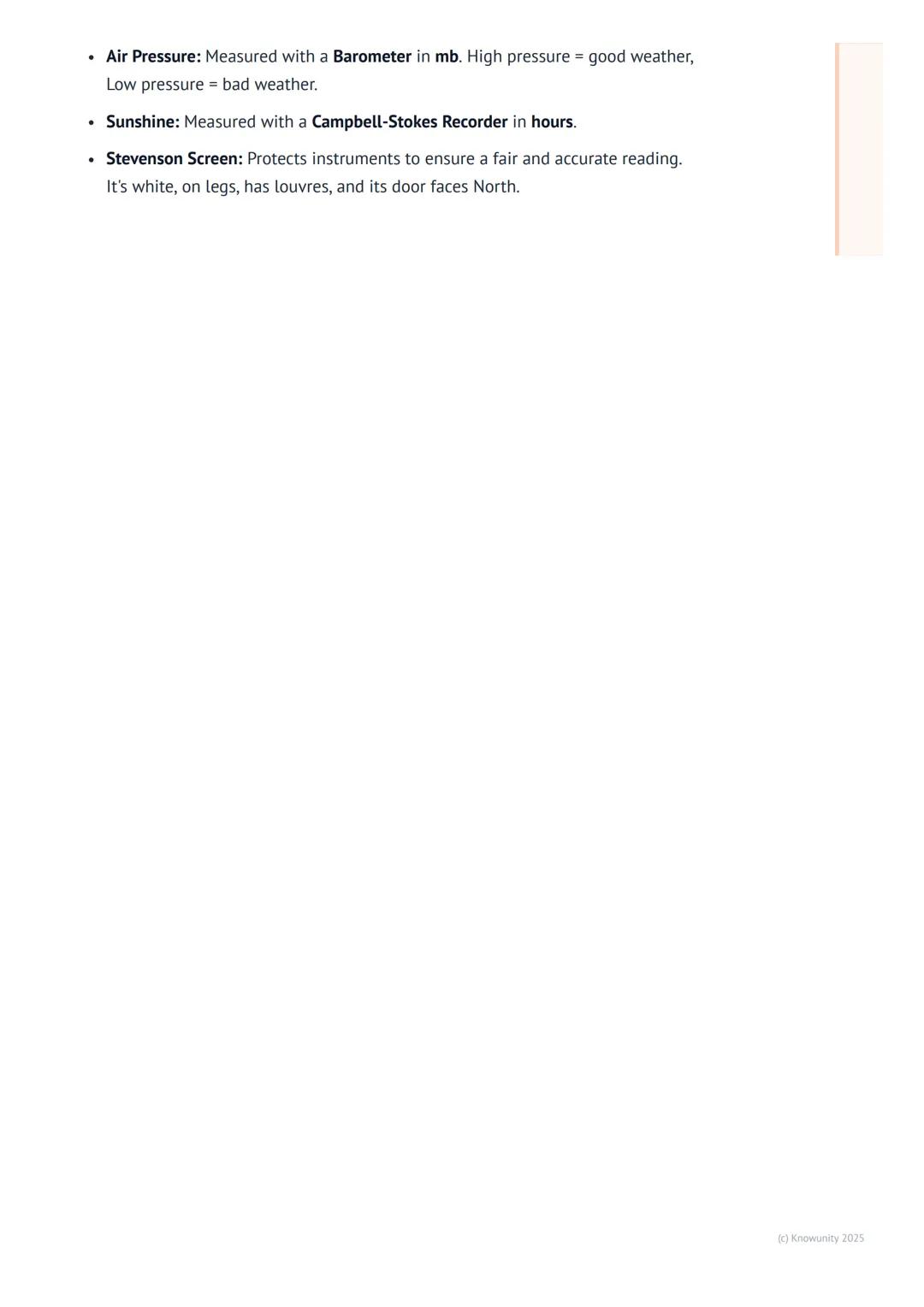

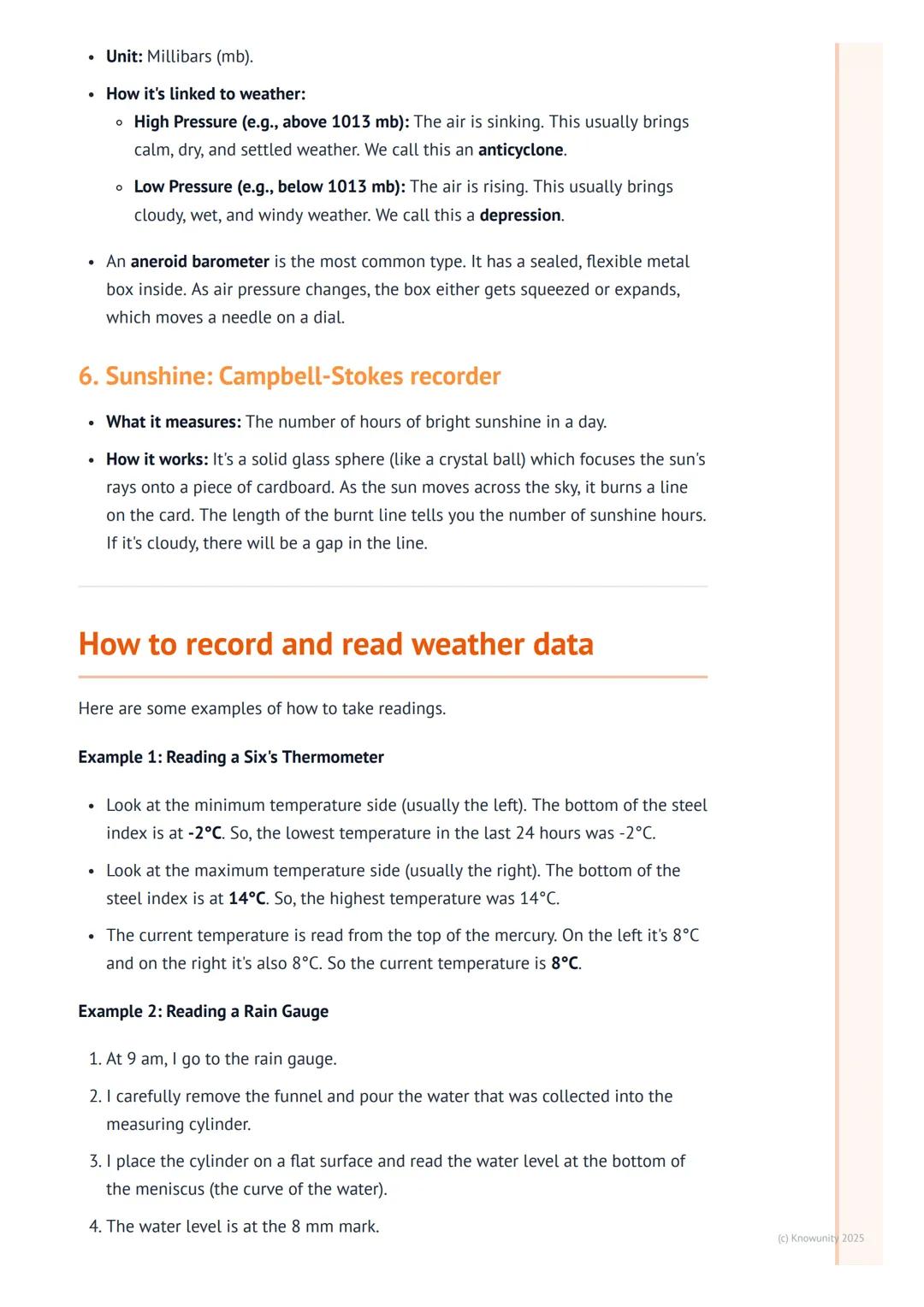

Barometers measure air pressure and are fantastic weather predictors. High pressure (above 1013 mb) usually means calm, dry weather because air is sinking - we call this an anticyclone. Low pressure (below 1013 mb) typically brings cloudy, wet, windy conditions because air is rising - this is called a depression.
Exam Gold: High pressure = happy weather, Low pressure = lousy weather. This simple rule will help you interpret barometer readings instantly!
The Stevenson Screen and Data Recording

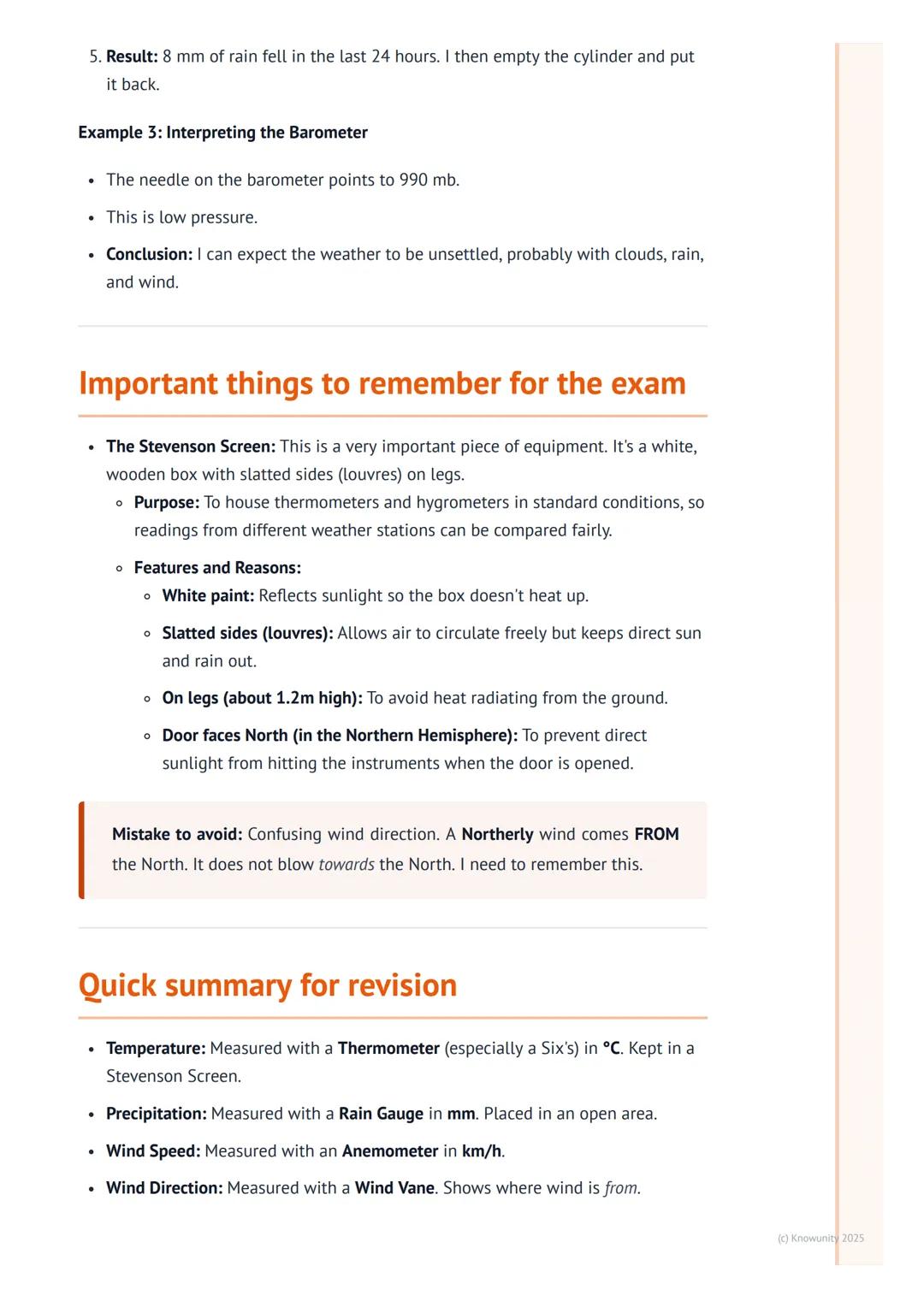

The Stevenson Screen is absolutely crucial for accurate weather measurement. This white wooden box with slatted sides (called louvres) houses thermometers and hygrometers in standardised conditions, ensuring readings from different weather stations can be fairly compared.
Every feature has a purpose: the white paint reflects sunlight to prevent overheating, the louvres allow air circulation whilst blocking direct sun and rain, and the legs (about 1.2m high) avoid ground heat interference. The door faces north to prevent direct sunlight hitting instruments when opened for readings.
When taking readings, accuracy is everything. For rain gauges, pour collected water into the measuring cylinder and read at the bottom of the meniscus (water's curved surface). For Six's thermometers, read minimum and maximum temperatures from the bottom of the steel indexes, and current temperature from the mercury tops.
The Campbell-Stokes recorder uses a glass sphere to focus sunlight onto cardboard, burning a line that shows sunshine hours. Gaps in the burnt line indicate cloudy periods - it's like having a solar-powered weather diary!
Pro Tip: Practice reading instrument diagrams regularly - examiners often include them in questions, and understanding how to interpret readings is worth serious marks!
