Understanding Geometry Section 3.3

Identifying Parallel Lines with Angle Relationships

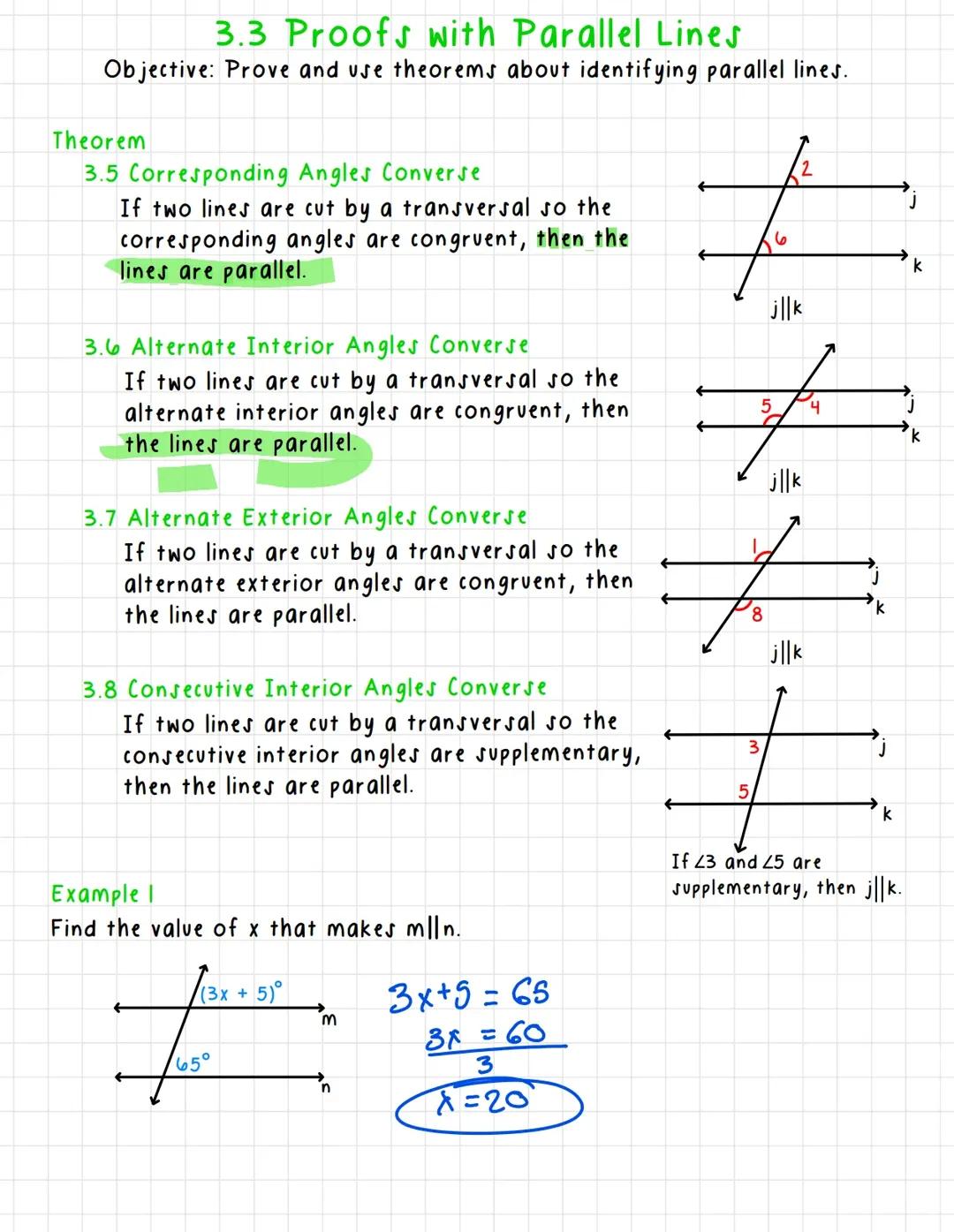

When two lines are cut by a transversal (a line that crosses them), special angle pairs form that can prove the lines are parallel. Four key theorems help us determine when lines are parallel:

• Corresponding Angles Converse: If corresponding angles are congruent, the lines are parallel
• Alternate Interior Angles Converse: If alternate interior angles are congruent, the lines are parallel
• Alternate Exterior Angles Converse: If alternate exterior angles are congruent, the lines are parallel
• Consecutive Interior Angles Converse: If consecutive interior angles are supplementary (sum to 180°), the lines are parallel

For example, if we have lines with angle measures of $3x + 5$° and 65°, we can determine the value of x that makes the lines parallel by setting up an equation: 3x + 5 = 65. Solving gives us x = 20.

💡 Remember that "converse" means we're starting with the angle relationship and concluding the lines are parallel, which is opposite of what we learned earlier about parallel lines creating these angle relationships.

Proving Lines are Parallel

When solving parallel line problems, we often need to find unknown values. For instance, if we have angles measuring 140° and $2x - 4$°, we can set up the equation: 140 = 2x - 4. Solving gives us x = 72, which is the value that makes the lines parallel.

We can also use formal proofs to show lines are parallel. For example, to prove that congruent alternate interior angles make lines parallel, we can use a series of logical steps:

1. Start with the given information (∠4 ≅ ∠5)
2. Apply vertical angles congruence (∠4 ≅ ∠1)
3. Use the transitive property to show ∠1 ≅ ∠5
4. Apply the corresponding angles converse to conclude the lines are parallel

Sometimes we need to combine different angle relationships. If we know r ∥ s and ∠1 ≅ ∠3, we can prove p ∥ q by showing that ∠2 ≅ ∠3 (alternate interior angles), which means the lines must be parallel.

🔑 When approaching parallel line proofs, look for ways to connect what you know to what you need to prove using angle relationships and properties of congruence.

The Transitive Property of Parallel Lines

The Transitive Property of Parallel Lines states that if two lines are parallel to the same line, then they are parallel to each other. This is written formally as: If p ∥ q and q ∥ r, then p ∥ r.

This property has many real-world applications. For example, consider the flag of Puerto Rico with its five alternating red and white stripes. Each stripe is parallel to the one immediately below it. We can use the transitive property to explain why the top stripe is parallel to the bottom stripe.

Starting with what we know: s₁ ∥ s₂, s₂ ∥ s₃, s₃ ∥ s₄, and s₄ ∥ s₅. We can apply the transitive property step by step: s₁ ∥ s₂ and s₂ ∥ s₃ means s₁ ∥ s₃. Then s₁ ∥ s₃ and s₃ ∥ s₄ means s₁ ∥ s₄. Finally, s₁ ∥ s₄ and s₄ ∥ s₅ means s₁ ∥ s₅.

🌟 The transitive property of parallel lines helps us understand why parallel structures remain parallel throughout—whether in architecture, design, or even lined paper!
