Understanding Circles: Area, Circumference, and Key Concepts

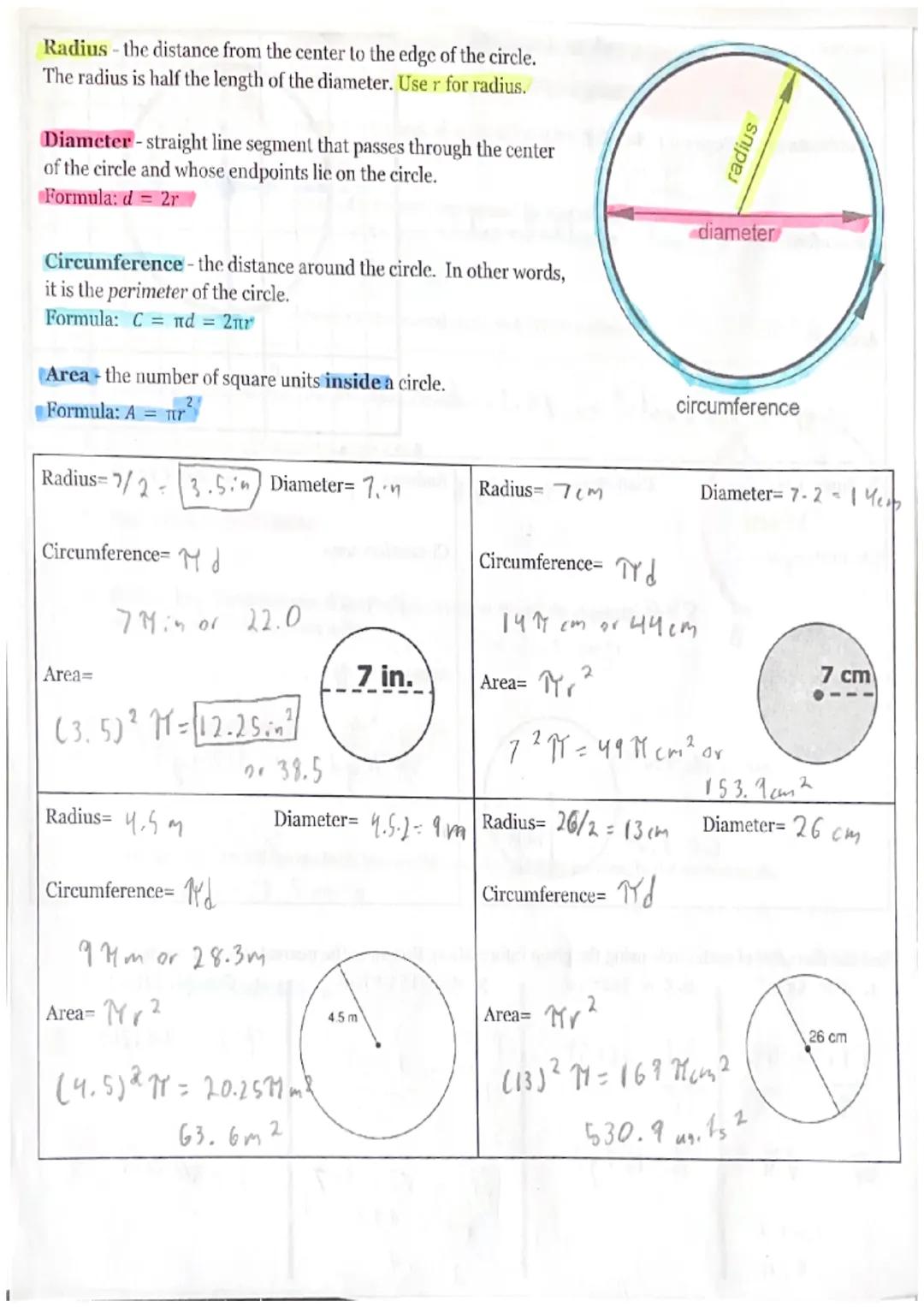

Circle Basics: Radius, Diameter, Circumference and Area

Every circle has key measurements that help us describe it. The radius is the distance from the center to any point on the circle's edge. The diameter is twice the radius $d = 2r$ and stretches across the circle through its center.

The circumference is the distance around the entire circle (like the perimeter). You can find it using either formula: C = πd or C = 2πr. The area is the space inside the circle, calculated with A = πr².

Let's see this with examples: A circle with radius 7m has a diameter of 14m. Its circumference would be 2π × 7 = 14π ≈ 44m. The area would be π × 7² = 49π ≈ 154 square meters.

💡 Remember that π (pi) is approximately 3.14 or 22/7. When calculating, keep your answer in terms of π for exact answers, or use 3.14 for approximate values.

Working with these formulas becomes easier with practice. For a circle with diameter 26 cm, the radius is 13 cm, circumference is 26π ≈ 81.7 cm, and area is π × 13² = 169π ≈ 531 square cm.

Finding Circle Measurements

When you know one measurement of a circle, you can find all the others! For example, if you know a circle has a radius of 3 units, you can calculate its diameter (6 units), circumference (6π or about 18.8 units), and area (9π or about 28.3 square units).

Sometimes you'll need to work backward. If you know the area of a circle is 4π in², you can find the radius by using A = πr². Solving for r gives you r = 2 inches, which means the diameter is 4 inches.

Similarly, if the circumference is 162π yards, you can use C = πd to find that d = 162 yards. This means the radius is 81 yards.

🔍 When solving circle problems, always check which measurement you're given and which you need to find. Draw a quick sketch to help visualize what you're working with!

Remember that the formulas are connected: if you know the radius, you can find everything else. If you know the area or circumference, you'll need to solve for the radius first, then find other measurements.

Central Angles and Arcs

A central angle is formed by two radii meeting at the circle's center. This angle creates parts of the circle that are super useful in real life, like slices of pizza!

When a central angle cuts through a circle, it creates an arc (part of the circumference) and a sector (a portion of the circle's area). Think of a sector as a pizza slice - it has two straight edges (radii) and one curved edge (the arc).

Arcs come in two types: minor arcs (less than 180°) and major arcs (greater than 180°). Minor arcs are named using just their two endpoints (like arc AB). Major arcs need three points - the two endpoints plus a point along the arc (like arc ACB).

🔑 The measure of an arc equals the measure of its central angle. For example, if central angle AOB is 45°, then arc AB also measures 45°.

When naming central angles, use the center as the middle letter. For example, the central angle for arc ML would be ∠MQL, where Q is the center of the circle. Practice identifying these relationships to master circle geometry!

Working with Arcs and Central Angles

Arcs and central angles have a direct relationship - the measure of an arc equals the measure of its central angle. For example, if you see a central angle of 110°, the minor arc it creates also measures 110°.

To find the measure of a major arc, subtract the minor arc from 360°. If a minor arc measures 40°, the corresponding major arc measures 360° - 40° = 320°.

When working with multiple arcs in a circle, it helps to identify them systematically. For a circle with points K, L, J and center Q, the minor arcs would be KL, LJ, and JK. The major arcs would be KLJ (or JLK), KJL (or LJK), and LKJ (or JKL).

💡 When naming arcs, keep it simple! Minor arcs need only two letters (the endpoints), while major arcs need three letters to show which way around the circle you're going.

Practice identifying central angles from arcs and vice versa. For example, if you're given arc IJ, the central angle would be ∠IQJ (where Q is the center). This relationship is key to solving more complex circle problems.

Arc Length and Sector Area

Arc length and sector area let you calculate parts of a circle. The arc length formula is s = $θ/360°$ × πd, where θ is the central angle in degrees and d is the diameter.

The area of a sector formula is A = $θ/360°$ × πr², where θ is the central angle and r is the radius. These formulas represent fractions of the full circle's circumference or area.

Let's see this with an example: In a circle with radius 5 units and a central angle of 104°, the arc length would be s = $104°/360°$ × 10π ≈ 9.1 units. The sector area would be A = $104°/360°$ × 25π ≈ 22.7 square units.

🧠 Think of these formulas as taking a fraction of the whole circle. If a central angle is 90° $1/4 of 360°$, then the arc length and sector area will be 1/4 of the circle's circumference and area.

To solve these problems, first find the circumference or area of the entire circle, then multiply by the fraction represented by the central angle. The full circle's circumference is 2πr and area is πr².

Solving Circle Sector Problems

Real-world problems often involve sectors of circles, like pizza slices or pie charts. Let's practice with a circle of radius 2 inches and a central angle of 120°.

First, find the basic measurements: the circumference is 2π × 2 = 4π inches (≈12.6 inches), and the area is π × 2² = 4π square inches (≈12.6 square inches).

For the arc length, use s = $120°/360°$ × 4π = 4π/3 ≈ 4.2 inches. For the sector area, use A = $120°/360°$ × 4π = 4π/3 ≈ 4.2 square inches.

Another example: A circle with radius 6 cm has a central angle of 90°. The arc length would be s = $90°/360°$ × 12π = 3π ≈ 9.4 cm. The sector area would be A = $90°/360°$ × 36π = 9π ≈ 28.3 square cm.

🌟 Many real-world objects are sectors of circles - like gauge displays, radar screens, and protractors. These formulas help engineers and designers create these everyday objects!

Remember to keep your units straight when solving these problems. Area is always in square units (in², cm², etc.), while lengths are in linear units (in, cm, etc.).
