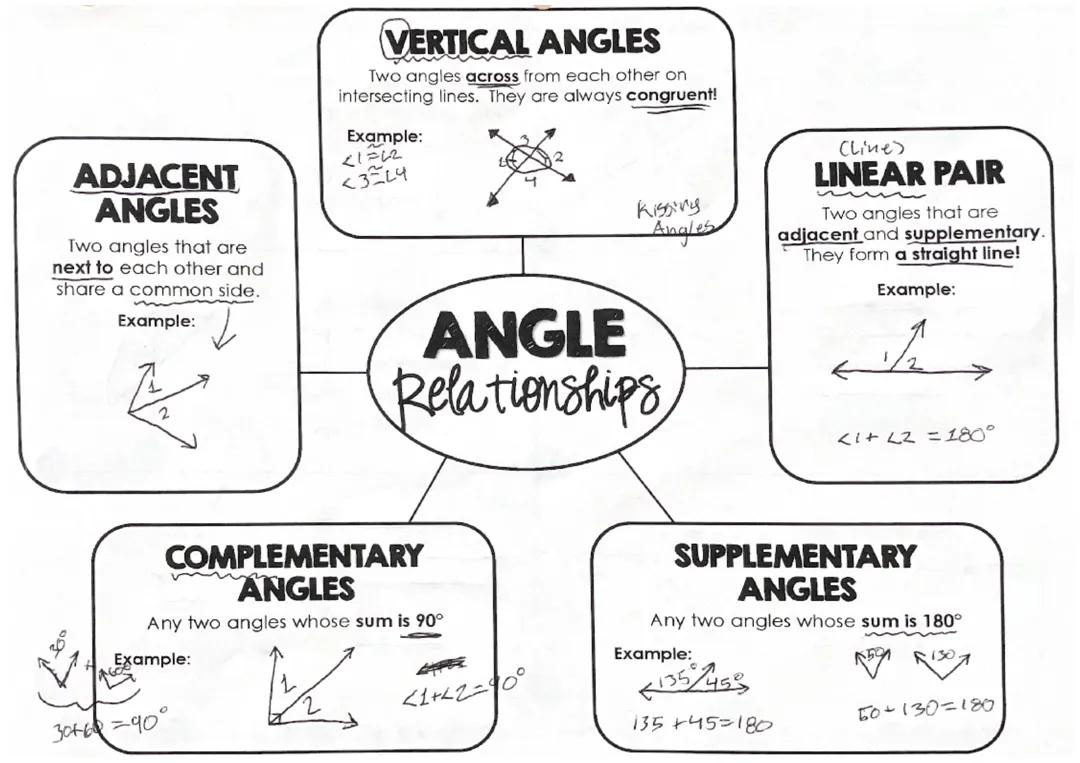

Angle Relationships

When lines intersect or angles sit next to each other, they create special relationships that follow predictable patterns. Adjacent angles are simply two angles that share a common side while sitting next to each other. Think of them as neighbors sharing a fence between their yards.

Vertical angles occur when two lines intersect, creating two pairs of angles that face each other across the intersection point. The cool thing about vertical angles is that they're always congruent (equal in measure)! If you know one angle is 45°, its vertical partner will also be 45°.

Pro Tip: When working with intersecting lines, identifying vertical angles gives you an instant clue that those angles are equal—no calculations needed!

A linear pair consists of two adjacent angles that form a straight line (180°). These angles are both neighbors (adjacent) and supplementary (add up to 180°). When you see angles along a straight line, you know they must sum to 180°.

Complementary angles always sum to 90° (a right angle). These don't need to be next to each other—any two angles adding up to 90° are complementary. Similarly, supplementary angles sum to 180°, regardless of their position. For example, angles measuring 50° and 130° are supplementary because 50° + 130° = 180°.
