Fun with Circle Angles: Easy Rules & Formulas!

View

Fun with Circle Angles: Easy Rules & Formulas!
user profile picture

Chelsea

@zuncho

·

625 Followers

Follow

This document provides an in-depth exploration of angle relationships in circles, covering various theorems, formulas, and practical examples. It serves as a comprehensive guide for students studying geometry, specifically focusing on circle angle theorems and their applications.

Key points covered include:

  • Central angles and inscribed angles
  • Tangent-chord angles
  • Chord-chord angles
  • Tangent-secant angles
  • Tangent-tangent angles
  • Secant-secant angles
  • Practical examples and problem-solving techniques

The material is presented with detailed diagrams, formulas, and step-by-step solutions to enhance understanding of these complex geometric concepts.

2/13/2023

863

65 Angle Relationships in Circles Notes Diagram(s) 1 2 X Formula M²1=x centra Central <= arc |m² 3 = 2/1/² Inscribed angle = half the arc Lo

View

Page 2: Advanced Angle Relationships in Circles

This page delves into more complex angle relationships in circles, including chord-chord angles, tangent-secant angles, tangent-tangent angles, and secant-secant angles.

Definition: A chord-chord angle is formed by two chords intersecting inside a circle.

Definition: A tangent-secant angle is formed by a tangent and a secant intersecting at a point outside the circle.

Definition: A tangent-tangent angle is formed by two tangents intersecting at a point outside the circle.

Definition: A secant-secant angle is formed by two secants intersecting at a point outside the circle.

The page provides formulas for calculating these angles:

Highlight: For a chord-chord angle, the measure of the angle is half the sum of the measures of the arcs intercepted by the angle and its vertical angle.

Highlight: For angles formed outside the circle (tangent-secant, tangent-tangent, and secant-secant), the measure of the angle is half the difference of the intercepted arcs.

Examples are given to demonstrate how to apply these formulas in problem-solving scenarios.

Example: One problem asks students to find the measure of angle RTS given that one intercepted arc measures 100° and another measures 160°.

65 Angle Relationships in Circles Notes Diagram(s) 1 2 X Formula M²1=x centra Central <= arc |m² 3 = 2/1/² Inscribed angle = half the arc Lo

View

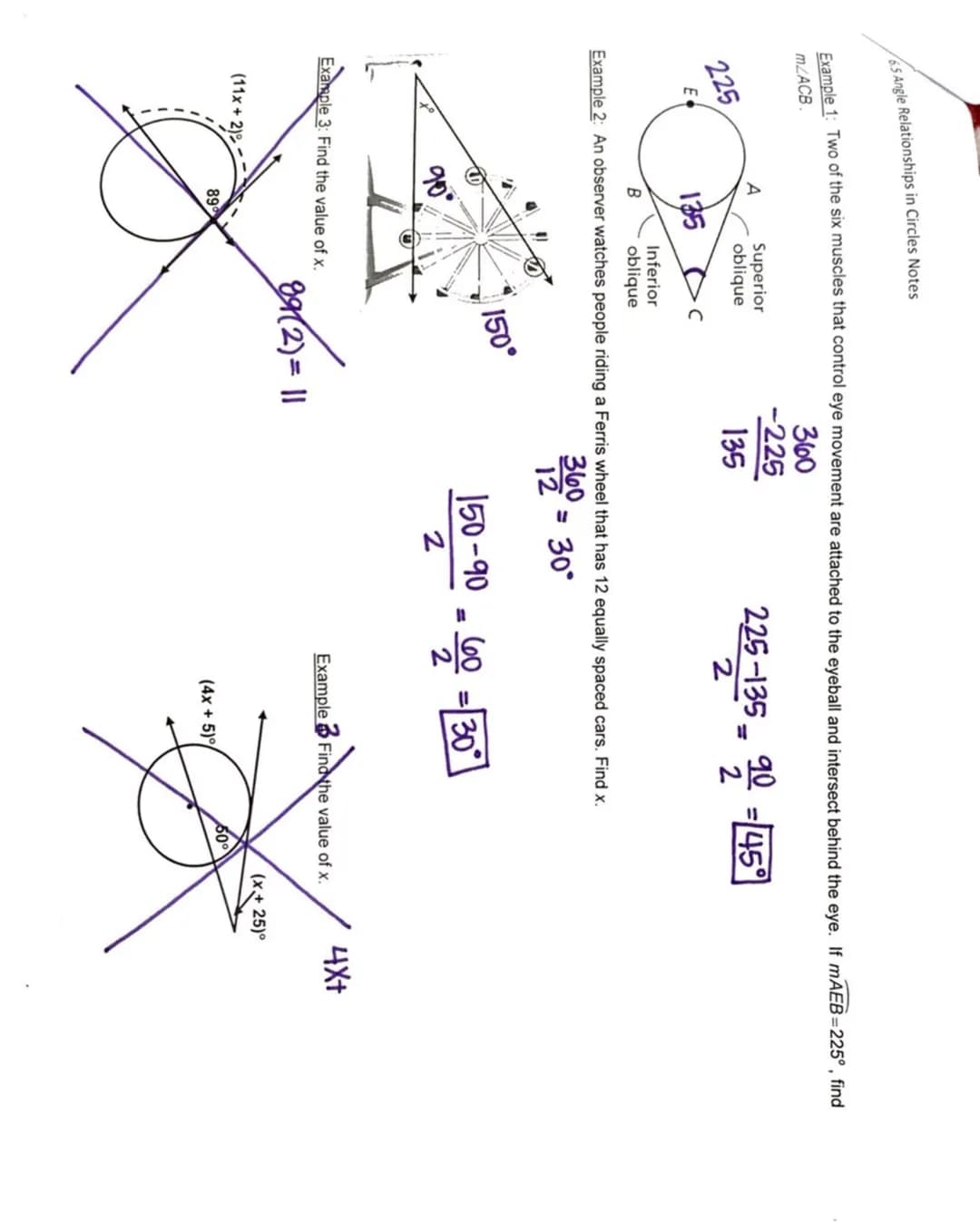

Page 3: Application of Circle Angle Theorems

This page focuses on applying circle angle theorems to real-world scenarios and more complex geometric configurations.

Example: The first example relates to eye muscle movement, demonstrating how circle angle relationships can be applied in biological contexts. Students are asked to find the measure of an angle formed by eye muscles given the measure of another angle in the configuration.

Example: Another problem involves a Ferris wheel, illustrating how circle angle theorems can be used in practical situations. Students must determine the angle between adjacent cars on a 12-car Ferris wheel.

The page also includes more challenging problems that require students to solve for unknown variables using angle relationships in circles formulas.

Highlight: These examples emphasize the importance of understanding how different angle relationships interact within a circle and how to apply multiple theorems to solve complex problems.

65 Angle Relationships in Circles Notes Diagram(s) 1 2 X Formula M²1=x centra Central <= arc |m² 3 = 2/1/² Inscribed angle = half the arc Lo

View

Page 4: Advanced Problem Solving with Circle Angle Relationships

This final page presents a series of advanced problems that test students' understanding of various angle relationships in circles.

Example: One problem asks students to find the value of x in a configuration involving tangent-secant angles, requiring the application of the tangent-secant angle theorem.

Example: Another example involves finding the measure of an angle in a complex circle configuration with multiple intersecting lines and arcs.

The page demonstrates how to break down complex problems into manageable steps, applying different circle angle theorems as needed.

Highlight: These problems emphasize the importance of identifying the type of angle relationship present in each part of the diagram and selecting the appropriate formula or theorem to solve the problem.

Vocabulary: Terms like "intercepted arc" and "vertical angle" are used frequently, reinforcing the specialized vocabulary associated with circle geometry.

This page serves as a culmination of the concepts covered throughout the document, challenging students to apply their knowledge of circle angle theorems to solve sophisticated geometric problems.

65 Angle Relationships in Circles Notes Diagram(s) 1 2 X Formula M²1=x centra Central <= arc |m² 3 = 2/1/² Inscribed angle = half the arc Lo

View

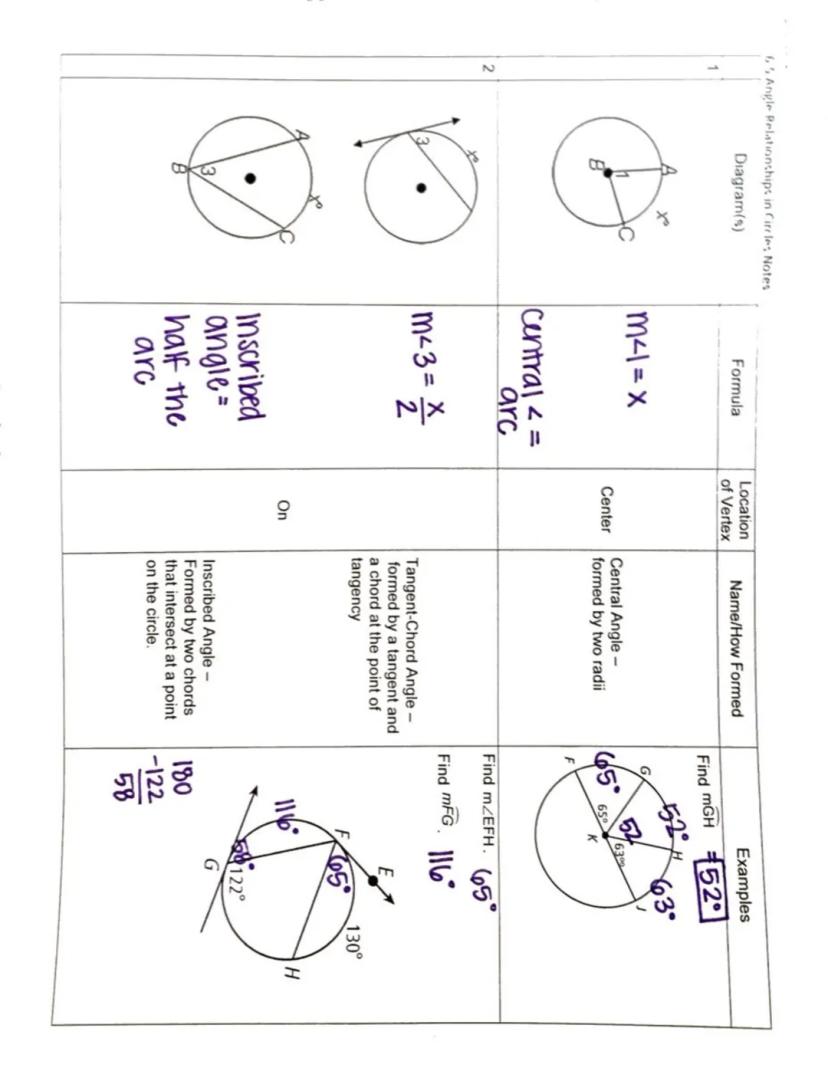

Page 1: Introduction to Angle Relationships in Circles

This page introduces fundamental concepts of angle relationships in circles, focusing on central angles, inscribed angles, and tangent-chord angles.

Definition: A central angle is formed by two radii of a circle and has its vertex at the center of the circle.

Definition: An inscribed angle is formed by two chords that intersect at a point on the circle.

Definition: A tangent-chord angle is formed by a tangent and a chord at the point of tangency.

The page presents key formulas for these angle relationships:

Highlight: The measure of a central angle is equal to the measure of its intercepted arc.

Highlight: The measure of an inscribed angle is half the measure of its intercepted arc.

Several examples are provided to illustrate the application of these concepts, including finding the measures of angles in various circle configurations.

Example: In one problem, students are asked to find the measure of angle GH given that the central angle is 116° and another angle in the configuration is 63°.
