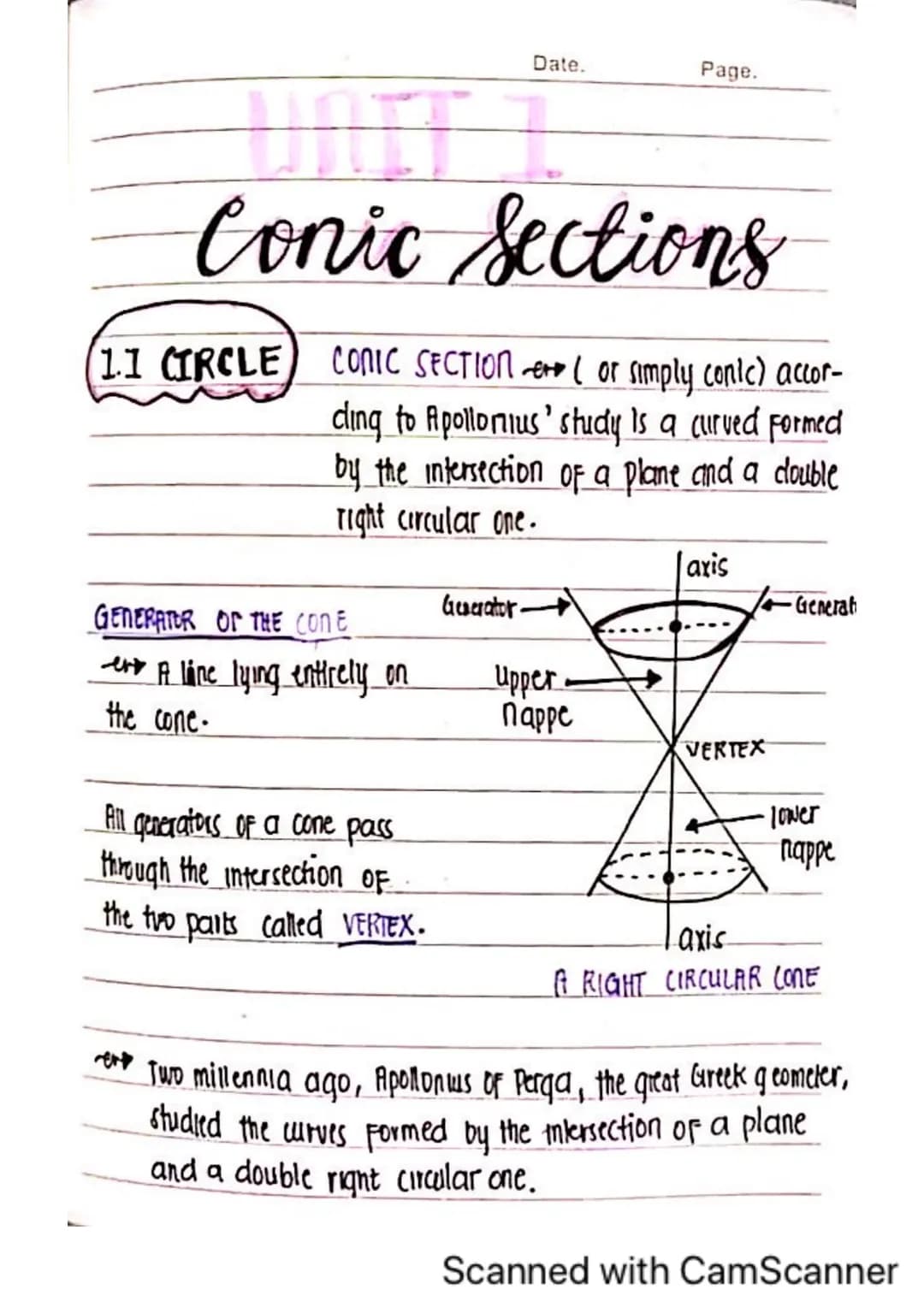

Introduction to Conic Sections

Conic sections are curves formed by the intersection of a plane and a double right circular cone. This concept comes from the work of Apollonius of Perga, a brilliant Greek geometer who lived over two thousand years ago.

A generator is a line that lies entirely on the cone. All generators pass through the vertex, which is the intersection point of the upper and lower nappes (parts) of the cone.

Fun Fact: The study of conic sections isn't just ancient math history - these curves are fundamental to modern technology from satellite dishes (parabolas) to planetary orbits (ellipses)!

The way the plane cuts through the cone determines which type of conic section is formed, giving us circles, ellipses, parabolas, or hyperbolas.

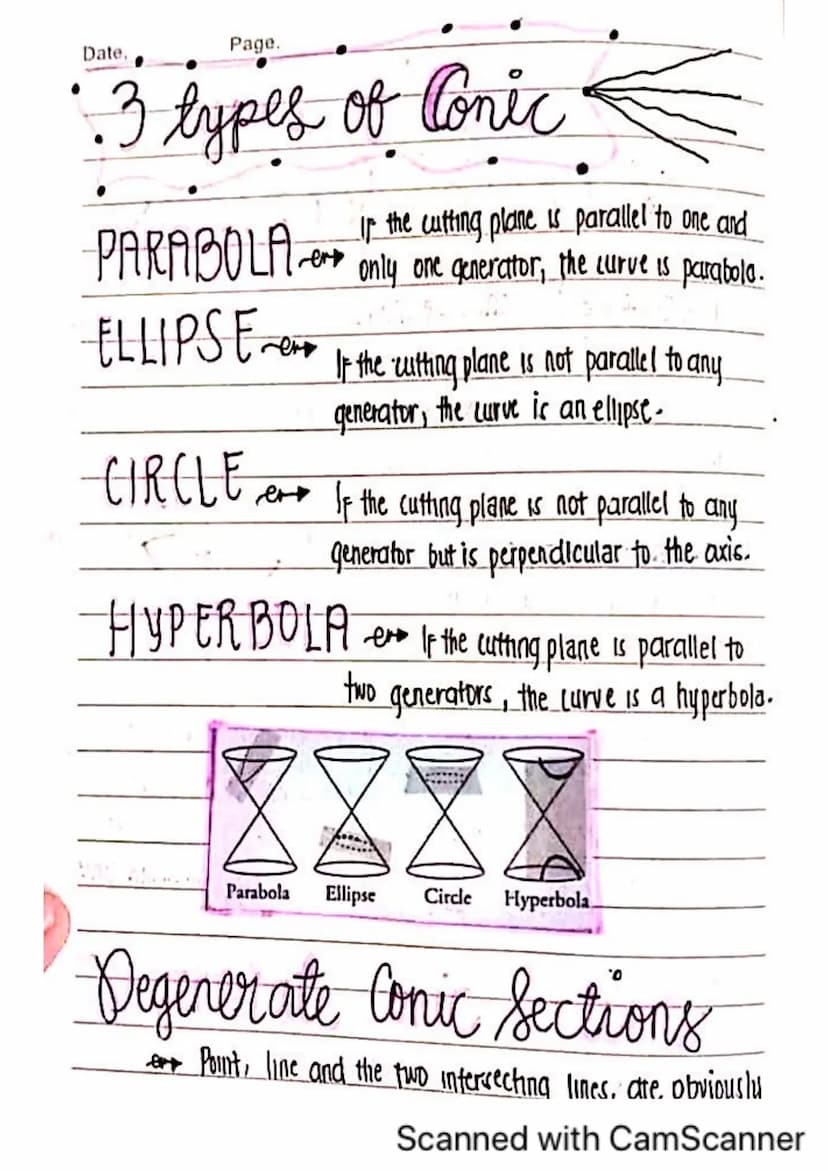

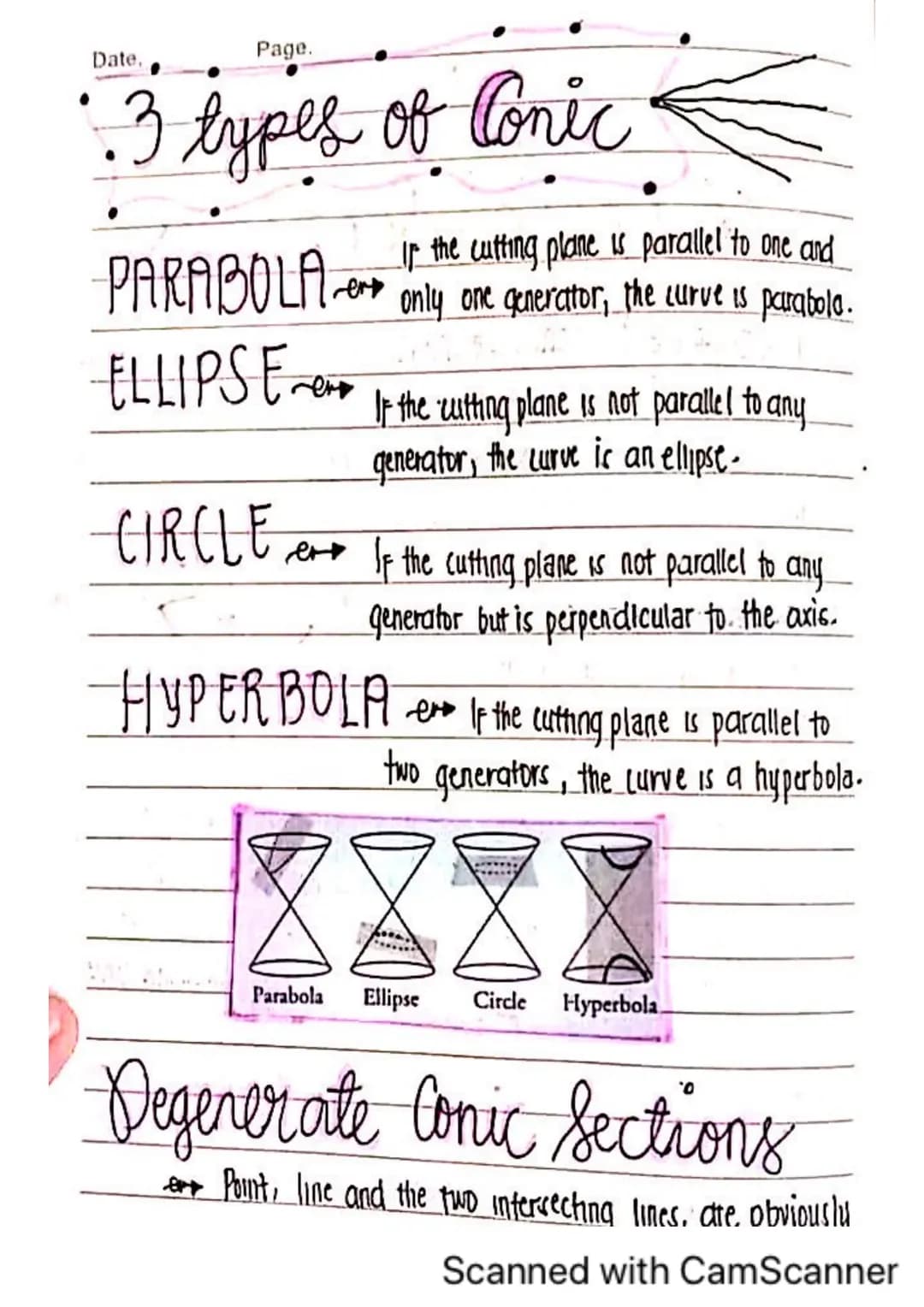

Types of Conic Sections

There are four main types of conic sections, each created by different angles of intersection:

1. Parabola: Forms when the cutting plane is parallel to exactly one generator of the cone.

2. Ellipse: Forms when the cutting plane intersects all the generators of one nappe (not parallel to any generator).

3. Circle: A special case of an ellipse that forms when the cutting plane is perpendicular to the axis of the cone.

4. Hyperbola: Forms when the cutting plane is parallel to two generators, creating two separate curves.

Remember: You can easily visualize these by thinking about slicing through an ice cream cone at different angles!

There are also degenerate conic sections - points, lines, and two intersecting lines - which occur in special cases when the plane intersects the cone in particular ways.

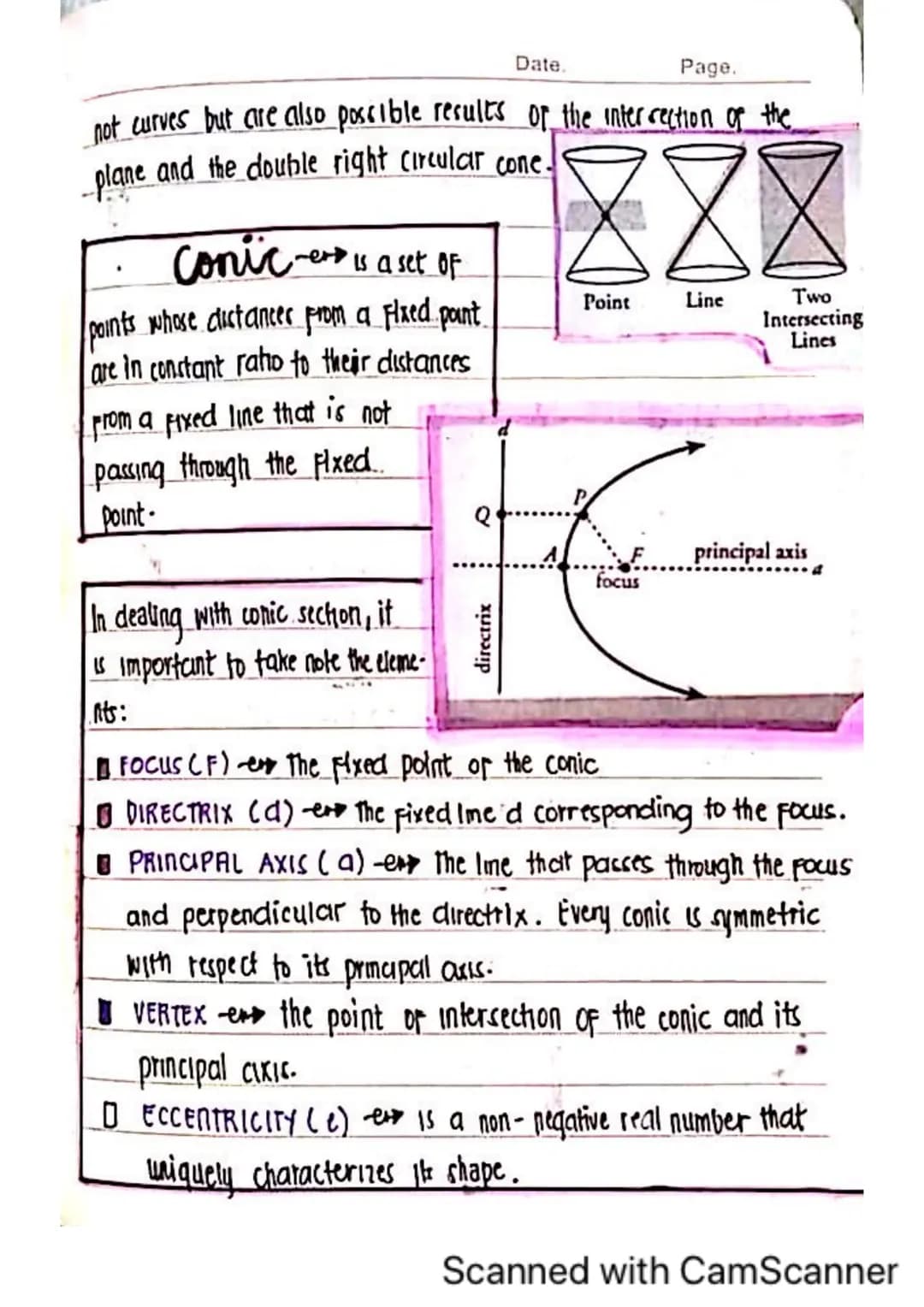

Elements of Conic Sections

A conic section can be defined as a set of points whose distances from a fixed point are in a constant ratio to their distances from a fixed line not passing through the fixed point.

Every conic section has several important elements:

• The focus is the fixed point of the conic
• The directrix is the fixed line corresponding to the focus
• The principal axis passes through the focus and is perpendicular to the directrix
• The vertex is where the conic intersects its principal axis

The eccentricity (e) is a non-negative number that determines the shape of the conic section. Think of it as the "personality number" of the conic - it tells you exactly which type you're dealing with!

Quick Tip: The principal axis is a line of symmetry for the conic section - if you fold along this line, both halves match perfectly.

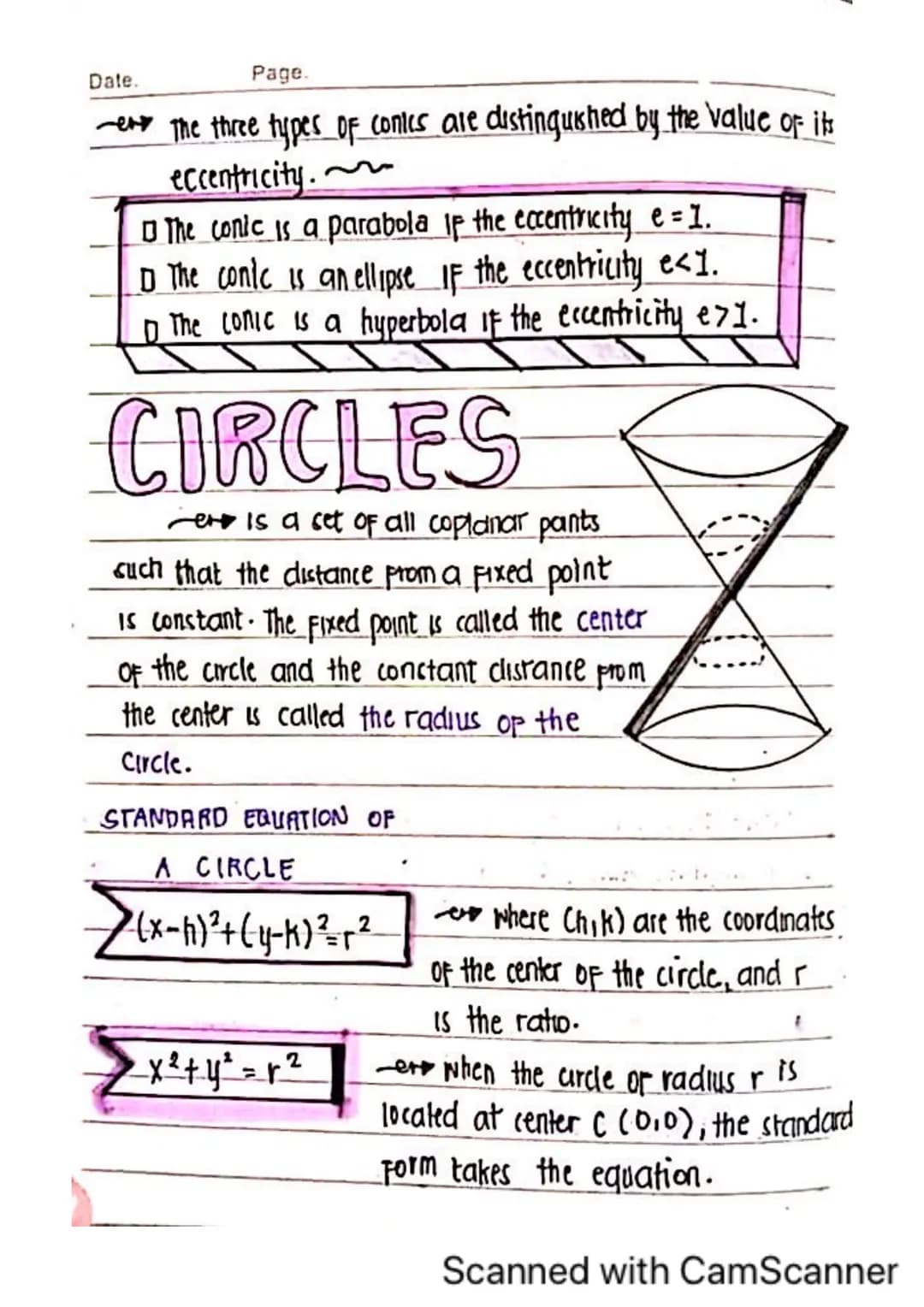

Eccentricity and Circles

The value of eccentricity (e) tells us which type of conic section we have:

• Parabola: e = 1
• Ellipse: e < 1
• Hyperbola: e > 1

A circle is a special case of an ellipse with e = 0. It's defined as a set of all coplanar points that are at a constant distance from a fixed point (the center).

The standard equation of a circle with center at (h,k) and radius r is: $x-h$² + $y-k$² = r²

When the circle is centered at the origin (0,0), the equation simplifies to: x² + y² = r²

Real-World Connection: Circles are everywhere in your daily life - from bicycle wheels to the ripples in a pond when you throw a stone. They're the shape with perfect symmetry!

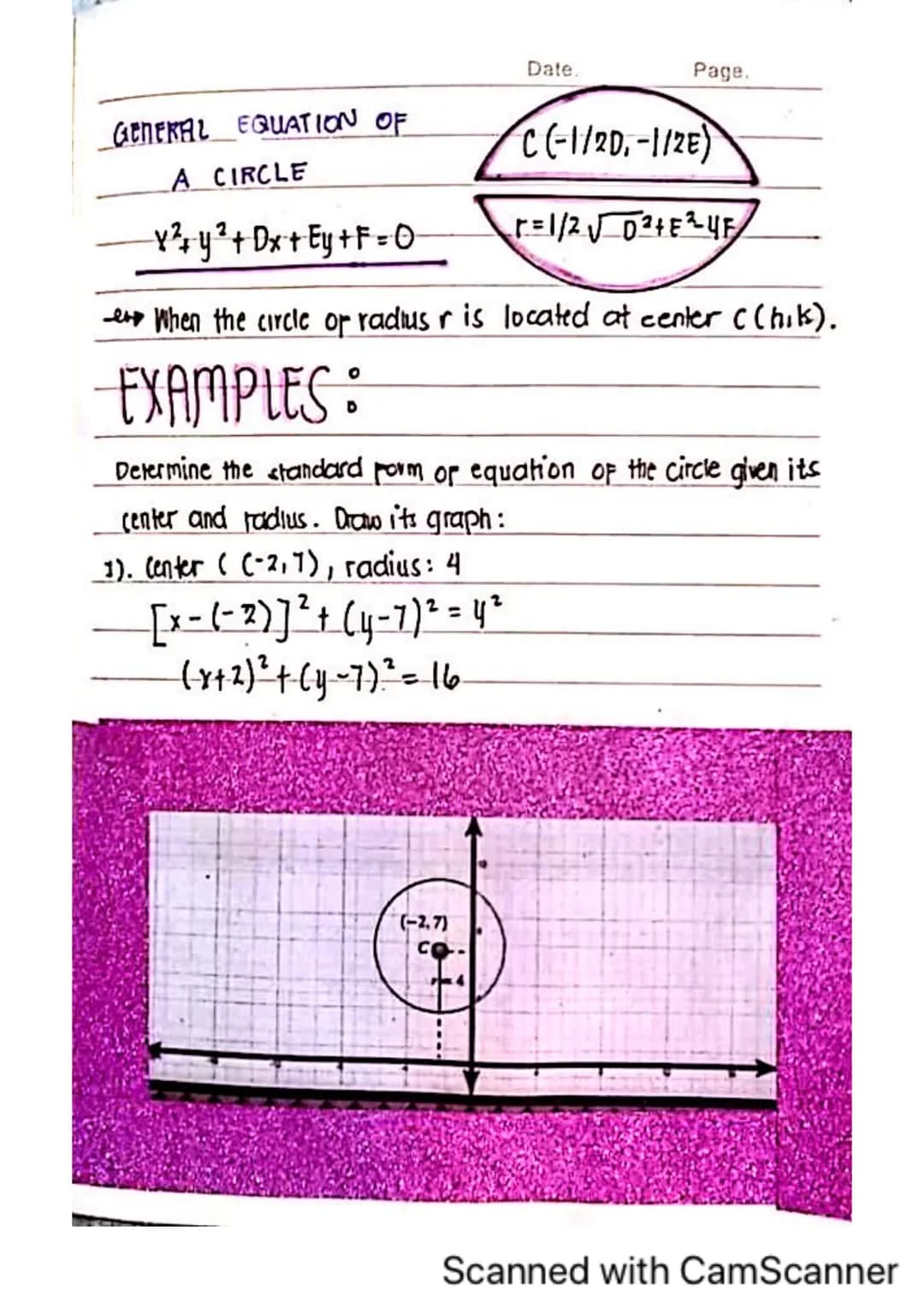

General Circle Equation

The general equation of a circle is: x² + y² + Dx + Ey + F = 0

From this form, you can find:

• Center: C$-D/2, -E/2$
• Radius: r = ½√$D² + E² - 4F$

Let's work through some examples of finding standard circle equations:

Example 1: For a circle with center (-2,7) and radius 4: $x-(-2)$² + $y-7$² = 4² $x+2$² + $y-7$² = 16

Study Tip: When finding the equation of a circle, always double-check your signs when substituting negative coordinates for the center!

This approach lets us create an accurate mathematical model of any circle when we know its center and radius.

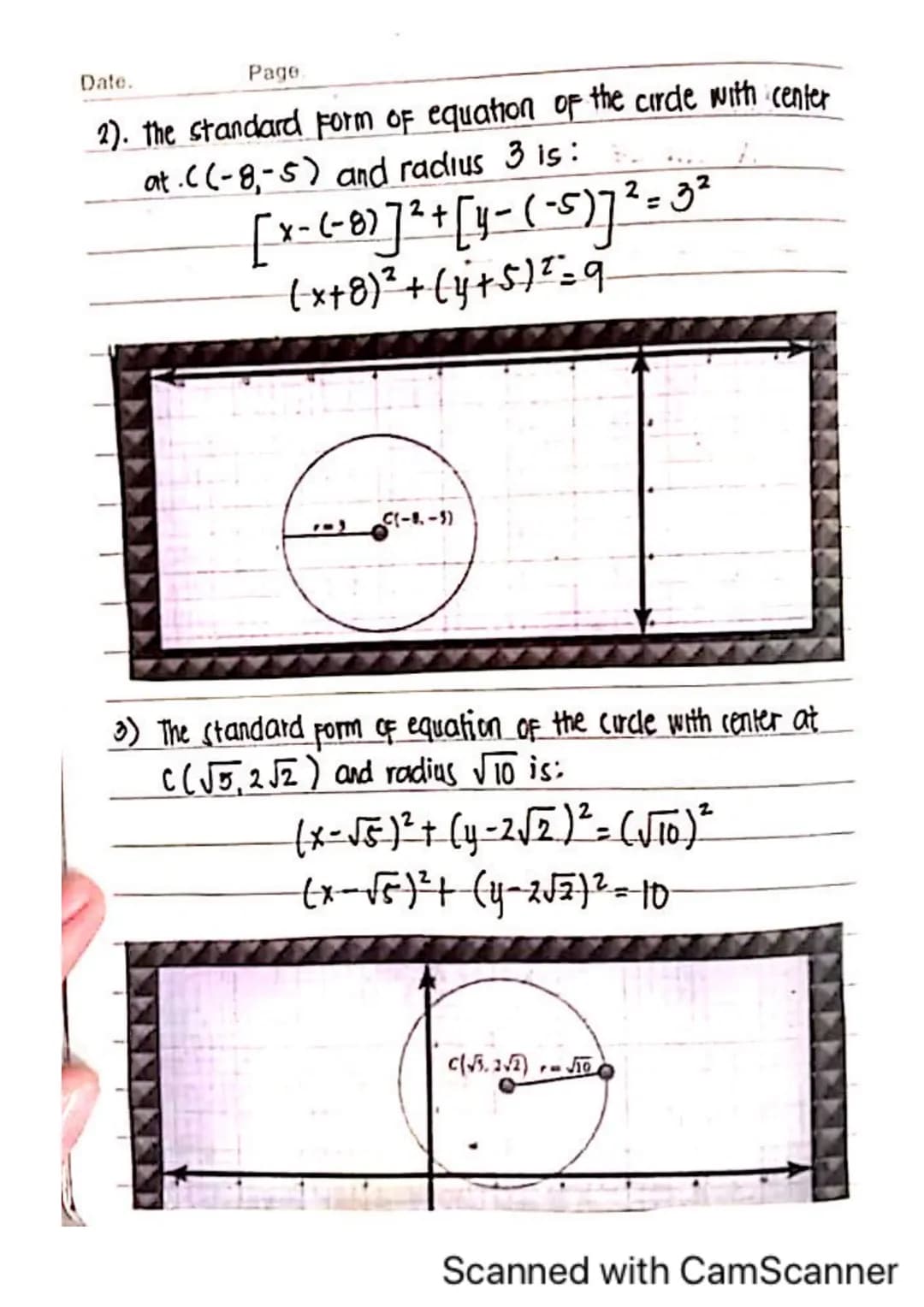

More Circle Examples

Example 2: The standard equation of a circle with center at (-8,-5) and radius 3 is: $x-(-8)$² + $y-(-5)$² = 3² $x+8$² + $y+5$² = 9

Example 3: For a circle with center at (√5,2√2) and radius √10: $x-√5$² + $y-2√2$² = (√10)² $x-√5$² + $y-2√2$² = 10

Visualization Hint: When you see these equations, try to picture where the center is on the coordinate plane, and imagine drawing the circle with compass set to the radius length.

Drawing these circles helps cement your understanding. Start at the center point and trace a path that stays exactly the radius distance away in all directions.

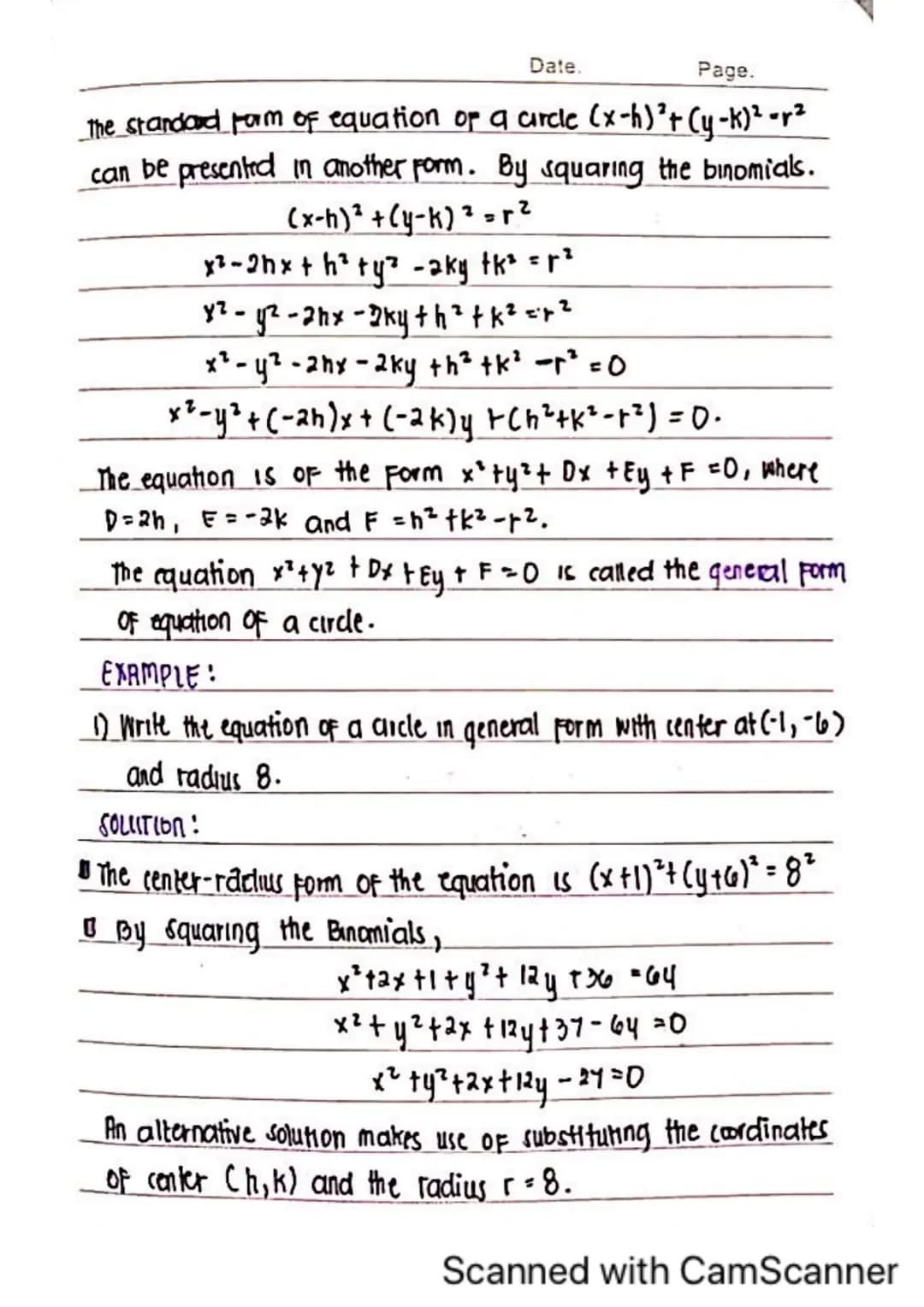

Converting Between Forms

The standard form $x-h$² + $y-k$² = r² can be expanded into general form x² + y² + Dx + Ey + F = 0. Here's how:

1. Expand the binomials: $x-h$² + $y-k$² = r²
2. This gives: x² - 2hx + h² + y² - 2ky + k² = r²
3. Rearrange to get: x² + y² + $-2h$x + $-2k$y + $h² + k² - r²$ = 0

So D = -2h, E = -2k, and F = h² + k² - r²

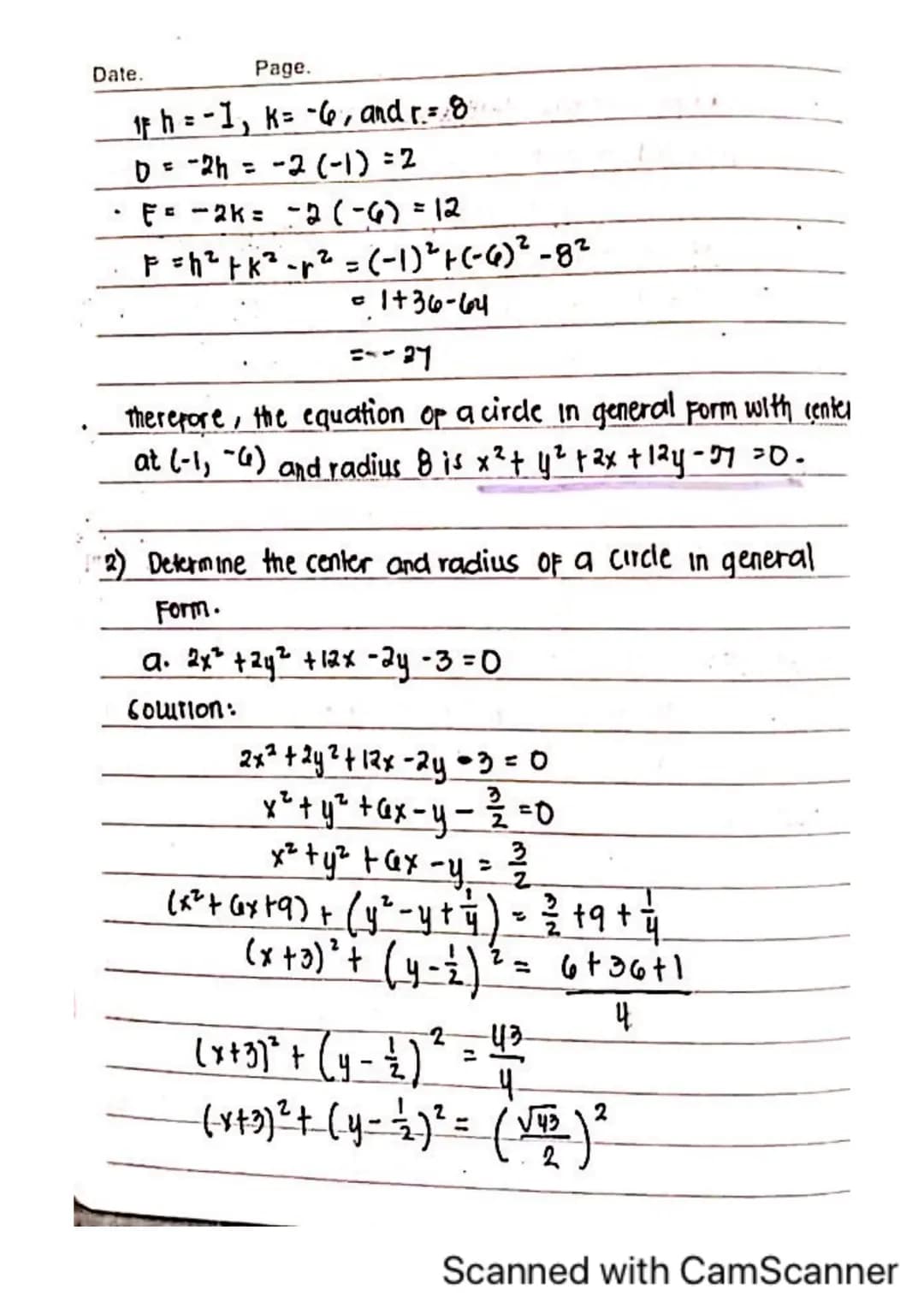

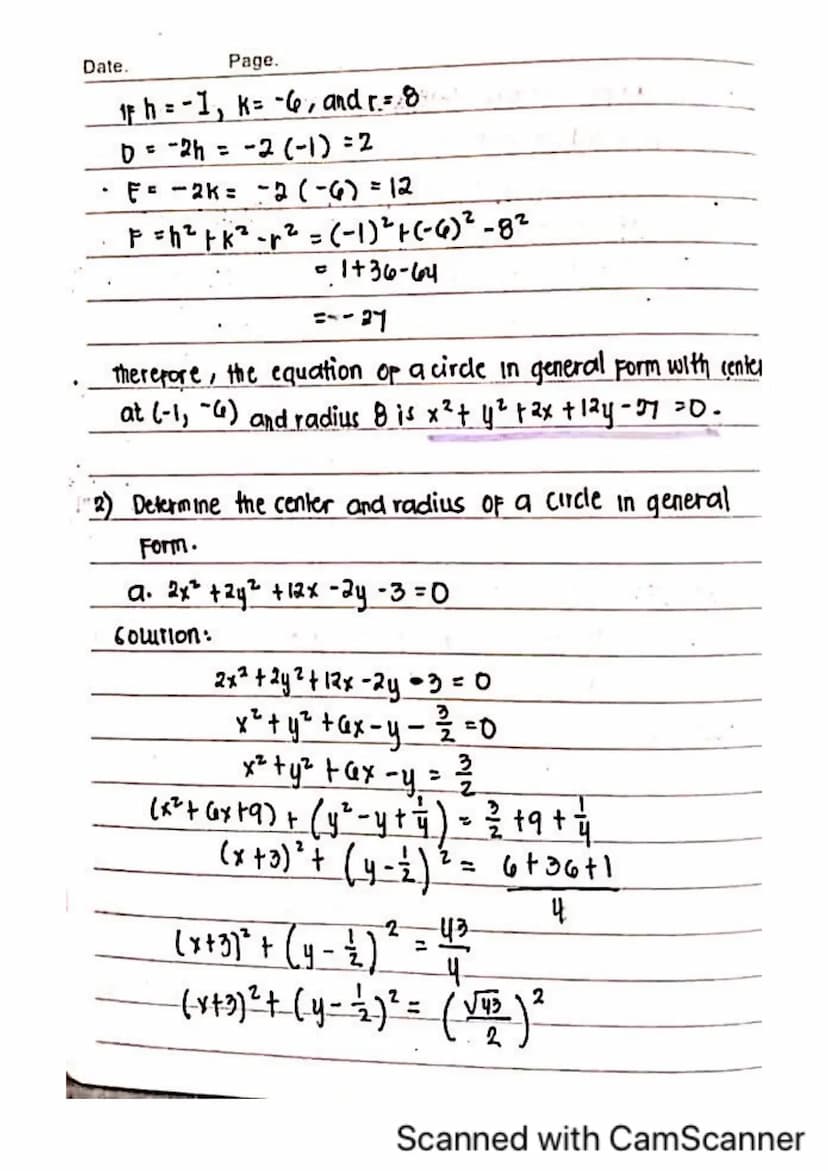

Example: For a circle with center (-1,-6) and radius 8:

• Using the formula: $x+1$² + $y+6$² = 64
• Expanding: x² + 2x + 1 + y² + 12y + 36 = 64
• Rearranging: x² + y² + 2x + 12y - 27 = 0

Pro Tip: Converting between forms is a valuable skill that lets you identify the center and radius of any circle quickly, even when the equation looks complicated!

Finding Center and Radius

When given a general form equation, you can find the center and radius by completing the square:

Example: For 2x² + 2y² + 12x - 2y - 3 = 0

1. Divide everything by 2: x² + y² + 6x - y - 3/2 = 0
2. Complete the square for x: $x² + 6x + 9$ + $y² - y + 1/4$ = 3/2 + 9 + 1/4
3. Rearrange: $x+3$² + $y-1/2$² = 43/4
4. So: $x+3$² + $y-1/2$² = (√43/2)²

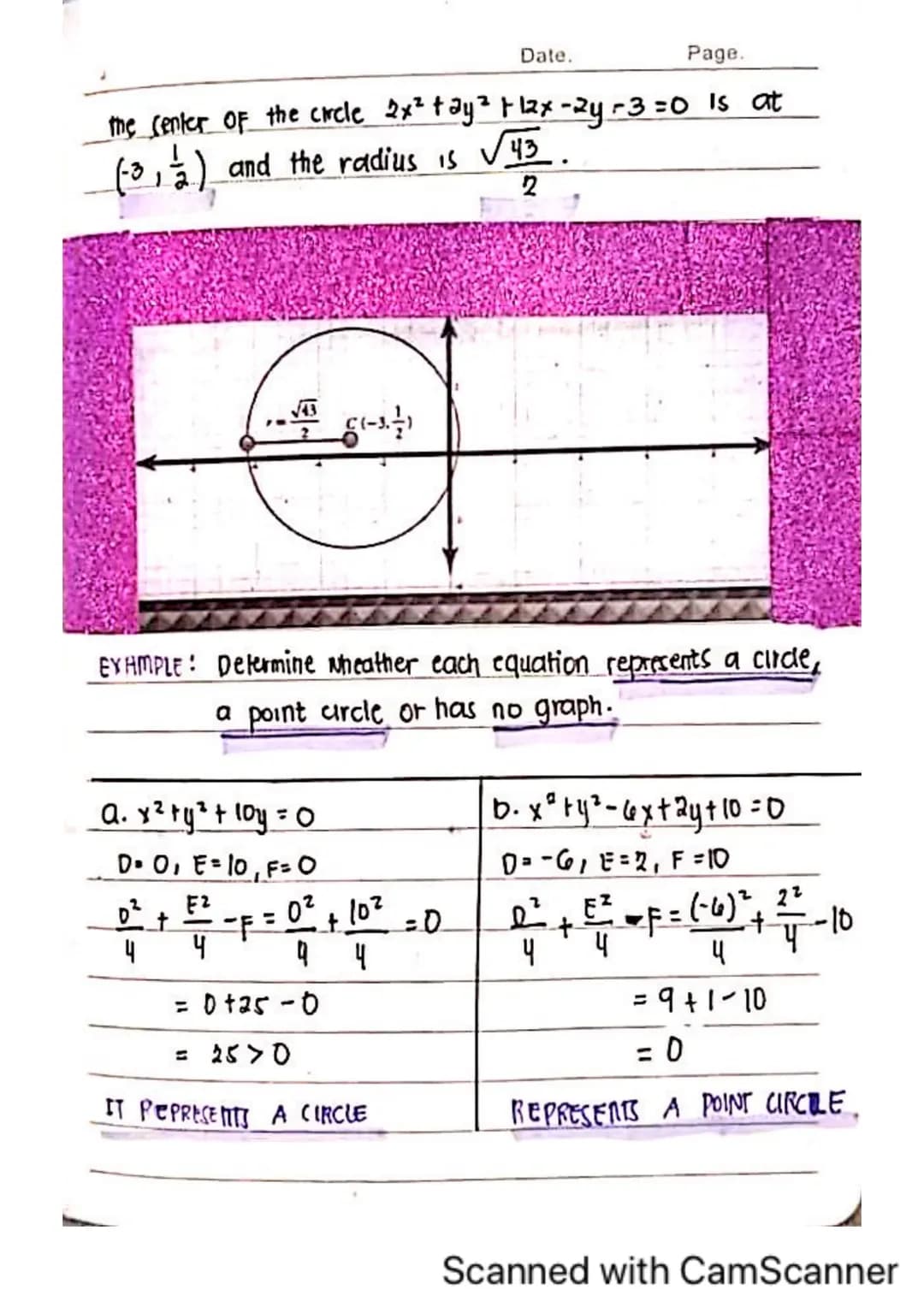

Therefore, the center is at (-3, 1/2) and the radius is √43/2.

Mental Shortcut: For general form x² + y² + Dx + Ey + F = 0, the center is always at $-D/2, -E/2$.

This technique works for any circle equation and helps you quickly visualize the circle's position and size.

Analyzing Circle Equations

You can determine if an equation represents a circle, a point circle, or has no graph by examining D²/4 + E²/4 - F:

• If D²/4 + E²/4 - F > 0: It's a circle
• If D²/4 + E²/4 - F = 0: It's a point circle
• If D²/4 + E²/4 - F < 0: The equation has no graph

Example A: x² + y² + 10y = 0 D = 0, E = 10, F = 0 D²/4 + E²/4 - F = 0²/4 + 10²/4 - 0 = 25 > 0 This represents a circle.

Example B: x² + y² - 6x + 2y + 10 = 0 D = -6, E = 2, F = 10 D²/4 + E²/4 - F = 9 + 1 - 10 = 0 This represents a point circle.

Math Insight: A "point circle" isn't really a circle at all - it's a single point where the radius has shrunk to zero!

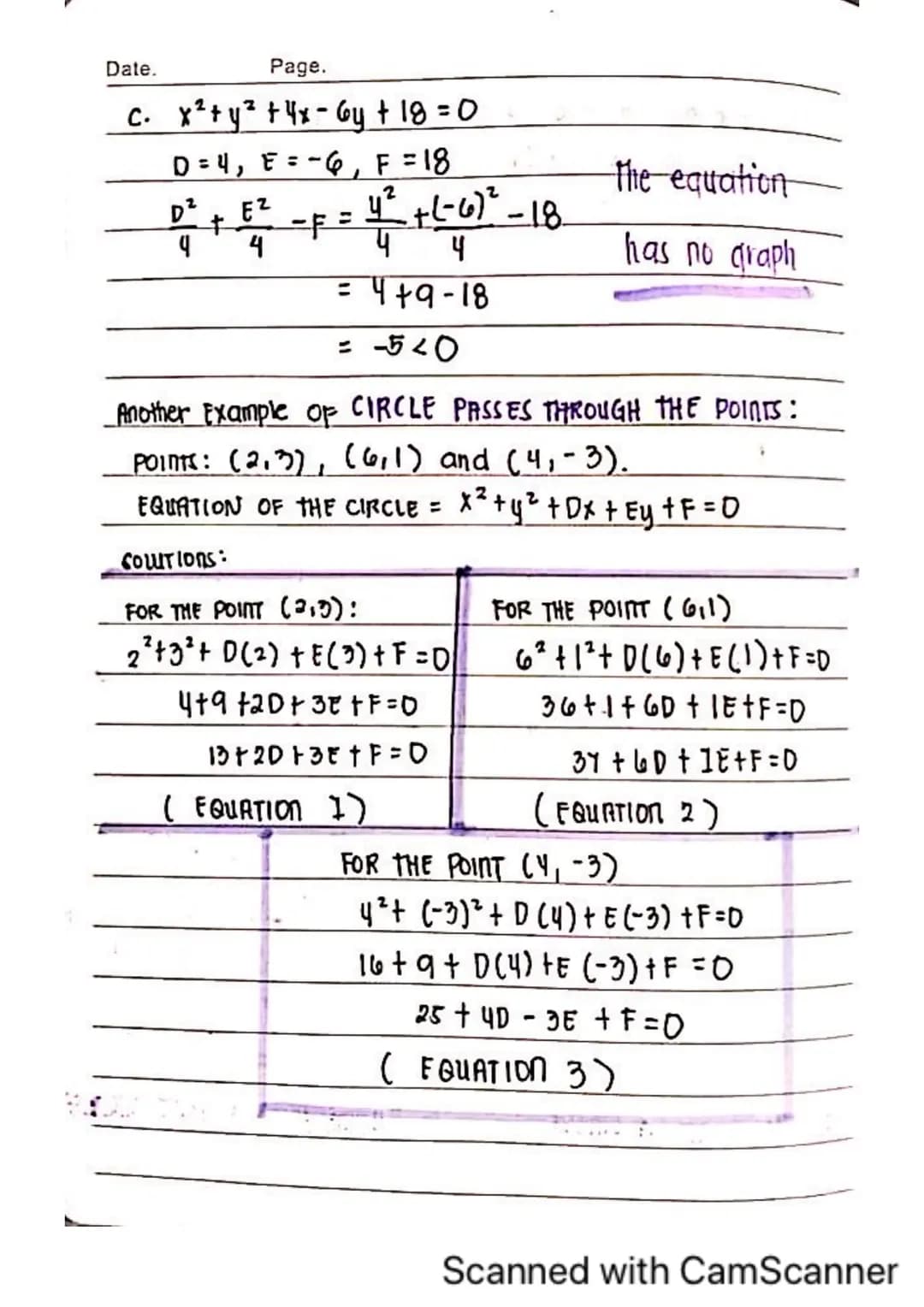

Circle Through Three Points

Finding a circle that passes through three points involves solving a system of equations.

For points (2,3), (6,1), and (4,-3), we need to find D, E, and F in the general equation x² + y² + Dx + Ey + F = 0.

1. Substitute each point into the general equation:

   • For (2,3): 13 + 2D + 3E + F = 0 (Equation 1)
   • For (6,1): 37 + 6D + E + F = 0 (Equation 2)
   • For (4,-3): 25 + 4D - 3E + F = 0 (Equation 3)

2. Eliminate variables by subtraction:

   • From Equations 1 and 2: -24 - 4D + 2E = 0 (Equation 4)
   • From Equations 1 and 3: -12 - 2D + 6E = 0 (Equation 5)

3. Solve for D, E, and F: D = -6, E = 0, F = -1

Therefore, the circle equation is: x² + y² - 6x - 1 = 0

Visualization Tip: Try plotting the three points on graph paper first - it helps you predict roughly where the center should be!
