Learn About Angle Bisectors, Supplementary Angles, and Vertical Angles!

Understanding Fundamental Angle Concepts in Geometry

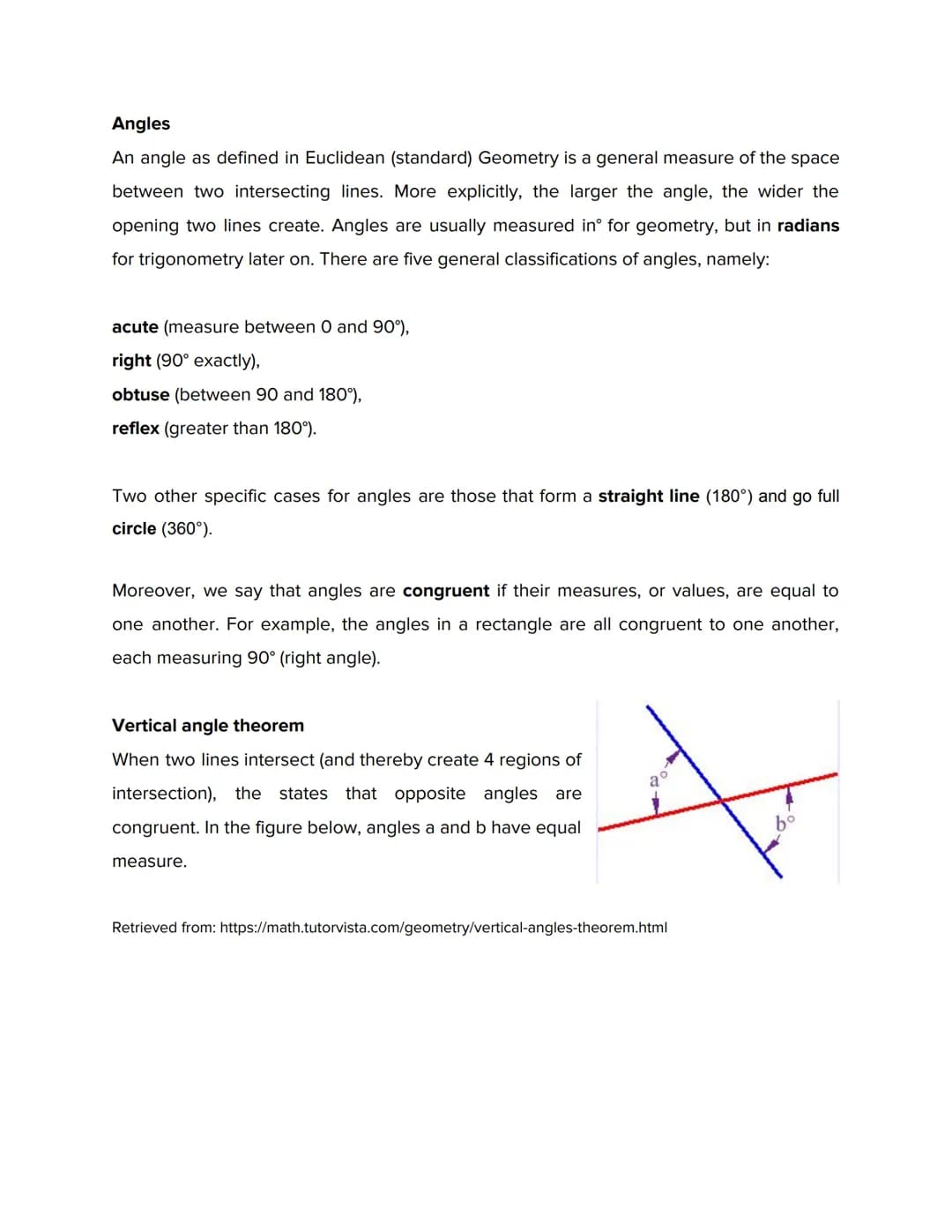

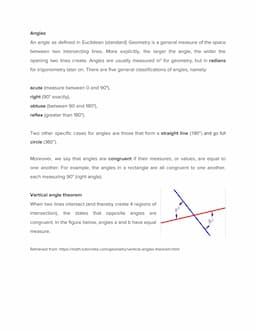

In geometry, angles form the foundation of many mathematical concepts. An angle represents the measure of space between two intersecting lines, with larger angles creating wider openings between the lines. While geometry typically measures angles in degrees (°), later mathematical studies like trigonometry use radians.

Definition: An angle is formed when two rays or lines meet at a common point called the vertex. The measure of an angle indicates the amount of rotation between these lines.

The five primary classifications of angles help us understand their properties and relationships. Acute angles measure between 0° and 90°, while right angles are exactly 90°. Obtuse angles span from 90° to 180°, and reflex angles exceed 180°. Special cases include straight angles (180°) and complete rotations (360°).

When discussing angle relationships, congruent angles have equal measures. The vertical angle theorem proof demonstrates that when two lines intersect, the opposite angles formed are always congruent. This fundamental principle helps solve complex geometric problems and proves essential in understanding parallel lines and polygons.

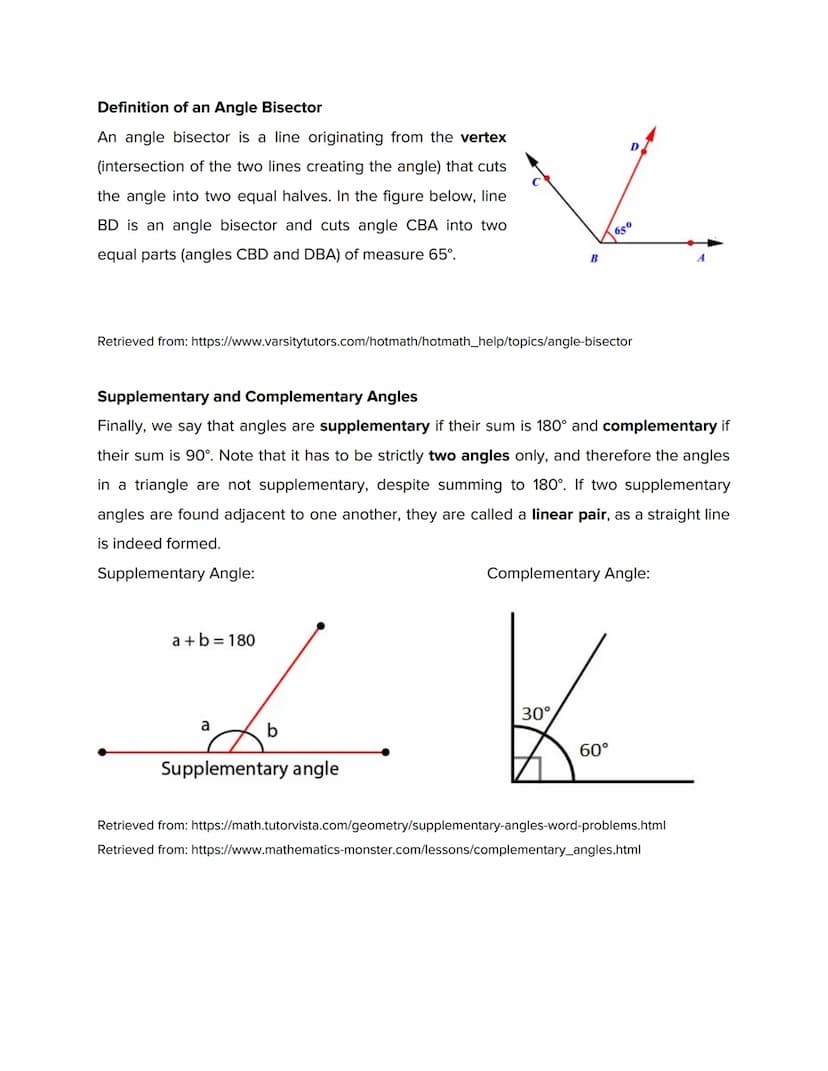

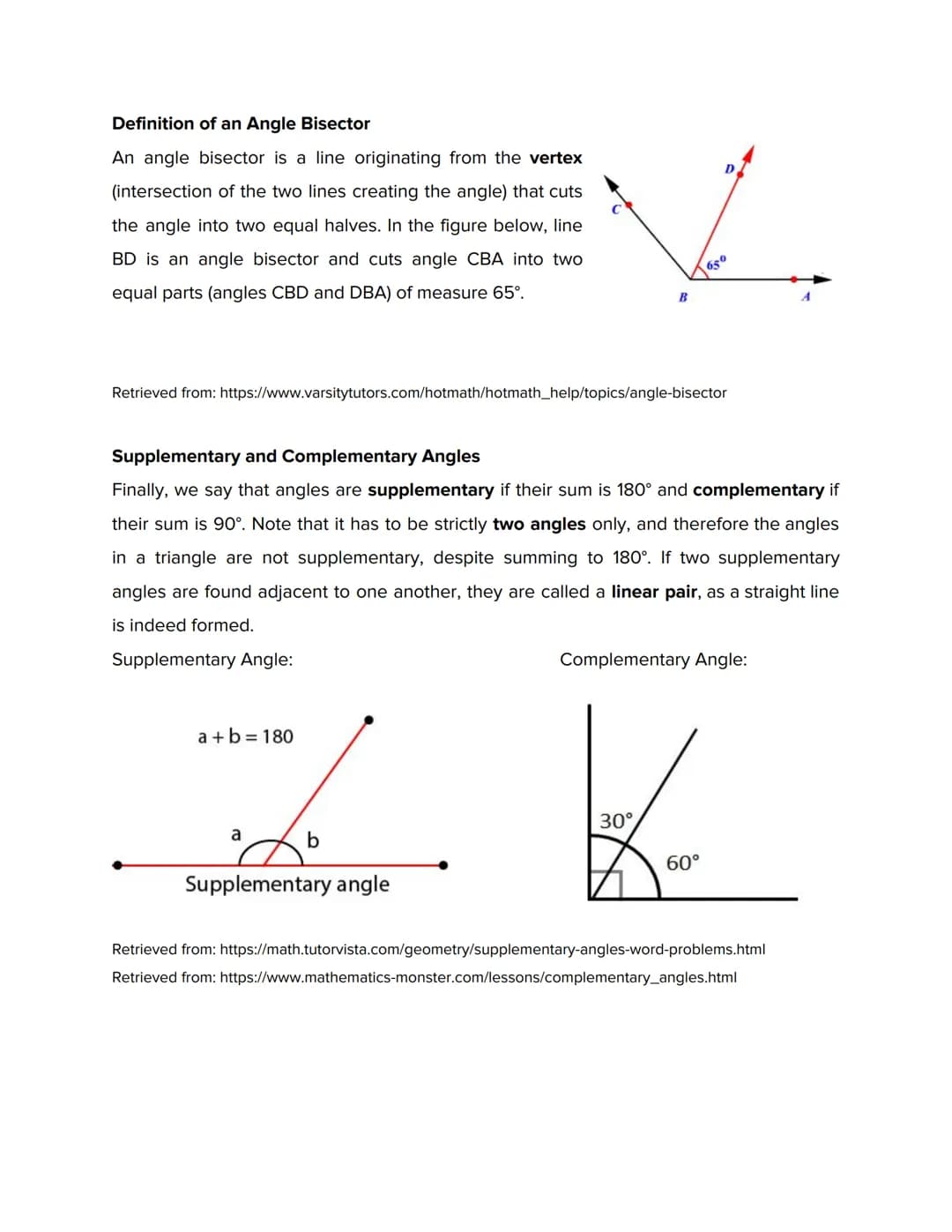

Angle Bisectors and Special Angle Relationships

The angle bisector definition in geometry states that it's a ray that divides an angle into two equal parts. This concept plays a crucial role in geometric constructions and proofs. When an angle bisector divides an angle, it creates two new angles with equal measures.

Highlight: Understanding angle relationships is crucial for solving geometric problems. Supplementary angles sum to 180°, while complementary angles sum to 90°.

Two angles forming a linear pair create a straight line and are always supplementary. This relationship becomes particularly important when studying parallel lines and transversals. The concept of supplementary angles in parallel lines helps establish fundamental geometric theorems.

When working with angle relationships, algebraic thinking often comes into play. Students must frequently solve equations to find unknown angle measures, applying their knowledge of both geometry and algebra simultaneously.

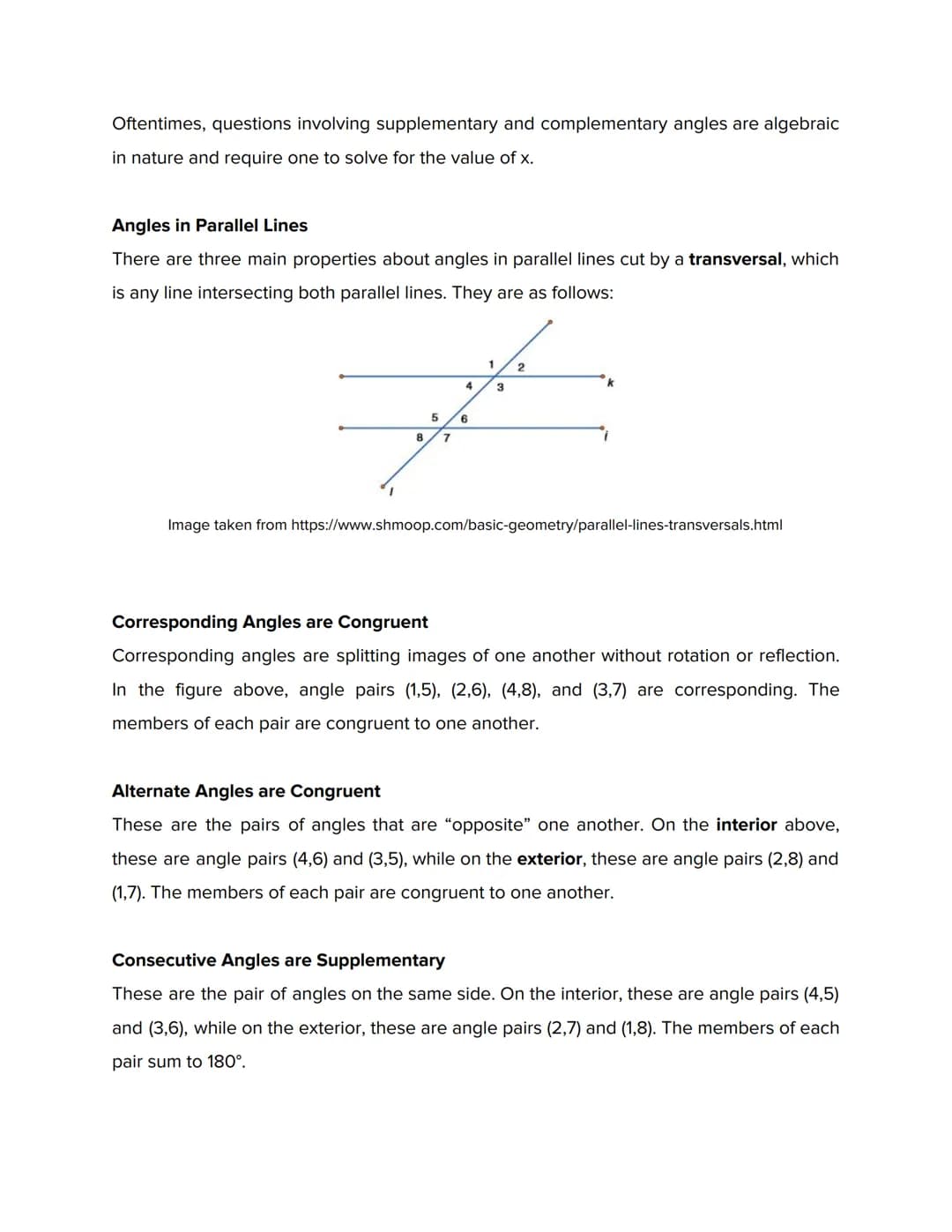

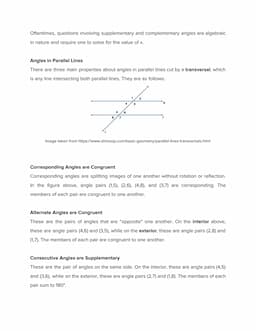

Parallel Lines and Angle Relationships

When parallel lines are cut by a transversal, they create eight angles with special relationships. These relationships form the backbone of many geometric proofs and constructions.

Example: In parallel lines cut by a transversal:

• Corresponding angles are congruent (like angles 1 and 5)
• Alternate angles are congruent (like angles 4 and 6)
• Consecutive angles are supplementary (like angles 4 and 5)

These angle relationships remain constant regardless of the distance between parallel lines or the angle of the transversal. Understanding these relationships helps solve complex geometric problems and proves essential in advanced mathematics.

The study of parallel lines and their angles connects directly to real-world applications, from architecture to engineering, where precise angle measurements and relationships are crucial for structural integrity.

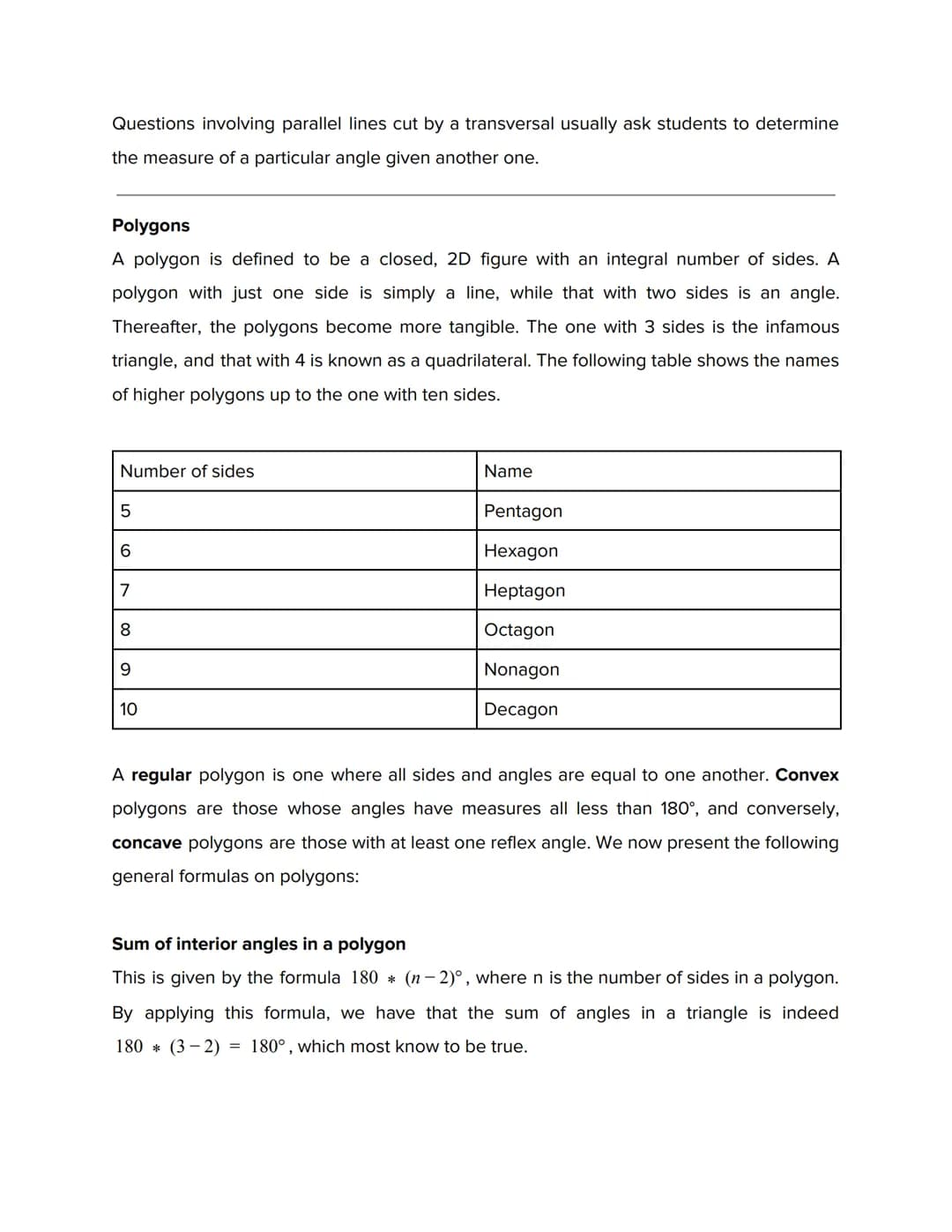

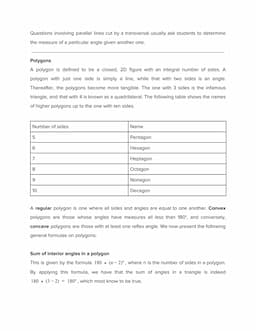

Introduction to Polygons and Their Properties

Polygons represent closed, two-dimensional figures with straight sides. Their classification depends on the number of sides, ranging from triangles (3 sides) to complex figures like decagons (10 sides).

Vocabulary: Regular polygons have equal sides and equal angles, while convex polygons have all interior angles less than 180°.

The sum of interior angles in any polygon follows a precise formula: 180°$n-2$, where n represents the number of sides. This formula reveals fascinating patterns in geometric figures and helps us understand the relationship between a polygon's structure and its angular measures.

Understanding polygons extends beyond basic geometry into advanced mathematics and real-world applications. From architectural design to computer graphics, polygon properties influence how we create and analyze shapes in both theoretical and practical contexts.

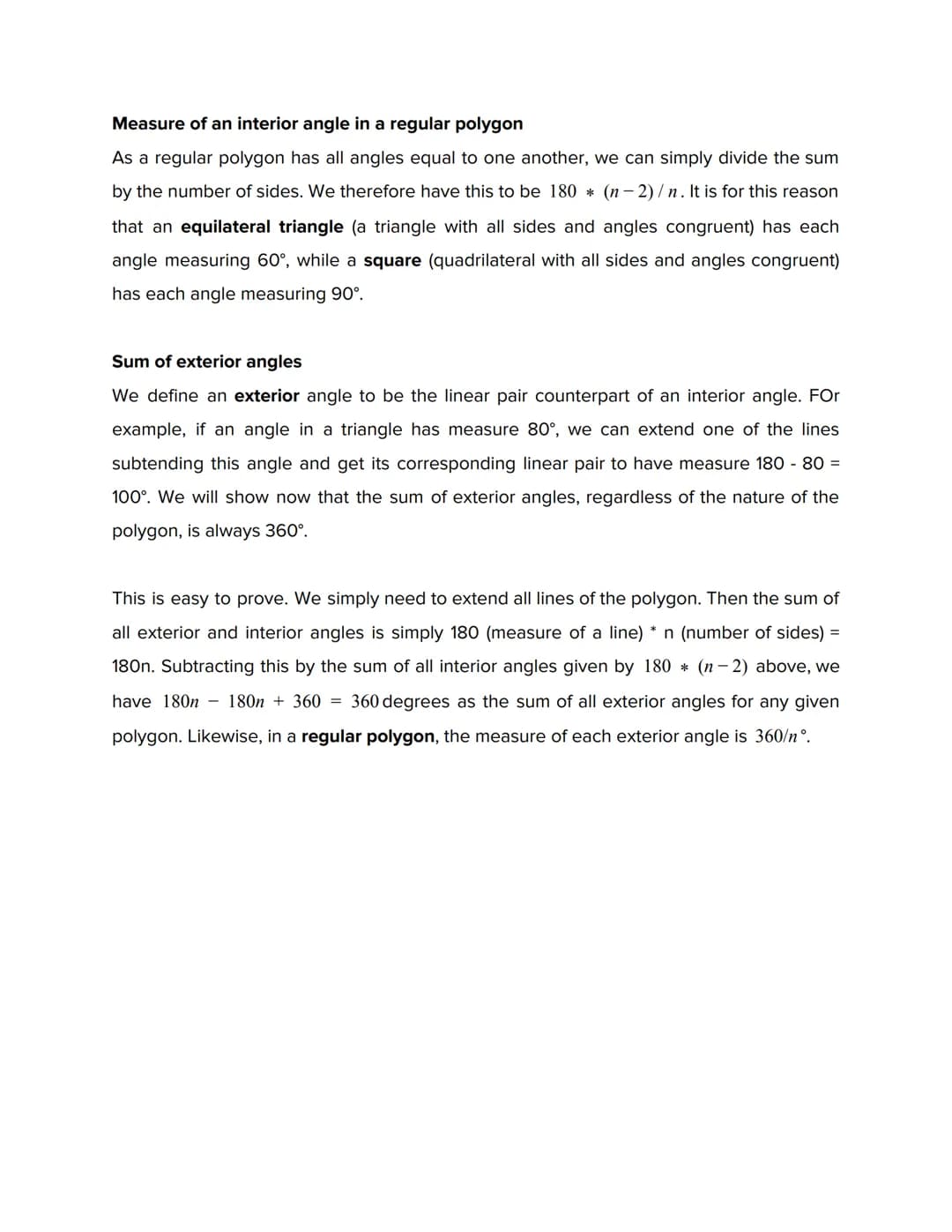

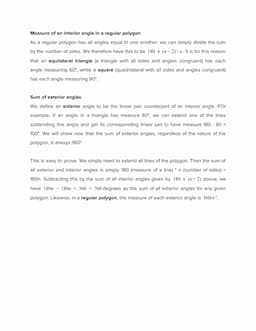

Understanding Interior and Exterior Angles in Regular Polygons

Regular polygons possess fascinating geometric properties that make them unique among shapes. In these special figures, all angles are equal, allowing us to calculate individual angle measures through simple division. The measure of each interior angle can be found using the formula 180*$n-2$/n, where n represents the number of sides.

Example: In an equilateral triangle $n=3$, each interior angle measures 60°, while in a square $n=4$, each interior angle is 90°. This demonstrates how the formula adapts to different regular polygons.

When examining exterior angles, we encounter another interesting property. An exterior angle forms a linear pair with its corresponding interior angle, meaning they sum to 180°. The remarkable fact about exterior angles is that their sum always equals 360° regardless of the polygon's number of sides.

Definition: An exterior angle is formed when we extend a side of the polygon beyond a vertex, creating a supplementary angle to the interior angle at that vertex.

The proof for the constant sum of exterior angles follows from the relationship between interior and exterior angles. For any polygon with n sides, the sum of all interior and exterior angles equals 180° × n. Subtracting the sum of interior angles $180° × (n-2)$ yields 360° as the sum of exterior angles. In regular polygons, each exterior angle measures 360°/n.

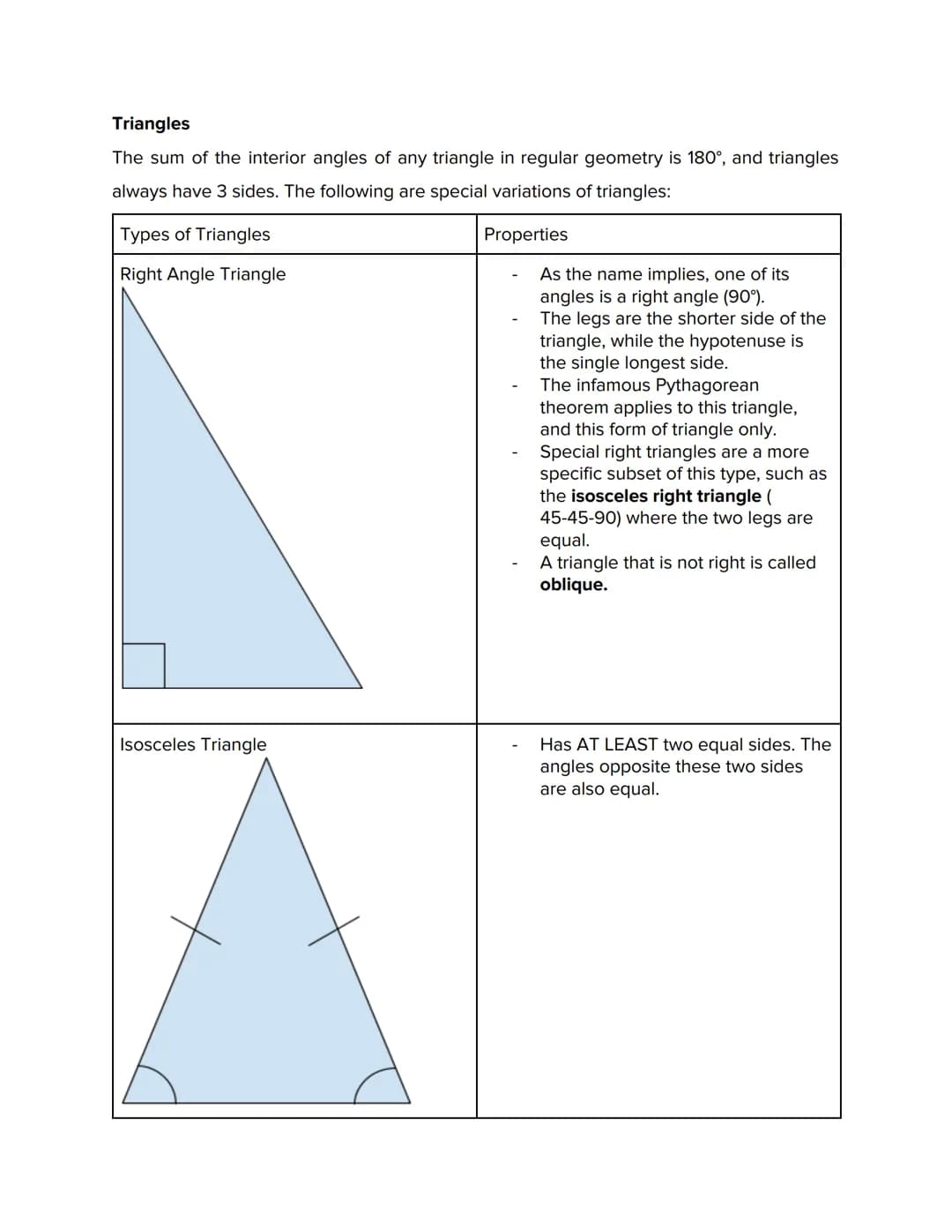

Essential Triangle Classifications and Properties

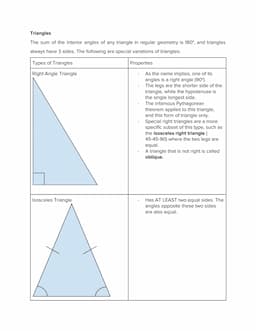

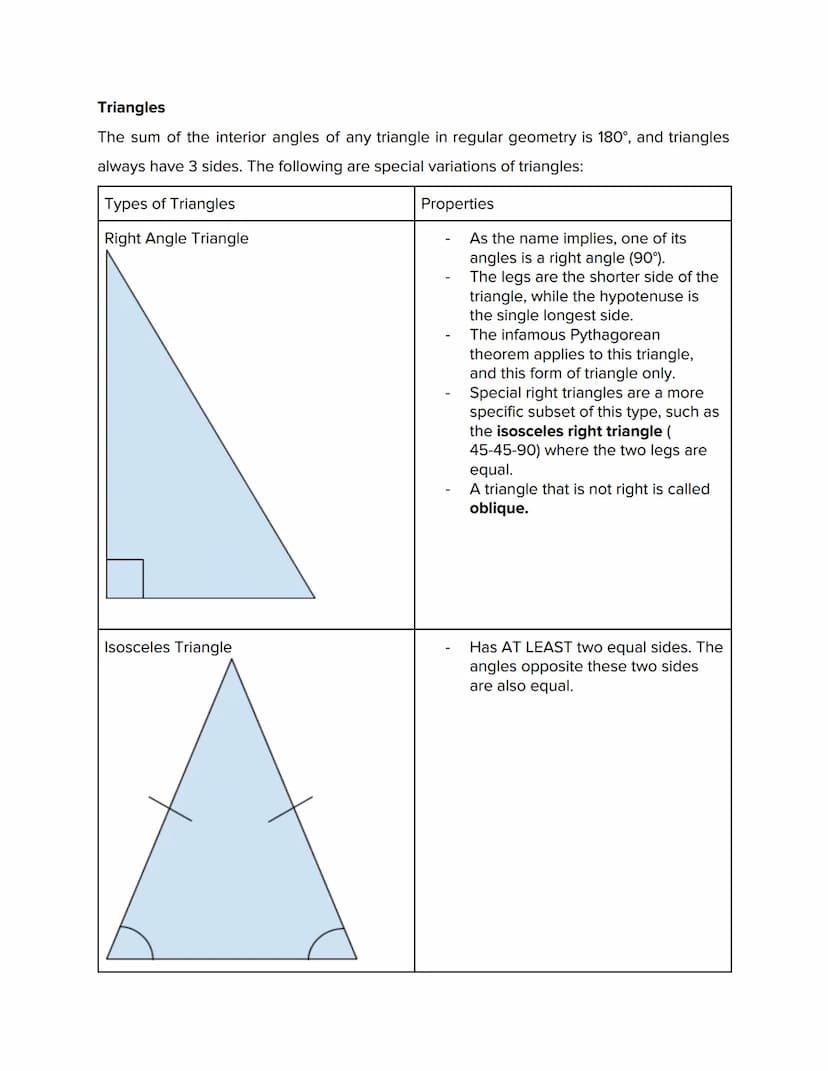

Triangles serve as fundamental shapes in geometry, consistently maintaining a total interior angle measure of 180°. Understanding their various classifications helps in analyzing more complex geometric figures.

Vocabulary: Right triangles contain one 90° angle, with the longest side (hypotenuse) opposite the right angle. The other two sides are called legs.

The Pythagorean theorem exclusively applies to right triangles, stating that the square of the hypotenuse equals the sum of squares of the other two sides. Special right triangles, such as the 45-45-90 triangle, exhibit unique properties due to their symmetry.

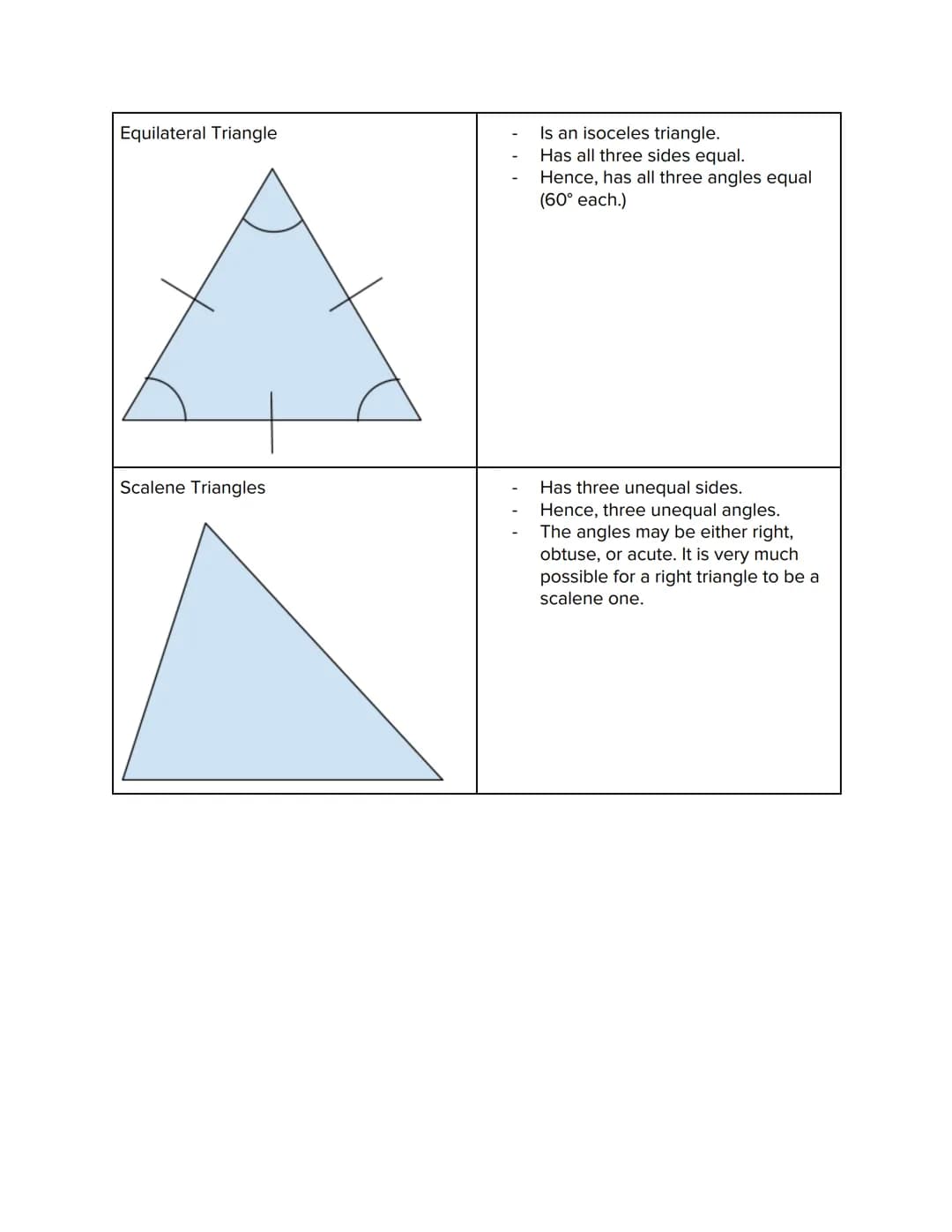

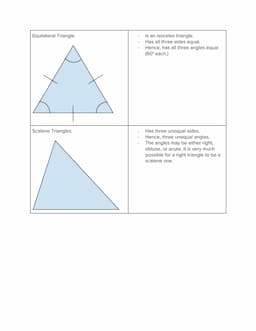

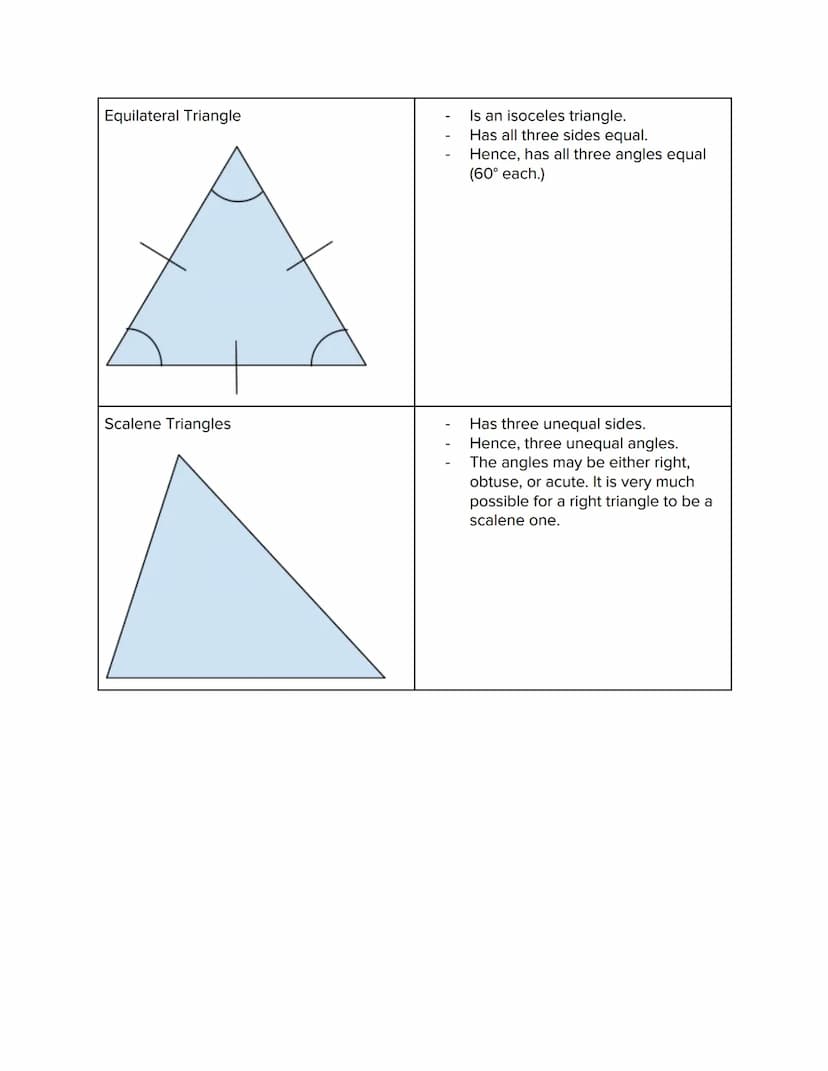

Isosceles triangles feature at least two equal sides and two equal angles opposite these sides. This symmetry makes them particularly useful in construction and architectural design. When all three sides are equal, we have an equilateral triangle, where all angles measure exactly 60°.

Highlight: Scalene triangles have no equal sides or angles, representing the most general form of triangles. They can be right, acute, or obtuse, demonstrating the versatility of triangular shapes.

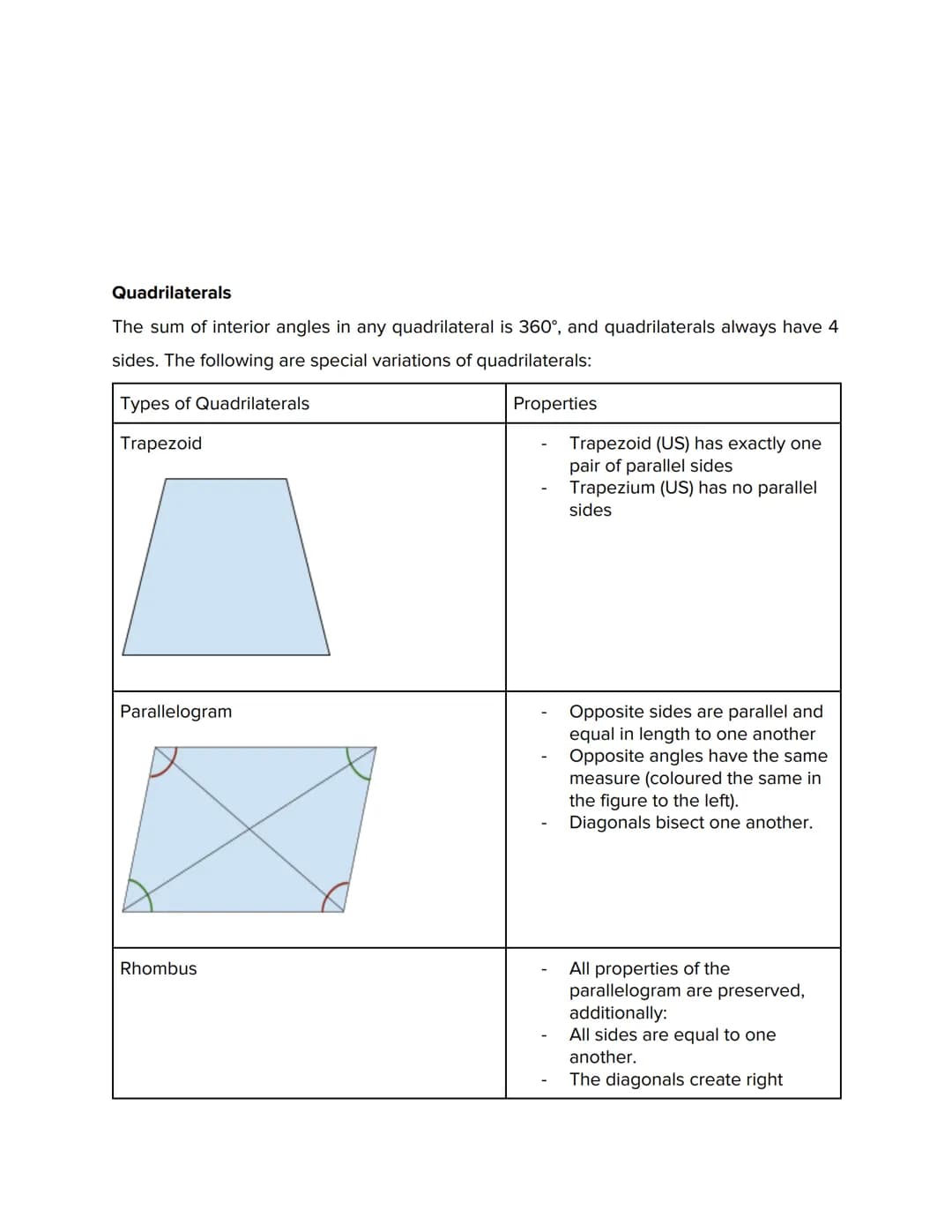

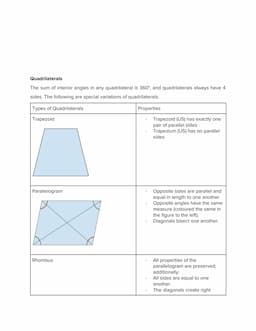

Understanding Quadrilateral Classifications

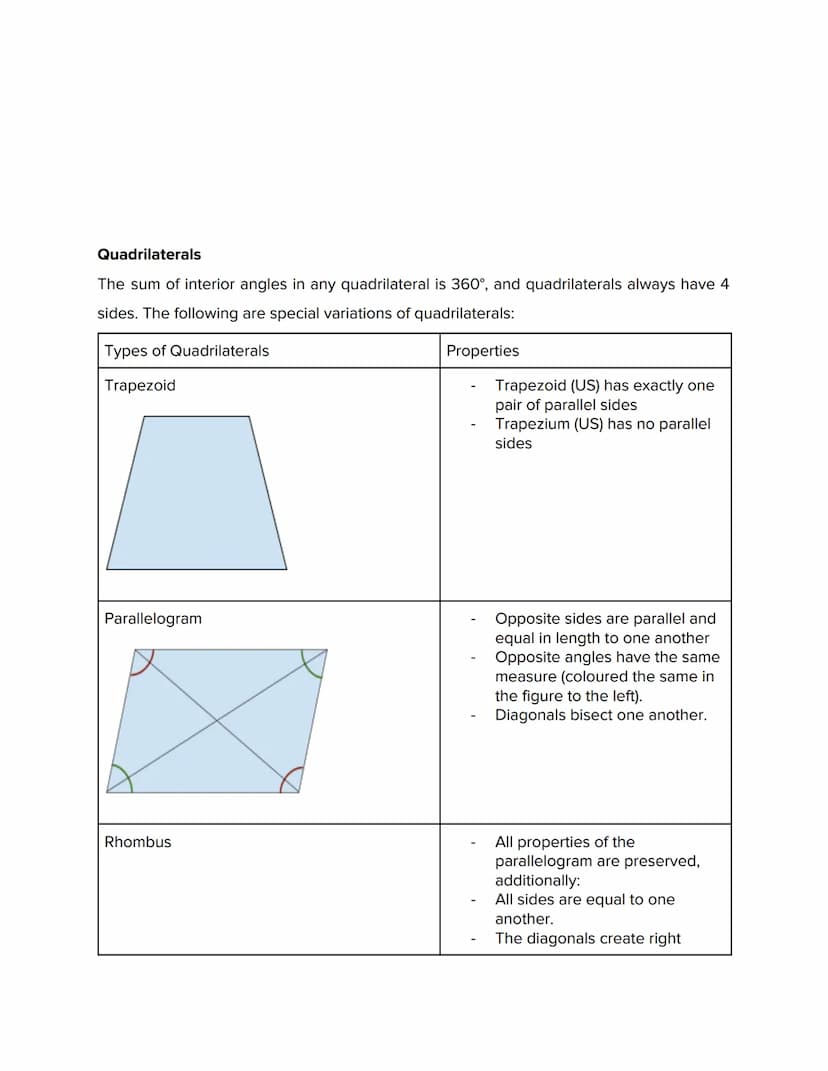

Quadrilaterals, four-sided polygons with interior angles summing to 360°, come in several distinct varieties, each with unique properties that make them valuable in different applications.

Definition: A trapezoid has exactly one pair of parallel sides, while a parallelogram features two pairs of parallel sides with opposite sides equal in length.

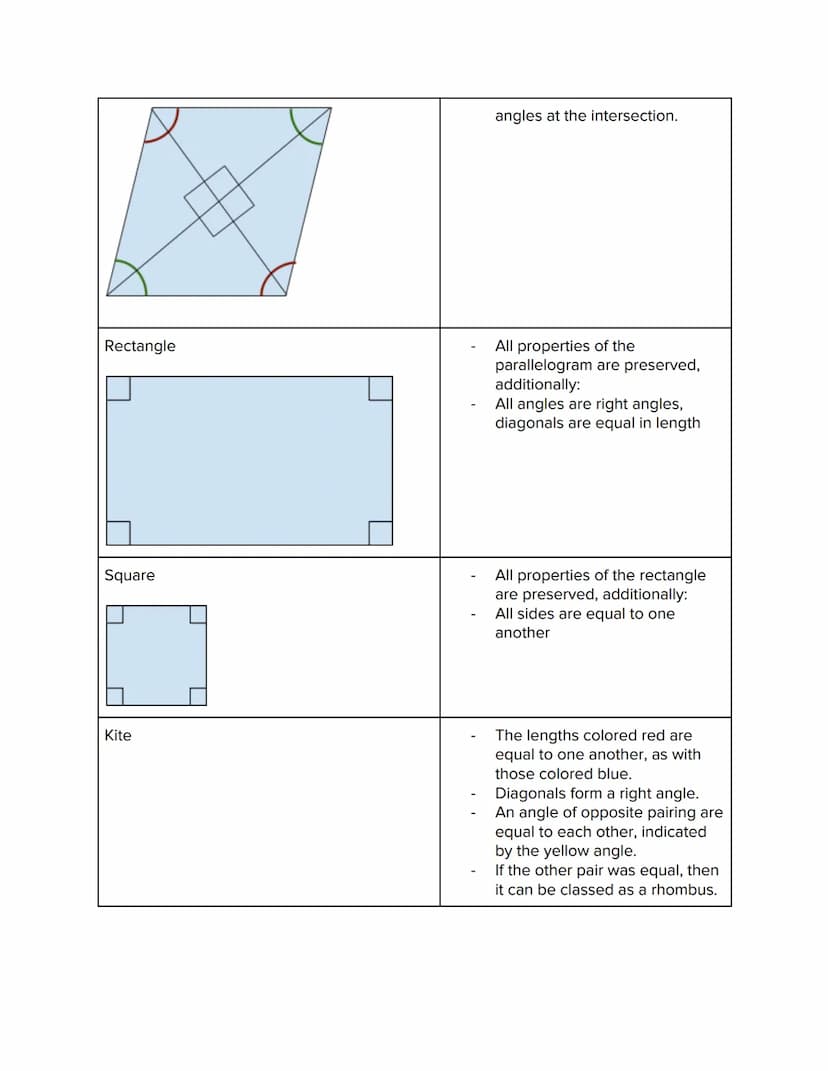

Parallelograms exhibit several important properties: opposite angles are equal, and diagonals bisect each other at their intersection point. The rhombus, a special type of parallelogram, maintains these properties while adding the condition that all sides are equal in length.

The rectangle represents another specialized parallelogram where all angles measure 90°. At the pinnacle of quadrilateral specialization stands the square, combining the properties of both rhombus and rectangle to create a shape with perfect symmetry.

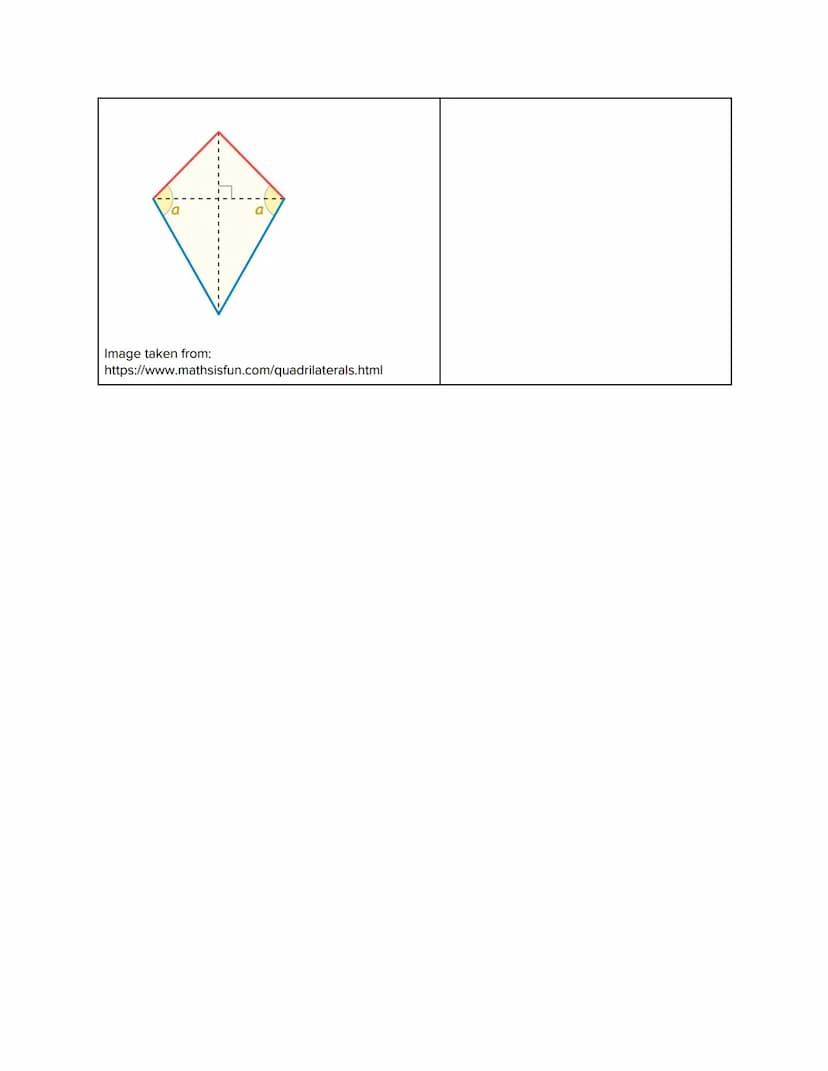

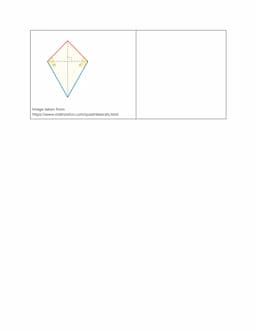

Example: A kite demonstrates partial symmetry, with two pairs of adjacent sides equal in length. Its diagonals intersect at right angles, though only one diagonal bisects the other.

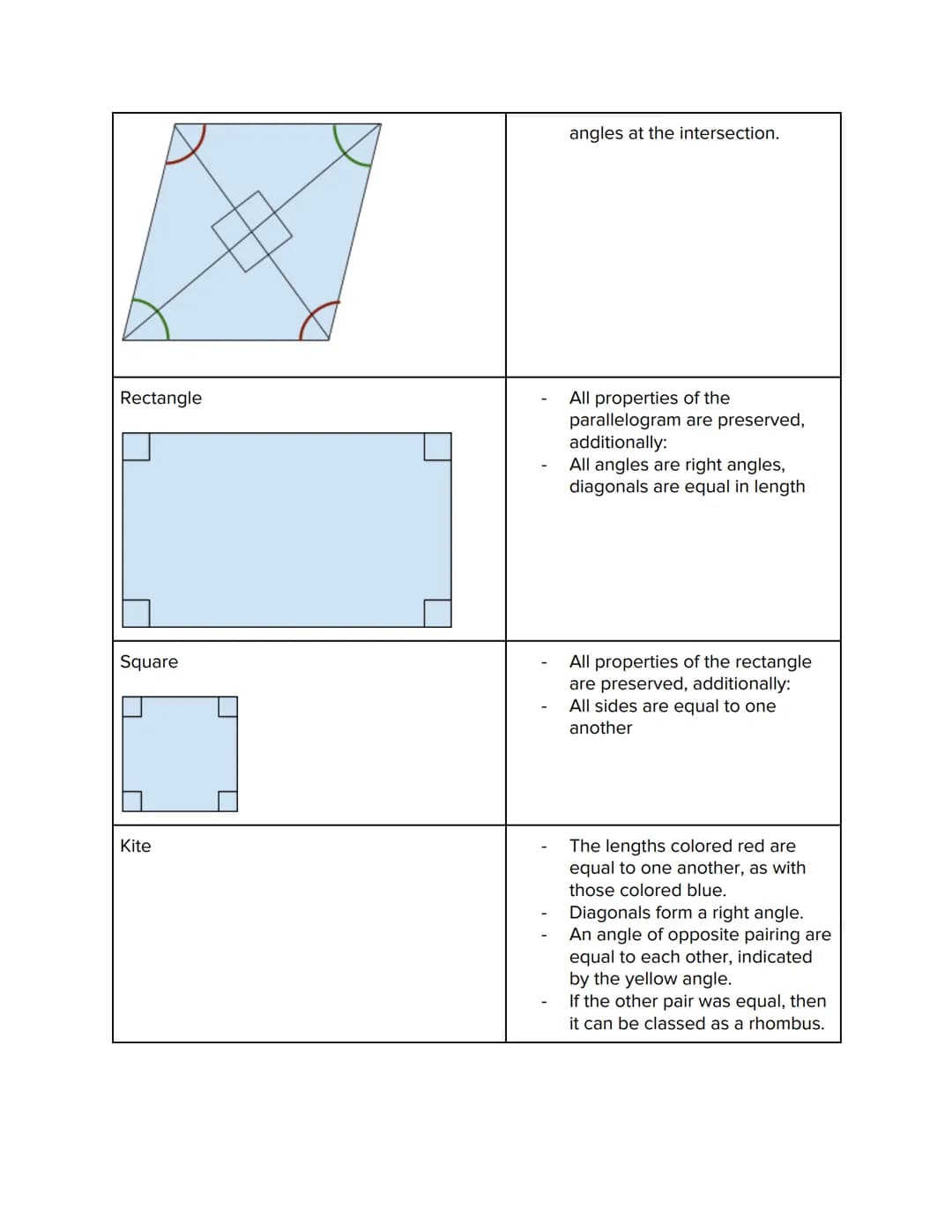

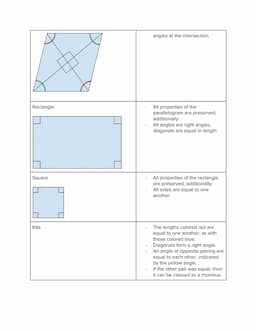

Advanced Properties of Special Quadrilaterals

The relationships between different types of quadrilaterals form a hierarchy of properties, with each specialized form inheriting characteristics from more general categories while adding its own unique features.

Rectangles preserve all parallelogram properties while ensuring all angles are right angles and diagonals are equal in length. This makes them particularly useful in construction and design where perpendicular alignment is crucial.

Highlight: The square represents the most specialized quadrilateral, combining all the properties of rectangles and rhombuses. Its perfect symmetry makes it the foundation for many geometric concepts and real-world applications.

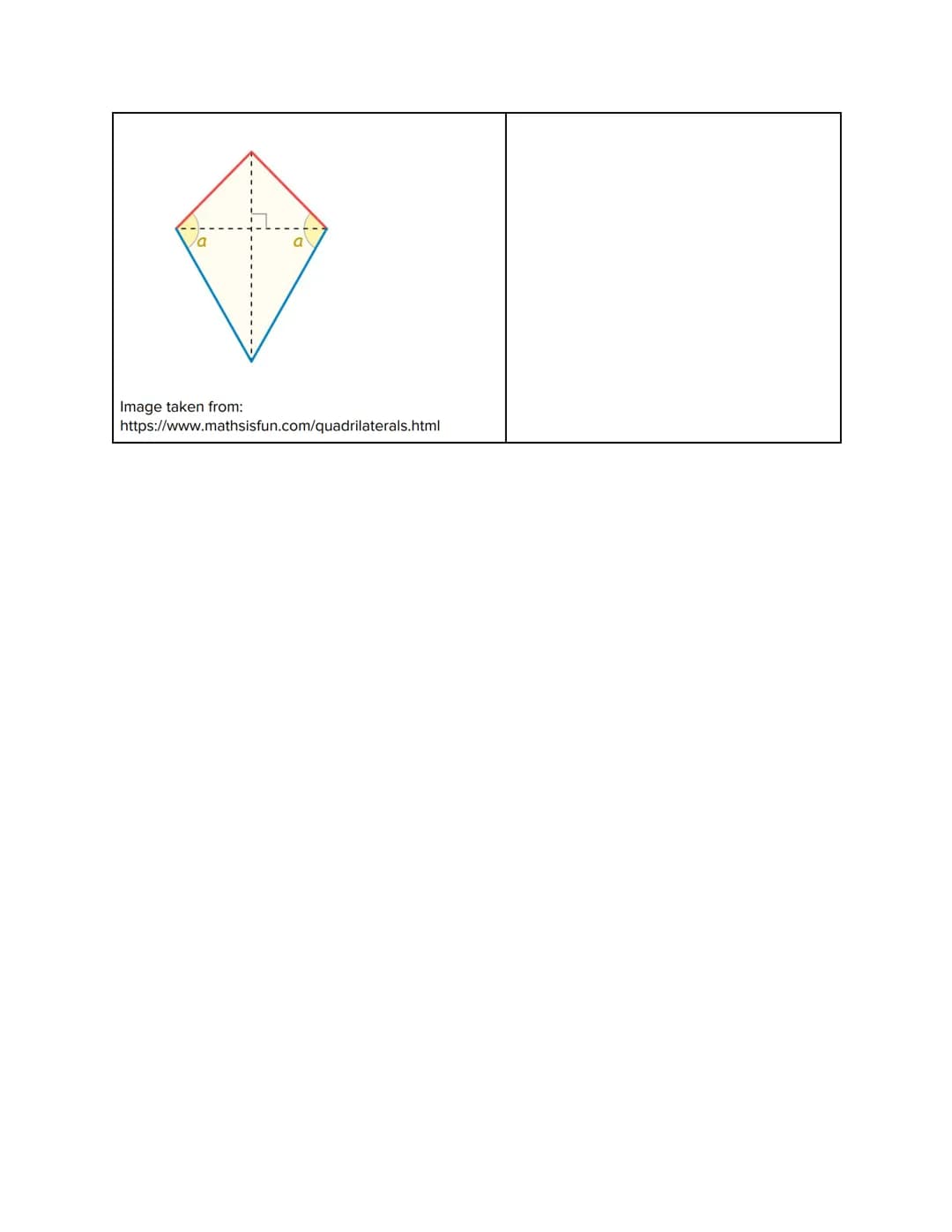

The kite offers an interesting variation, featuring two pairs of adjacent equal sides rather than opposite equal sides. This creates a unique symmetry about one diagonal, distinguishing it from other quadrilaterals while maintaining its own special properties.

Understanding Quadrilaterals and Their Properties

A quadrilateral is a closed shape with exactly four sides and four angles. These versatile shapes appear everywhere in our daily lives, from picture frames to computer screens. Understanding their properties helps us better comprehend geometry and spatial relationships.

Definition: A quadrilateral is a polygon with four sides, four vertices (corners), and four interior angles that sum to 360 degrees.

The family of quadrilaterals includes several special types, each with unique characteristics. Parallelograms have two pairs of parallel sides and opposite angles that are equal. Rectangles are parallelograms with four right angles (90 degrees). Squares combine the properties of rectangles with equal sides, making them the most symmetrical quadrilaterals. Rhombuses have four equal sides but don't necessarily have right angles.

When studying quadrilaterals, it's essential to understand their diagonal properties. Diagonals are lines that connect opposite vertices. In rectangles, diagonals are equal in length and bisect each other. In squares, diagonals are not only equal but also perpendicular to each other, creating four right angles when they intersect. These properties make quadrilaterals fundamental in architecture, engineering, and design.

Example: Consider a rectangular door frame. Its shape ensures stability and proper function because opposite sides are parallel and all angles are 90 degrees. The diagonal measurements help verify if the frame is perfectly rectangular during installation.

Advanced Properties of Quadrilaterals and Their Applications

The study of quadrilaterals extends beyond basic shapes into more complex geometric concepts. Trapezoids, which have exactly one pair of parallel sides, demonstrate how quadrilaterals can be used in real-world applications like roof designs and bridge supports. The midsegment of a trapezoid, parallel to the bases, helps calculate areas and provides structural support points.

Interior angles of quadrilaterals follow specific rules that relate to parallel lines and transversals. When two parallel lines are cut by a transversal, corresponding angles are equal, and adjacent angles are supplementary (sum to 180 degrees). This principle helps explain why opposite angles in parallelograms are equal and why rectangles maintain their shape.

Highlight: The sum of interior angles in any quadrilateral is always 360 degrees, regardless of its specific shape or size. This constant helps verify measurements and solve geometric problems.

Quadrilaterals also play a crucial role in coordinate geometry. By plotting quadrilaterals on a coordinate plane, we can calculate distances, slopes, and areas using algebraic methods. This connection between geometry and algebra demonstrates how mathematical concepts interrelate and support each other in solving complex problems.
