Understanding Fundamental Geometry Concepts and Theorems

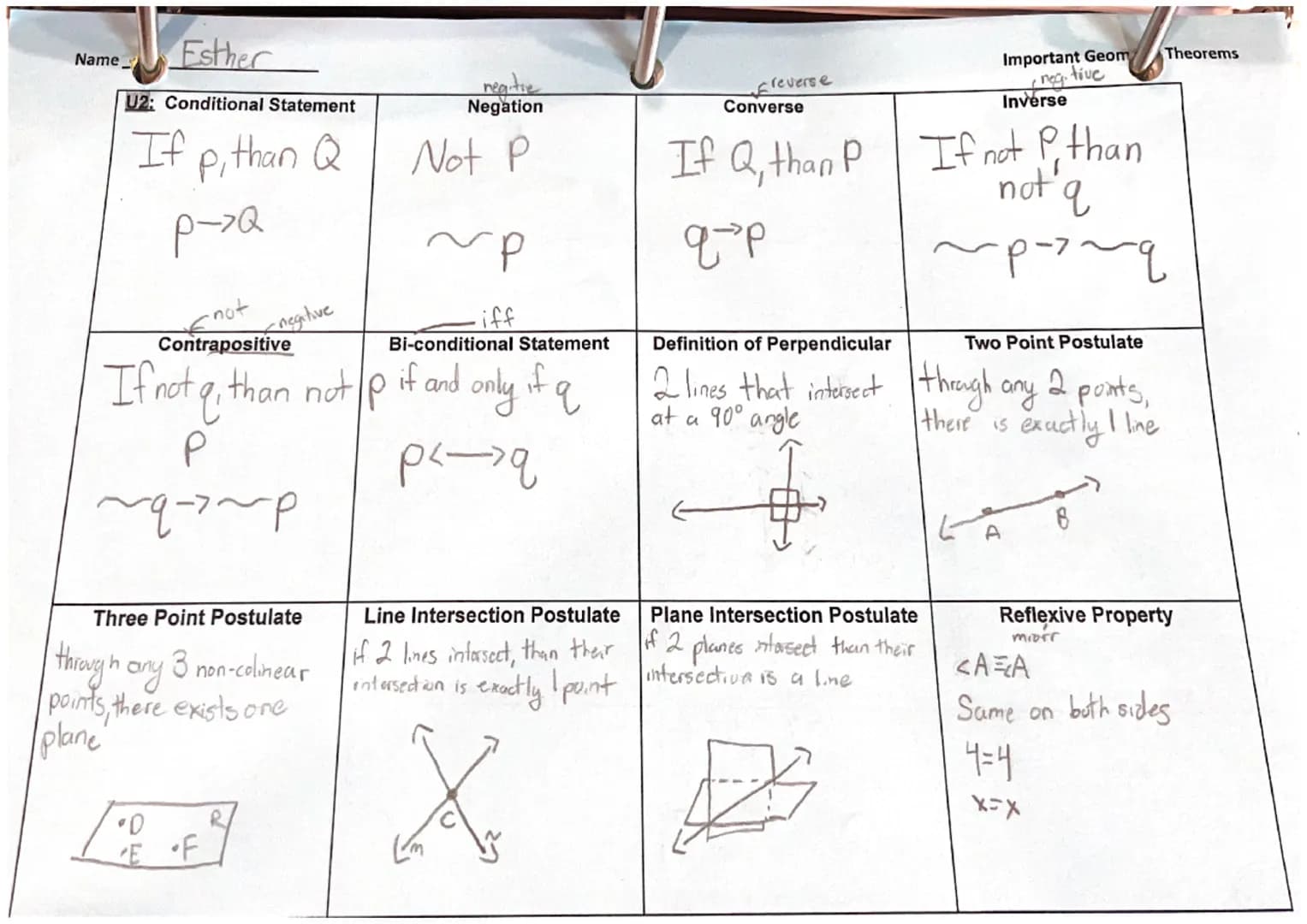

Conditional Statements in Geometry form the foundation of geometric reasoning and proof. These statements follow an "if-then" structure that helps establish relationships between geometric elements.

Definition: A conditional statement consists of a hypothesis (if part) and a conclusion (then part), written as "if p, then q" or symbolically as p→q.

The Three Point Postulate states that through any three non-collinear points, there exists exactly one plane. This fundamental concept helps us understand how planes are defined in three-dimensional space. Similarly, the Line Intersection Postulate establishes that when two lines intersect, their intersection consists of exactly one point.

When working with conditional statements, we encounter several variations:

• Contrapositive: If not q, then not p
• Converse: If q, then p
• Inverse: If not p, then not q
• Biconditional: If and only if (iff)

Example: Consider two perpendicular lines. The definition states that they intersect at a 90° angle. The contrapositive would be: If two lines don't intersect at a 90° angle, then they're not perpendicular.

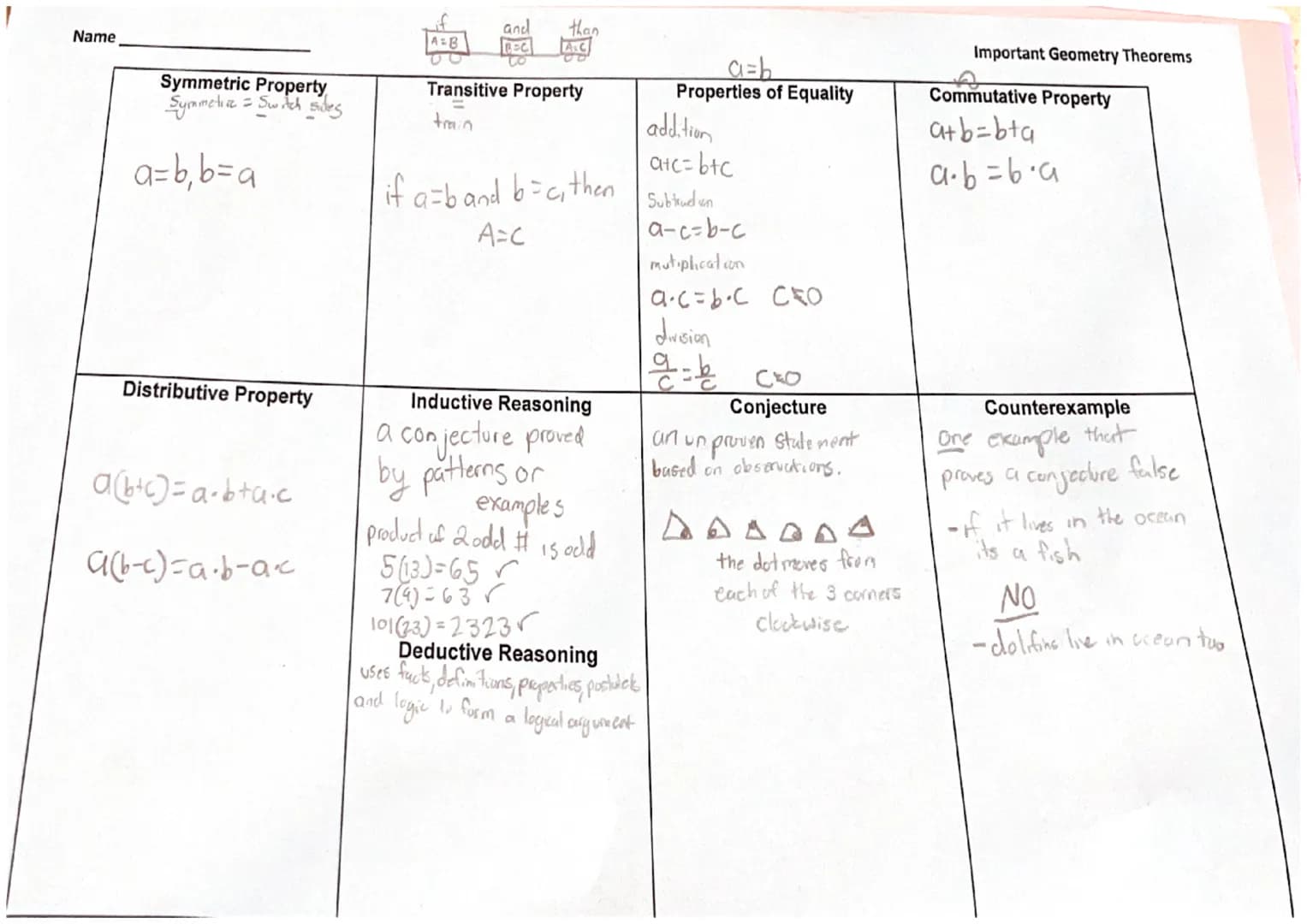

Properties of Equality in Geometric Reasoning

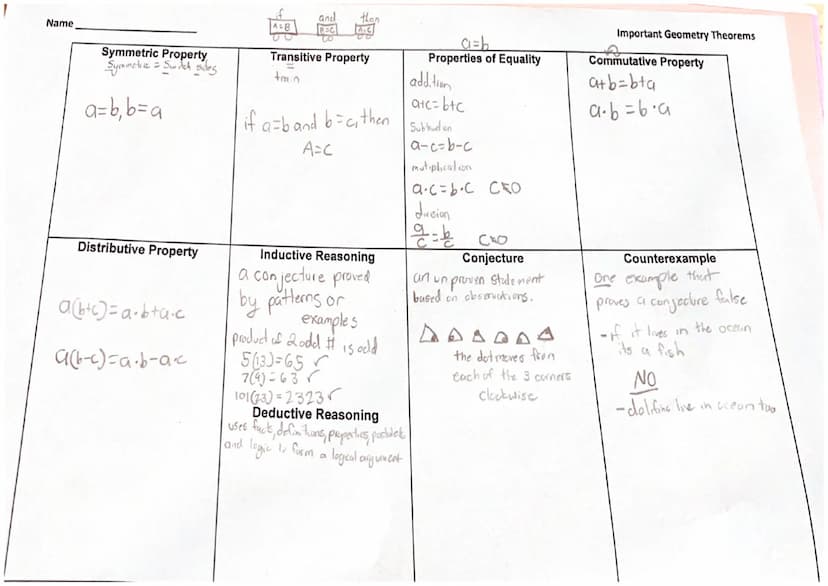

Geometry Properties of Equality provide the logical framework for proving geometric relationships. These properties are essential for constructing valid mathematical arguments.

Highlight: The fundamental properties of equality include:

• Reflexive Property $a = a$
• Symmetric Property $if a = b, then b = a$
• Transitive Property $if a = b and b = c, then a = c$

These properties extend to geometric operations through:

• Addition Property: If equals are added to equals, the results are equal
• Subtraction Property: If equals are subtracted from equals, the results are equal
• Multiplication Property: If equals are multiplied by equals, the results are equal
• Division Property: If equals are divided by equals (except by zero), the results are equal

Mathematical reasoning in geometry employs both inductive and deductive approaches. Inductive reasoning involves making conjectures based on patterns or examples, while deductive reasoning uses facts, definitions, properties, and postulates to form logical arguments.

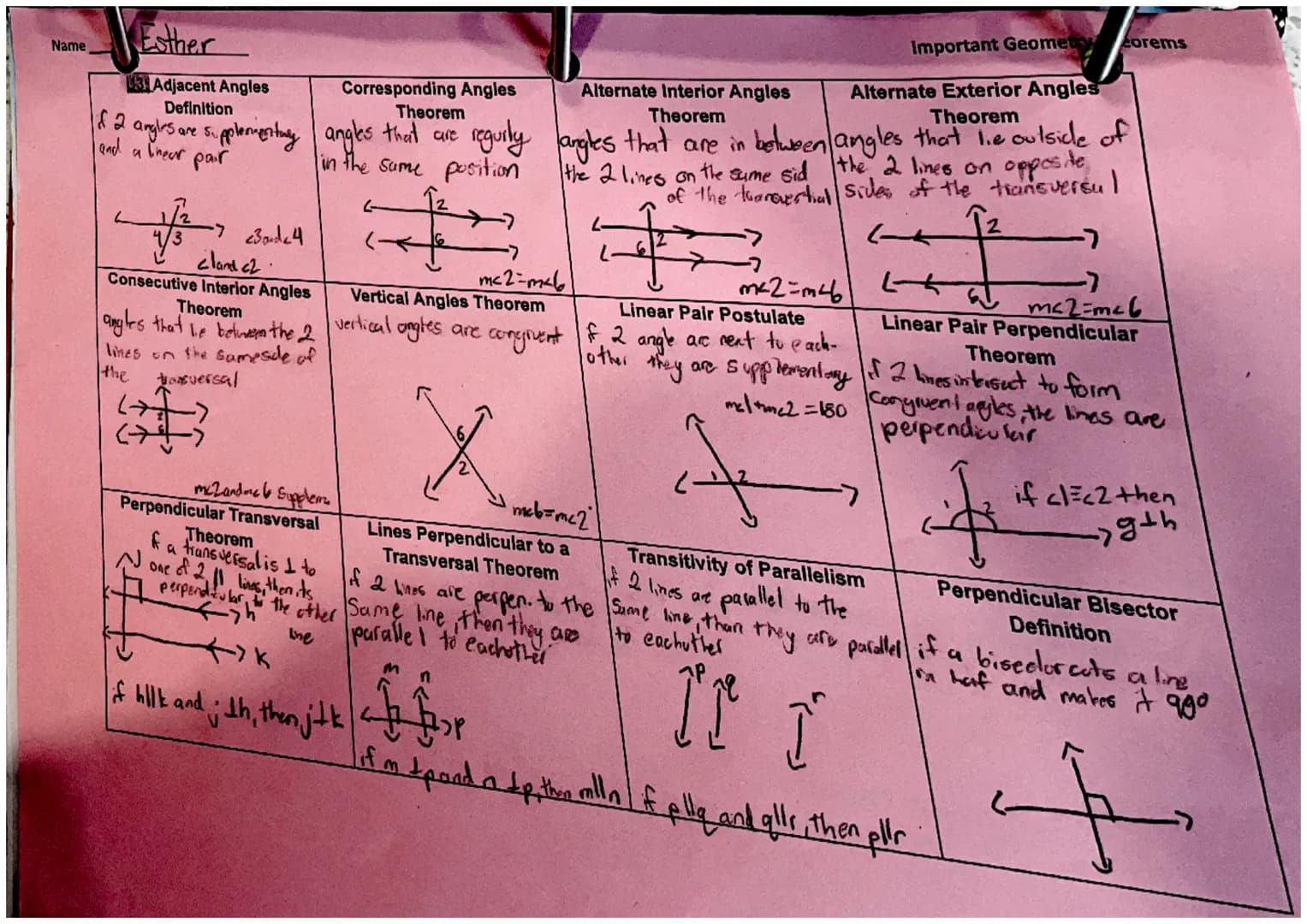

Parallel and Perpendicular Line Relationships

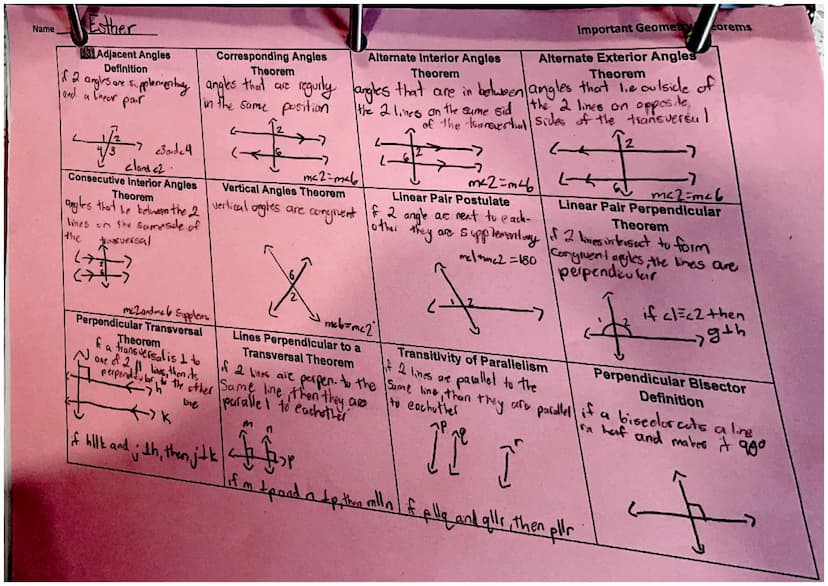

Theorems for Parallel and Perpendicular Lines establish crucial relationships when lines are cut by a transversal. These relationships form the basis for many geometric proofs.

Vocabulary: Key angle relationships include:

• Corresponding Angles: Angles in the same relative position
• Alternate Interior Angles: Angles between the lines on opposite sides of the transversal
• Alternate Exterior Angles: Angles outside the lines on opposite sides of the transversal
• Consecutive Interior Angles: Angles between the lines on the same side of the transversal

The Perpendicular Transversal Theorem states that if a transversal is perpendicular to one of two parallel lines, it must be perpendicular to the other line as well. This theorem is frequently used in conjunction with the Linear Pair Postulate, which states that adjacent angles forming a linear pair are supplementary.

Geometric Transformations and Similar Figures

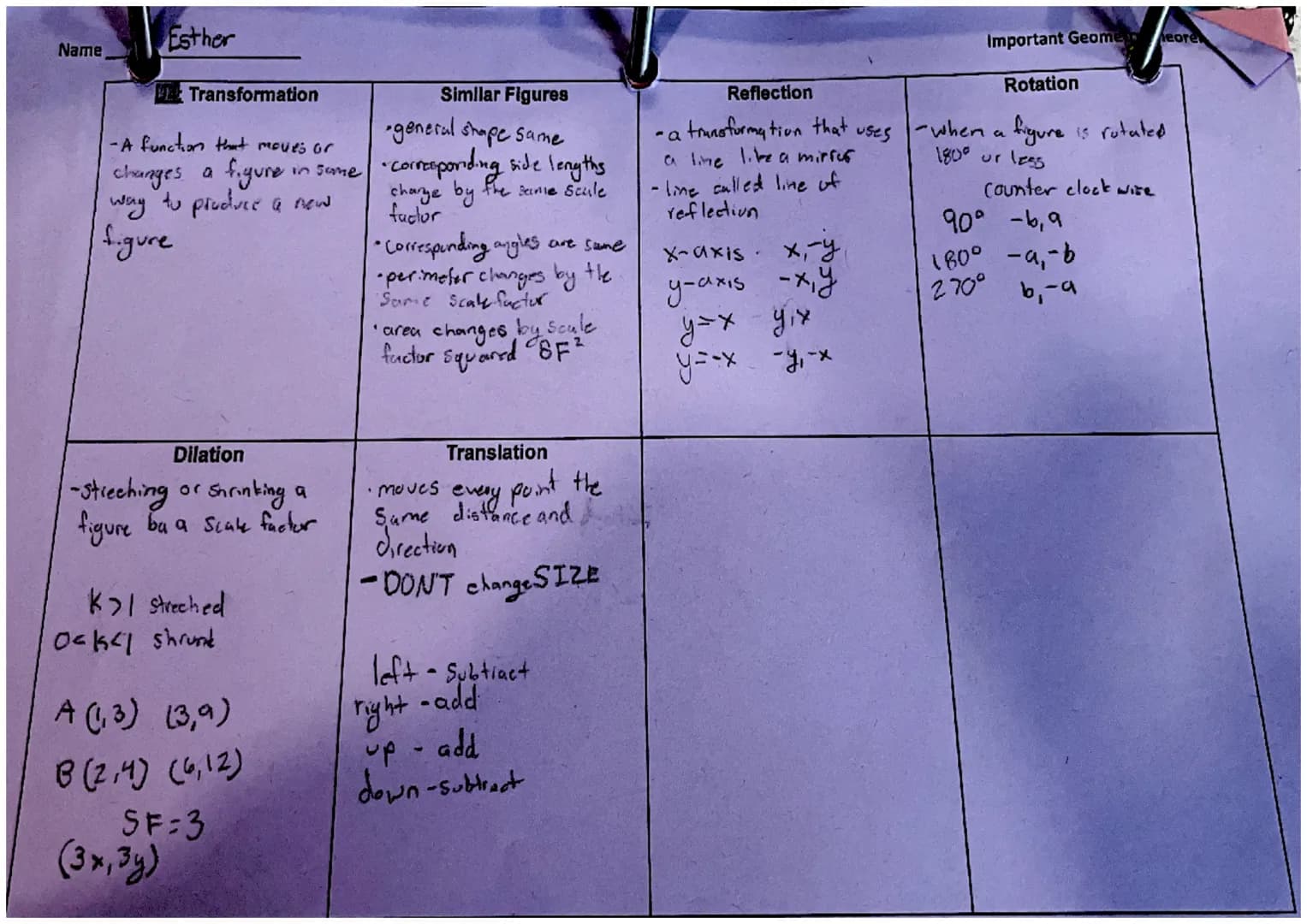

Geometric transformations involve moving or changing figures while preserving certain properties. These transformations include translations, reflections, rotations, and dilations.

Definition: Similar figures have the same shape but not necessarily the same size, with corresponding angles equal and corresponding sides proportional.

Dilations involve stretching or shrinking a figure by a scale factor (k):

• When k > 1, the figure is enlarged
• When 0 < k < 1, the figure is reduced
• The scale factor affects both perimeter (multiplied by k) and area (multiplied by k²)

Other transformations maintain the figure's size and shape:

• Translations move every point the same distance and direction
• Reflections mirror a figure across a line
• Rotations turn a figure around a fixed point by a specific angle

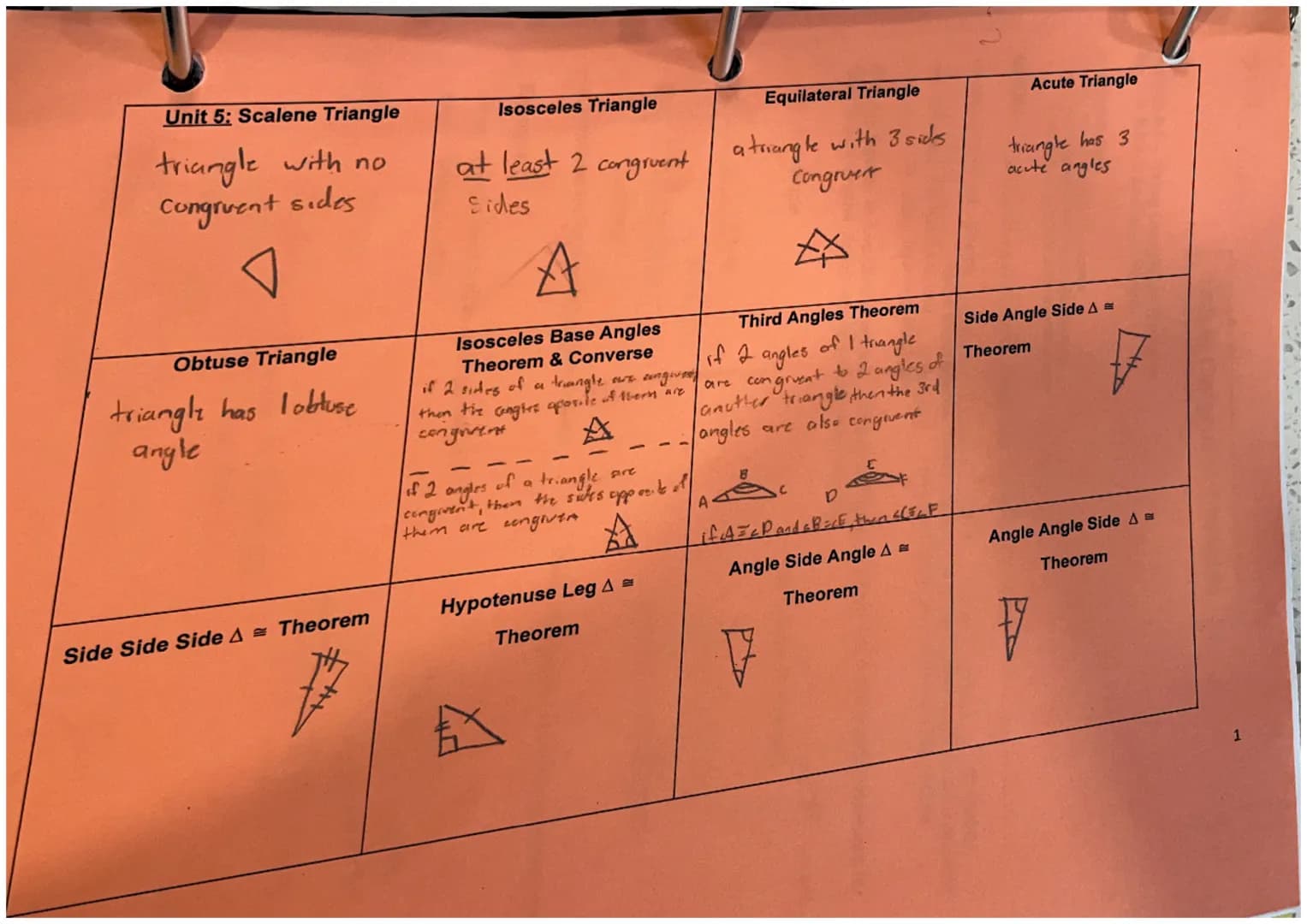

Understanding Triangle Types and Theorems

A thorough understanding of triangles begins with recognizing their various classifications and the theorems that govern their properties. Different triangle types serve unique purposes in geometry and construction.

Scalene triangles have no congruent sides, making them the most common triangle type in real-world applications. In contrast, isosceles triangles feature at least two congruent sides, leading to the important Isosceles Base Angles Theorem. This theorem states that angles opposite to the congruent sides are also congruent, a fundamental principle in geometric proofs.

The Side-Side-Side (SSS), Side-Angle-Side (SAS), and Angle-Side-Angle (ASA) theorems provide methods for proving triangle congruence. These theorems are essential tools in geometric reasoning and construction. The Third Angles Theorem further states that if two angles of one triangle are congruent to two angles of another triangle, their third angles must also be congruent.

Definition: An equilateral triangle has three congruent sides and three congruent angles, making it the most symmetrical of all triangles.

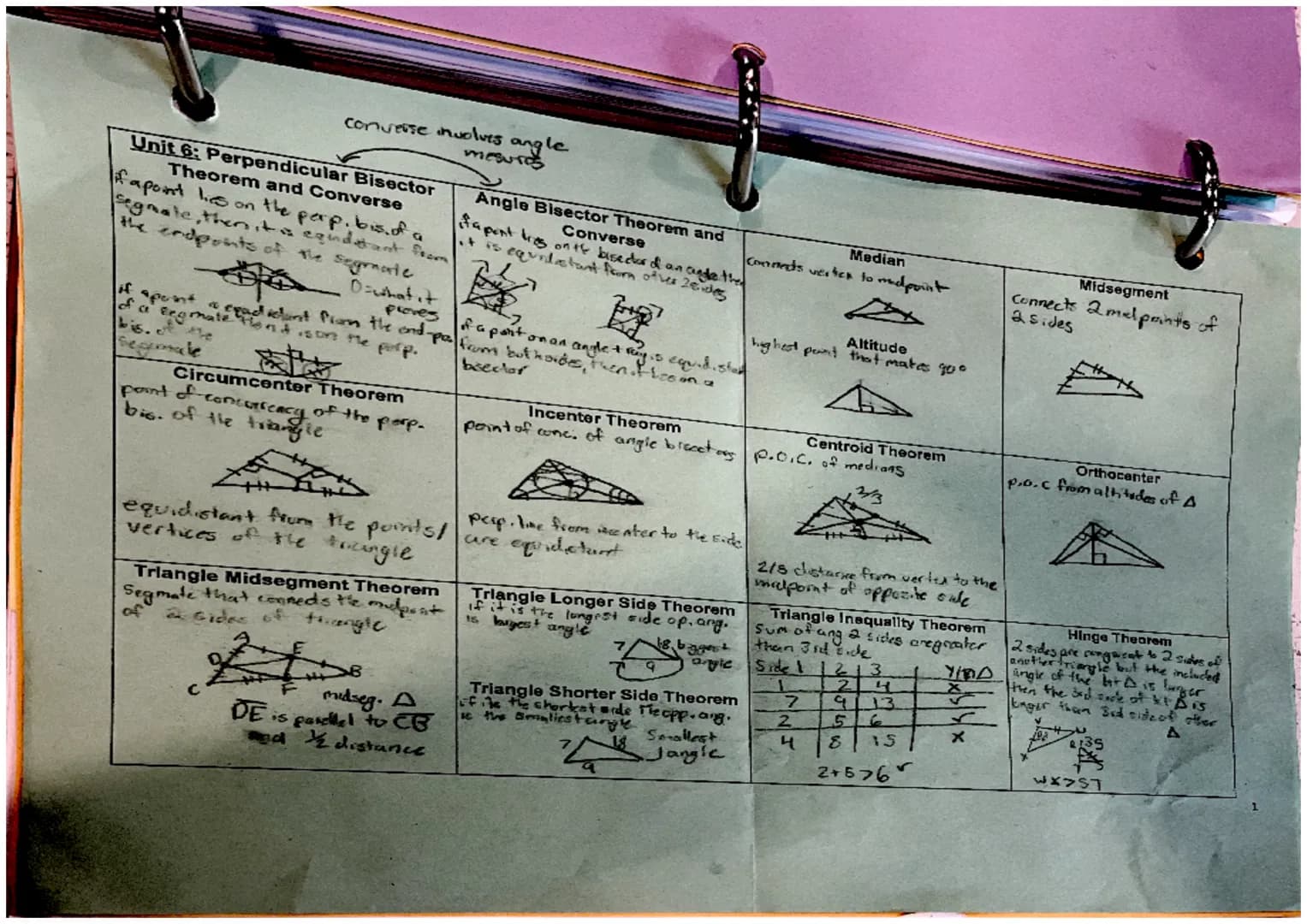

Perpendicular Bisectors and Triangle Centers

The Perpendicular Bisector Theorem states that any point on a perpendicular bisector is equidistant from the endpoints of the segment it bisects. This principle is crucial in locating the circumcenter of a triangle - the point where all perpendicular bisectors intersect.

Triangle centers serve as important reference points in geometric constructions. The circumcenter, incenter, and centroid each have unique properties. The centroid, formed by the intersection of medians, divides each median in a 2:1 ratio. The incenter, where angle bisectors meet, is equidistant from all sides of the triangle.

Highlight: The Triangle Inequality Theorem states that the sum of any two sides of a triangle must be greater than the third side, a fundamental principle in triangle construction.

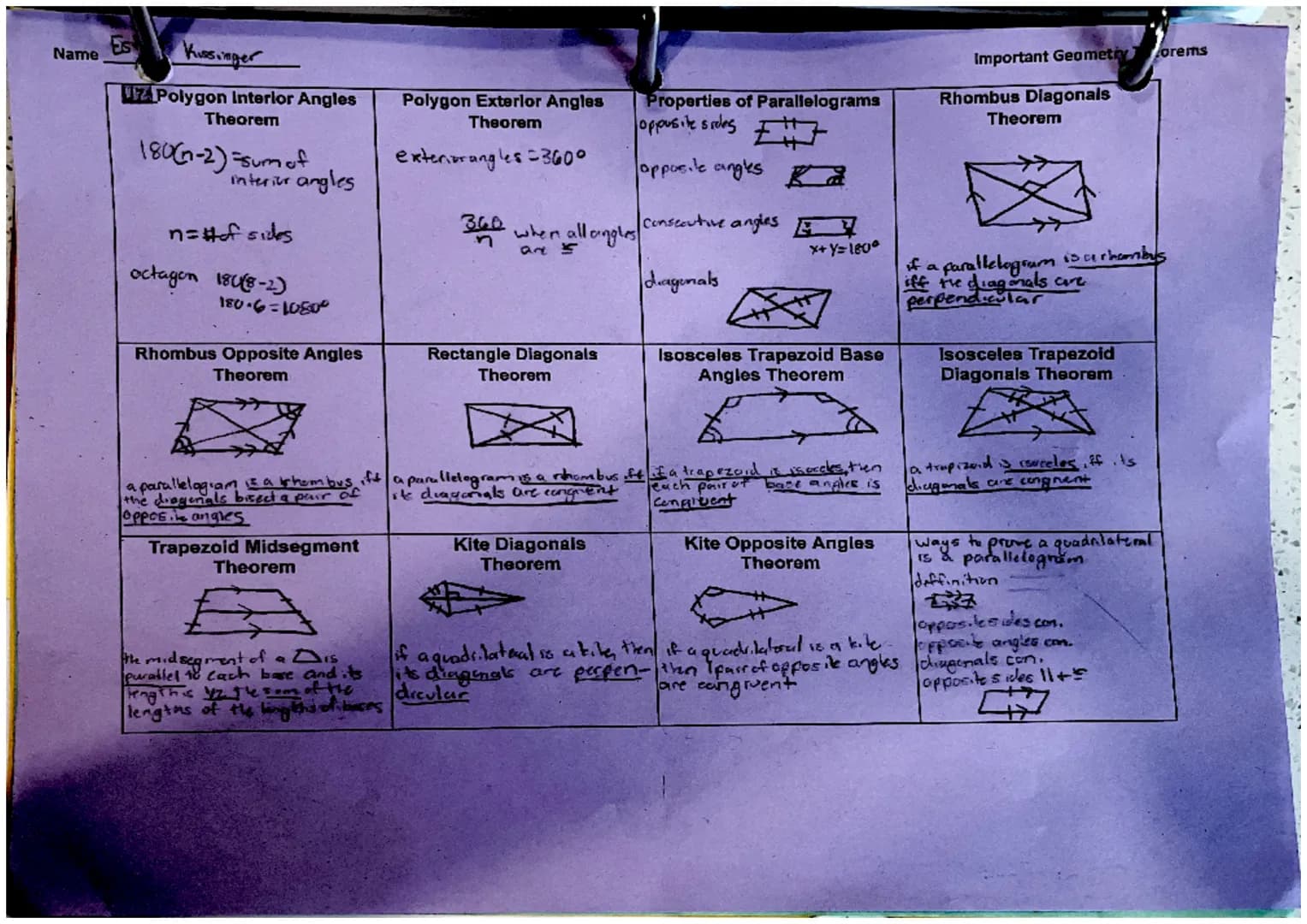

Polygon Properties and Theorems

The study of polygons reveals important relationships between angles and sides. The Geometry Properties of Equality are fundamental in understanding polygon characteristics. The Interior Angles Theorem states that the sum of interior angles in a polygon equals 180°$n-2$, where n is the number of sides.

Parallelograms possess special properties regarding their sides and angles. Opposite sides are parallel and congruent, while opposite angles are congruent. The diagonals of a rectangle are congruent, while rhombus diagonals are perpendicular to each other.

Example: In a trapezoid, the midsegment is parallel to the bases and its length equals half the sum of the parallel sides.

Similar Triangles and Trigonometry

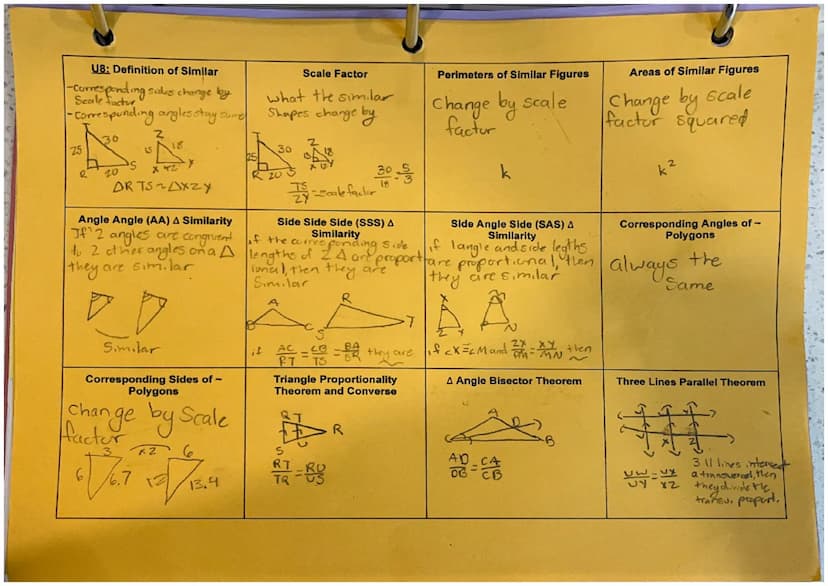

Similar triangles maintain the same shape but may differ in size, with corresponding angles remaining equal and sides changing proportionally by a scale factor. The Angle-Angle (AA) Similarity Theorem states that if two angles of one triangle are congruent to two angles of another triangle, the triangles are similar.

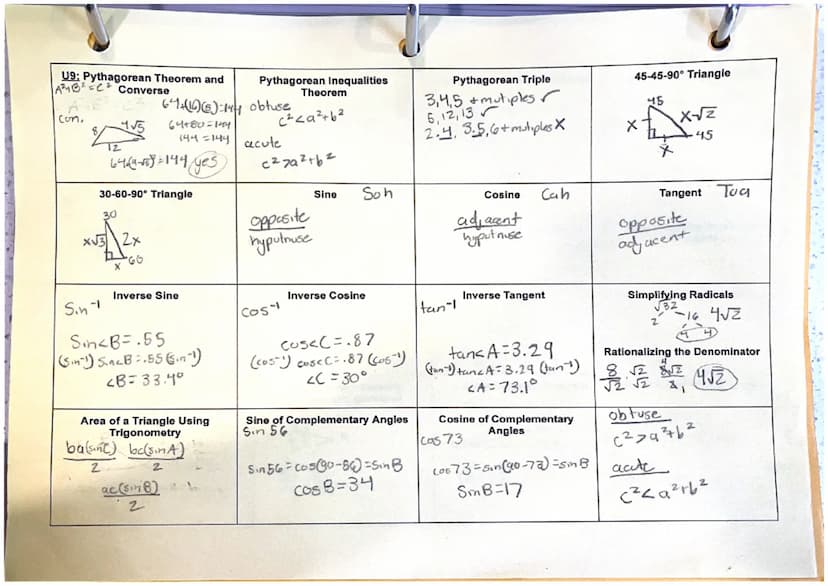

The Pythagorean Theorem, a cornerstone of geometry, states that in a right triangle, the square of the hypotenuse equals the sum of squares of the other two sides. This principle extends to trigonometric ratios - sine, cosine, and tangent - which relate side lengths to angles in right triangles.

Vocabulary: Scale factor is the ratio of corresponding sides in similar figures, determining how much larger or smaller one figure is compared to another.

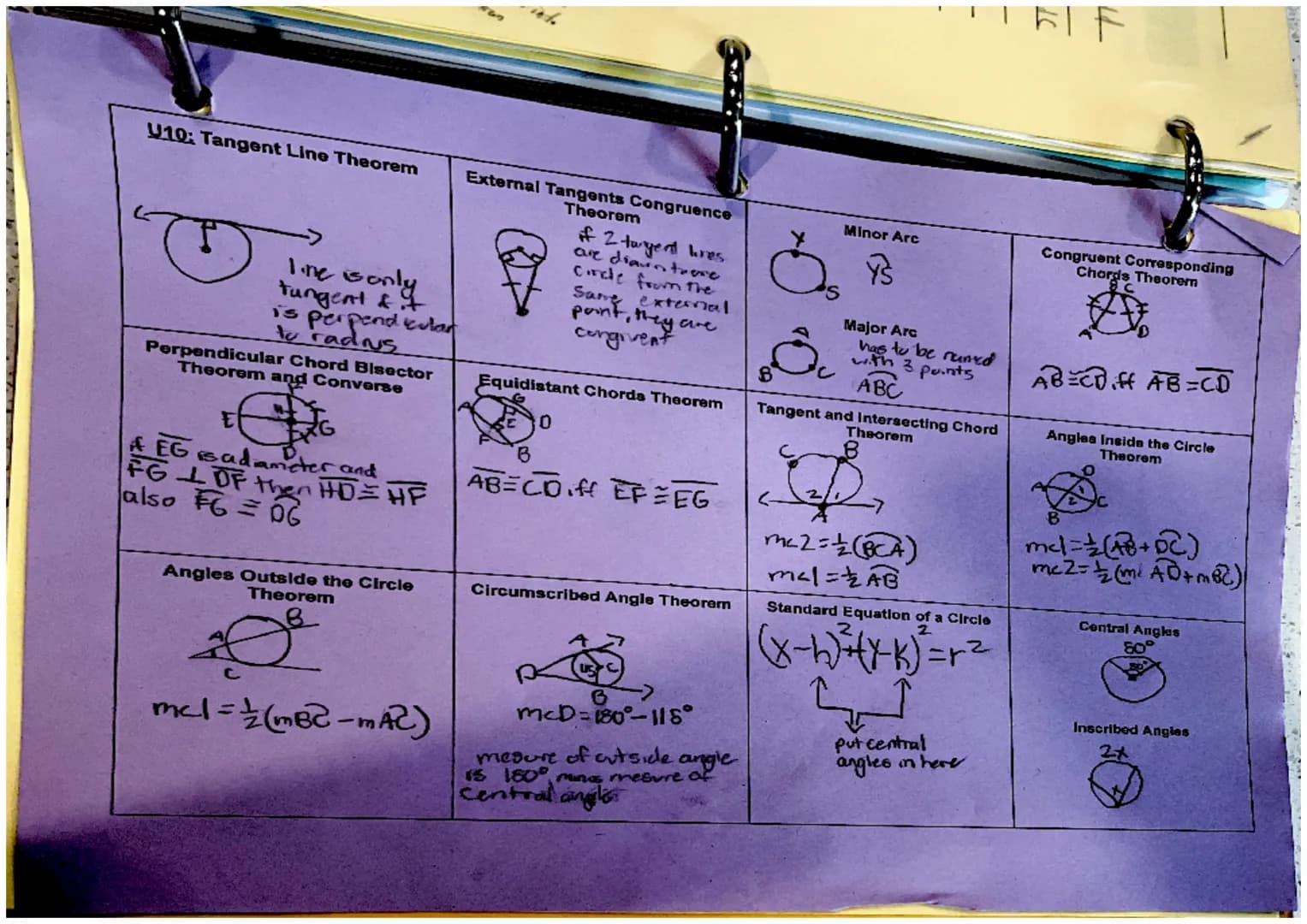

Understanding Circle Theorems and Properties in Geometry

Circle geometry forms a crucial foundation in mathematics, incorporating various theorems that help us understand relationships between angles, chords, and tangent lines. These principles are essential for solving complex geometric problems and real-world applications.

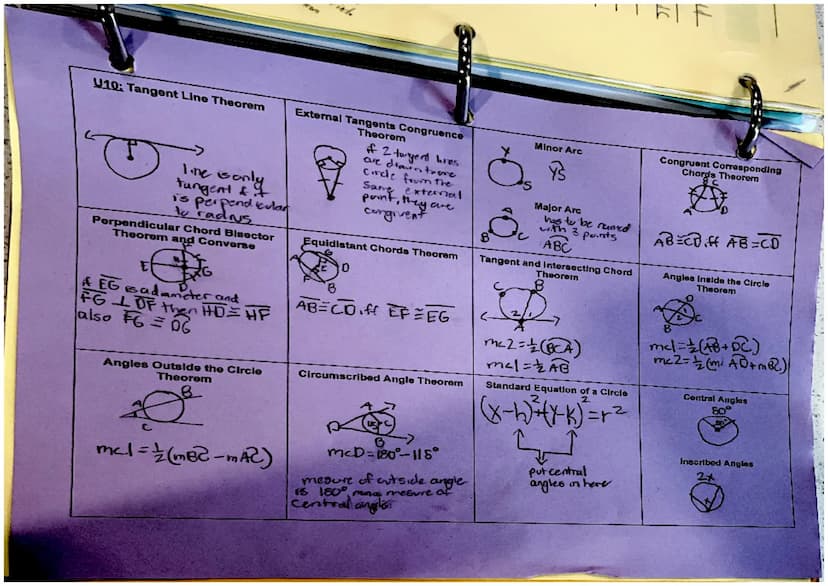

When examining circles, the Geometry Properties of Equality play a vital role in understanding how different parts of a circle relate to each other. The Tangent Line Theorem states that any tangent line drawn to a circle is perpendicular to the radius at the point of tangency. This fundamental principle helps us understand how lines interact with circular shapes in both theoretical and practical applications.

Definition: A tangent line is a line that touches a circle at exactly one point, called the point of tangency.

The Perpendicular Chord Bisector Theorem introduces another important relationship: when a line is perpendicular to a chord and passes through the center of the circle, it bisects that chord. This theorem has practical applications in construction and engineering, where precise measurements and symmetry are crucial.

Example: In architecture, the principles of circle theorems are used when designing circular structures, ensuring proper support and balance through the understanding of chord relationships and tangent properties.

Advanced Circle Theorems and Their Applications

The External Tangents Congruence Theorem states that when two tangent lines are drawn to a circle from an external point, they are congruent. This property is particularly useful when solving problems involving circular objects and their surrounding structures.

Highlight: Understanding circle theorems is essential for advanced geometry problems and real-world applications in engineering, architecture, and design.

The Angles Inside and Outside the Circle Theorems provide crucial relationships between inscribed angles, central angles, and arcs. For inscribed angles, the measure is always half the measure of its intercepted arc. This relationship helps in calculating various angle measures within circular constructions.

The Standard Equation of a Circle, $x-h$² + $y-k$² = r², represents the mathematical foundation for working with circles in coordinate geometry. This equation allows us to analyze circles analytically and solve problems involving circular motion and circular paths.

Vocabulary: Inscribed angle - an angle formed by two chords with the vertex on the circle Central angle - an angle whose vertex is at the center of the circle
