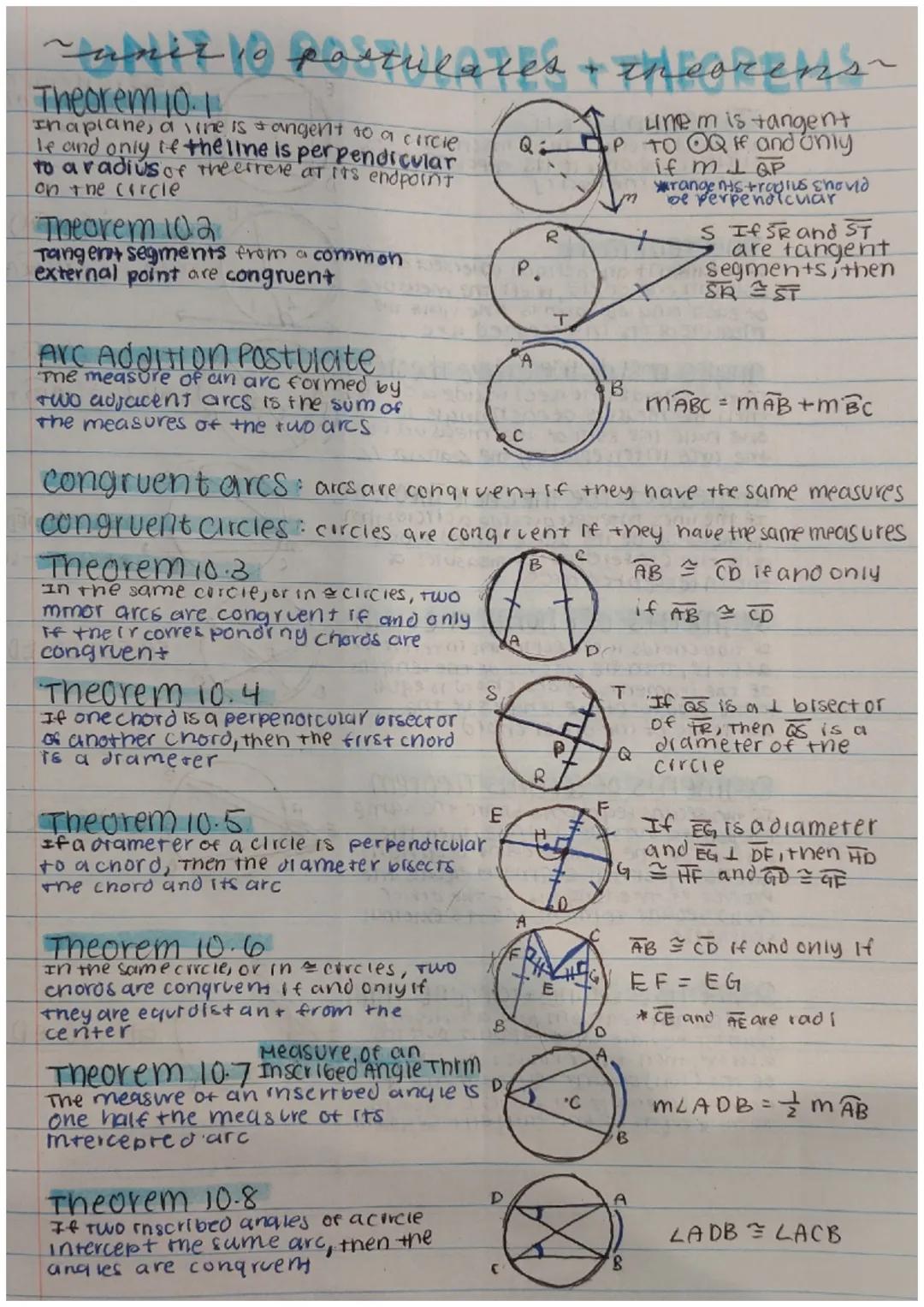

Understanding Postulates and Theorems in Geometry Unit 10

Circle Theorems: Tangents and Arcs

Ever wonder why certain lines only touch a circle at exactly one point? A line is tangent to a circle if and only if it's perpendicular to the radius at the point where they meet. Think of it as the radius pushing straight out against the line!

When you have two tangent segments from the same external point to a circle (like drawing two lines from your pencil to touch a circle), they'll always be the same length. This is the Tangent Segments Theorem, which tells us that if SR and ST are tangent segments, then SR = ST.

Arcs are portions of a circle's circumference. According to the Arc Addition Postulate, when you combine adjacent arcs, their measures add together (mABC = mAB + mBC). Circles can have congruent arcs (same measure) and circles themselves are congruent when they have the same radius.

Quick Tip: When working with chords and arcs, remember that there's a direct relationship between them. If two chords are congruent, their corresponding arcs are also congruent (and vice versa)!

Several theorems connect chords and diameters. If one chord is a perpendicular bisector of another chord, then the first chord is actually a diameter. And if a diameter is perpendicular to a chord, it bisects both the chord and its arc. These relationships help us solve many circle problems efficiently.

The Inscribed Angle Theorem is super useful - it tells us that an angle inscribed in a circle equals half the measure of its intercepted arc. And if two inscribed angles intercept the same arc, they're congruent - even if they're in different positions on the circle!

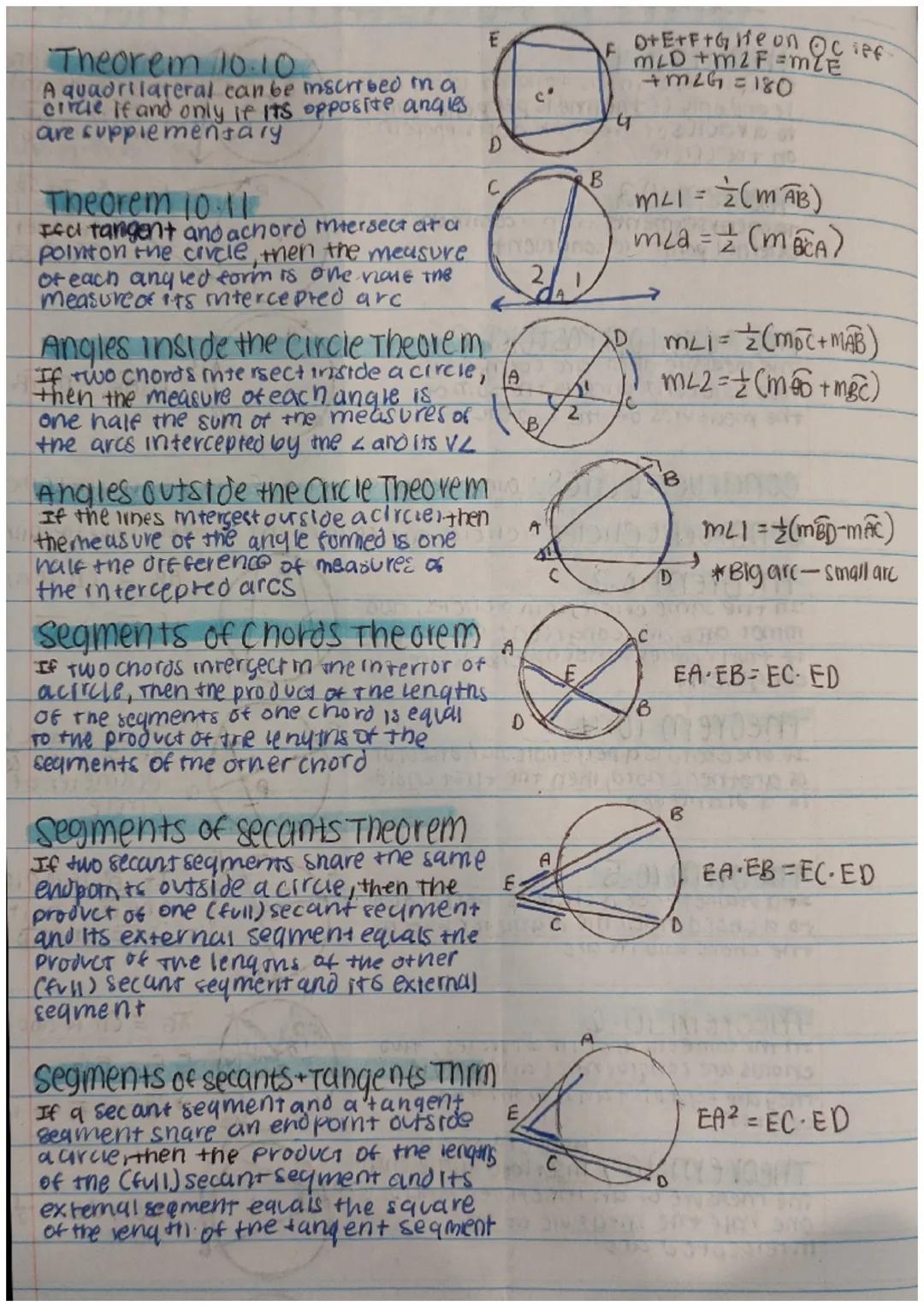

Advanced Circle Theorems

Did you know you can fit a quadrilateral inside a circle only under certain conditions? A quadrilateral can be inscribed in a circle if and only if its opposite angles are supplementary (add up to 180°). This helps us both test if a shape can fit in a circle and find missing angles.

When angles form inside a circle due to intersecting chords, the measure of each angle equals half the sum of the intercepted arcs. For angles formed outside the circle, the measure is half the difference between the intercepted arcs. These patterns make solving for unknown angles much easier!

The product relationships in circles are fascinating mathematical tools. When two chords intersect inside a circle, the products of their segments are equal (EA × EB = EC × ED). Similarly, for secant segments sharing an endpoint outside the circle, the product of one full secant and its external segment equals the product of the other secant and its external segment.

Remember This: When a tangent and secant share an external point, the square of the tangent segment equals the product of the full secant and its external segment (EA² = EC × ED). This relationship comes up frequently in circle problems!

When lines intersect with circles, special angle relationships form. If a tangent and chord intersect at a point on the circle, each angle formed equals half the measure of its intercepted arc. These angle relationships give us powerful ways to find unknown values in geometric diagrams.
