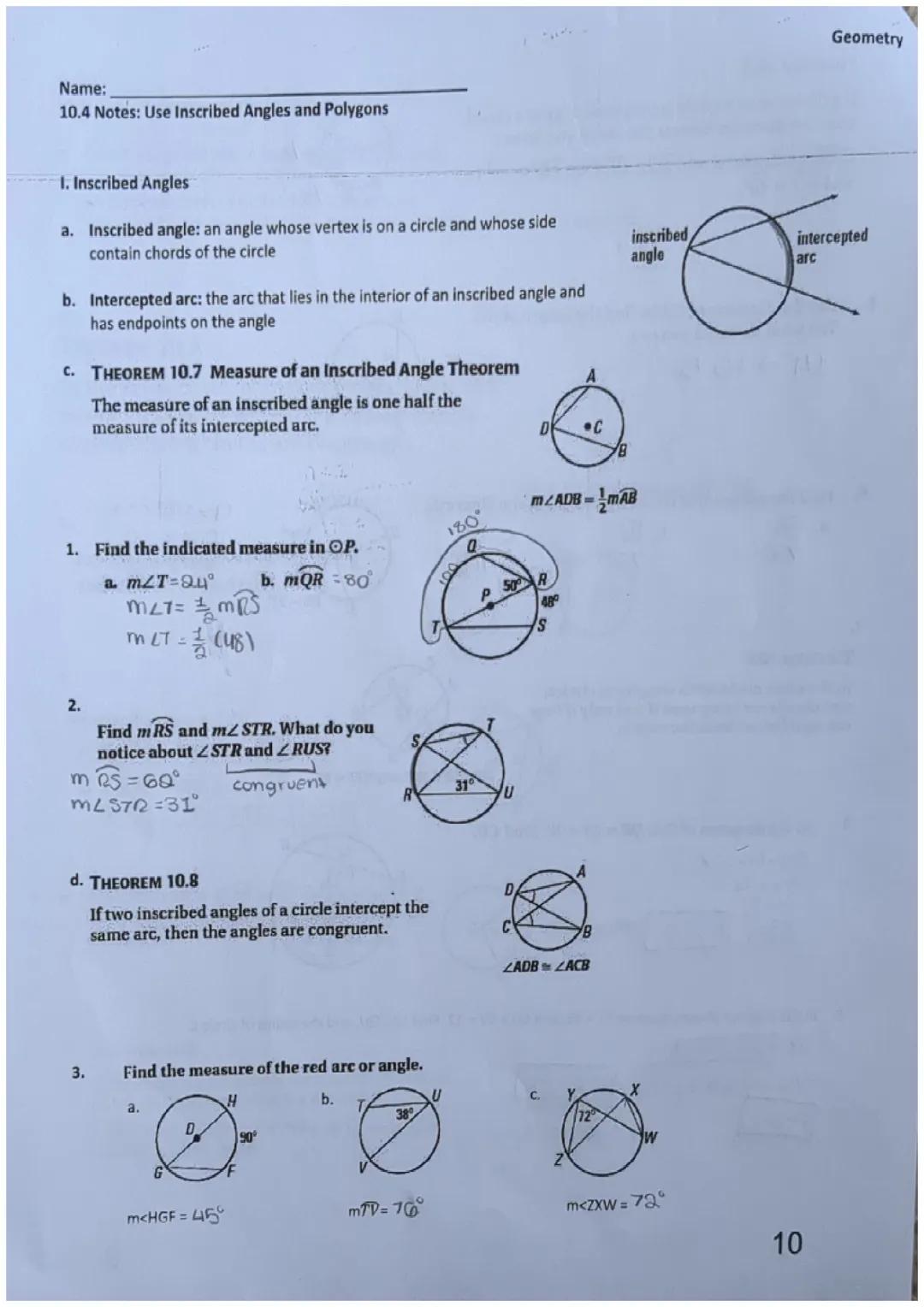

Inscribed Angles
Ever wondered how angles inside a circle relate to the arcs they create? An inscribed angle is an angle with its vertex on a circle and sides containing chords of the circle. The arc that sits inside this angle is called the intercepted arc.
The most important rule to remember is the Inscribed Angle Theorem: the measure of an inscribed angle equals one-half the measure of its intercepted arc. This means if an arc measures 100°, any inscribed angle that intercepts this arc will measure 50°.
Another helpful theorem states that if two different inscribed angles intercept the same arc, these angles are congruent to each other. This gives us a powerful tool for finding unknown angles in circle problems.
Quick Tip: When solving inscribed angle problems, always look for the relationship between the angle and its intercepted arc first. Remember the 1:2 ratio - the angle is always half the arc measure!
To find missing measures in circle problems, apply these theorems directly. For example, if an inscribed angle measures 45°, its intercepted arc must measure 90°. Similarly, if you know an arc measures 70°, any inscribed angle intercepting it will measure 35°.
2
of 2
Inscribed Polygons
A polygon becomes an inscribed polygon when all its vertices lie on a circle. The circle containing these vertices is called the circumscribed circle.
For inscribed quadrilaterals, there's a special property you need to know: a quadrilateral can be inscribed in a circle if and only if its opposite angles are supplementary (add up to 180°). This means if angles D and F are opposite angles in an inscribed quadrilateral, then m∠D + m∠F = 180°.
When working with inscribed triangles, the center of the circumscribed circle is the circumcenter of the triangle. This point is equidistant from all vertices of the triangle, which is why it can be the center of a circle passing through all three points.
Remember: When solving problems with inscribed quadrilaterals, the key is to use the supplementary opposite angles property. This is your go-to strategy for finding missing angle measures!
To solve problems involving inscribed polygons, look for the supplementary relationship between opposite angles. For example, if one angle in an inscribed quadrilateral measures 68°, its opposite angle must measure 112° to create the required sum of 180°.
