Beginner Geometry Class Notes

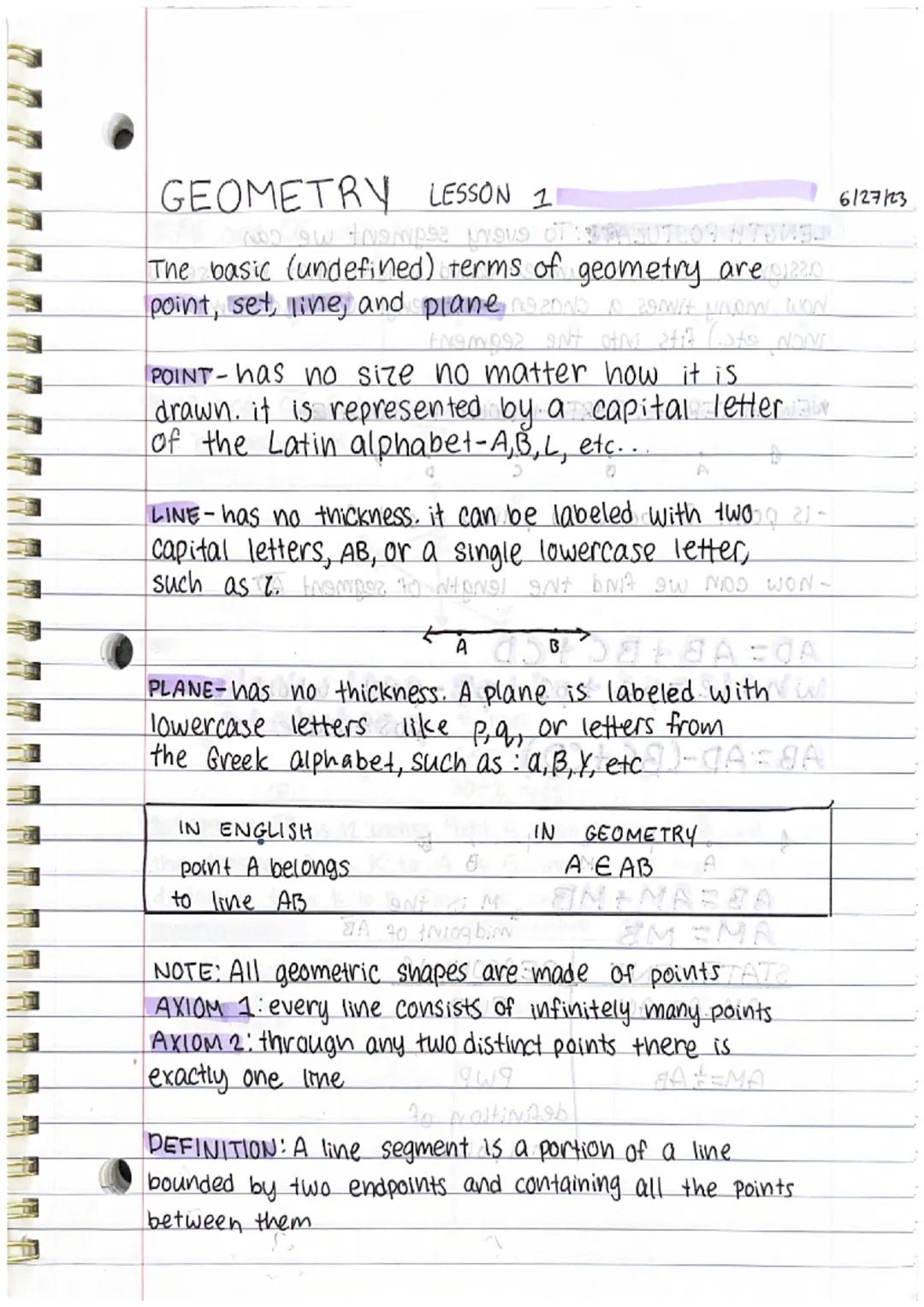

Basic Terms of Geometry

Geometry begins with undefined terms that serve as building blocks for everything else. A point has no size and is represented by capital letters like A or B. A line has no thickness and can be labeled either with two points (AB) or a lowercase letter.

A plane is a flat surface with no thickness, typically labeled with lowercase letters or Greek letters like α or β. In geometry, we use specific notation to show relationships - for example, "point A belongs to line AB" is written as "A ∈ AB."

All geometric shapes are made up of points, and geometry follows specific axioms. Axiom 1 states every line consists of infinitely many points, while Axiom 2 tells us through any two distinct points, there is exactly one line.

💡 Think of points as tiny dots, lines as strings that go on forever in both directions, and planes as giant sheets of paper that extend infinitely in all directions!

A line segment is a portion of a line with two endpoints, containing all points between them. According to the Length Postulate, we can assign a positive number to every segment representing how many units fit into it.

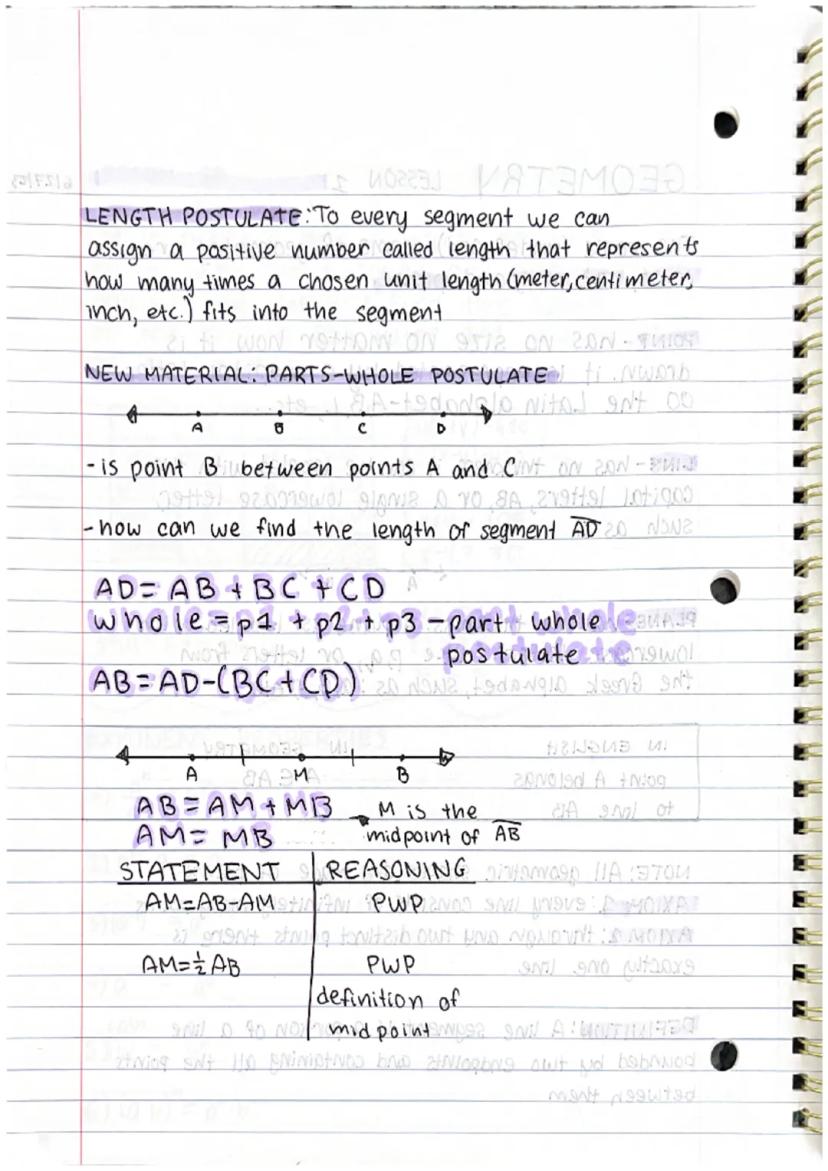

Measuring Segments

The Parts-Whole Postulate is super useful for finding lengths of line segments. It tells us that the length of a whole segment equals the sum of its parts. For example, if points A, B, C, and D lie on the same line in order, then AD = AB + BC + CD.

This postulate works in both directions. If you need to find a specific part of a segment, you can subtract the other parts from the whole. For instance, AB = AD - (BC + CD).

A midpoint is a special point that divides a segment into two equal parts. If M is the midpoint of segment AB, then AM = MB = ½AB. This relationship is incredibly helpful when solving geometry problems.

🔑 Remember: The Parts-Whole Postulate is like a math equation for segments - the whole equals the sum of its parts!

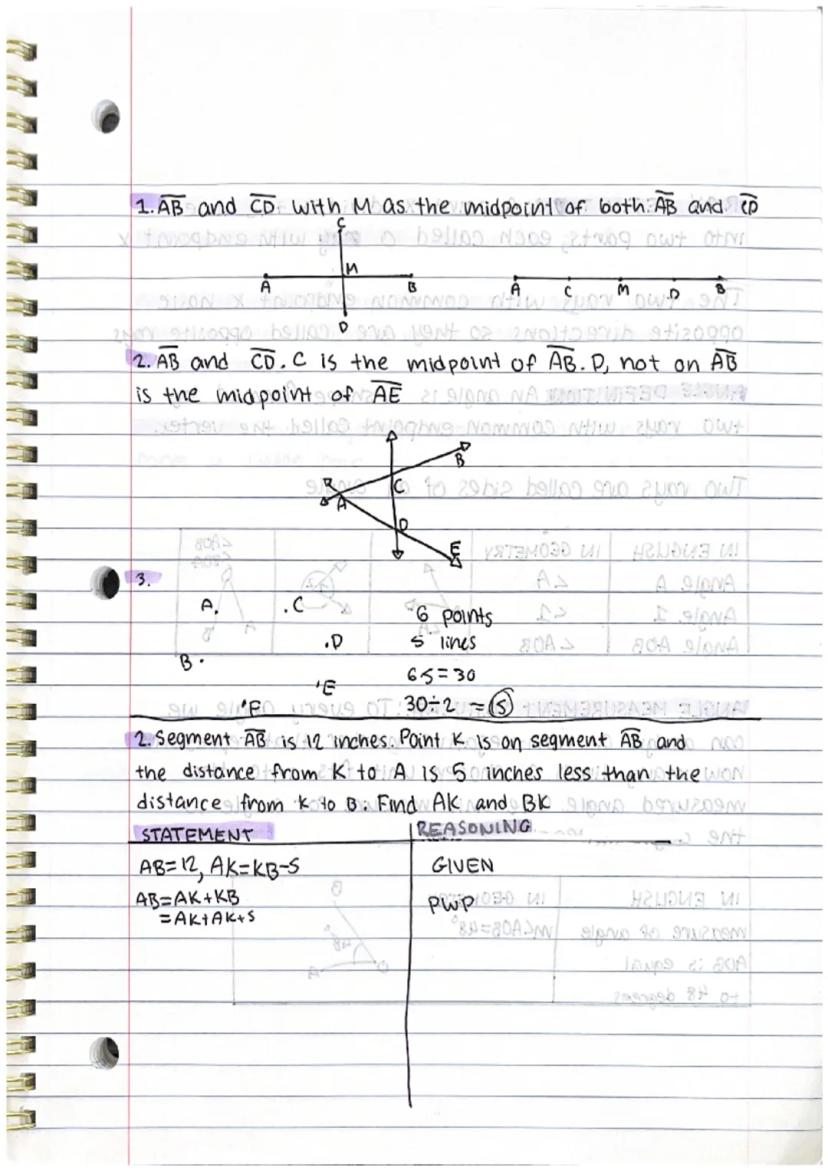

Applying Segment Concepts

Geometry often involves solving problems about segments and midpoints. When multiple segments have the same midpoint, we can use the properties we've learned to find unknown values.

When working with segment problems, start by writing out what you know. For example, if segment AB is 12 inches and point K divides it so that AK is 5 inches less than KB, you can set up an equation. First, use the Parts-Whole Postulate: AB = AK + KB = 12.

Then, incorporate the relationship between the parts: AK = KB - 5. By substituting and solving these equations, you can find the exact lengths of AK and KB.

🧩 Geometry problems often have multiple steps - break them down into smaller parts and use what you know about segments to solve them!

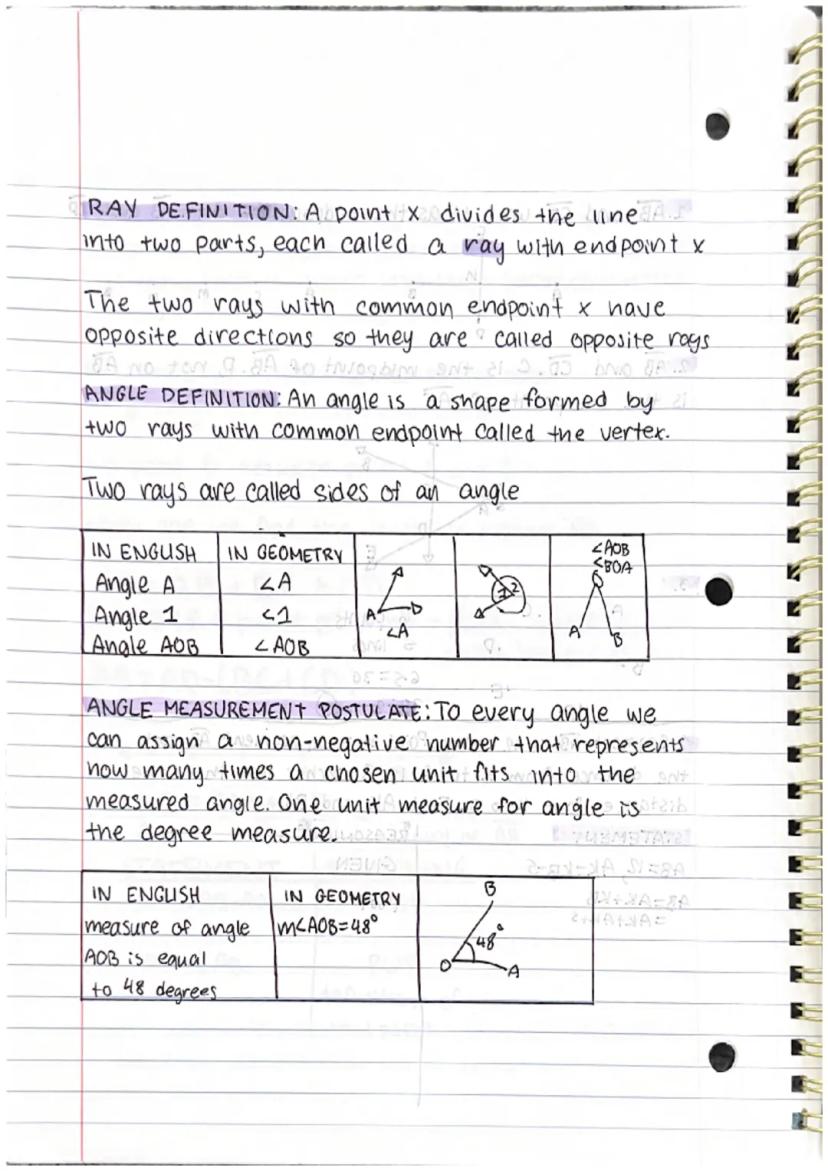

Rays and Angles

A ray starts at an endpoint and extends infinitely in one direction. When a point divides a line, it creates two rays with a common endpoint. If these rays point in opposite directions, they're called opposite rays.

An angle is formed by two rays with a common endpoint called the vertex. We can label angles in several ways: by their vertex (∠A), by a number (∠1), or by three points with the vertex in the middle (∠AOB).

According to the Angle Measurement Postulate, we can assign a non-negative number to every angle representing its size. The most common unit of measure is degrees. For example, m∠AOB = 48° means the measure of angle AOB is 48 degrees.

📐 Think of an angle like opening scissors - the vertex is the pivot point, and the rays are the blades that can open to different degrees!

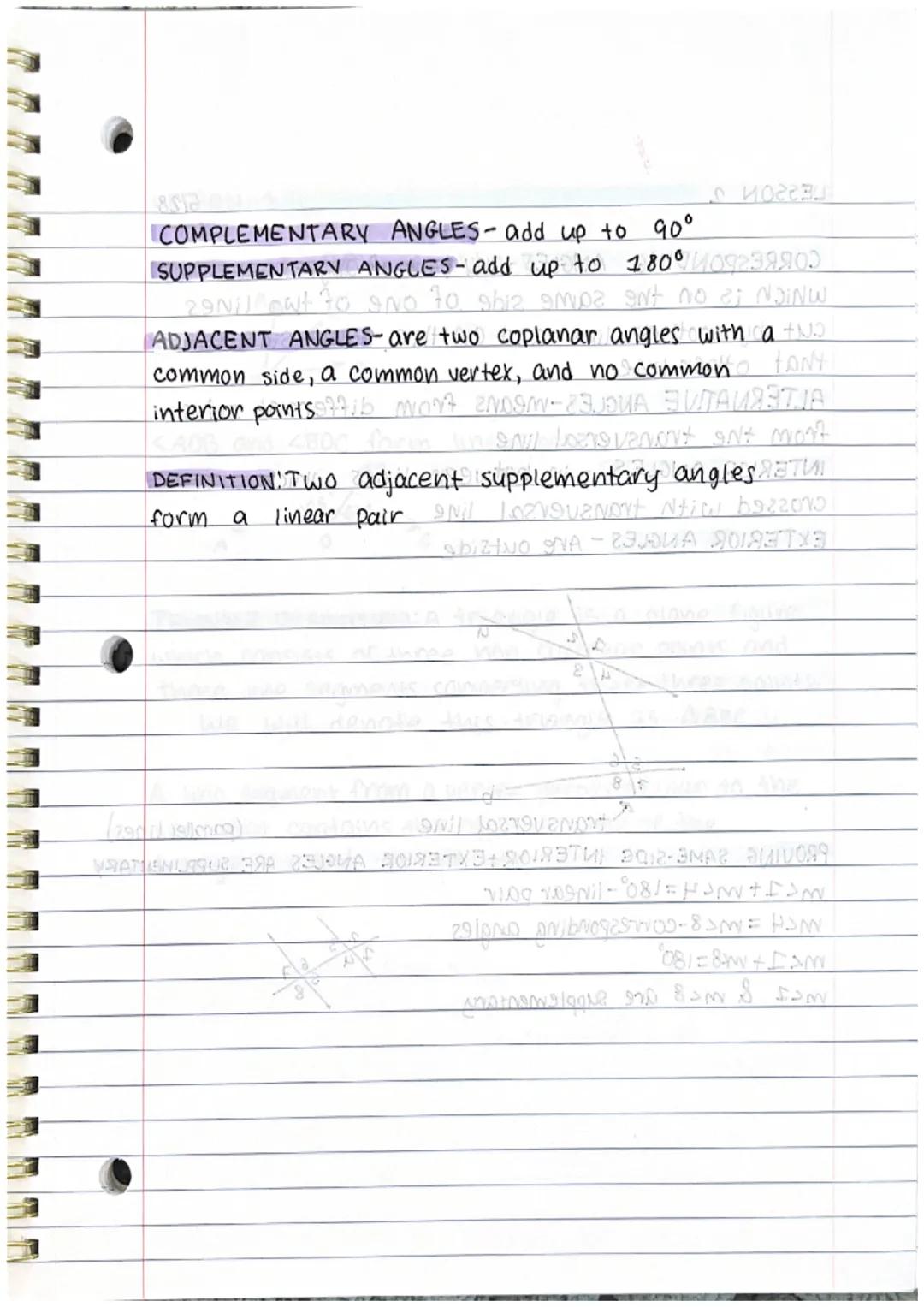

Angle Relationships

Angles have special relationships that help us solve geometric problems. Complementary angles add up to 90° - think of them as angles that complete each other to form a right angle.

Supplementary angles add up to 180° - they complete each other to form a straight line. When two angles share a common vertex, a common side, and have no common interior points, they're called adjacent angles.

When two adjacent angles are also supplementary (adding to 180°), they form a linear pair. Linear pairs always lie on a straight line, which is why they equal 180° together.

🔄 Recognizing angle relationships is like having shortcuts in geometry - when you know angles are complementary or supplementary, you can quickly find unknown angle measures!
