When lines intersect, they create specific angle relationships that follow...
Geometry81 views·Updated Jul 29, 2026·3 pagesComprehensive Guide to Properties of Parallel Lines
1 / 3
1
of 3

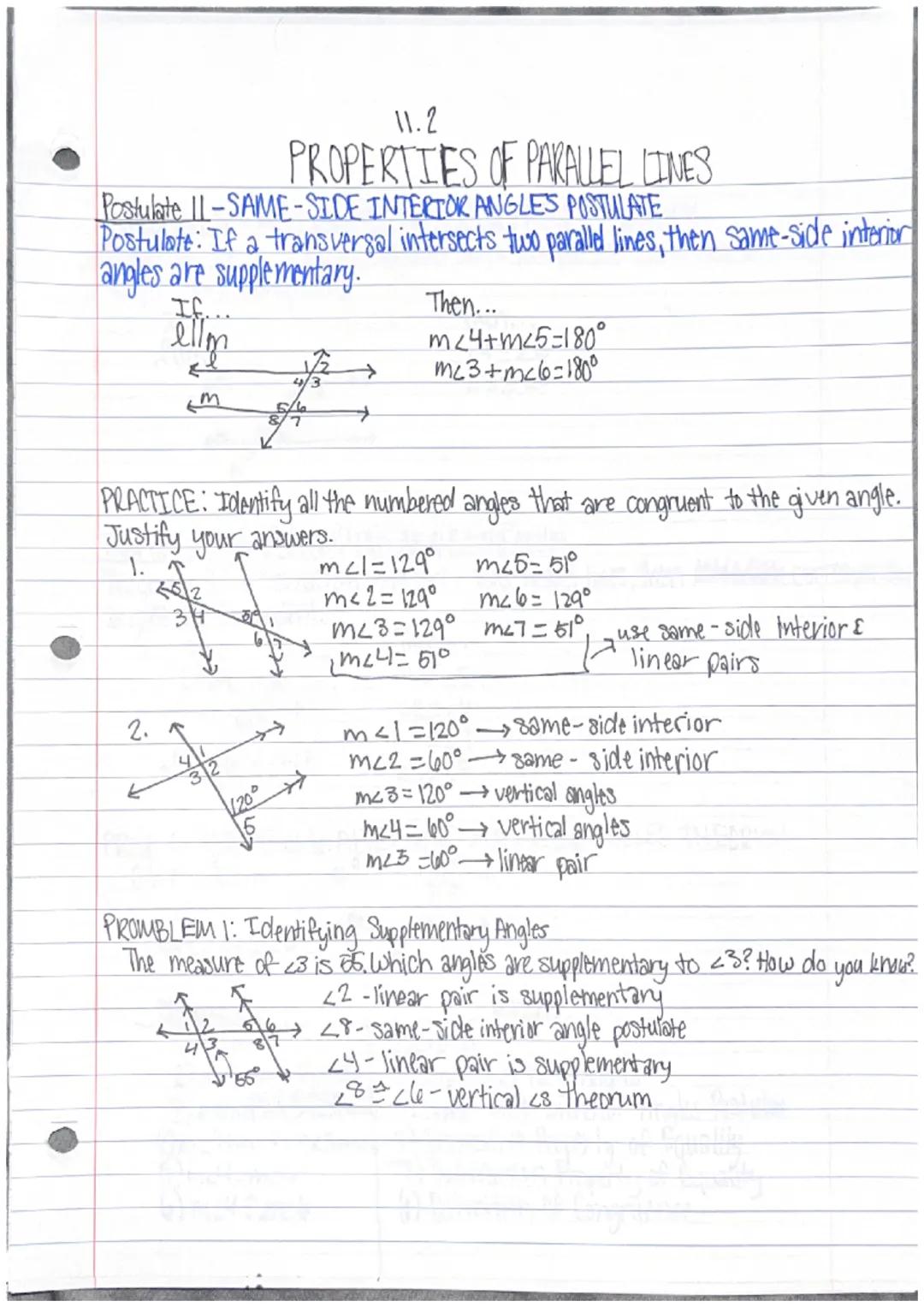

Properties of Parallel Lines with Transversals
When a transversal cuts across two parallel lines, it creates special angle relationships you can use to solve problems. The Same-Side Interior Angles Postulate tells us that if two lines are parallel, same-side interior angles are supplementary (add up to 180°).
For example, if angle 4 and angle 5 are same-side interior angles formed by parallel lines, then m∠4 + m∠5 = 180°. This relationship is incredibly useful when you need to find missing angle measures.
When identifying congruent angles in parallel line situations, look for patterns. Angles with the same measure might be corresponding angles, vertical angles, or alternate angles depending on their position.
💡 Quick Tip: When working with parallel lines and transversals, identify all angle pairs first (vertical, corresponding, alternate interior, etc.) before solving. This makes finding missing angles much easier!
2
of 3

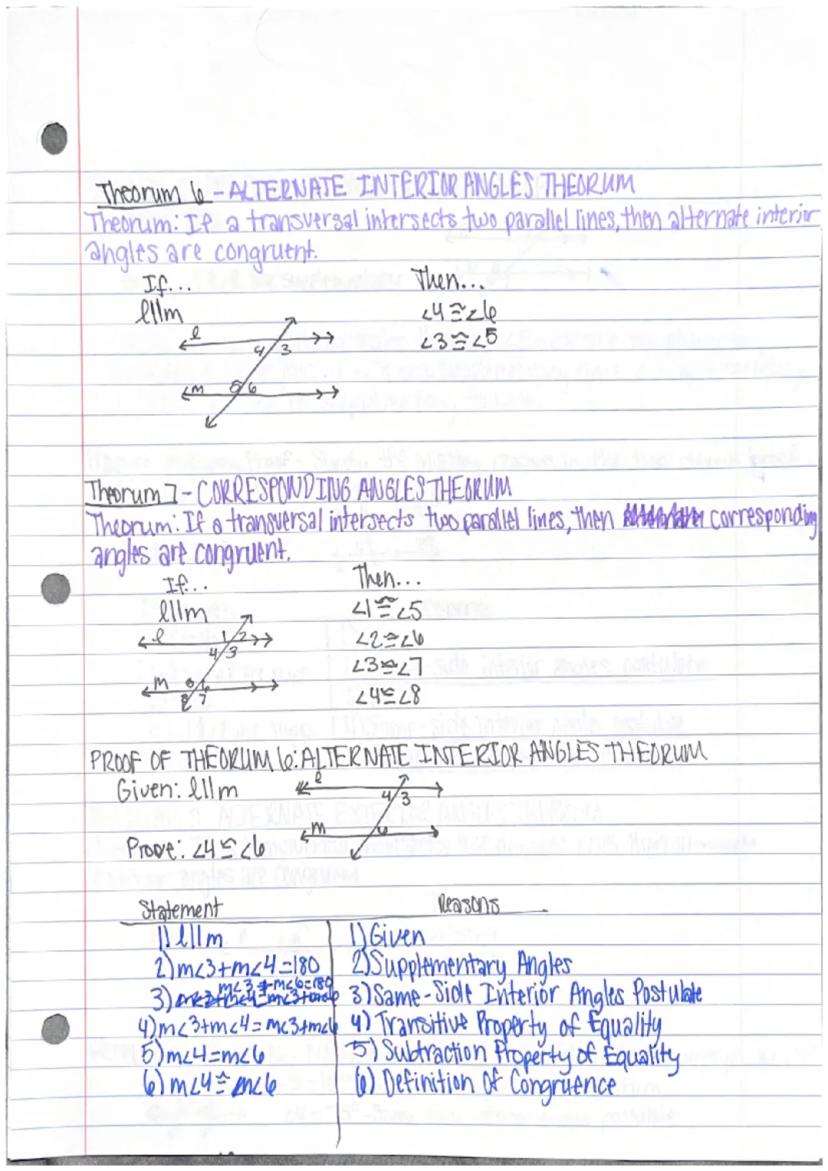

Theorems for Parallel Lines
The Alternate Interior Angles Theorem states that when parallel lines are cut by a transversal, alternate interior angles are congruent. If lines l and m are parallel, then ∠4 ≅ ∠6 and ∠3 ≅ ∠5.
The Corresponding Angles Theorem is another powerful tool. It tells us that when a transversal intersects parallel lines, corresponding angles are congruent. This means ∠1 ≅ ∠5, ∠2 ≅ ∠6, ∠3 ≅ ∠7, and ∠4 ≅ ∠8.
You can prove these theorems using properties we already know. For example, the Alternate Interior Angles Theorem can be proven using the Same-Side Interior Angles Postulate and the properties of supplementary angles.
🔍 Remember: When writing proofs, each step needs a specific reason. Don't just say "by parallel lines" – specify which theorem or postulate you're using (like "Corresponding Angles Theorem").
3
of 3

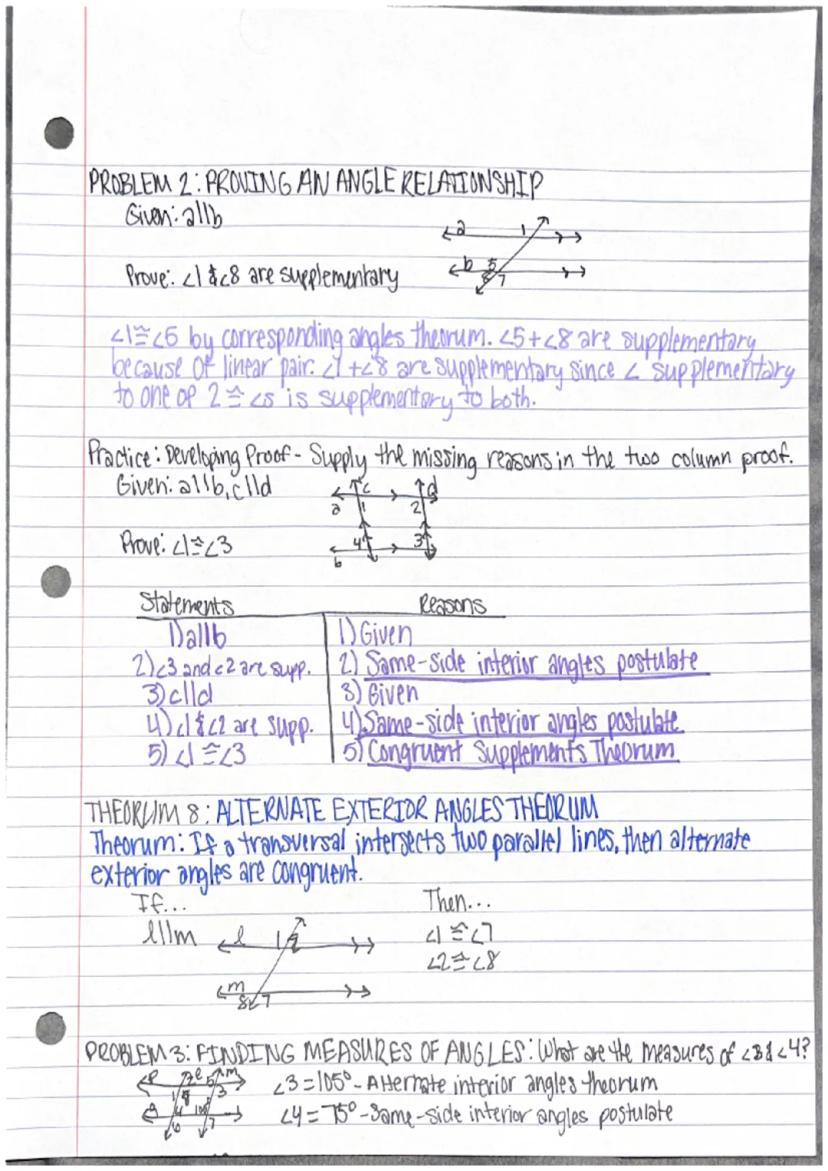

More Angle Relationships and Proofs
The Alternate Exterior Angles Theorem states that when a transversal intersects parallel lines, alternate exterior angles are congruent. This gives us yet another tool to find missing angles.
When developing proofs involving parallel lines, think about how one angle relationship leads to another. For example, if you know that angles are supplementary to the same angle, they must be congruent by the Congruent Supplements Theorem.
Practice problems help solidify these concepts. When finding angle measures, identify the relationship first (corresponding, alternate interior, etc.), then apply the appropriate theorem. For instance, if ∠3 = 105° in a parallel line setup, we can find ∠4 = 75° using the same-side interior angles postulate.
🌟 Pro Tip: In geometry proofs, always start with what's given, then build a logical chain of statements that leads to what you need to prove. Each step should follow naturally from the previous one.
