The Pythagorean Theorem is one of geometry's most powerful tools,...
Understanding the Pythagorean Theorem




Understanding the Pythagorean Theorem

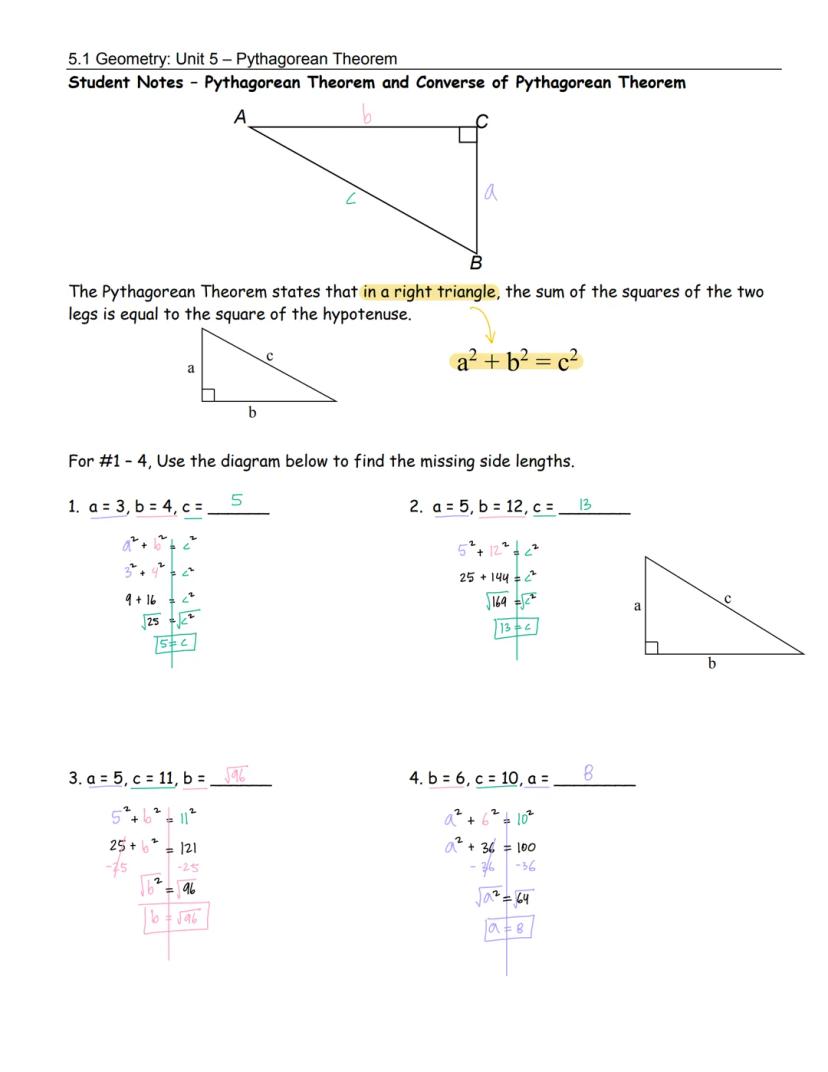

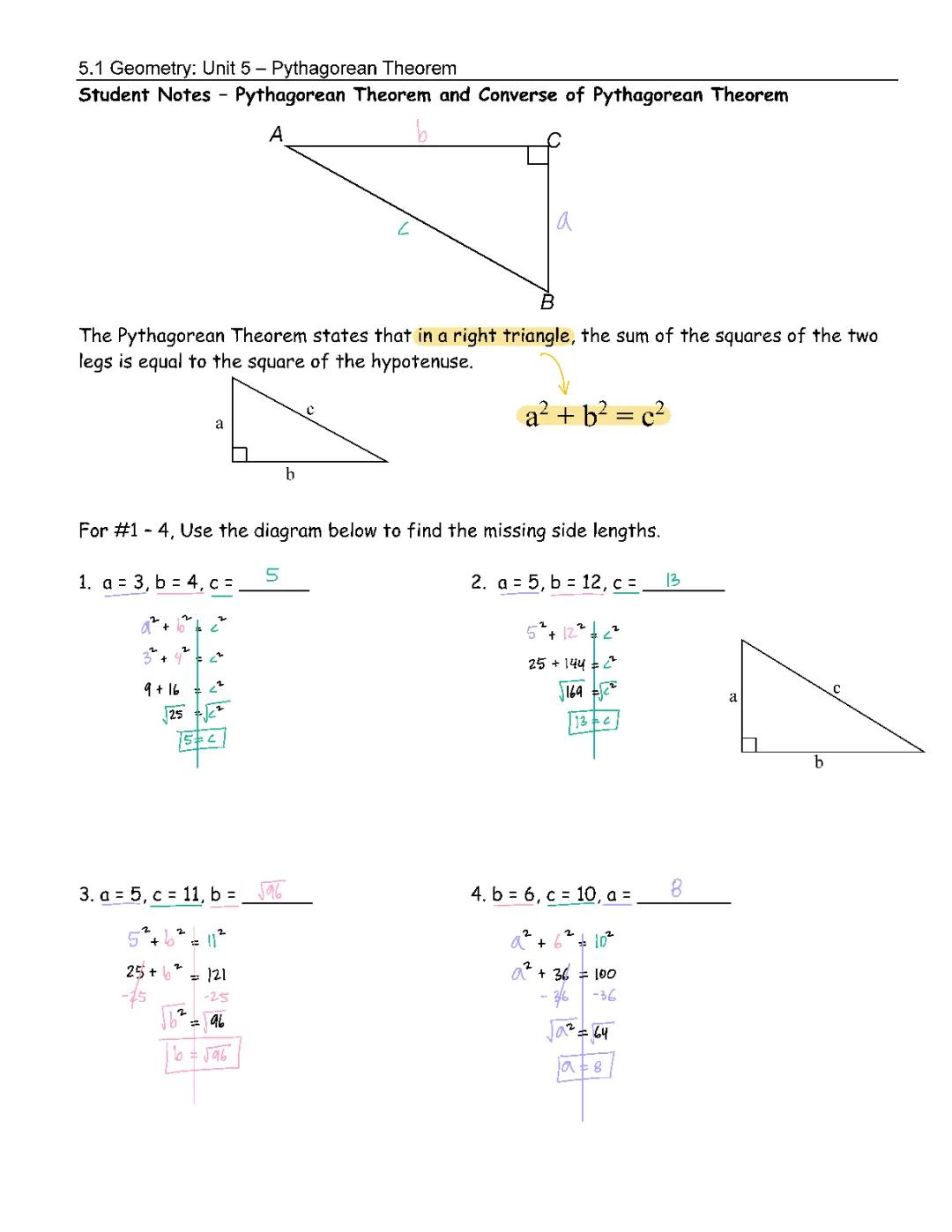

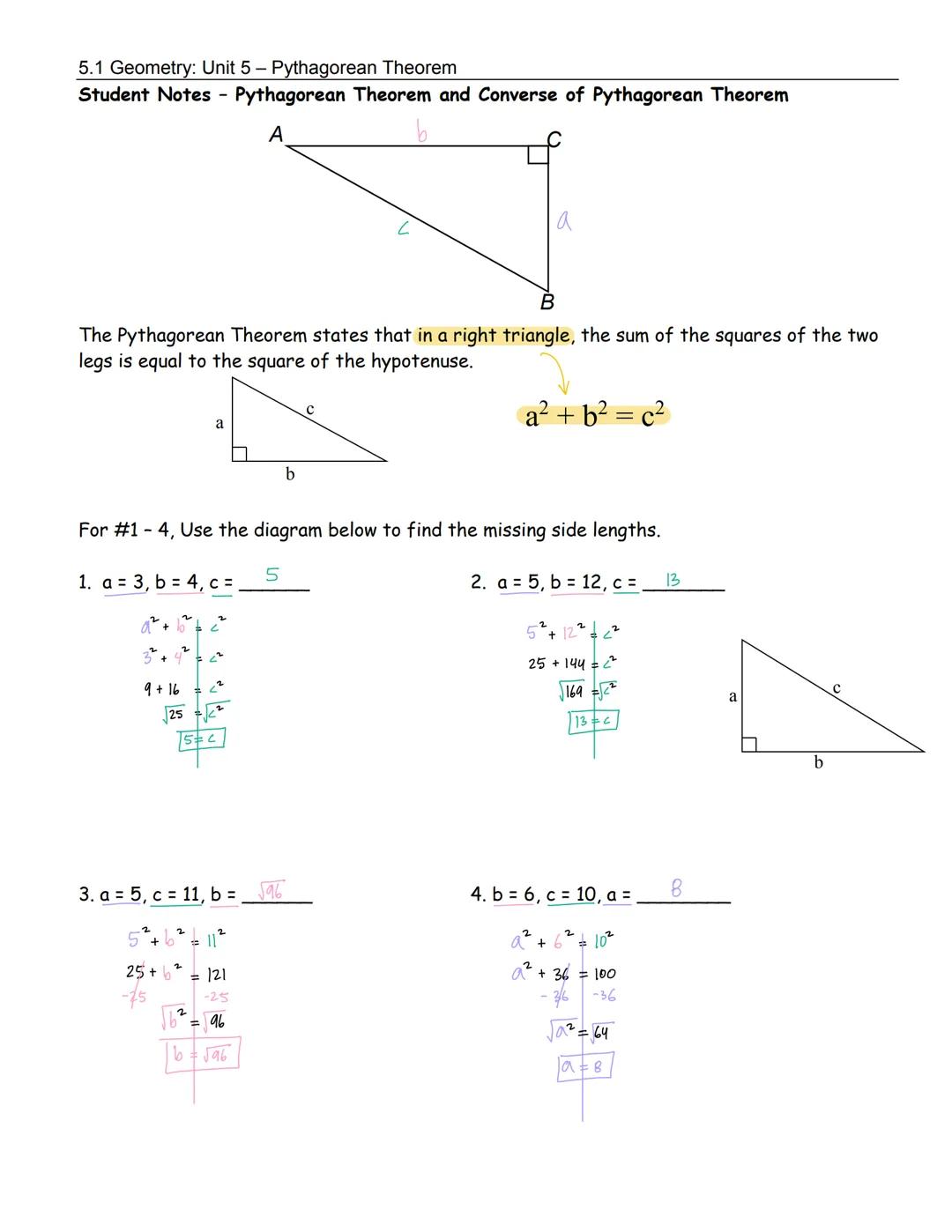

The Pythagorean Theorem states that in a right triangle, the sum of squares of the two legs equals the square of the hypotenuse. If we label the legs as a and b, and the hypotenuse as c, then a² + b² = c².
This formula lets you find any side of a right triangle when you know the other two sides. For example, if a = 3 and b = 4, you can calculate c by substituting the values: 3² + 4² = c², which gives 9 + 16 = 25, making c = 5.
When solving for a leg instead of the hypotenuse, simply rearrange the equation. If you know b = 6 and c = 10, then a² + 36 = 100, which means a² = 64 and a = 8.
💡 Quick Tip: The numbers 3-4-5, 5-12-13, and 8-15-17 form "Pythagorean triples" - whole number combinations that satisfy the theorem. Memorizing these can save you calculation time on tests!

Real-World Applications

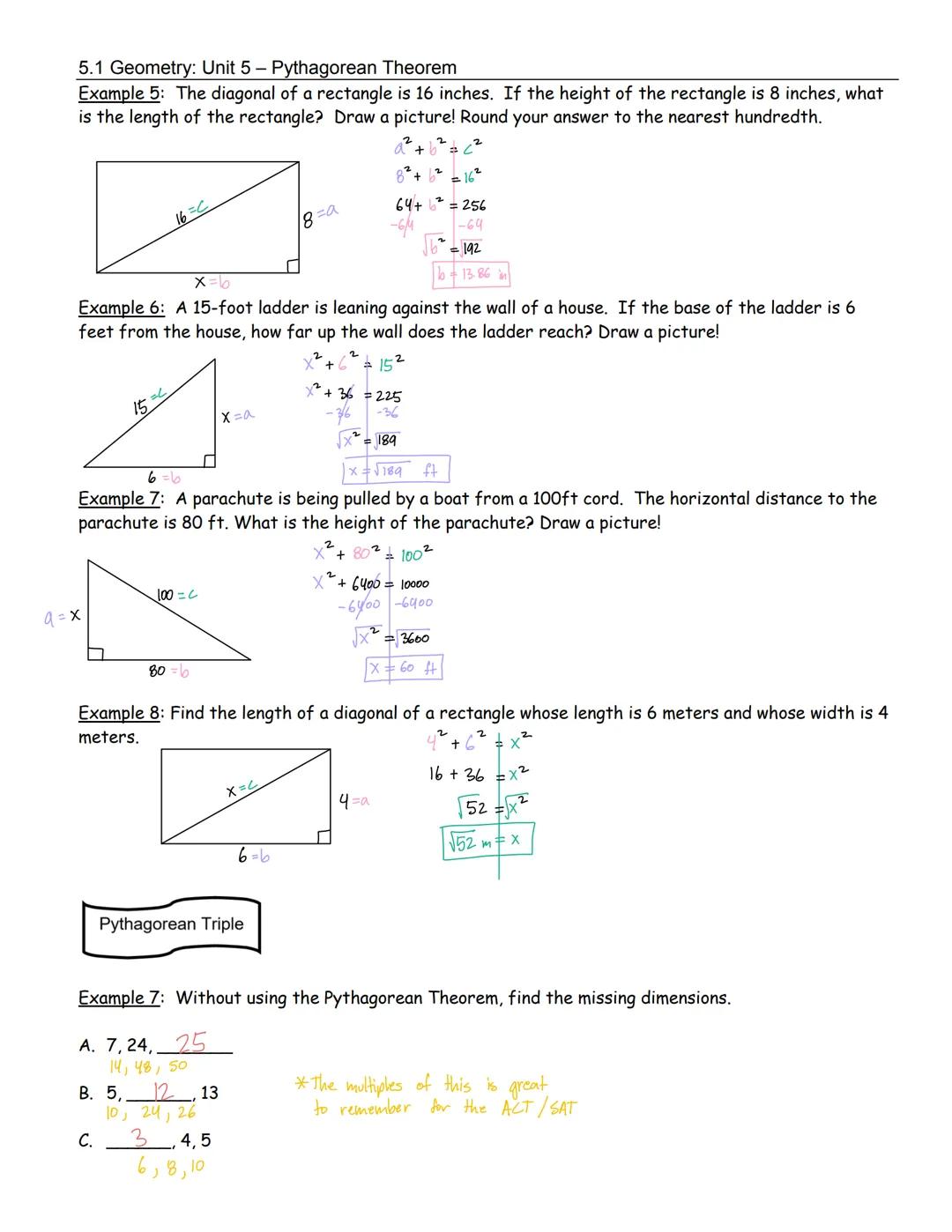

The Pythagorean Theorem helps solve practical problems involving right angles. When you encounter word problems, start by drawing a picture to visualize the right triangle.
For rectangles, the diagonal creates a right triangle with the length and width. If a rectangle has a width of 4 meters and length of 6 meters, the diagonal would be √ = √ = √52 meters.
Ladders against buildings create natural right triangles. If a 15-foot ladder is placed 6 feet from a wall, the height it reaches up the wall is √ = √ = √189 feet.
When dealing with parachutes, heights, or any scenario where you have a right angle, identify what represents the legs and hypotenuse. For instance, a parachute attached to a boat by a 100ft cord with a horizontal distance of 80ft would be at a height of 60ft.
🔍 Remember: Pythagorean triples like 3-4-5, 5-12-13, and 7-24-25 (and their multiples) appear frequently on standardized tests like the ACT/SAT. Recognizing these patterns can save valuable time!

Beyond Right Triangles

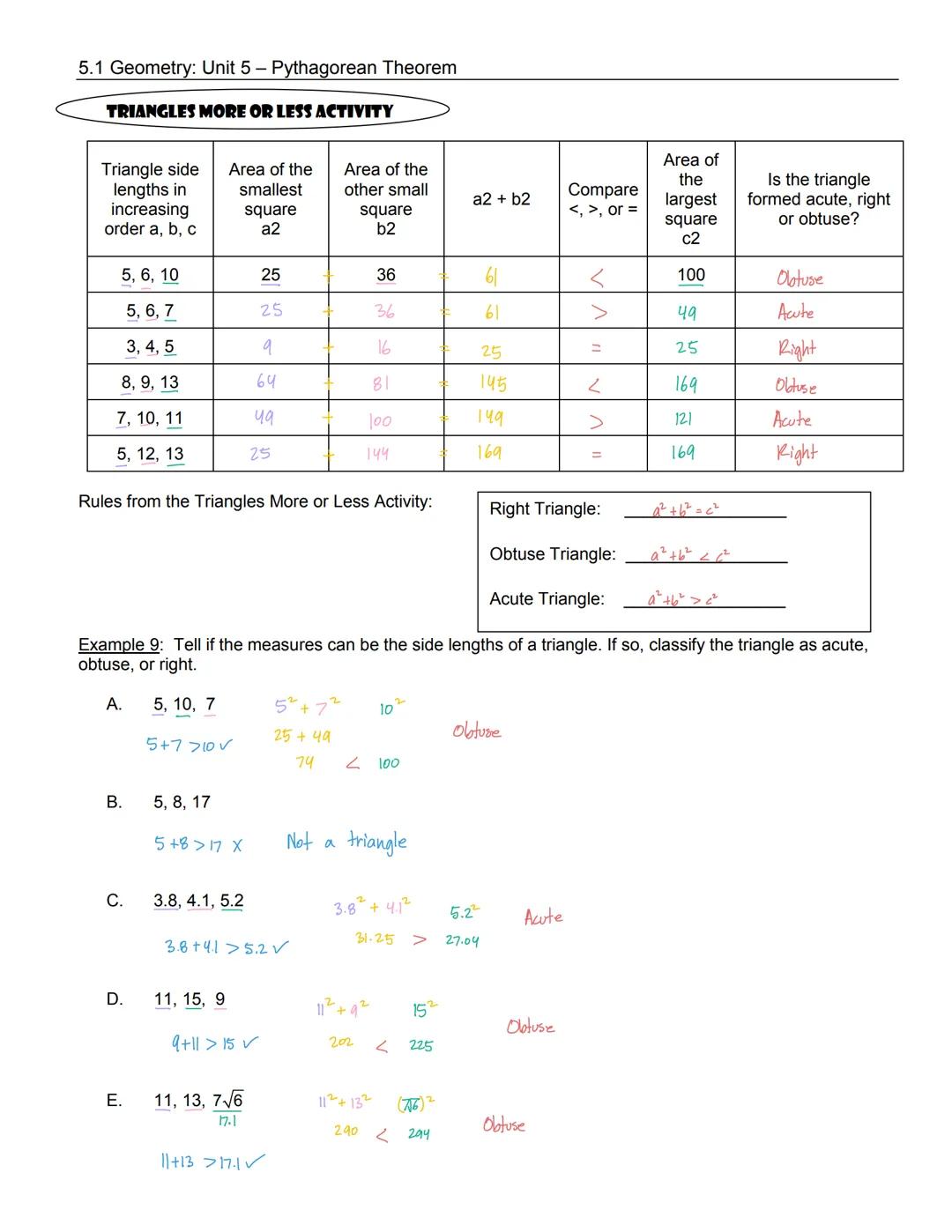

The relationship between the squares of triangle sides tells you about the triangle's angle types. This extension of the Pythagorean concept helps classify triangles.
For right triangles, the equation a² + b² = c² holds true. For example, a triangle with sides 5, 12, and 13 is right because 5² + 12² = 13² .
In obtuse triangles, the square of the longest side is greater than the sum of squares of the other two sides: a² + b² < c². A triangle with sides 5, 6, and 10 is obtuse because 5² + 6² < 10² (61 < 100).
For acute triangles, the square of the longest side is less than the sum of squares of the other two sides: a² + b² > c². A triangle with sides 7, 10, and 11 is acute because 7² + 10² > 11² (149 > 121).
⚠️ Important note: Before applying these rules, remember to check if the sides can actually form a triangle at all! The sum of the lengths of any two sides must be greater than the third side.
